30000Ton large capacity 24hours continuous running pyrolysis turning plastic waste to fuel oil plant
- Category: >>>
- Supplier: Niutech Environment Technology Corporation
Share on (1600567814613):
Product Overview
Description
Product Description
Plastic waste recycling production line can process all kinds of waste plastics, such as PP/PE/PS, single or mixed plastics. By thoroughly decomposition, the polymer in waste plastic can be cracking into small molecular or monomers, producing pyrolysis oil. After refining, the pyrolysis oil can be used as the raw material for the production of new plastics. Under the premise of safety, environmental protection, continuous and stable operation, the chemical recycling of waste plastics can be realized.
Technical Parameters
No. | Item | Technical Parameter |
1 | Suitable Raw Material | All kiinds of waste plastics. PP/PE/PS, single or mixed plastics |
2 | Operation Mode | fully continuous operation |
3 | Structure | horizontal type |
4 | Loading and Discharging | fully automatic feeding and discharging |
5 | Capacity(24h) | >=30Mt/Day (customized) |
6 | Work Pressure | normal pressure(slightly negative) |
7 | Oil Yield | 43~48% |
8 | Power | 50~60kw/h |
9 | Cooling System | cycle water |
10 | Heating System | hot air |
11 | Noise | <=85(dB) |
12 | Main Reactor Weight | 40Mt |
13 | Installation Space Required |
Main Parts of System
Feeding System
The raw material is automatically transported to the transitional hopper through the feeding conveyor. This system can also
realize on-line weighing, conveying, feeding seal and other functions.

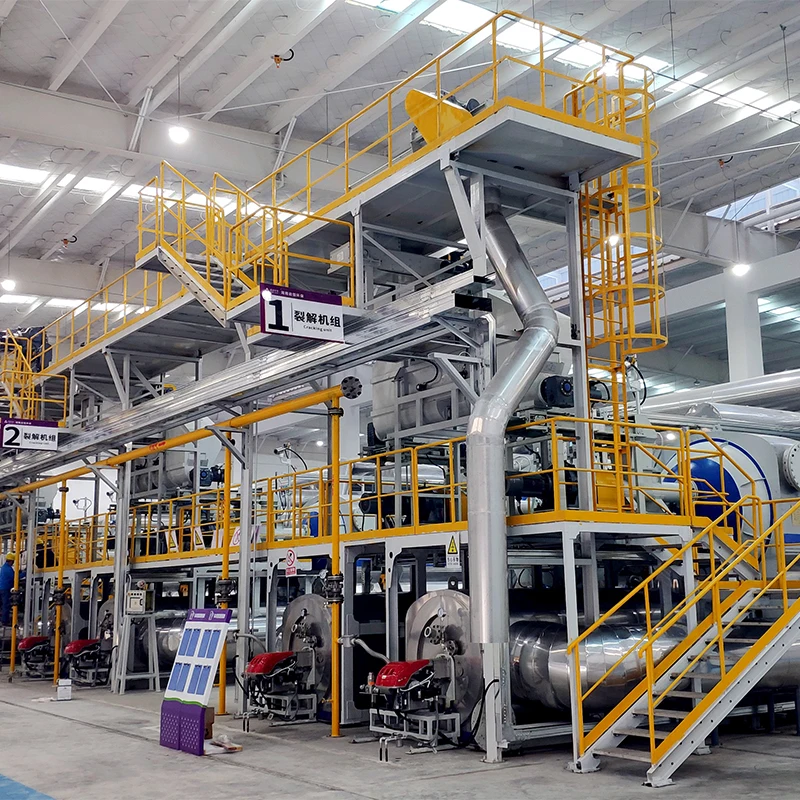

Pyrolysis System
In the oxygen-free or oxygen-poor environment, the pyrolysis system function is to complete the pyrolysis reaction of organic waste or hazardous waste and convert the raw material into pyro oil, NCG and solid output under normal pressure, low pyrolysis temperature or catalyst action.
Non-condensable combustible (NCG) gas scrubbing system
While to remove the acid components in NCG, such as hydrogen sulfide, the pressure is also maintained within a reasonable range through the NCG scrubbing system and further supply energy to downstream.

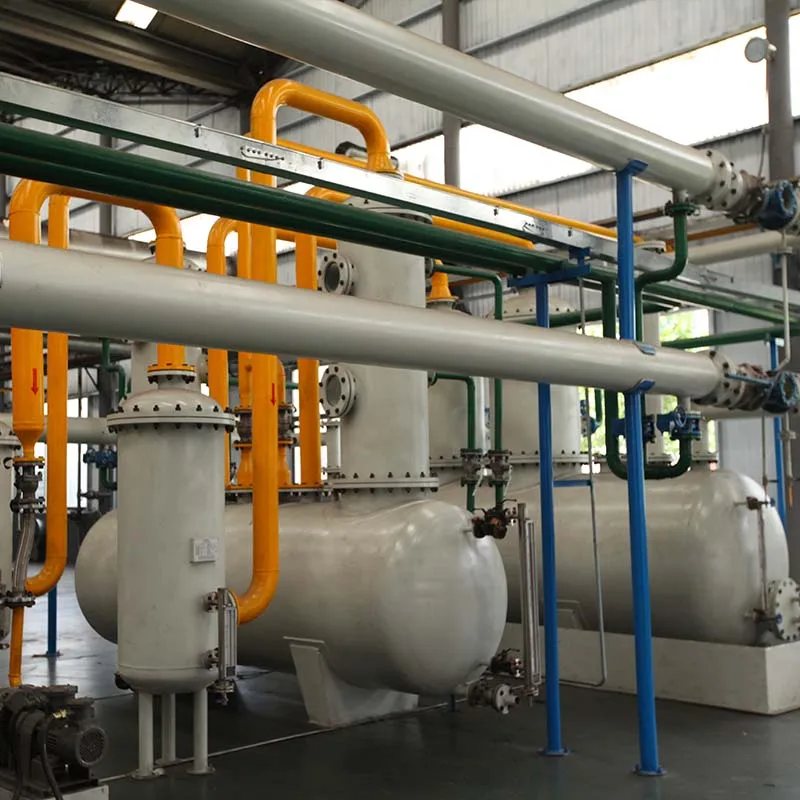

Oil Gas Cooling and Separating System
This system is to cool the gas phase output from pyrolysis reactor to the safe temperature and separate them according to the different boiling points.
Discharging System
The main function of discharging system is to complete the discharge seal, cool and convey the solid output.
Electrical control system
Electrical control system adapts PLC/DCS control system to automatically control the control points. It also has the functions of date collection, calculation, record, printing record, safety alarming etc.
Niutech Environment Core Technology Advantages
1) The real advanced industrial continuous pyrolysis production mode with large capacity
2) Wide adaptability of raw material
3) Low processing cost
4) Pyrolysis rate is better than National Standard that required ＞99%
5) Excellent enviromental benefit.
6) whole pyrolysis process is completed in the closed pipelines to avoid the dust, VOC leakage issue and the secondary pollution.
7) Emission in compliance with EEA standards in EU and EPA standards in USA
8) Whole line PLC smart control system.Highly automated. Through the PLC/DCS automatic intelligent control system, it can monitor, collect, display, calculate, process and issue corresponding instructions
9) Few staff required
End Product
Oil
Oil Output Rate : 43%- 48%
Solid Feul
Certifications
CE/UKCA/ATEX certified.
Emission comply with EEA standard in EU and EPA standard in USA.
Emission comply with EEA standard in EU and EPA standard in USA.
80+ Domestic and abroad patents.
Partial of our patents and awards.
Invention Patents authorized in China, US, Canada Australia, Korea, India, Taiwan, Japan and many orher countries and areas.
National Invention Patents Certificates.
National Patents Certificates.
Packing & Delivery
\t\t\t\t\t\t\t\t\tCase Show \t\t\t\t\t\t\t

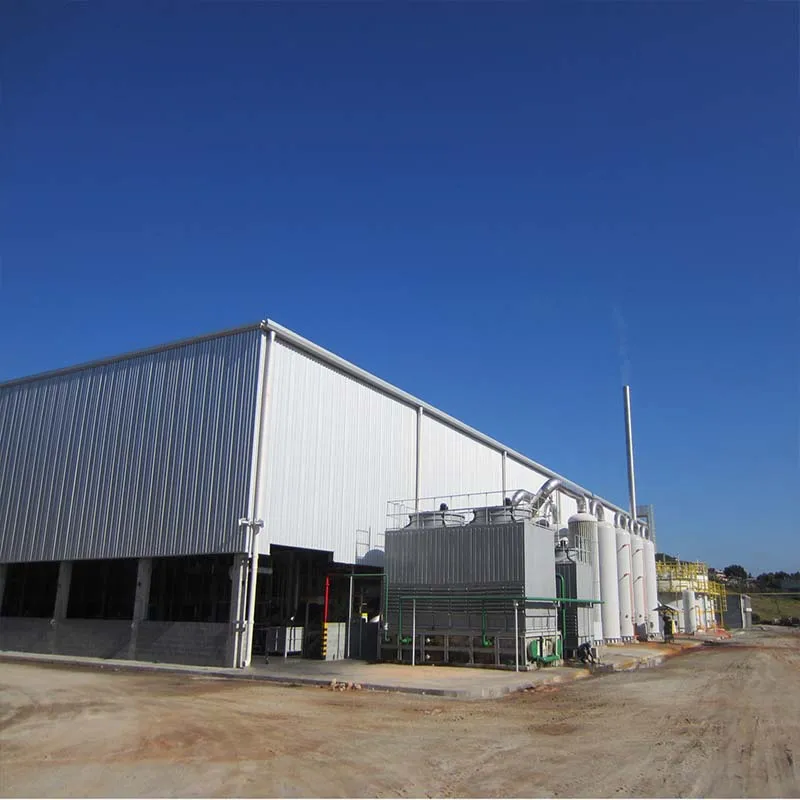

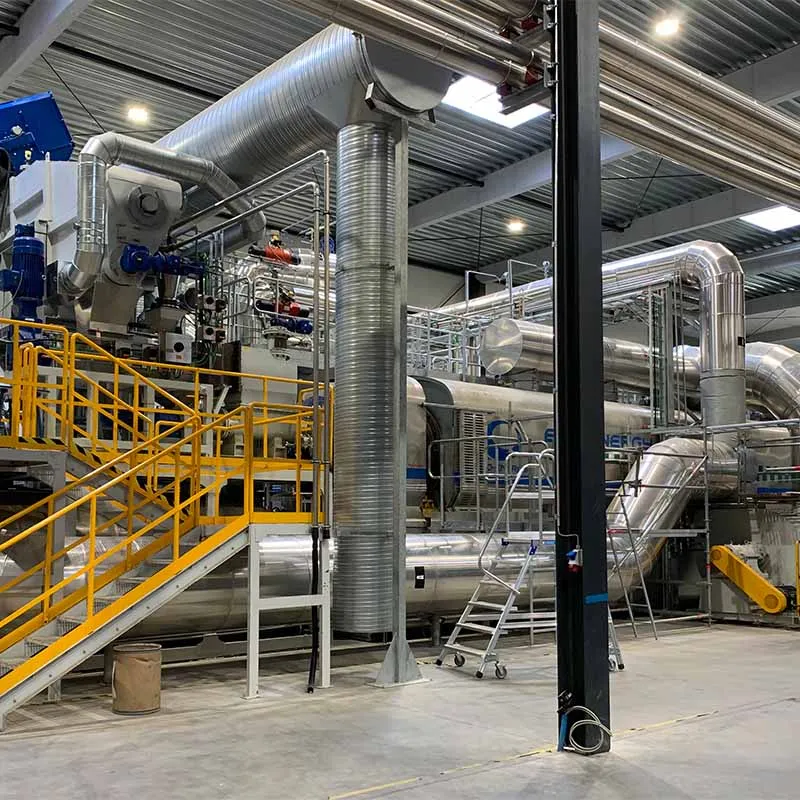

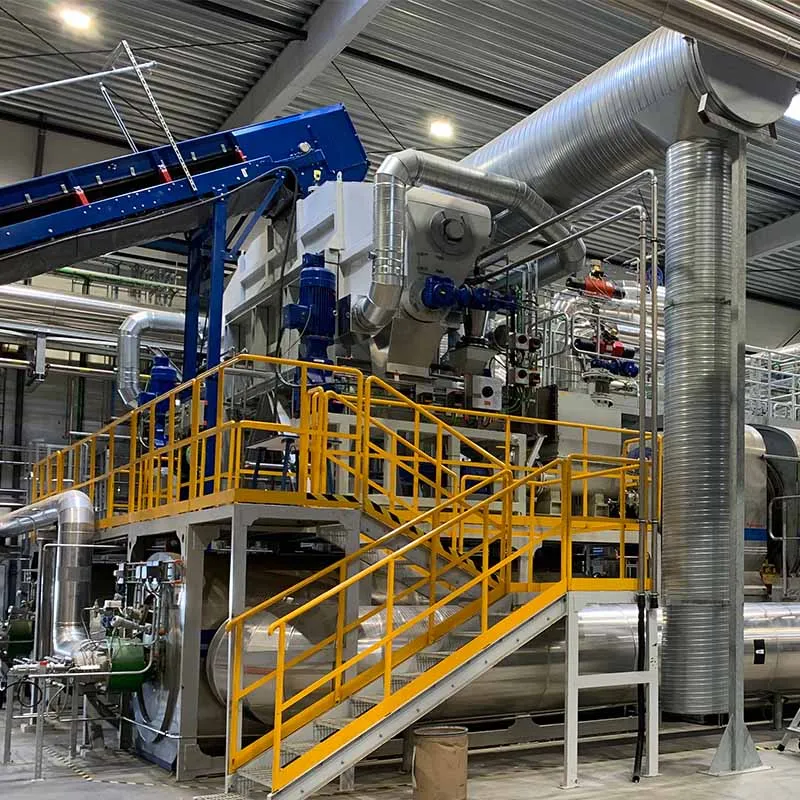

This project was delivered successfully marks Niutech environmental pyrolysis equipment already met EU and Germany strict requirement on environment and technology performance
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Company Profile
Niutech Environment Technology Corporation is the world leading and professional service provider of waste polymer resource utilization. It is the only IPO listed company in pyrolysis industry.
Integrity-based and customer-oriented, Niutech has adhered to the business philosophy of innovation and quality, and developed the team of high-level scientific research strength, internationalized manufacturing capacity and professional engineering and sales service to facilitate diversified commercial cooperation models. Niutech pyrolysis technology and facilities have the advantages of low operation cost and intelligent automation to offer the customers with the integrated solutions for the reductive, harmless and recycling treatment of polymer wastes.
So far, Niutech technical solutions have not only been applied in China, but also overseas projects in Germany, Denmark, Brazil, Hungary, Turkey, Estonia, India, Thailand and Iraq etc.
Integrity-based and customer-oriented, Niutech has adhered to the business philosophy of innovation and quality, and developed the team of high-level scientific research strength, internationalized manufacturing capacity and professional engineering and sales service to facilitate diversified commercial cooperation models. Niutech pyrolysis technology and facilities have the advantages of low operation cost and intelligent automation to offer the customers with the integrated solutions for the reductive, harmless and recycling treatment of polymer wastes.
So far, Niutech technical solutions have not only been applied in China, but also overseas projects in Germany, Denmark, Brazil, Hungary, Turkey, Estonia, India, Thailand and Iraq etc.
FAQ
Q: What is pyrolysis technology ?
A: Pyrolysis is one of the leading edge technologies in the field of polymer energy study. The technology can use continuous process and industrial production to convert high-molecular-weight polymers (Scrap tyres, waste plastics, oil sludge and biomass) into high value added energy products with quality and high energy density, which are easy to store, transport and use. Pyrolysis technology can be uesd in a wide range. Please fell free to contact us if any cooperation is needed.
Q: What key problems are conquered in pyrolysis industrial ?
A: Conquer many problems such as the coking in pyrolysis system, incondesable gas emissions, the quipment cannot be of a long-time continuous operation, the carbonization generated in the process, and hydrochloric acid produced by PV C in waste plastic treatment.
Q: How to insist "Scientific and technological innovation is the driving force of enterprise development" ?
A: Working on the pyrolysis field for 30 years, Niutech constantly achieves technological innovation by virtue of the most professional R & D team in the world, and deepens production and research cooperation with Tsinghua University, Nankai University, Qingdao University of Science and Technology and other famous universities, closely joining the scientific research with industrial production, in order to achieve technology, capital, talent and other innovative elements of the intensive agglomeration and optimal allocation, so as to speed up the industrialization of scientific and technological achievements, and continuously enhance our independent development and innovation capabilities, promote industrial technology development.
