YB 250 Automatic Flow Packing Machine For Ice Cream Bar Summer Ice Pop Packaging Machine
- Category: >>>
- Supplier: Shanghai Jiaoban Machinery Co. Ltd.
Share on (1600567826090):
Product Overview
Description
YB-250 Automatic flow packing machine for ice cream bar Summer Ice Pop Packaging Machine // Shanghai JB Machinery, Contact: +8613916983251
Function and features:
1.Color touch screen dispaly,PLC/computer control, automatic and fast photoelectric track.
2.The bag length need not be set,machine could detect it automatically .
3.Machine has high performance,simple operation and fast packing speed.
4.Gear system besides double frequency converter controller,which making machine simple
operation,high-speed and stable performance. It's the first third-generation pillow type packing machine in China.
Samples pictures
Technical parameters:
Model | YB-350 | YB-250 |
Packing speed | 35-180 bags/min | 35-180 bags/min |
Width of film | 90-350 mm | 90-250 mm |
Making bag size | L 65-190, W 30-160, H 5-50 (mm) L 90-220, W 30-160, H 5-60 (mm) L 150-330, W 30-160, H 5-60 (mm) | L 65-190, W 30-110, H 5-50 (mm) L 90-220, W 30-110, H 5-60 (mm) L 150-330, W 30-110, H 5-60 (mm) |
Total power | 2.4 KW | 2.7 KW |
Power supply | 1 Ph. AC220V, 50/60Hz | 1 Ph. AC220V, 50/60Hz |
Machine s ize | L4000 × W950 × H1500 mm | L3800 × W850 × H1500 mm |
Net weight | 500kg | 400kg |

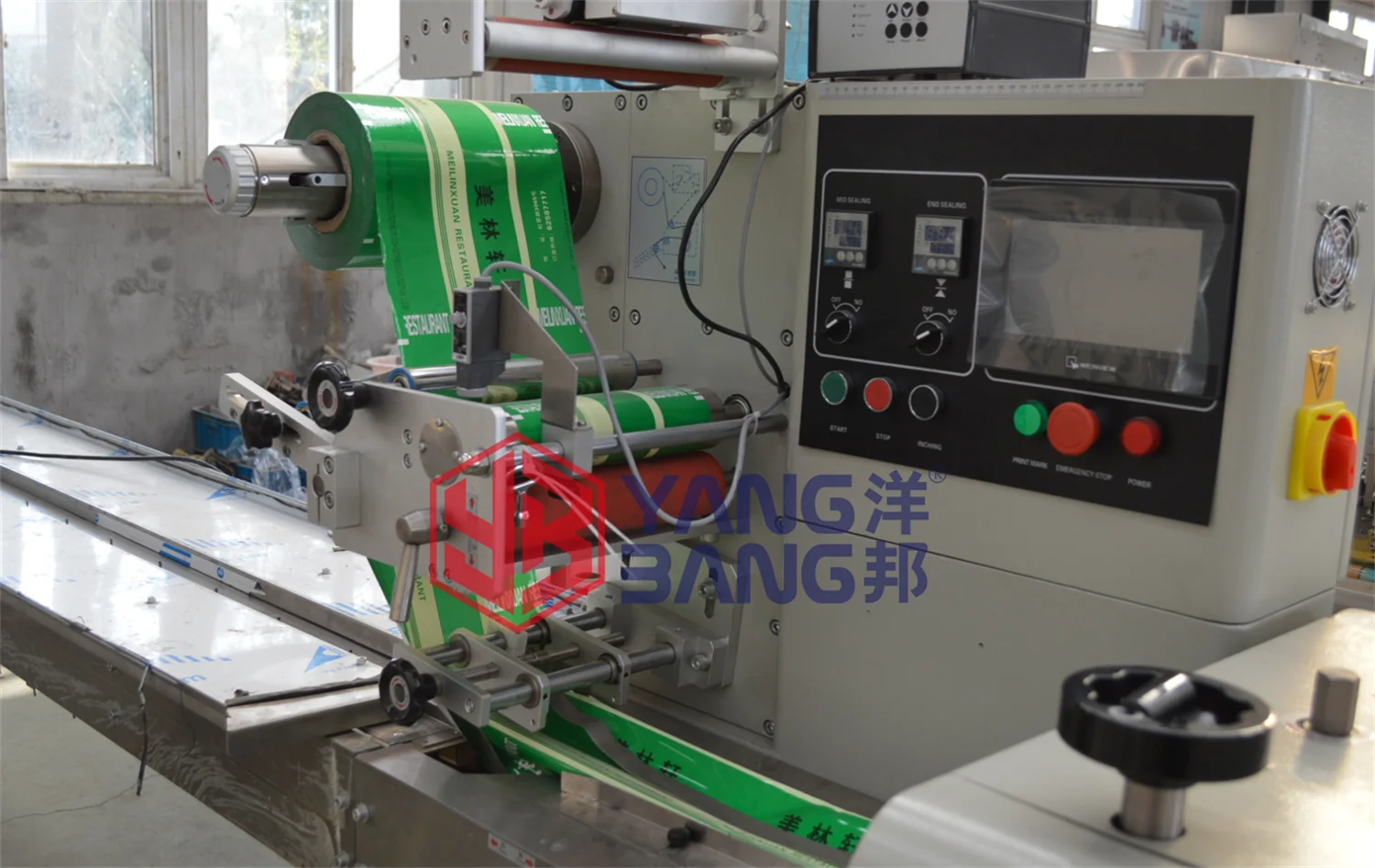

Machine pictures

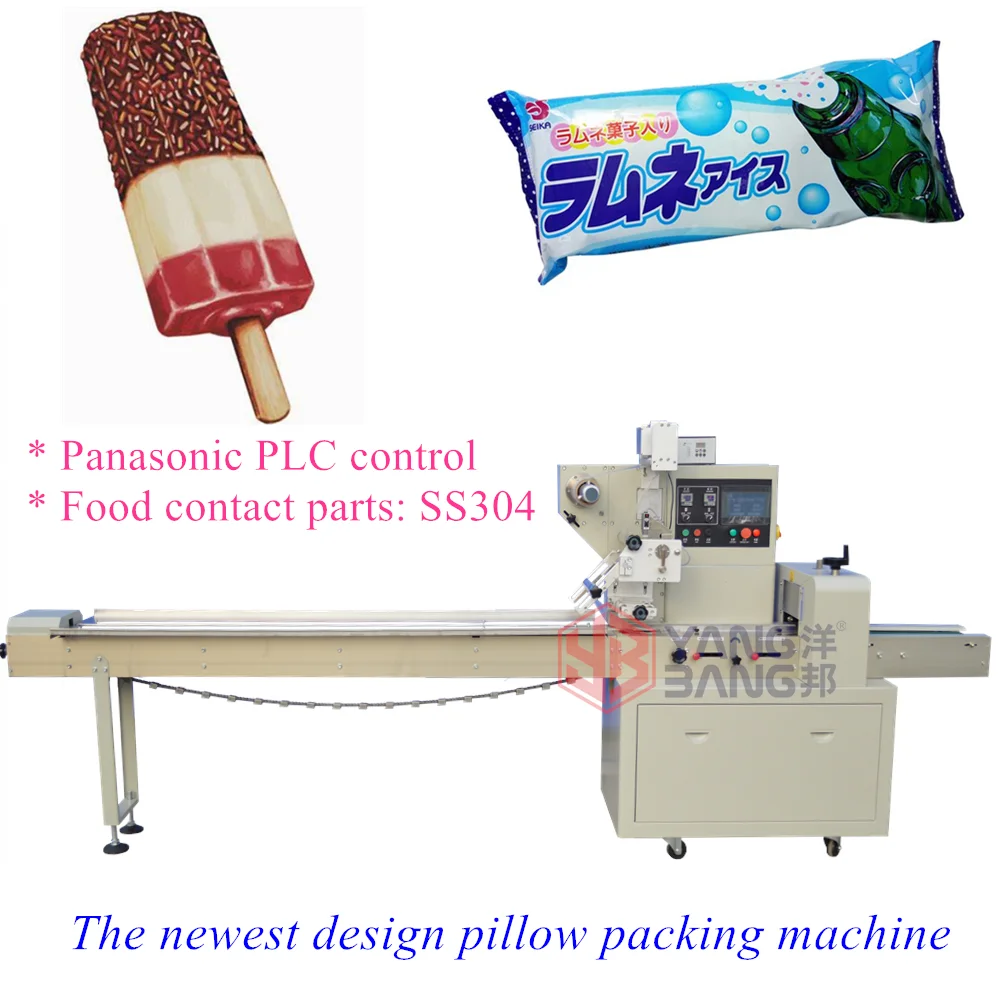

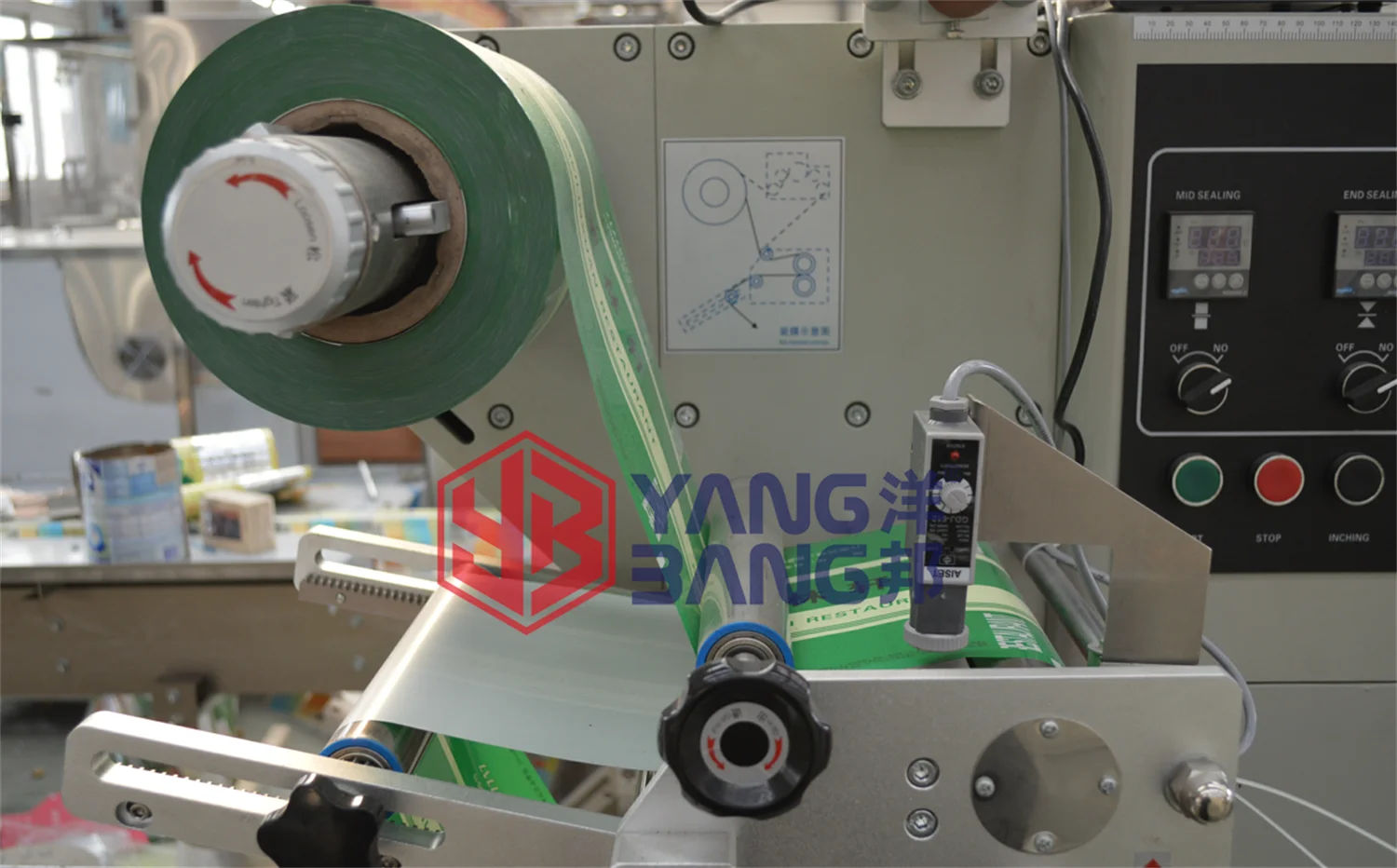

YB-250 Automatic ice lolly, popsicle packaging machine / flow wrapper
- PLC control, touch screen.
- With photoelectric tracking system.
- Food touching parts: SS304 material.

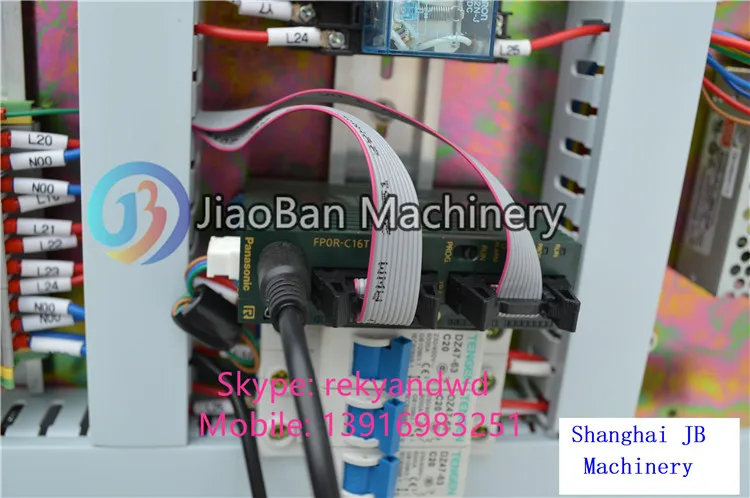

Good brand components (PLC, touch screen, relay, et)

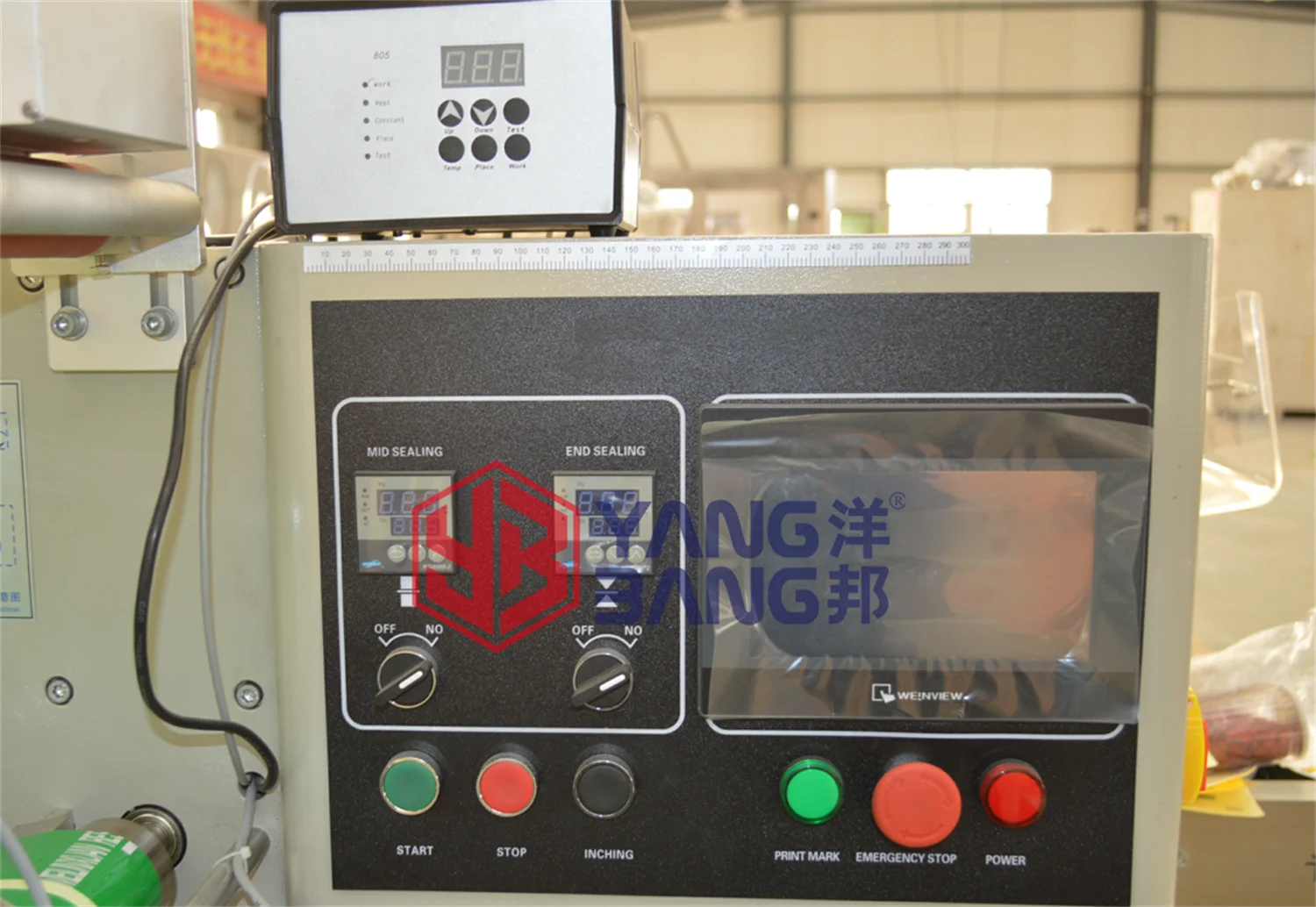

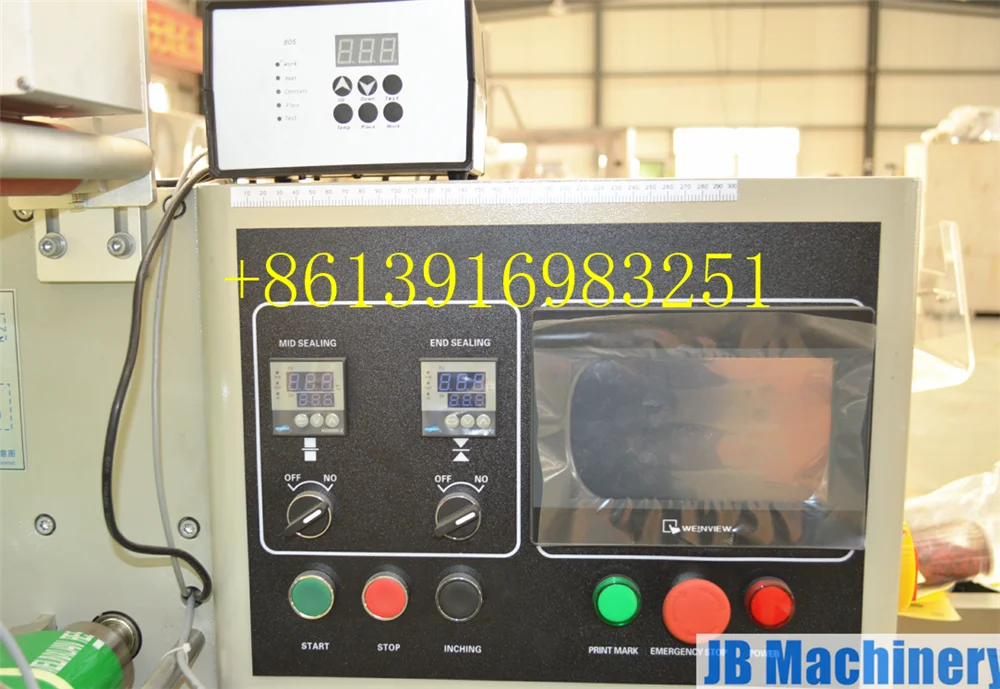

Touch screen display:

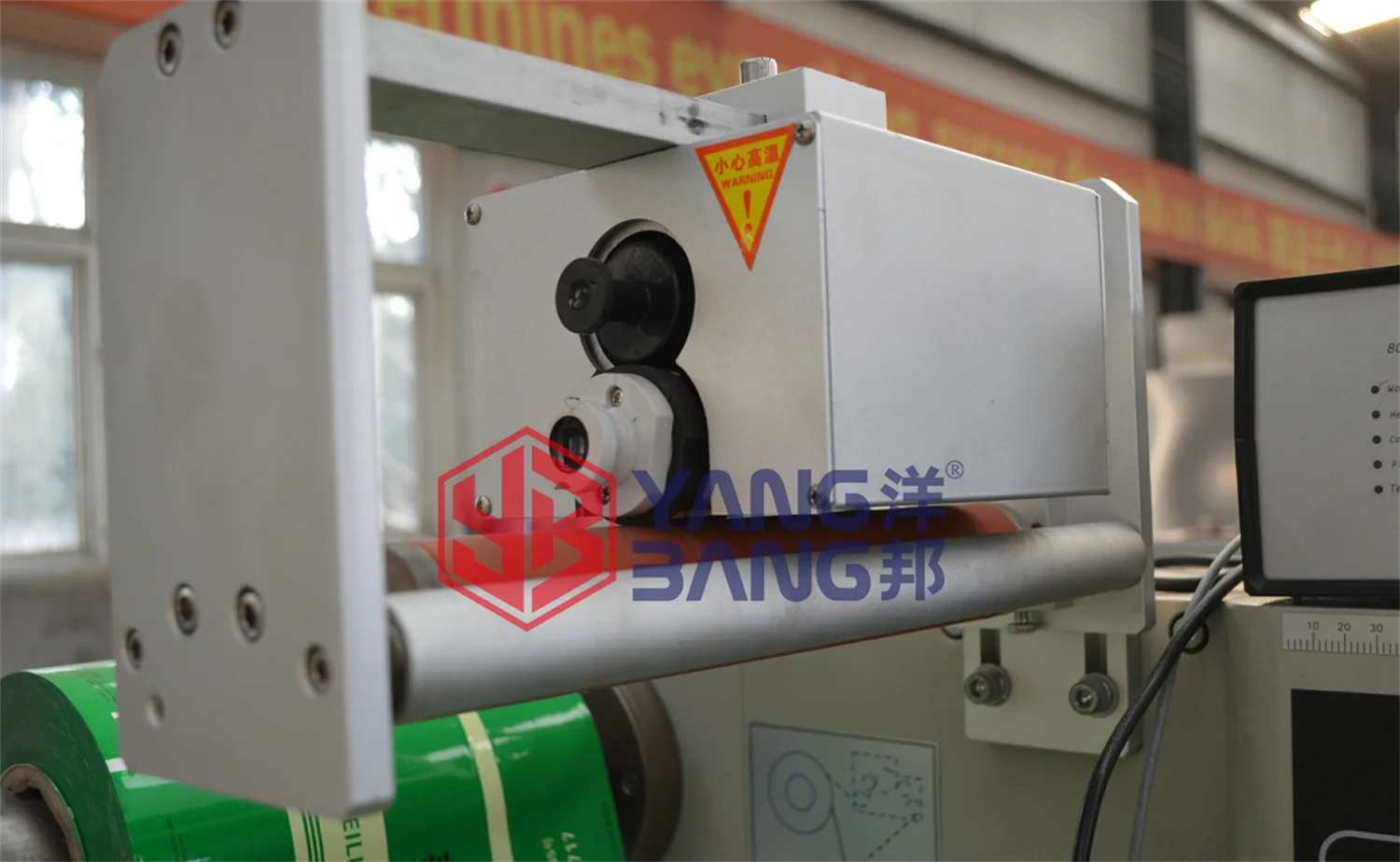

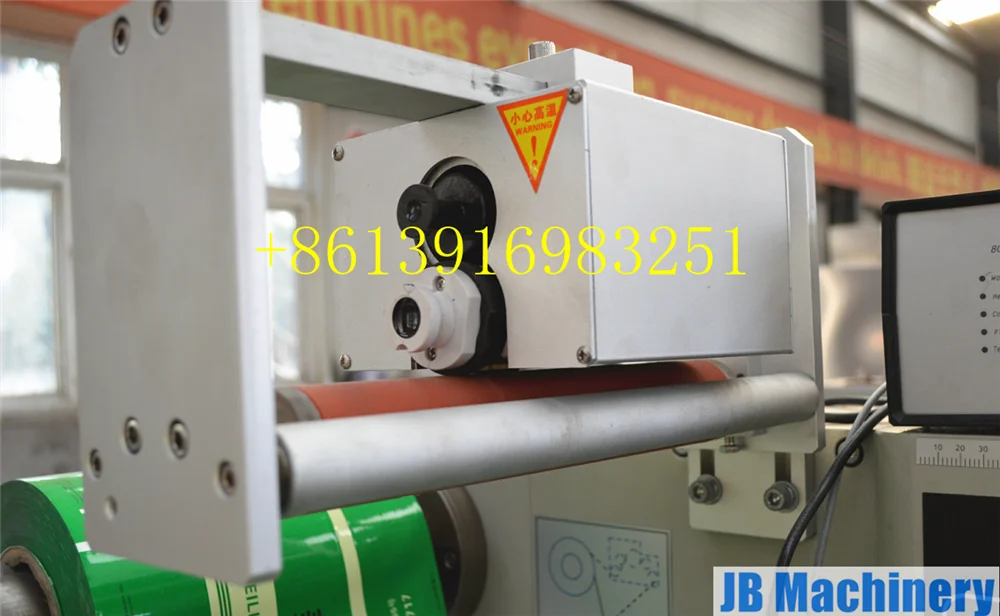

Date code printer on machine:

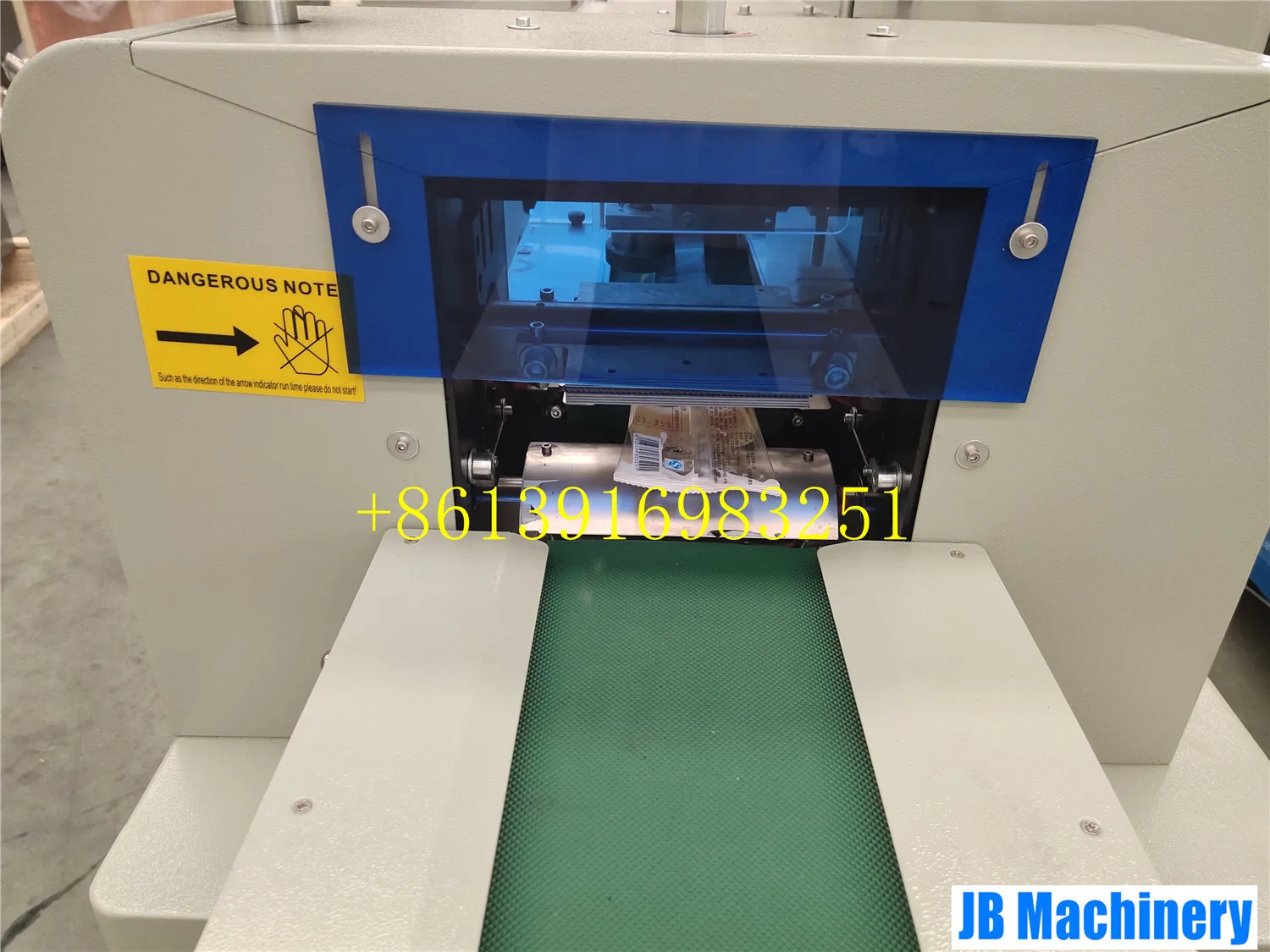

Cutting blade for bags:

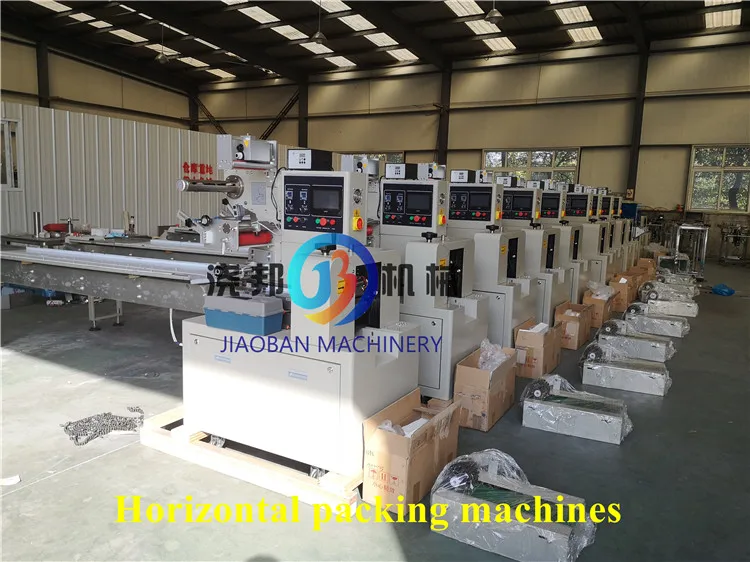

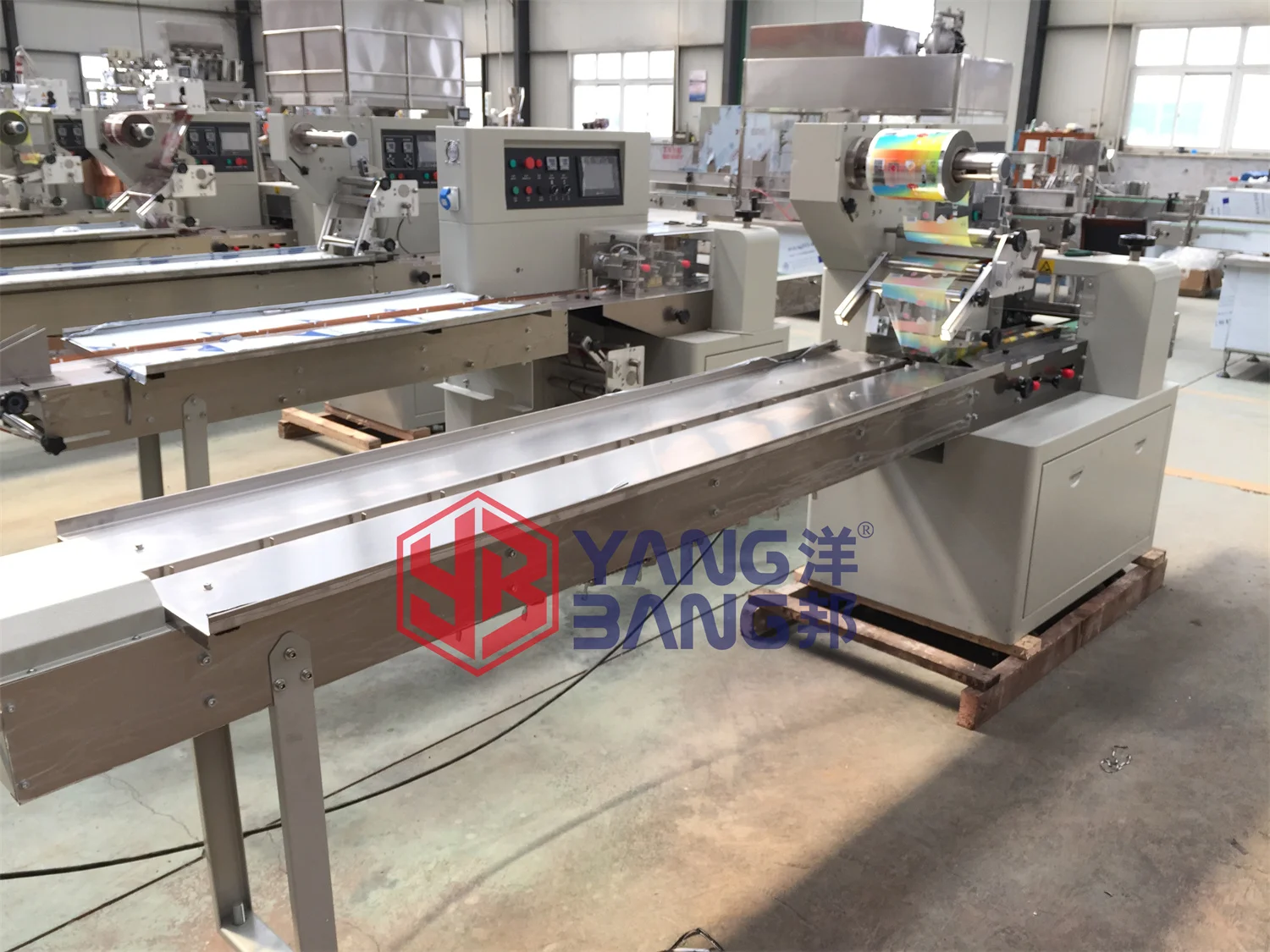

Automatic pillow packing machines in our factory:

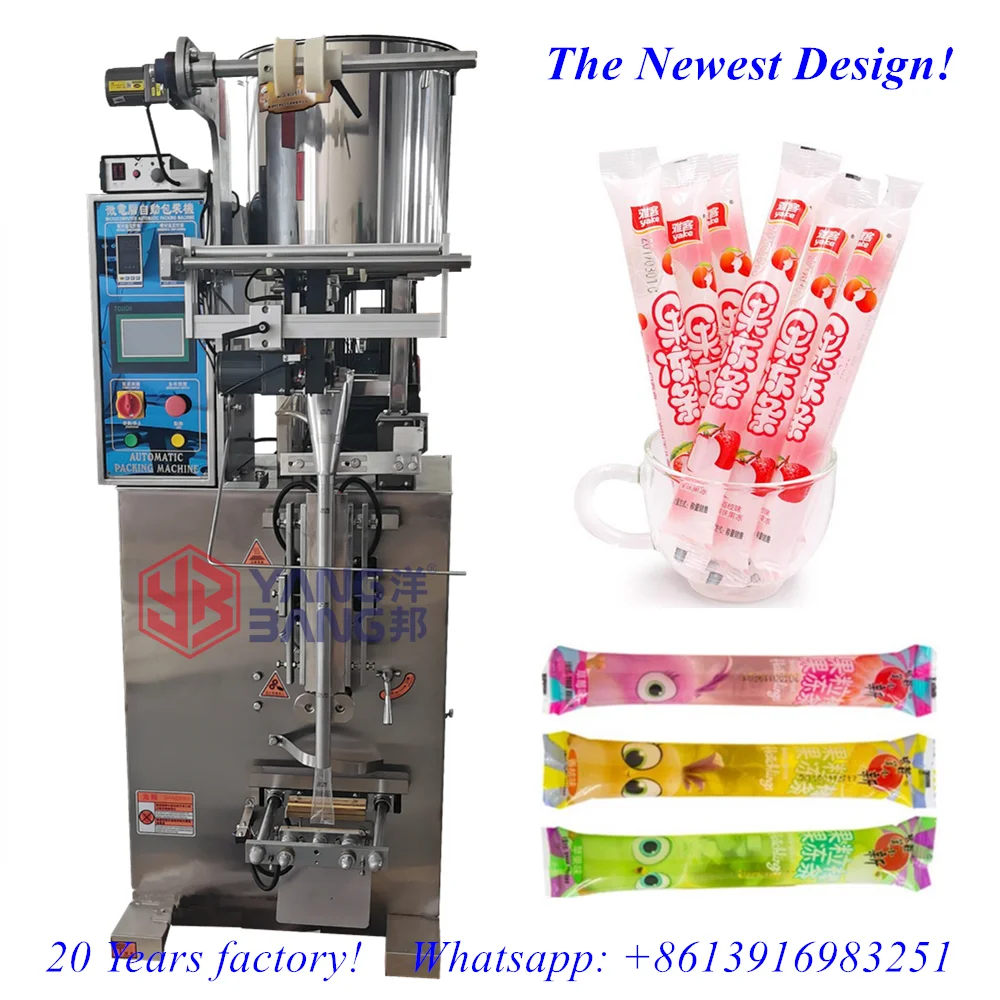

Automatic liquid ice lolly packing machine - Click below

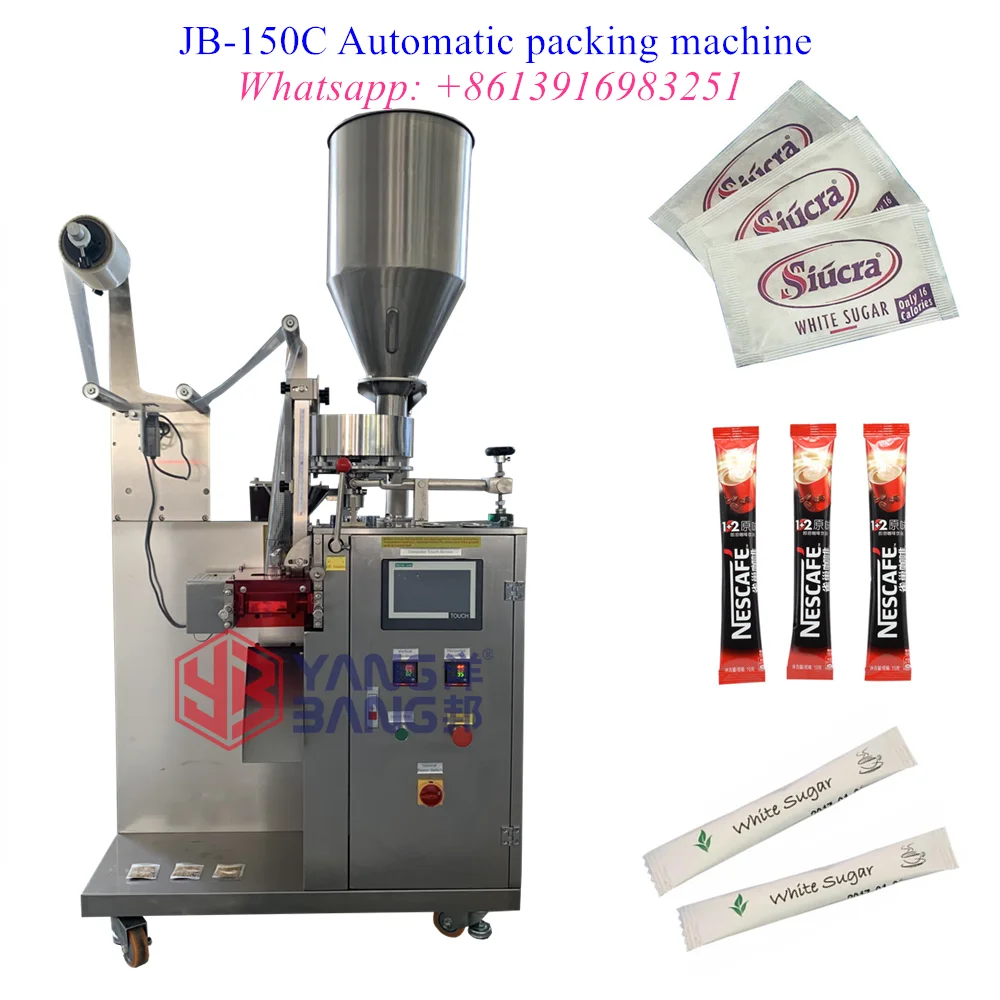

Automatic sachet sugar/salt/coffee/tea packing machine - Click below

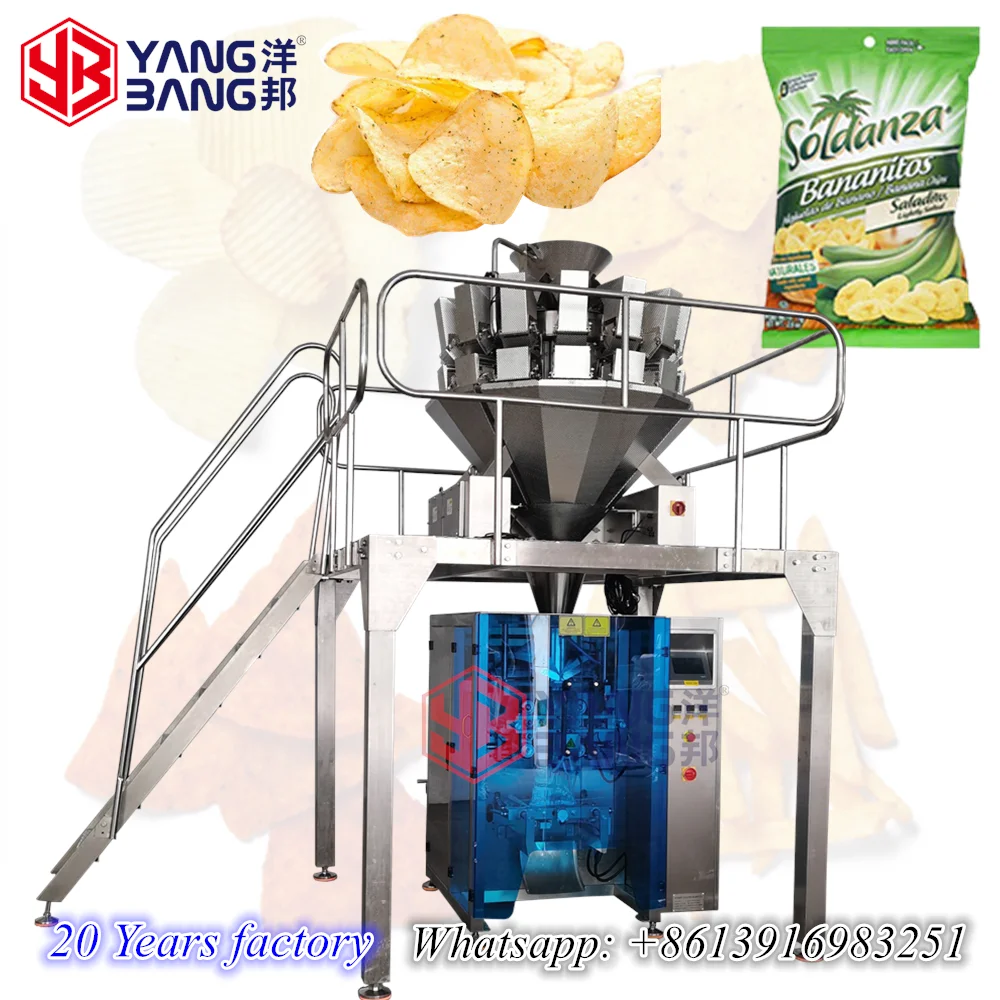

Automatic 10/14 heads weigher packing machine - Click below
Name card
Welcome to contact me about packing machine:
