Product Overview
Description
Automatic Fishing Net Buoy Ultrasonic Welding Machine
Specification
Description:

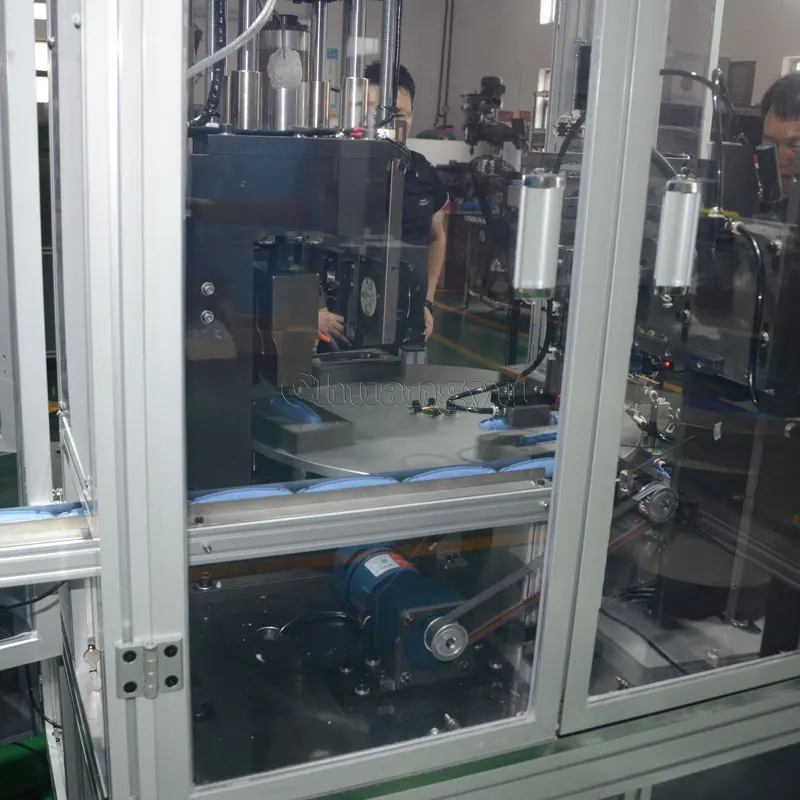

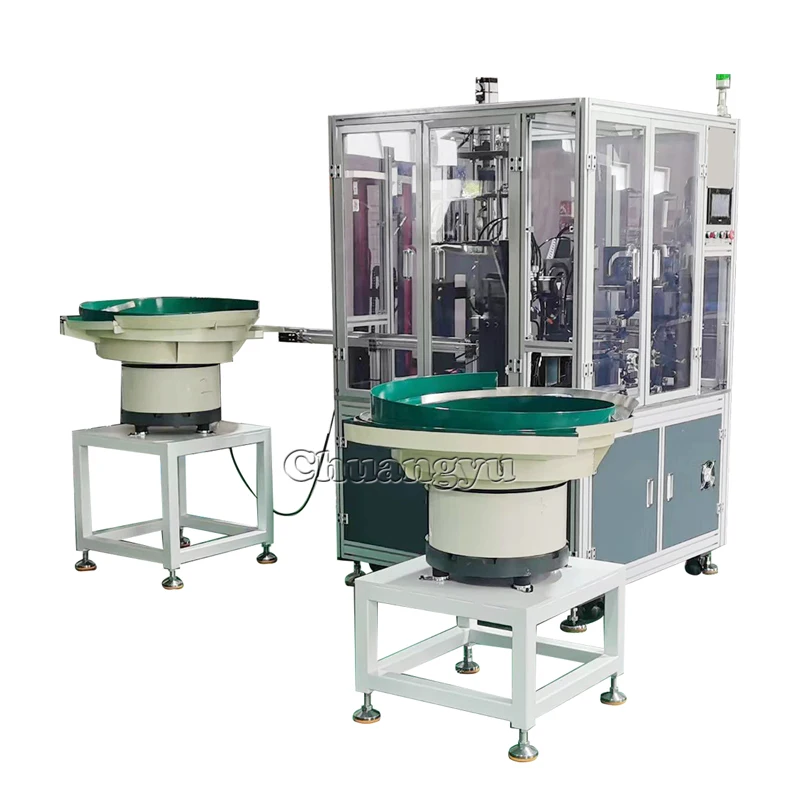

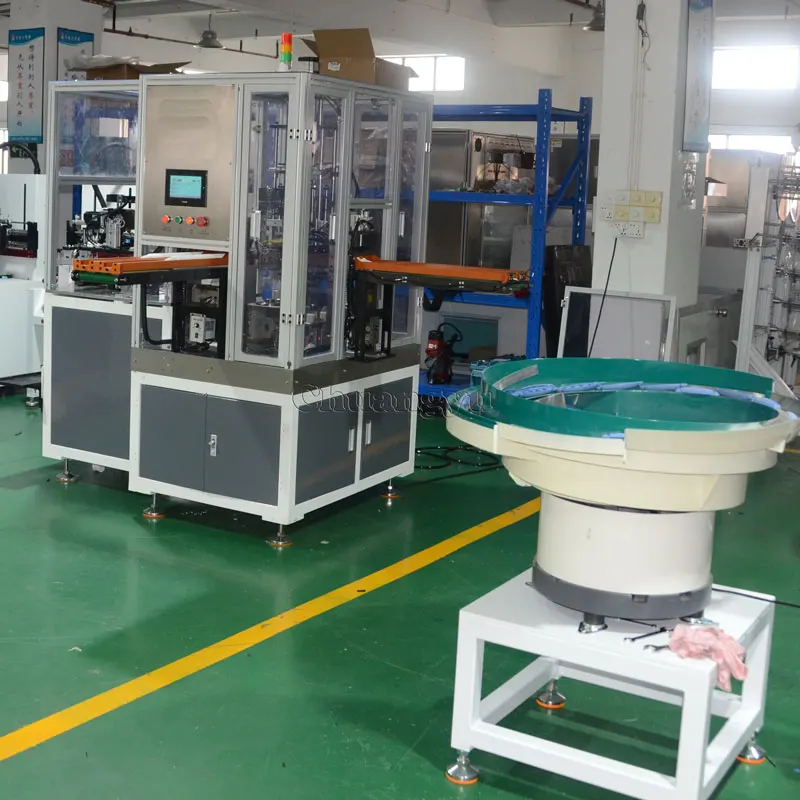

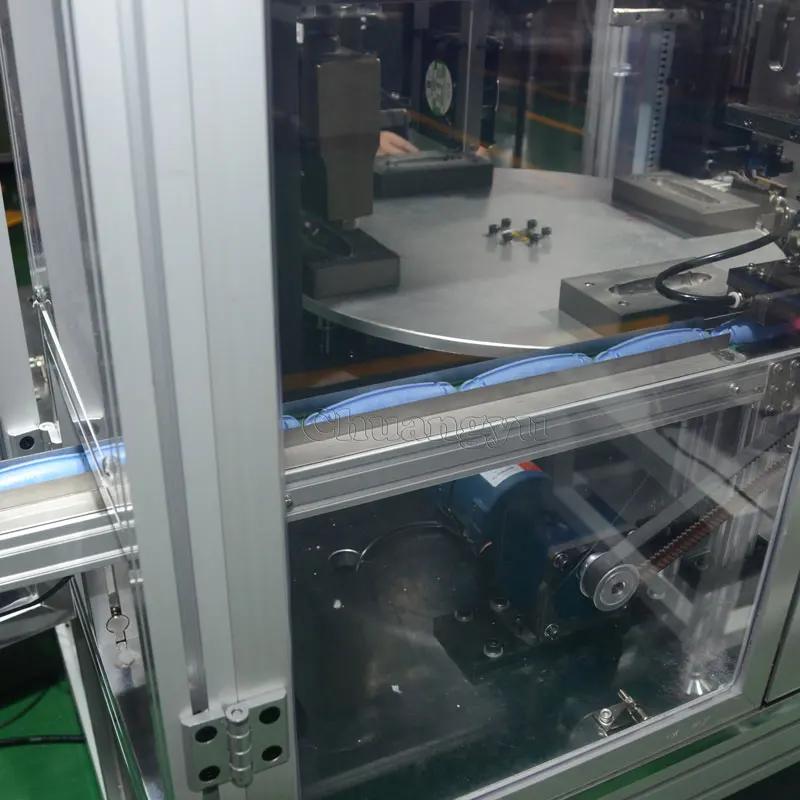

This machine is used for fully automatic assembly of plastic floats (buoy) for fishing nets. Ultrasonic welding, automatic unloading after welding, and a conveyor with 4-station one-out-one design; plastic floats are automatically fed by a vibrating plate, conveyed by a conveyor belt, and picked and placed by a manipulator on the turntable fixture. Internal automatic assembly, ultrasonic automatic wave welding, automatic discharge of the manipulator after welding. The fixture is rotated and transmitted by a conveyor ;
The process is:

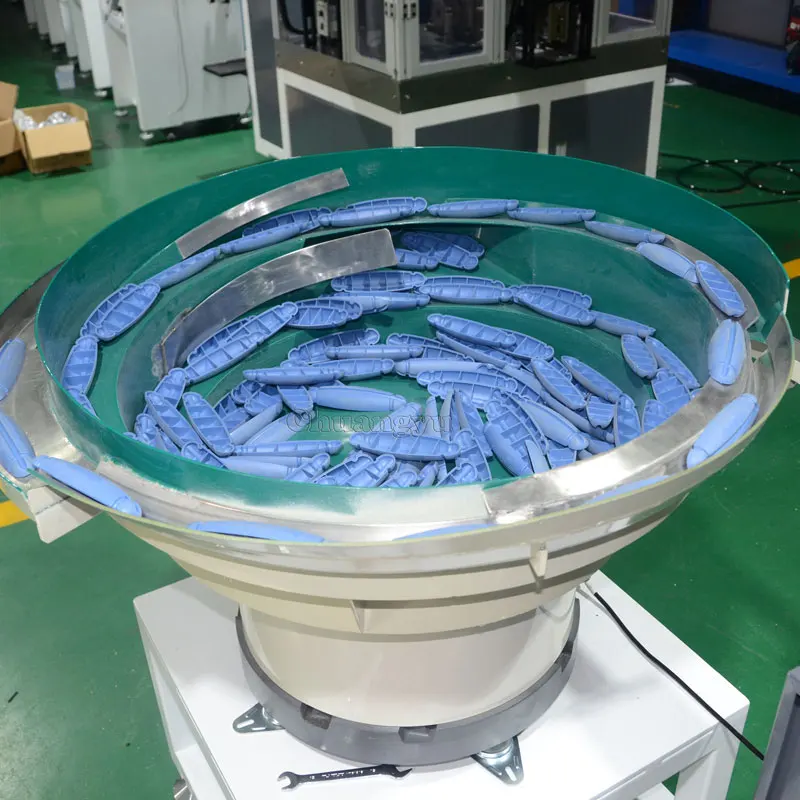

1. The lower semi-floating vibrating plate is automatically fed. The robot is clamped and automatically assembled;
2. The upper half of the floating vibrating plate is automatically fed. The robot grips and assembles automatically;

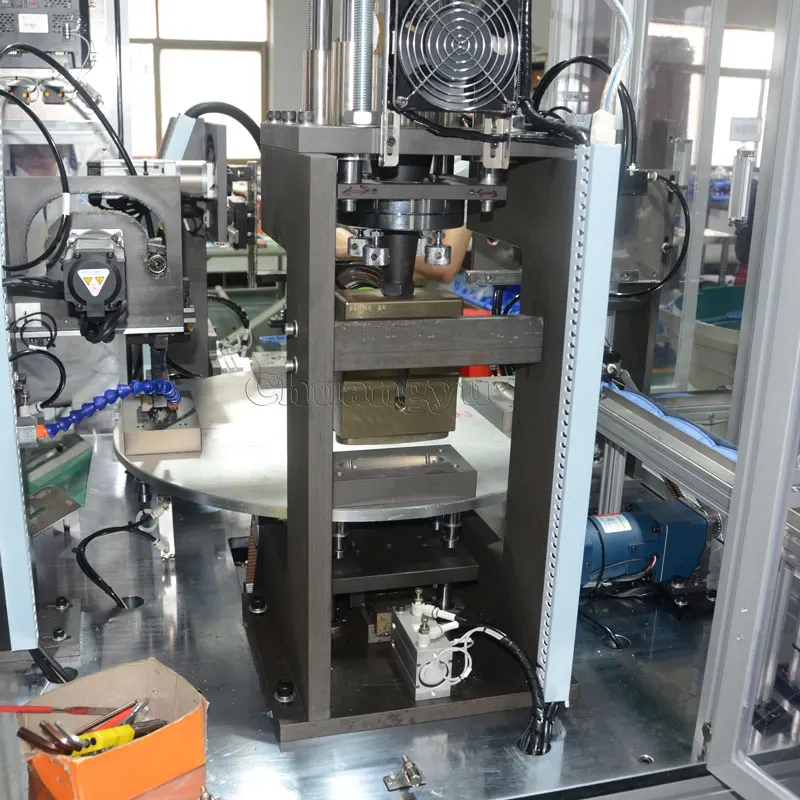

3. Ultrasonic automatic welding.
4. The manipulator automatically discharges the material after welding.
The process is:
1. The lower semi-floating vibrating plate is automatically fed. The robot is clamped and automatically assembled;
2. The upper half of the floating vibrating plate is automatically fed. The robot grips and assembles automatically;
3. Ultrasonic automatic welding.
4. The manipulator automatically discharges the material after welding.
Ultrasonic welding adopts servo vibrator to ensure the stability and consistency of toner loading. The operation is simple and convenient. It is equipped with a safety cover for safe use. PLC control. Touch screen display operation.
Model No.: | Automatic Fishing Net Buoy Ultrasonic Welding Machine |
Ultrasonic Frequency | 15Khz , |
Watts | 6kw |
Air pressure | 0.8Mpa |
Input Voltage | AC 220v / 50Hz; |
Capacity | 20-30pcs / min |
Weight | 1300kg |
Dimension | 1300*1300*1900mm |
1. Use of original imported super-power transducer.
2. Integrated structures, adoption of a safety scale adjustment control.
3. Computer intelligent control, accuracy is up to thousandth of a second
4. Mold level adjustment, frame-mode simple and quick
5. Automatic body -motor up, down, the first in domestic.
6. Base level regulation , frame-mode fast.
2. Integrated structures, adoption of a safety scale adjustment control.
3. Computer intelligent control, accuracy is up to thousandth of a second
4. Mold level adjustment, frame-mode simple and quick
5. Automatic body -motor up, down, the first in domestic.
6. Base level regulation , frame-mode fast.
What is ultrasonic welding process?
Ultrasonic welding is a solid-state welding process in which joining of materials (metals and plastics) occur without melting. In ultrasonic welding, high-frequency mechanical vibrations are transferred to the parts to be joined, which cause sliding one part over another.
Ultrasonic welding is a solid-state welding process in which joining of materials (metals and plastics) occur without melting. In ultrasonic welding, high-frequency mechanical vibrations are transferred to the parts to be joined, which cause sliding one part over another.
Ultrasonic welding is an especially gentle joining technology for thermoplastic materials and nonferrous metals. Manual work stations are used in many ways in the plastics processing industry. The user manually loads the plastic components to be joined and removes them again from the ultrasonic welding machine after the weld process. The components can be welded with one or more ultrasonic sonotrodes depending on their size and geometry. Partially automated solutions support the work process for the production of high-quality thermoplastic products, but we also offer suitable platforms for copper and aluminum, i.e. for LI battery and cable harness applications. The development and production of all Chuangyu's ultrasonic welding machines, whether they are series or customized machines
Packing & Delivery
Automatic Fishing Net Buoy Ultrasonic Welding Machine will be packed by several export wooden case, assemble will be according to instruction
Certifications
Company Profile
Recommend Products
FAQ
Lead time for Automatic Fishing Net Buoy Ultrasonic Welding Machine? |
12-18 days after received the deposit |
How long for the warranty ? |
1 Year |
Is factory support all the molds for Welding? |
Yes, can all all type of molds to support welding |
