solid state laser 100w fiber coupled laser diode module diamond laser cutting machine
- Category: >>>
- Supplier: Sanhe Laserconn Tech Co. Ltd.
Share on (1600567841399):
Product Overview
Description
Product lines:
1)High Power & High Reliability Laser Diodes (CW / Long-Pulsed / QCW)
2)Diode Pumped Laser Gain Modules (CW / Long-Pulsed / QCW)
3)Medical & Aesthetic Laser OEM Solutions (Hair Removal, Nd:YAG Laser, Pico-Second Laser)
4)Laser Diode Driver, Control Board & Related Software.
Product applications:
1)Industry applications, such as laser marking, diamond cutting and etc.
2)Medical & aesthetic applications, such as hair removal, laser therapy and etc.
3)Academy applications, such as laser oscillators, amplifiers and etc
Product Description

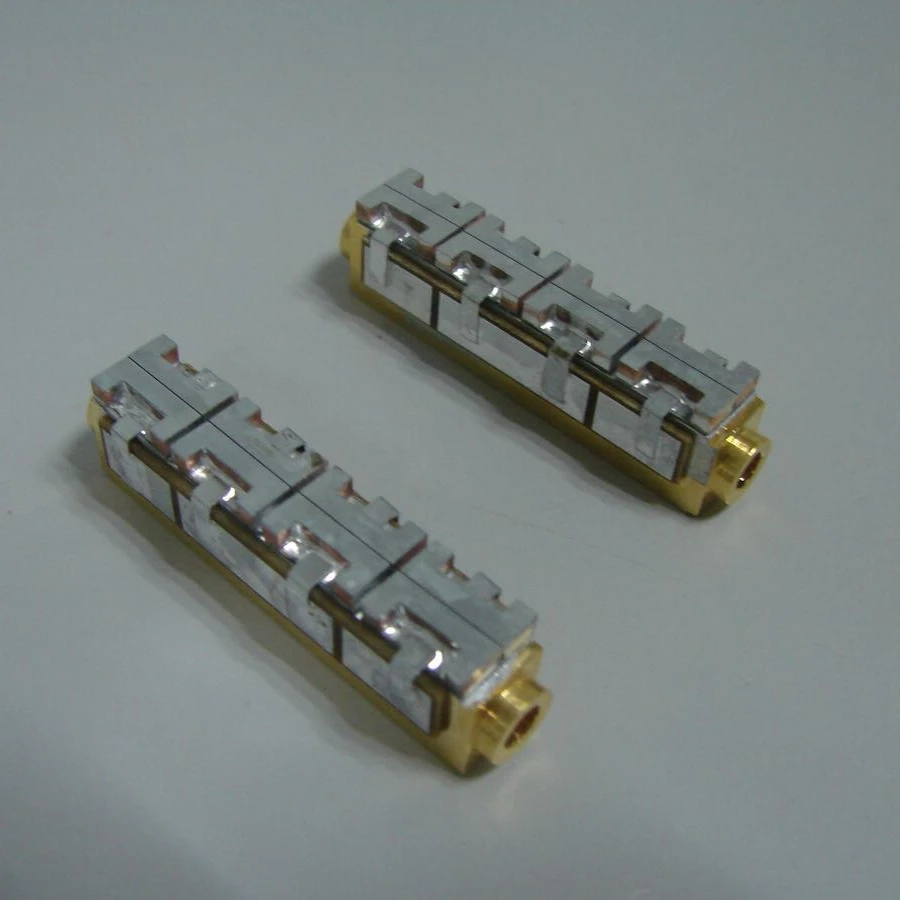

VCSEL Pumped Laser Gain Module Introduction
| Specification | Parameter |
| Stored Energy Per Pulse | 60mJ~4000mJ |
| Repetition Rate | 1 ~1000Hz |
| Pumping Power | 0-27KW |
| Pulse Width | 200~500ps |
| Nd:YAG Diameter | 2~15mm |
| Expected Life Time | 10-20G shots |
| Pumping Wavelength | 806+/-3nm |
| Beam Profile | Near-Flat-Top / Gaussian Options |
Advantage

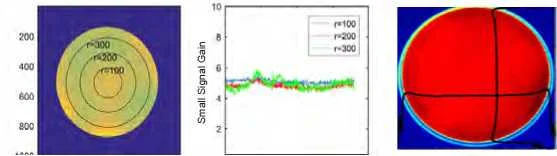

Excellent Beam Profile
Excellent Output Energy Stability

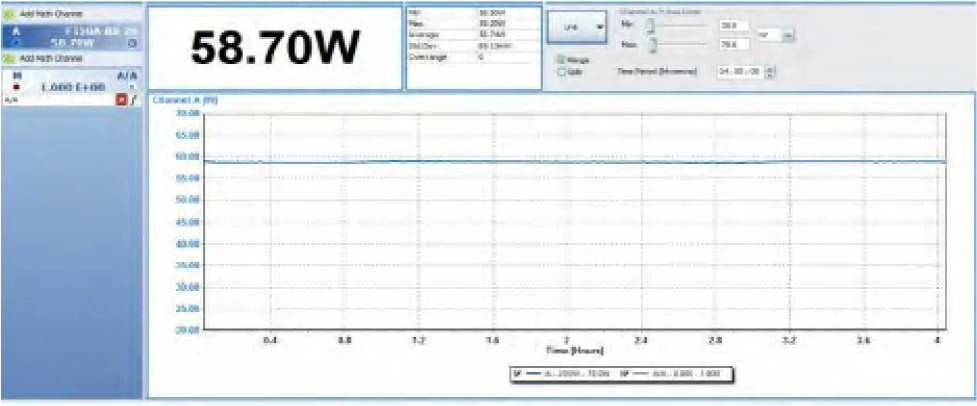

4 hours working performance of a 1 KHz, VCSEL pumped 4mm YAG, Avg Power at 1064nm, Min 58.5W, Max 59.2W, Avg 58.74W.
Features
1)Extremely long life time
2)High pulse-to-pulse stability
3)KHz heavy duty operation
4)Custom design available
5)Uniform pumping distribution
Application
1)High energy oscillator & amplifier
2)Medical & Industrial lasers
Indication

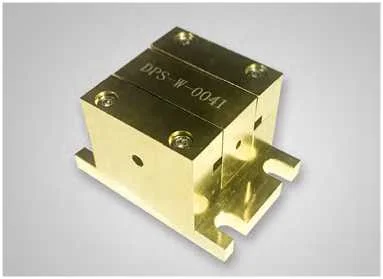

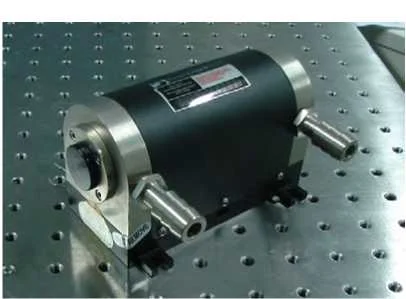

Passively-Cooled&Custom VCSEL-Pumped Laser Gain Module
Features
1)Extremely high stability
2)Long life time (>10G shots)
3)Low wavelength shift (dA/dT = 0.07nm/°C )
4)Wide temperature range (-45 C ~+65C )
5)Uniform pumping distribution
Applications
1)Rangefinder, Target Designator, LiDAR, LiBS
2)Aerospace lasers
3)Compact seed lasers
Structure

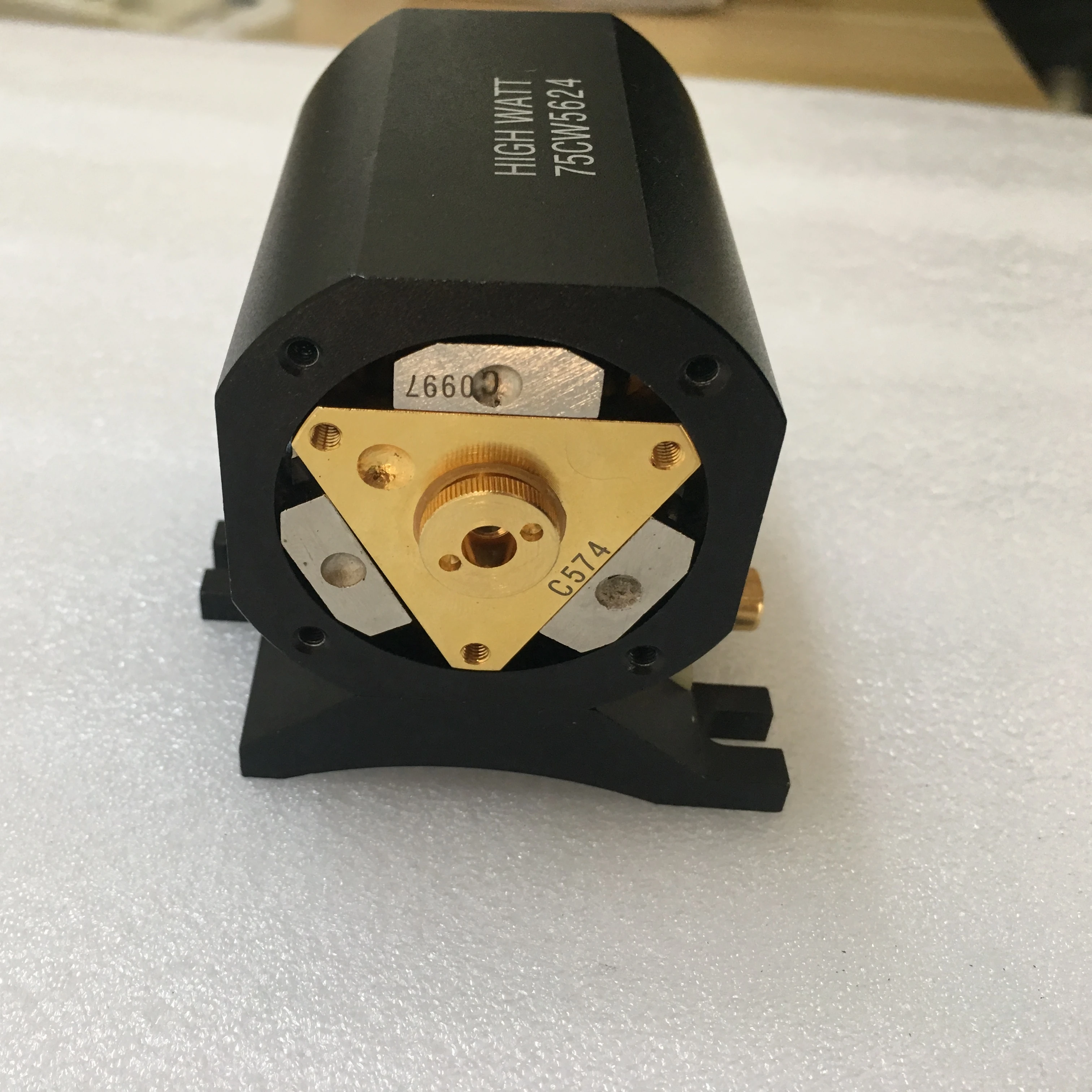

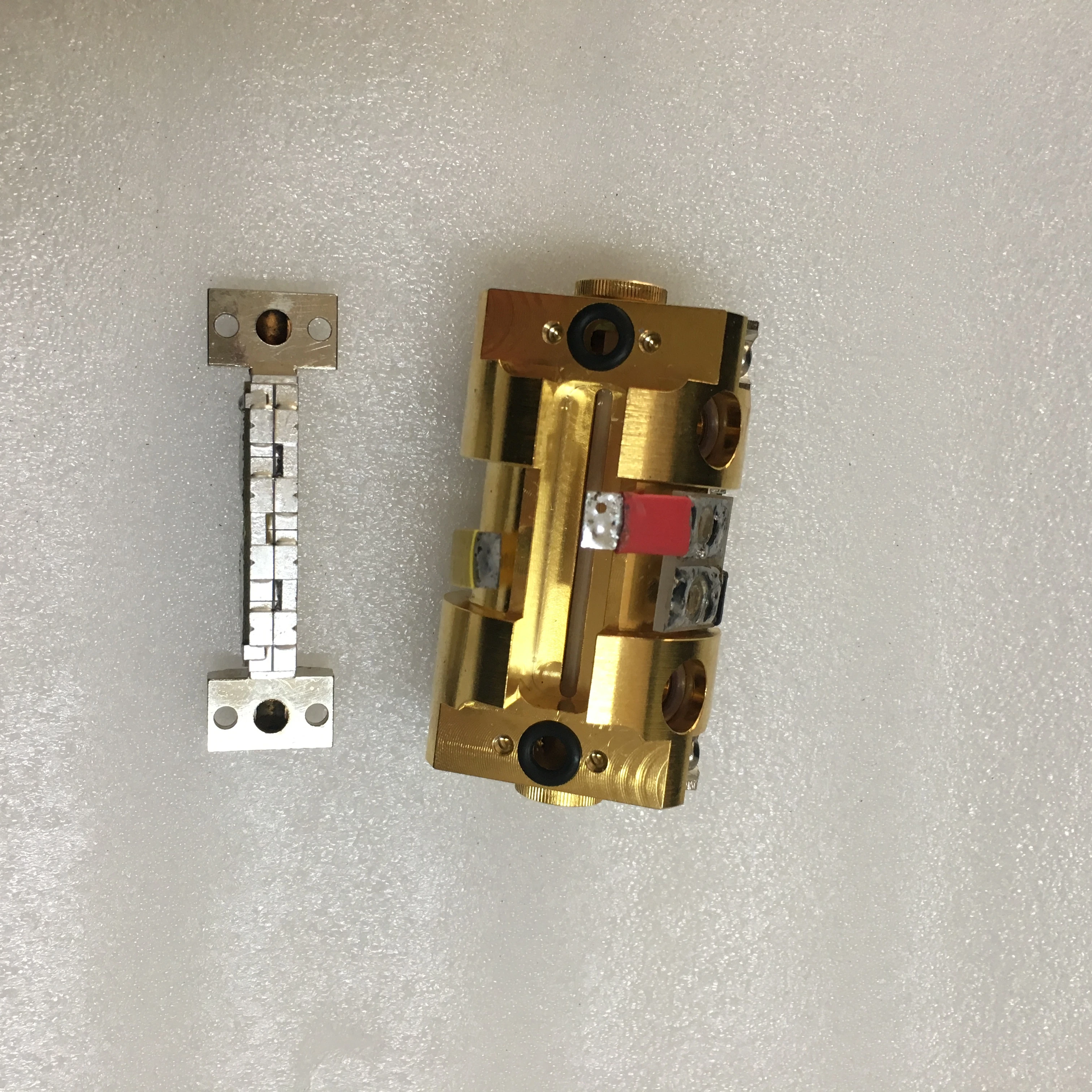

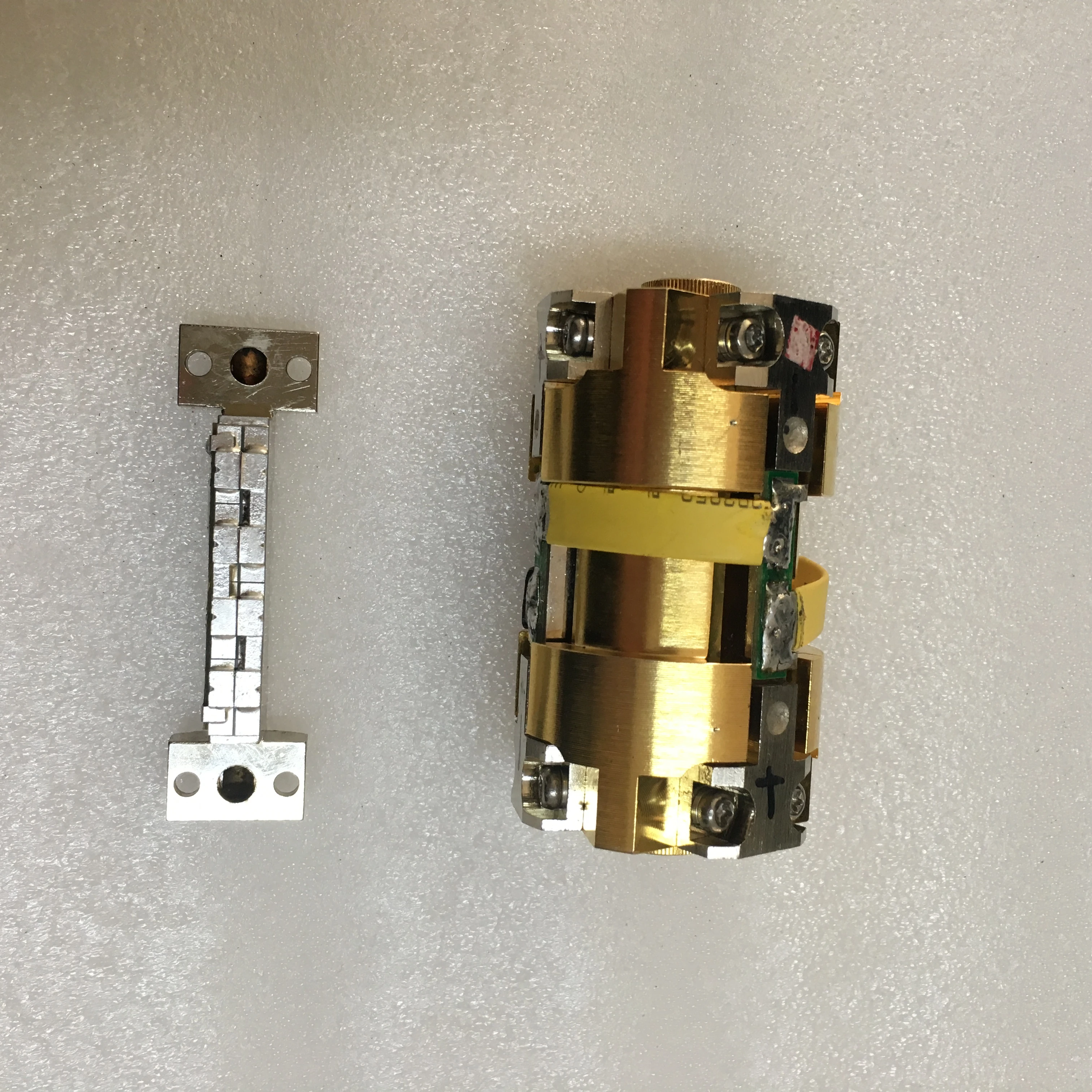

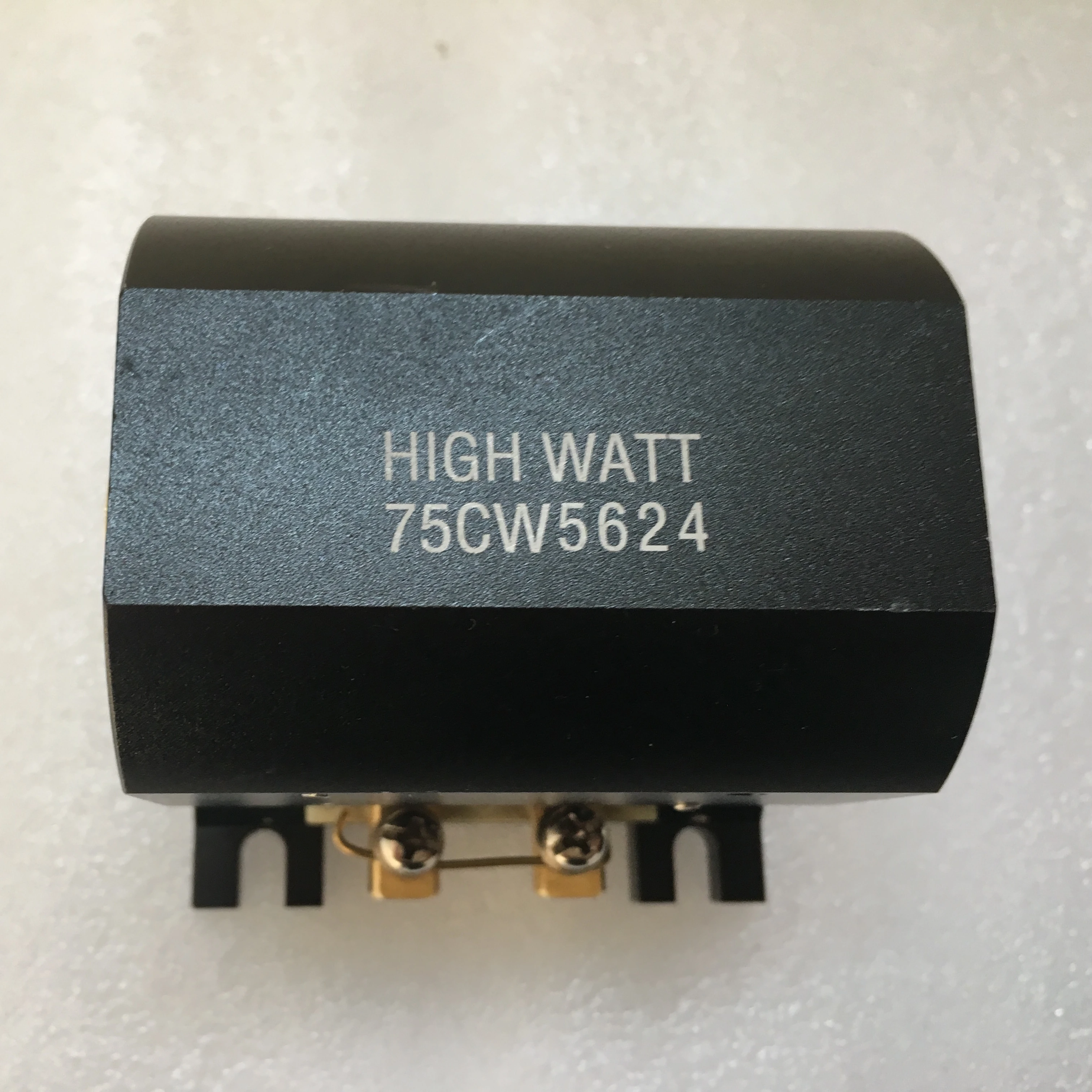

Water Cooled VCSEL Pumped Laser Gain Modules
1)Pumping Side: Q = 1, 2, 3, 4, 5..…30 Directions
2)Chip per Array: N= 1, 2, 3..…30 Chips per Array
3)YAG Diameter: M = 2, 3, 4....20mm
4)LD Pump Power (250us, 10Hz) = 200W*Q*N
LD Pump Power (250us, 100Hz)=150W*Q*N
LD Pump Power (250us, 1KHz) = 70W*Q*N
5)Typical YAG doping 0.8%. Other doping 0.6-1.1 % available.
6)Typical 808nm->1064nm pumping efficiency is 25-45% depending on YAG diameter & doping.
SLD-3xN-M Series (3 Directions Pumping Modules)
| Model No. | Rod Diameter | Chip Quantity | Pump Power @200us, 100Hz | Pulse Energy @200us, 100Hz |
| SLD-3x3-3 | 03 | 9 | 1350 | >70 mJ |
| SLD-3x4-3 | 03 | 12 | 1800 | >90 mJ |
| SLD-3x5-3 | 03 | 15 | 2250 | >113 mJ |
| SLD-3x6-3 | <t>3 | 18 | 2700 | >140 mJ |
| SLD-3x7-3 | <P3 | 21 | 3150 | >160 mJ |
| SLD-3x3-4 | 04 | 9 | 1350 | >84 mJ |
| SLD-3x4-4 | <t>4 | 12 | 1800 | >108 mJ |
| SLD-3x5-4 | 04 | 15 | 2250 | >135 mJ |
| SLD-3x6-4 | 04 | 18 | 2700 | >168 mJ |
| SLD-3x7-4 | 04 | 21 | 3150 | >196 mJ |
| SLD-3x10-4 | 04 | 30 | 4500 | >280 mJ |
| SLD-3x5-5 | <t>5 | 15 | 2250 | >135 mJ |
| SLD-3x6-5 | 05 | 18 | 2700 | >168 mJ |
| SLD-3x7-5 | 05 | 21 | 3150 | >196 mJ |
| SLD-3x9-5 | <t>5 | 27 | 4050 | >252 mJ |
Company Information
LASERCONN is now providing the most reliable & robust high power diode lasers & DPSS lasers for industrial, medical, aesthetic, and laboratory applications.
LASERCONN has a 600M2 R&D center in Beijing and a 1200M2 modern manufacture facility with more than 60 employees. LASERCONN is capable of GaAs wafer processing, coating & sputtering, laser diode packaging, fine machining, DPSS laser designs, laser diode driver designs and software designs. From laser heads & drivers to electronics & software, we are able to provide you full solutions for your specific applications.
LASERCONN is a Venture Capital invested company by Highlight Capital and Cathay Capital PE
