Product Overview
Description
Product Description
It's always applicable for mixing kindaof dry materials,such as putty powder, dry powder mortar (bon
ding mortar, plastering mortar, masonry mortar, mortar flooring, special mortar, etc.) and powder coat
ings etc.

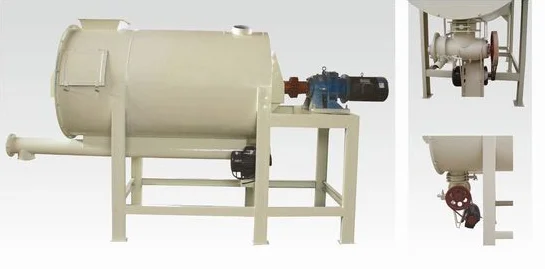

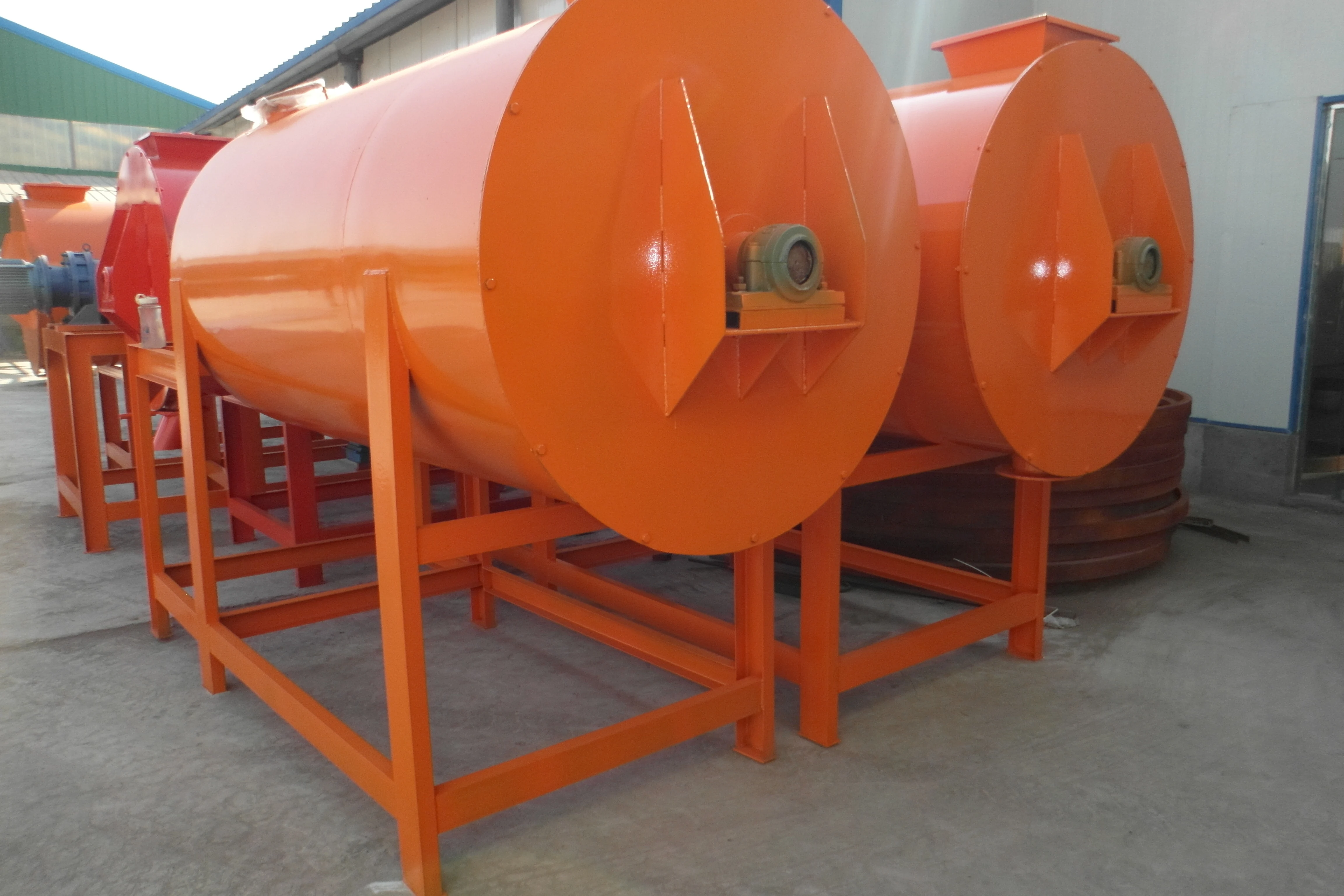

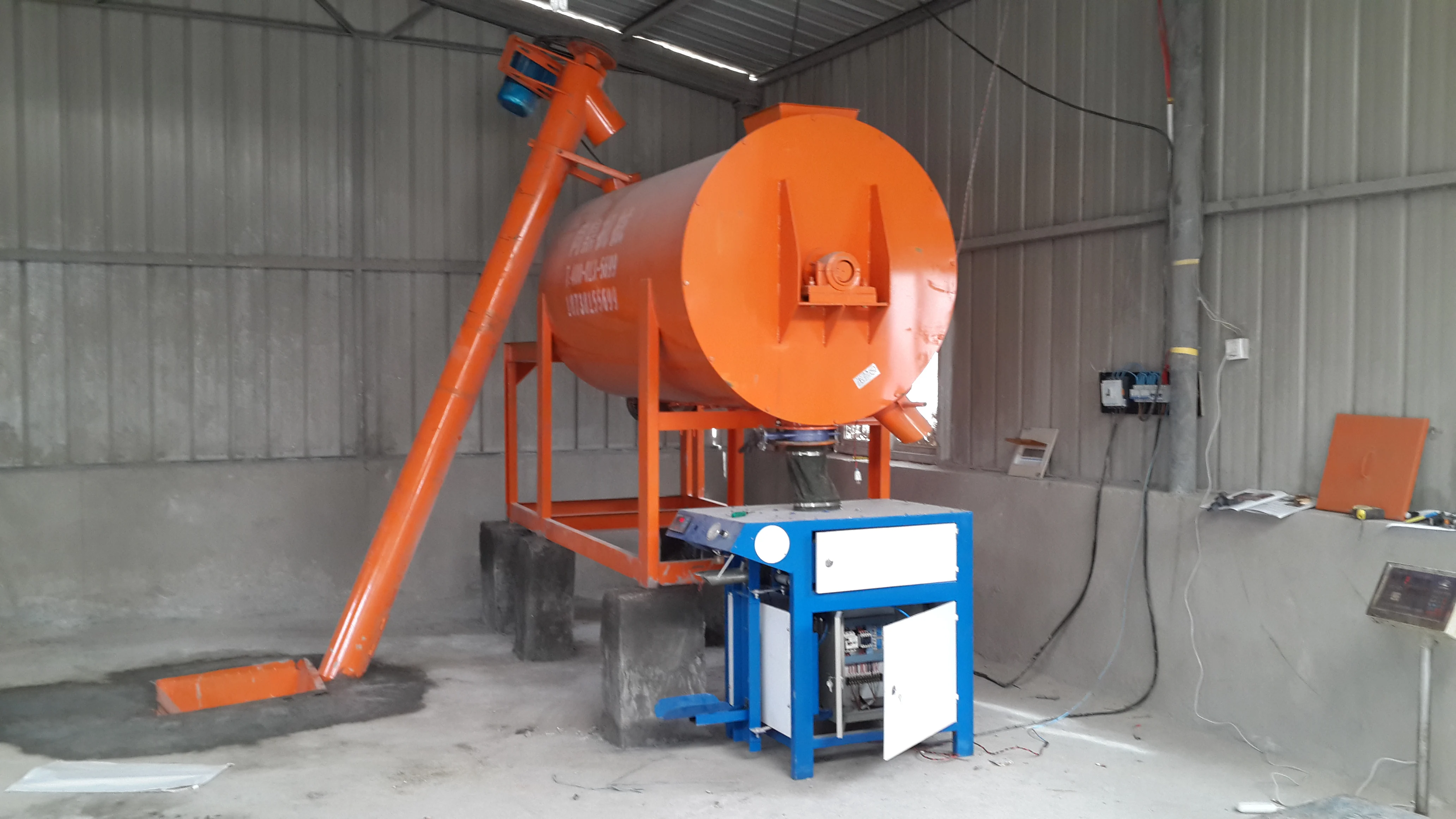

HJJ spiral ribbon dry mortar mixer through high-speed rotating of stirring shaft, make internal and ext
ernal spiral flipping materials in a wide range, internal helix transmitting the material from center to sid
es, the external spiral gathering the material from sides to center to form convection mix. outside scre
w gathering the material from sides to center, and part of the material along the axial radial motion to f
orm convection mix and achieve all-round no dead angle depth mixture, so as to fast and uniformly mi
xing the material in a relatively short period of time.
1. widely used in the mixed powder, granular, flake, block, such as materials in the feed, food, chemica
l, fertilizer , construction and other industries.
2. Specially –designed discharger has big door-opening angle an quick discharging with less residue.
3. Sealing system has good tightness, ensuring no products leakage.
4.Users can choose carbon steels and stainless steels.
Type | HJJ300 | HJJ500 | HJJ1000 | HJJ2000 | HJJ3000 |
Output (T/batch) | 0.3 | 0.5 | 1 | 2 | 3 |
Mixing Cycle time per batch | 3-5mins | 3-5mins | 3-5mins | 3-5mins | 3-5mins |
Mixer Cylinder Volume (m3) | 0.83 | 1.65 | 2.48 | 4 | |
Motor Power (kw) | 4 | 5.5 | 7.5 | 11 | 15 |
Rotate speed(r/min) | 24 | 24 | 24 | 24 | 24 |
Mixer Cylinder diameter (mm) | 680 | 840 | 1050 | 1200 | 1400 |
Mixer Cylinder Length(m) | 1.2 | 1.5 | 1.9 | 2.2 | 2.6 |
Reducer | -- | Cycloidal | Cycloidal | Gearbox | Gearbox |
| -- | XWD5 | XWD7 | ZQ400 | ZQ400 | |
Mixer Overall Size(m) (LxWxH) | 2.35*0.7*1.6 | 2.8x0.95x1.8 | 3.25x1.07x2.1 | 3.1x1.3x2.3 | 3.7x1.5x2.5 |
Weight (kg) | 250 | 1000 | 1300 | 2200 | 2400 |
Floor area needed (m2) | 2 | 2.52 | 3.63 | 4.38 | 6 |
