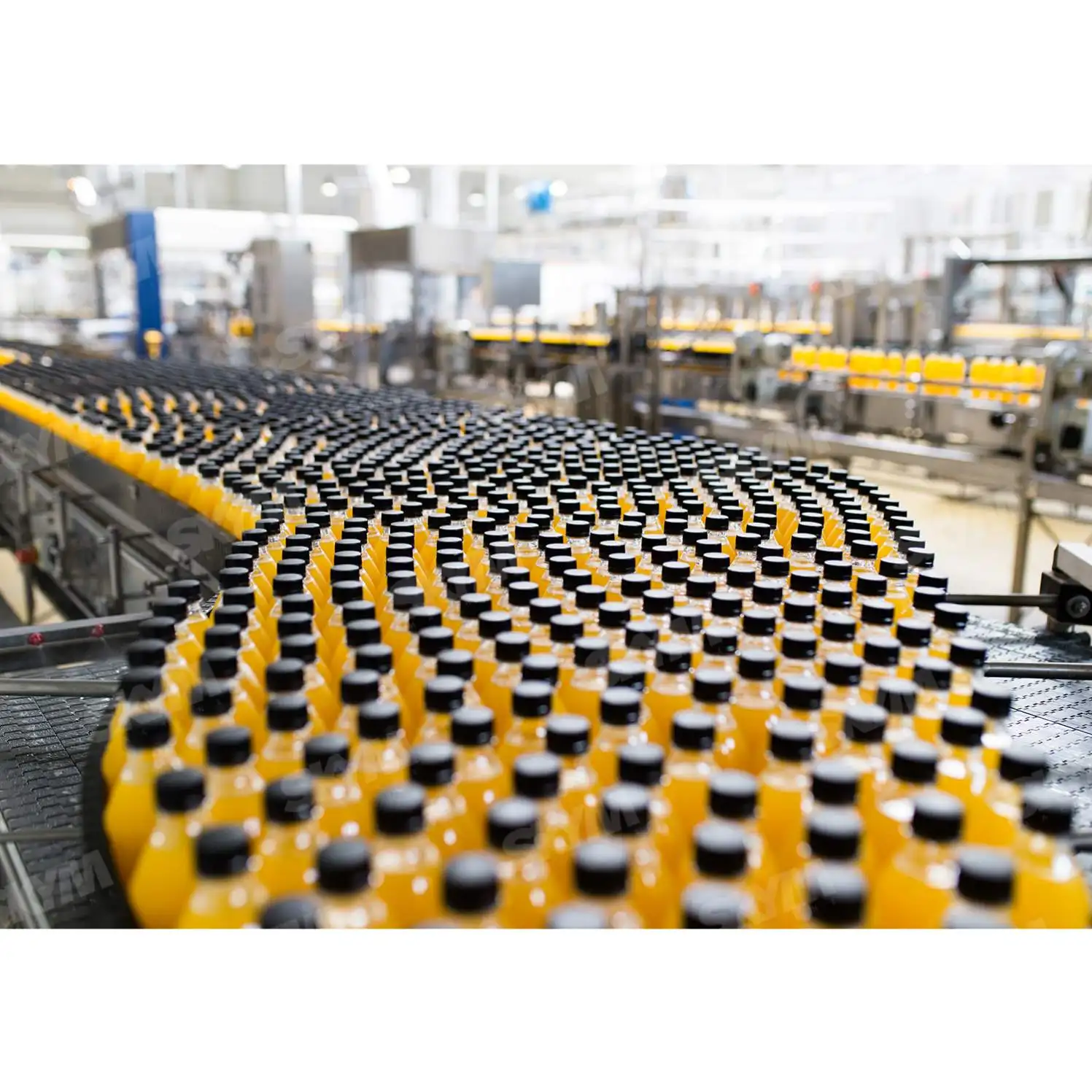

Novel Design High Degree Of Automatic Glass / Pet Bottle Water / Juice Auto Making Machine / Production Line
- Category: >>>
- Supplier: Zhangjiagang Sky Machine Co. Ltd.
Share on (1600567854966):
Product Overview
Description
Zhangjiagang Sky Machine Co., Ltd.
We are devoted to the development, research and production of liquid food & beverage filling packing machinery. To provide complete solution for juice, beverage, drinking water, beer, wine, oil packing.
Product Description

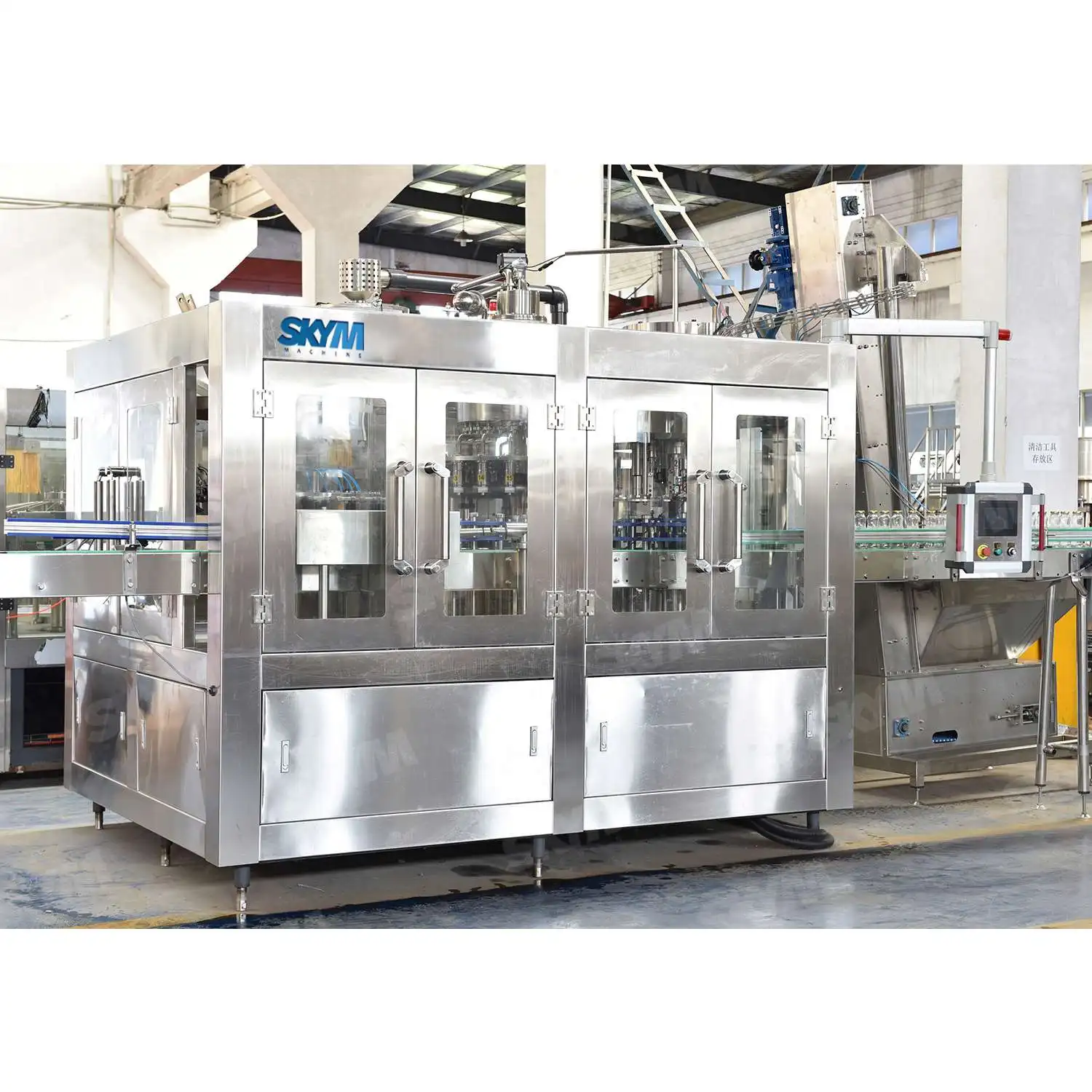

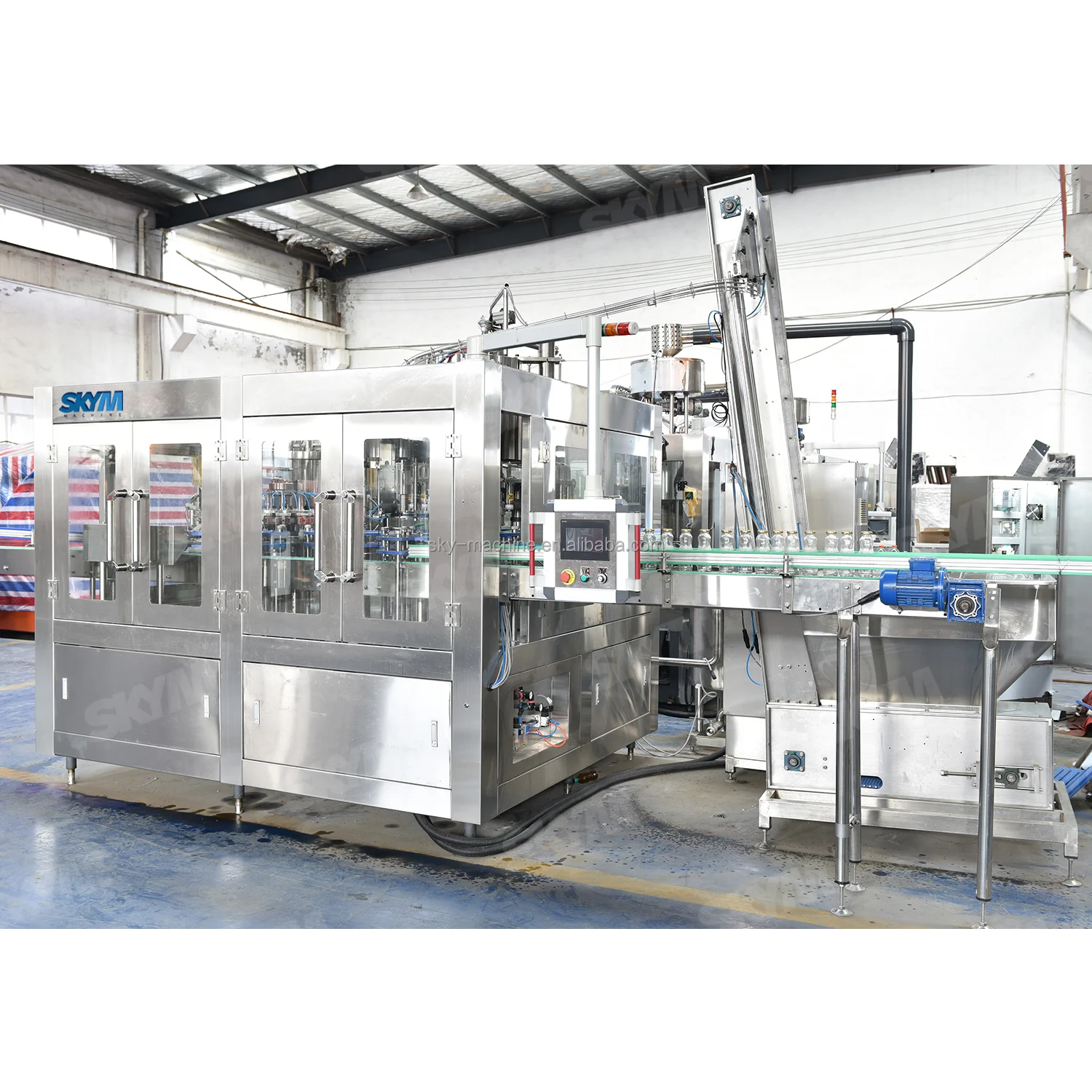

RCGF series Novel Design High Degree Of Automatic Glass / Pet Bottle Water / Juice Auto Making Machine / Production Line integrates bottle washing, water filling and capping into one monoblock, and the three processes are carried out full automatically. Itis used in the hot filling of juice and tea beverage. It is equipped with perfect temmperature control system, reverse-flow system, automatic cleaning system and control program. Each machine element that grade rubber.
Rinser
Bottle clip equipped with efficient spray on nozzle.The extrusive droplet with 15 angleensures to wash all side of the bottle.

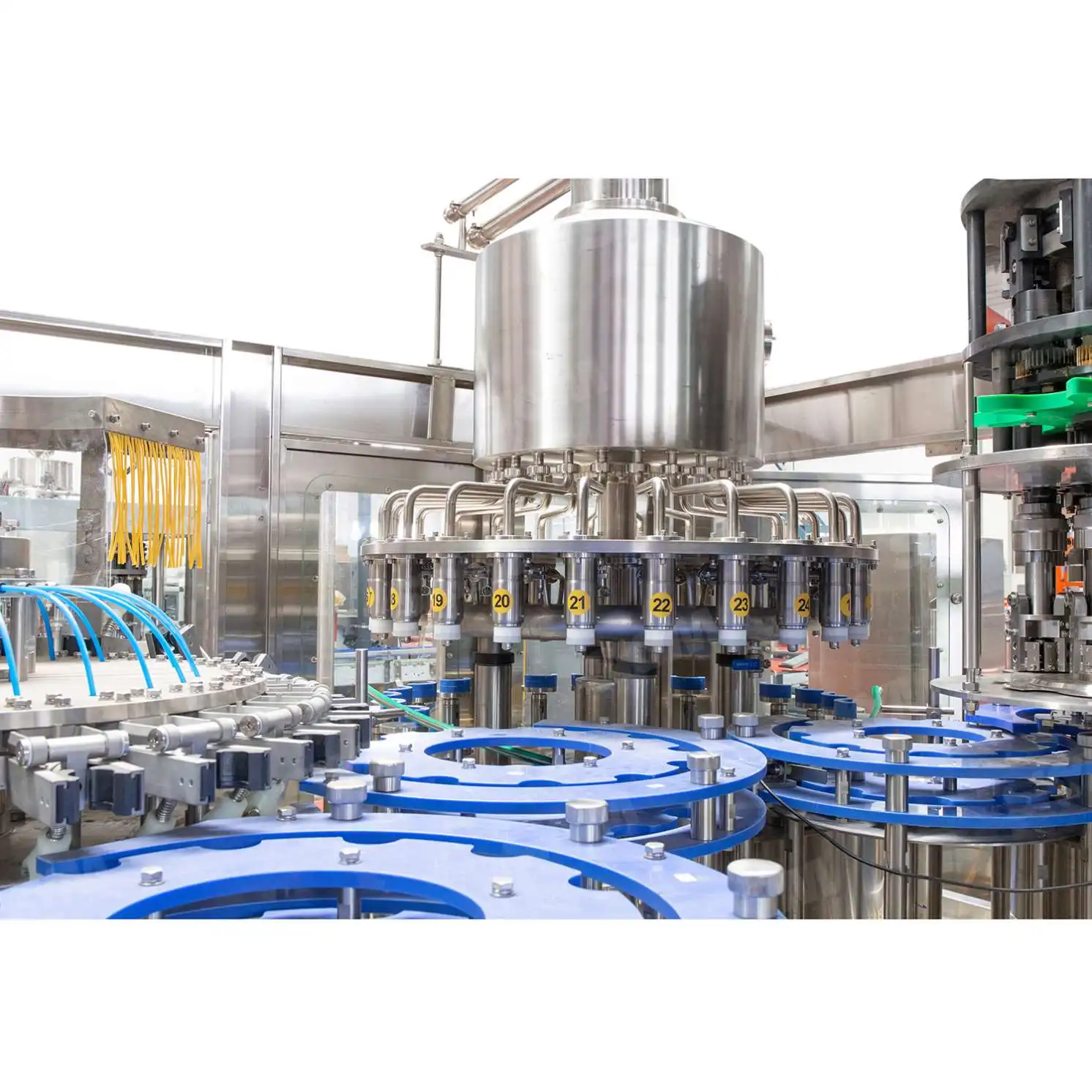

Filler
The filling valve material is SUS304.The filling system has liquid level automatic control.Filling valve elevator, after filling
valve contact the bottle neck, it starts to fill.
valve contact the bottle neck, it starts to fill.
Capper
The magnetic torque is used foe screw capping.The power of screw capping can be adjusted without steps.The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
Beverage Machinery-Equipment characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\\'s Mitsubishi, France Schneider, OMRON.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\\'s Mitsubishi, France Schneider, OMRON.
Application
Product Paramenters
1.Plastic Bottled Still Water Drink Gravity Filling Machine Monoblock 3 in 1 | ||||
Model | Speed/bph | Usage | ||
CGF 8-8-3 | 2000 | Bottle Type: PET Bottle | ||
CGF 10-8-4 | 3000 | Bottle Size: 200ml~2000ml(can be customized) | ||
CGF 14-12-5 | 5000 | Cap Type: screw plastic cap | ||
CGF 16-16-5 | 8000 | Liquid Type: still water, pure water, mineral water, still wine | ||
CGF 24-24-8 | 12000 | |||
CGF 32-32-8 | 15000 | |||
CGF 40-40-10 | 18000 | |||
2.Plastic Bottled Carbonated Drink Isobaric Filling Machine Monoblock 3 in 1 | ||||
Model | Speed/bph | Usage | ||
DCGF 10-8-4 | 1500 | Bottle Type: PET Bottle | ||
DCGF 14-12-5 | 3000 | Bottle Size: 200ml~2000ml(can be customized) | ||
DCGF 16-16-5 | 5000 | Cap Type: screw plastic cap | ||
DCGF 24-24-8 | 9000 | Liquid Type: carbonated soft drink, cola, sparkling wine, CSD, carbonated juice, sparkling water, beer | ||
DCGF 32-32-8 | 11000 | |||
DCGF 40-40-10 | 13000 | |||
3.Aluminum Can Carbonated Drink Isobaric Filling Machine Monoblock 2 in 1 | ||||
Model | Speed/Cph | Usage | ||
DYGF12-1 | 1500 | Can Type: Aluminum Can, Plastic Can | ||
DYGF12-4 | 6000 | Can Size: 150ml~750ml | ||
DYGF18-4 | 9000 | Lid Type: 201, 202 | ||
DYGF24-6 | 12000 | Liquid Type: carbonated soft drink, cola, sparkling wine, CSD, carbonated juice, sparkling water | ||
DYGF32-6 | 15000 | |||
4.(3L~5L)Plastic Bottled Still Drinking Water Drink Gravity Filling Machine 3 in 1 | ||||
5.Canned Still Drink Juice Hot Filling Sealing Machine Monoblock 2 in 1 | ||||
6.Glass Bottled Carbonated Soft Drink Isobaric Filling Machine Monoblock 3 in 1 | ||||
7.Glass Bottled Juice Hot Filling Machine Monoblock 3 in 1 | ||||
8. 10L~25L Barrel Water Filling Capping Machine | ||||
We provide complete solution including water purification system, beverage mixing sterilize system, plastic bottle making system. labeling, film wrapping, carton packing,date printer(ink or laser), palletizer. | ||||
Good Service and Quality for Win-Win

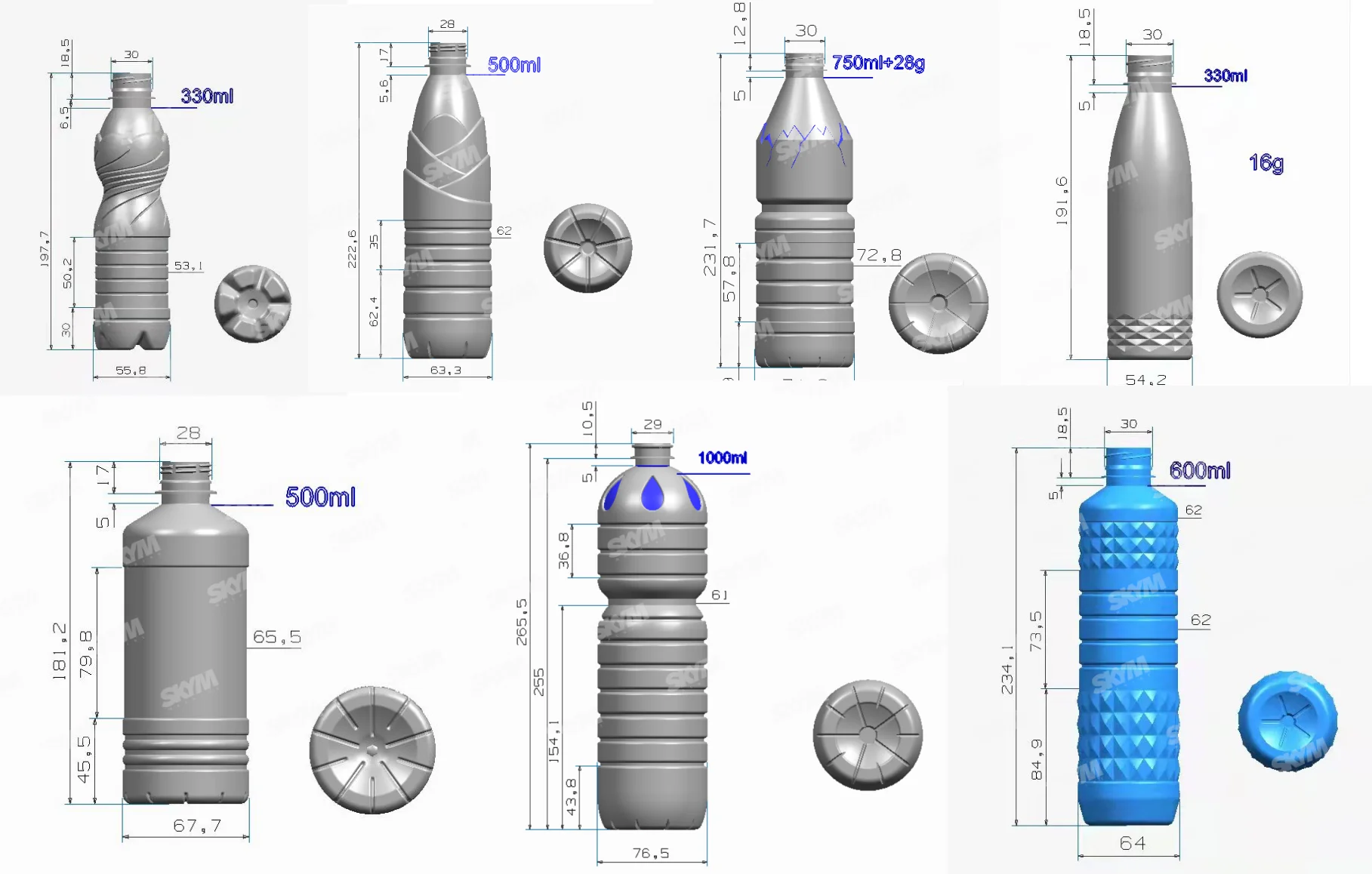

We provide free bottle design to customize your special product.
We provide free label design to customize your special product.

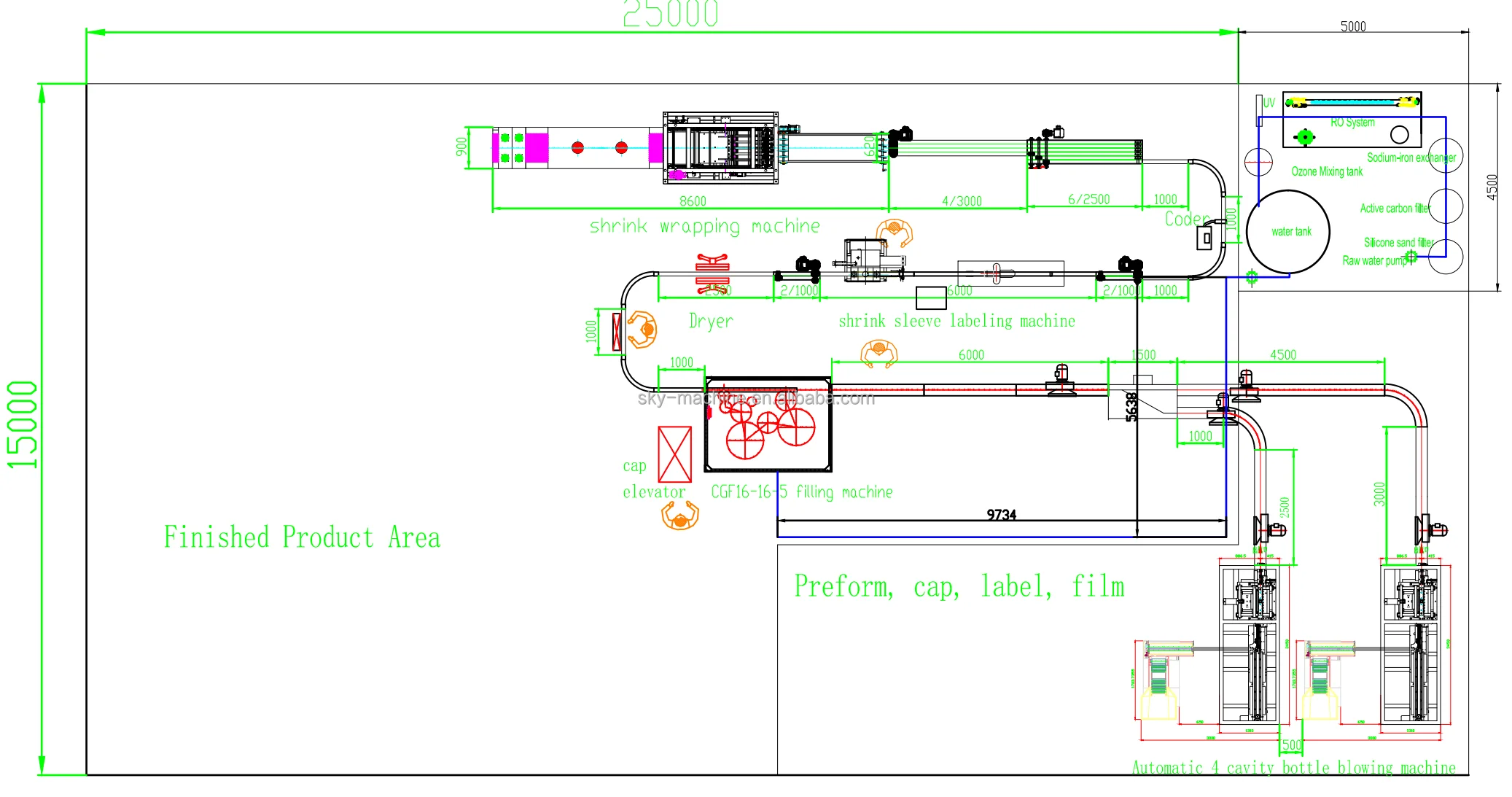

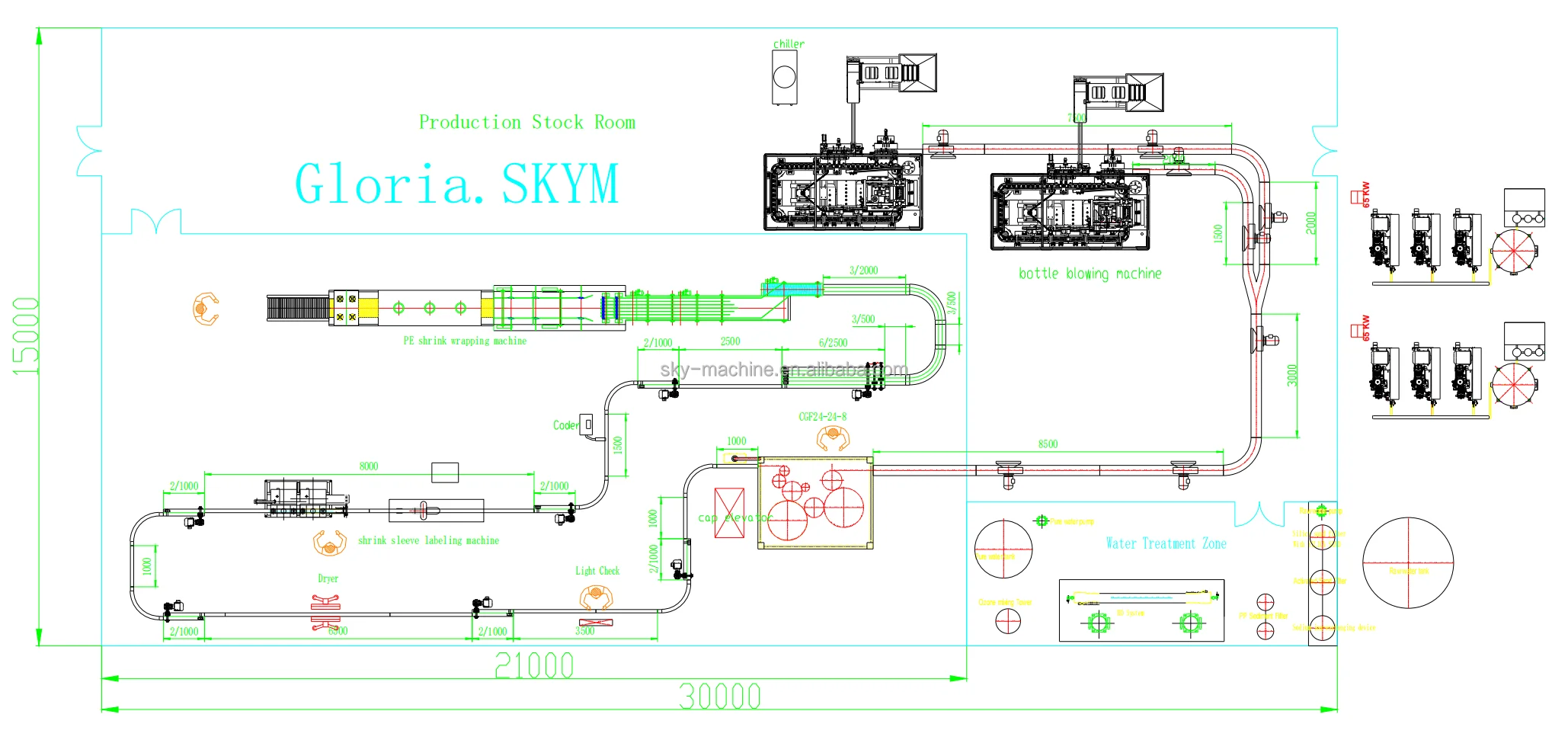

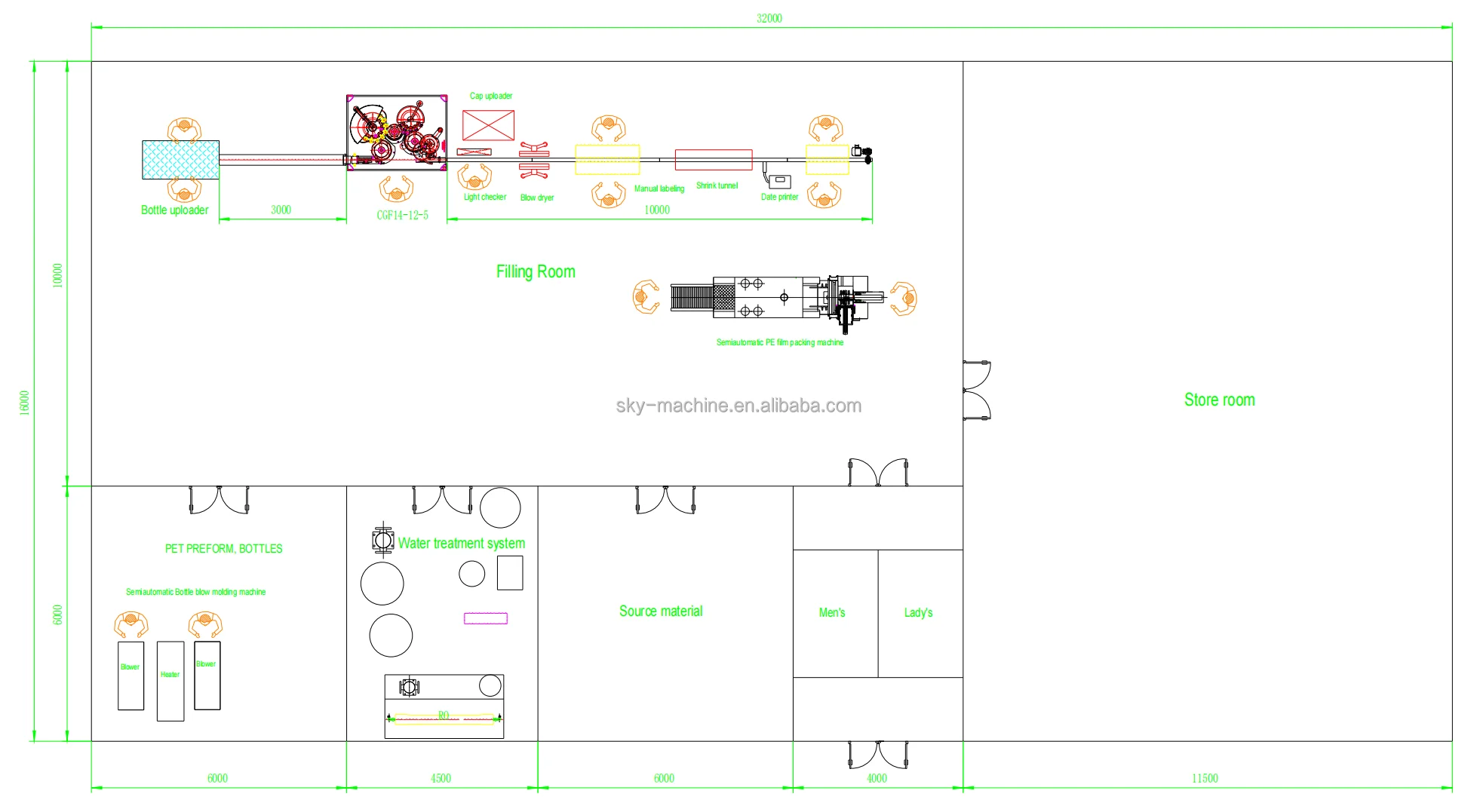

We provide factory layout to help you to arrange more proper space and smooth production.

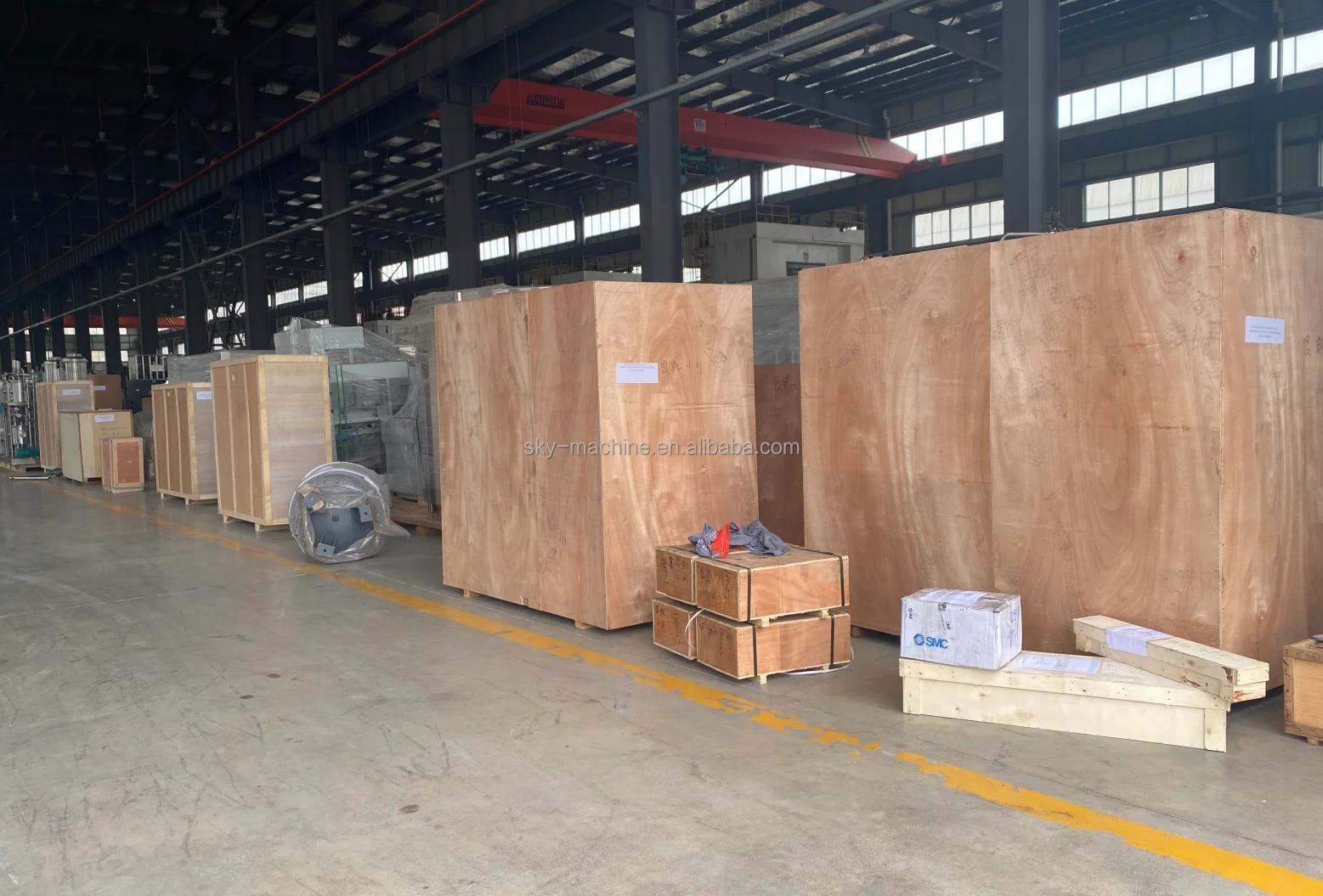

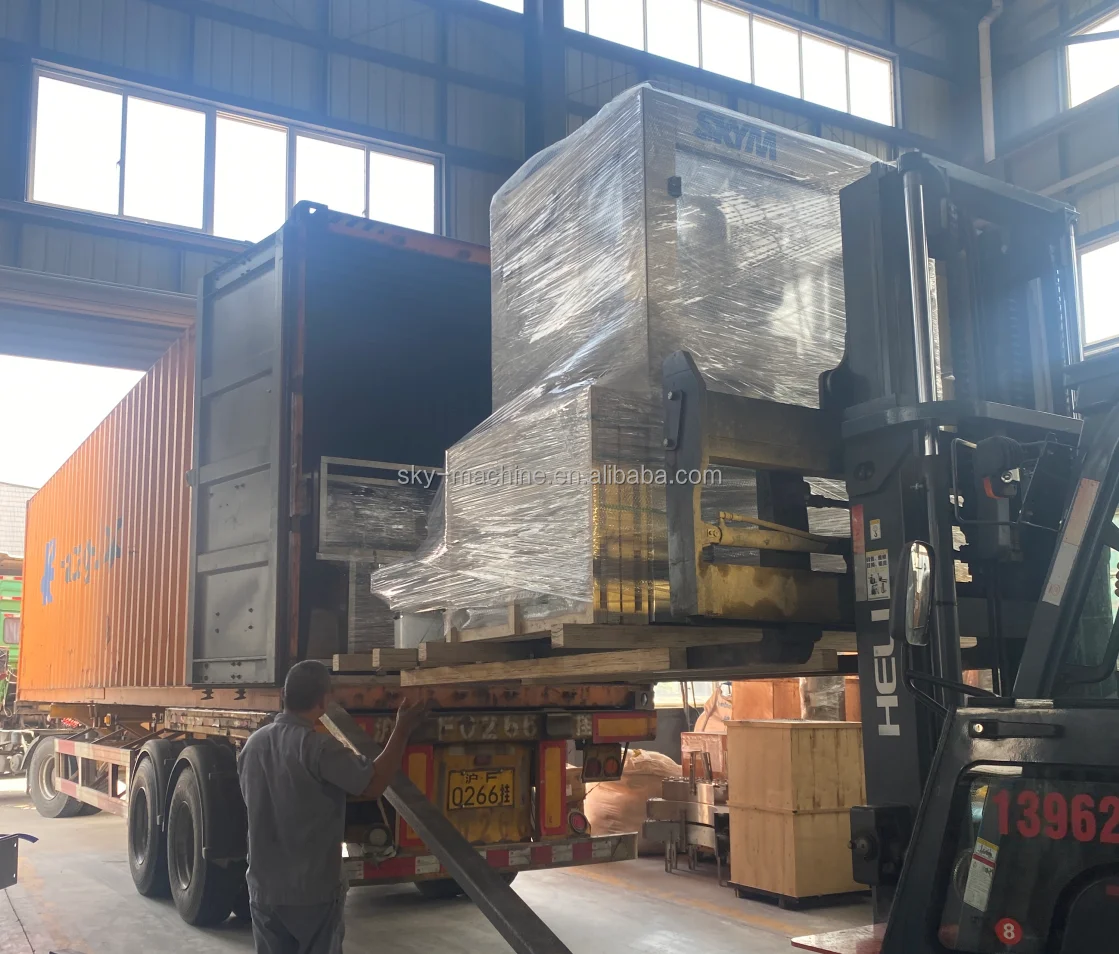

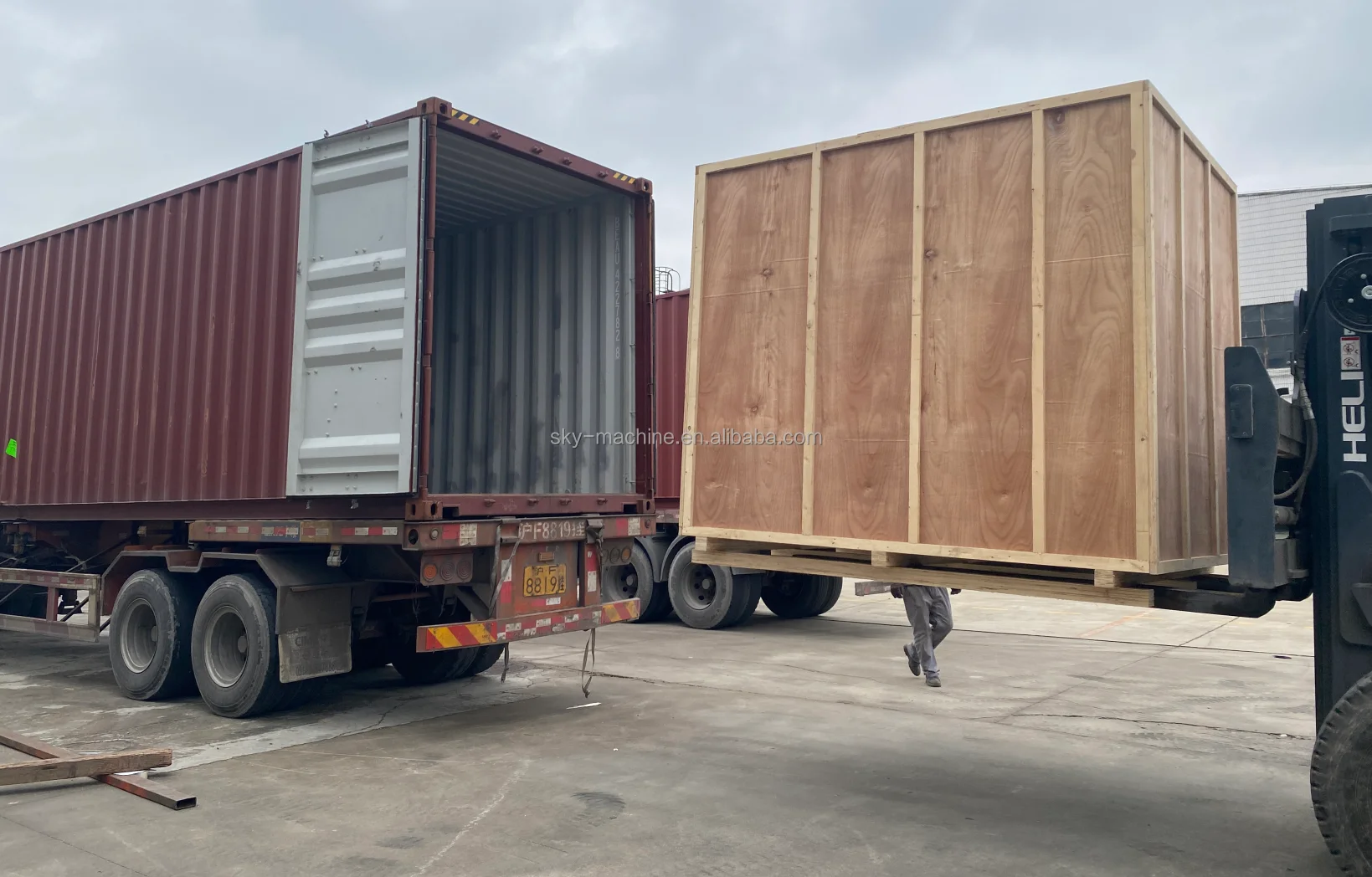

Packaging and Shipping
Auxiliary Equipment
With many mature manufacturing experience, we can offer the following production lines and equipment for A to Z complete solution.
Water Treatment System
source water tank--water pump--silica sand filter-- active carbon filter-- sodium-- ion exchanger-- precision filter --reverseosmosis system-- uv sterilizer --Ozone sterilizer --pure water tank

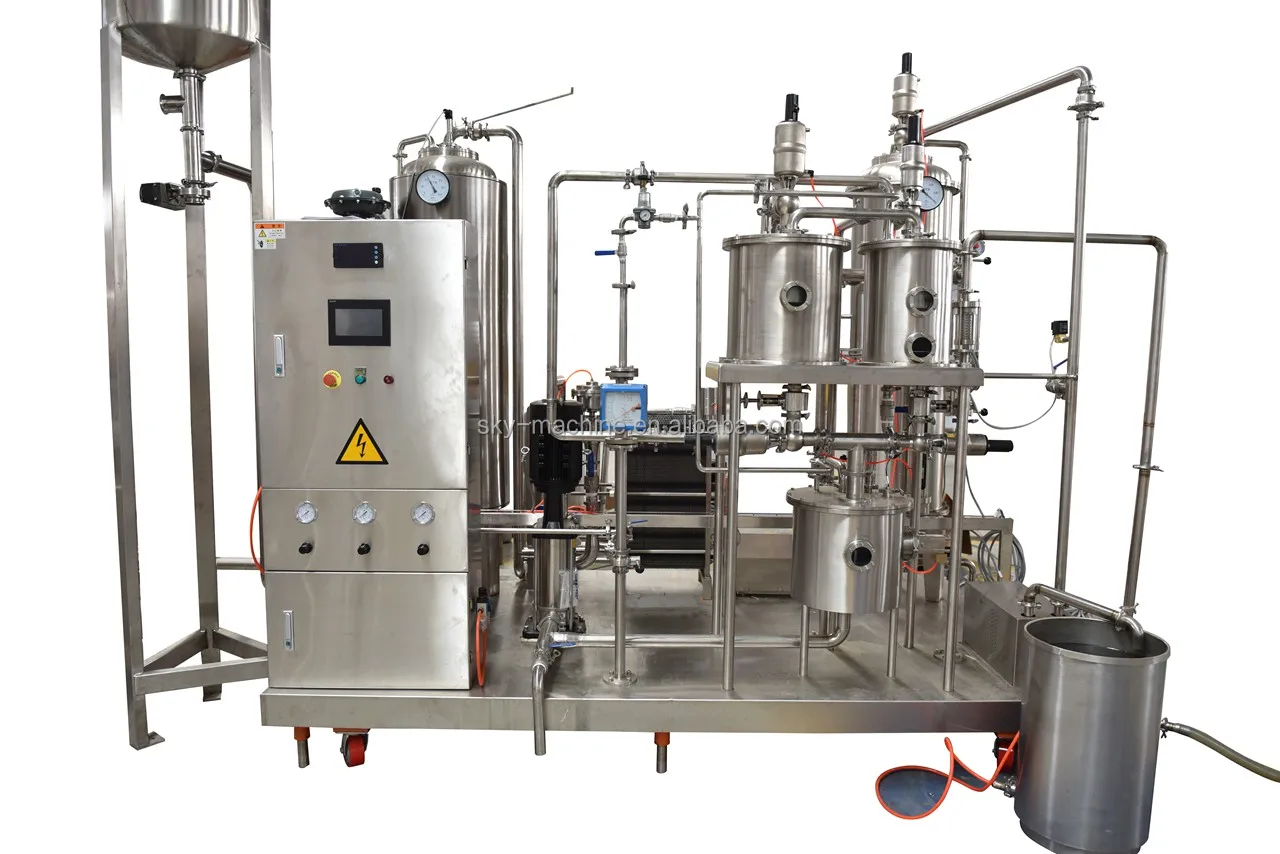

Beverage CO2 Mixing Machine
It is suitable for mixing all kinds of drink, such as soda water, fruit juice, cola and other soft and hard drink.

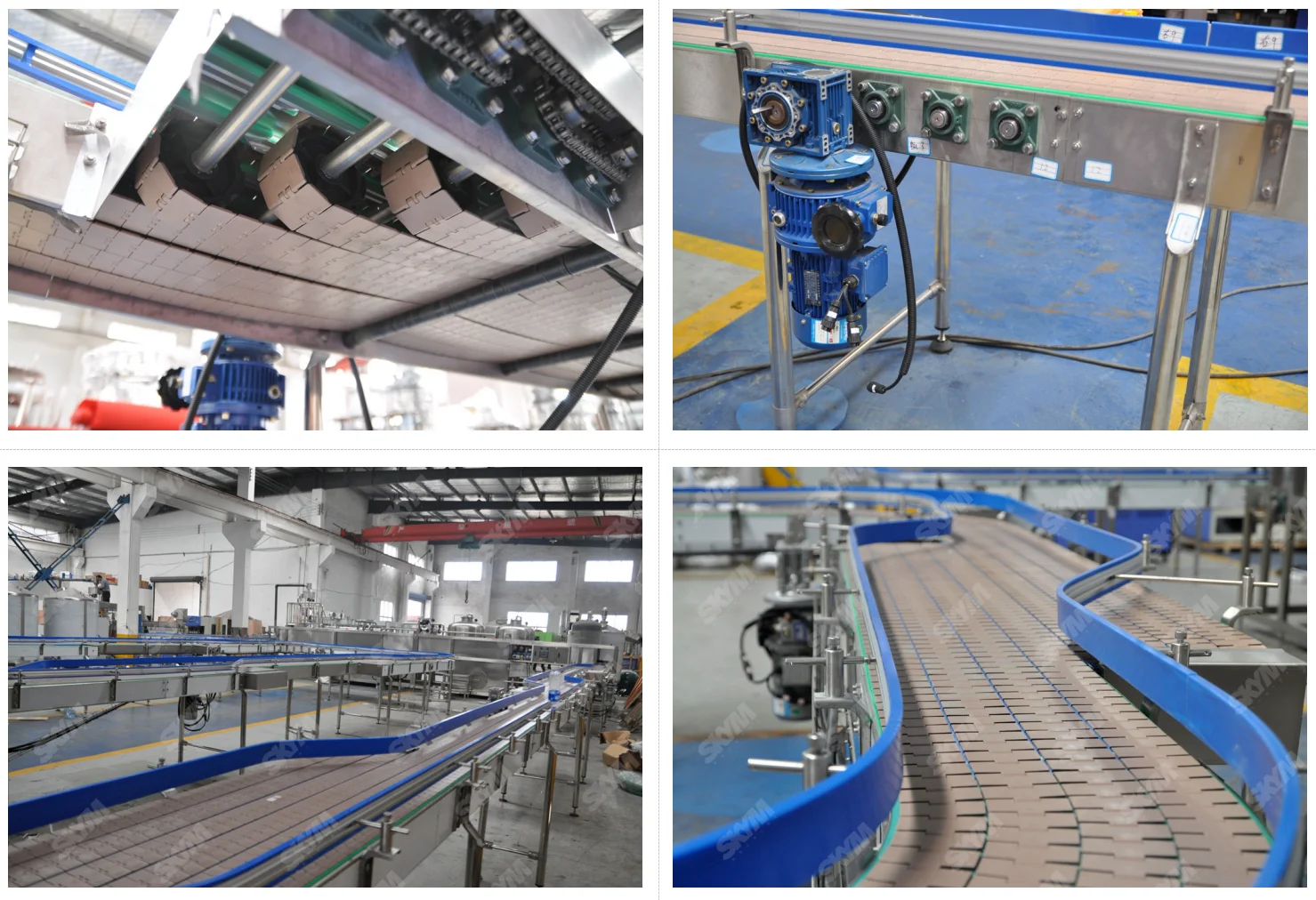

Air and Belt Conveyor System
Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are blocked on the neck in the conveyor and transported into filling machine by blowing power.
according to the requirements of different users, different production capacity, tank type, a combination of different ways of
conveying module, motor control mode, with great flexibility.
conveying module, motor control mode, with great flexibility.

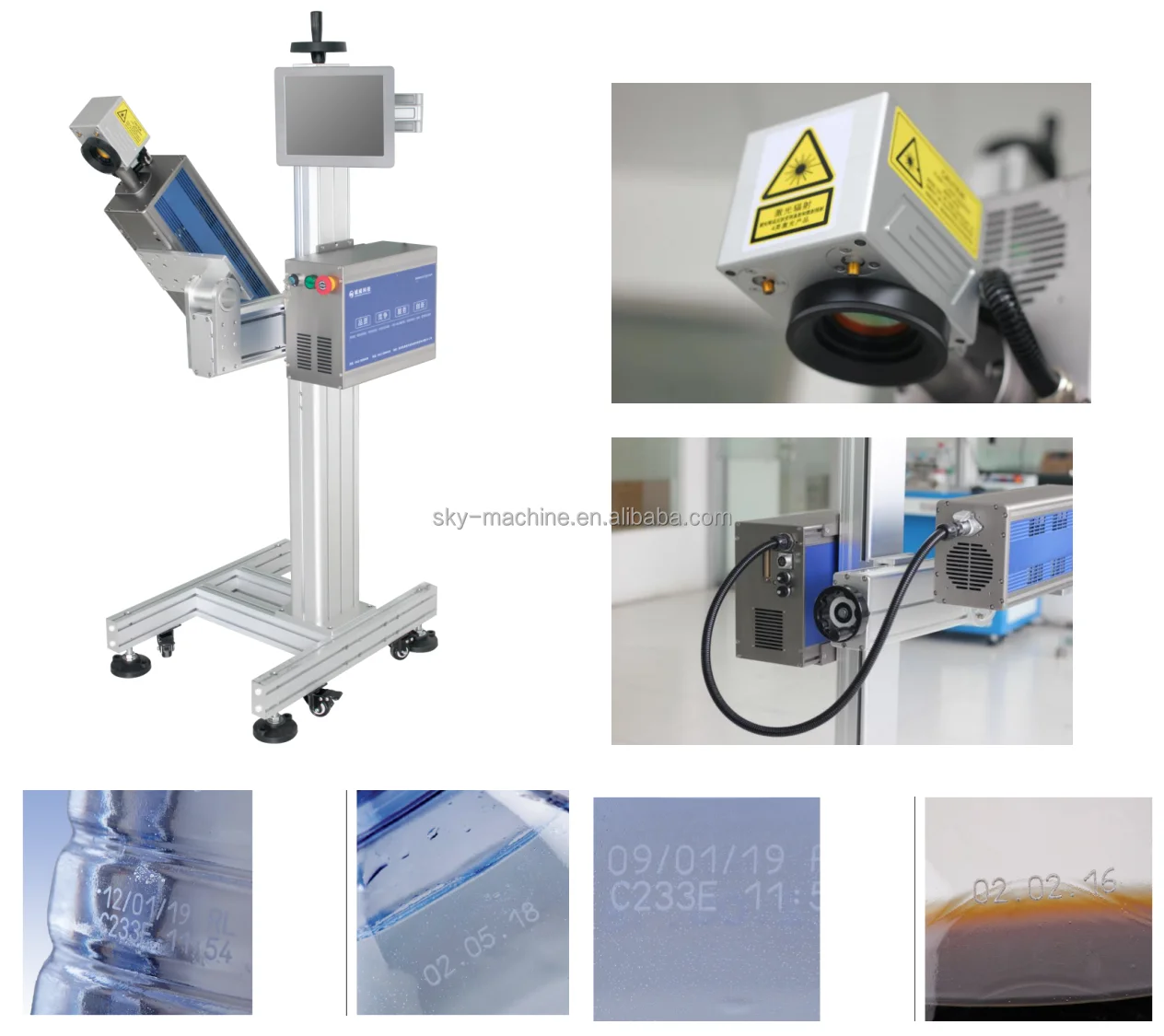

Date Printer laser type
simple to operate and maintaince. very less production cost.
Automatic PVC shrink labeling machine
The machine can be used for various bottle types, such as: round bottle, square bottle, flat bottle, curve bottle, cup, and so on.

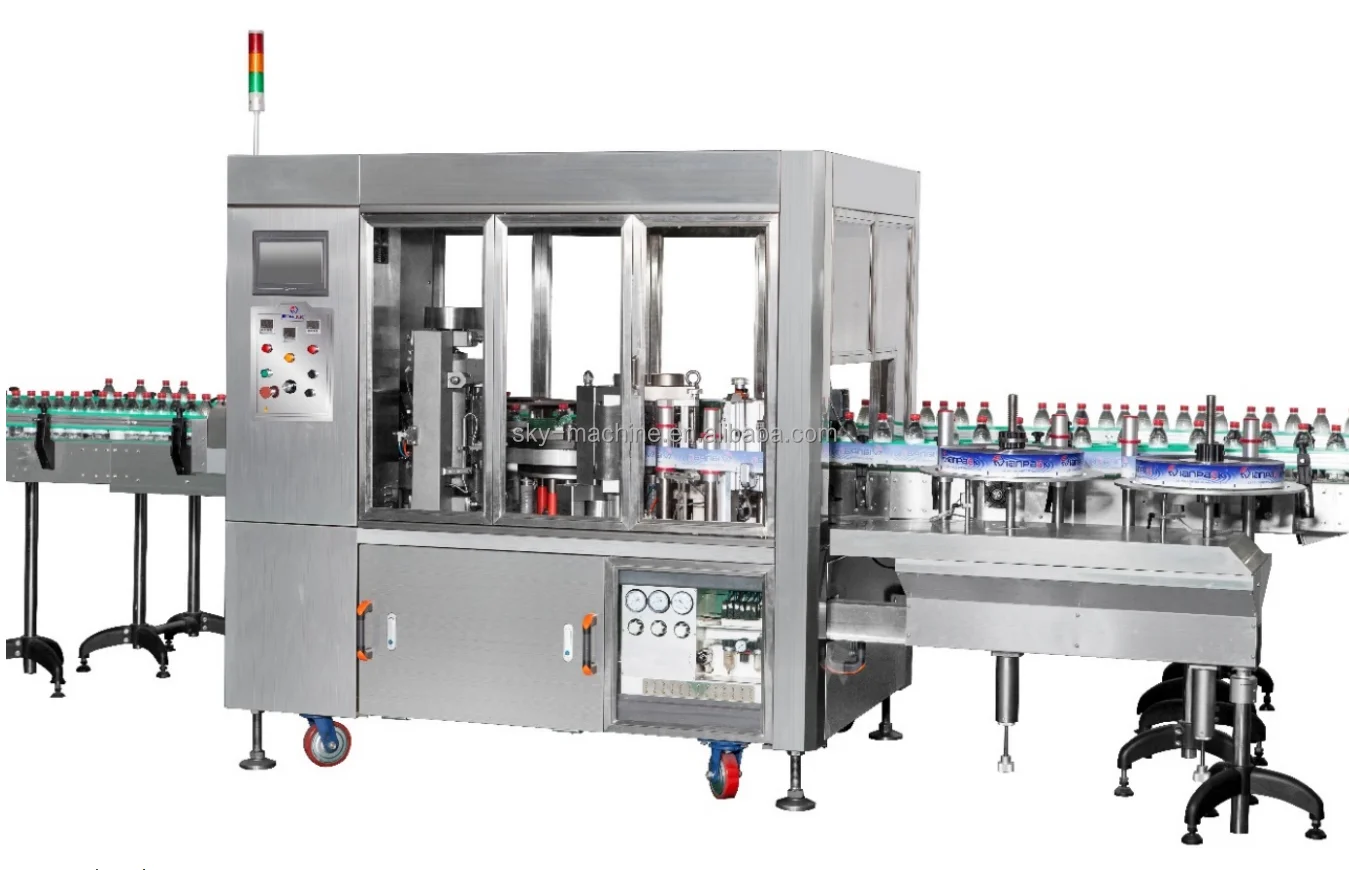

Automatic OPP hot melt labeling machine
The mainly used for container labeling cylindrical shape of detergents, beverages, mineral water, food etc. The material of label is using environmentally material of OPP films. It can be automatically oxidative decomposition and reduce production costs by more than 30 percent.
Automatic PE film shrink wrapping machine
(1)350/500/550/600ML
large package: 4*6, 4*5
Small package: 3*4, 3*5
(2)1L/1.5L/2L/2.5L
(2)1L/1.5L/2L/2.5L
large package:3*3,3*4
Small Package:2*2,2*3
Small Package:2*2,2*3

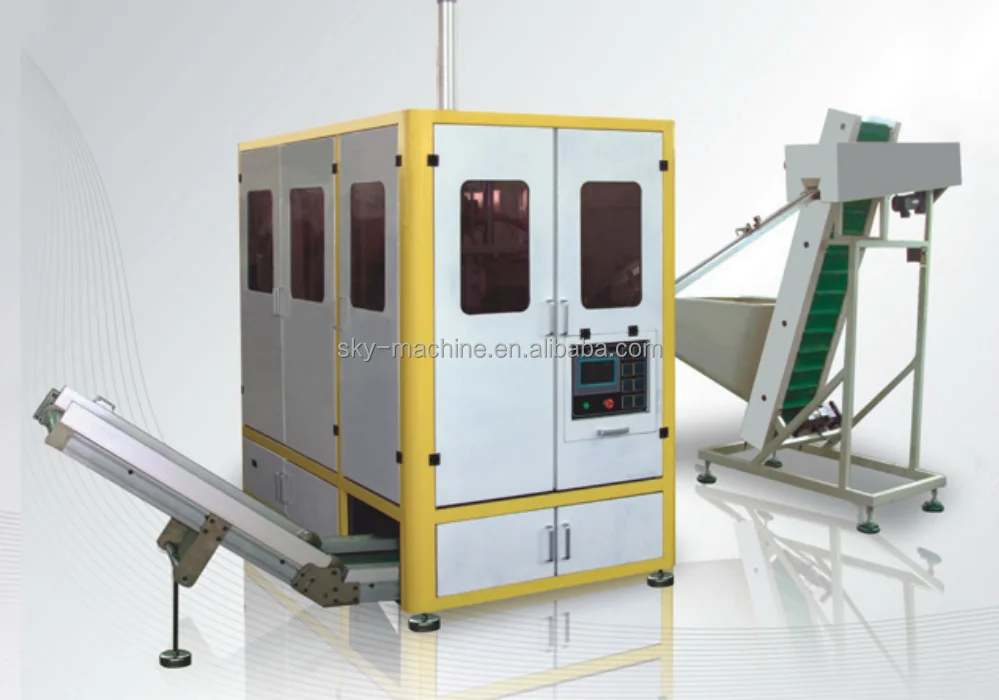

PET bottle making machine
semiautomatic and automatic for different bottle size and speed as your choice.

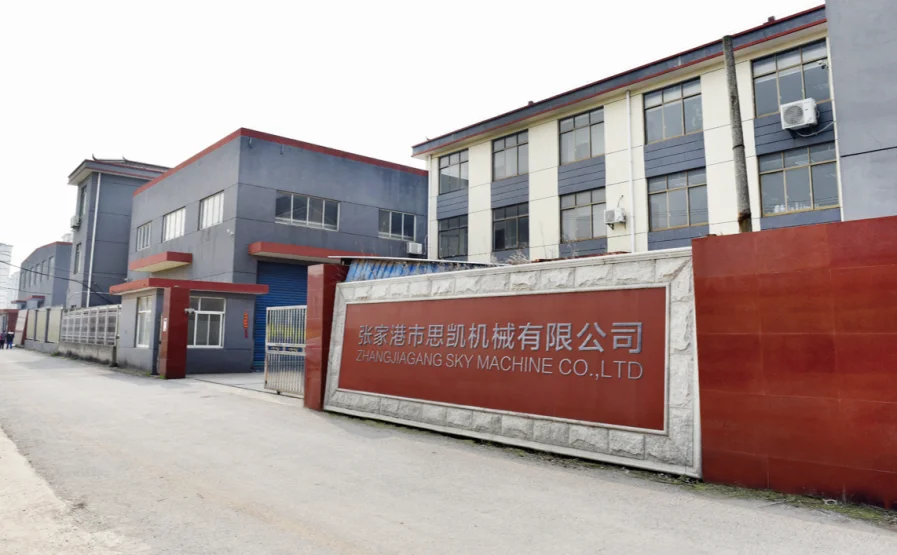

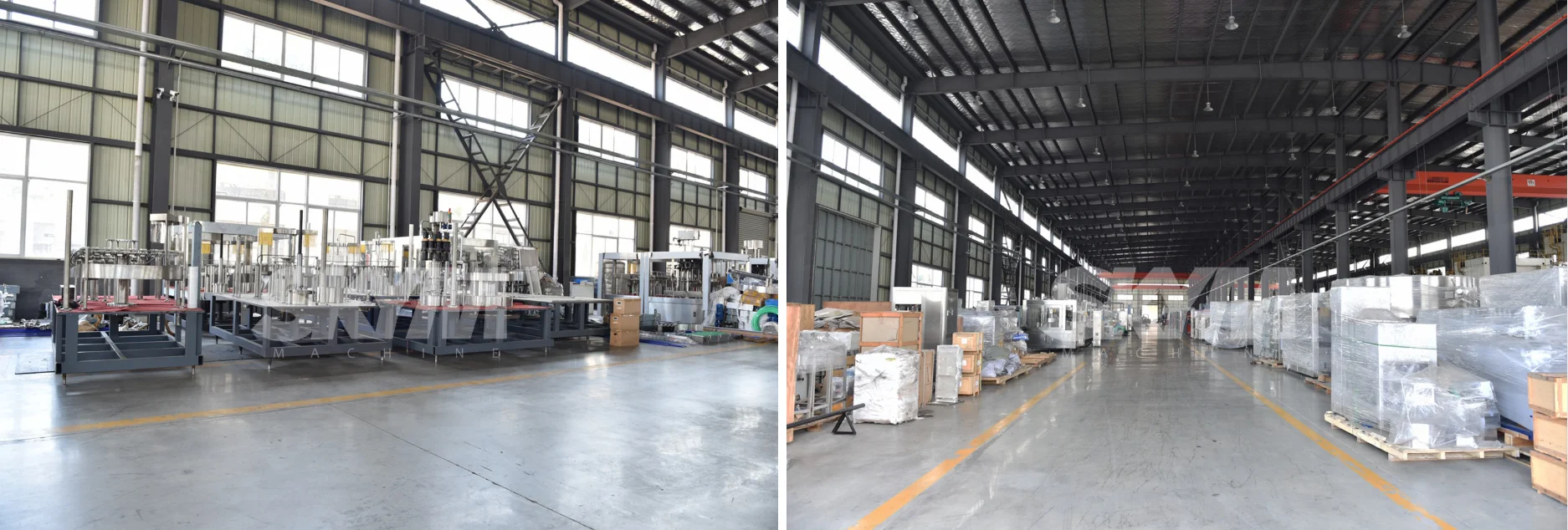

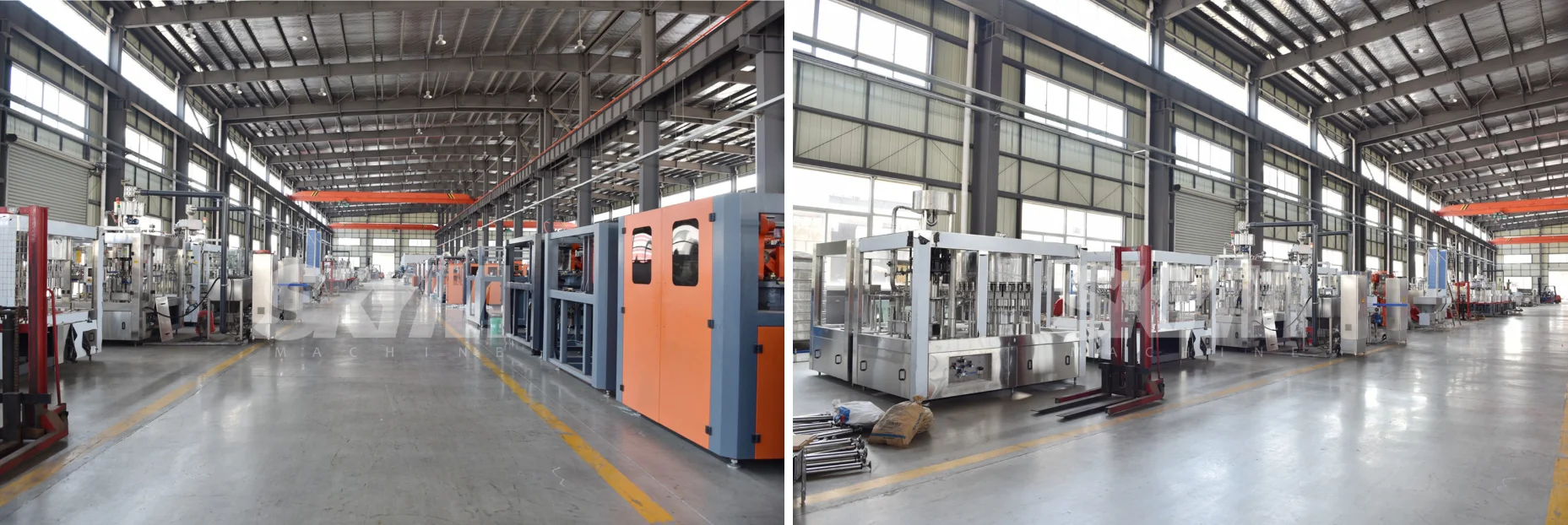

Company Introduction
we have very mature technology team and most staffs have more than 10 years experience in this business field.
We have many customers started second and third production line with our help and long lifetime technical support.
we have our own machining and process factory to design and produce according to your requirements
We have strong engineer steam to manufacture and service.
We provide customized and complete solution with all auxiliary equipment from A to Z We focus on long-term business
develop,your business' success is our biggest success
develop,your business' success is our biggest success
Here are some products our machines can do as following:
1. drinking pure water, mineral water, sparkling water, soda water in plastic bottle and glass bottle 200ml~2000ml
2. soft drink, juice and other carbonated beverage, beer, carbonated wine in plastic bottle and glass bottle 200ml~2000ml or Aluminum can 202, 201
3. big bottle water and 5gallon bottle water
4. bottled edible oil in plastic bottle and glass bottle
We can provide complete production solution from A to Z.
1. water purification RO system, water treatment system
2. monoblock washing-filling-capping machine 3 in 1, 2 in 1 and 4 in 1, can be customized.
3. beverage mixing making system
4. labeling, packaging machine like sleeve label, OPP hot melt label and sticker, packing in wrapped film or carton or halftray.
5. other small auxiliary equipment like date printer(ink or laser), connection system(air conveyor and belt conveyor), cooling water system
6. plastic bottle blow making machine
1. drinking pure water, mineral water, sparkling water, soda water in plastic bottle and glass bottle 200ml~2000ml
2. soft drink, juice and other carbonated beverage, beer, carbonated wine in plastic bottle and glass bottle 200ml~2000ml or Aluminum can 202, 201
3. big bottle water and 5gallon bottle water
4. bottled edible oil in plastic bottle and glass bottle
We can provide complete production solution from A to Z.
1. water purification RO system, water treatment system
2. monoblock washing-filling-capping machine 3 in 1, 2 in 1 and 4 in 1, can be customized.
3. beverage mixing making system
4. labeling, packaging machine like sleeve label, OPP hot melt label and sticker, packing in wrapped film or carton or halftray.
5. other small auxiliary equipment like date printer(ink or laser), connection system(air conveyor and belt conveyor), cooling water system
6. plastic bottle blow making machine
Our clients are all over,Germany, Malaysia, Indonesia, Vietnam, Philippines, Bangladesh, UAE, Oman, Ethiopia, Nigeria, Brazil totally more than thirty countries and regions.And we earned all the clients' good comments. Welcome you to visit our company.
FAQ
1. A: Are you factory?How many workers do you have?
B: Yes,we are factory. our factory is located in zhangjiagang near from shanghai. We have about 50 workers in our factory.
2. A: What about after sale service?
B: 12months of electrical part and 18months of mechanical part after machine installed and running normally.
3. A: What about installation?
B: Our engineer can be sent to your country. but customer should pay the air tickets and 100usd as salary per person per day. besides, customer should arrange the accommodation for them during the trip.
4. A: What do we do if we encounter problem about the machine ?
B: Show us the picture or video of the problem. If the problem is from small machine, we will send you solution by video. If the problem is from large machine, our engineer will go to your factory (customer will pay the fee during the trip).
5. A: How can you control the quality and delivery?
B: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery .
