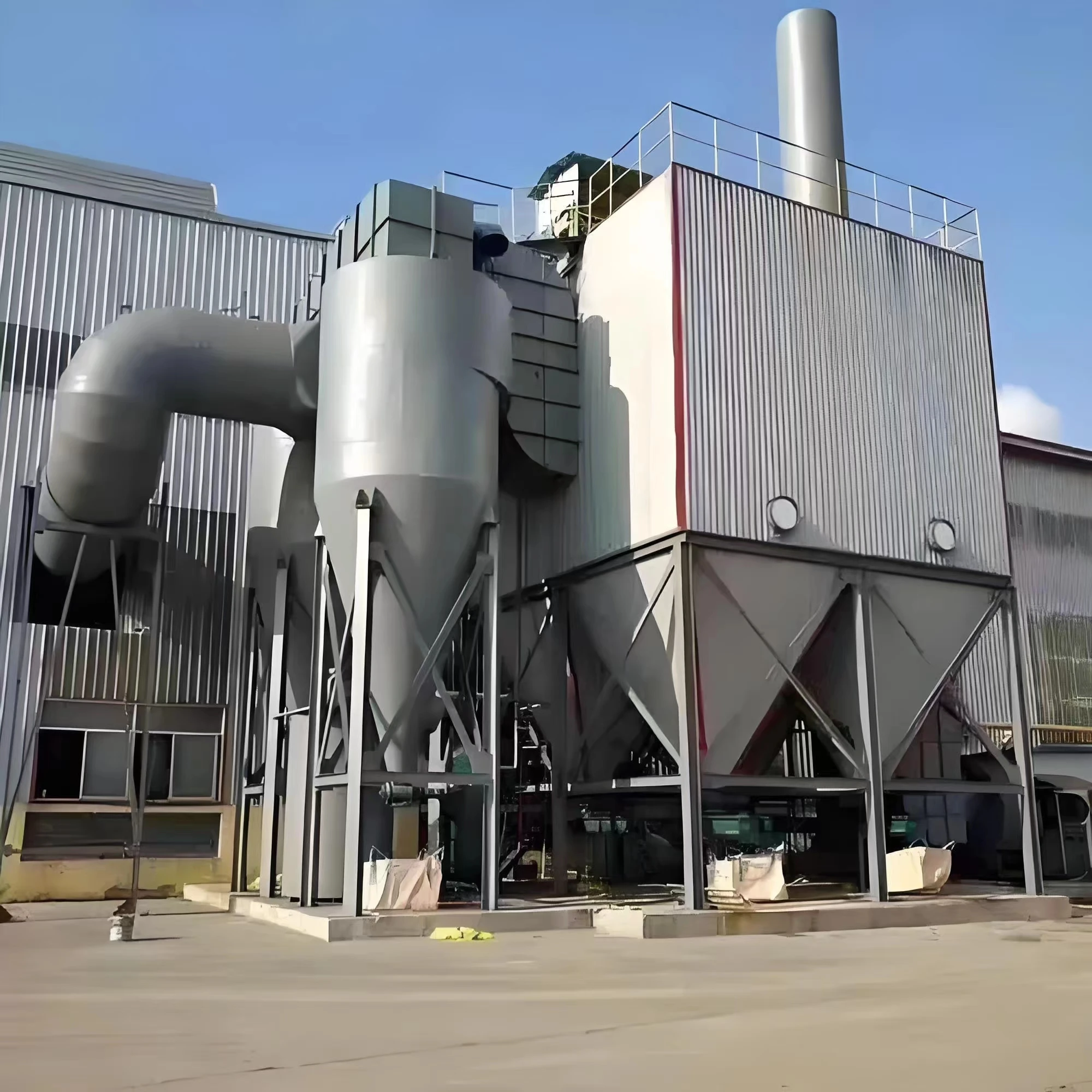

Easy Maintenance Automatic Pulse Jet Bag Filter Dust Collector OEM Customized Filter Dust Collector
Easy Maintenance Automatic Pulse Jet Bag Filter Dust Collector OEM Customized Filter Dust Collector
Easy Maintenance Automatic Pulse Jet Bag Filter Dust Collector OEM Customized Filter Dust Collector
Easy Maintenance Automatic Pulse Jet Bag Filter Dust Collector OEM Customized Filter Dust Collector
Easy Maintenance Automatic Pulse Jet Bag Filter Dust Collector OEM Customized Filter Dust Collector
Easy Maintenance Automatic Pulse Jet Bag Filter Dust Collector OEM Customized Filter Dust Collector
Easy Maintenance Automatic Pulse Jet Bag Filter Dust Collector OEM Customized Filter Dust Collector

Easy Maintenance Automatic Pulse Jet Bag Filter Dust Collector OEM Customized Filter Dust Collector

Share on (1600567890938):


Price:$500.00 - $600.00

Quantity:


Product Overview

Description



Products Description


Equipment Introduce:

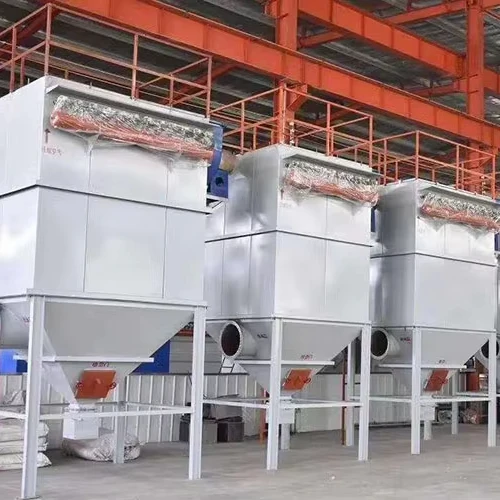

HMC series pulse cloth bag dust collector is a single type bag dust collector. It adopts circular filter bag, self-contained air ventilation system with pulse injection ash cleaning mode, which has advantages of high
dust removal efficiency, good ash cleaning effect, low operation resistance, long service life of filter bag, simple maintenance and stable operation, etc.


Equipment Model
HMC-24
HMC-32
HMC-36
HMC-48
HMC-64
HMC-80
Total Filtration Area m²
20
25
30
40
50
64
Filtration Velocity m/min
1.0-2.0
Air Volume m³/h
1200-2400
1500-3000
1800-3600
2400-4800
3000-6000
3840-7680
Quantity of Filter Bag
24
32
36
48
64
80
Specification and Material of Filter Bag
130*2000mm
Air Outlet Dust Concentration mg/m³
≤30
Beard Negative Pressure Pa
5000
Equipment Running Resistant Pa
800-1200
Injection Pressure Mpa
0.4-0.6
Electromagnetic
Pulse Valve
Specification

DMF-Z-25(G1")
quantity
4
4
6
6
8
8
Induced Draft Fan Model
4-72-2.8A
4-72-3.2A
4-72-3.6A
4-72-3.6A
4-72-4A
4-72-4.5A
Power of Motor
1.5kw
2.2kw
3kw
4kw
5.5kw
7.5kw


Bag repair and replacement can be carried out in separate rooms without stopping the system fan and under normal operating onditions of the system. Filter bag mouth with elastic ring, good sealing performance, firm and reliable. The filter bag keel adopts the polygonal shape, which reduces the friction between the bag and the keel, prolongs the life of the bag, and is easy to unload the bag.




S.R.D. Dust Collectors’ baghouse dust collectors are most effective when the particulate is larger and the loading is extreme.








Related Products

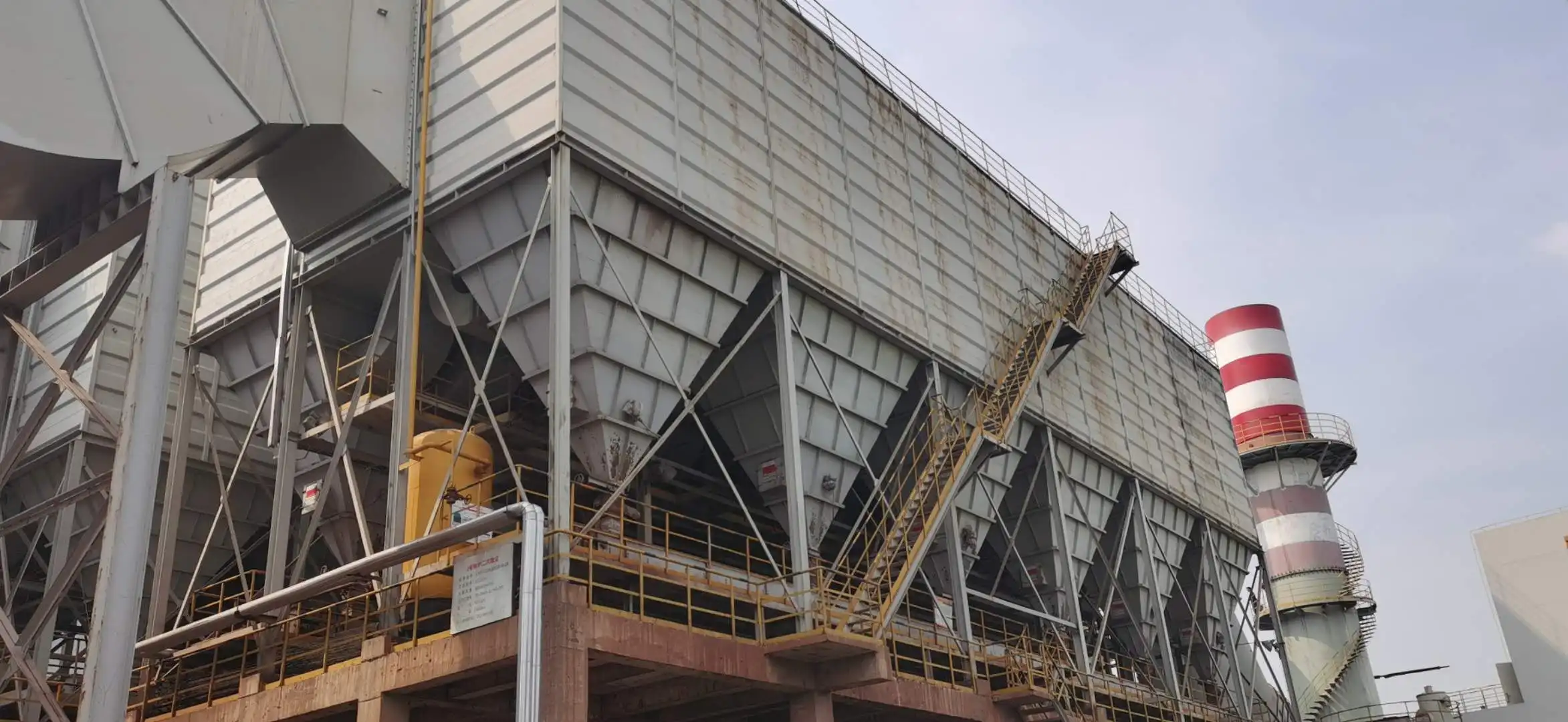

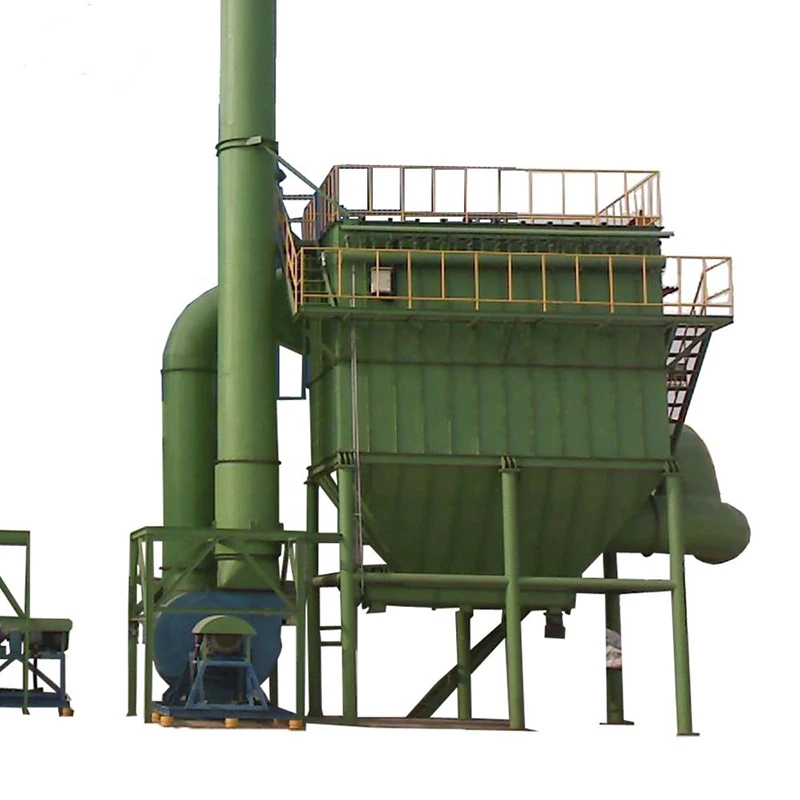

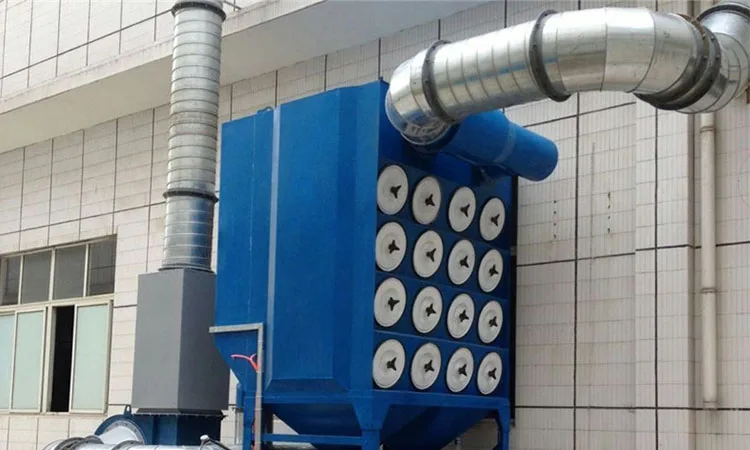

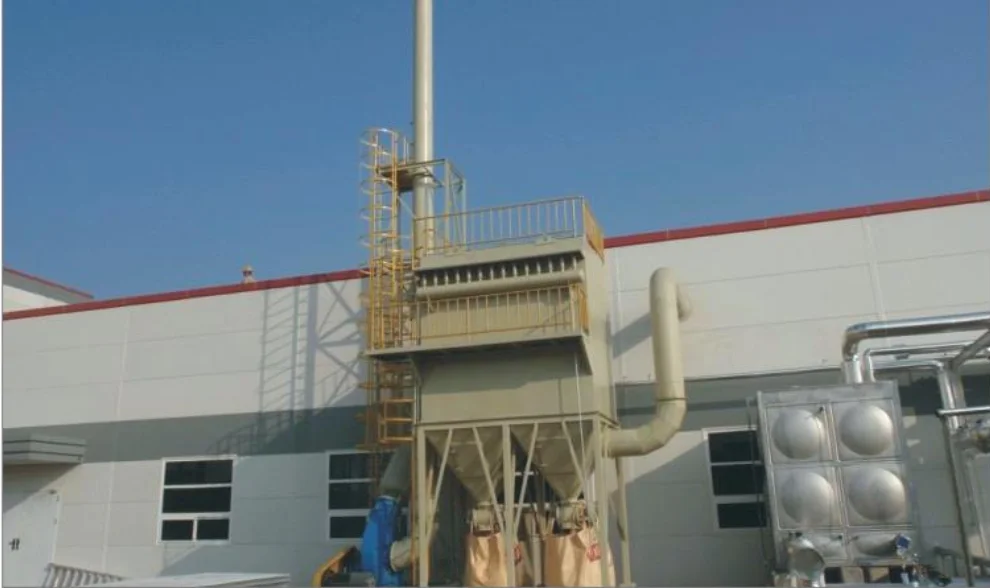

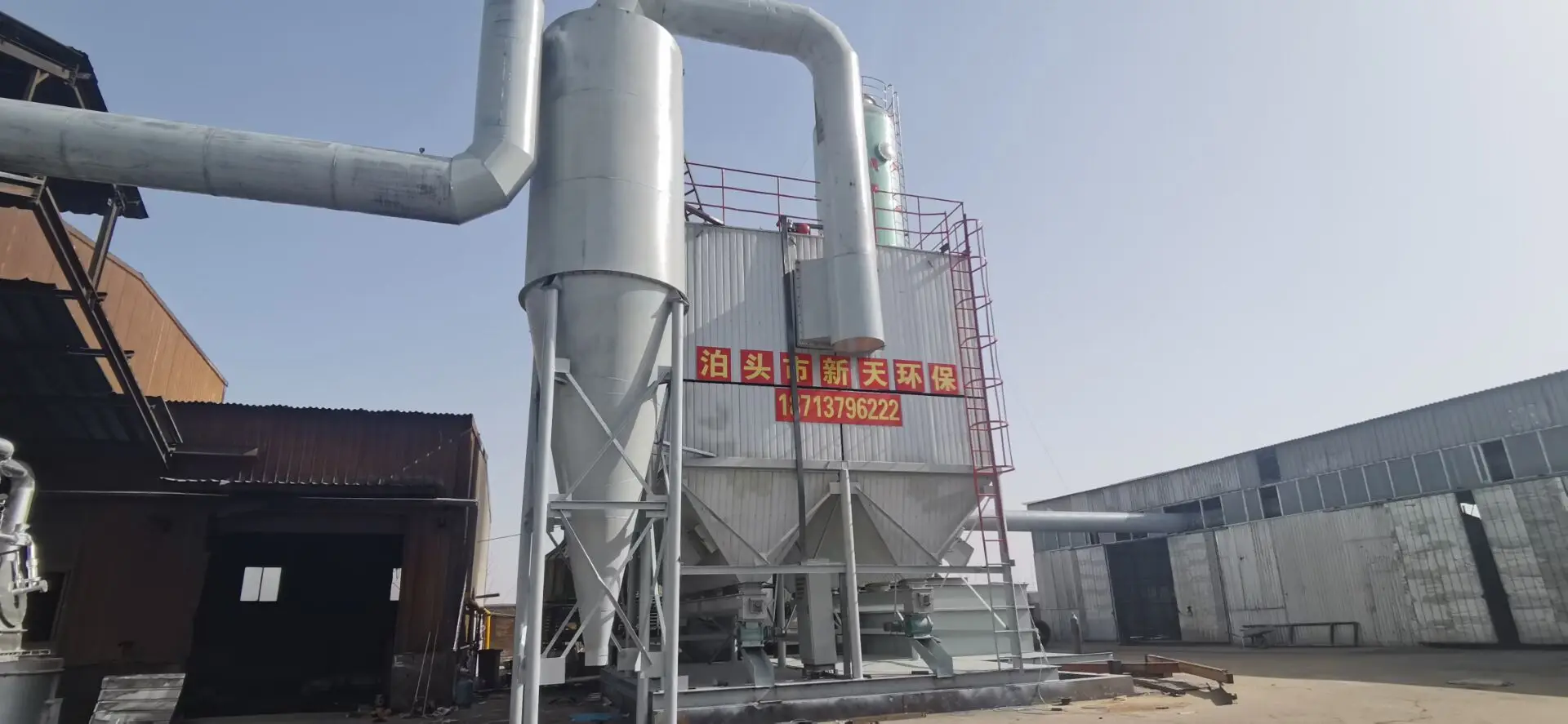

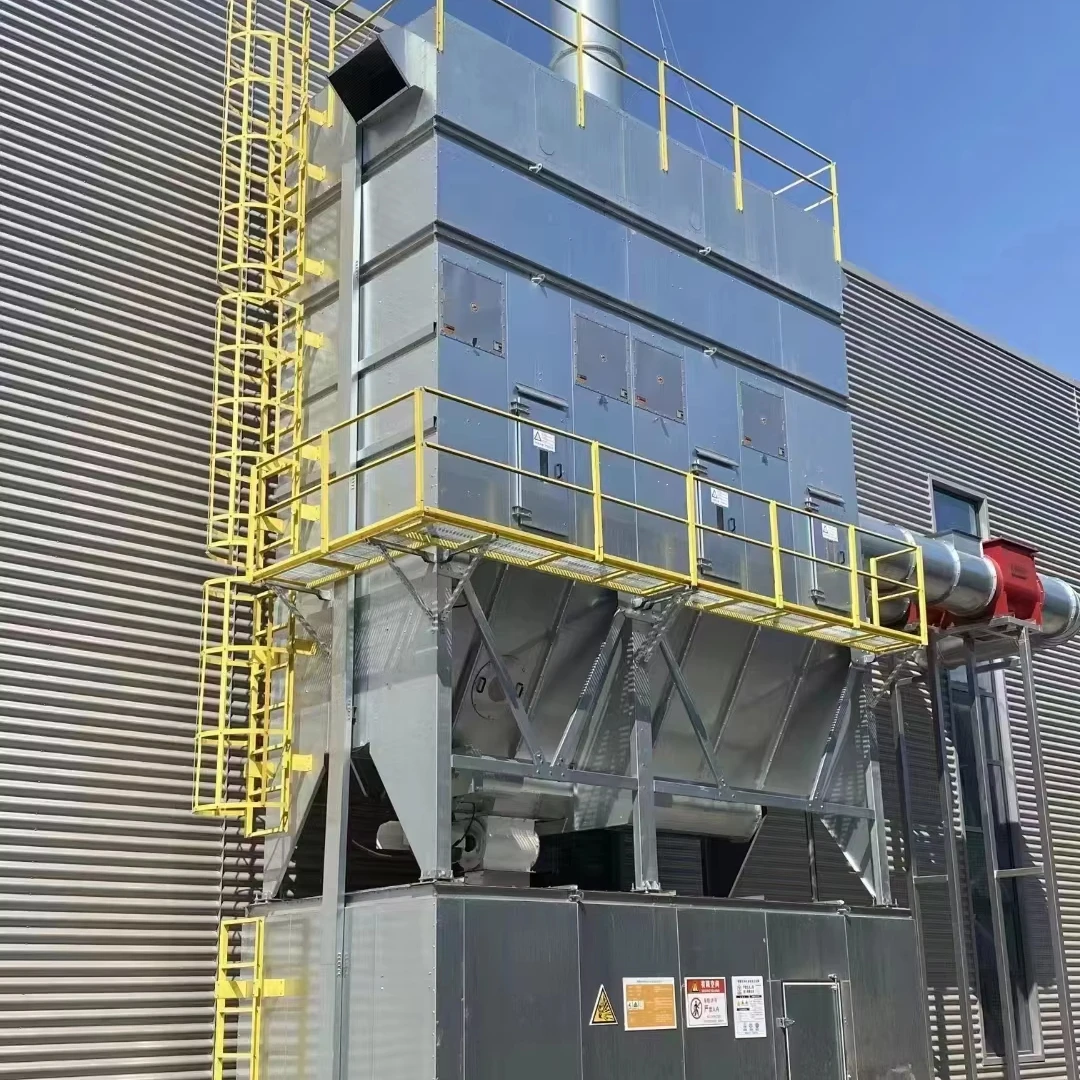

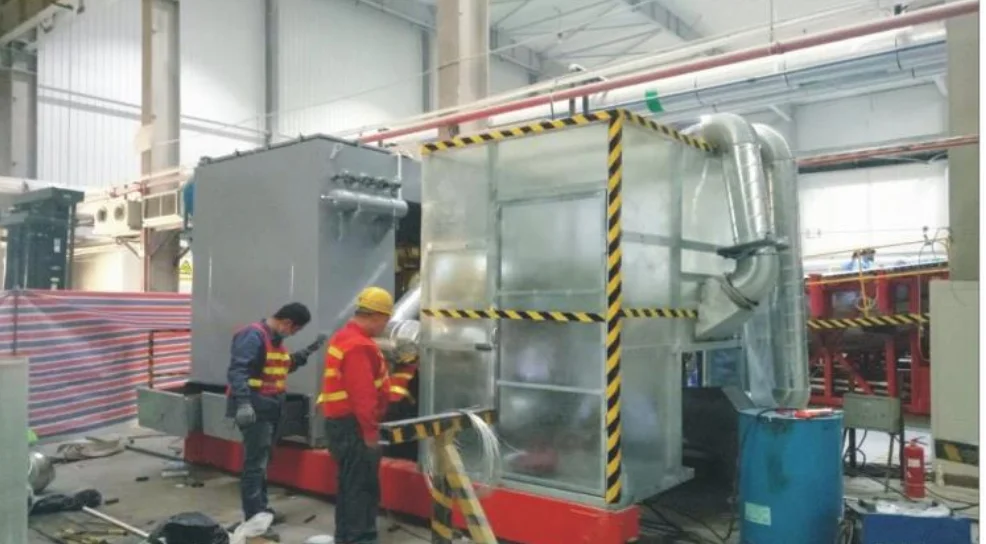

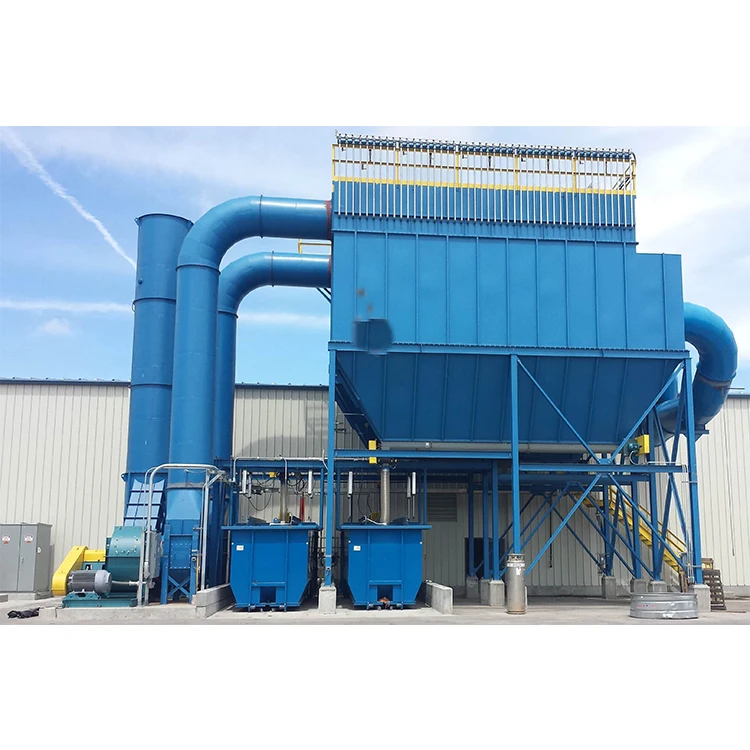

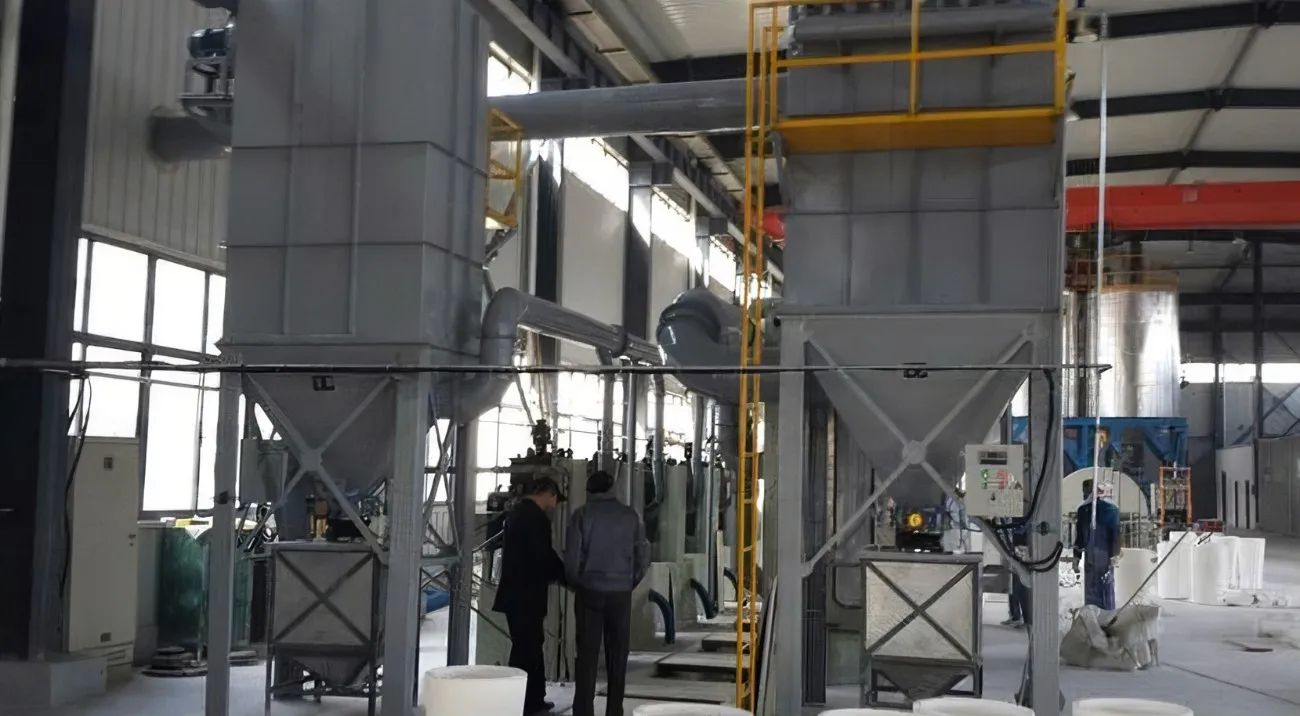

Installation Project






Customer feedback




Company Profile








Botou Xintian Environmental Protection Equipment Co., Ltd has a superior geographical position, West 106 National Highway, North Shihuang Expressway, East 104 National Highway, Jingfu Expressway, Beijing­Shanghai Railway, Highway and Railway crisscross, and the traffic is very convenient. The lo「mation of traffic network provides a time guarantee for the transportation and after-sales service of products.






FAQ


Q1: Whether your equipment have passed some international standard?
A1: Now the quality of our shot blasting machine has met ISO9001 ISO14001 CE international standard
Q2: \tHow long is your equipment warranty?
A2: General the warranty is one year (except quick-wear spare parts)
Q3: Whether your company can supply installation?
A3: Online or On-site installation.
Q4: How long is your delivery time ?
A4: Generally it is within 7 days if the goods are in stock.or it is 10-50days if the goods are not in stock,it is according to quantity
Q5: What capacity of we can supply?
A5: We can as your needs to professional design
