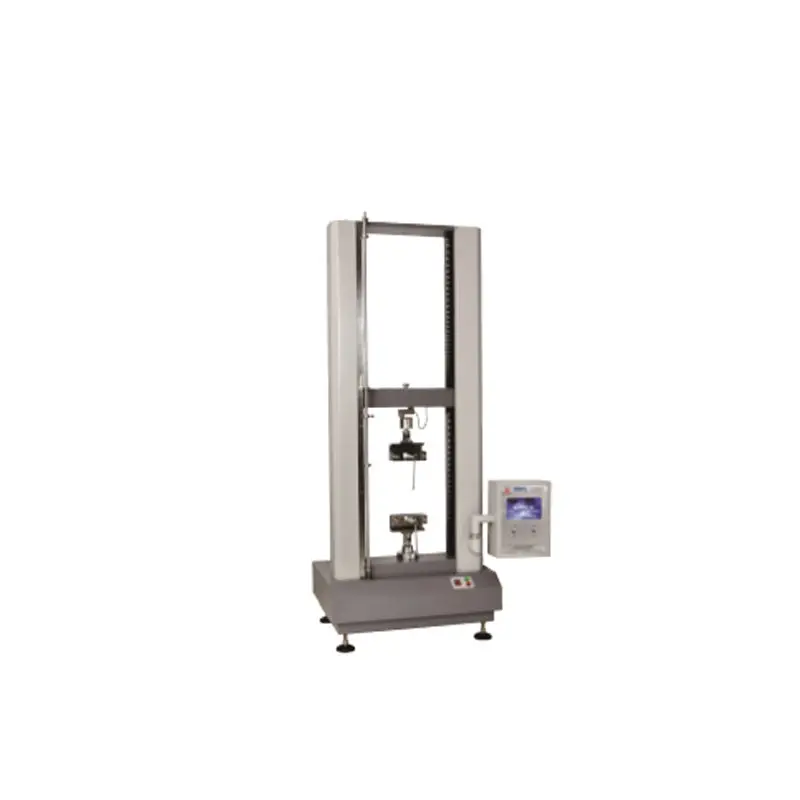

Customized YG026D II 1000 Multi function Touch Screen Display Electronic Fabric Strength Machine Universal Testing Machine
- Category: >>>
- Supplier: Ningbo Textile Instrument Factory
Share on (1600567891026):
Product Overview
Description
Products Description
Scope of application | It is used to measure the breaking strength and breaking elongation of various textiles. Various mechanical performance indicators such as recovery and seam slippage are tested. With special sensor, it can also test the breaking strength and breaking elongation of single yarn |
Force measurement range | 1 to 100% of full scale |
Force measurement accuracy | ≤±0.2%F.S |
Stretching speed | 1～1000mm/min (arbitrary setting) |
Reply speed | 1～1000mm/min |
Sampling frequency | 50 times/second |
Tensile speed | 1-1000mm/min |
Elongation resolution | 0.01mm |
Effective stroke | 800mm (manual clamp) |
Dimensions | 740*540*1800 mm |
Weight | 208Kg |
power supply | 750w |
Product Features
1. It is controlled by NXP 32-bit industrial-grade single-chip microcomputer, and the American AD company produces 24-bit A/D converter, with strong anti-interference performance, fast data processing and transmission;
2. The dynamic sampling frequency reaches 50 times/second, during the test process, each data peak value can be correctly captured;
3. Touch screen display, full Chinese menu, easy to operate;
4. Computer online control, dynamic tracking of the working state of the instrument; transmission of test data and real-time display of the tensile curve;
5. Fully automatic domestic servo system drive, trapezoidal screw drive, low noise operation;
6. Built-in force value automatic digital calibration system;
7. The integrated design of the test function and the open data connection interface realize the multi-purpose of one machine;
8. Force unit: CN, N, Kgf and lbf and other free conversion;
9. With overload, over-travel and over-voltage protection, to ensure the safe and reliable operation of the instrument.
10. The computer software supports user-defined standards.
2. The dynamic sampling frequency reaches 50 times/second, during the test process, each data peak value can be correctly captured;
3. Touch screen display, full Chinese menu, easy to operate;
4. Computer online control, dynamic tracking of the working state of the instrument; transmission of test data and real-time display of the tensile curve;
5. Fully automatic domestic servo system drive, trapezoidal screw drive, low noise operation;
6. Built-in force value automatic digital calibration system;
7. The integrated design of the test function and the open data connection interface realize the multi-purpose of one machine;
8. Force unit: CN, N, Kgf and lbf and other free conversion;
9. With overload, over-travel and over-voltage protection, to ensure the safe and reliable operation of the instrument.
10. The computer software supports user-defined standards.
Recommend Products
Company Profile
Our company produces more than 200 kinds of textile testing instruments and equipment, with an average annual production capacity of more than 30 million. The annual growth rate is far ahead of the domestic counterparts. Because the company fully adopts the ISO90001:2008 international quality management system and WTO international management model, has a complete set of production management and processing technology in the professional R&D and manufacturing process for many years. The company has strong scientific research and technical force. Now it has fixed assets of more than 56 million yuan, a factory building area of about 11,000 square meters, and a total of more than 80 employees.
Our factory has two CNC machining centers
Three sets of automatic CNC lathes
One set of precision coordinate boring machine
Three sets of precision gear hobbing machines
Four sets of precision wire cutting machines
One No. 1 large-scale milling machine, and more than 28 other processing equipment such as various turning and milling machines, grinding machines, etc.
The possession and advanced nature of production equipment are at the leading domestic level.
Three sets of automatic CNC lathes
One set of precision coordinate boring machine
Three sets of precision gear hobbing machines
Four sets of precision wire cutting machines
One No. 1 large-scale milling machine, and more than 28 other processing equipment such as various turning and milling machines, grinding machines, etc.
The possession and advanced nature of production equipment are at the leading domestic level.
The company is a high-tech enterprise integrating R&D, production and technical services of high-tech products. At present, it is mainly committed to the planning of textile testing instruments, textile laboratories, constant temperature and humidity laboratories, high temperature aging rooms (rooms), biological laboratories, clean rooms (plants), sterile rooms, computer communication rooms and other special environmental projects. Design and production, sales and installation of supporting equipment. The company has strong scientific research and technical strength. The company has more than 60 professional and technical personnel, of which middle and senior engineers account for about 68% of the total scientific research personnel. (employing professors and experts from well-known domestic colleges and universities)
Certifications
Product packaging
FAQ
1. Are you a factory?
Yes, we are.
2. What's the product delivery time?
If we have stock, the delivery time will be greatly shortened.
3. What's your terms of trade?
We accept EXW, FOB, CIF, CNF and so on.
Yes, we are.
2. What's the product delivery time?
If we have stock, the delivery time will be greatly shortened.
3. What's your terms of trade?
We accept EXW, FOB, CIF, CNF and so on.
