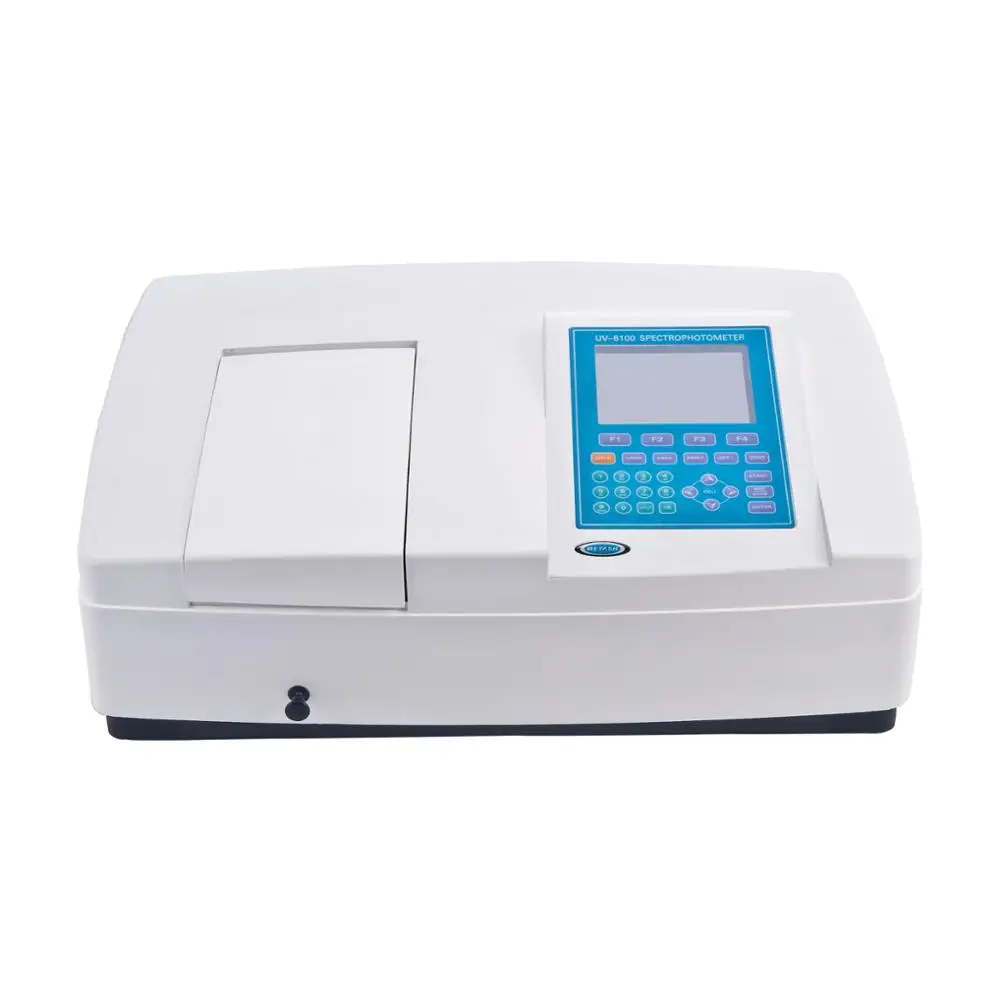

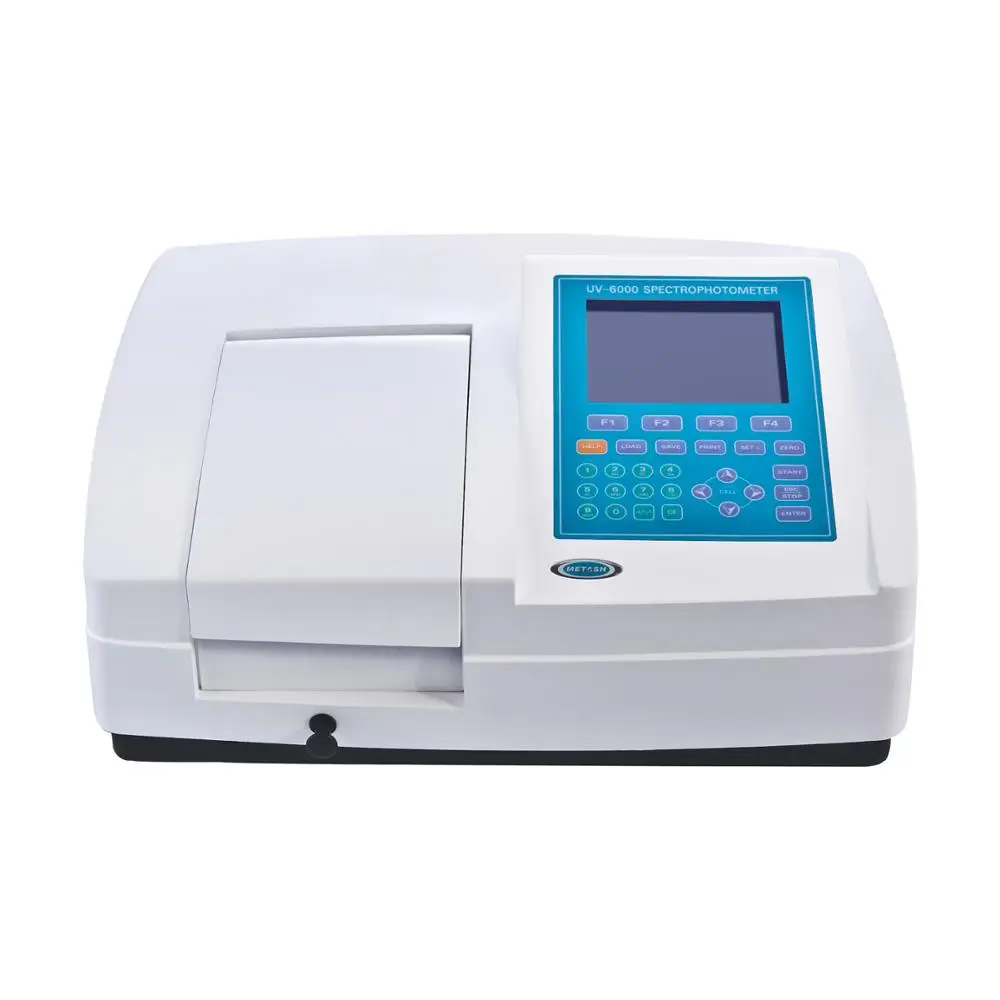

UV 6000 Ultraviolet Visible Spectrophotometer Large Screen Scanning Type

Product Overview

Description

Characteristics and Functions of Instruments

1,Using 320*240 position array high-brightness 6"LCD, the display is clear and the information is complete.

2,Powerful data analysis function, host can independently complete photometric measurement, quantitative measurement, spectral scanning, dynamics, DNA/protein testing, multi-wavelength testing and data printing and other functions.

3,Powerful data processing function makes the test results can be fully applied, and user editing is simpler and faster.

4,With the suspension optical system design, the whole optical path is independently fixed on the 8 mm thick non-deformed base of cutting aluminium. The deformation of the bottom plate and the external vibration have no effect on the optical system, thus greatly improving the stability and reliability of the instrument.

5,The imported configuration of main components makes the stray light of the instrument lower, more stable and more reliable.

6,UV-6000PC Standard Component Analysis Company Spectrum Scanning Software, online operation, in addition to all the test functions of the host, but also to achieve a more powerful data processing function, and make data storage unlimited.

Instrument Indicators

Model	UV-6000
Wavelength Range	190-1100nm
Bandwidth	1.8nm
Wavelength Accuracy	±0.5nm
Wavelength Repeatability	0.2nm
Photometric Accuracy	±0.2%T
Photometric Repeatability	0.15%T
Photometric Range	-0.3-3A,0-200%T,0-9999C
Stability	± 0.001A/h @ 500nm
Baseline Flatness	± 0.002A/h
Noise	± 0.001A/h
Stray Light	≤0.05%T @ 220nm,360nm
Data Output Port	USB
Printer Port	Parallel Port
Display	320*240 Dots LCD
Lamps	D2  Lamp & W  Lamp
Detector	Silicon Photodiode
Power Requirements	AC   220V/50Hz or  110V/60Hz
Dimension	460*380*180mm
Weight	20kg
