Precise Ble Wifi UWB iBeacon Tag Gateway for Indoor Positioning
UWB Gateway is a product that integrates Bluetooth 5.0, WIFI and UWB functions. Through BLE 5.0, we can set and modify some basic parameters of the product, and at the same time, we can upgrade the firmware of the product through BLE 5.0. Through the integrated WIFI function, the data collected by UWB can be transmitted locally or remotely. It is easy to use. Simply configure the network of the product and and it can start to work.

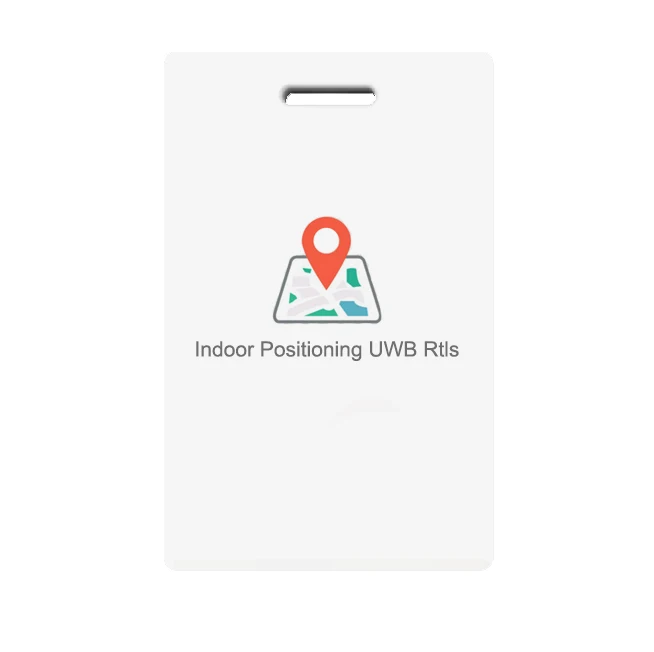

UWB Gateway is Powerful indoor positioning device. Its functions include BLE Beacon & UWB Tag & WIFI gateway.The UWB Gateway works together with UWB tags (company card shaped tags), to achieve precise indoor positioning with 1m accuracy.

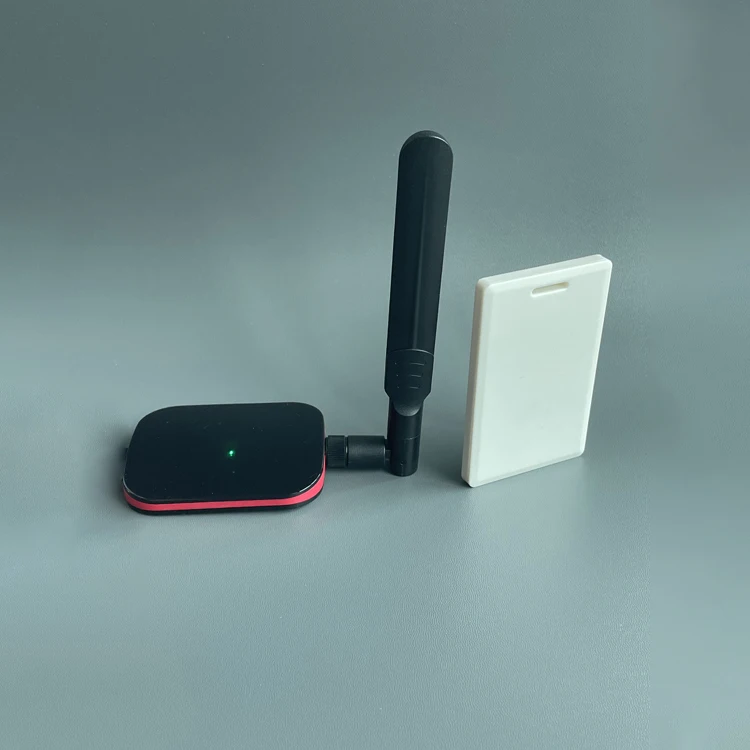

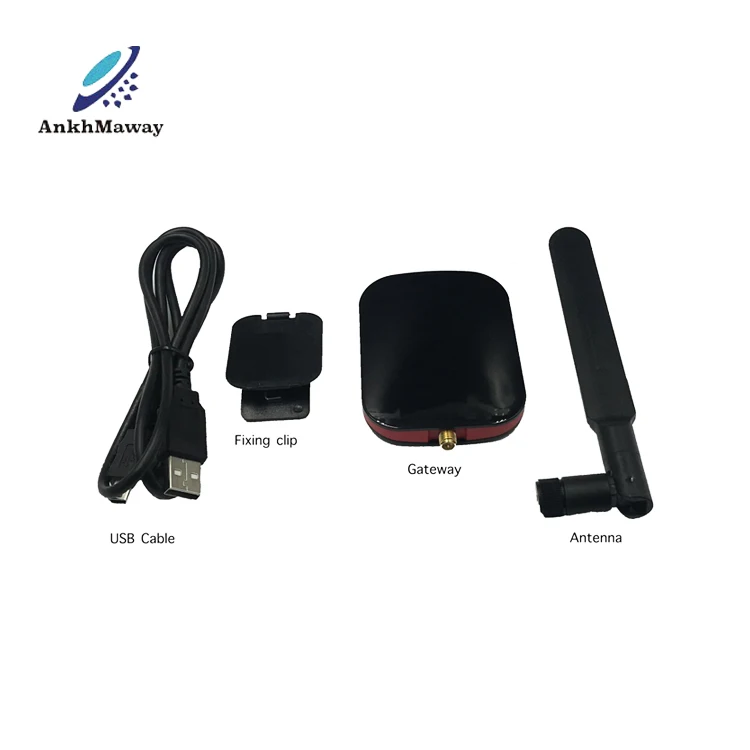

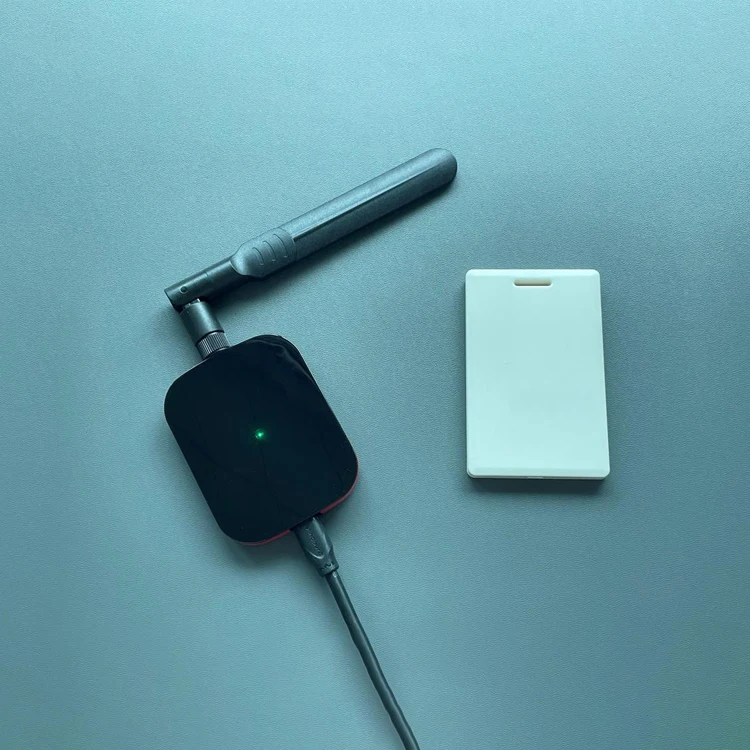

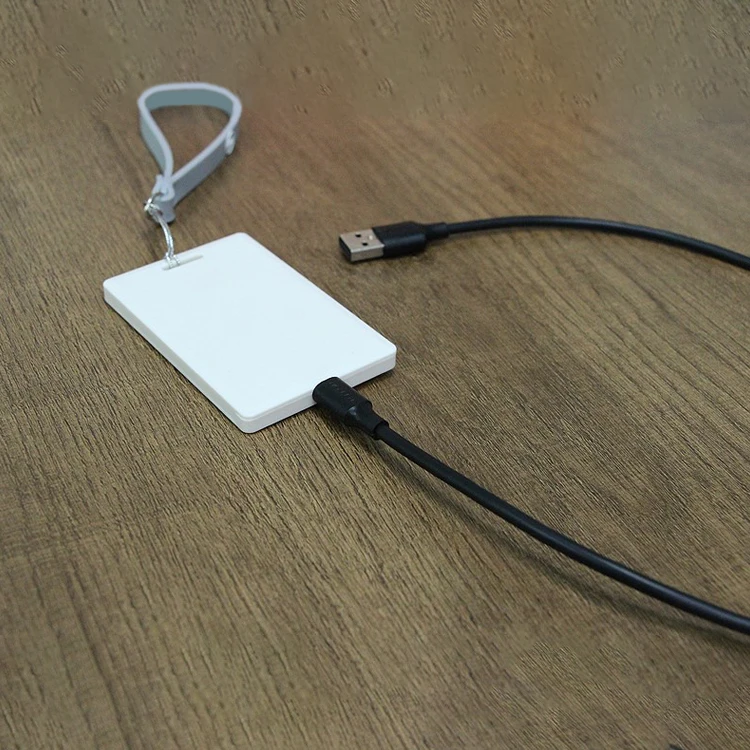

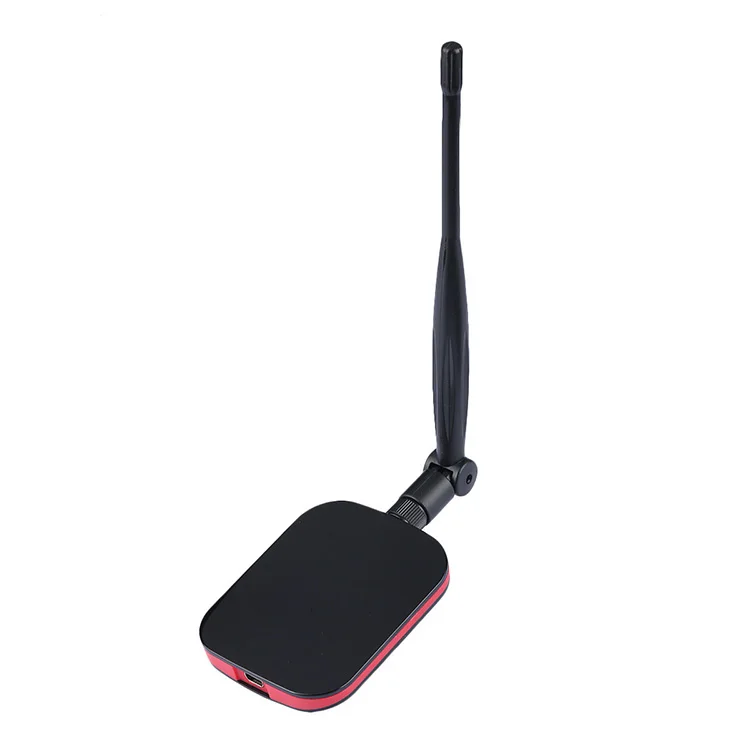

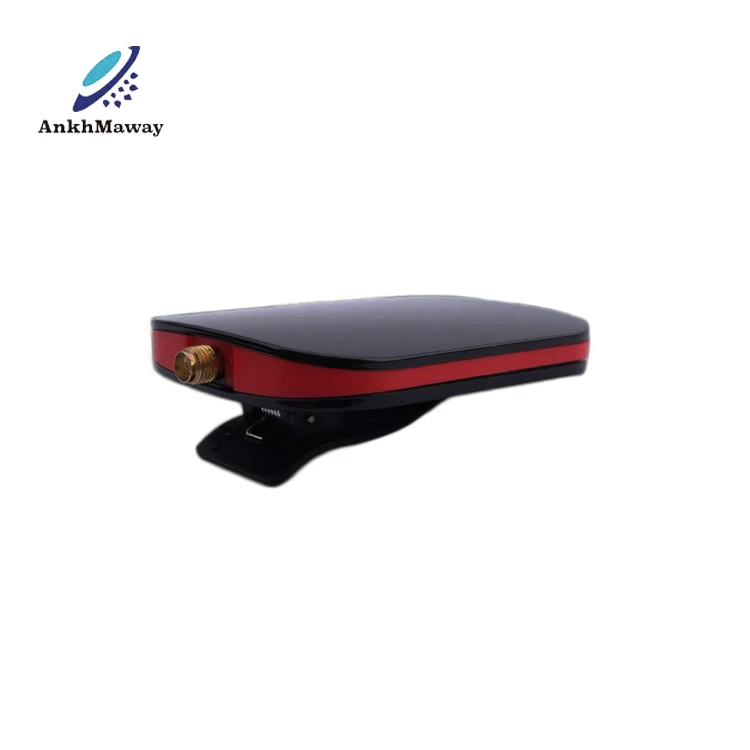

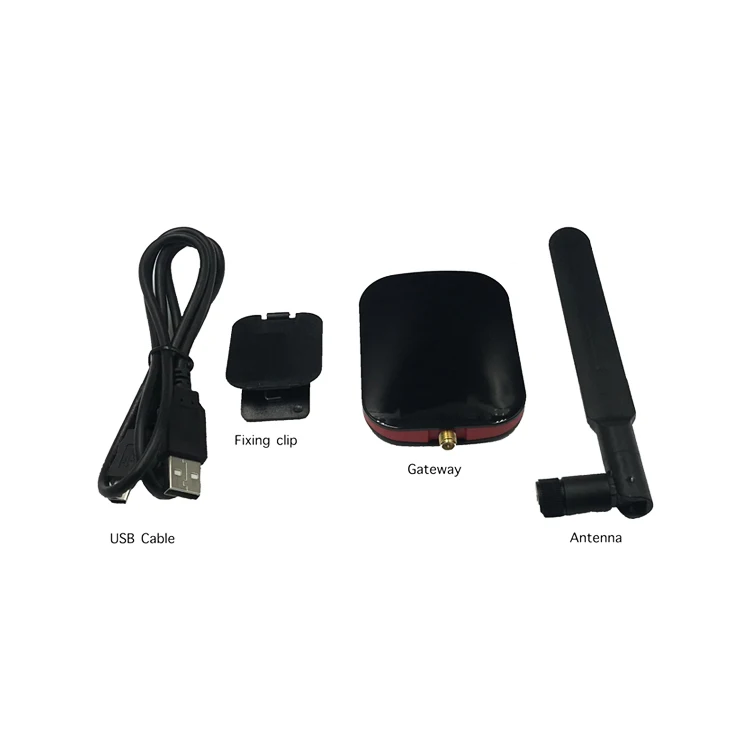

Product Images
Product Paramenters
Item | Values |
BLE chip | Nordic 52 series |
UWB chip | DW1000 |
WiFi chip | ESP8266 |
BLE Version | BLE 5.0 |
BLE range | 100 meters(328 feet) in open space |
UWB range | 50 meters |
UWB Accuracy | 1 meter |

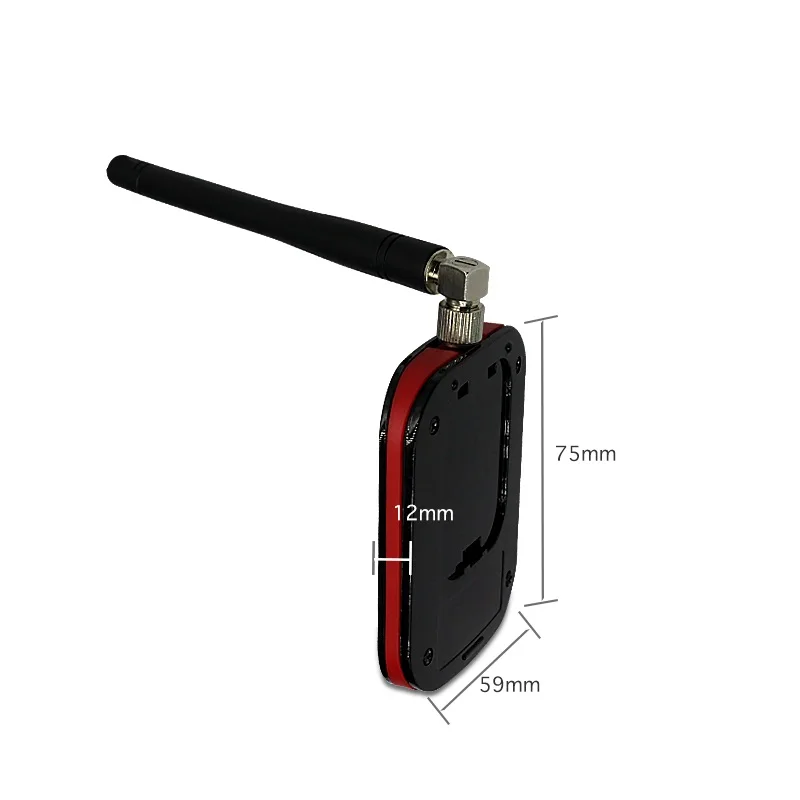

Size | 80mm*60mm*11.5mm |
Features | RGB LED, Sound buzzer |
Battery type | N/A, Powered by USB |
Material | ABS |
Color | Black |
Operation temperature | -40 to 85℃ |
Storage temperature | -40 to 85℃ |
Frequency range | 2.402GHz-2480GHz |
Tx power(max) | 4DB |
Rx sensitivity | -96 dBm Sensitivity |
Antenna gain | +1.1dBi |
Weight | 143g |
Water/dust proof | N/A |
Type approval | FCC, CE, RoHS, TELEC |
Tx power range | -40DB to 4DB |
Custom Data | Yes |
Optional | N/A |

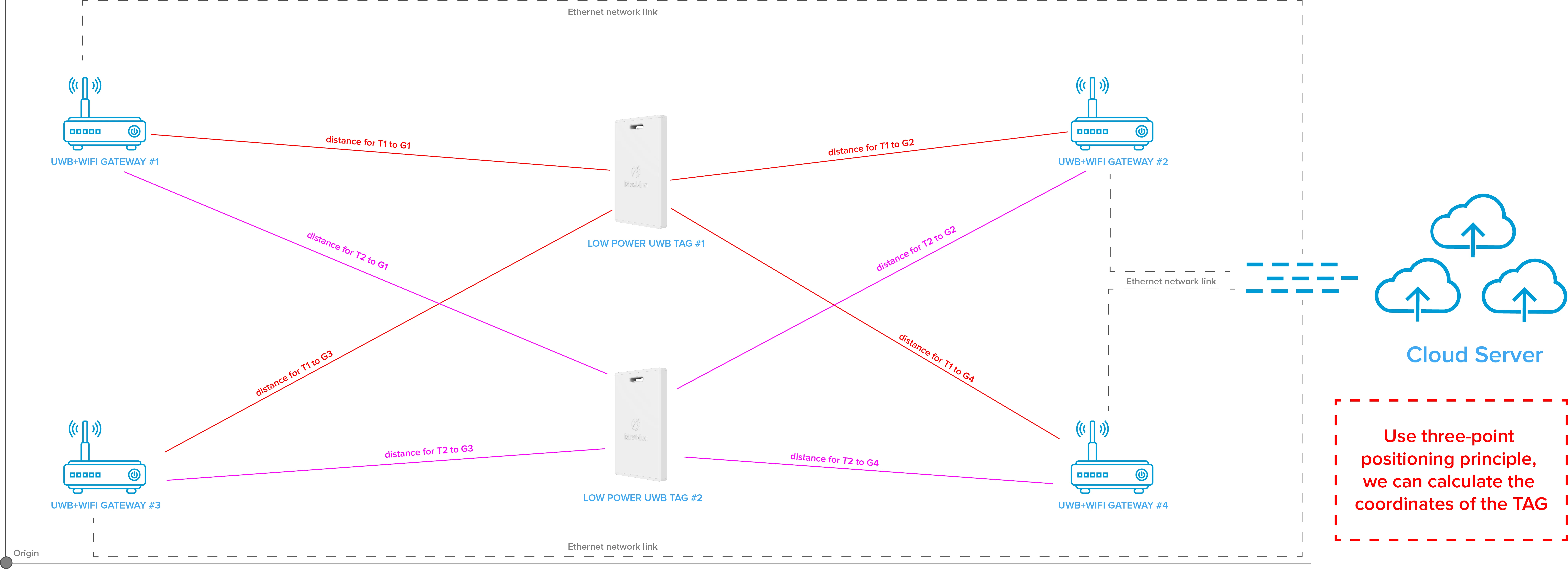

working flow
There are some points need to be pointed out:
* Each tag can measure the distance from the surrounding Gateway.
* Each Gateway can also get the distance between each Tag anditself.
* Gateway can transmit the distance information to the Server through the WIFI network.
* Tag’s position calculation wil be done on the server side.
Product Application

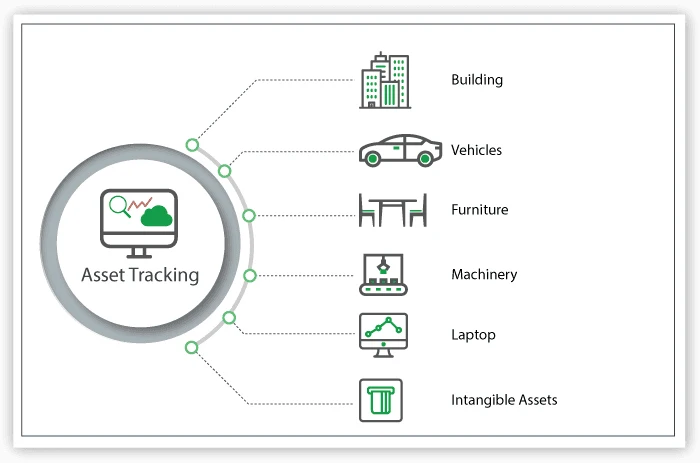

It is designed for real-time positioning of people, equipment and materials. It can be used for indoor map navigation in airports, indoor navigation in shopping malls, providing consumers with finding stores, etc. In terms of service and personnel management, you can view the real-time location of the positioning object, which is convenient for scheduling management, post management and workflow optimization.
