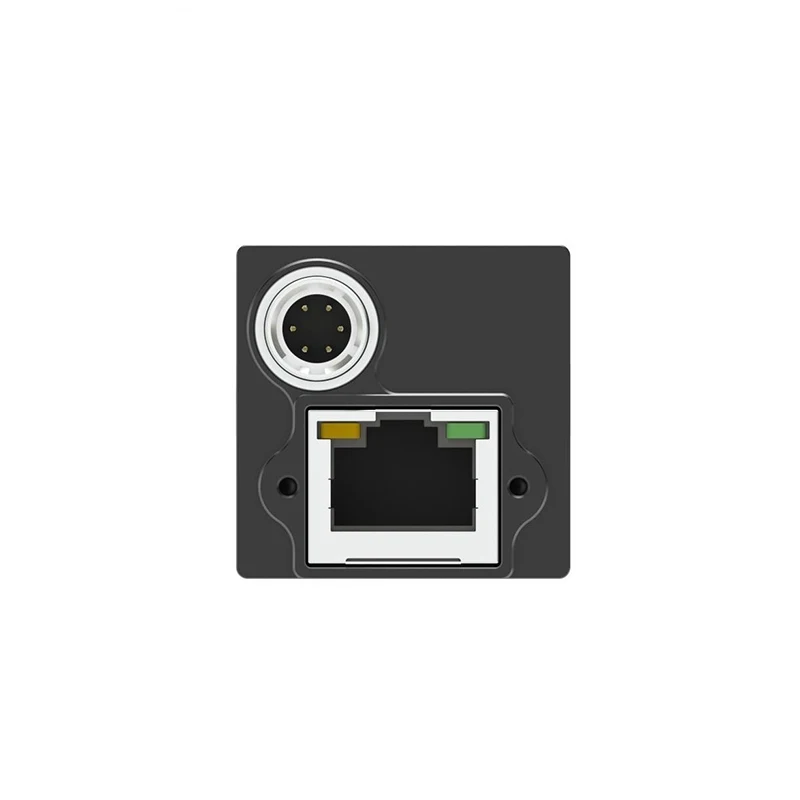

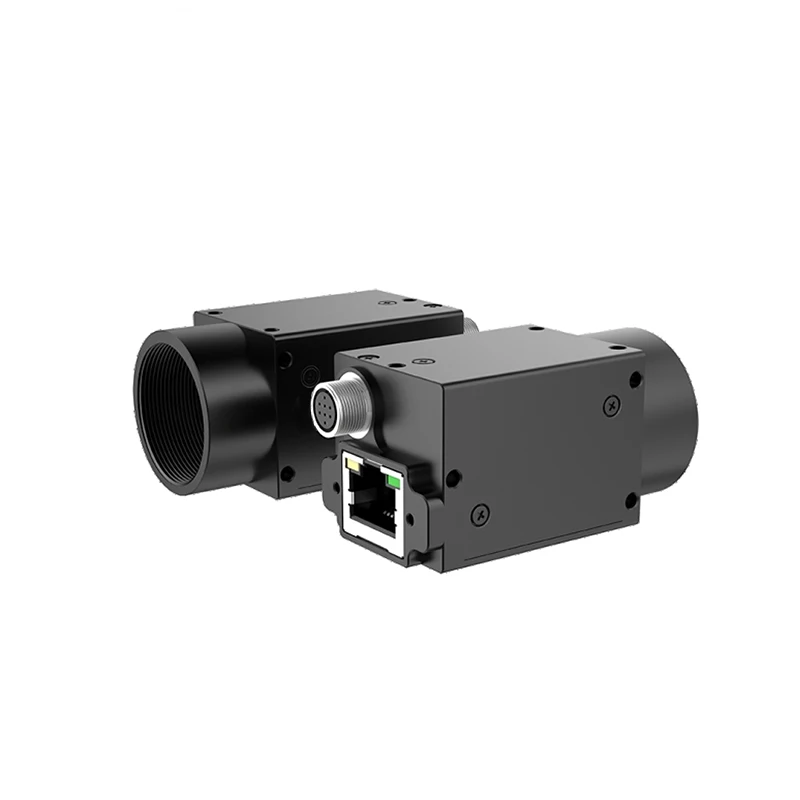

Gigabit Ethernet Interface Industrial C Mount Machine Vision CCD Line Scan Camera With Lighting
- Category: >>>
- Supplier: SmartMore Corporation Limited
Share on (1600567914798):
Product Overview
Description
Product Description
This series of camera parameter archives are saved in the form of files, which is convenient for mass production and release, easy to develop, and compatible across platforms; it supports simultaneous operation of multiple cameras, and the work is stable and reliable; it supports 8bit, 24bit, and 32bit image data format output; supports small resolution and high frame rate Preview, large resolution snapshot function, seamless switching; support resolution customization function, view cropping (ROI), BIN, SKIP snapshot, zoom functions can be freely combined and set to match different aspect ratios and field of view requirements.
Product Features
◆Unique data package retransmission technology to ensure reliable data transmission
◆Built-in hardware image processing acceleration, reducing the CPU utilization of the host
◆Support multiple cameras to work at the same time, the number is not limited, can be arbitrarily networked
◆Pixels from 300,000 pixels to 65 million pixels, CCD and CMOS are optional
◆Excellent SDK design, as simple as using a USB camera, plug and play
◆Support external trigger and flash synchronization, up to seven GPI. All opto-isolated
◆Compatible with vision standard, directly support Halcon, VisionPro and other software without driver
◆Gigabit Ethernet interface, 100 meters long-distance stable transmission, support POE power supply (optional)
◆Built-in hardware image processing acceleration, reducing the CPU utilization of the host
◆Support multiple cameras to work at the same time, the number is not limited, can be arbitrarily networked
◆Pixels from 300,000 pixels to 65 million pixels, CCD and CMOS are optional
◆Excellent SDK design, as simple as using a USB camera, plug and play
◆Support external trigger and flash synchronization, up to seven GPI. All opto-isolated
◆Compatible with vision standard, directly support Halcon, VisionPro and other software without driver
◆Gigabit Ethernet interface, 100 meters long-distance stable transmission, support POE power supply (optional)
Specification
Model | SMI-CGi-720P-01 |
Resolution@frame rate | 720*540@298 |
Pixel dimension | 6.3 μm*6.3 μm |
Pixel bit depth | 8 bit |
Sensitivity | 3660 mV 1/30s |
Acquisition mode | Continuous/Software trigger/Hardware trigger |
Maximum gain (multiple) | 256 |
Exposure time rang（ms） | 0.005-2999.7 |
Frame buffer | 32 M Bytes |
User-defined data area | 2K Bytes |
Video output format | Color: Bayer8/Bayerl2 Monochrome: Mono8/Monol2 |
GPIO | 1 way optical isolation input, 1 way optical isolation output; 3-way input and 4-way output are optional |
Lens mount | C mount |
Power supply | 9-24 V (POE is optional) |
Power | <2.5 W |
Dimension | 29*29*40 mm (excluding lens base and rear interface) |
Weight | <75 g |
Shutter | Global shutter |
Effective pixels | 400 thousand |
Sensor type | CMOS |
CCD/Format size | 1/2.9" |
Sensor model | IMX287 |
Vision standard protocol | GigE Vision V1.2, Genlcam |
Data interface | RJ45 Gigabit Ethernet interface, downward compatible with 100M network |
Operating system | WIINXP, WIN7/8/10 32@64 bit system, Linux and ARM Linux drive, Android platform driver, MAC OS system |
Driver | Directshow module Halcon dedicated module Labview dedicated drive OCX module TWAIN module |
Programming language package | C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java |
Operating temperature@ Humidity | 0-50°C @ 20%-80% (non-condensing) |
Storage temperature@Humidity | -30-60X @ 20%-95% (non-condensing) |
Other functions | Support ROI custom resolution of any size, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate, ISP image processing acceleration, 3D noise reduction, custom LUT table , frame rate adjustment, custom camera name, etc. |
