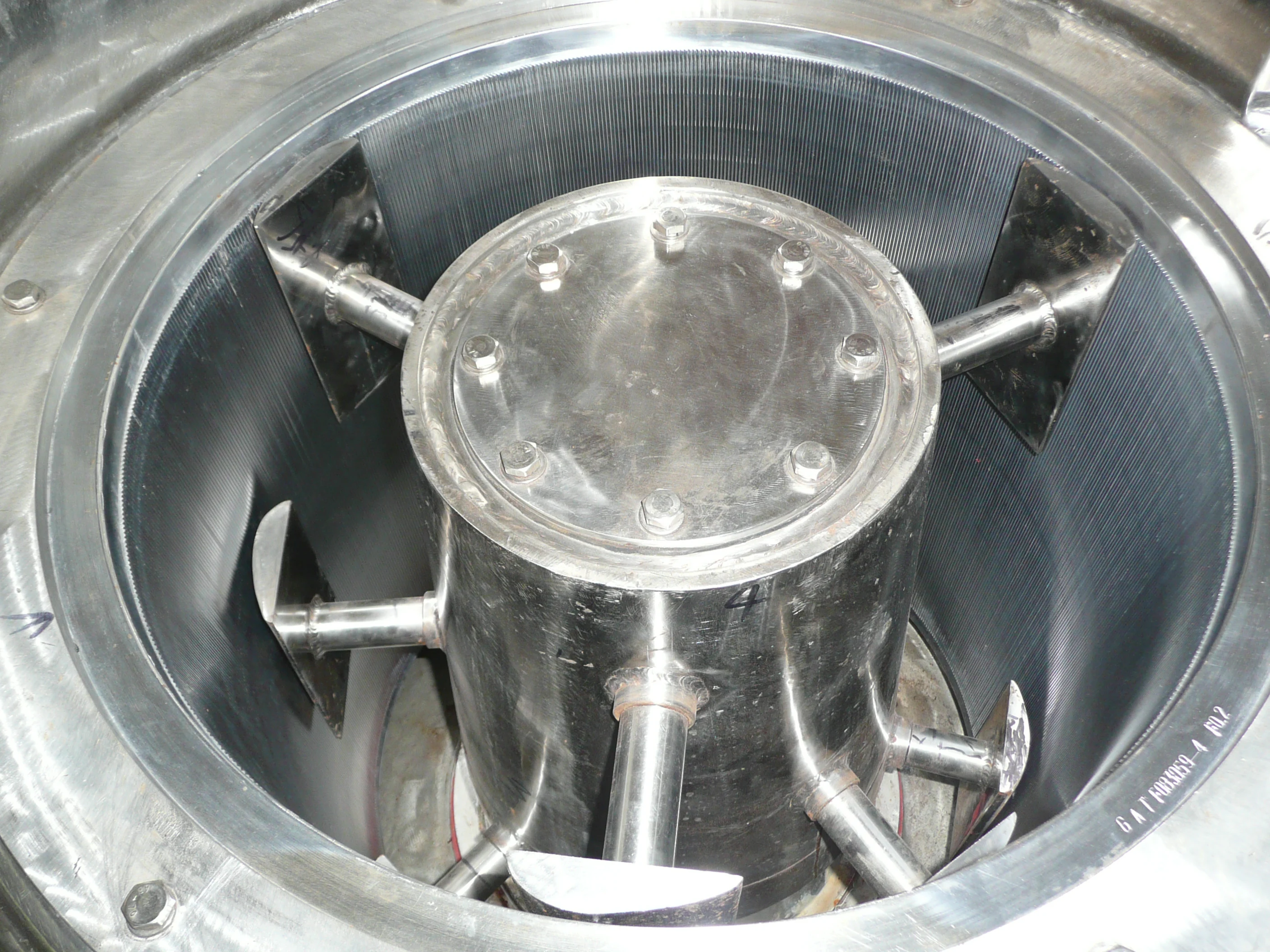

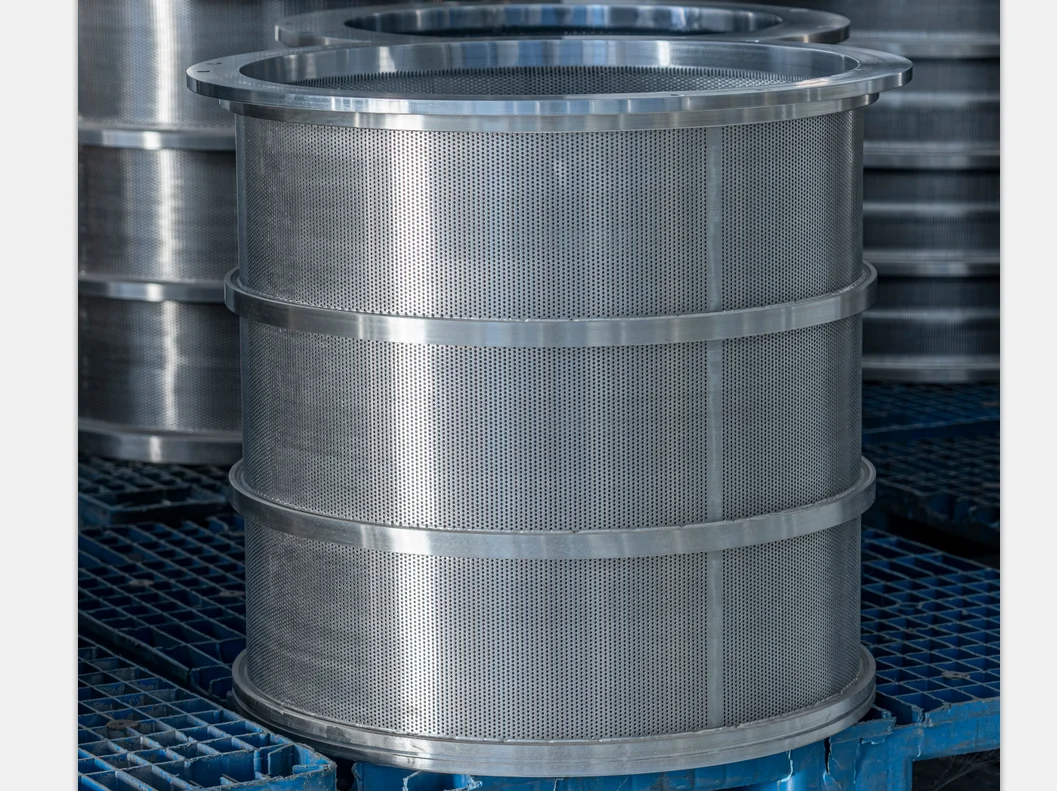

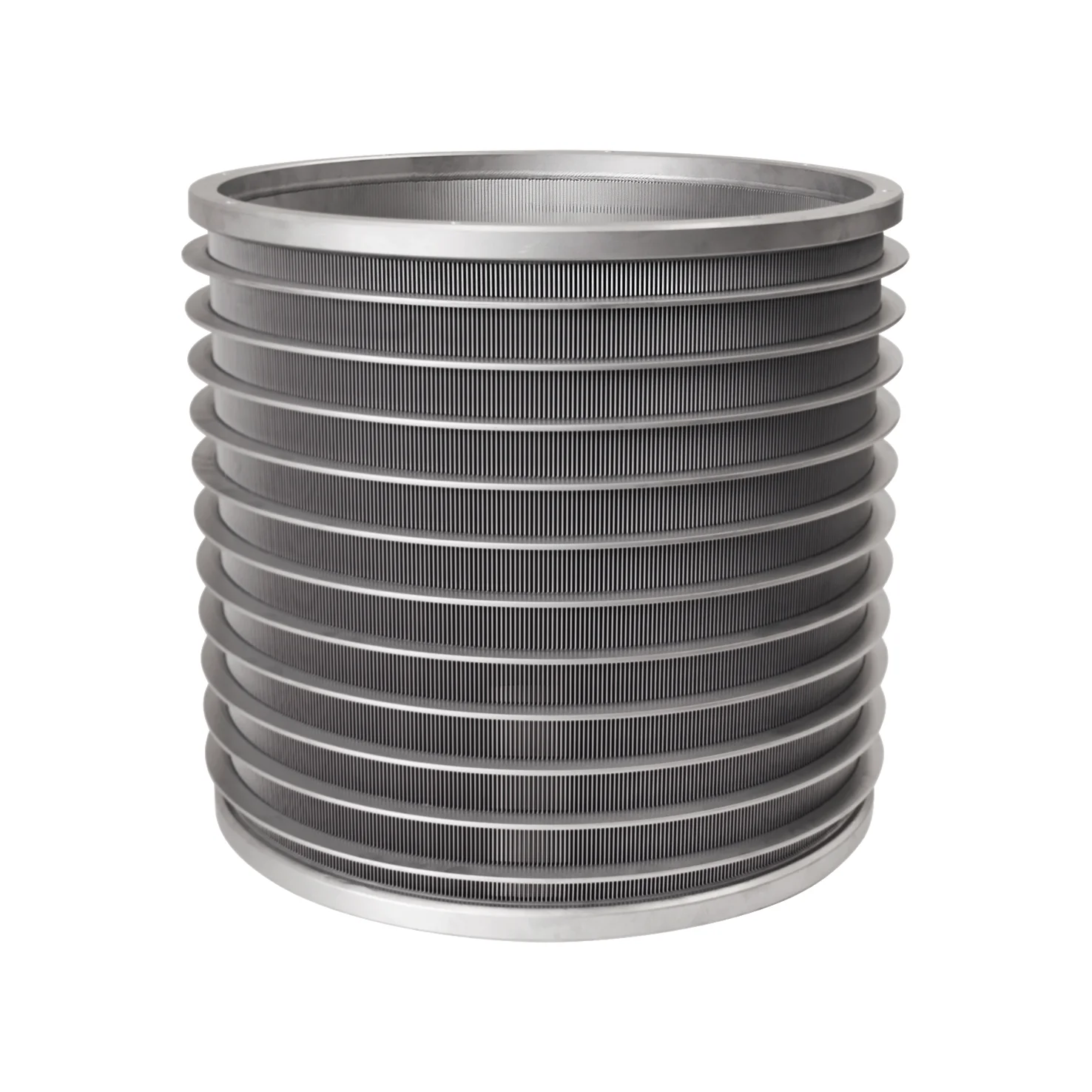

GRECHO Paper Making Machinery Pulp Pressure Screen Basket
GRECHO Paper Making Machinery Pulp Pressure Screen Basket
GRECHO Paper Making Machinery Pulp Pressure Screen Basket
GRECHO Paper Making Machinery Pulp Pressure Screen Basket
GRECHO Paper Making Machinery Pulp Pressure Screen Basket
GRECHO Paper Making Machinery Pulp Pressure Screen Basket
GRECHO Paper Making Machinery Pulp Pressure Screen Basket

GRECHO Paper Making Machinery Pulp Pressure Screen Basket

Share on (1600567941004):


Price:$1,500.00 - $2,500.00

Quantity:


Product Overview

Description





Screening Of Recycled Fiber
Pulps To Produce High Pulp Qualities
The Grecho Grescreen Product Family Is Used In a Wide Variety Of Screening Applications In Recycled Fiber Pulps To Provide High Final Pulp Qualities. For Each Screening Stage a Grescreen Unit Is Designed To Fulfill The Requirements And Demands For Achieving Best Results In Terms Of Pulp Cleanness And Lowest Operating Costs. Different Design Principals–Inflow And Outflow Types – Can Be Matched With Numerous Screen Basket And Rotor Combinations To Handle All Screening Applications. Grescreen Units Are Applied To Effectively RemoveContaminants But Keep Good Fiber Losses To a Minimum.




Pressure Screen Type
UpFlo
OutFlo
InFlo
Fractionating
Application Position On Stock Prep. Line
Coarse Screening
Fine Screening
Approach Flow System
Fine Screening
Fiber Classification
Screen Area(m2)
0.6~4.0
0.3~4.0
0.6~6.0
1.2~4.0
Capacity(Ton/Day)
30~500
10~400
10~600
100~800
Stock Consistency(%)
2~3
0.8~1.5
0.3~1.0
1.5~2.5
Basket Slot (Hole) Size(mm)
Φ1.6~Φ3.0
Φ0.1~Φ0.45
Φ0.2~Φ0.45
Φ0.15~Φ0.25
Inlet Pressure(MPa)
0.1~0.25
0.15~0.30
Motor Working Voltage & Hertz
30~315
15~160
15~90
75~200
Raw Material
Waste Paper Fiber
Waste Paper Fiber
Water Paper Fiber
Virgin Fiber
Waste Paper Fiber
