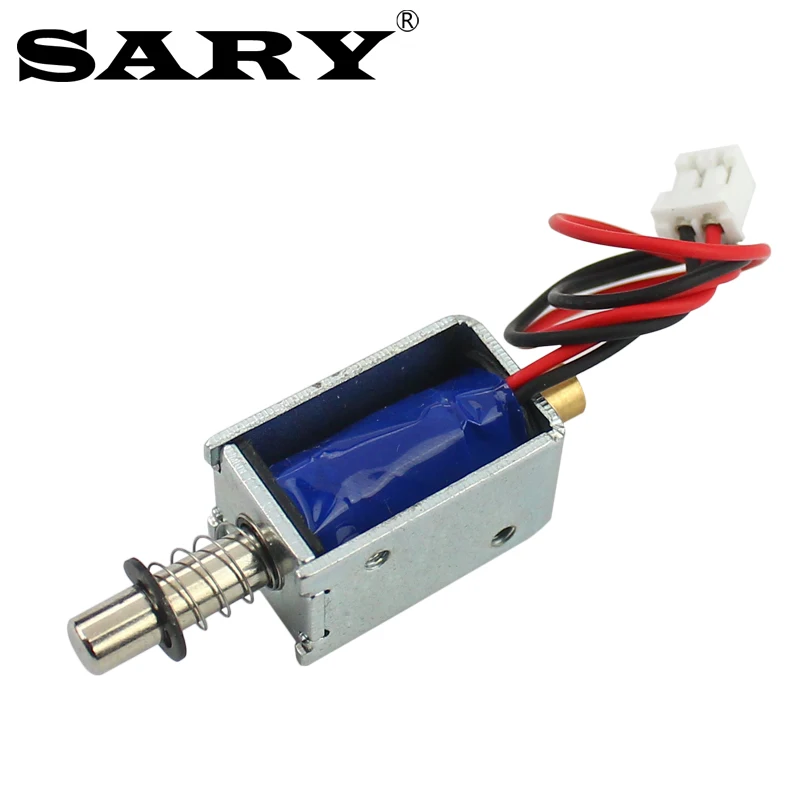

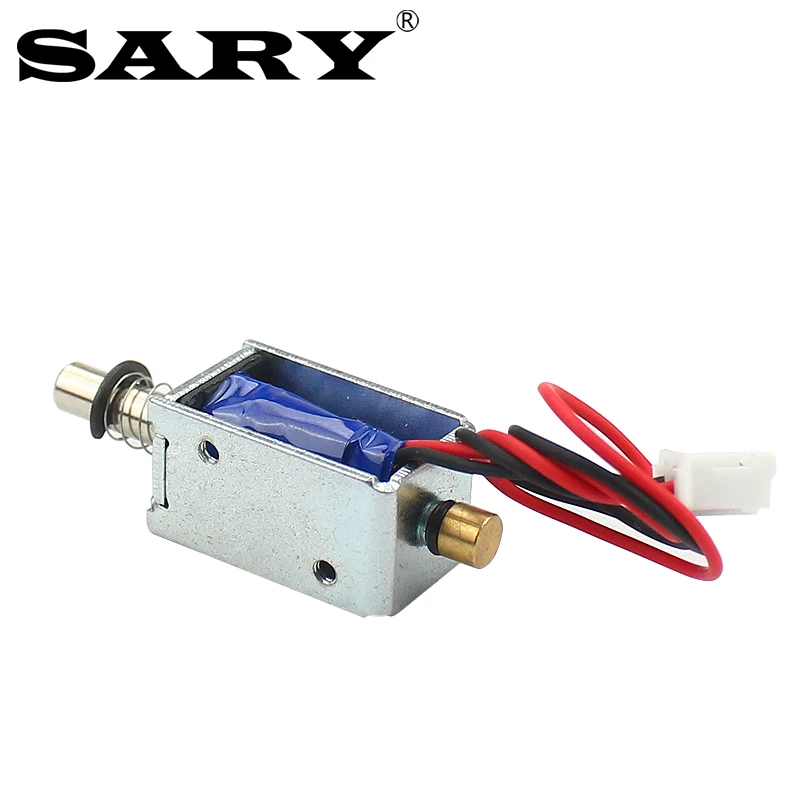

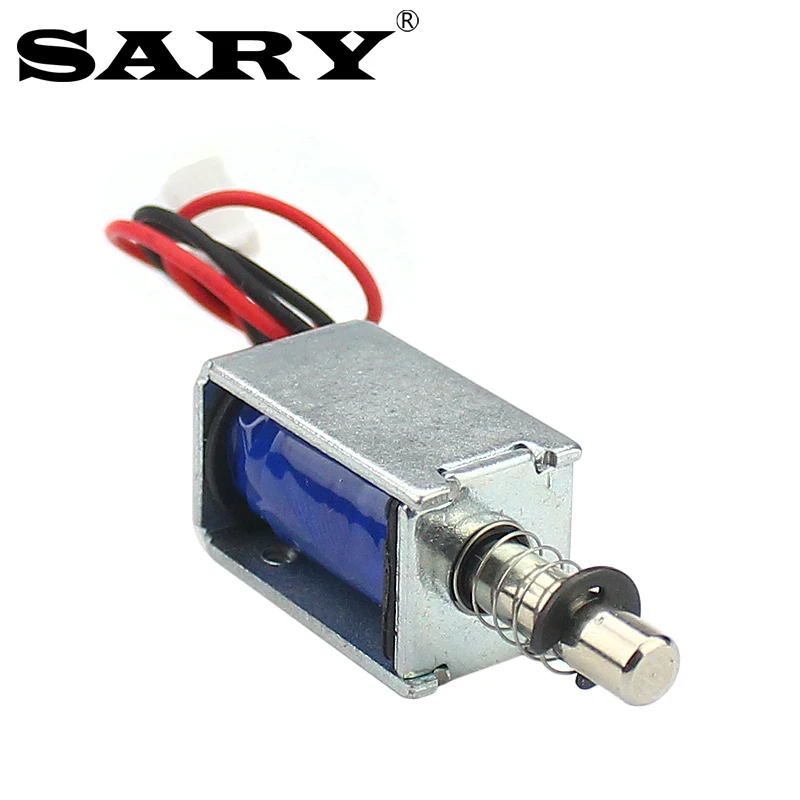

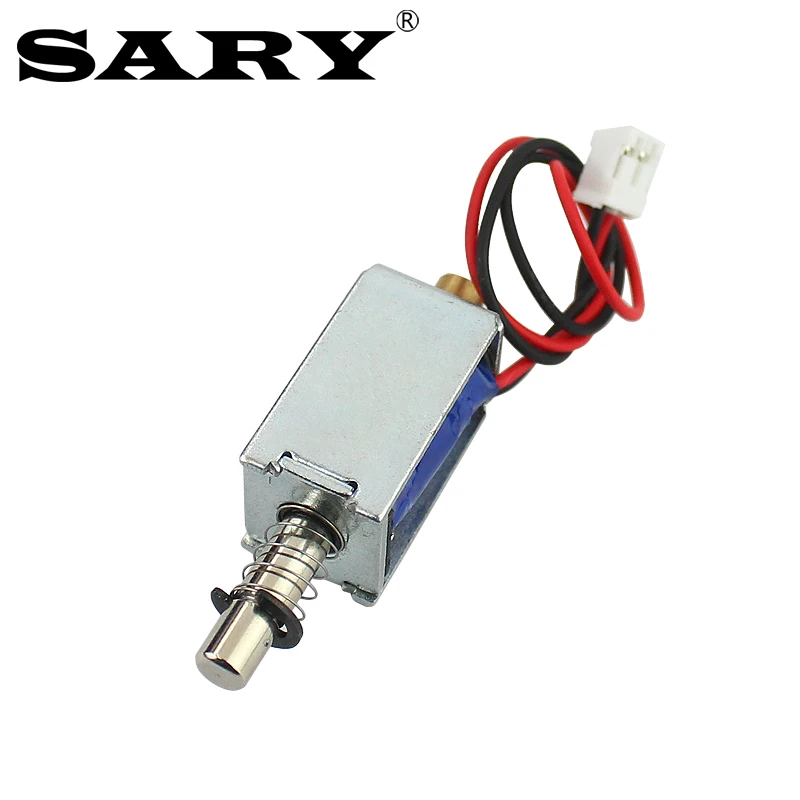

LY0420S Small push pull electromagnet DC12V telescopic electromagnetic push rod strong suction switch
- Category: >>>
- Supplier: Guangzhou Sary Electronics Co. Ltd.
Share on (1600567943415):
Product Overview
Description
Features
1. Made of high-quality iron materials, one-piece molding, no residual magnetism after power failure
2. High-quality bell mouth spring, good elasticity, long telescopic life
3. The coil is wound with national standard pure copper wire, with stable temperature rise and good heat resistance
2. High-quality bell mouth spring, good elasticity, long telescopic life
3. The coil is wound with national standard pure copper wire, with stable temperature rise and good heat resistance
Note: It is recommended that the continuous power-on time of the electromagnet should not exceed 3S, and the power-on interval should be more than 2 minutes, otherwise the coil will be easily damaged.

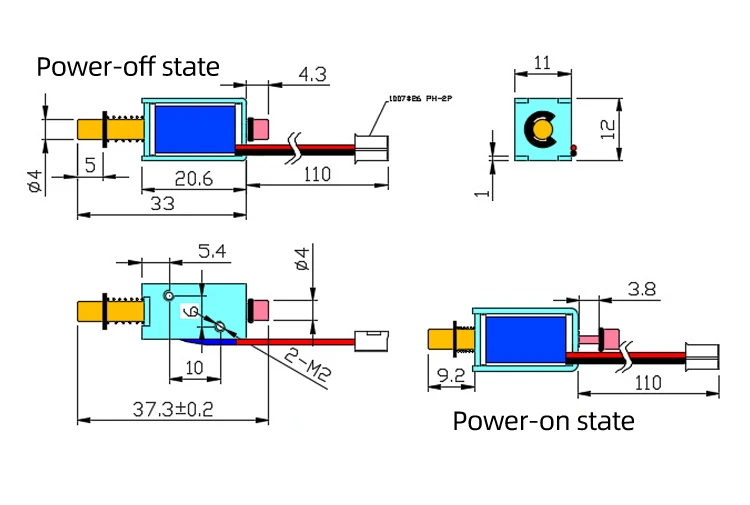

Product parameters
Brand: SARY
Product model: LY-0420S
Latch stroke: 4mm
Lock tongue suction: initial force 0.8N, holding force 3N
Use voltage: DC12V
Use current: 0.75A
Power-on time: ≤3S
Scope of application: all kinds of automation and other equipment are used as traction brakes
Product model: LY-0420S
Latch stroke: 4mm
Lock tongue suction: initial force 0.8N, holding force 3N
Use voltage: DC12V
Use current: 0.75A
Power-on time: ≤3S
Scope of application: all kinds of automation and other equipment are used as traction brakes
How to order
1. Send an inquiry and get a quote. | ||||||||
2. Discuss and reach an agreement. | ||||||||
3. Confirm the price, delivery date, design, payment deadline, etc. | ||||||||
4. Draft the order contract and confirm it. | ||||||||
5. You pay and send us a bank receipt or pay online through Alibaba. | ||||||||
6. For spot orders, we will send the package to the designated address according to the order and notify you of the tracking number; for sample orders, we will make samples according to your requirements, and send photos or samples to get your approval.After approval, we inform us that we will arrange production and inform the estimated time. | ||||||||
7. When you receive the goods and are satisfied, the order can be considered "completed". | ||||||||
8. Give us feedback on quality, service, market feedback and suggestions. We thank customers for any constructive suggestions and suggestions. | ||||||||
Contact Us
Company Profile
Production site
International Exhibition
Certificate
FAQ
1. Q: Are you a factory or trading company?
A: We are a company which has our own trading department and factory.
2. Q: What is your sample policy?
A: Free samples could be sent to the test as request. We can arrange a sample by DHL or UPS, but the courier fee would be paid by the customer.
3.Q:What about the shipping way?
A:Generally, the package is delivered by Express DHL/Fedex/TNT/UPS. For big order, we recommend to ship by air or sea to save cost, but it might take longer time. Of course we could ship goods to your forwarder in China according to different customers requirements.
4. Q:Can I print my own brand logo on your product?
A: OEM orders are highly welcome. Please write us the details of your logo color, logo position; user manual before you send us an inquiry. In this way, we can offer you the most accurate answer for the first time.
5.Q:What about the warranty?
A:We provide 1 years warranty from the date of delivery but lifetime technical support.
