Multi Stations automatic vacuum forming machine for making plastic flower pot
- Category: >>>
- Supplier: ZHEJIANG SAYEAH MACHINERY CO. LTD
Share on (1600567951480):
Product Overview
Description
Products Description
Sheet Loading& Feeding Station
Driving by motor. Max diameter 1M. with dust plate to make the clean sheet.
Preheater
Has the In-feed sheet edge pre-heater system before the sheet goes into the heater part,it reduces the defective percentage, keep dust-free environment to improve the quality of the product and prolong the life of conveying chain.
The Chain
The plastic sheet was sent by the sharp tooth, which was driven by the servo-motor. The width of the chain can be adjusted and wear cooling water, which can prolong the life of the chain and reduce the dust..
Ceramic Heater
Temperature is controlled precisely (the difference is within ±1℃). The working life of the ceramic heater is long and adopts the fully enclosed oven. The temperature controlling system is better and saves more energy..
Electric Cabinet
The connection of the electric cabinet is easy. Equipping the air conditioner to prolong the life of the electric parts.
Forming Station
Driven by servo motor to close the mold, with cylinder clamping frame and servo stretching function at the same time.

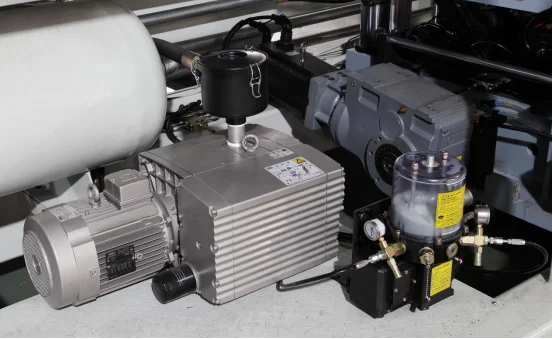

The vacuum pump is from German BECKER to meet all kinds of requirements for different products.
In addition, it also has automatic lubricator pump to prolong the life of the machine.
Punching Station
Has an automatic mold fixing system, which can be fixed after the installation and adjustment. Don’t need screws to fix the mold and can short the setting time of the mold. It can improve efficiency. And the cutter has heat functions.
Stacking Station
Stacking station has many options to design that can meet more demands of packing.

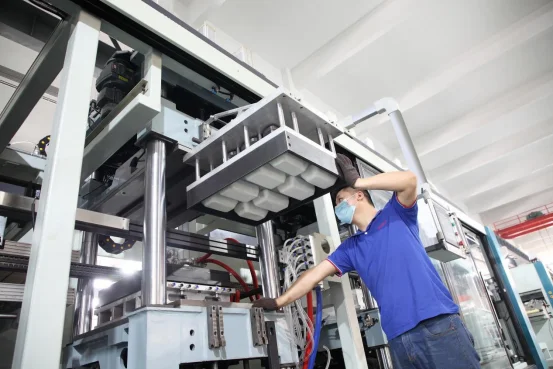

Mold Change Bracket
The installation of the mold is easy and safe, it can short the setting time of the mold.
Using the mold change bracket can improve the efficiency of changing mold, it has a double safety bolt to ensure safety.
Using the mold change bracket can improve the efficiency of changing mold, it has a double safety bolt to ensure safety.
Model | FSCT-820/650-2 | FSCT-820/650-3 | FSCT-820/650-4 | ||
Quantity Of Stations | 2 | 3 | 4 | ||
Sheet Material | PP, PS, PVC, PET, HIPS, PLA, OPS, EPS, C-PET, C-PLA, ABS | ||||
Application | Plastic lid, container, egg tray, fruit box, cake box, box, plate, flower pot, etc | ||||
Forming Clamping Force | 750KN | ||||
Punching Clamping Force | 750KN | ||||
Max. Forming Area | 820 X 650 mm | ||||
Max. Pos/Neg Depth | 150/150mm | ||||
Max. Plastic Sheet Width | 860mm | ||||
Max. Plastic Sheet Dia. | 1100mm,1T | ||||
Thickness Of Plastic Sheet | 0.15-2mm | ||||
Max. No-Load Speed | 65Cycles/min | ||||
Air Consumption | 4.5m3/min,0.6-0.8Mpa | ||||
Overall Power | 185 KW | 200 KW | 215 KW | ||
Dimension | L10000 x W2900 x H2950mm | L11200 x W2900 x H2950mm | L12500 x W2900 x H2950mm | ||
Weight | 15T | 20T | 25T | ||
Power Supply | 380v/50Hz Three Phase Four Wires | ||||

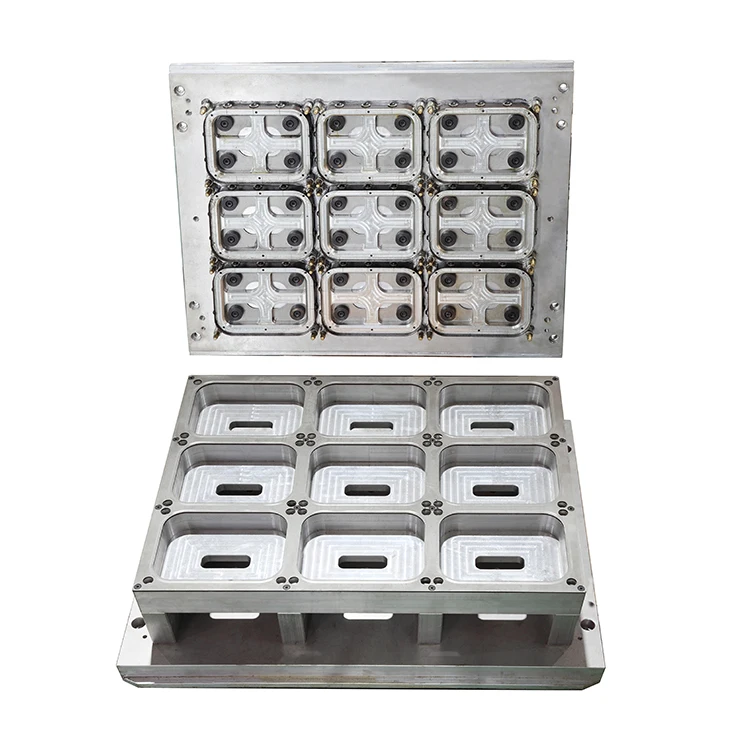

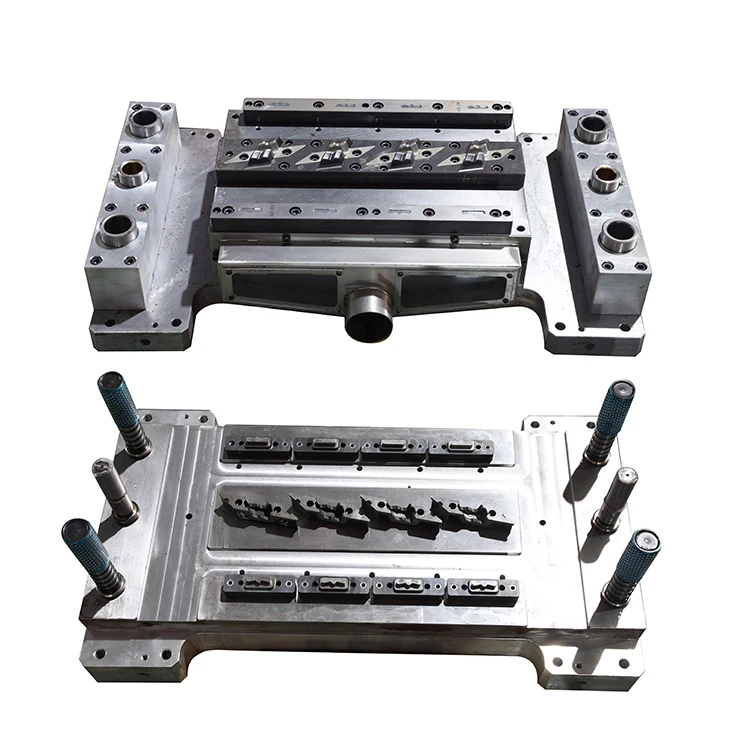

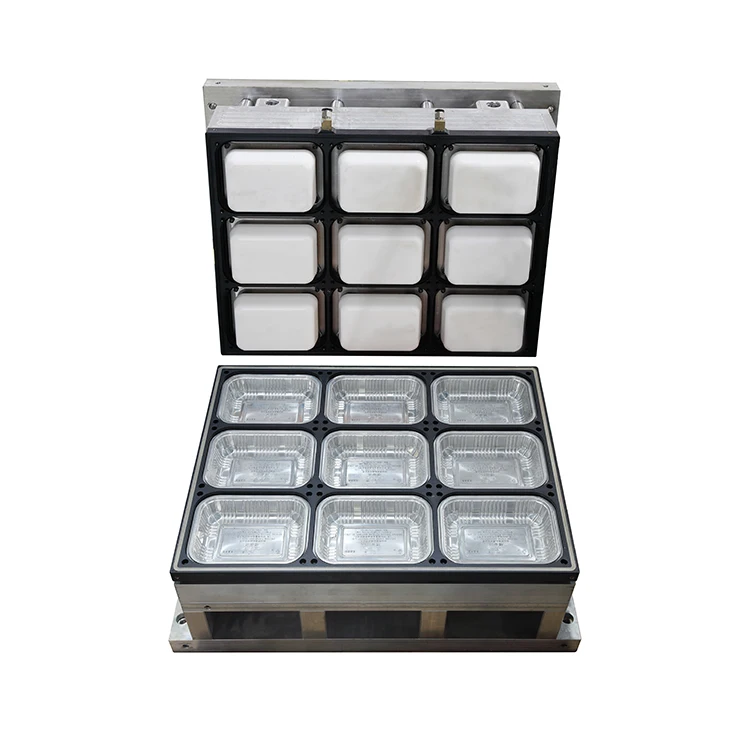

Mould Photos

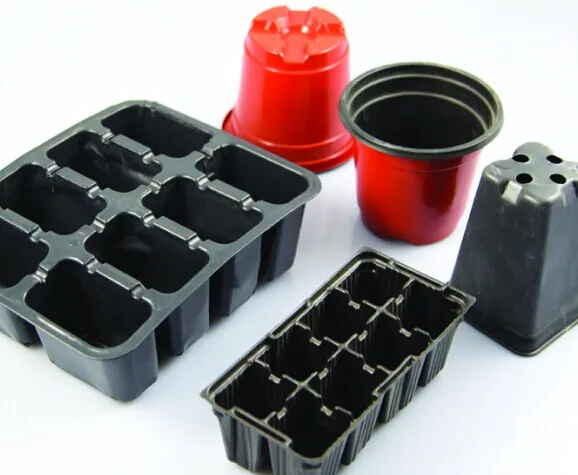

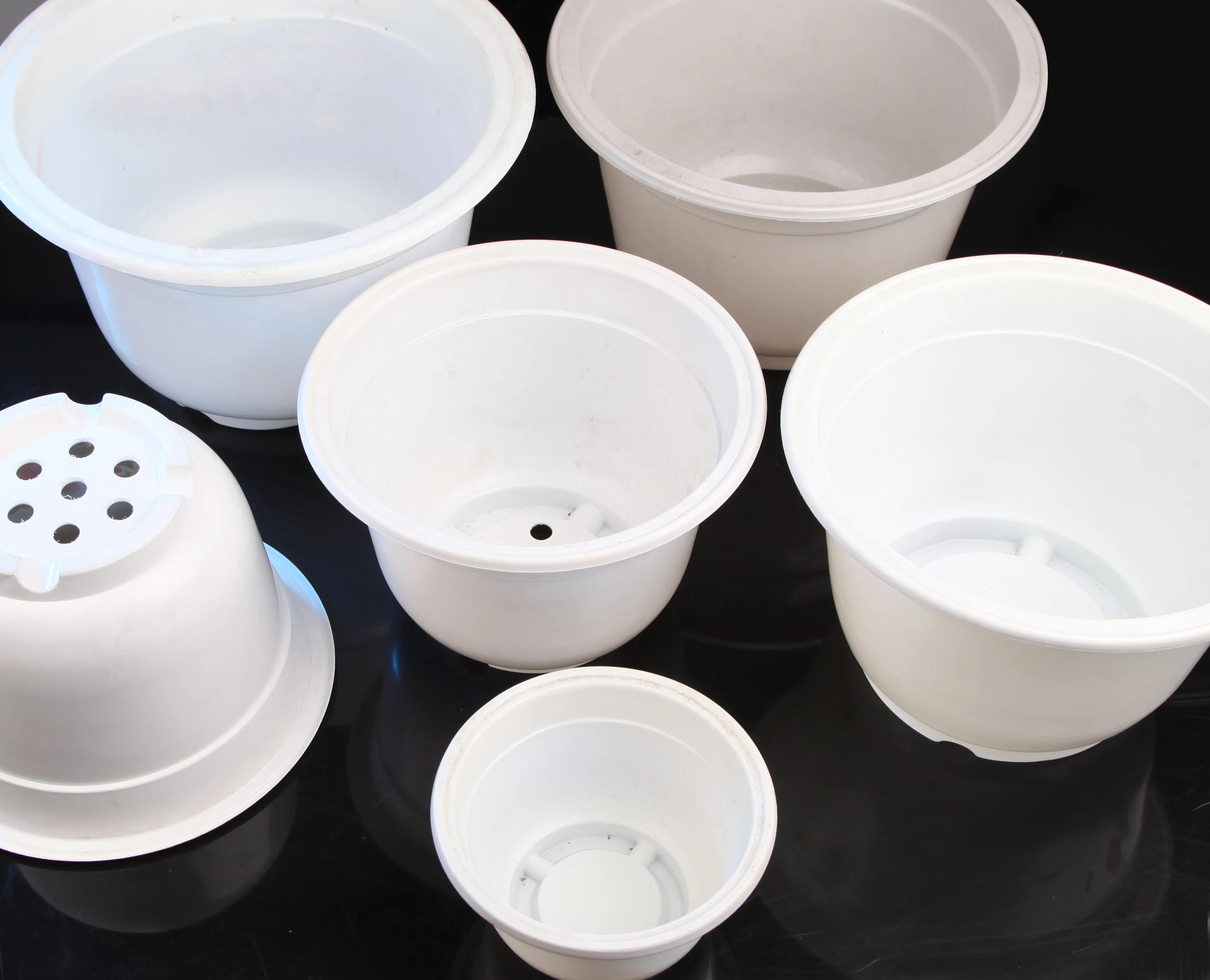

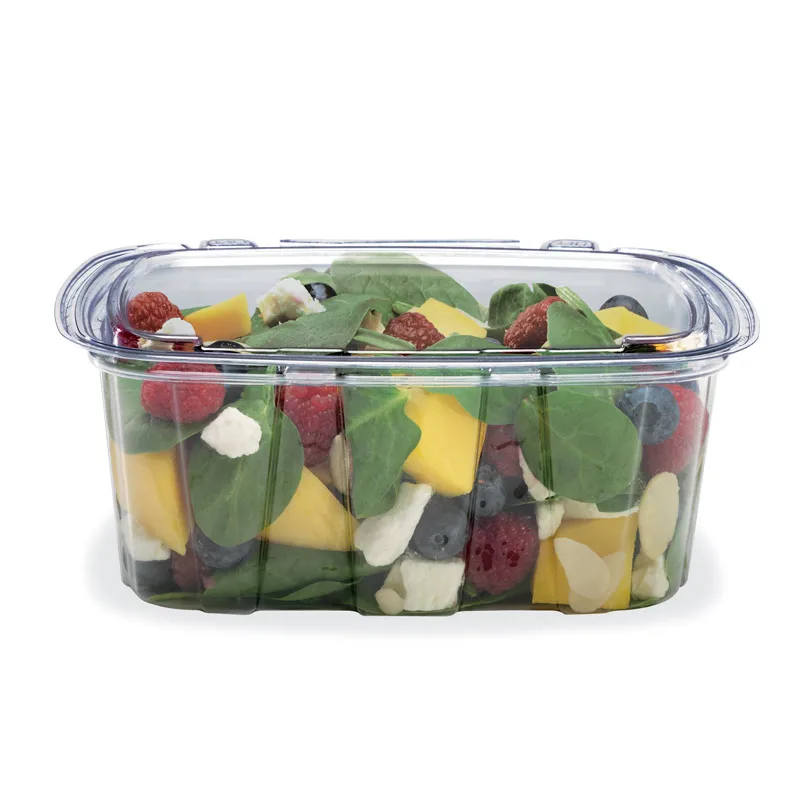

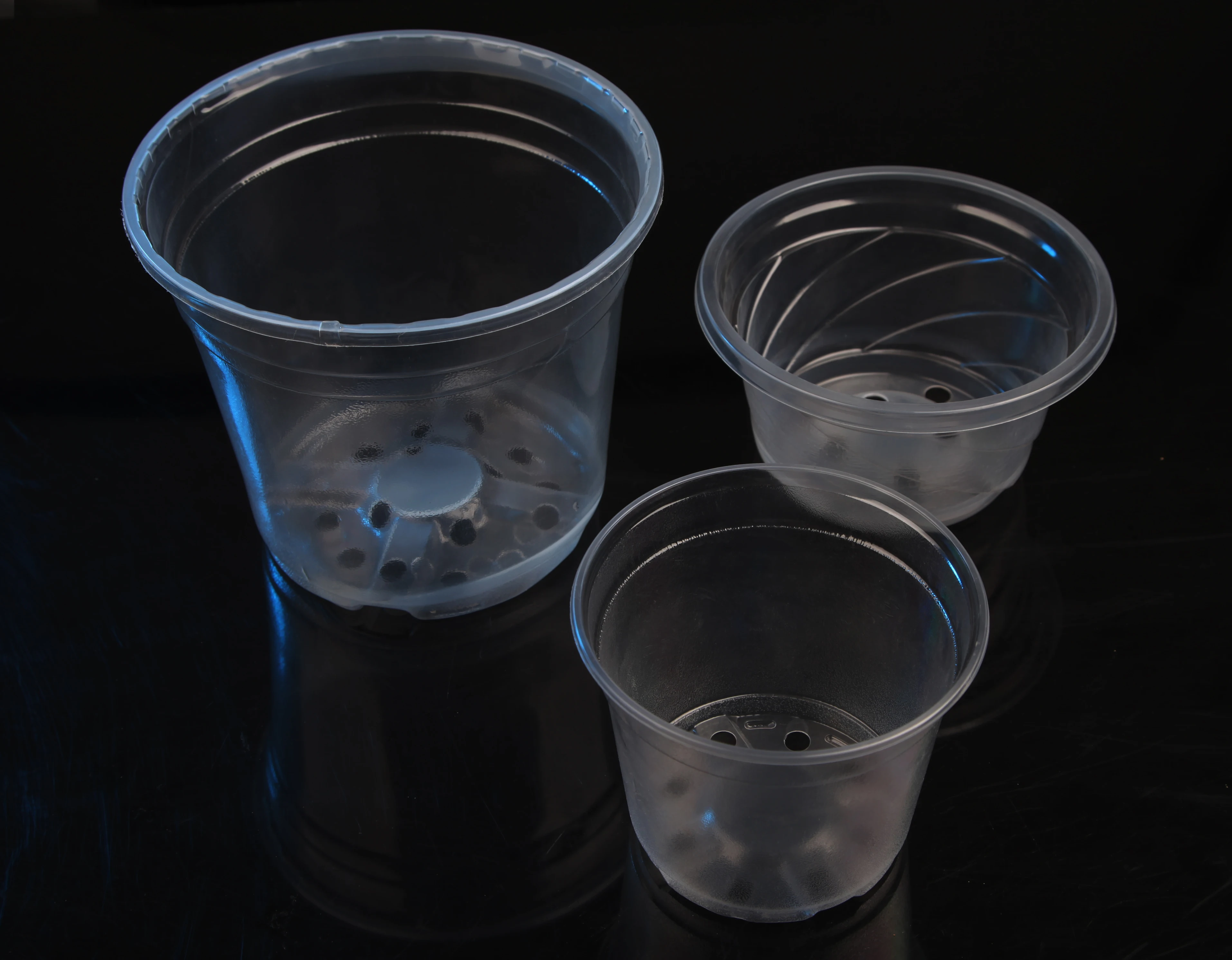

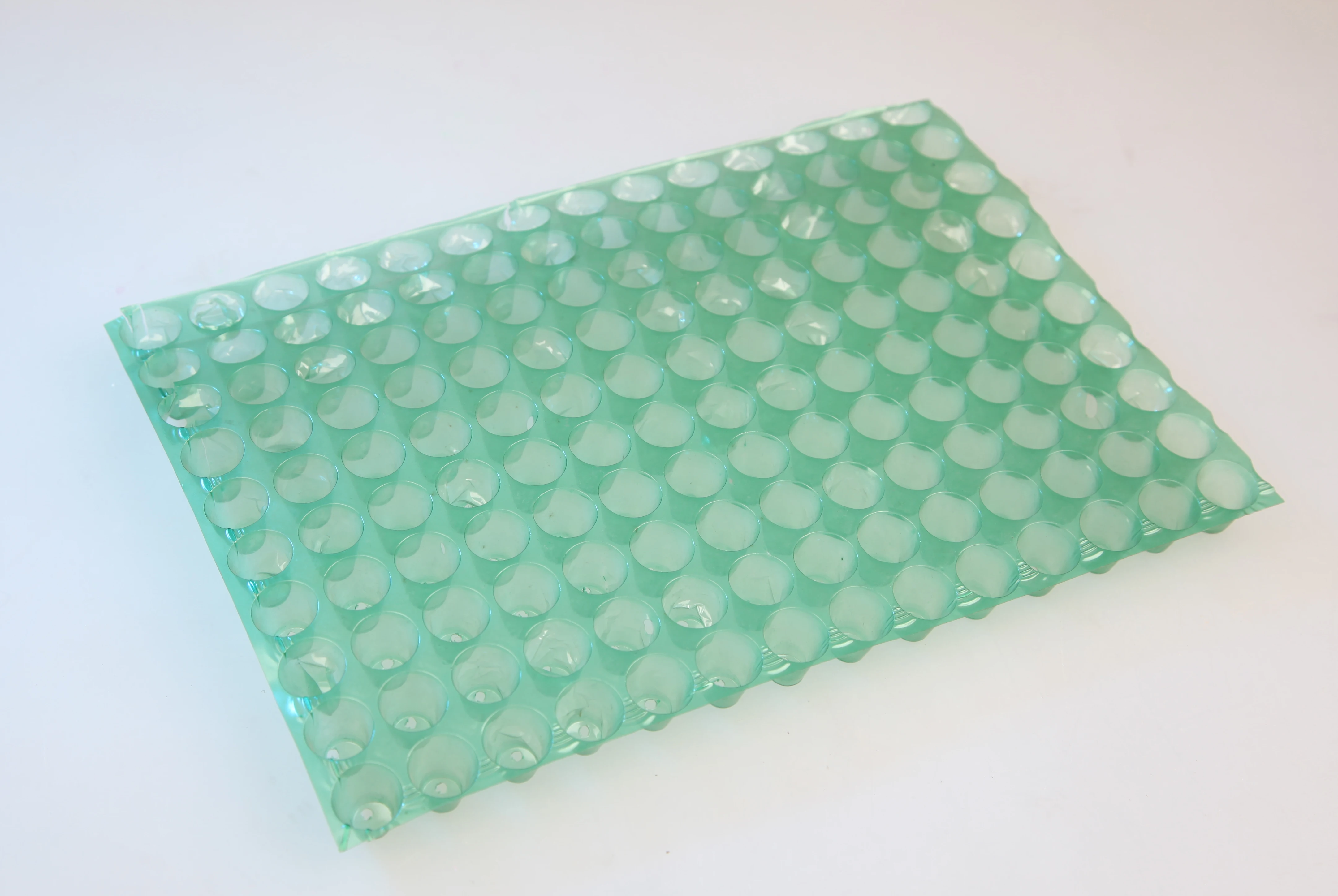

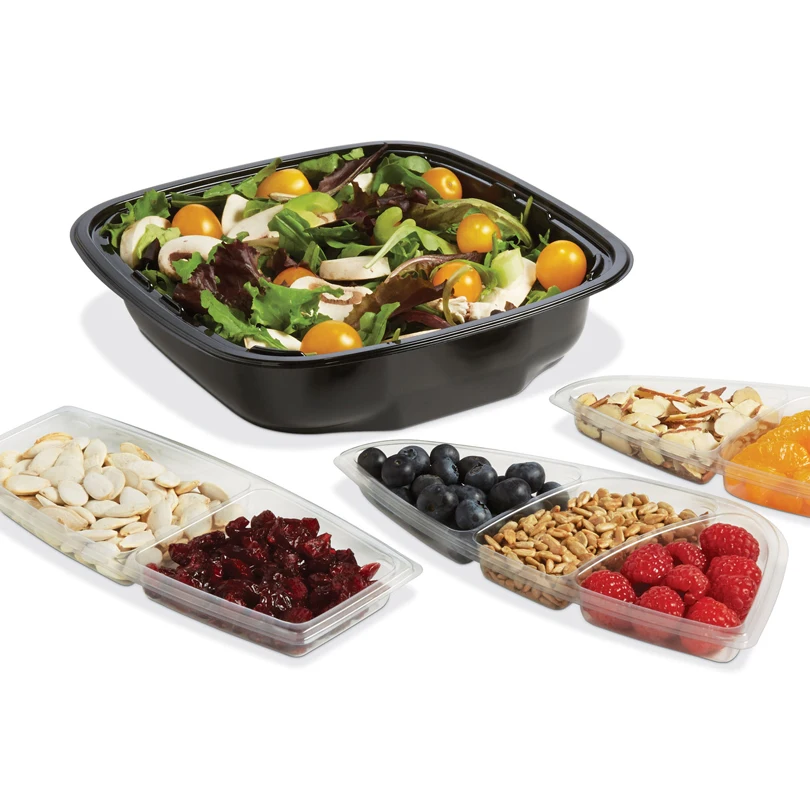

Production Product Display
Recommend Products

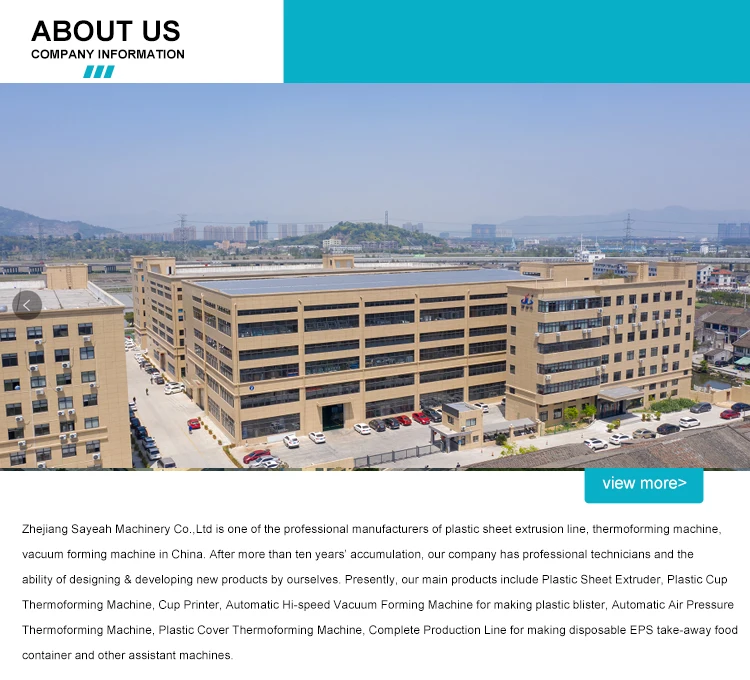

Company Profile
FAQ
Q1:Are you a factory or trading company?
A1:We are factory.
Q2:How does your factory do regarding quality control?
A2:We have a special QC department in charge of products'quality.
Q3: How long is the warranty period?
A3: All of our machine have one year warranty.
Q4: What's the main market of your company?
A4:We have customers all over the world.Now our products have been widely used in 62 countries.
Q5:Can we visit your machine operation in your factory?
A5:Yes, we have many customers near our factory .we can take you to see the machine operation.
Q6: Where is your factory located? How can we visit there?
A6:Our factory is located in Ruian City, Zhejiang Province, China, by high speed train to Ruian station,then 20 minutes by car.or by airplane to Wenzhou airport,then 1 hour by car.we provide free pick-up service from train station and airport.
Q7: Which payment can offer?
A7: We accept 30% payment in advance, the balance payment before shipping.We also accept UC according to the order amount.We can accept the payment by TIT, Western Union, Paypal, Private Account, Escrow,Cash,and others.
Q8:How&When can I get the price?
A1:We are factory.
Q2:How does your factory do regarding quality control?
A2:We have a special QC department in charge of products'quality.
Q3: How long is the warranty period?
A3: All of our machine have one year warranty.
Q4: What's the main market of your company?
A4:We have customers all over the world.Now our products have been widely used in 62 countries.
Q5:Can we visit your machine operation in your factory?
A5:Yes, we have many customers near our factory .we can take you to see the machine operation.
Q6: Where is your factory located? How can we visit there?
A6:Our factory is located in Ruian City, Zhejiang Province, China, by high speed train to Ruian station,then 20 minutes by car.or by airplane to Wenzhou airport,then 1 hour by car.we provide free pick-up service from train station and airport.
Q7: Which payment can offer?
A7: We accept 30% payment in advance, the balance payment before shipping.We also accept UC according to the order amount.We can accept the payment by TIT, Western Union, Paypal, Private Account, Escrow,Cash,and others.
Q8:How&When can I get the price?
A8: Email us your inquiry or communicate online, state your specifications(product, material, size, quantity,output etc).We usually quote within 24 hours. Please call us or inform in your email when it is urgent, we will regard your inquiry priority.our service number is 0086-577-65572988
