Ginri JVRD 6 Phase Sequence Phse loss Control Relay Voltage Monitoring Relay

Product Overview

Description

Phase Sequence Phse loss Control Relat Voltage Monitoring Relay JVRD-6



♦ Features

  -- Compact modular size

  -- Three-phase monitoring of phase reversal, phase failure

  -- Powered by the measuring circuit

  -- 2 C/O contacts

  -- 2 LEDs for status indication



♦ Protective Functions

  -- Phase reversal

  -- Phase failure



♦ Typical Applications

    • Pumps     • Fans

    • Blowers    • Motors

    • Compressors



♦ Approvals

    • CE

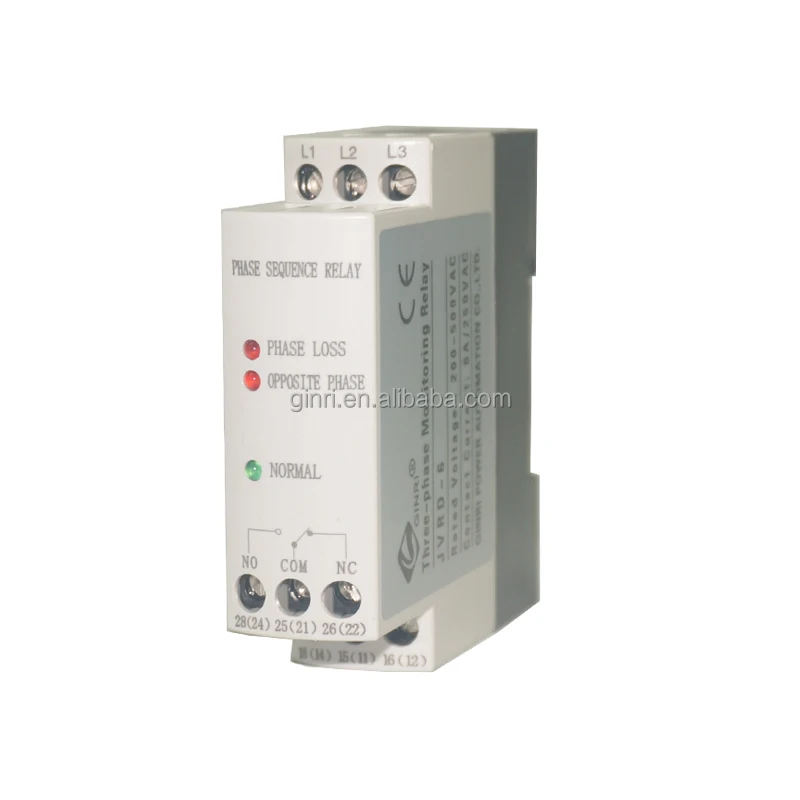

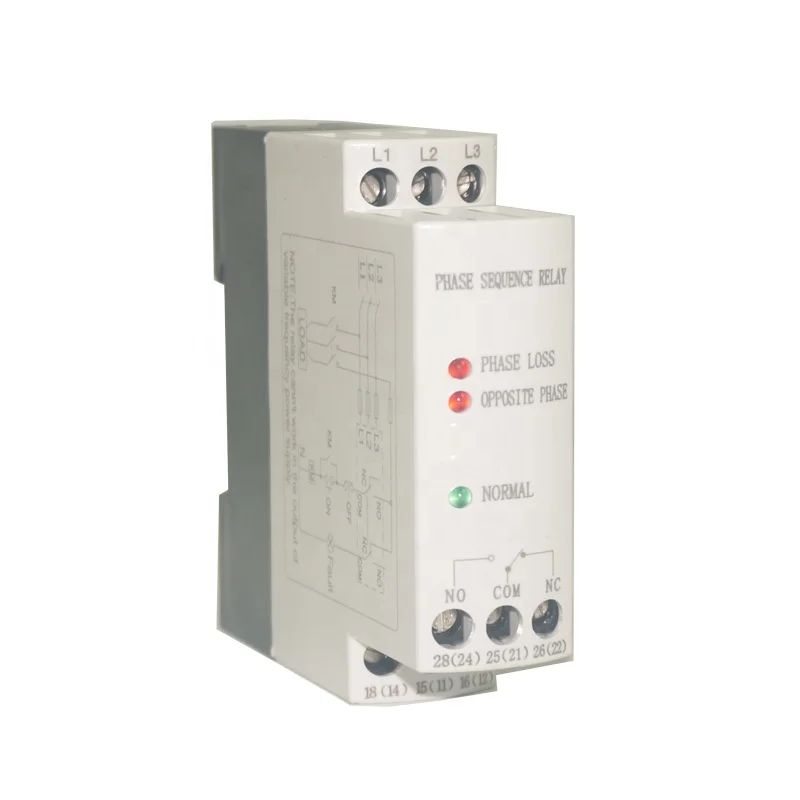

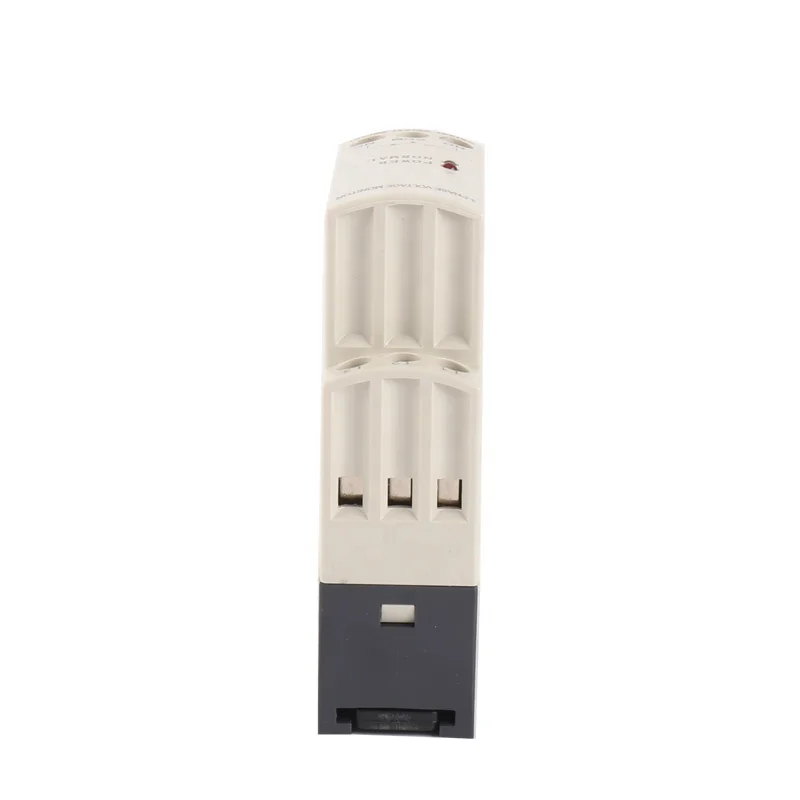

♦ Product Photo









♦ Technical data



Type	JVRD-6
Measuring circuit	L1,L2,L3
Rated voltage	200-500VAC,50/60Hz
Monitoring functions	phase reversal, phase failure
Indicators	normal,power
Output contacts	2 C/O
Contact capacity	6A ,250VAC
Dimensions (H x W x D)	79×23×79mm
Mounting	DIN rail

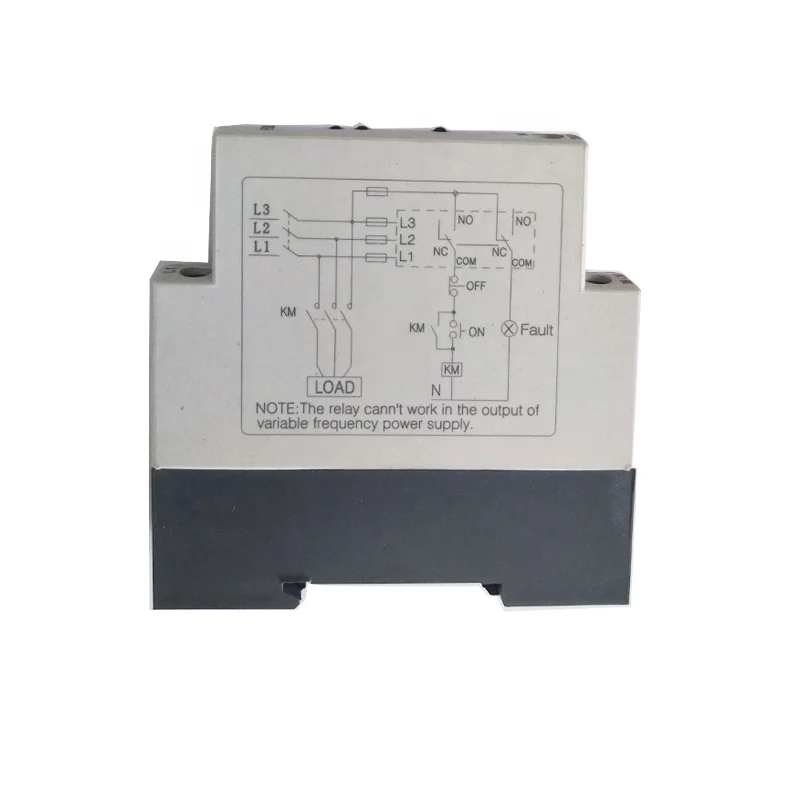

♦ Wiring Diagram

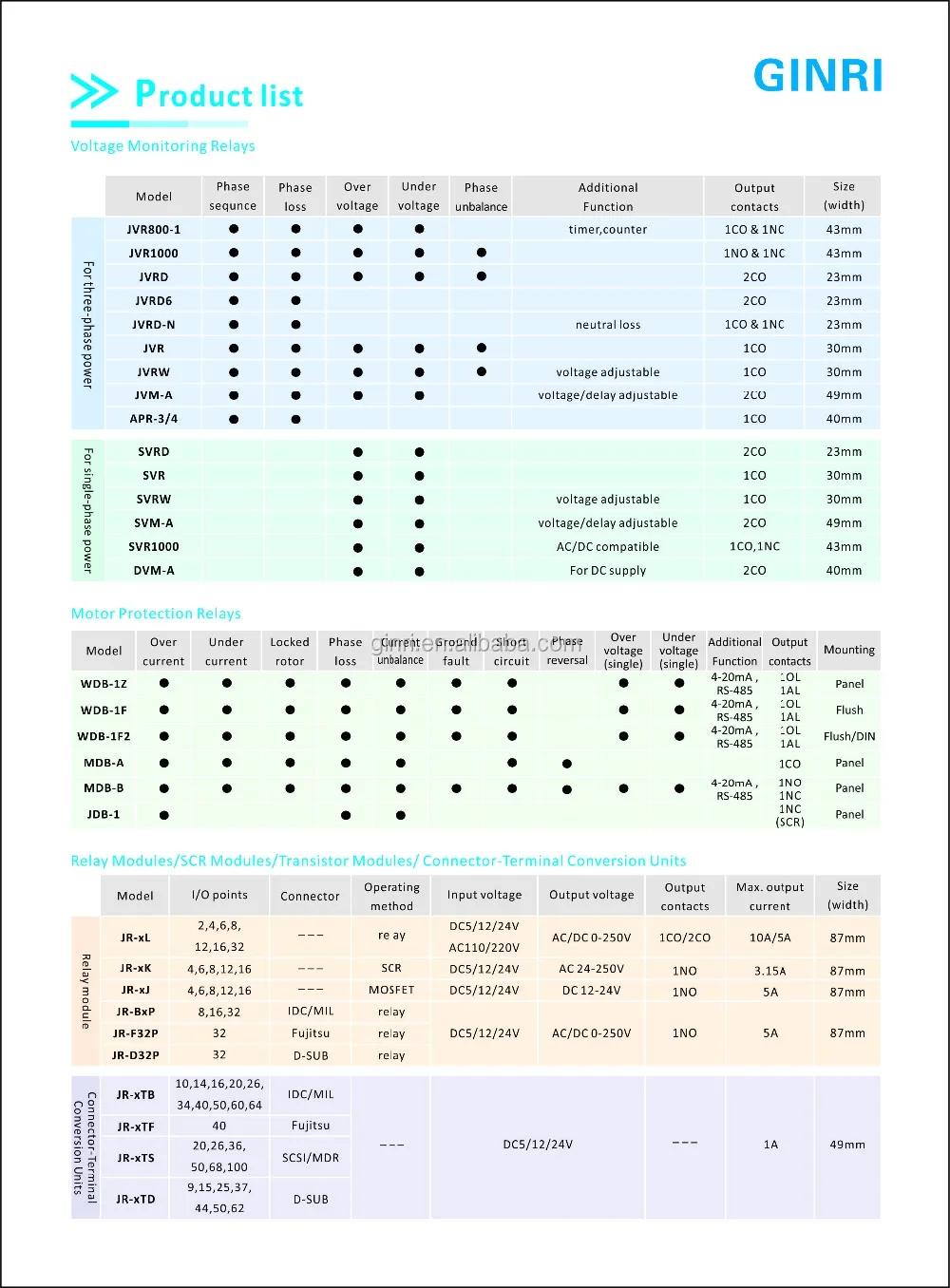

♦ GINRI Selection Guide





♦ GINRI Packing







♦ GINRI Relay Family Photo
