Good Quality Tuna Fish Factory Machine Cooking Autoclave Tuna Cooker
$15,800.00-16,900.00

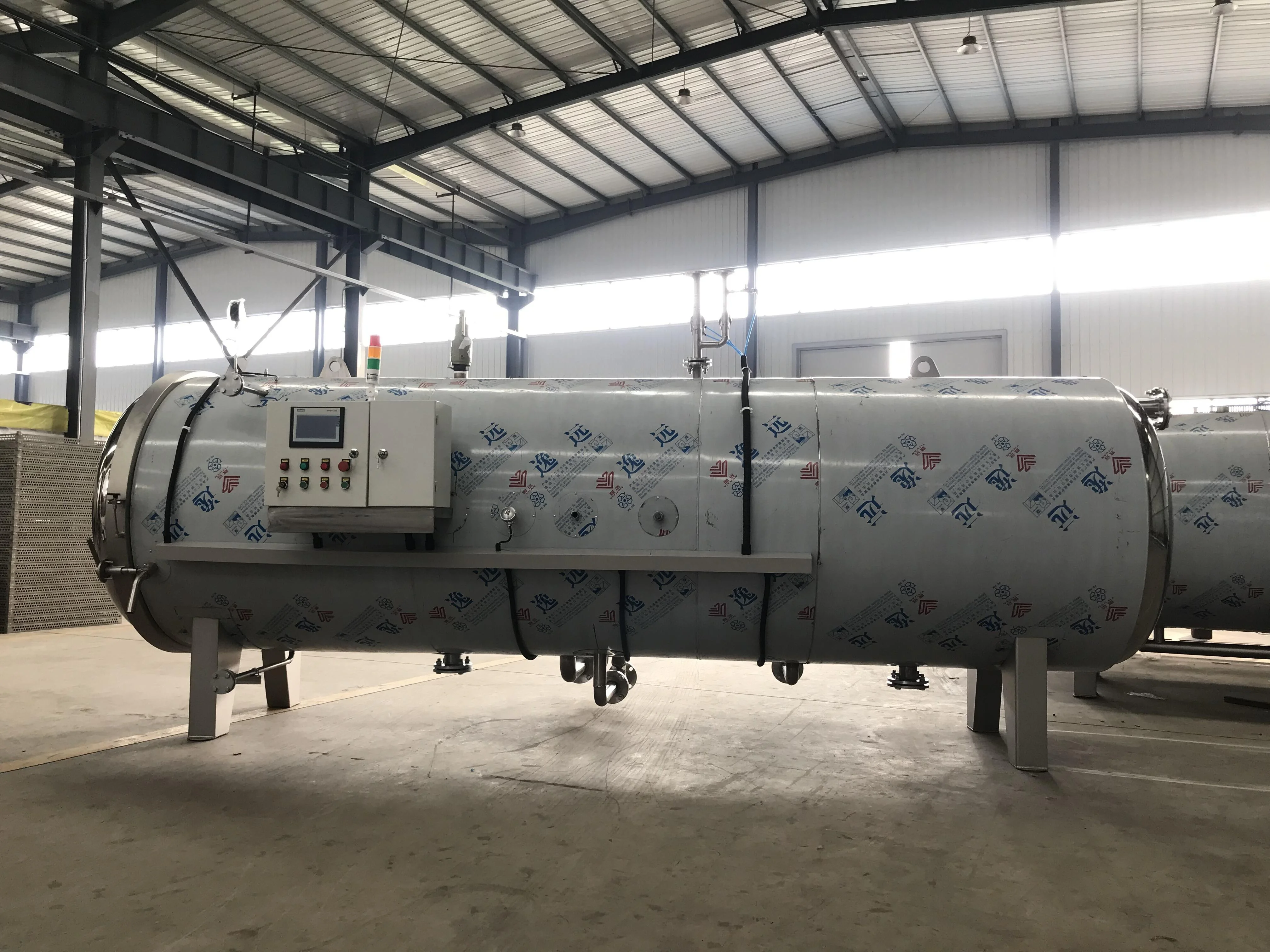

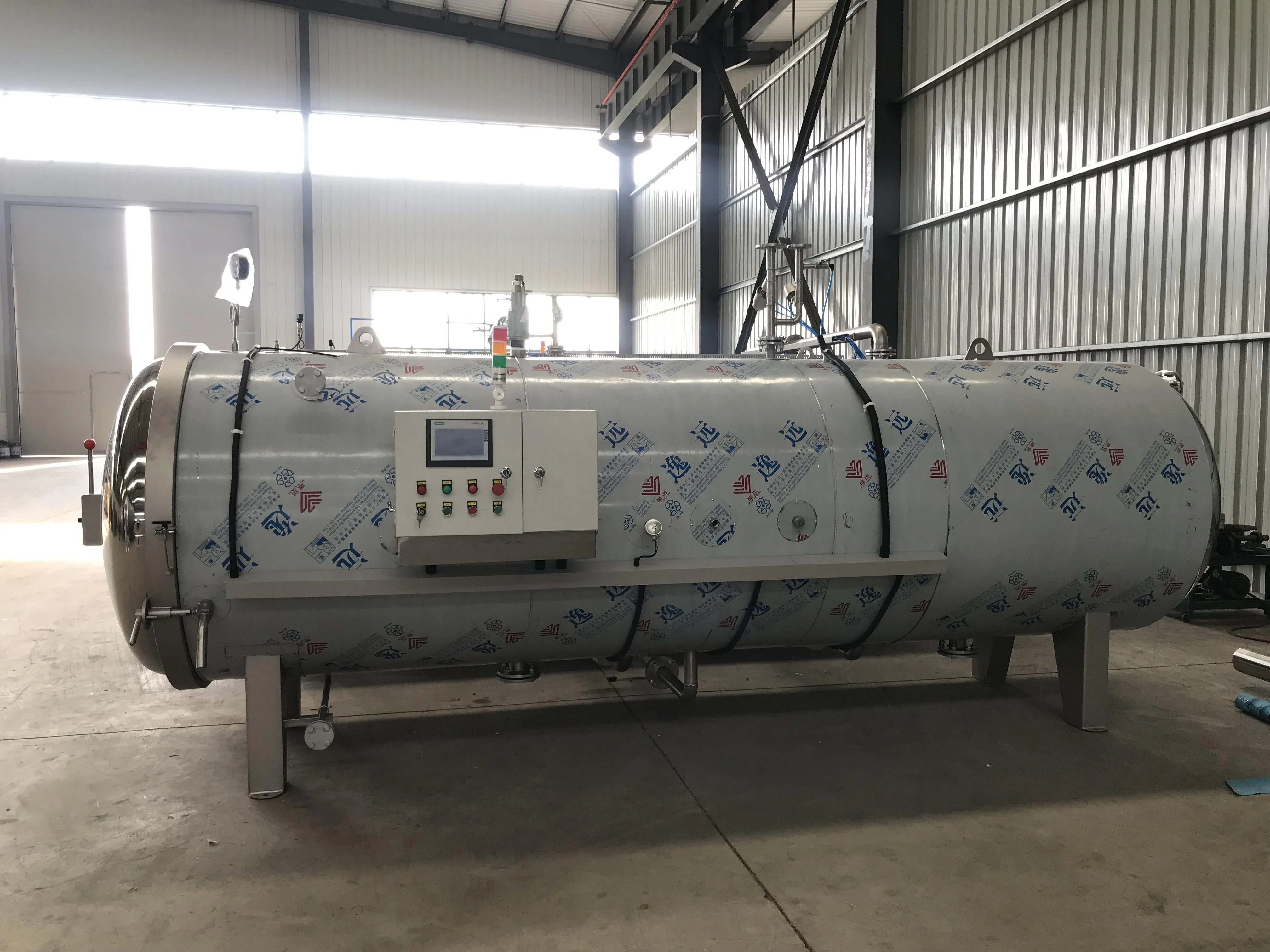

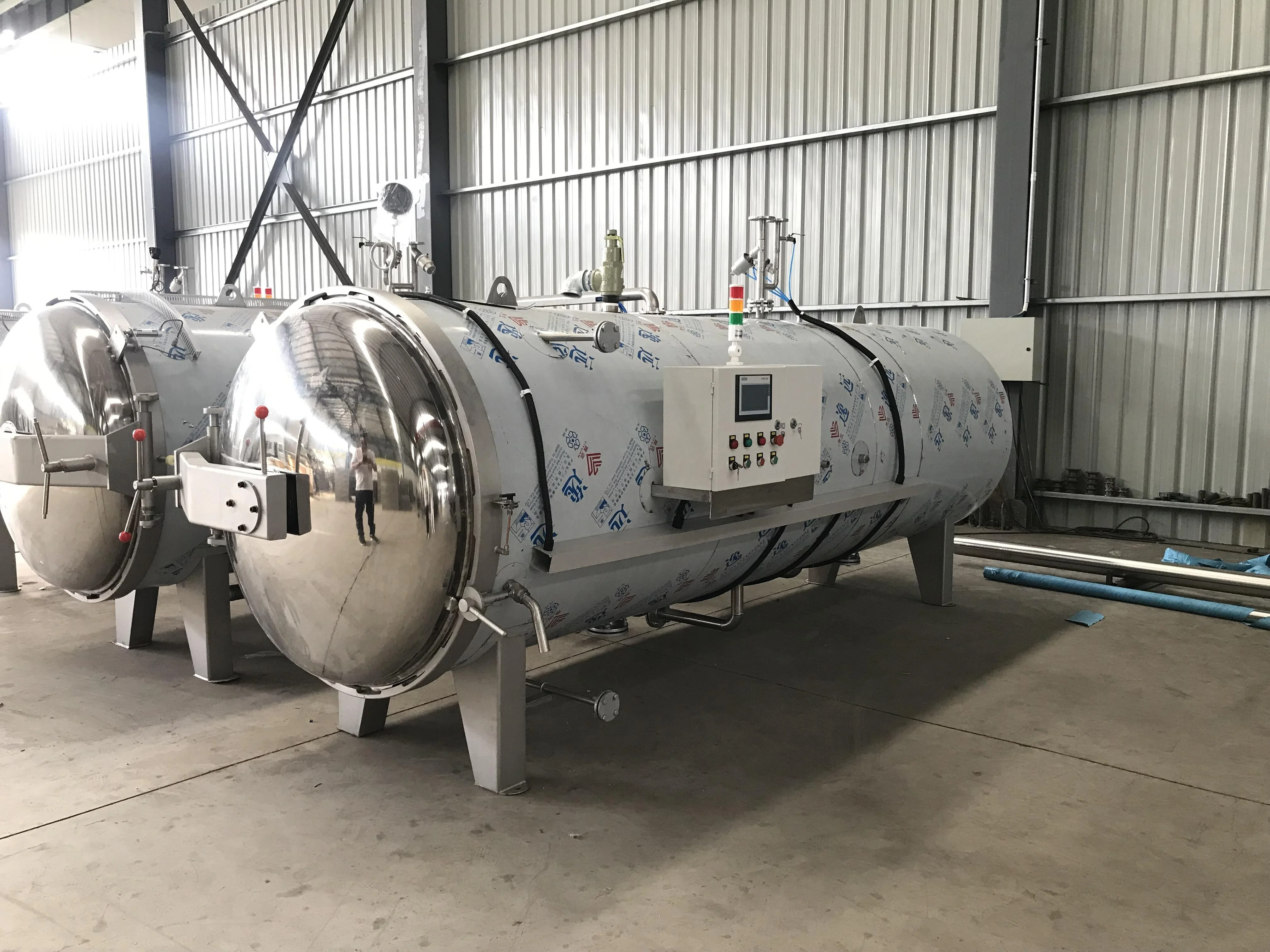

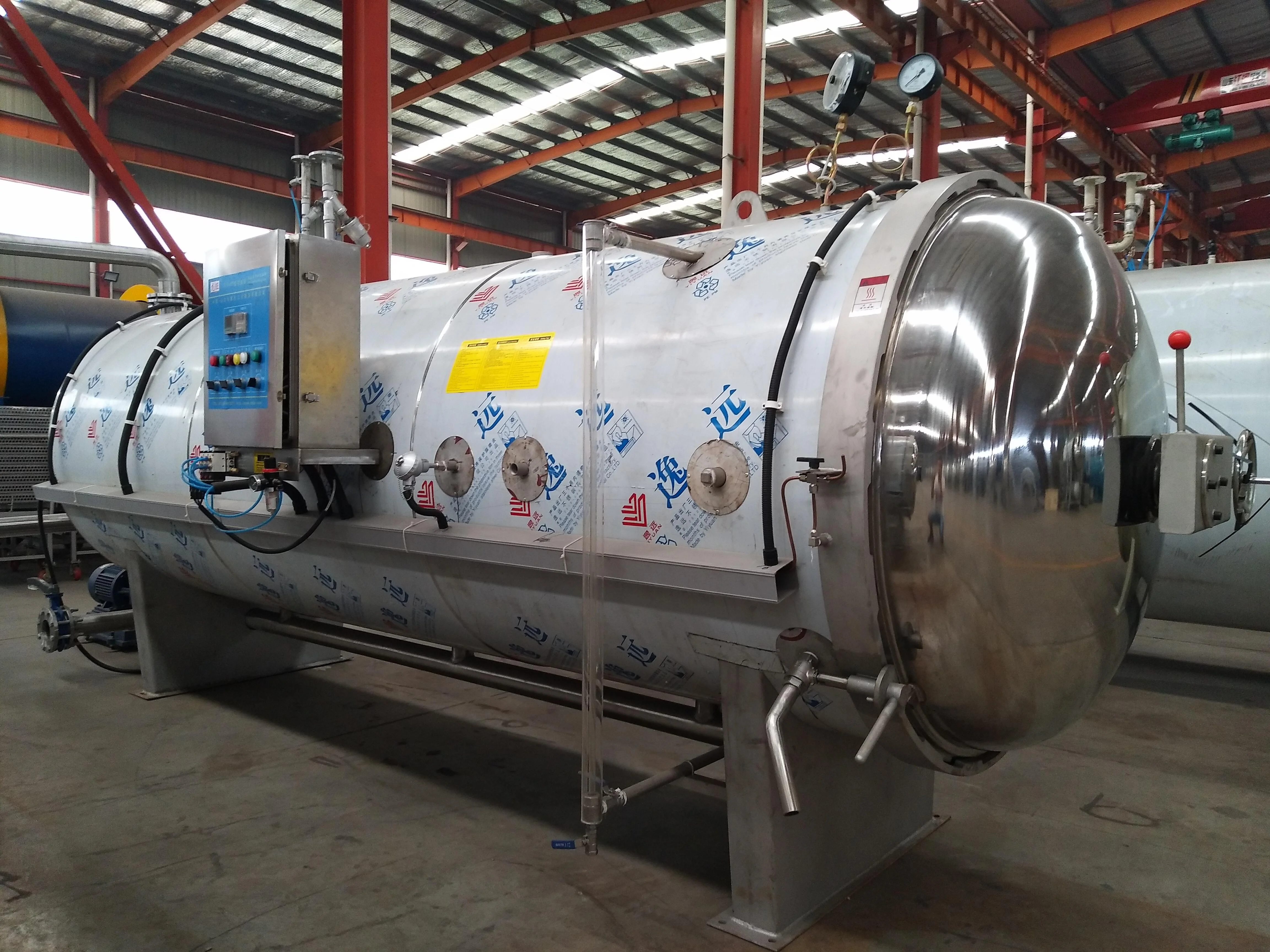

food sterilizer retort autoclave for canning
- Category: >>>
- Supplier: Shandong Mosen Machinery Co. Ltd.
Share on (1600567956861):
Product Overview
Description

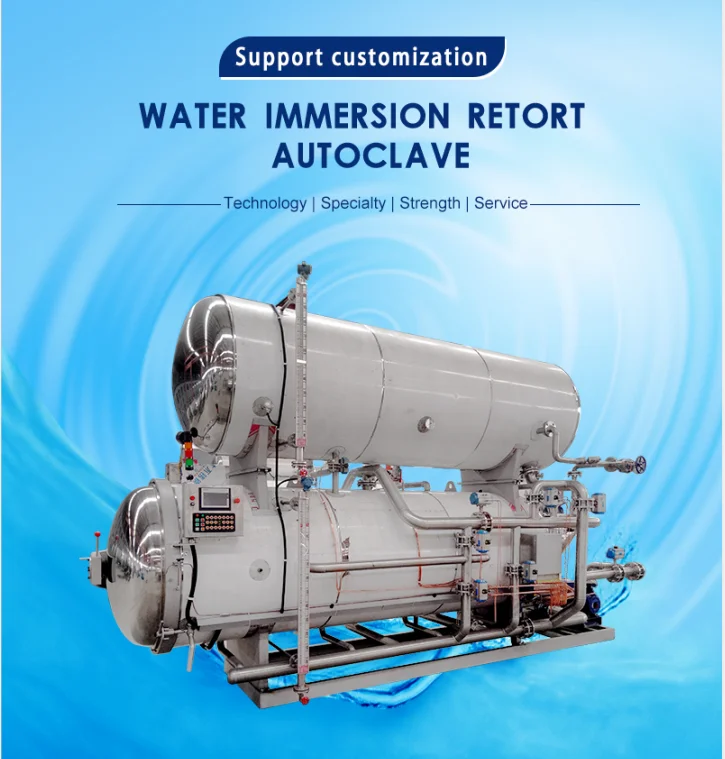

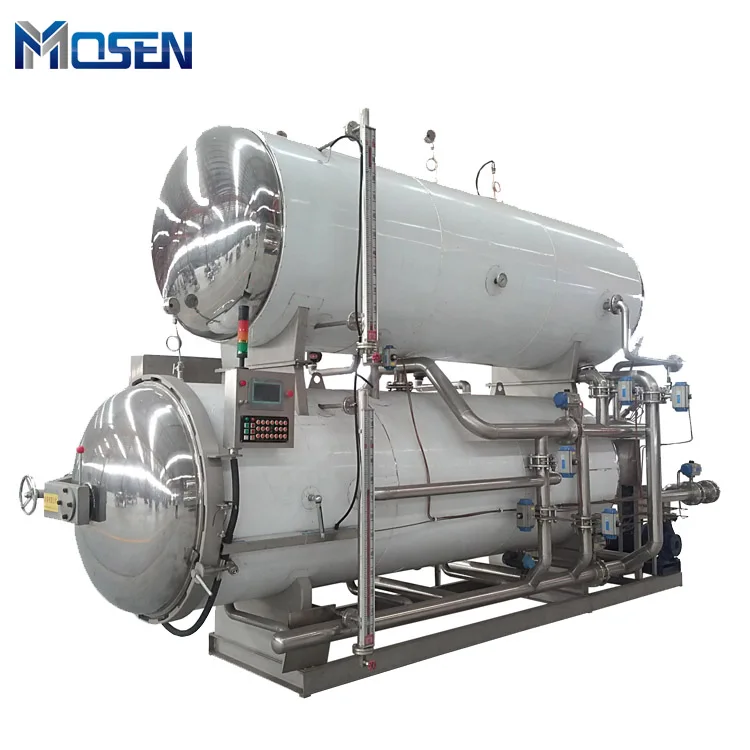

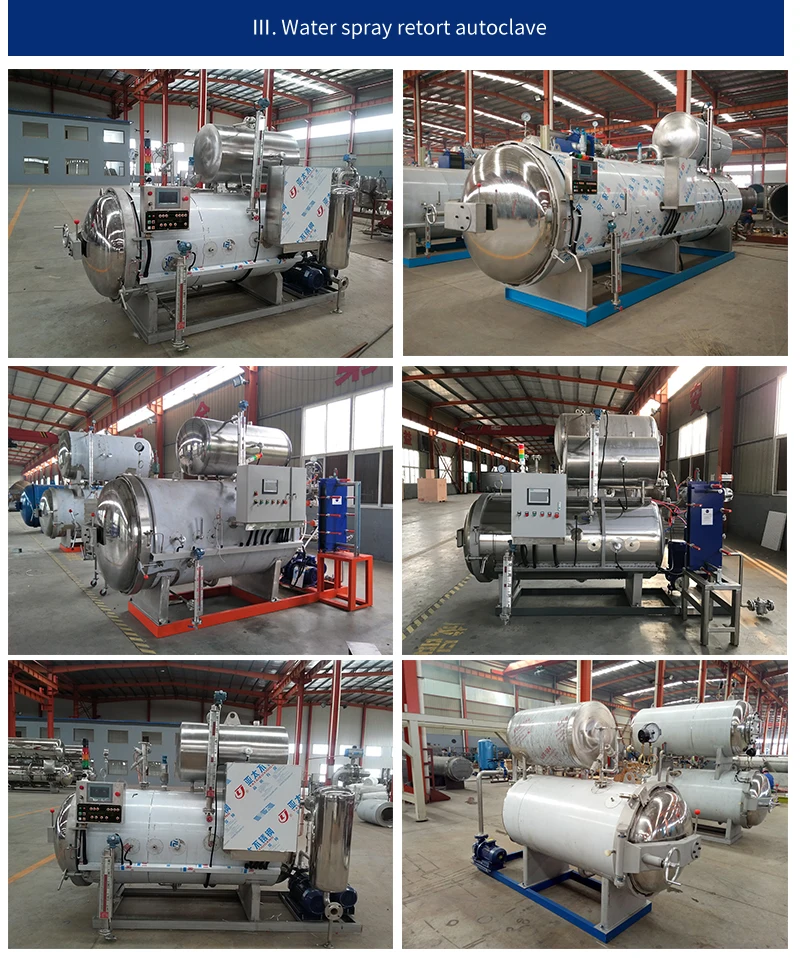

canned food water retort machine
Products Description

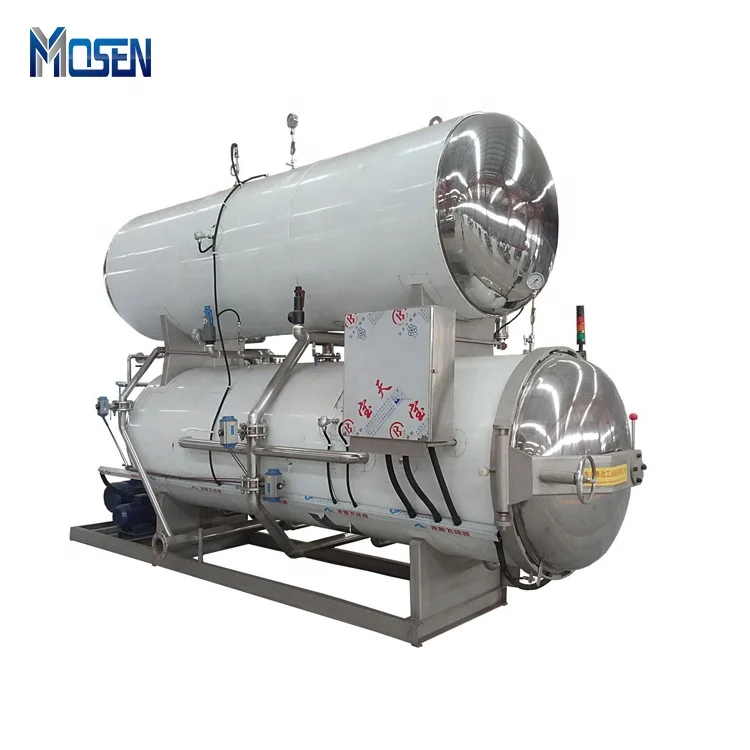

1 .water bath retort is composed of two tanks. Hot water store in tank and temperature preset. Soft water with recycle work to save energy and water resource.
2 .water retort using circulate water and continuous steam supply ensure the temperature error within 5° for all bathed products.
3 water retort temperature of circulating water is uniformly and stable under the dual function of top tank preheating,
circulation pump and steam.
4. water retort using entirely interface system with visual monitoring control PLC+HMI enhance better effect of automated operation.
2 .water retort using circulate water and continuous steam supply ensure the temperature error within 5° for all bathed products.
3 water retort temperature of circulating water is uniformly and stable under the dual function of top tank preheating,
circulation pump and steam.
4. water retort using entirely interface system with visual monitoring control PLC+HMI enhance better effect of automated operation.

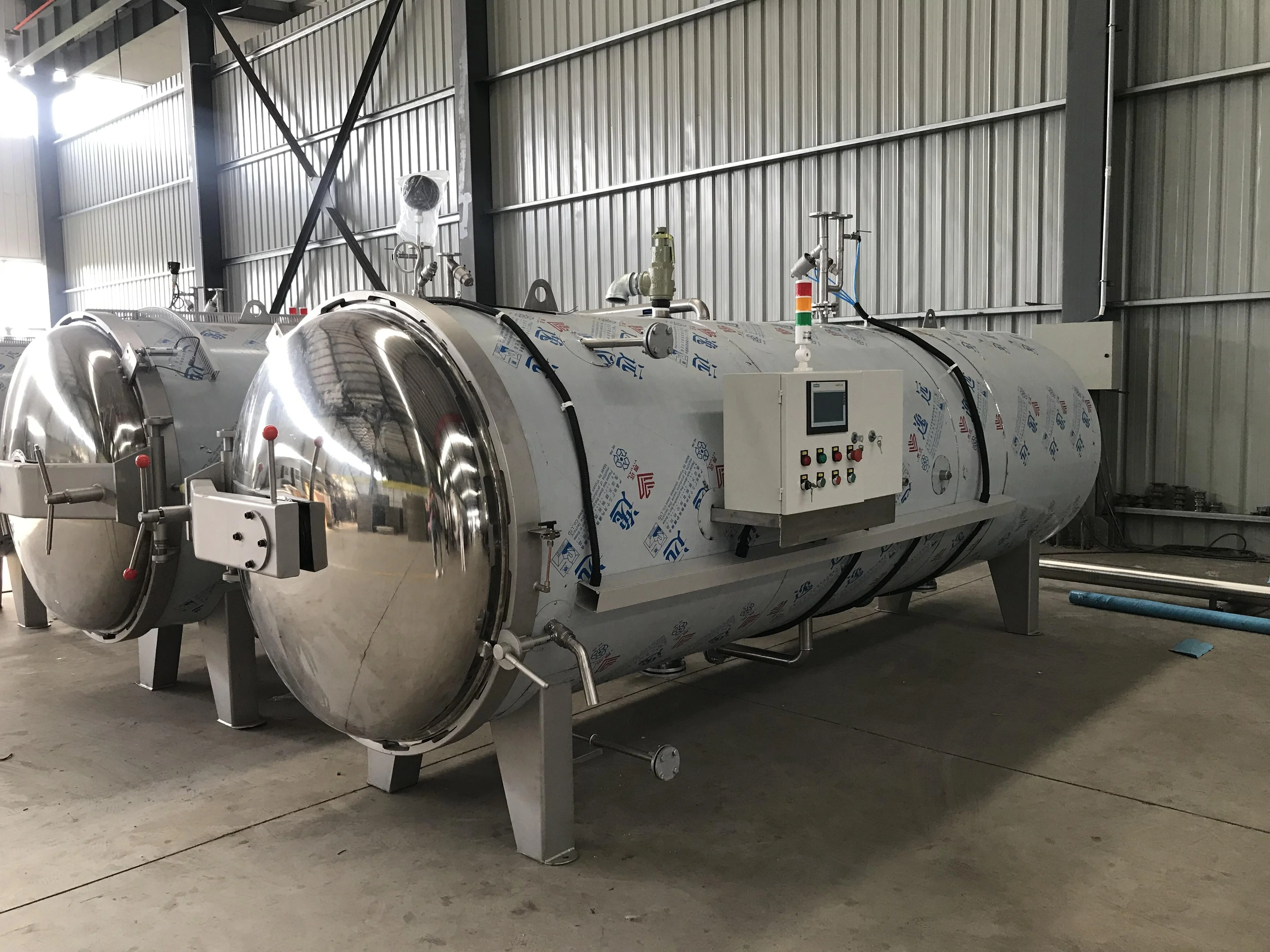

canned food water retort machine
Product Paramenters
Imodel | inner diameter(mm) | length(mm) | capacity(m³) | pot thickness(m) | max working pressure(Mpa) | max working temoerature(℃） | weight(kg) | total installed power(kw) | voltage(V) |
10-1.B.3 | 1000 | 1000 | 1.05 | 4 | 0.3 | 145 | 1120 | 6 | 380V |
10-2.B.3 | 1000 | 2000 | 1.8 | 4 | 0.3 | 145 | 1920 | 9 | 380V |
12-2.B.3 | 1200 | 2000 | 2.65 | 4 | 0.3 | 145 | 2320 | 14 | 380V |
12-3.B3 | 1200 | 3000 | 3.74 | 4 | 0.3 | 145 | 2920 | 17.5 | 380V |
12-3.6.B.3 | 1200 | 4000 | 4.06 | 4 | 0.3 | 145 | 3120 | 19.5 | 380V |
14-3.B.3 | 1300 | 4000 | 5.62 | 4 | 0.3 | 145 | 3320 | 23 | 380V |
Product Application
water retort For high temperature sterilization of fruits, vegetables, meat, fish, convenience foods, etc.
Plastic Container: PP bottles, HDPE bottles
Metal Containers: tin cans, Aluminum cans
Soft bag packaging: aluminum foil bag, transparent bag, vacuum bag, and so on
Scientific experiments show that the best sterilization temperature of the tide type brine food is 121 DEG, the best sterilization time is 12min, which can not only ensure the good sterilization effect, but also keep the flavor of the brine.
Mainly applicable to canned food (such as meat, fish, eggs, vegetables etc.), protein beverage (milk, soy milk, coconut milk,peanut milk, walnut milk, almond milk etc.), hard cans (tin cans, etc.) and various kinds of soft packaged food.
Except glass bottles, water retort is adapt to other packs of tin cans. soft package, plastic bottles ect.
Plastic Container: PP bottles, HDPE bottles
Metal Containers: tin cans, Aluminum cans
Soft bag packaging: aluminum foil bag, transparent bag, vacuum bag, and so on
Scientific experiments show that the best sterilization temperature of the tide type brine food is 121 DEG, the best sterilization time is 12min, which can not only ensure the good sterilization effect, but also keep the flavor of the brine.
Mainly applicable to canned food (such as meat, fish, eggs, vegetables etc.), protein beverage (milk, soy milk, coconut milk,peanut milk, walnut milk, almond milk etc.), hard cans (tin cans, etc.) and various kinds of soft packaged food.
Except glass bottles, water retort is adapt to other packs of tin cans. soft package, plastic bottles ect.
Recommend Products
Why Choose Us

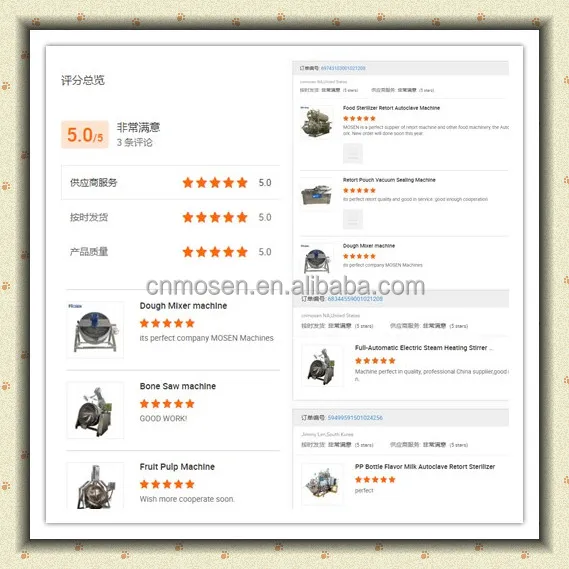

Customer Photos
Exhibition

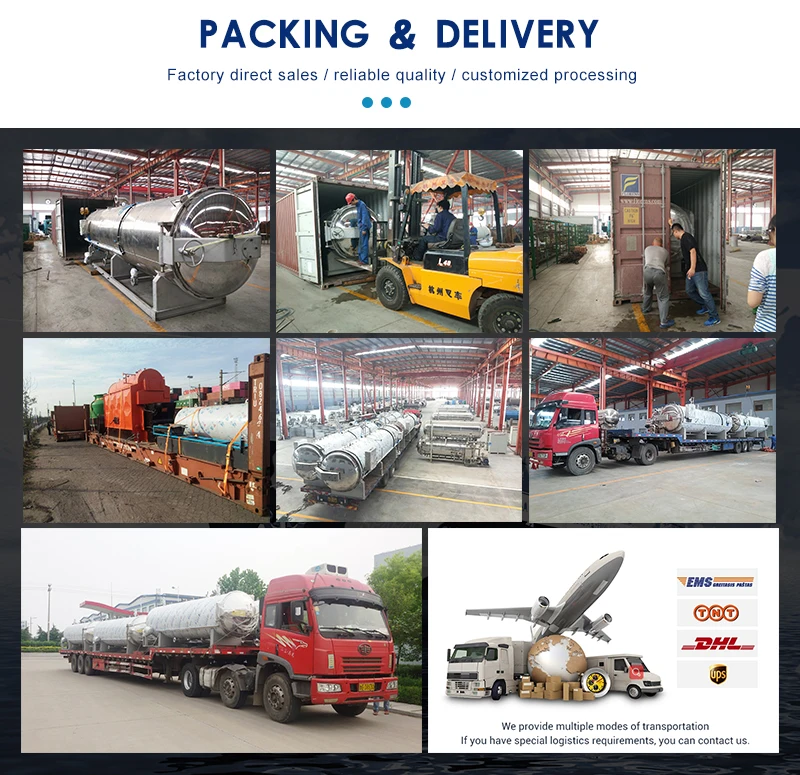

Product packaging
We will deliver your goods by LCL/20'FCL/40'FCL depending on your order.
Before delivery, our professional technician will do trial run for each product to check until everything is functional, you alsocan come to our factory and test our machine together with us.
When loading, our workers will fix the retorts tightly with wire rope so that the retorts can't move in the container.
Before delivery, our professional technician will do trial run for each product to check until everything is functional, you alsocan come to our factory and test our machine together with us.
When loading, our workers will fix the retorts tightly with wire rope so that the retorts can't move in the container.
FAQ
Q: Are you manufacturer or trading company?
A: We are a professional manufacturer.
Q: Where is your factory located?
A: Our factory is located in Zhucheng, Shandong, China. From Qingdao where closes to us 1.5 hours to Beijing, 1.75 hours to Shanghai, 4.5 hours to Guangzhou by air.
Q: What is your business scope?
A: There are three categories, such as food sterilization machine, jacket cooker, rubber vulcanization autoclave.
Q: How could we confirm the details of the products?
A: We will provide all the drawings for you to confirm or you can come here to conduct investigation.
Q: Will you charge us for drafting if we have special requests?
A: No, we will not. Free of charge to make a draft or offer.
Q: How long the warranty will be?
A: 1 Year warranty.
Q: How about the installation? And what if the machine goes down?
A: We will do that. There are two options.
a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side.
b. On-line service will be provided. If still is under guarantee period, the necessary accessories and parts will be provided free, but the transportation cost of it shall be on your side.
Q: Do you take L/C?
A: Yes, we accept L/C, T/T and irrevocable L/C payable.
Q: Can we become your distributor in our country?
A: Yes, welcome you! More details will be discussed if you are interested in being our agent.
A: We are a professional manufacturer.
Q: Where is your factory located?
A: Our factory is located in Zhucheng, Shandong, China. From Qingdao where closes to us 1.5 hours to Beijing, 1.75 hours to Shanghai, 4.5 hours to Guangzhou by air.
Q: What is your business scope?
A: There are three categories, such as food sterilization machine, jacket cooker, rubber vulcanization autoclave.
Q: How could we confirm the details of the products?
A: We will provide all the drawings for you to confirm or you can come here to conduct investigation.
Q: Will you charge us for drafting if we have special requests?
A: No, we will not. Free of charge to make a draft or offer.
Q: How long the warranty will be?
A: 1 Year warranty.
Q: How about the installation? And what if the machine goes down?
A: We will do that. There are two options.
a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side.
b. On-line service will be provided. If still is under guarantee period, the necessary accessories and parts will be provided free, but the transportation cost of it shall be on your side.
Q: Do you take L/C?
A: Yes, we accept L/C, T/T and irrevocable L/C payable.
Q: Can we become your distributor in our country?
A: Yes, welcome you! More details will be discussed if you are interested in being our agent.
If you want to know more about our products, welcome to our company for detailed information. Here we have professional engineers and technicians to instruct you.
