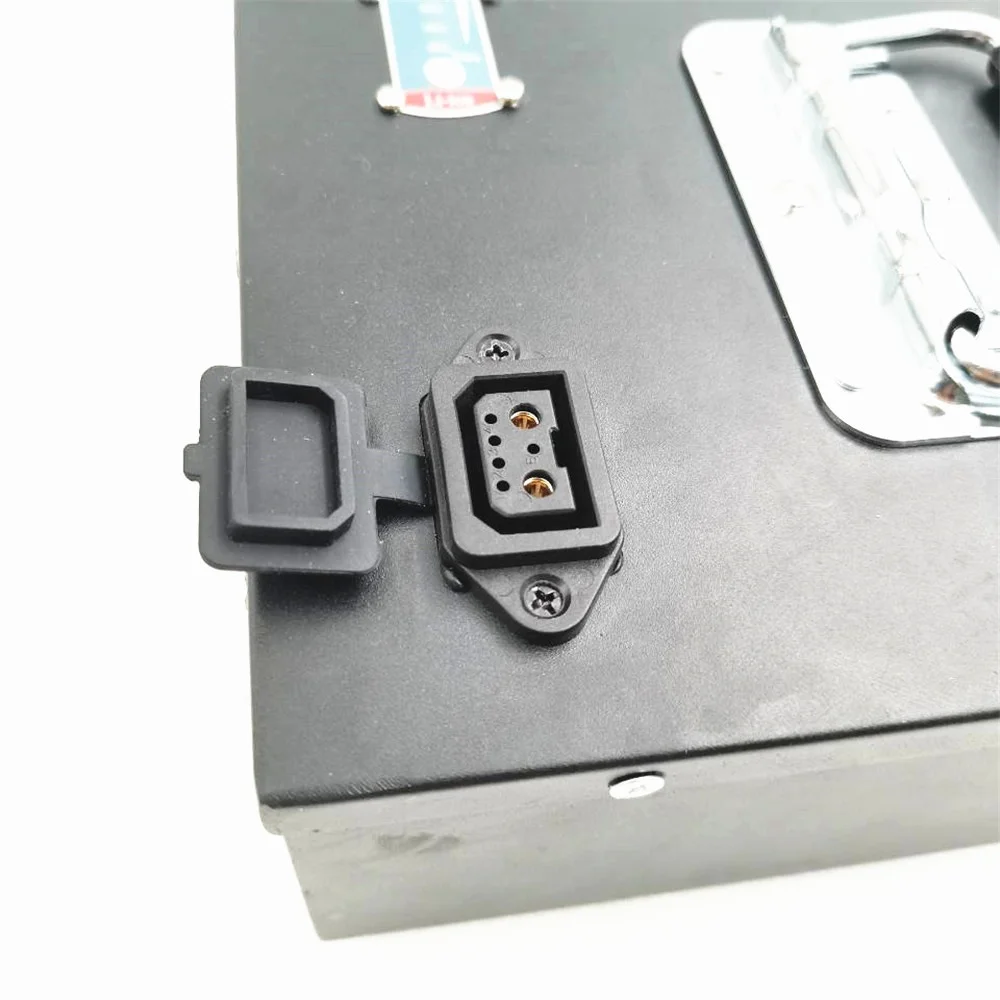

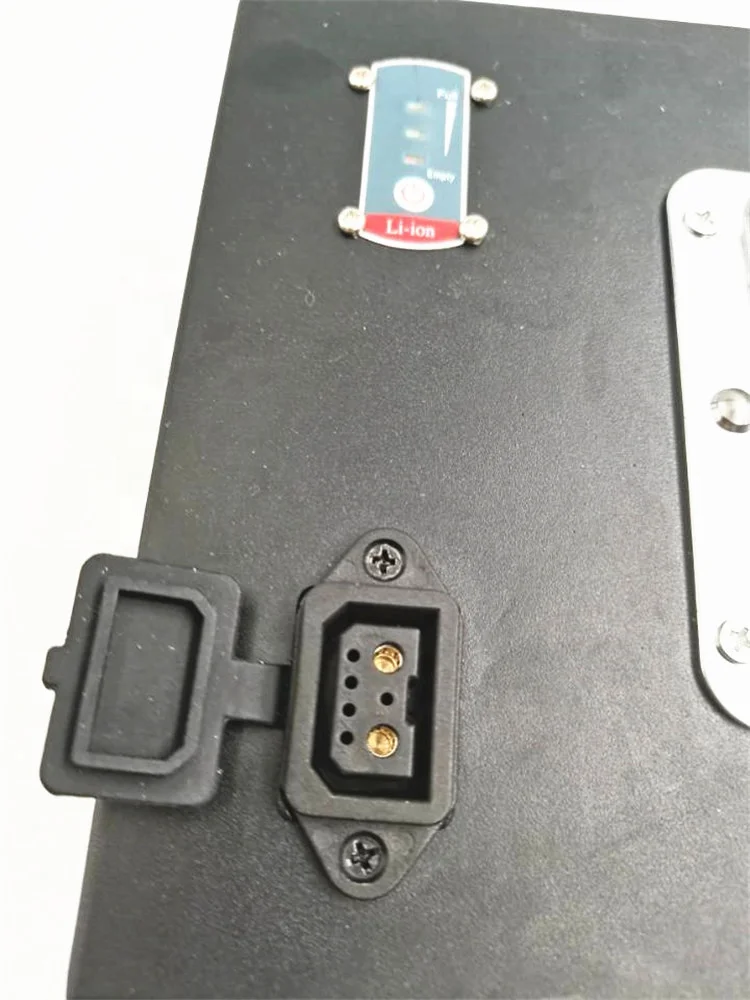

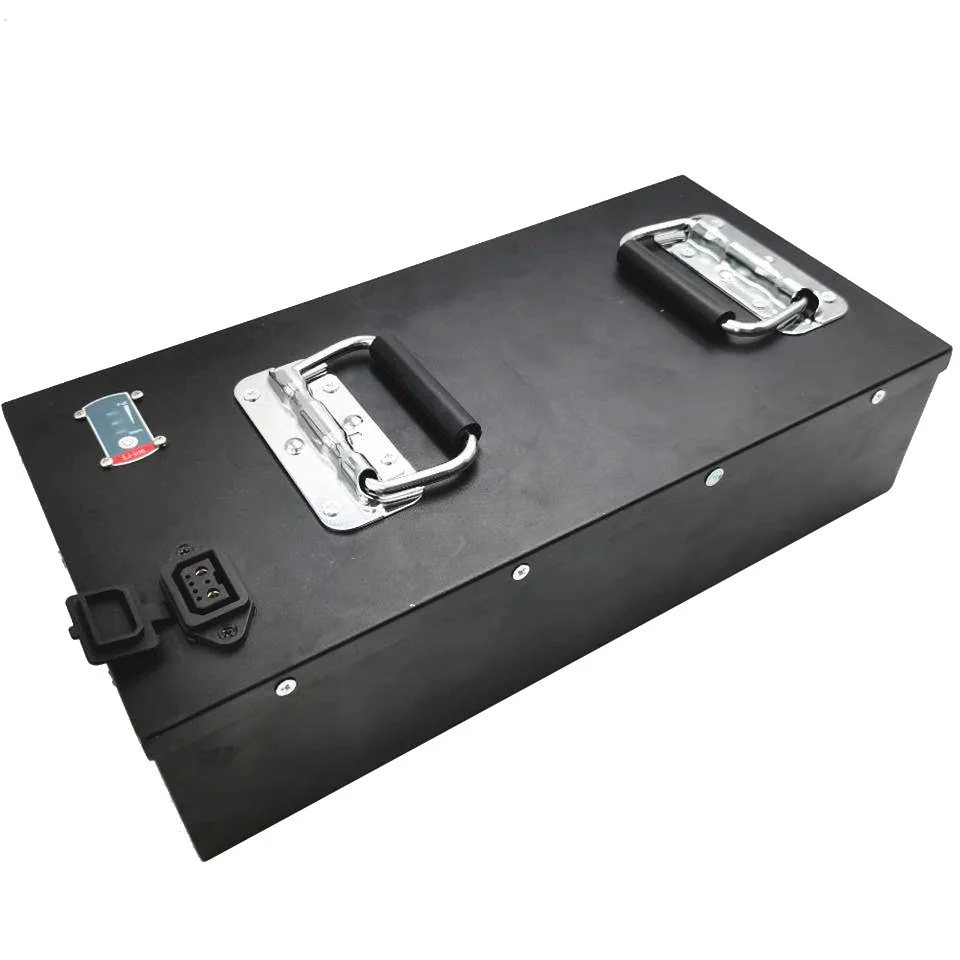

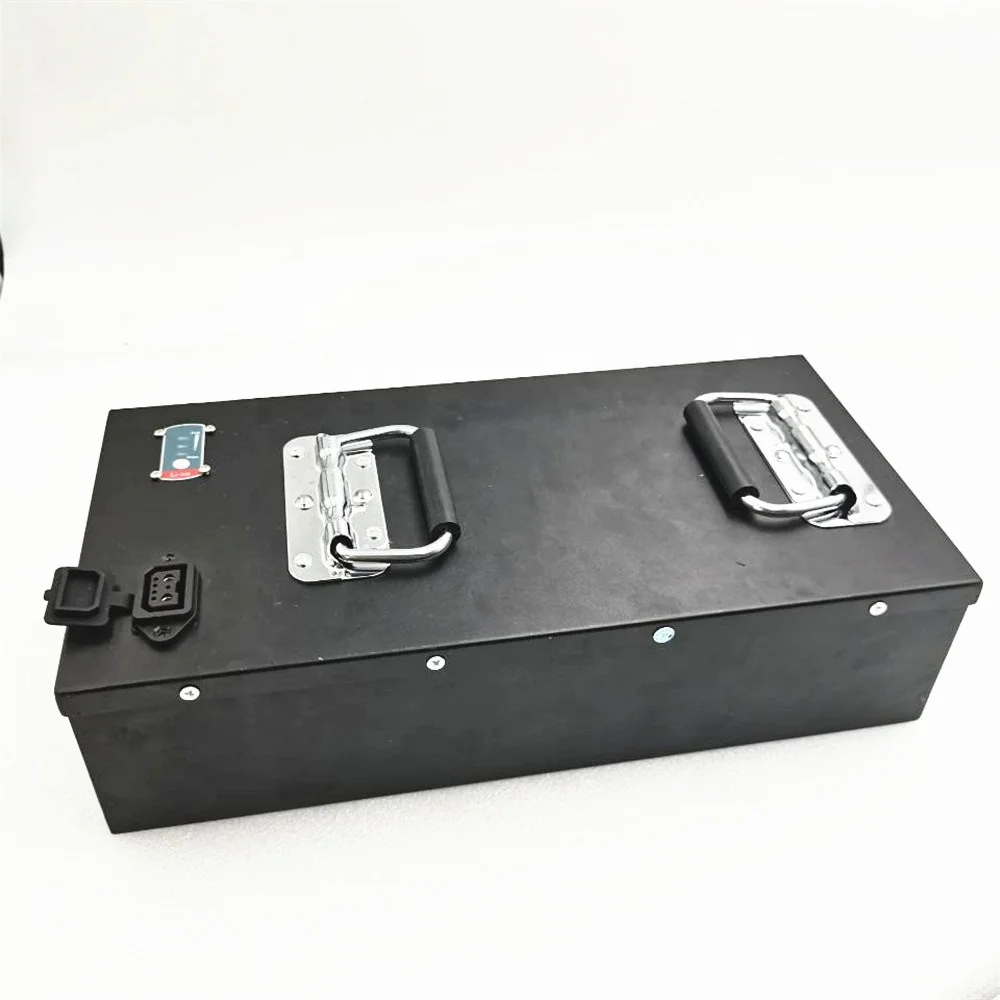

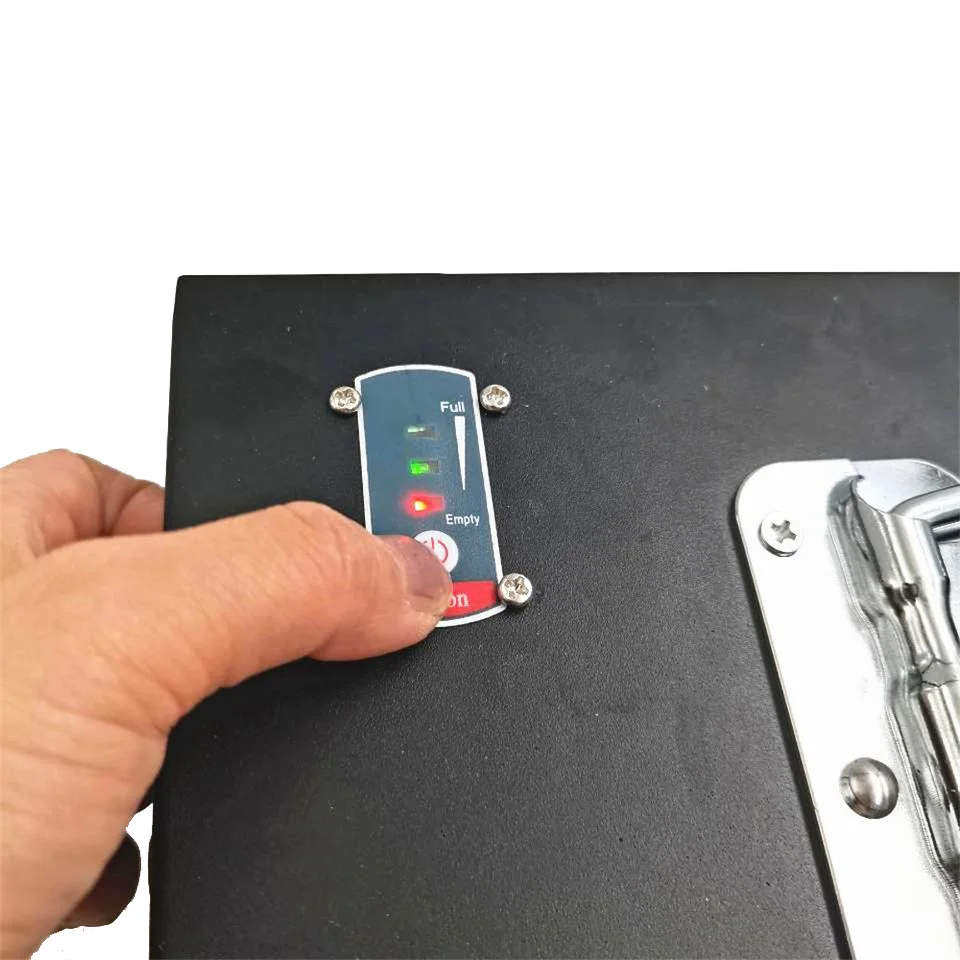

Rechargeable 60V 24Ah Electric Bike Lithium Ion Battery Pack 48V 60V 72V Ebike Motorcycle Scooter High Rate Individual Cell Size
- Category: >>>
- Supplier: Shenzhen Soslli Technology Co. Ltd.
Share on (1600567975371):
Product Overview
Description
No. | Item | Specification | Remarks | ||
1 | Brand Name | SOSLLI or OEM | |||
2 | Model No. | SSL-16S9P18650E26 | |||
3 | Nominal Capacity | 24Ah | can be customized | ||
4 | Nominal Voltage | 60V | can be customized | ||
5 | Discharge Voltage (Min.) | 40V | |||
6 | Charging Voltage (Max.) | 67.2V | |||
7 | Charging Current (std.) | 0.5 C | |||
8 | Discharging Current (Max. continue) | 1C | |||
9 | Discharging Current (Max. temporary) | 2 C | |||
10 | Charging Temperature & Humidity | 0℃ ~ +45℃ 45~85%RH | |||
11 | Discharging Temperature & Humidity | -20℃ ~ +60℃ 45~85%RH | |||
12 | Battery storage and transportation environment temperature & humidity ranges | Min. 1 month | -20℃ ~ +60℃ 45~85%RH | ||
Min. 3 months | -20℃ ~ +45℃ 45~85%RH | ||||
Min. 12 months | -20℃ ~ +25℃ 45~85%RH | ||||
13 | Battery Type | Li-ion battery 18650 2600mAh | |||

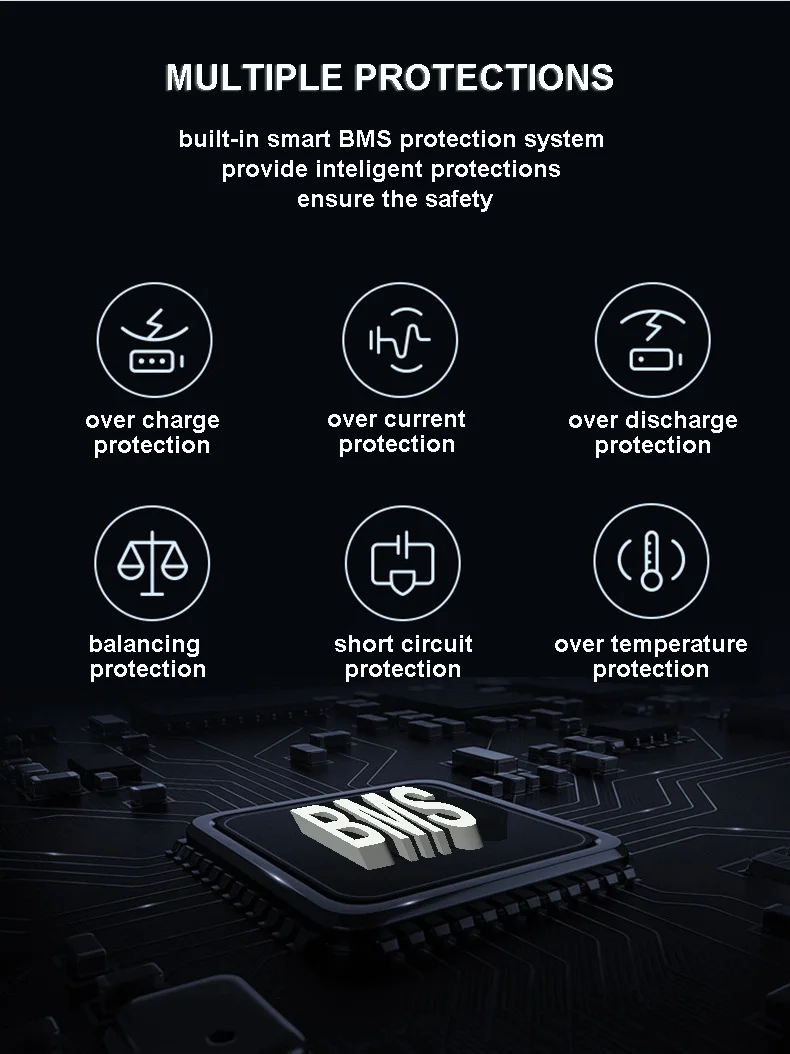

14 | built-in smart BMS/PCB/PCM | Over charge Over discharge Over load Short Circuit Over temperature Balancing protection | |||

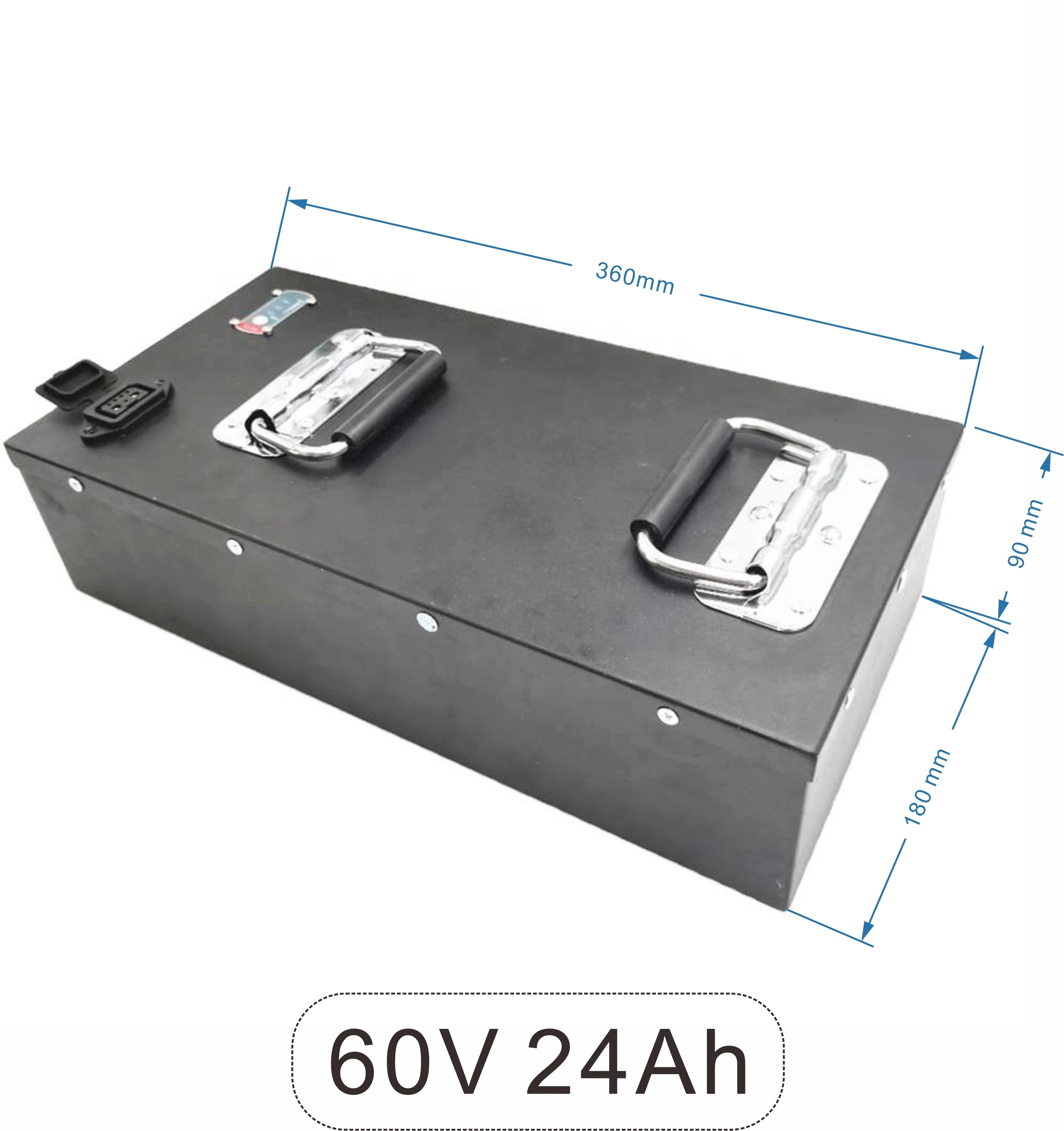

15 | Size | 360*180*90 mm | can be customized | ||
16 | Weight | Approx. 11kg | |||
17 | Cycle Life | 1000 times | |||
18 | Warranty | 12 months | |||
Lithium ion battery pack 60V series with 3.7V 2600 mAh 18650 cell as below:
Model | Voltage | Capacity | Size/Weight(package) |
SSL-16S4P26P | 60V | 10.4Ah | 160*160*75mm or Customized |
SSL-16S5P26P | 13Ah | (Customer's designs and requirements are welcome) The Lithium ion battery pack can be packed with PVC/Plastic box/Iron box and the final size/weight is according to the battery solution. | |
SSL-16S6P26P | 15.6Ah | ||
SSL-16S7P26P | 18.2Ah | ||
SSL-16S8P26P | 20.8Ah | ||
SSL-16S9P26P | 23.4Ah | ||
SSL-16S10P26P | 26Ah | ||
SSL-16S15P26P | 39Ah | ||
SSL-16S20P26P | 52Ah | ||
SSL-16S30P26P | 78Ah | ||
SSL-16S40P26P | 104Ah |
Typical advantage of Soslli's
lithium Ion battery pack:
1. Safety: Triple protection designs to
prevent short-circuit inside the cell.
2. Real and high capacity, Low
2. Real and high capacity, Low
self-discharging, no memory effect.
3. Longer cycle life more than 800 times
3. Longer cycle life more than 800 times
& 80% capacity retain.
4. Large batch production, offering very
4. Large batch production, offering very
similar cells for rating.

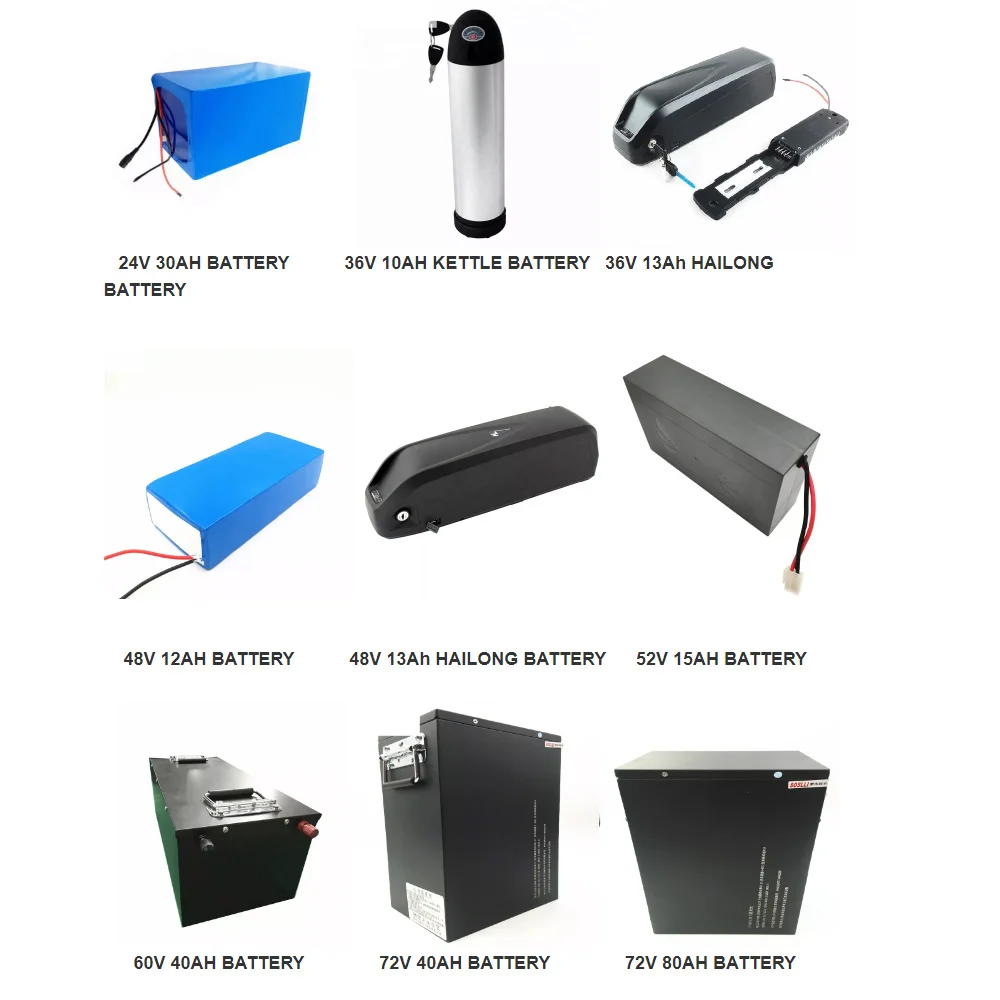

Recommended products:
Company Profile
Shenzhen SOSLLI Technology Co., Ltd. is an original Lithium ion battery factory in China.
We have 1600+ skilled workers, 110+ QC, 66+ R&D teams and more than 10+ years battery industry experience.
SOSLLI owned automatic 14500 and 18650 Lithium ion cells production line with series high technology equipments and testing center.We work closely with customers to provide safer, longer cycle life, cost-effective battery products under ISO 9001 system,acquired IEC62133, CQC, CE, RoHS, KC, CB, UL, MSDS, UN38.3, etc.
SOSLLI supply OEM & ODM Lithium battery products including E-bike battery, power battery, energy storage battery, 3C industrial battery and customized battery pack.
SOSLLI strive for an international platform to supply one-stop battery service.
Welcome contact with us.
We have 1600+ skilled workers, 110+ QC, 66+ R&D teams and more than 10+ years battery industry experience.
SOSLLI owned automatic 14500 and 18650 Lithium ion cells production line with series high technology equipments and testing center.We work closely with customers to provide safer, longer cycle life, cost-effective battery products under ISO 9001 system,acquired IEC62133, CQC, CE, RoHS, KC, CB, UL, MSDS, UN38.3, etc.
SOSLLI supply OEM & ODM Lithium battery products including E-bike battery, power battery, energy storage battery, 3C industrial battery and customized battery pack.
SOSLLI strive for an international platform to supply one-stop battery service.
Welcome contact with us.
FAQ
1.How can I get the price?
We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are
urgent to get the price, please email us or contact us in other ways so that we can offer the price to you.
2. Can I buy samples before placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity, and
about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,Money Gram, and PayPal. This is negotiable.
5.What is the shipping method?
-It could be shipped by sea, by air, by truck ,by railway or by express(EMS,UPS,DHL,TNT,FEDEX ,ect).
Please confirm with us before placing orders.
6.How do you build up a long-term and good relationship with your customers?
-a. We keep good quality and competitive price to ensure our customers benefit ;
-b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
urgent to get the price, please email us or contact us in other ways so that we can offer the price to you.
2. Can I buy samples before placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity, and
about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,Money Gram, and PayPal. This is negotiable.
5.What is the shipping method?
-It could be shipped by sea, by air, by truck ,by railway or by express(EMS,UPS,DHL,TNT,FEDEX ,ect).
Please confirm with us before placing orders.
6.How do you build up a long-term and good relationship with your customers?
-a. We keep good quality and competitive price to ensure our customers benefit ;
-b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
