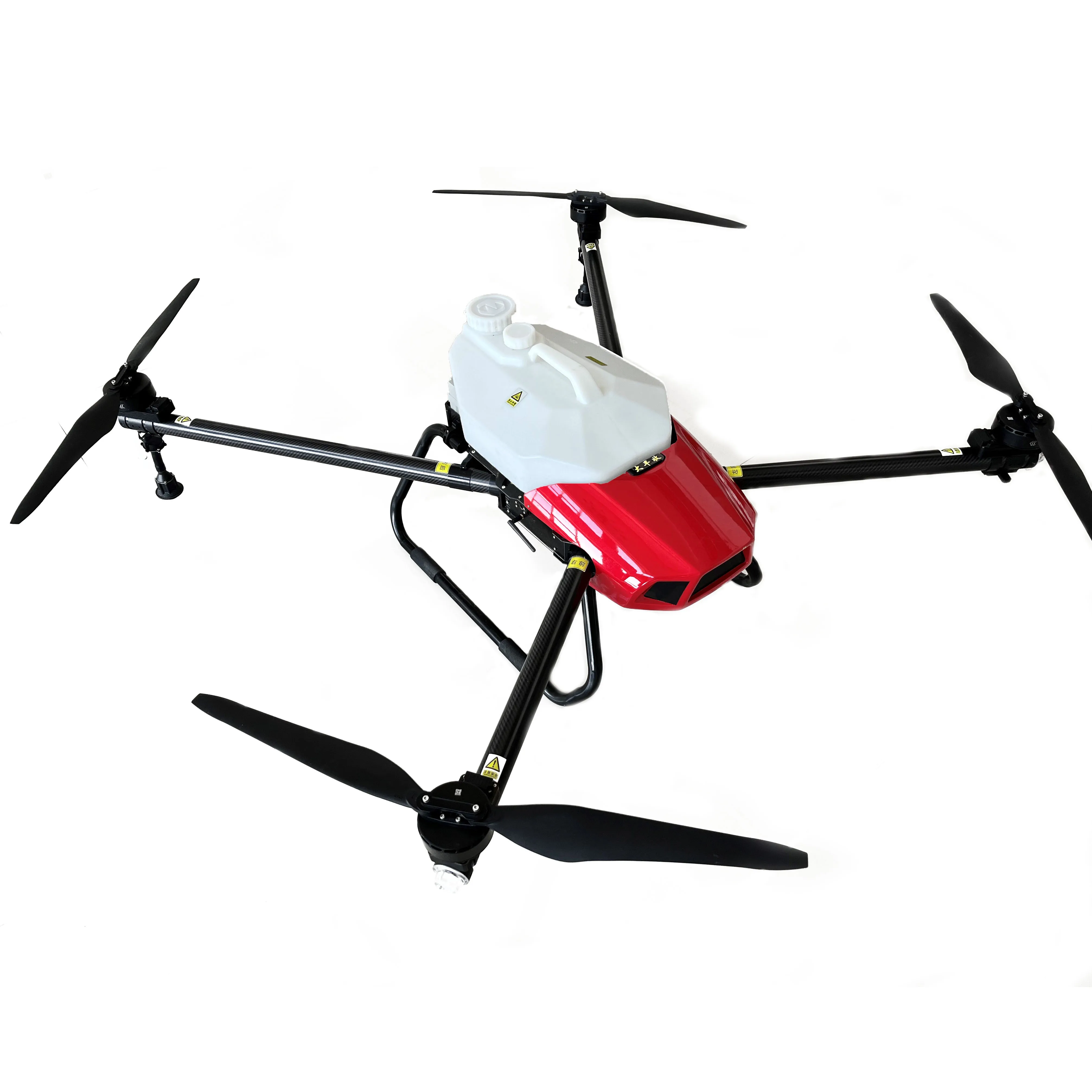

Agricultural Plant Protection 20L 30L for crop pesticide spraying agricultural drone sprayer
- Category: >>>
- Supplier: Shandong Xiwa Electromechanical Equipment Co. Ltd.
Share on (1600568002214):
Product Overview
Description
Model | A-20L | A-30L | ||||||
No | Item | Parameter | Parameter | |||||
1 | Rotor number | 4 axis | 4 axis | |||||
2 | Dimension | 1475mm*W1465mm*H600mm | 1475mm*W1465mm*H700mm | |||||
3 | Empty mass | Empty 23KG | Including battery 29KG | Empty 24.5KG | Including battery33KG | |||
4 | Maximum takeoff weight | 49KG | 63KG | |||||
5 | Motor power | Rated 1925W*4 | Rated 2300W*4 | |||||
6 | Rotor | Compound propeller 36 inch*4 | Compound propeller 40 inch*4 | |||||

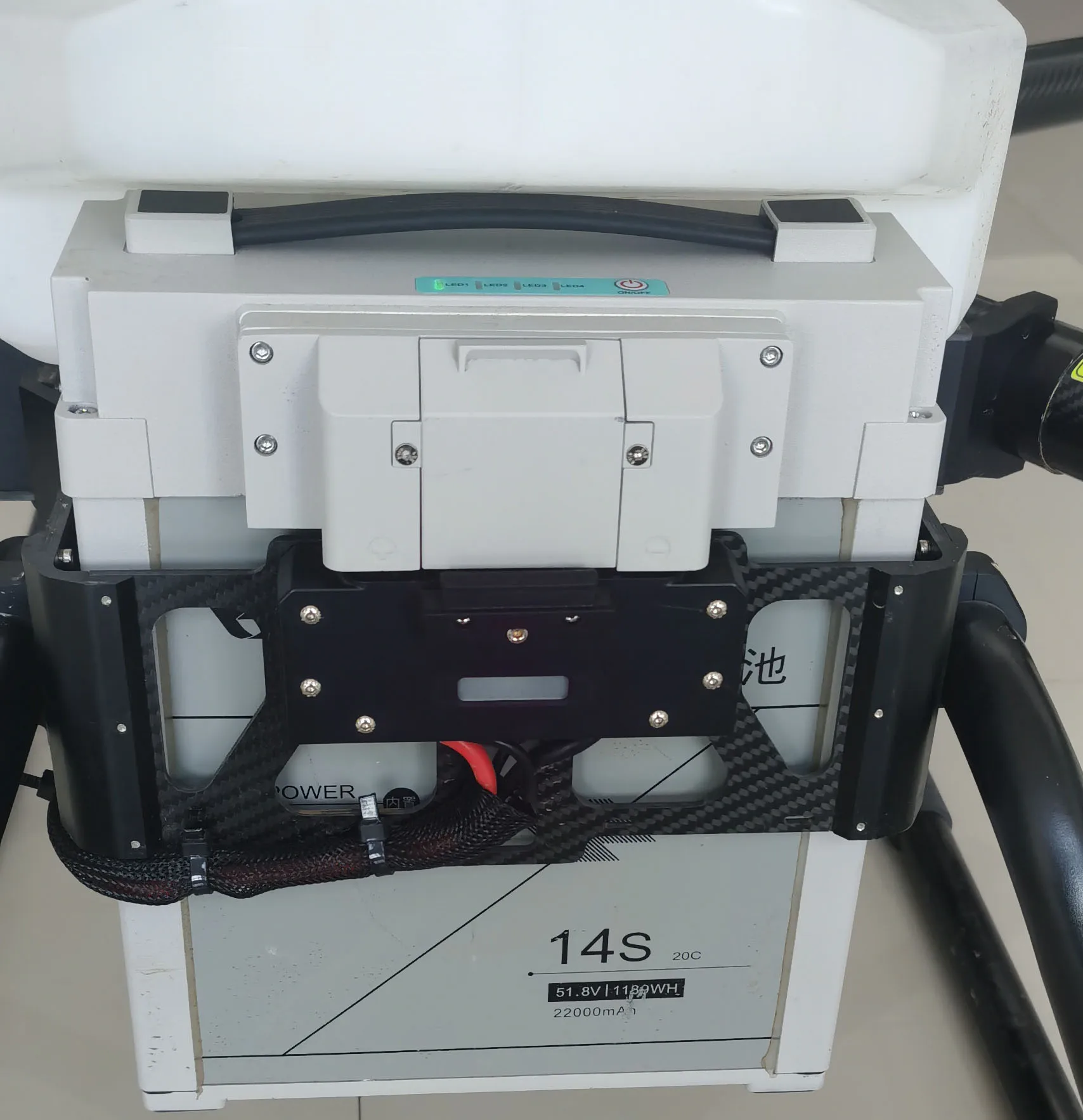

7 | Battery | Voltage 51.8V | Capacity 19000mAh | Voltage 51.8V | Capacity 28000mAh | |||
8 | Flight time | Unloaded 22′ | Fully loaded（49KG）9′ | Unloaded 22′ | Fully loaded（63KG）9′ | |||
9 | Load capacity | Spray tank 20L | Spreading tank 25L | Spray tank30L | Spreading tank40L | |||
10 | Spray tank | Material PE | Standard capacity 20L | Material PE | Standard capacity30L | |||

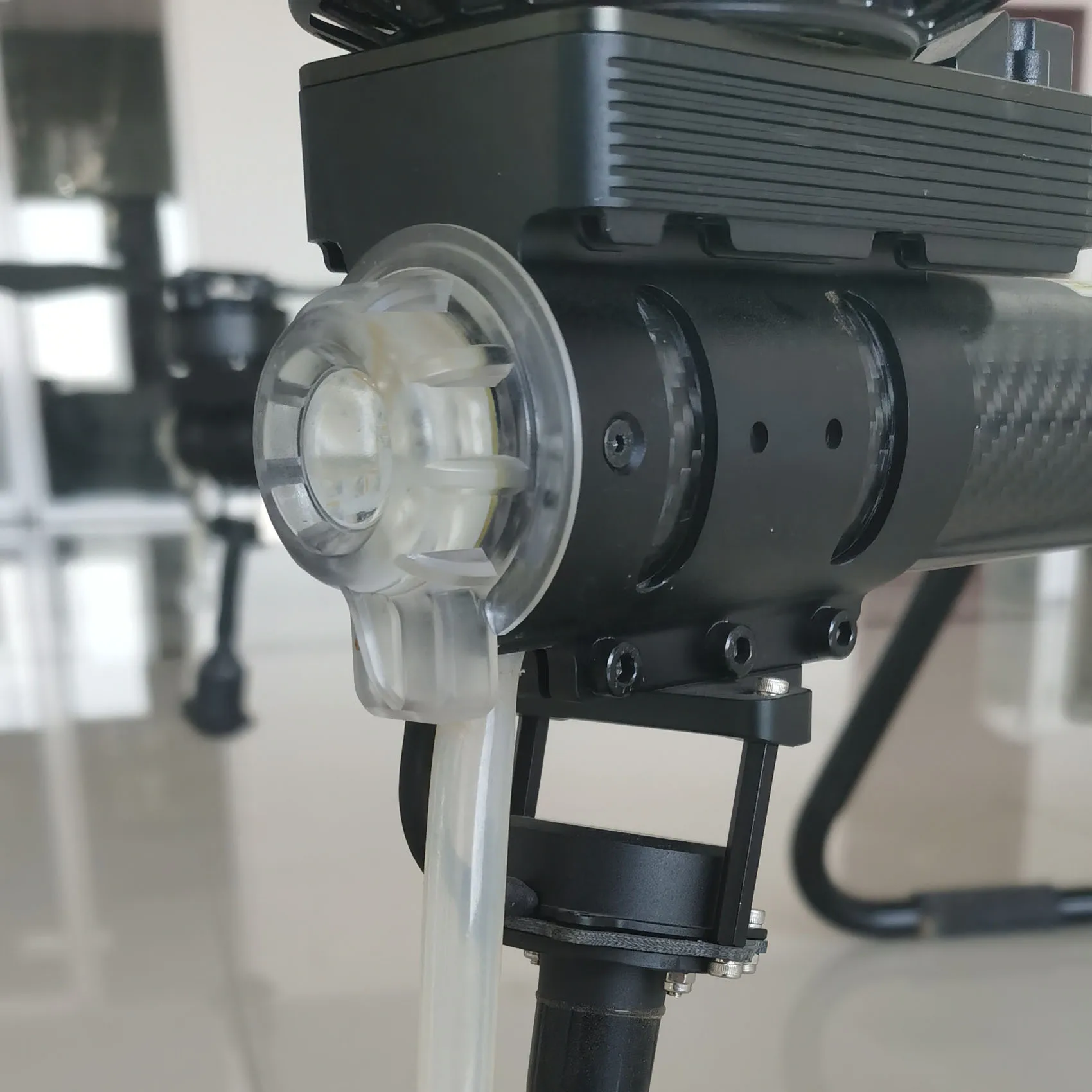

11 | Nozzle form | Centrifugal spraying | Centrifugal spraying | |||||
12 | Liquid pump | Diaphragm | Diaphragm | |||||
13 | Spraying flow | Rated 4L/min | Maximum 5L/min | Rated 4.5L/min | Maximum 5L/min | |||
14 | Spraying width | 4-8m | 4-10m | |||||
15 | Operating speed | 1-8 m / s | 1-8 m / s | |||||
16 | Efficiency | 6-13 hectares/hour | 10-16 hectares/hour | |||||

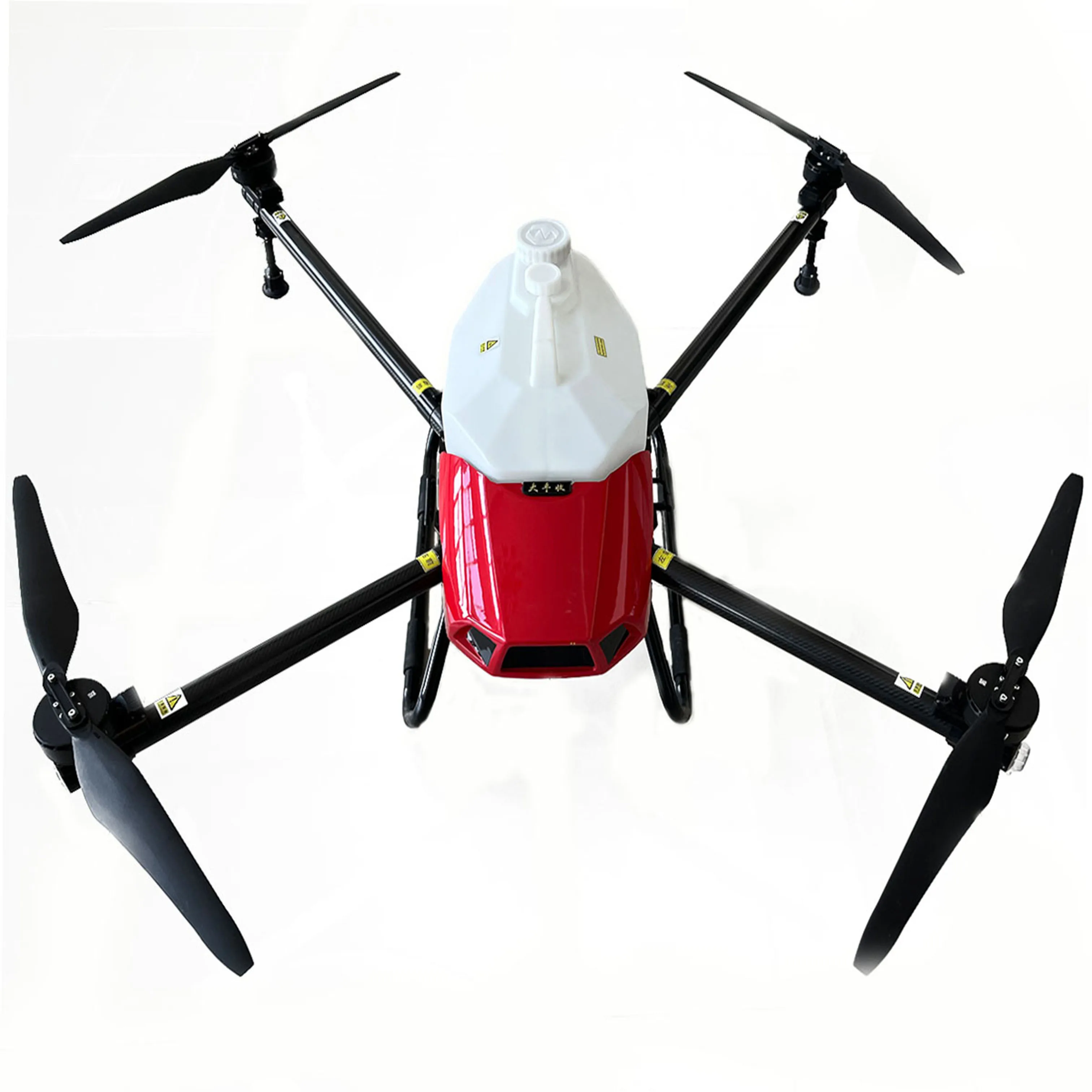

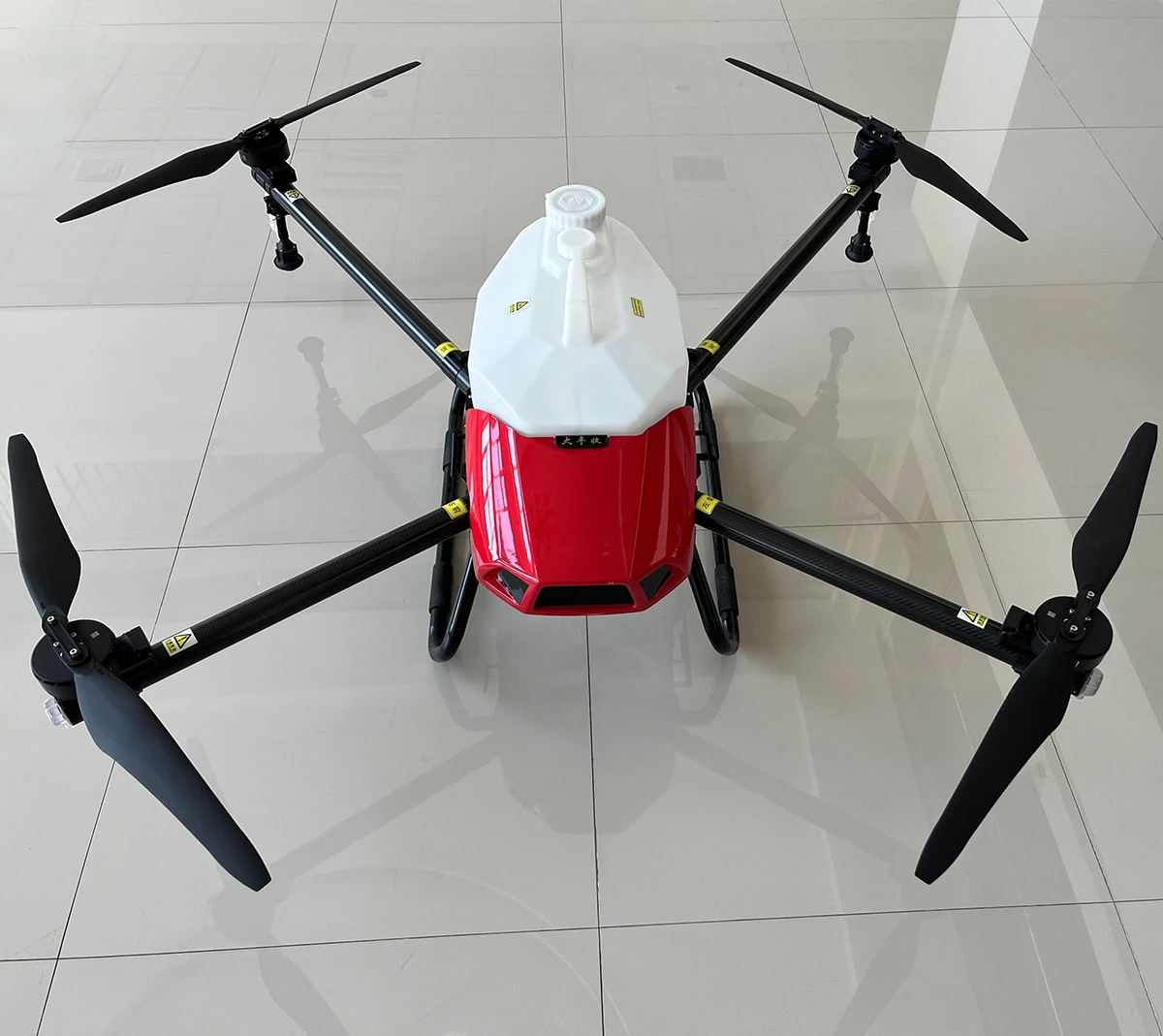

Front View
Side View

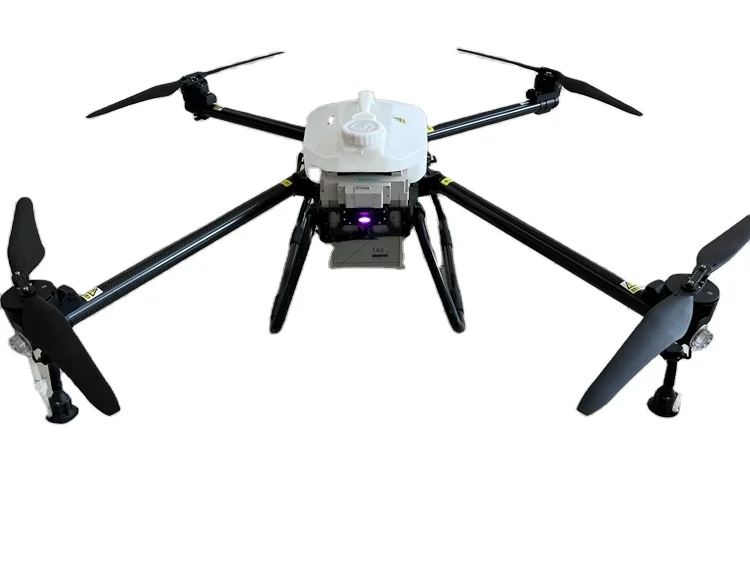

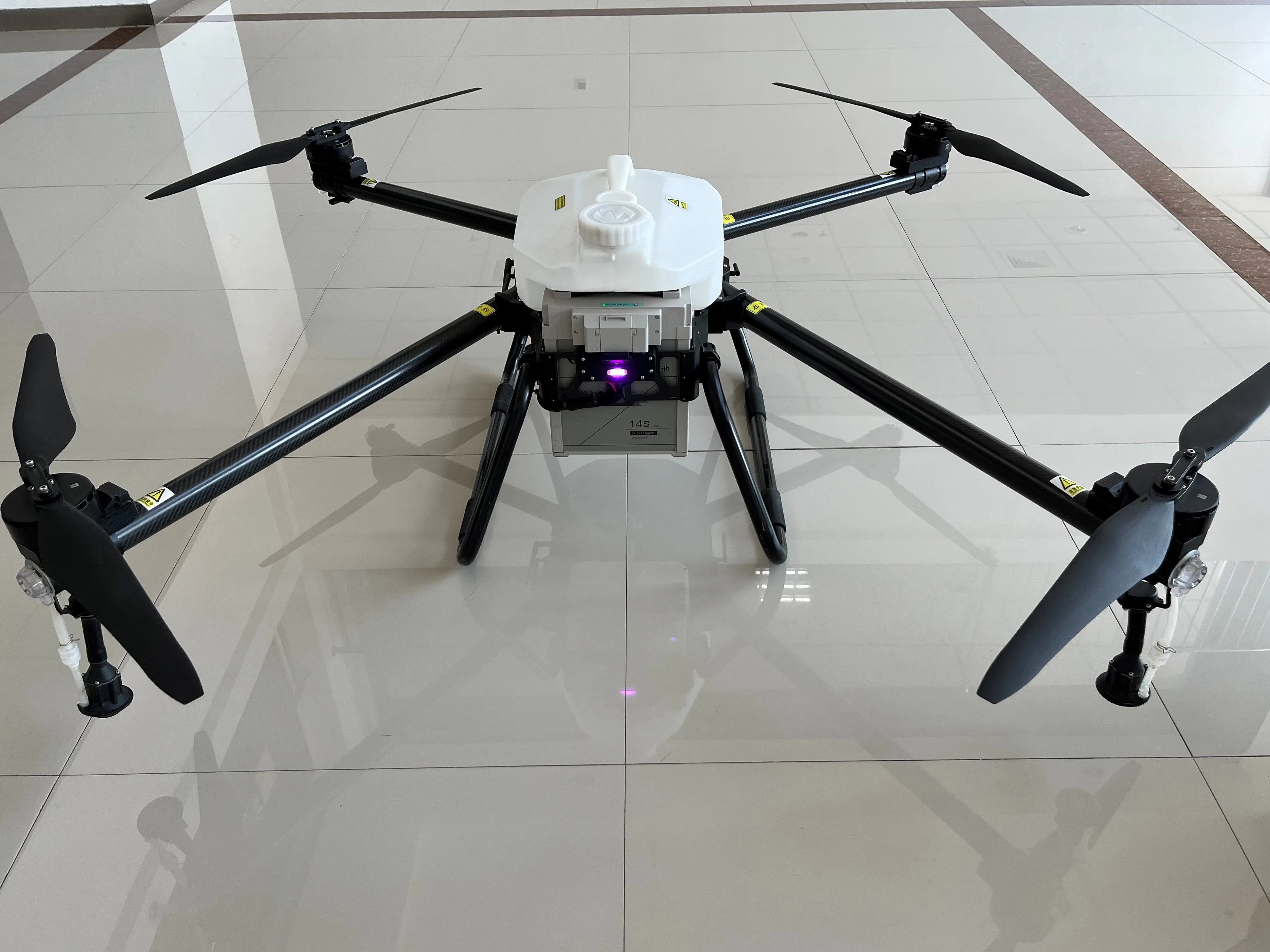

Rear View

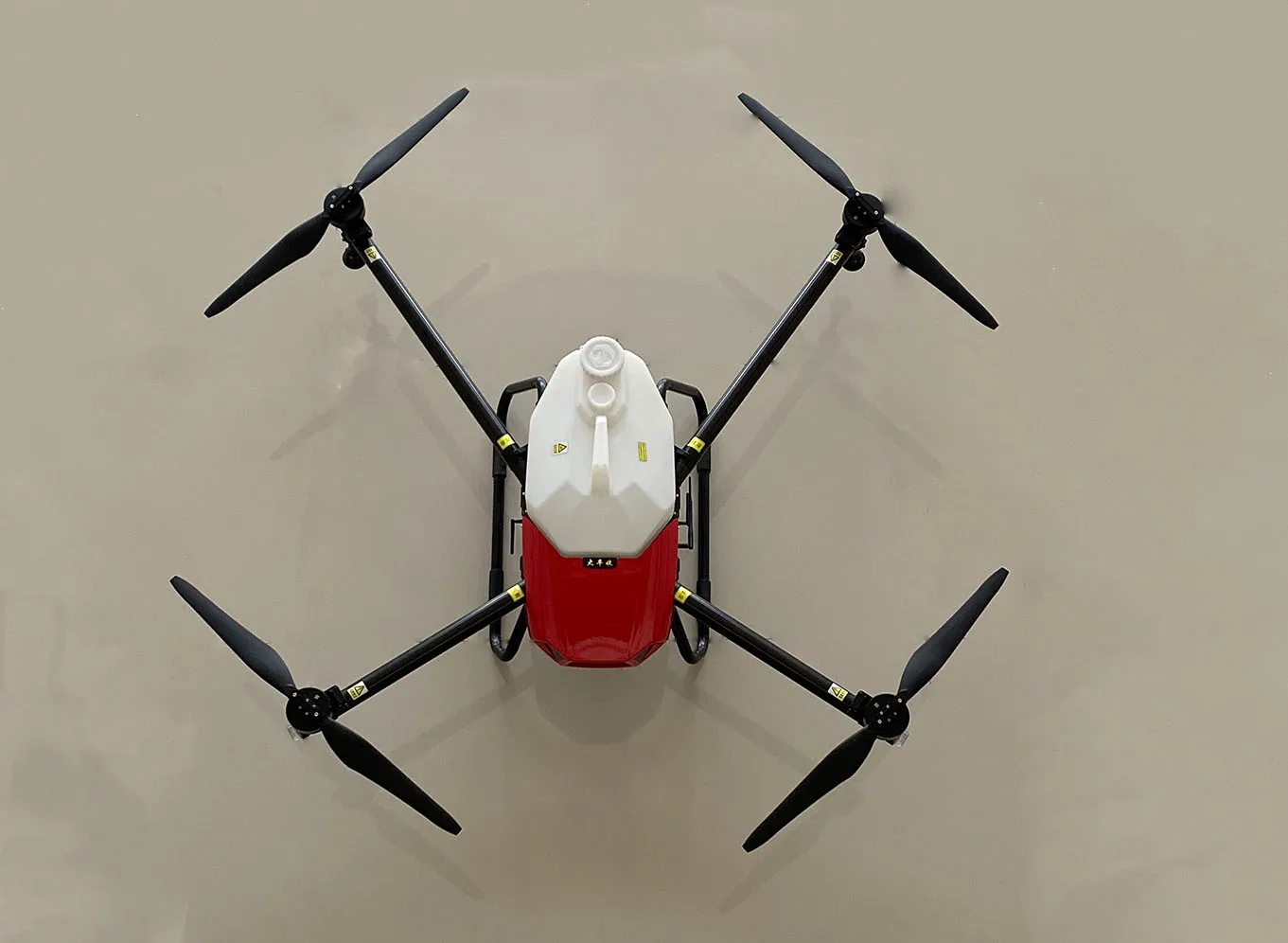

Vertical View
Application Scenarios
1. who are we?
We are based in Shandong, China, start from 2016,sell to North America(12.00%),Eastern Europe(12.00%),Western Europe(11.00%),Central America(9.00%),Southeast Asia(8.00%),Africa(8.00%),Southern Europe(8.00%),Oceania(5.00%),Northern Europe(5.00%),South America(4.00%),Eastern Asia(4.00%),South Asia(3.00%),Mid East(2.00%),Domestic Market(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
agriculture drone,spray drone,Plant protection UAV
4. why should you buy from us not from other suppliers?
Redshine UAV independently develops agricultural plant protection drone products, establishes a perfect UAV science and technology R&D center, and provides one-stop solutions to the majority of industrial and agricultural users using professional technical
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2016,sell to North America(12.00%),Eastern Europe(12.00%),Western Europe(11.00%),Central America(9.00%),Southeast Asia(8.00%),Africa(8.00%),Southern Europe(8.00%),Oceania(5.00%),Northern Europe(5.00%),South America(4.00%),Eastern Asia(4.00%),South Asia(3.00%),Mid East(2.00%),Domestic Market(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
agriculture drone,spray drone,Plant protection UAV
4. why should you buy from us not from other suppliers?
Redshine UAV independently develops agricultural plant protection drone products, establishes a perfect UAV science and technology R&D center, and provides one-stop solutions to the majority of industrial and agricultural users using professional technical
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
