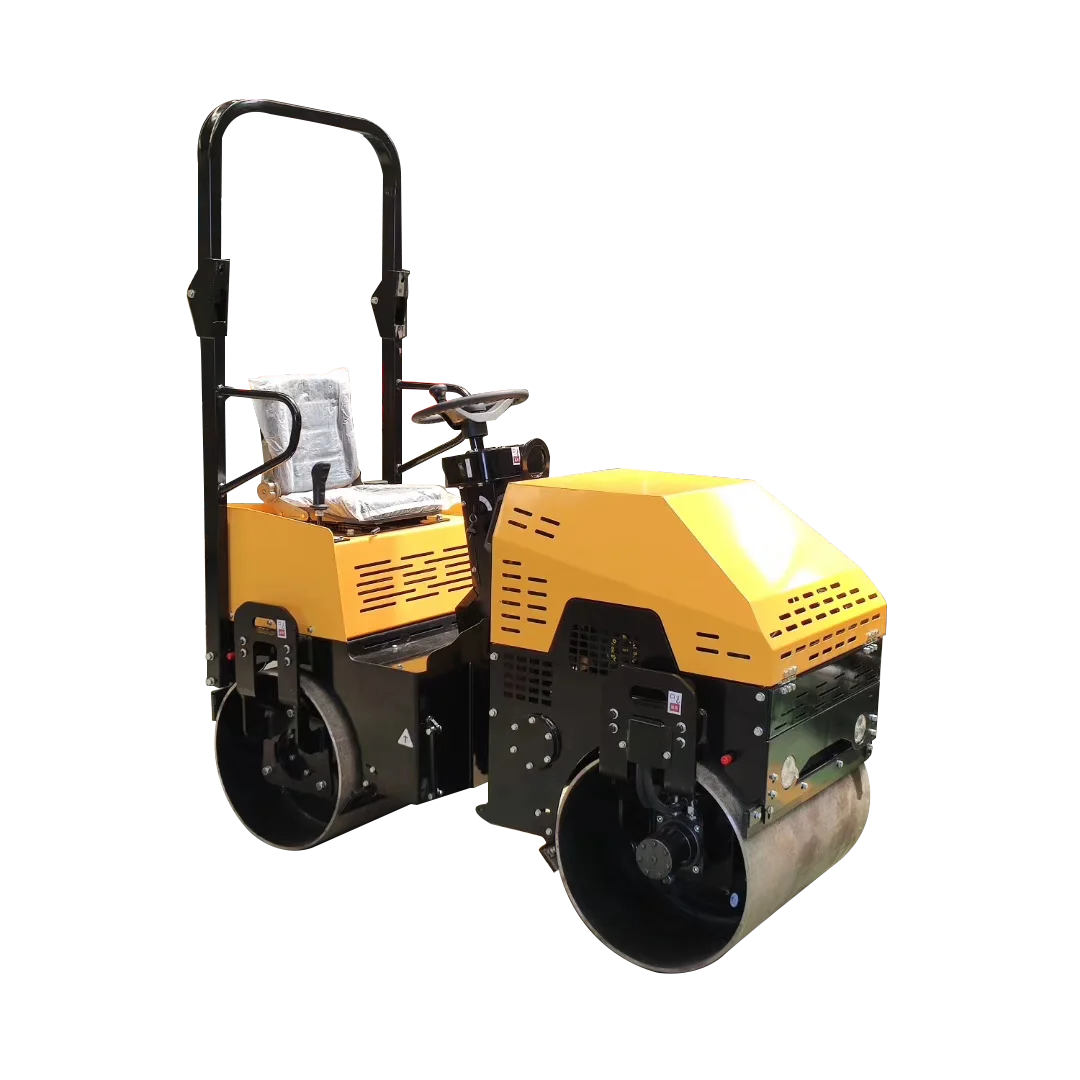

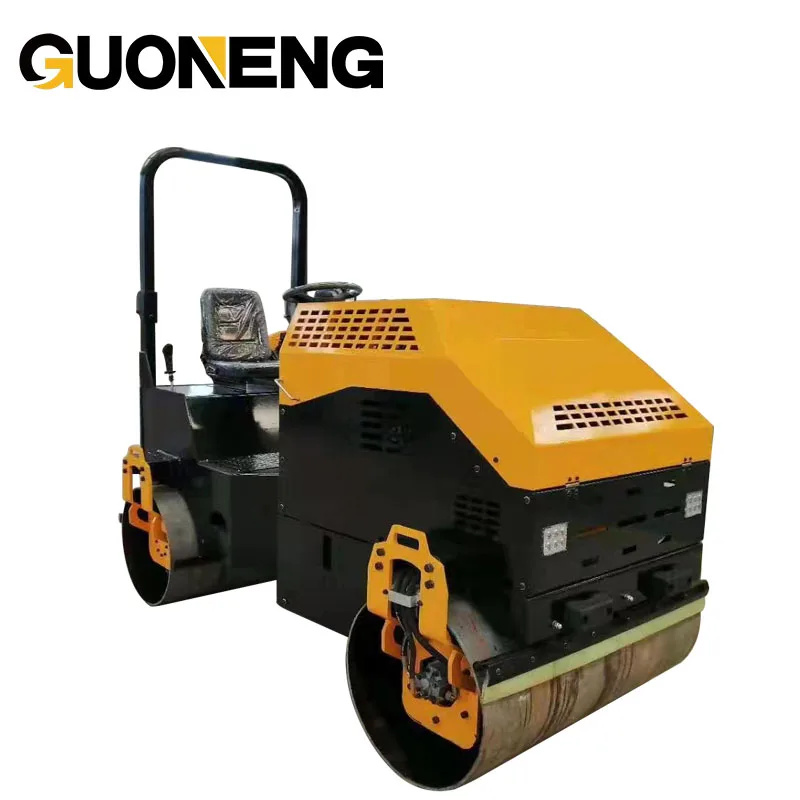

3.5 ton full hydraulic vibratory road roller for sale

Product Overview

Description

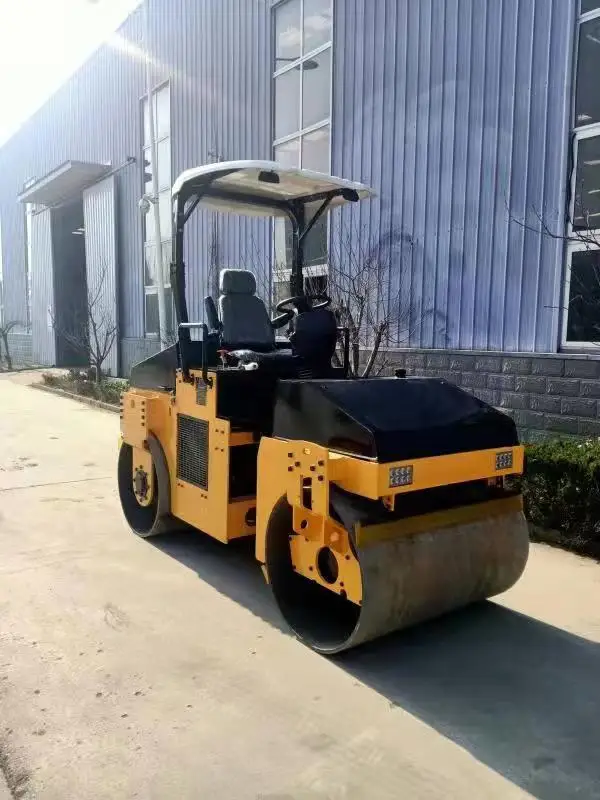

3.5 ton road roller





 OUR COMPANY HAS SINGLE DRUM ROAD ROLLER,DOUBLE DRUM ROAD ROLLER,RIDE ON ROAD ROLLER.







Operating weight(kg)	3500
Excitation force(kN)	57
Nominal amplitude(mm)	0.6
Travel speed(km/h)	0-8
Gradeability(%)	30
Vibrating frequency(Hz)	70
Dimension(mm)	3020*1320*2465
Drum dimension(mm)	780*1100*2
Engine model	CHANGCHAI 390
Engine power(HP)	22
Static load front/rear(N/cm)	57
Drive way	double drive hydraulic turning
Vibration way	Electromagnetic clutch
Travel way	double way hydraulic single vibration
Starting way	manual/electrical
Water tank(L)	140
Hydraulic oil tank(L)	40
