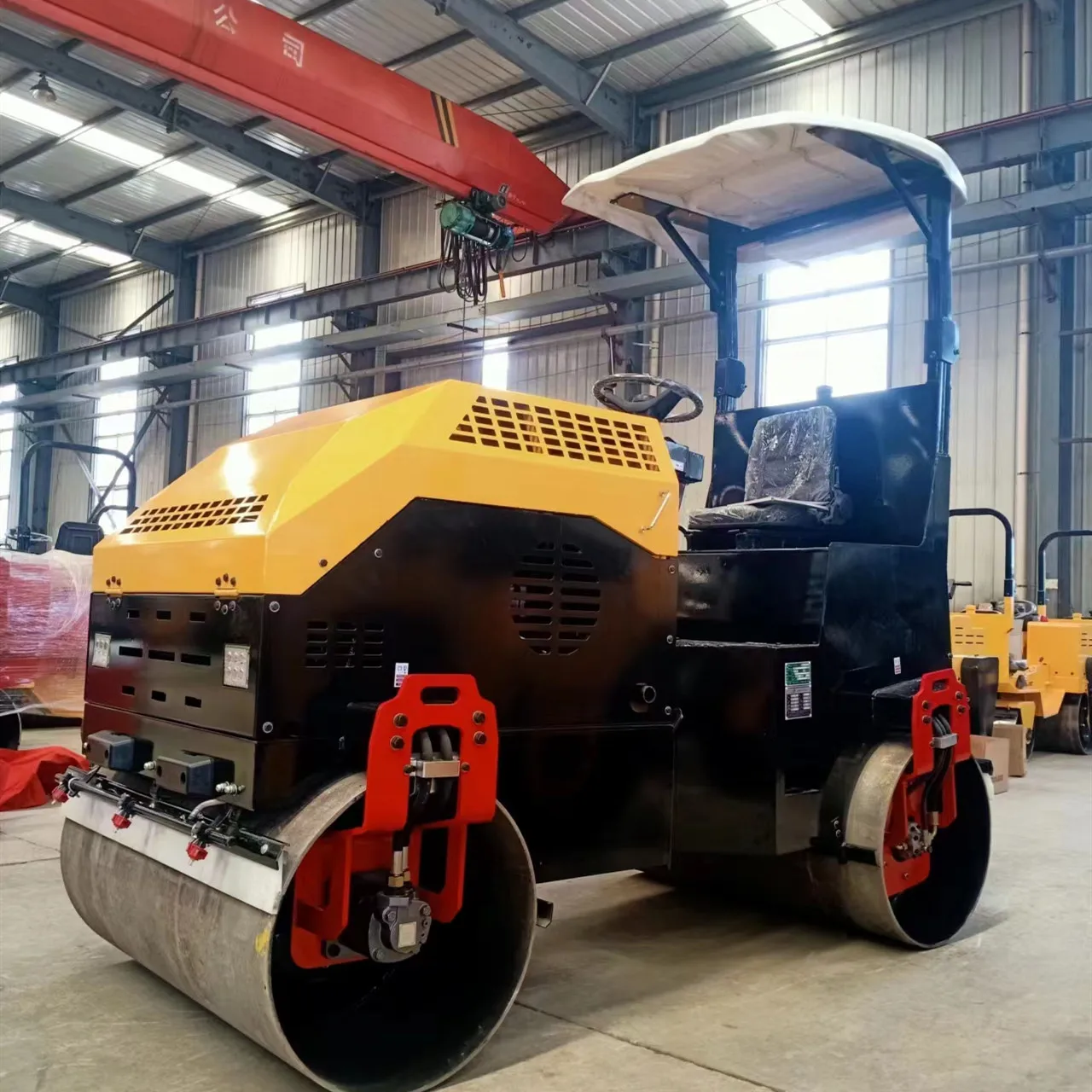

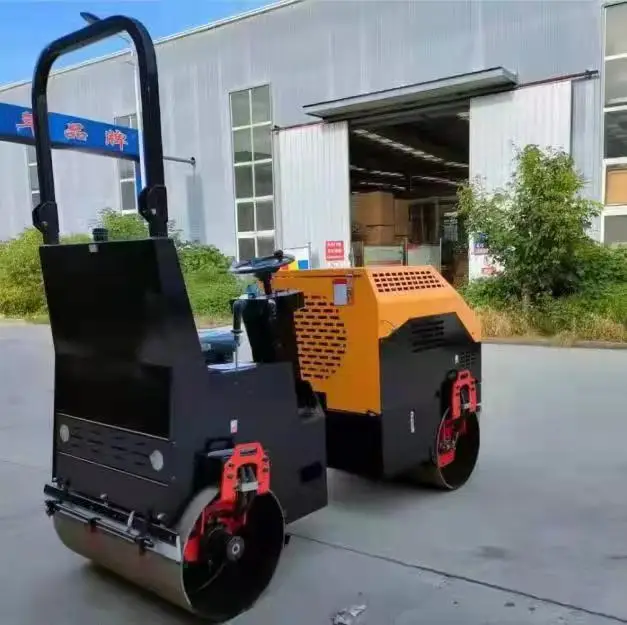

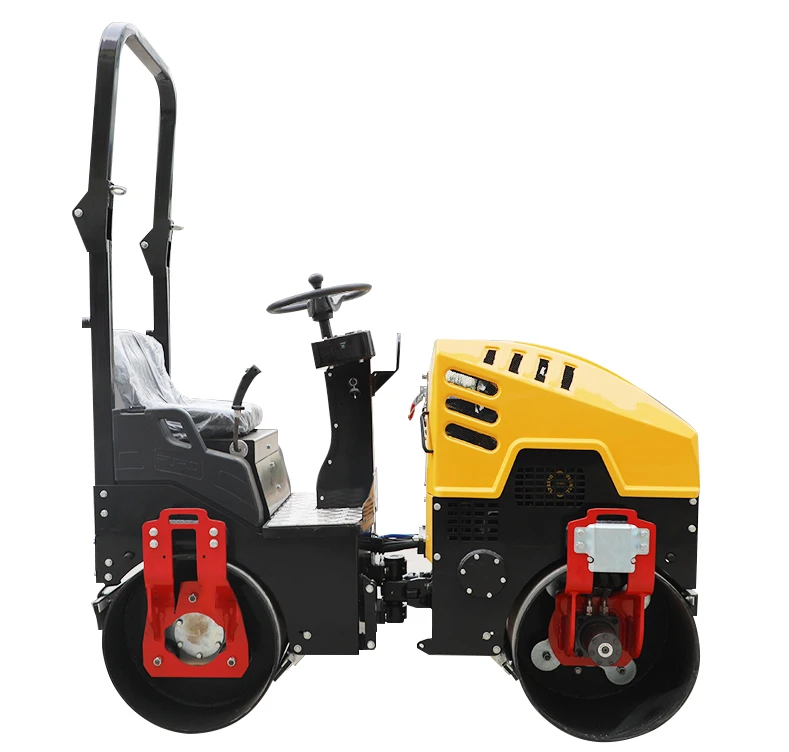

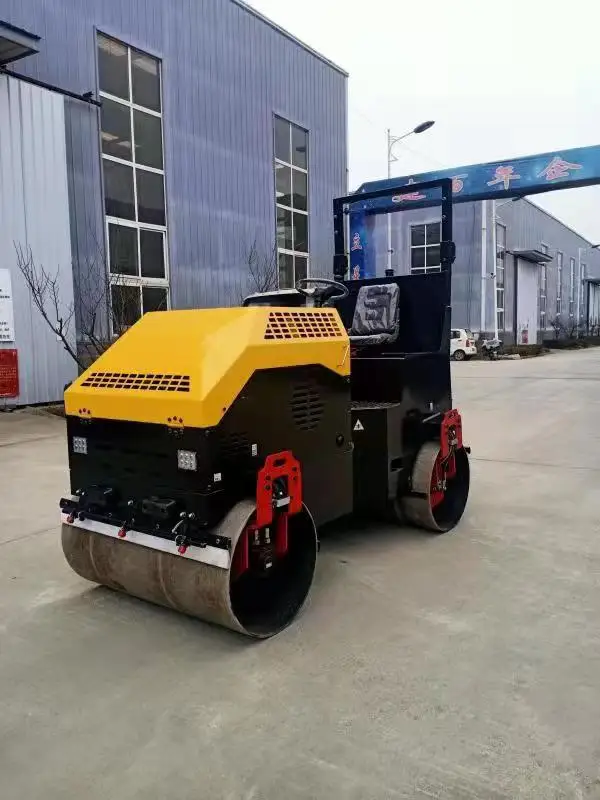

3 TON full hydraulic road roller

Product Overview

Description

SPECIFICATION

Used for compaction of asphalt surface, compacted gravel, sandy soil and other engineering foundation, rolling lawn.

Product features:

The steering speed, high-grade luxury humanized seats and high-grade combination instrument panel controll.

The maintenance cost is low, safe and reliable performance, the configuration of vibration instrument, better control on the job performance.

The front and rear wheels are scraping and sprinklers.

The hydraulic driving mechanical vibration, hydraulic steering, with reliable performance and optimum function / price ratio;

Adopt n385q / 385 diesel engine, 30 horsepower, strong power, convenient maintenance, low cost;

The gearbox uses common parts, flexible shaft gear, use and maintenance is very convenient.

The whole structure is compact, small size, can be used for compaction of narrow

MACHINE WEIGHT	3000KG
EXCITING FORCE	35KN
NOMIMAL AMPLITUDE	0.6MM
WALKING SPEED	0-8 KM/H
CLIMBING CAPACITY	30%
VIBRATION FREQUENCY	70HZ
SIZE	2100MM 1000MM 1650MM
STEEL DRUM SIZE	DIA 560MM *740MM
ENGINE	CHANGCHAI
ENGINE POWER	25 HP
STATIC LINEAR LOAD	57 HZ
DRIVE	DOUBLE DRIVE HYDRAULIC TURNING
VIBRATION CONTROL	FULL HYDRAULIC
DRIVE TYPE	DOUBLE HYDRAULIC SINGLE VIBRATION
START TYPE	HAND OR ELECTRIC
WATER TANK	90L
HYDRAULIC OIL TANK	20L
