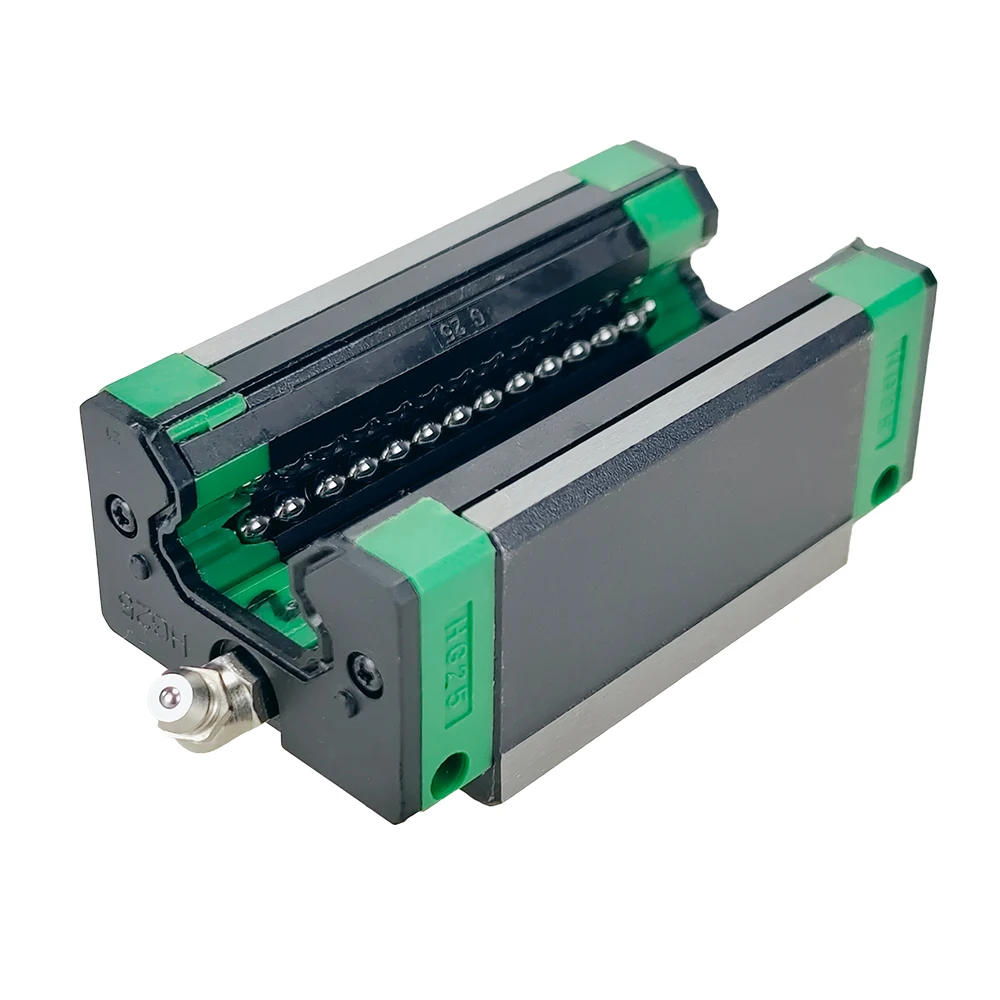

HXHV linear guide factory wholesale price hgh25ca
- Category: >>>
- Supplier: Wuxi HXH Bearing Co. Ltd.
Share on (1600568008893):
Product Overview
Description
Products Description
Attention

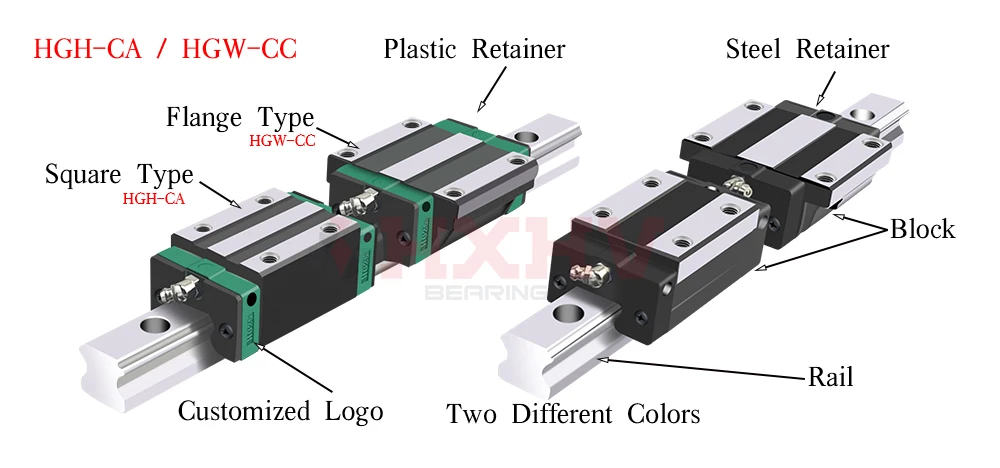

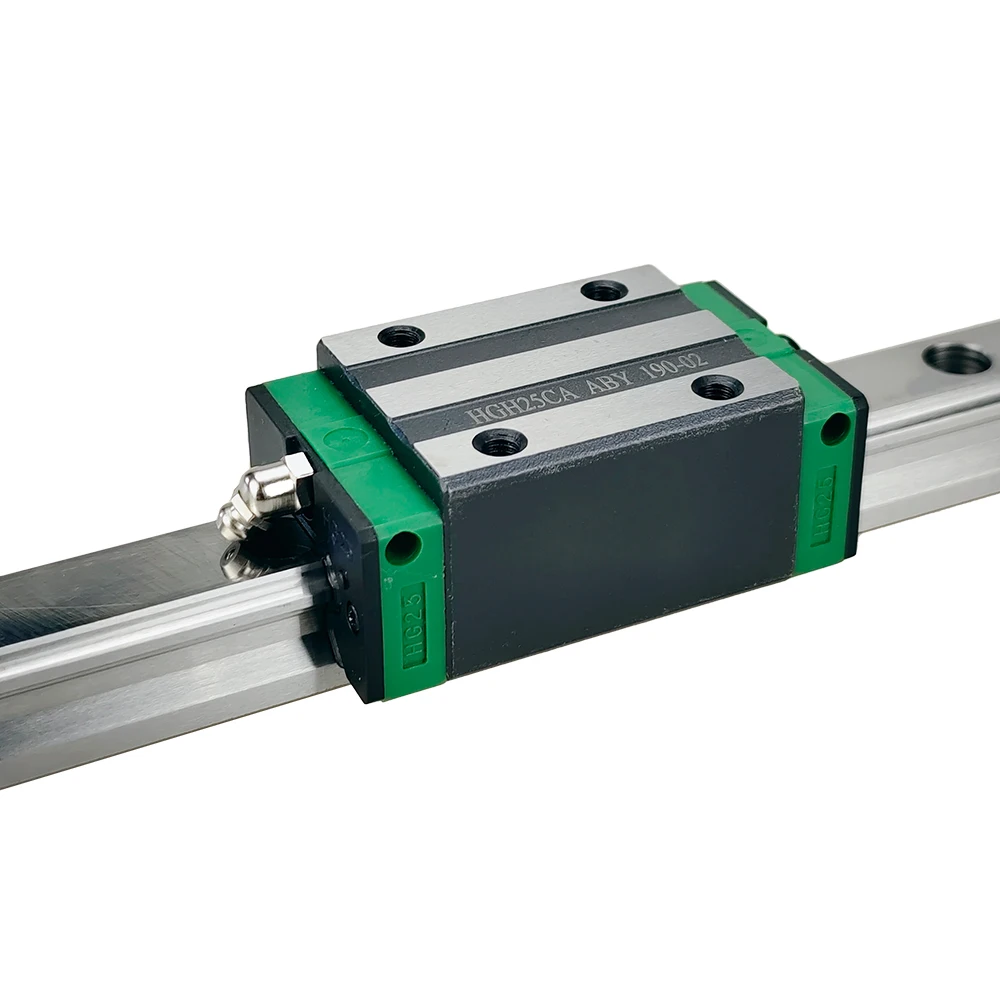

Linear guide is composed by linear guide block and linear guide rail.
The price above is only for the block.
Customer can require the length of linear guide rail and quantity of block for each rail.
Please contact us for more specification of size.

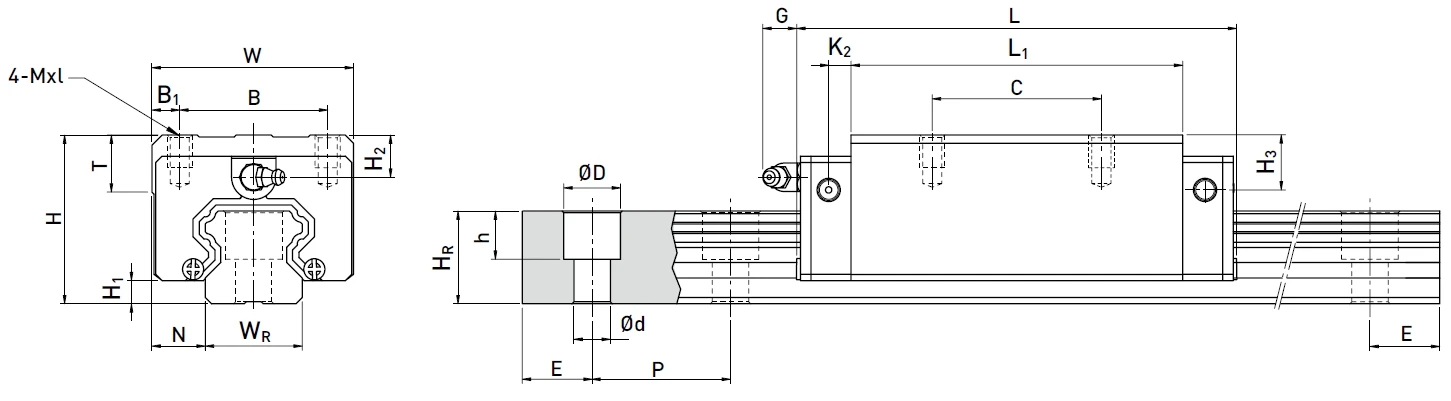

Model Number | H (mm) | W (mm) | B (mm) | L (mm) | G (mm) | WR (mm) | Block Weight (kg) | Rail Weight (kg) |
HGH15CA | 28 | 34 | 26 | 61.4 | 5.3 | 15 | 0.18 | 1.45 |
HGH20CA | 30 | 44 | 32 | 77.5 | 12 | 20 | 0.3 | 2.21 |
HGH25CA | 40 | 48 | 35 | 84 | 12 | 23 | 0.51 | 3.21 |
HGH30CA | 45 | 60 | 40 | 97.4 | 12 | 28 | 0.68 | 4.47 |
HGH35CA | 55 | 70 | 50 | 112.4 | 12 | 34 | 1.45 | 6.3 |
HGH45CA | 70 | 86 | 60 | 139.4 | 12.9 | 45 | 2.73 | 10.41 |
HGH55CA | 80 | 100 | 75 | 166.7 | 12.9 | 53 | 4.17 | 15.08 |
HGH65CA | 90 | 126 | 76 | 200.2 | 12.9 | 63 | 7 | 21.18 |
About Packing
You can also asked for universal packing without any logo, or customized packing with your own logo.
