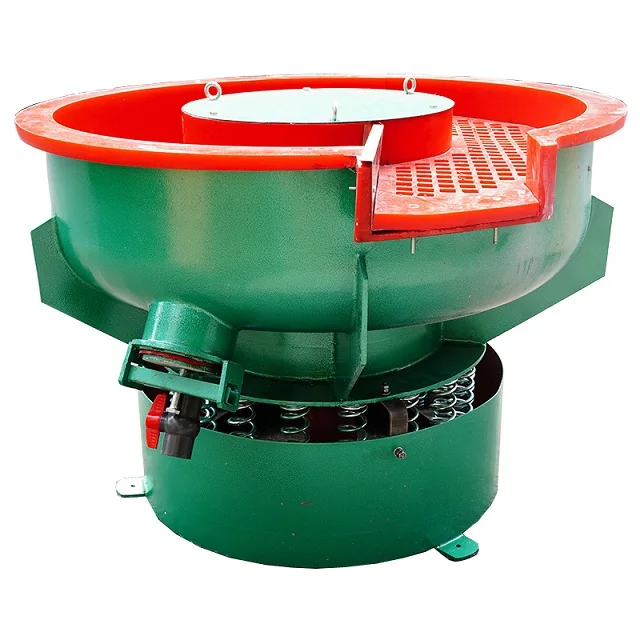

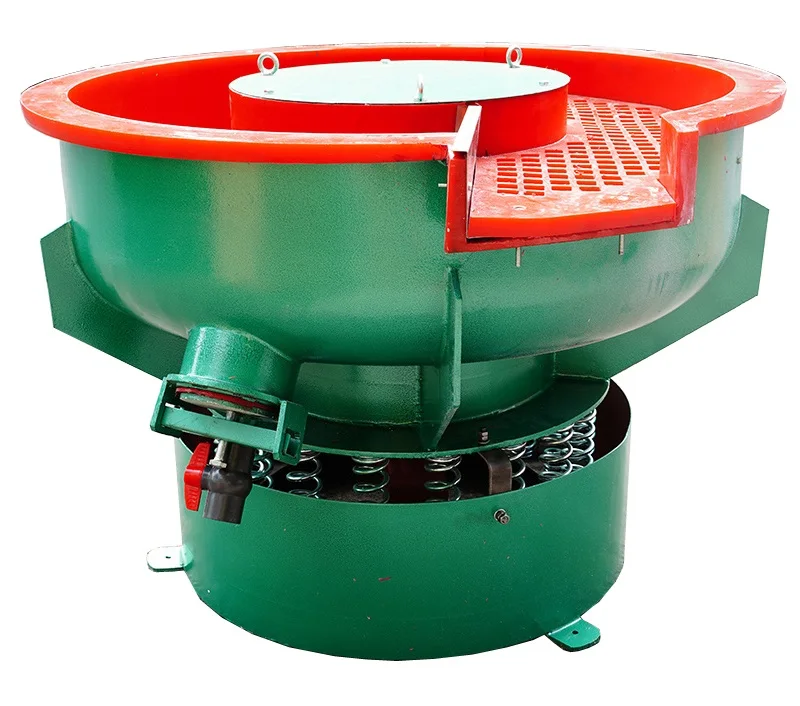

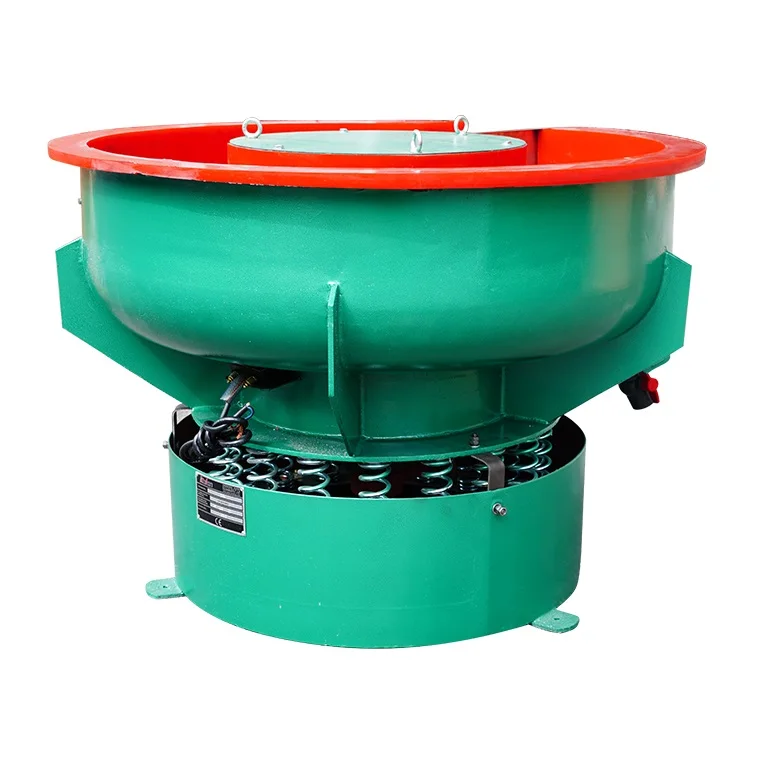

Large Vibratory Tumbler Polishing Machine with Separator

CL-450AB vibratory polishing machine is used for metal surface cleaning, such as removal of impurities, grease, thermal oxide, contaminants, rust, etc., also widely applied in deburring aluminum or zinc alloy castings, the thickness and location of the burrs can be precisely controlled.

This vibratory polishing machine is fabricated using premium quality materials and according to international quality standards. Our range is widely appreciated for their durability, optimum performance and excellent service.




CL-450AB Vibratory Bowl Polishing Machine features：

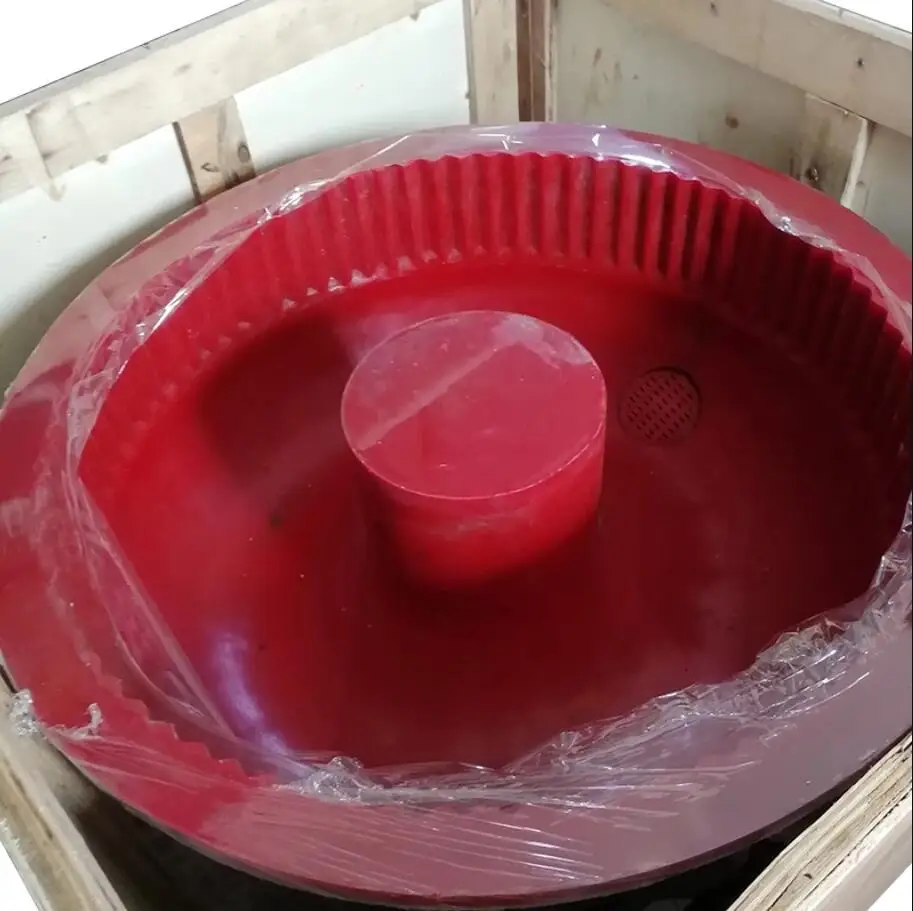

1. Inner wall of vibrating bowl is made of wear-resistant PU material, minimizes the impact on machine from parts and media.

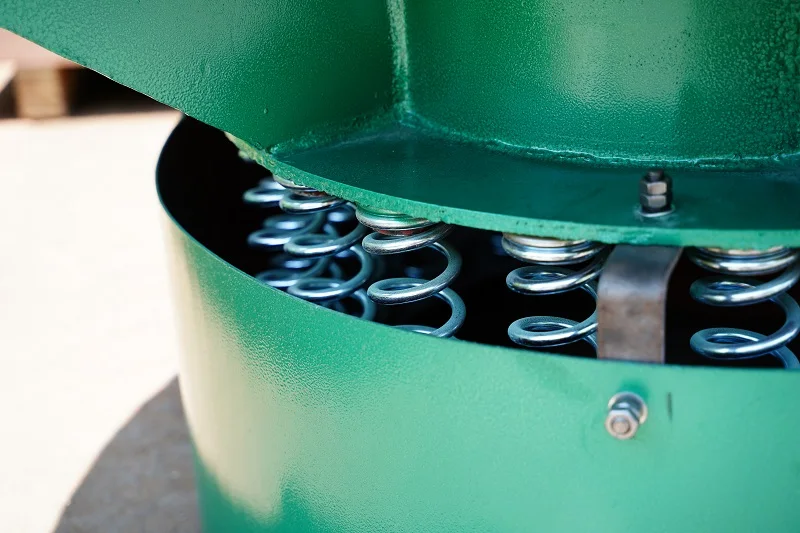

2. Sturdy bowl base and heavy-loaded spring, iron casting body with coated surface, features durable and longer life.
3. Open bowl allows user to do random inspection in the working process at any moment.
4. Three phase vibration motor supports sufficient polishing force, makes entire and thorough finish.


Details Images


The design of curved bowl provides more thorough polishing and finishing for workparts and abrasices, results a better surface finishing effect. Also suits for processing harder workparts, which could release pressure and extend survice life of vibrating bowl.

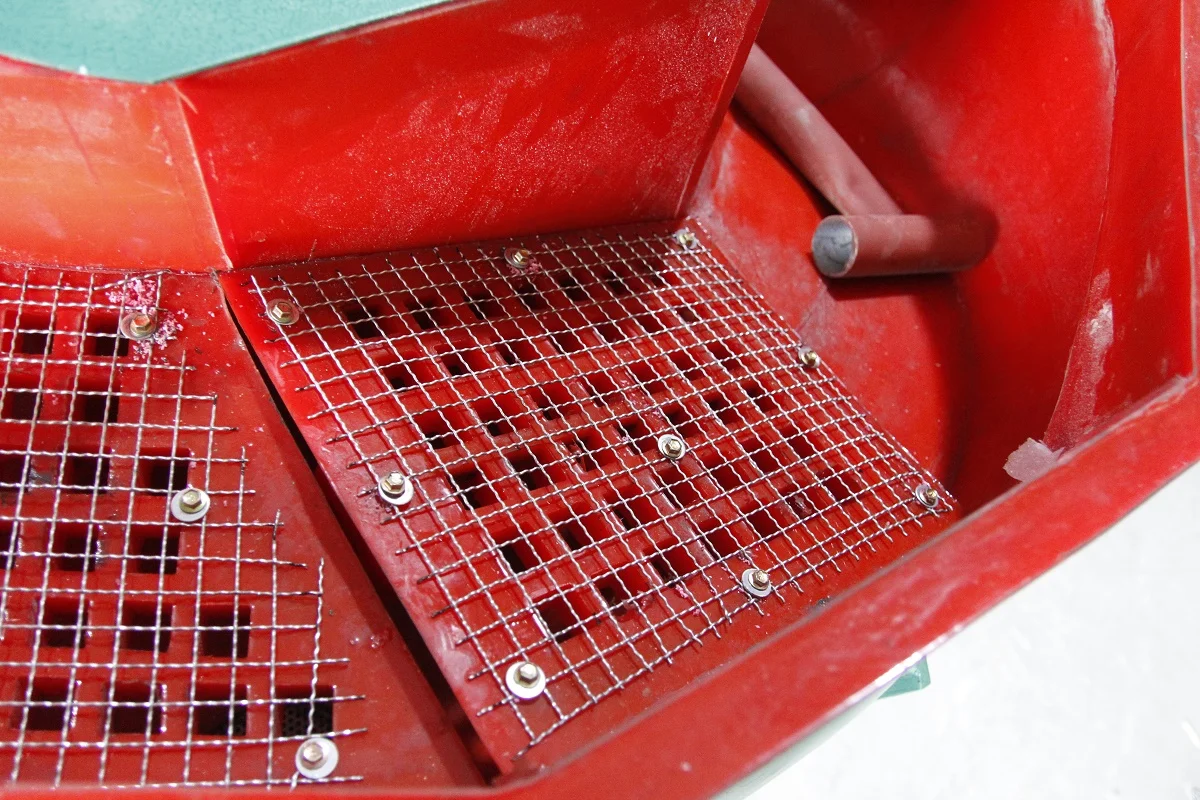

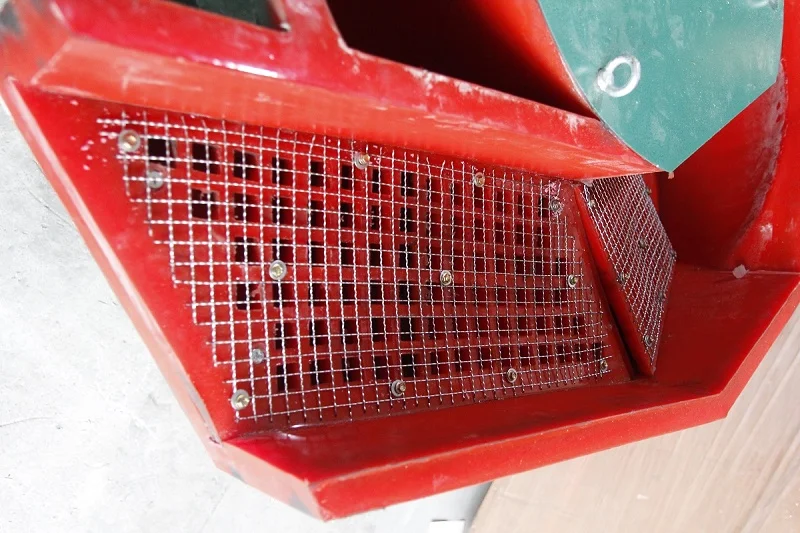

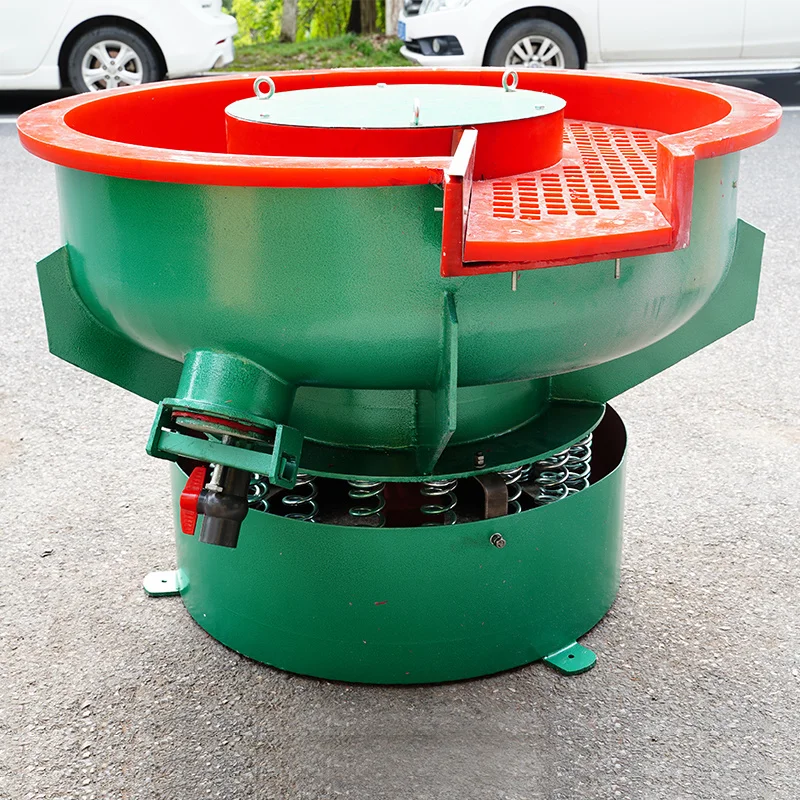

Separating Section of Vibratory Polishing Machine

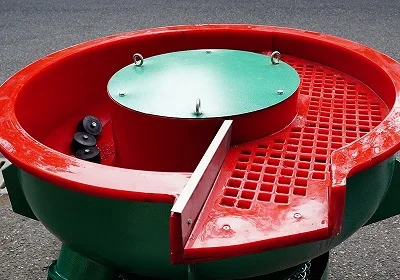

CL-450AB vibratory polishing machine is designed with screening section, allows 100% separating of media and parts. After the final round finishing, processed parts and media will clamp on the screen, tumbling media drop back to the tumbler through holes, leaving only parts discharged.

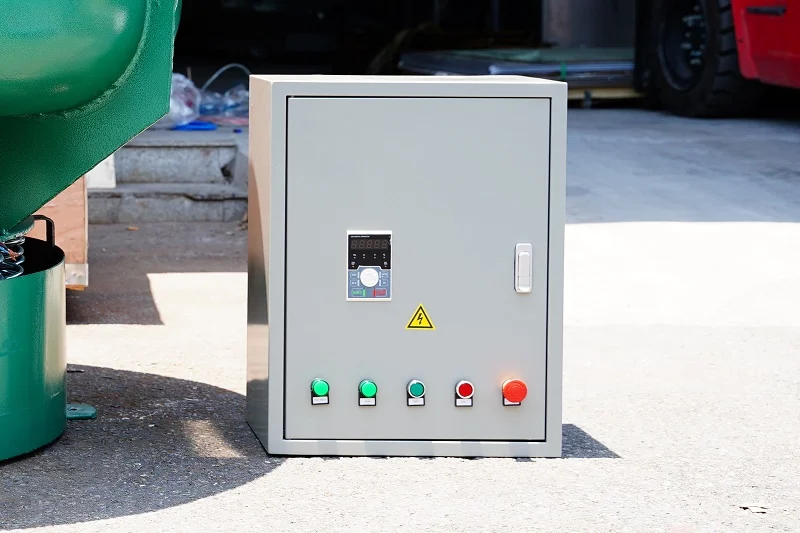

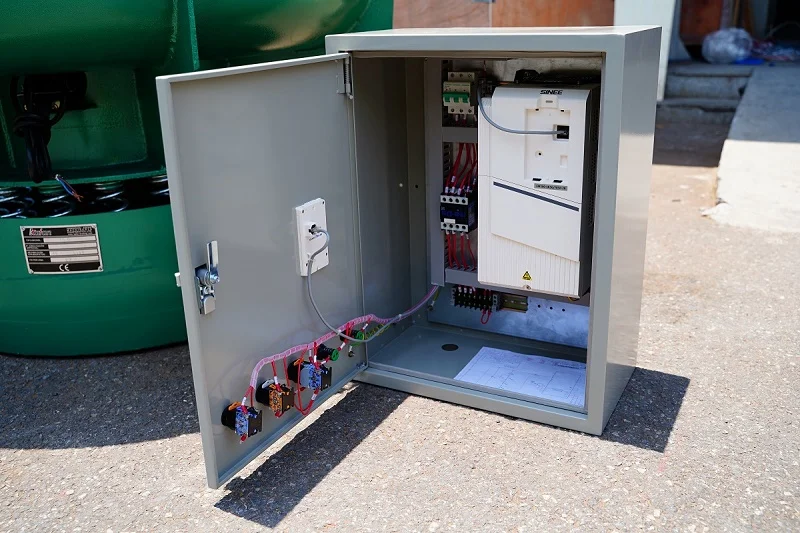

Vibratory Polishing Machine Electric Controller (Optional)

Customized electric controller realizes to adjust speed and amplitube of the vibratory motor, in order to set more precise
parameters for various finishing and polishing purposes, thus different kinds of workparts will get an optimal polishing effect.




Technical Data


Model
Capacity
(L)
Motor Power
(kw)
Speed
(r/min)
Amplitude
(mm)
Rubber
(mm)
Weight (kg)
Size L*W*H
(mm)
CL-40A
40
0.55
1450
0.8-3
6-12
50
600*500*600
CL-60A
60
0.75-1.1
1450
0.8-3
6-12
100
700*640*700
CL-80A
80
1.1
1450
0.8-3
6-12
110
840*640*740
CL-95A
95
1.1
1450
0.8-3
6-12
120
860*800*750
CL-150A
150
2.2-3.0
1450
0.8-4
6-15
240
1150*1050*900
CL-250A
250
3.0
1450
0.8-6
6-20
280
1150*1100*900
CL-350A
350
5.5
1450
0.8-6
6-20
450
1450*1350*1050
CL-450A
450
5.5
1450
0.8-6
6-20
530
1550*1430*1050
CL-650A
650
7.5
1450
0.8-8
6-20
1250
1900*1850*1300
Round Vibratory Bowl with Separator
CL-150AB
150
2.2-3.0
1450
0.8-4
6-15
290
1150*1100*900
CL-250AB
250
3.0
1450
0.8-6
6-20
350
1150*1100*900
CL-350AB
350
5.5
1450
0.8-7
6-20
480
1450*1350*1050
CL-450AB
450
5.5
1450
0.8-7
6-20
580
1600*1430*1050
CL-650AB
650
7.5
1450
0.8-8
6-20
1250
2000*1850*1300
Curved Vibratory Bowl with Separator
CL-150B
150
2.2-3.0
1450
0.8-4
6-15
320
1150*1100*900
CL-350B
350
5.5
1450
0.8-6
6-20
520
1500*1350*1050
CL-650B
650
7.5
1450
0.8-8
6-20
1250
1850*1800*1400

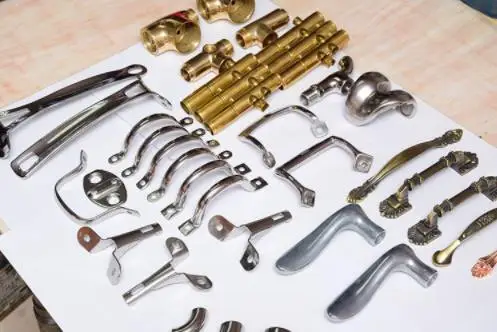

Applications

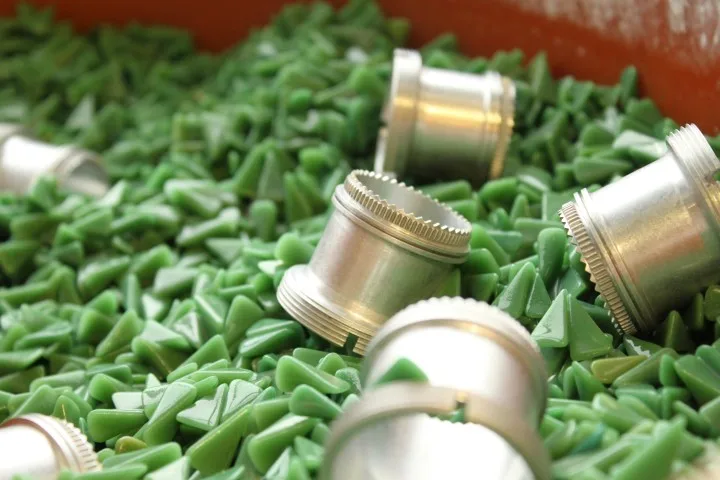

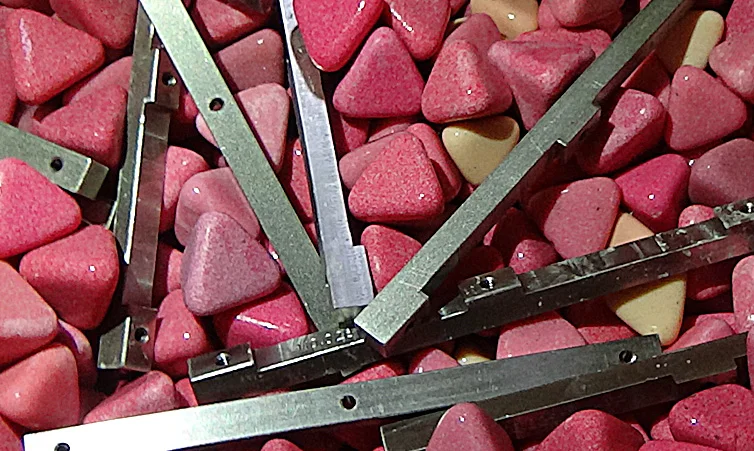

Deburring of metal, plastic, ceramic, glass parts.
Chamferring to remove sharp edges of parts to create safe surfaces.
Surface cleaning, rust removing and descaling of old parts.

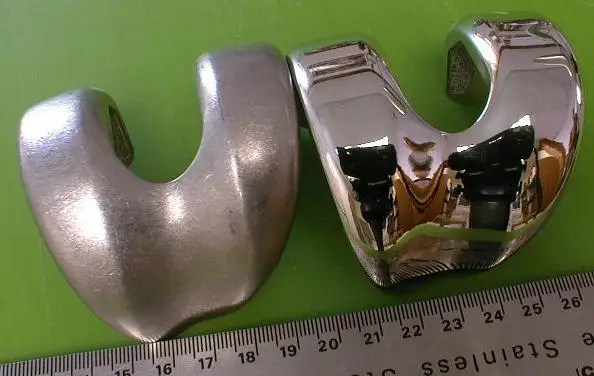

Polishing to obtain a flat, shiny surface or restore a natural color of metals.






Why Choose Us


1. Each vibratory polishing machine is built in house, made of high quality steel material.
2. Standard sized vibratory polishing machines have large quantities in stock, quick delivery.
3. We can custom sizes and designs for your requirements and needs.
4. Years of manufacturing experience for vibratory polishing machine requires much lower cost.

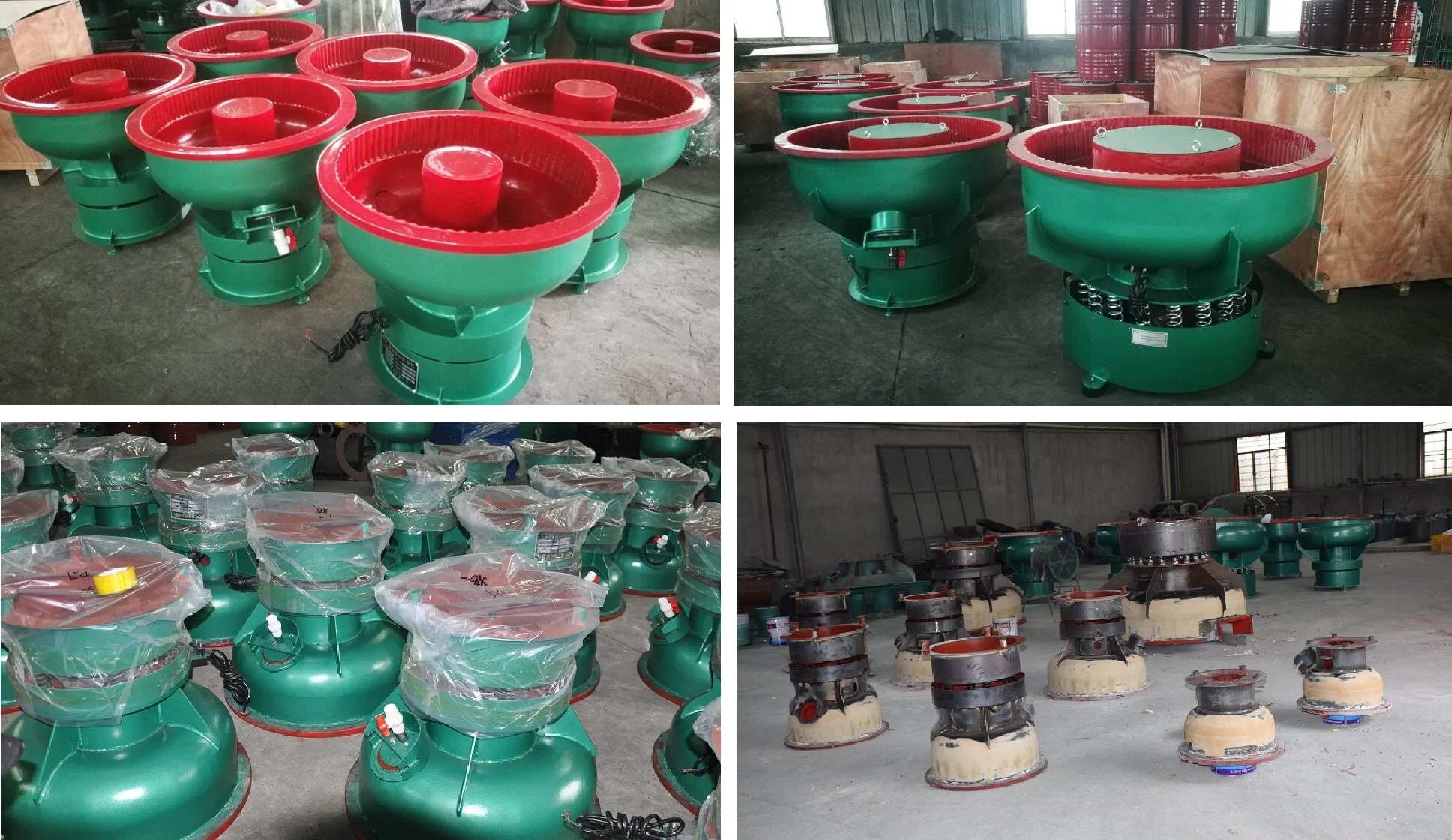

Package & Delivery

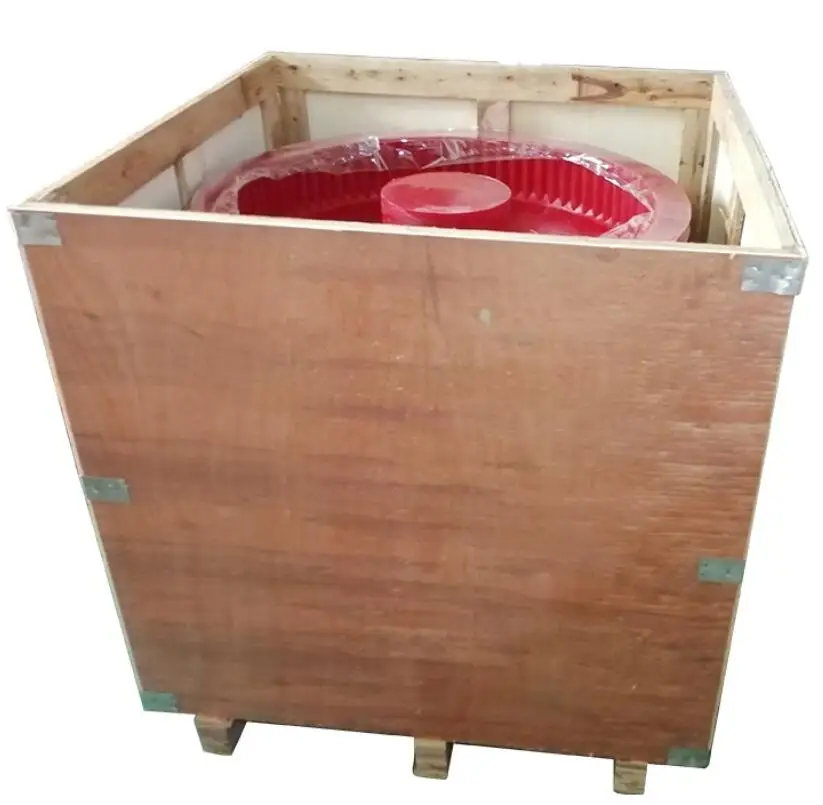

Wooden Boxes Package

All vibratory polishing machines will be packaged in wooden boxes before delivery, wooden boxes are able to protect vibratory polishing machines from the damage in transporting to the greatest extent.




Company Profile


Kafan is a brand on specializing in design and manufacturing mass finishing equipment, devoted all ourselves supplying solution for worldwide customers, because of the superior technology, quality, service, we’ve established long term business relationship with distributor in US, Mexico, Russia, Poland, UK, Germany, South Africa, Vietnam, Thailand, etc.

Located in Hangzhou, China, we have our own manufacturing building base over 2000m2, and around 100 professional staff, our employees are divided into technical department, sales department, after-sale department, production department, QC department, manage and finance department, etc.






If you are interested in this product, please send me inquiry freely~


FAQ


Q1. Can you produce custom vibratory polishing machine?
A: Yes, we can produce the vibratory polishing machine as customer's requirement for different size.

Q2. How can I do the payment?
A: We accept payment through T / T bank transfer, Paypal, Western Union, L/C. For larger amount, you can first make a deposit and balance before shipment.

Q3. How about your delivery time?
A: Generally, it we have goods in stock, will take 7 work days to ship, just need build the electric voltage as your local standard. If we don't have stock, need about 10~20 work days depend on order quantity.

Q4. Do you test all your goods before delivery?
A: Quality testing is also the key for our global customers. Strict quality control throughout all stages of production enable us to guarantee ensure each COLO equipment delivers in reliability, quality and precision.
