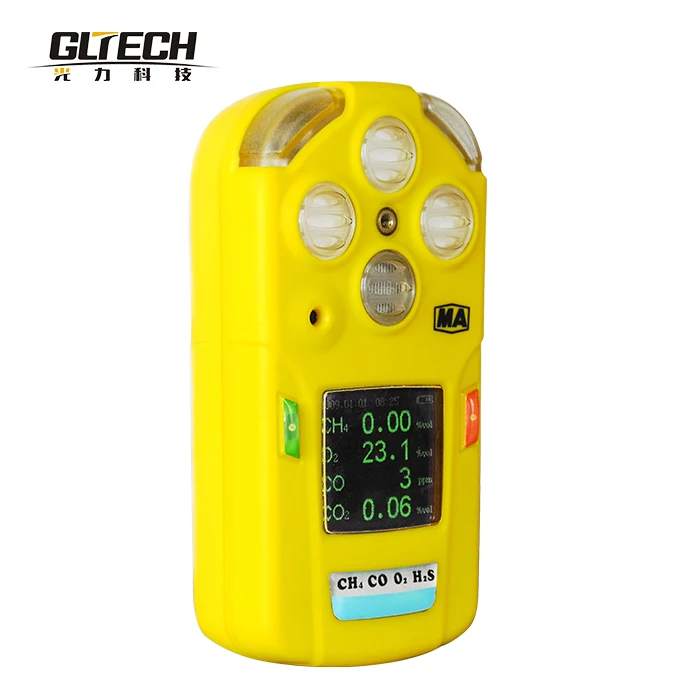

GLTech LCD Gas Analyzer Meter Gas Sensor Detector Air Quality Monitor Gas Leak Detector with Sound Shock Alarm
- Category: Gas Analyzers >>>
- Supplier: GL,Tech,Co.,Ltd.
Share on:
Product Overview
Description

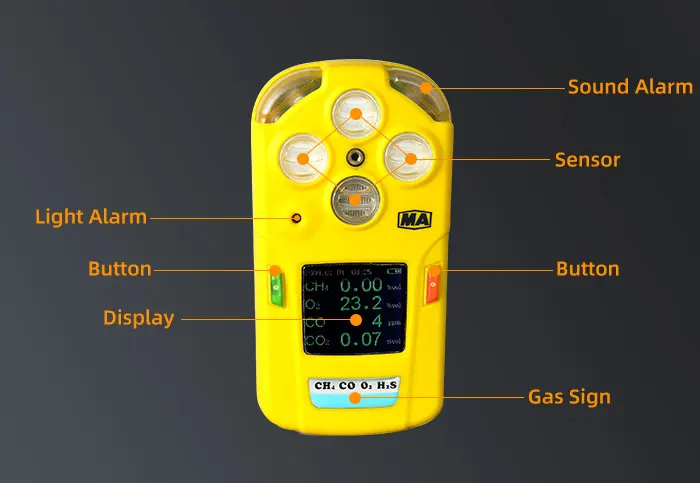

GLTech 4 in 1 fixed multi high quality fixed industrial lpg portable gas leak detector
PRODUCT INTRODUCTION
Technical Specification:
| 22 Gas for Choice | CH4,LEL,CO,CO2,O2,H2S,SO2,NO,NO2,CL2,H2,NH3,O3, TVOC,HCHO,HCL,HCN,PH3,COCL2,SIH4,C2H4O,C2H6O. |
| Audible alarm | >75dB(A) (@ 1 meter) |
| Visual alarm | Visible distance is greater than 20m(In dark) |
| Sensor life span | CH4>1year,O2>2 years, CO >2 years,CO2 >2 years |
| Battery life | > 10 hrs (standby mode) |
| Size/Weight | 125mm×66mm×34mm/350 g |
| Explosion-Proof Type | Intrinsically Safe Explosion-Proof |
| Battery | Power supply of the instrument: one section of lithium manganese oxide battery, model: PL183650-2000mAh maximum open circuit voltage U0:4.2V maximum short circuit current I0:3.4A rated voltage: 3.7V battery string into the 750m limited current fuse and 1.0 Ω / 3W current limiting resistance, and together with the battery with epoxy resin pouring as one, constitute the primary safety battery assembly. |
Selectable standard configuration and customization of 22 kinds of common gases optional:
| Gas | Measuring Range | Basic Error | Resolution | Response Time | Alarm Point | Alarm Rrror |
| CH4 | 0.00-4.00%CH4 | 0.00-1.00 ±0.10 1.00-3.00 Real Value±10% 3.00-4.00 ±0.30 | 0.01 | ≤20s | 1.00 | ±0.05%CH4 |
| O2 | 0.0-30.0%O2 | 0.0-5.0 ±0.5 5.0-30.0 ±3%FS | 0.1 | ≤35s | 18.0 | ±0.3%O2 |
| CO | 0-1000ppmCO | 0-20 ±2 20-100 ±4 100-500 Measurement±5% 500-1000 Measurement±6% | 1 | ≤45s | 24 | ±1ppm |
| H2S | 0.0-100.0ppmH2S | 0-49 ±3 50-100 Real Value±10% | 0.1 | ≤45s | 10.0 | ±3ppm |
| CO2 | 0.00-5.00%CO2 | 0.00-1.00 ±0.10 1.00-3.00 Real Value±10% 3.00-5.00 ±0.30 | 0.01 | ≤60s | 1.00 | ±0.05%CO2 |
| LEL | 0-100%LEL | 0-100 ±5 | 1 | ≤20s | 25 | ±2%LEL |
| SO2 | 0.0-100.0ppmSO2 | 0-49 ±3 50-100 Real Value±10% | 0.1 | ≤45s | 10.0 | ±3ppm |
| NO | 0-250ppmNO | 0-250 Measurement±5% | 1 | ≤45s | 10 | ±1ppm |
| NO2 | 0.0-100.0ppmNO2 | 0.0-100.0 Real Value±10% | 0.1 | ≤40s | 10.0 | ±2ppm |
| CL2 | 0.0-100.0ppmCL2 | 0.0-100.0 Real Value±10% | 0.1 | ≤40s | 5.0 | ±2ppm |
| H2 | 0-1000ppmH2 | 0-500 Measurement±5% 500-1000 Measurement±6% | 1 | ≤60s | 10 | ±1ppm |
| NH3 | 0-200ppmNH3 | 0-100 Real Value±10% | 1 | ≤45s | 10 | ±1ppm |
| O3 | Other kinds of gas avaliable | |||||
| TVOC | ||||||
| HCHO | ||||||
| HCL | ||||||
| HCN | ||||||
| PH3 | ||||||
| COCL2 | ||||||
| SIH4 | ||||||
| C2H4O | ||||||
| C2H6O | ||||||
ADVANTAGES
Applicable areas: field detection of various areas covering petrochemical industry, coal industry, metallurgy, chemical industry and municipal fuel gas.
Realize detection in special areas: detection of gas concentration or leakage for trench, pipeline, drainpipe, tank and sealed container, etc..
WHY CHOOSE US

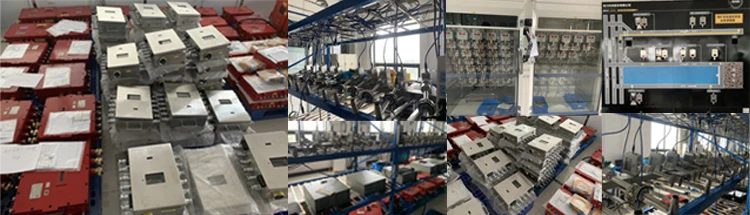

GLTech is an international high-tech company with a total investment of 42.4 million $, factory plant area of 17,000 m2, and has more than 500 employees in China and nearly 300 foreign employees.Our products have been exported to USA ,UK, Israel, Russia, India, Pakistan, Uzbekistan, Philippines, Indonesia, Vietnam, Turkey,Brazil etc, and have been widely praised by customers. We also welcome OEM and ODM orders.China-based GLTech is an international high-tech enterprise committed to becoming a high-end equipment enterprise with core R&D and manufacturing technologies.GLTech is a high-tech enterprise, an AAA-level credit enterprise and has been approved as a software enterprise with certified software products. In recent years, it has won many honorable titles, like "the most promising enterprise in electronic information technology development", "a model of integrated informatization and industrialization in Henan Province", "an enterprise with advantages in intellectual property in Henan Province", "one of the first key IoT enterprises in Henan Province", "a pilot enterprise for digitalization in the information technology project of the manufacturing industry in Henan Province", and the winner of the Zhengzhou Mayor's Quality Award. It is one of the 27 among Top 100 Enterprises assessed by the State Administration of Work Safety. GLTech has successively passed ISO900 certification, ISO14000 certification, OHSAS18000 certification, and the Information System Integration and Services Qualification Certification (Grade II). It is also the first enterprise in Henan Province to pass the CMMI Maturity Level 5 Certification. Persisting in "forging ahead with innovation", GLTech is committed to becoming a high-end equipment R&D and manufacturing enterprise with core technologies.
FAQ
Q1:Are you a manufacturer or trading company?
We are List Enterprise in China (Stock code:300480) with 28 years maunfacturing experience.
Q2: Can I have a sample order?
Yes, Of course you can . we welcome sample order for your testing and checking products quality.
Q3: What is the shipping time?
C: Small Qty order needs 2-5 working days, big Qty order usually needs 10-15 working days after
payments arriving. That's depends on order Qty.
Q4: Do you do OEM,ODM or OBM?
Yes, OEM,ODM and OBM are welcome, and we have professional sales to communicate the details with you.
Q5:What's your MOQ?
1pcs.
Q6:What is your advantage?
1) Fast response for market trend, customer feedback and technical support
2) New products launch regularly base on our strong RD team and market demands
3) Strong supply chain, guarantee the competitive price of our products in the market
4) Adequate production capacity
5) Strict quality control system
6) Flexible OEM/ ODM service.
7) Regular stock for RTS
Q7:How about the terms of payment?
Supported T/T,Paypal,Alibaba online payment,Western Union,etc. Of course we can discuss on this.
