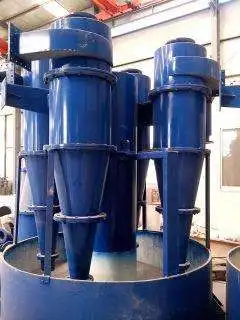

Attractive Price Hydro Cyclone Solid Liquid Cyclone Cyclone Sand Separator
- Category: >>>
- Supplier: Sino Mining Co. Ltd.
Share on (1600568127781):
Product Overview
Description
Products Description

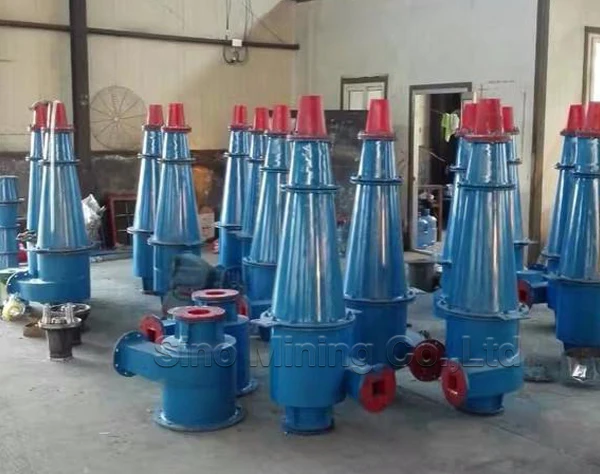

High Quality Hydro-cyclone Price
The Sino Hydro-cyclone is a kind of equipment for classification by centrifugal inertial force in rotary flow.
The slurry is rotated in the tangential direction by a certain pressure, and the slurry is deposited to the inner wall of the
cyclone under the action of centrifugal force, so as to achieve the purpose of classification. At present, sand pump is used for direct feed of hydrocyclone.
The Sino Hydro-cyclone is a kind of equipment for classification by centrifugal inertial force in rotary flow.
The slurry is rotated in the tangential direction by a certain pressure, and the slurry is deposited to the inner wall of the
cyclone under the action of centrifugal force, so as to achieve the purpose of classification. At present, sand pump is used for direct feed of hydrocyclone.
Feature of Hydro-cyclone
1. Higher capacity - capacity higher by 15-25% than that of conventional cyclone
2. Finer solids classification - solids finer by 20-30% than that of conventional cyclone
3. Higher efficiency - efficiency higher by 2-5% than that of conventional cyclone
4. Wide Application Range - modularized cones can be configured for different operating duties
5. Longer service life of wear part
6. Design and model selection available
1. Higher capacity - capacity higher by 15-25% than that of conventional cyclone
2. Finer solids classification - solids finer by 20-30% than that of conventional cyclone
3. Higher efficiency - efficiency higher by 2-5% than that of conventional cyclone
4. Wide Application Range - modularized cones can be configured for different operating duties
5. Longer service life of wear part
6. Design and model selection available
Working Principle of Hydro-cyclone
Under a certain pressure of 0.04-0.35MPa, the slurry is fed into the cyclone through the feed pipe along the tangent line, and form a high speed rotary flow inside, which produces a great centrifugal force. At the center of the cyclone, the slurry rotation velocity reaches the maximum, and the centrifugal force is also the largest. Regarding the slurry expansion around,and formed a low pressure zone around the central axis.A low pressure air column is formed at the central axis by inhaling air through the sand sink.
The slurry in the cyclone is not only the tangential rotary motion, but also the radial motion pointing to the center. The slurry near the center also has the movement along the axial direction, while the peripheral slurry mainly moves along the axial sinking sand mouth. In the axial direction, the slurry has a zero velocity point which changes in direction. The connecting points form an approximate conical surface in space and become the zero velocity envelope surface.
The coarse particles in the slurry move outwards with the help of the resistance of the centrifugal inertial force customer service radial slurry flow, which remain outside the zero velocity envelope surface, and with the outer slurry spiral downward, finally discharged from the sand sink nozzle.
The centrifugal sedimentation rate of fine particles is slower, carried by the upward eddy current, and discharged from the overflow pipe.
Under a certain pressure of 0.04-0.35MPa, the slurry is fed into the cyclone through the feed pipe along the tangent line, and form a high speed rotary flow inside, which produces a great centrifugal force. At the center of the cyclone, the slurry rotation velocity reaches the maximum, and the centrifugal force is also the largest. Regarding the slurry expansion around,and formed a low pressure zone around the central axis.A low pressure air column is formed at the central axis by inhaling air through the sand sink.
The slurry in the cyclone is not only the tangential rotary motion, but also the radial motion pointing to the center. The slurry near the center also has the movement along the axial direction, while the peripheral slurry mainly moves along the axial sinking sand mouth. In the axial direction, the slurry has a zero velocity point which changes in direction. The connecting points form an approximate conical surface in space and become the zero velocity envelope surface.
The coarse particles in the slurry move outwards with the help of the resistance of the centrifugal inertial force customer service radial slurry flow, which remain outside the zero velocity envelope surface, and with the outer slurry spiral downward, finally discharged from the sand sink nozzle.
The centrifugal sedimentation rate of fine particles is slower, carried by the upward eddy current, and discharged from the overflow pipe.
1. We have engineers in Kenya, Sudan, Uganda, Professional installation and training skills.
2. We have a factory and warehouse in Kenya and China, Fast pre-sale and after-sale service, Wear Parts in stocks, You can get it soon.
3. Our products have been spread all over China, and also exported to European, American, Asian, African countries. Our sales managers and engineers know the local condition very well, We will supply the most suitable solution for you.
Technical Paramenters
Type | Model | Diameter (мм) | Angle of cone (°) | Output size (μm) | capacity (m³ / h) | Dimension （L *W*H） (мм) | Weight (Kg ) |

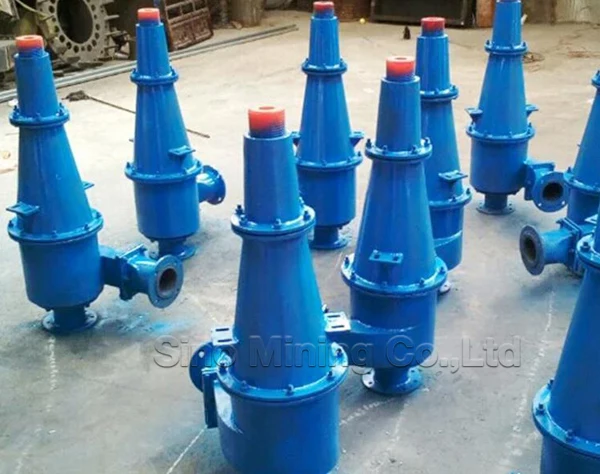

Hydro-cyclone | FX-100 | 100 | 20 | 20~50 | 2~2.5 | 260×320×646 | 26 |
FX-125 | 125 | 20 | 20-50 | 3.1-6.1 | 260×320×646 | 29 | |
FX-150 | 150 | 20 | 35-75 | 7.5-15 | 570×426×1123 | 128 | |
FX-250 | 250 | 20 | 40-100 | 10-39 | 852×516×1273 | 205 | |
FX-300 | 300 | 20 | 45-105 | 37-43 | 852×525×1940 | 287 | |
FX-350 | 350 | 20 | 50-110 | 74-90 | 955×680×2299 | 430 | |
FX-500 | 500 | 20 | 60-120 | 170-220 | 1090×811×2835 | 718 | |
FX-660 | 660 | 20 | 70-150 | 350-525 | 1444×1212×3128 | 1130 | |

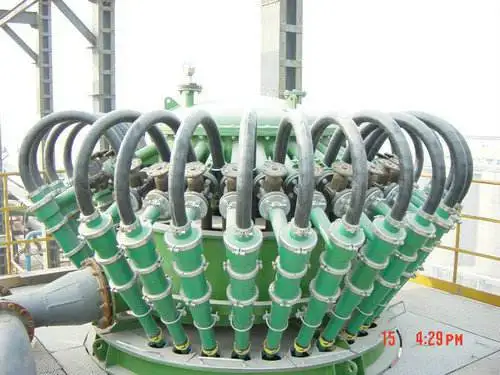

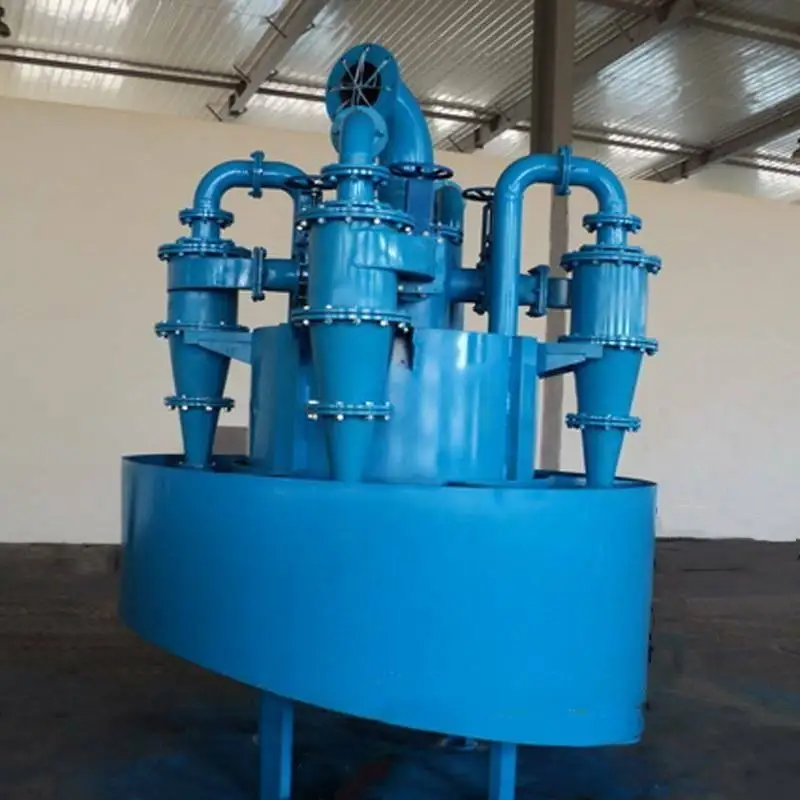

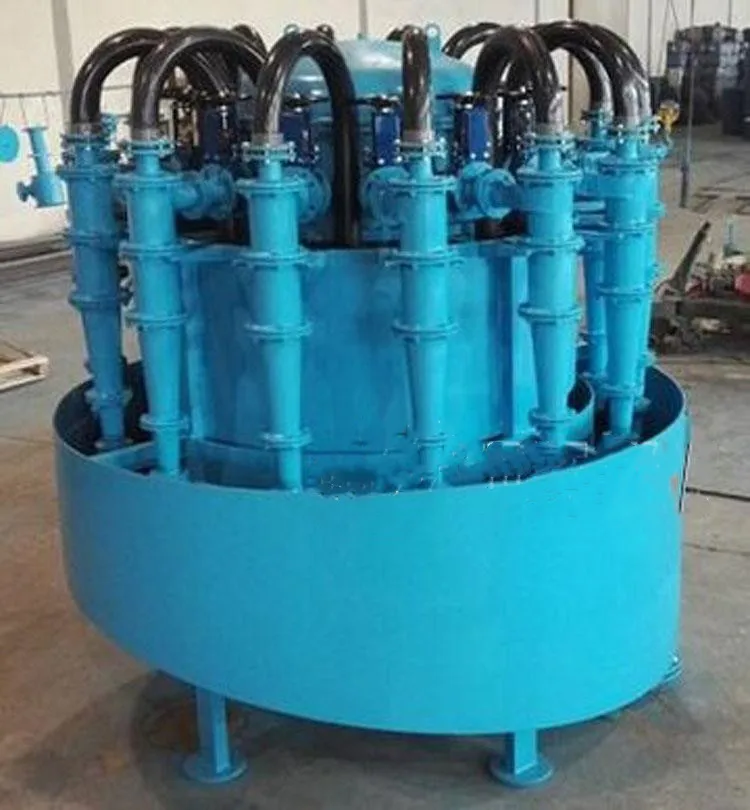

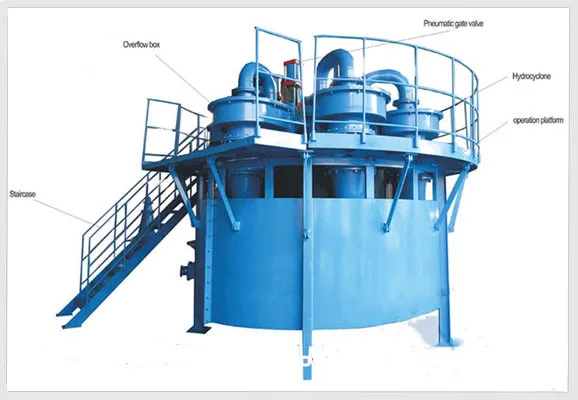

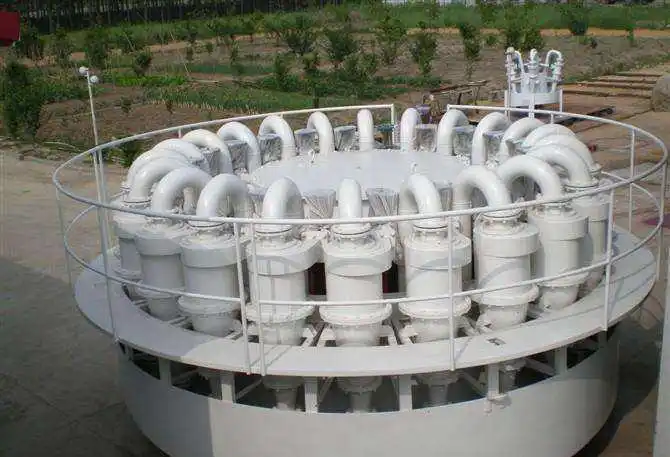

Hydro-cyclone group | FXK150×4 | 150 | 20 | 35-75 | 30-60 | 1800×1790×1850 | 1680 |
FXK150×8 | 150 | 20 | 35-75 | 60-120 | 2288×2188×1850 | 2236 | |
FXK150×12 | 150 | 20 | 35-75 | 90-180 | 2610×2188×1850 | 3074 | |
FXK300×4 | 300 | 20 | 45-105 | 148-172 | 2333×2325×2560 | 2530 | |
FXK300×8 | 300 | 20 | 45-105 | 222-258 | 2700×2570×2640 | 3477 | |
FXK350×4 | 350 | 20 | 50-110 | 296-360 | 2750×2550×3520 | 3550 | |
FXK350×6 | 350 | 20 | 50-110 | 1184-1440 | 2930×2730×3145 | 5597 | |
FXK350×12 | 350 | 20 | 50-110 | 888-1080 | 4360×4200×2990 | 10537 | |
FXK500×4 | 500 | 20 | 60-120 | 680-880 | 3100×2950×4060 | 6645 | |
FX500×6 | 500 | 20 | 60-120 | 1020-1320 | 3690×3584×3472 | 8870 | |
FX660×6 | 660 | 20 | 70-150 | 1830-3150 | 5500×5300×4250 | 18057 |
transportation
Ways of Packing:
1.Sand blasting, coat with high quality paint;2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
Customer Case
Overseas Service
1. We have engineers in Kenya, Sudan, Uganda, Professional installation and training skills.
2. We have a factory and warehouse in Kenya and Sudan, Fast pre-sale and after-sale service, Wear Parts in stocks, You can get it soon.
3. Our products have been spread all over China, and also exported to European, American, Asian, African countries. Our sales managers and engineers know the local condition very well, We will supply the most suitable solution for you.

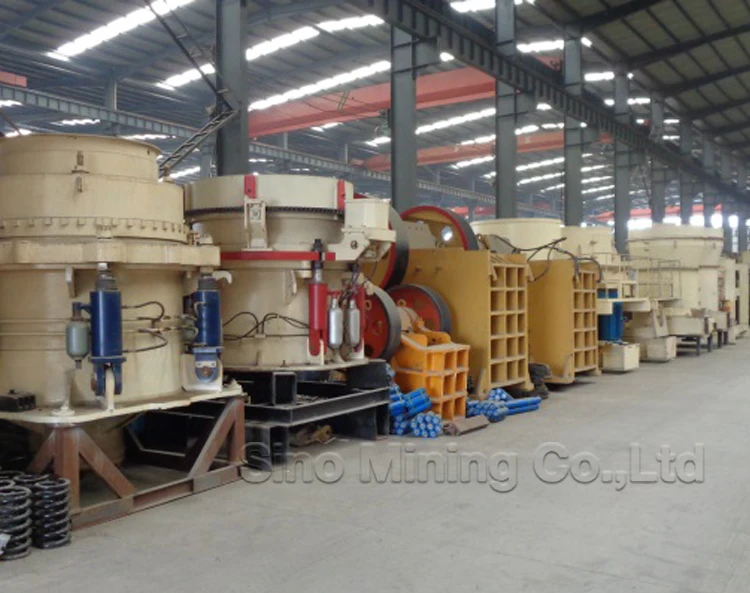

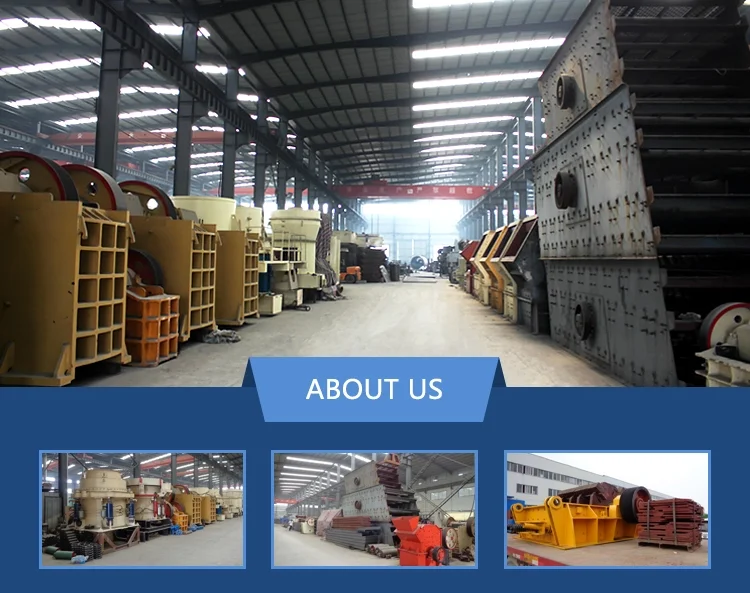

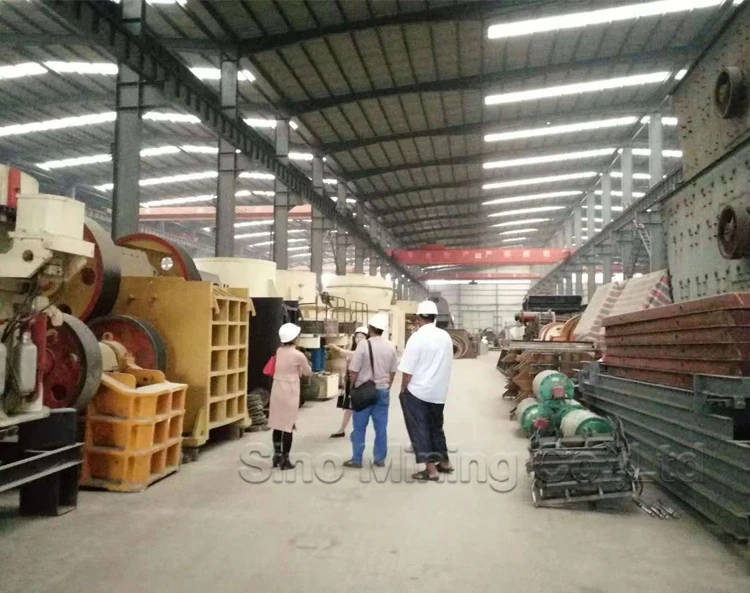

Company Profile
Since its establishment in 1987, Sino Mining has gradually grown into an important force to push forward the reform and
development of the nonferrous metal industry thanks to the concerted efforts of generations of management team and all staff. In the process of international cooperation, Sino Mining has accumulated rich experience in resources development, engineering project contracting, international trade and related services, cultivated a professional team and formulated several valuable qualities. It has become one of the earliest and most successful enterprises in China's nonferrous metal industry implementing “going out” strategy.
development of the nonferrous metal industry thanks to the concerted efforts of generations of management team and all staff. In the process of international cooperation, Sino Mining has accumulated rich experience in resources development, engineering project contracting, international trade and related services, cultivated a professional team and formulated several valuable qualities. It has become one of the earliest and most successful enterprises in China's nonferrous metal industry implementing “going out” strategy.

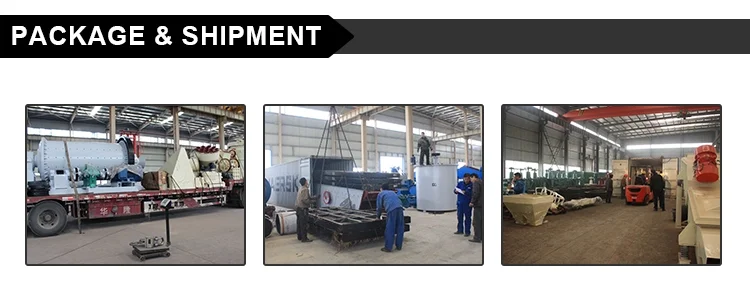

Packing & Shipping
FAQ
Q1: Are you factory or trade company?
A1: We are factory with CE. We have factory in China and Kenya .
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A1: We are factory with CE. We have factory in China and Kenya .
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China and Kenya .
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China and Kenya .
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
