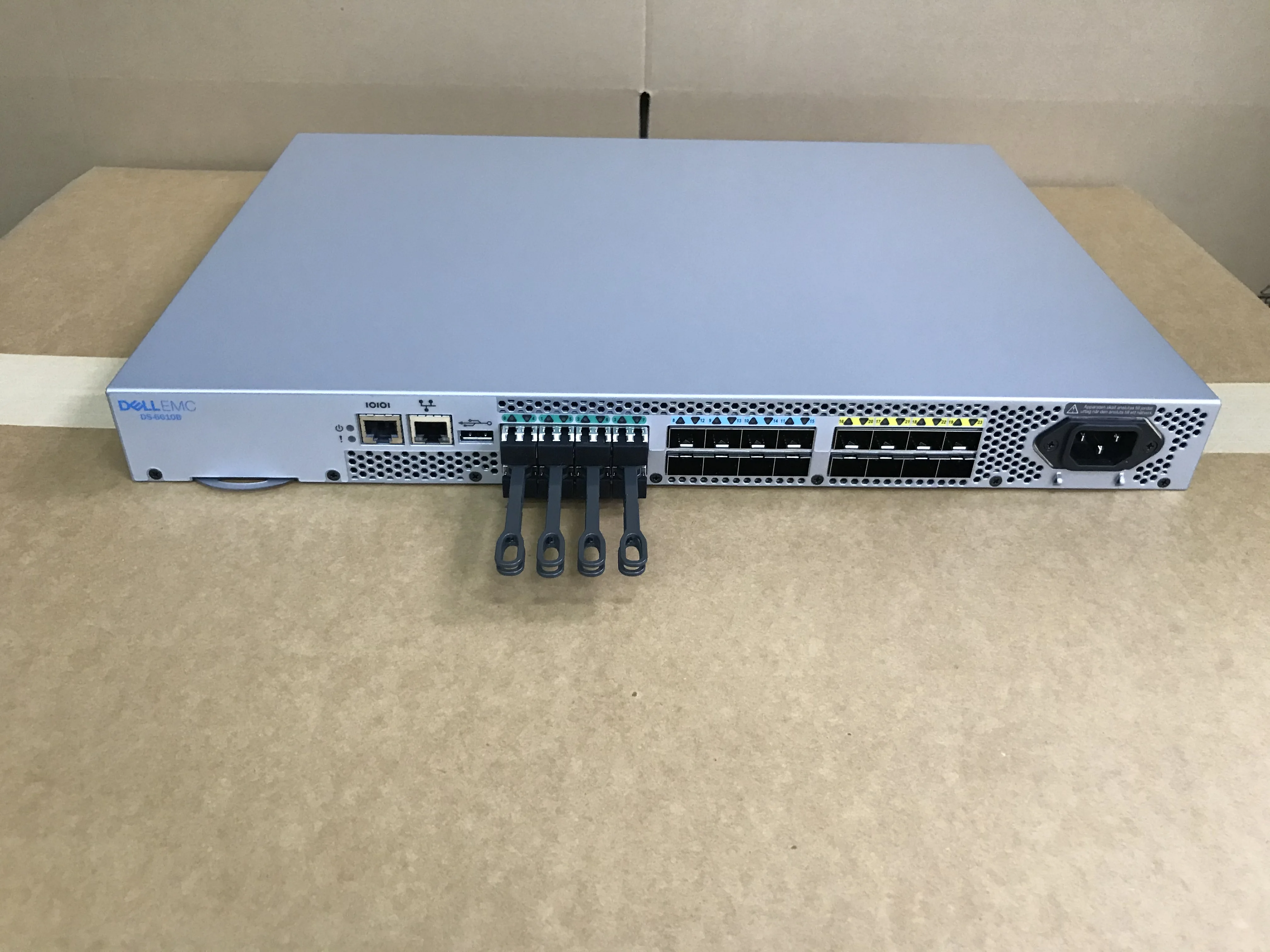

NEW Brocade G610 DS 6610B 24 Port 8 Active 32Gb FC DS 6610R B L 33R2G 8SFP DellEMC DS 6610B 32Gb/s Fibre Channel Switch

NEW Brocade G610 DS 6610B 24 Port 8 Active 32Gb FC DS 6610R B L 33R2G 8SFP DellEMC DS 6610B 32Gb/s Fibre Channel Switch

Category: Other Drive & Storage Devices >>>
Supplier: Guangzhou Aoqun Digital Technology Co. Ltd.

Price:$3,999.00 - $4,000.00

Quantity:

Product Overview

Description

new

Model no:DS-6610R-8-32G-L

P/n:100-653-008-00

Dell p/n:33R2G

Performance:32Gb/s SFPs can operate at 32, 16 or 8Gb/s; 16Gb/s SFPs will operate at 16, 8 and 4Gb/s

Frame buffers:2K dynamically allocated

Aggregate bandwidth:768 Gb/s

Note:"-EP" DS-6600B models include the Enterprise Package

Hot swappable components:The DS-6610B has an embedded power supply / fan and it is non-replaceable. The entire switch is a Field Replaceable Unit (FRU). The only FRU's on the DS-6610B are the SFP's. The DS-6610B will support in-service firmware upgrades.

Maximum frame size:2,112-byte payload

Management:Advanced Web Tools. SSH, Auditing, Syslog NTP v3, CLI, SMI-S compliant; REST API, SNMP v1/v3 (FE MIB, FC Management MIB)

Sannav management:SANnav Management Portal and SANnav Global View empower IT administrators to be more efficient and productive by providing comprehensive visibility into the SAN environment. SANnav only supports open systems and requires FOS v7.4 or higher.

Management access:10/100/1000 Mb/s Ethernet (RJ-45), In-band over Fibre Channel, Serial port (RJ-45), and one USB port

Firmware upgrades:Non-disruptive download and activation

Security:DH-CHAP (between switches and end devices), FCAP switch authentication; IPsec, IP filtering, LDAP with IPv6, Open LDAR, Port Binding, RADIUS, TACACS+, user-defined Role-based Access Control (RBAC), Secure Copy (SCP), Secure RPC, Secure Syslog, SSH v2, SSL, Switch Binding, Trusted Switch

Diagnostics:ClearLink optics and cable diagnostics, including electrical/optical loopback, link traffic/latency/distance, flow mirroring; built-in flow generator, POST and embedded online/offline diagnostics, including environmental monitoring, FC ping and Pathinfo (FC traceroute), frame viewer, non-disruptive daemon restart, optics health monitoring, power monitoring, RAS trace logging, and Rolling Reboot Detection (RRD)

Enclosure:Chassis supports rear-to-front (RTF) airflow

Height x width x depth:1.69 x 16.88 x 12.07 inches, (42.9 x 428.8 x 306 mm) , 1 RU

Weight fully populated:13 lbs (5.76 kg)

Ac input:90 V to 264 V ~2.2A

Input line frequency:47-63 Hz

Power consumption:77 WATTS with all 24-ports populated

Temperature:−25°C to 70°C/−13°F to 158°F

Humidity:10% to 90% (non-condensing)

Operating altitude:Up to 3000m (9,842 ft)

Storage altitude:Up to 12 km (39,370 ft)

Operating:0.5g sine, 0.4 grms random, 5 Hz to 500 Hz

Non-operating:2.0g sine, 1.1 grms random, 5 Hz to 500 Hz

Heat dissipation:24 ports at 215 BTU/hr

Category:Telecommunications Equipment in United Kingdom

Subcategory:Networking

Subcategory 2:Ethernet network switches
