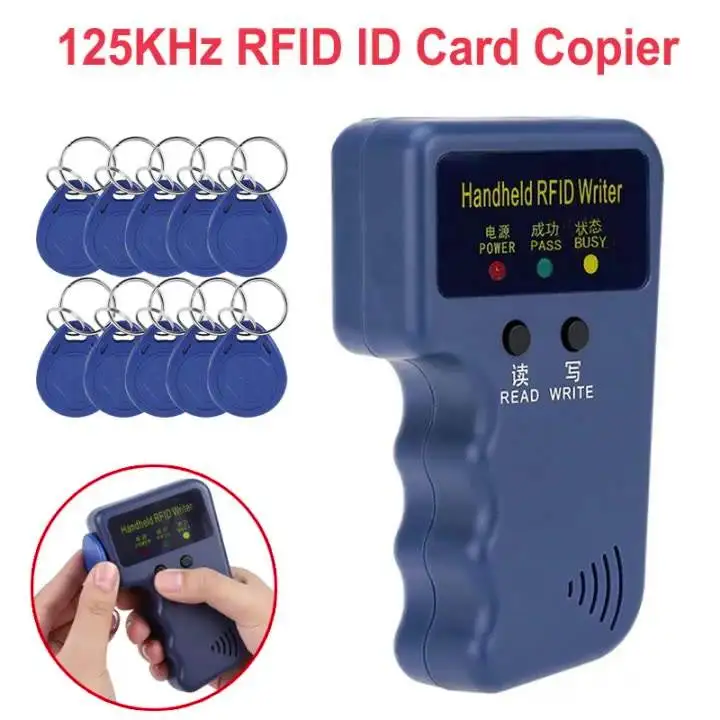

125KHz RFID Programmer Duplicator Copier Writer Reader Writer ID Card Cloner & key
- Category: >>>
- Supplier: Shenzhen Walden Technology Co. Ltd.
Share on (1600568162339):
Product Overview
Description
Product Description

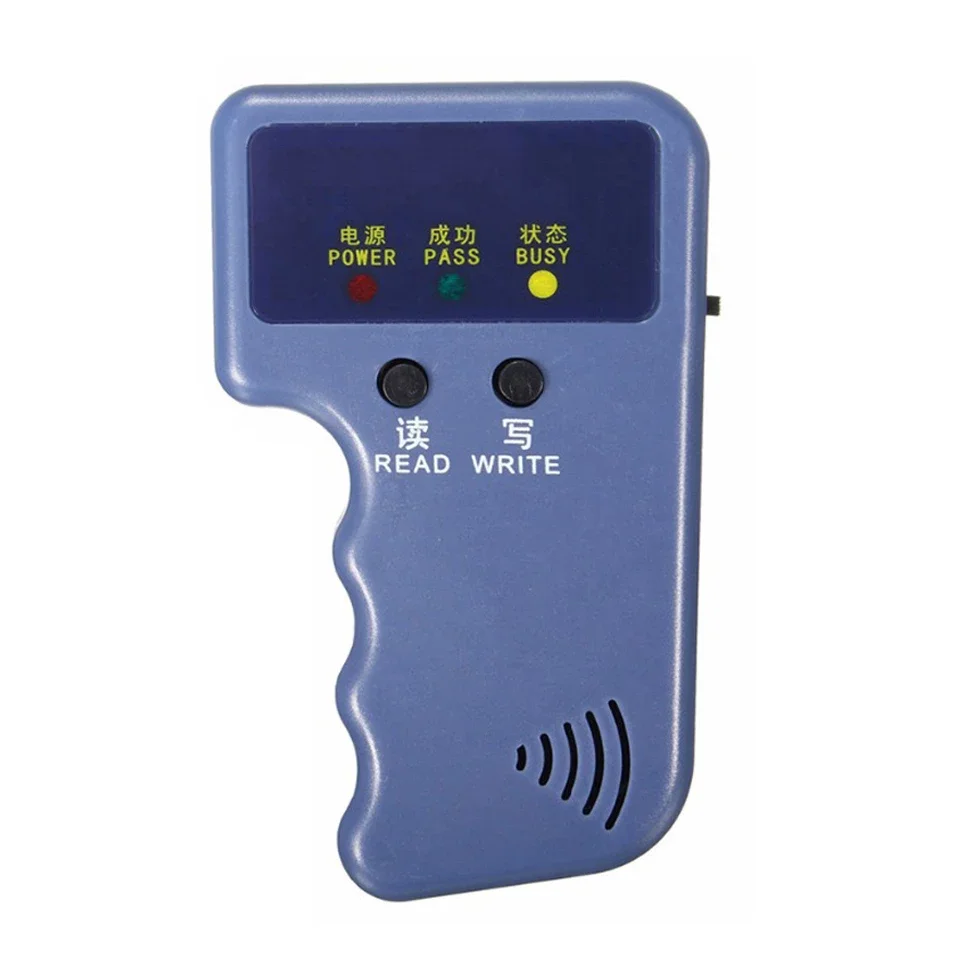

125KHz RFID Programmer Duplicator Copier Writer Reader Writer ID Card Cloner & key
125KHz RFID Programmer Duplicator Copier Writer Reader Writer ID Card Cloner & key

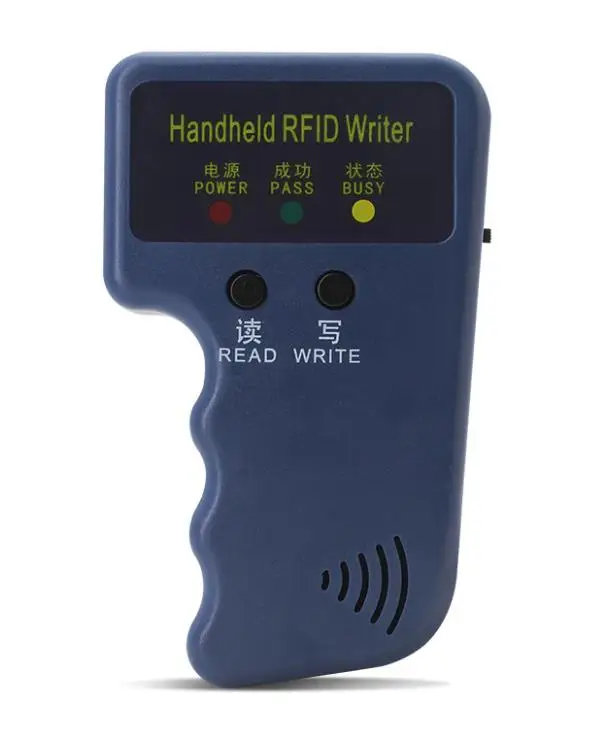

Handheld shape design, comfortable hand feeling and high quality.
2 buttons for simple operations.
Standalone operation, no need to connect with computer / PC, easy to use.
Built-in individual LED lights and buzzer indicator.
Reading distance is 0 - 6cm.
Can only copy 125KHz RFID card, Compatible with T5577, CET5200, EM4305 and EN4305.
Parameter
Read: EM / TK (EM4100 TK4100 etc) cards or keys
Write: EM4305 CET5557 T5577 5200 EM4205 etc cards or Keys
Built-in: individual LED lights and buzzer indicator, transceiver antenna
Power Supply: 3V (2 x AAA battery)
Times: Read / Write > 20000 times

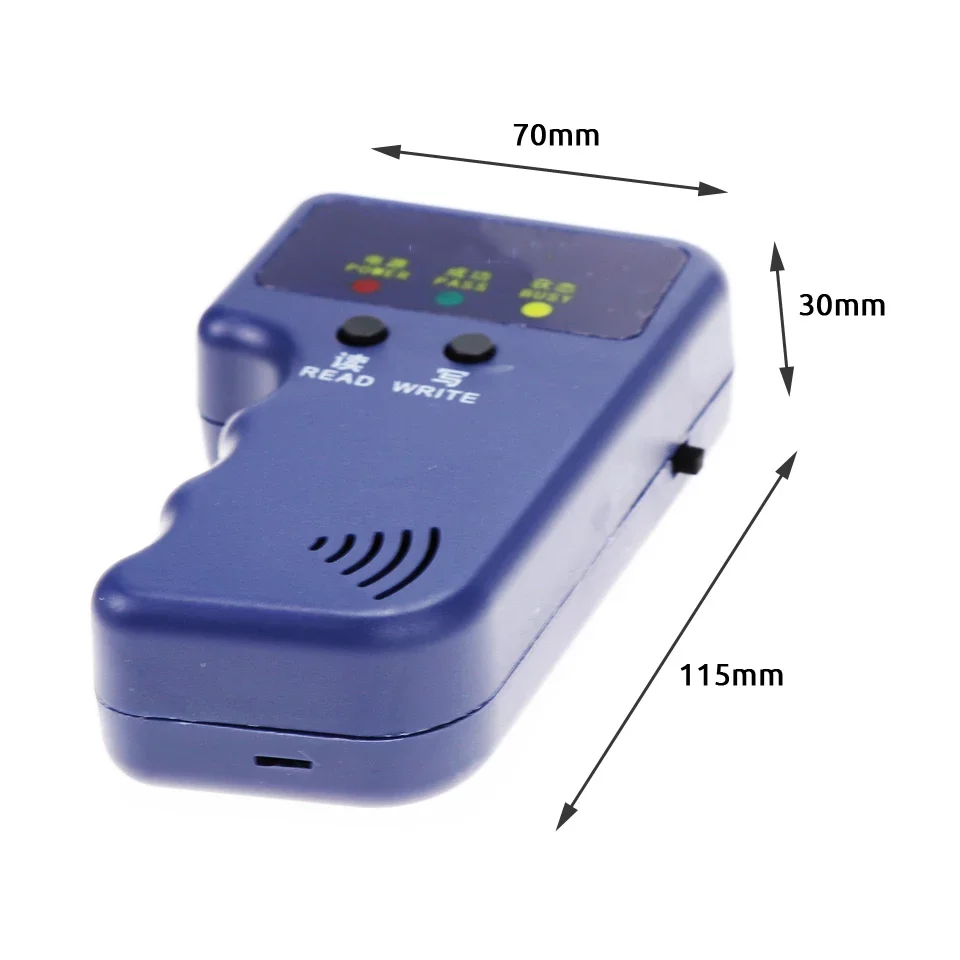

Size: ( L*W*H ): 115 x 70 x 30mm
Weight: 85g

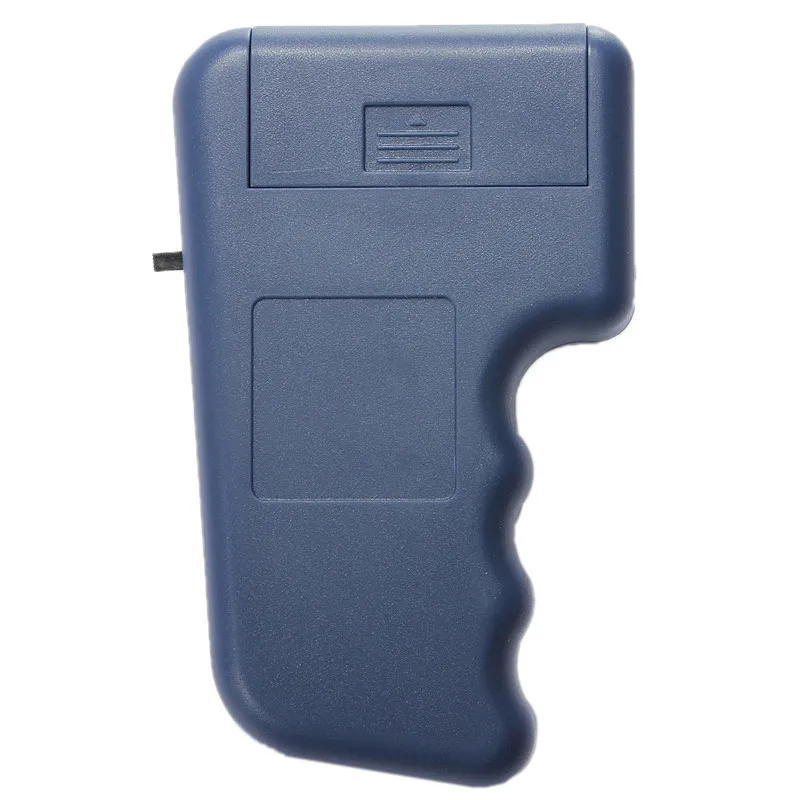

Detailed Images
Advantage:Advantage:
User manual

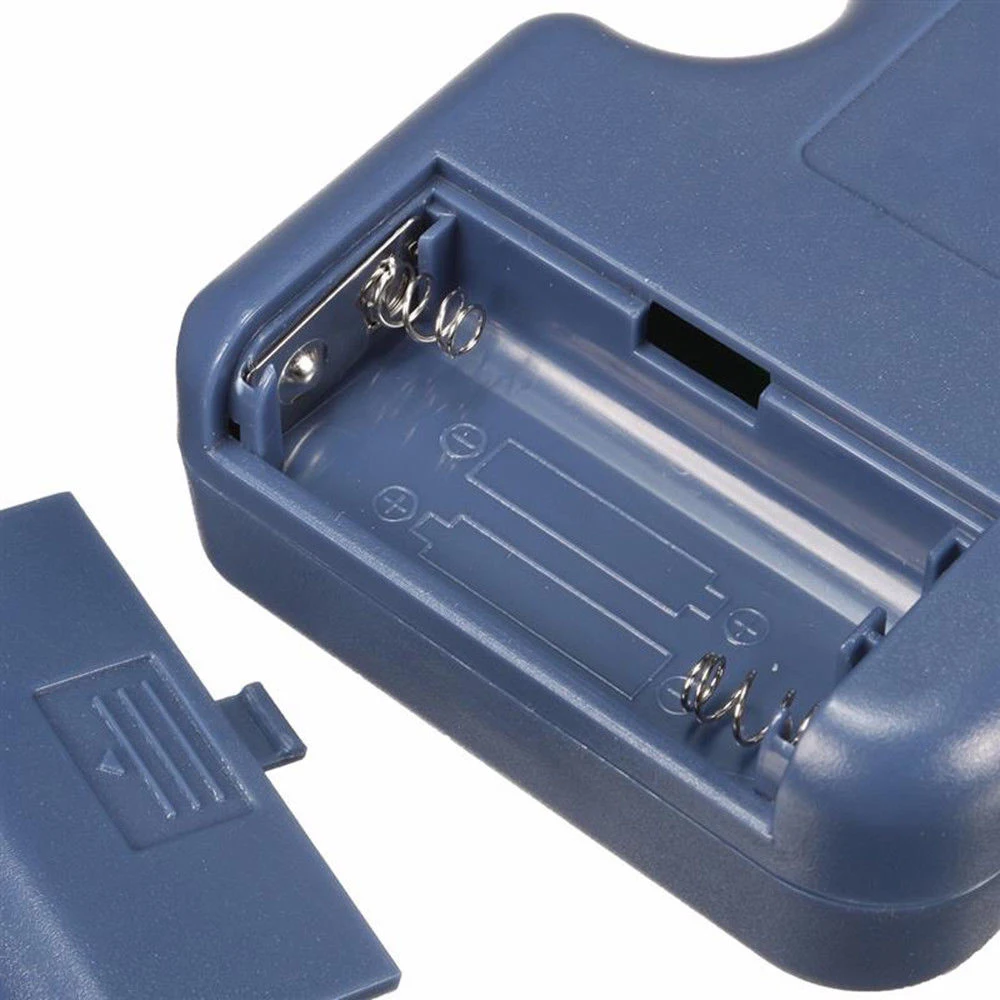

1. Make sure the small No.7 battery connection effectively before use it
2. Installing the battery,switch On, Power Led should flash one second .
3. Placing a EM testing card in Reading Area , it can be copied .
4. Press Read Button, If Read oK Read Led should flash and Beep sounds.
5. Put a card should be written(such as a EM4305 or T5577 card ) , Press Write Button and keep press, about one second ,if hearing
a beep means Copying succeed.
6. If want to write more card same ID ,repeat step 5
7. Switch Off for save Power.
1. Make sure the small No.7 battery connection effectively before use it
2. Installing the battery,switch On, Power Led should flash one second .
3. Placing a EM testing card in Reading Area , it can be copied .
4. Press Read Button, If Read oK Read Led should flash and Beep sounds.
5. Put a card should be written(such as a EM4305 or T5577 card ) , Press Write Button and keep press, about one second ,if hearing
a beep means Copying succeed.
6. If want to write more card same ID ,repeat step 5
7. Switch Off for save Power.

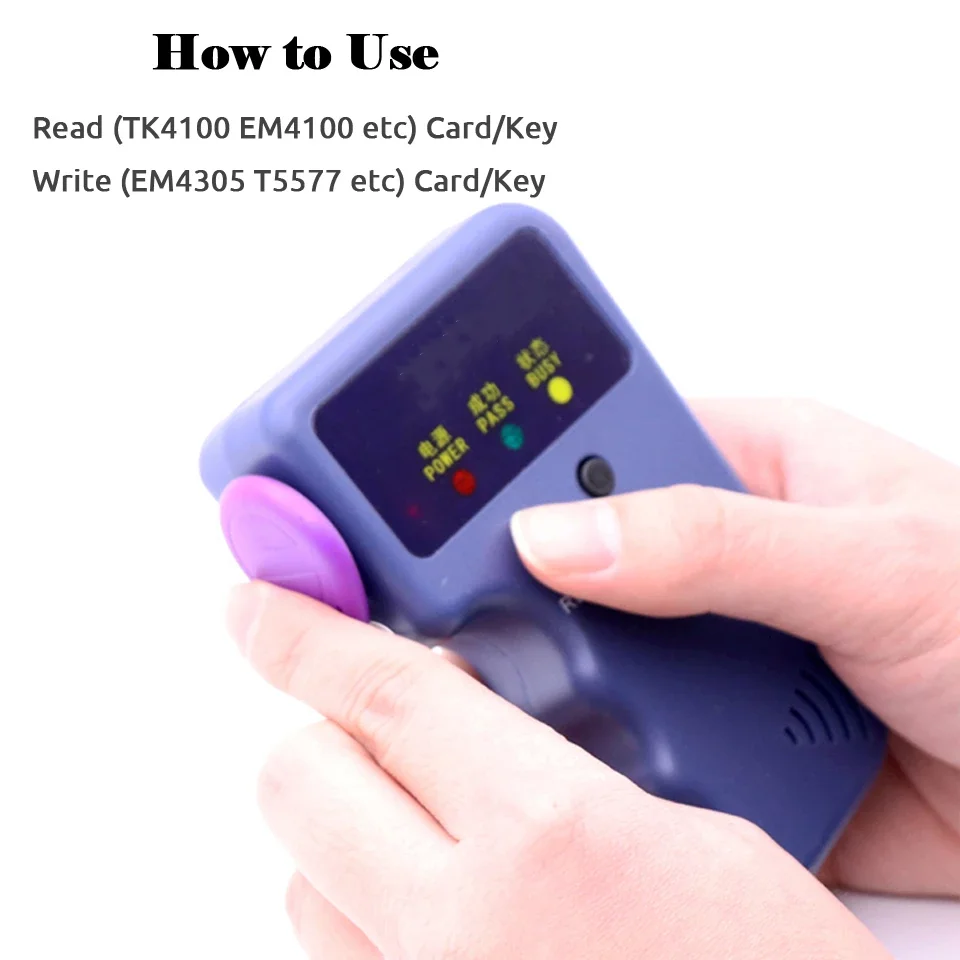

How to use
Read: Put the inductive proximity card (EM4100 or TK4100 or has inside info EM4305 or T5577) in the induction area and hold the
read key (left one). The buzzer will sound emitted by the green indicator for success. If the power light is only blinking, then
the card reader failed. Copy: After the reading is successful, put the blank card in the induction area and hold the copy
key(right one). The buzzer sound emitted by the yellow indicator for success. If the power light is only blinking, then the card
reader failed.
Read: Put the inductive proximity card (EM4100 or TK4100 or has inside info EM4305 or T5577) in the induction area and hold the
read key (left one). The buzzer will sound emitted by the green indicator for success. If the power light is only blinking, then
the card reader failed. Copy: After the reading is successful, put the blank card in the induction area and hold the copy
key(right one). The buzzer sound emitted by the yellow indicator for success. If the power light is only blinking, then the card
reader failed.
Packing & Delivery
Packaging and delivery Details:
Package: One piece in one box, 100 pieces in one carton
Port: Shenzhen or Hong Kong
Lead time: 3~7 days after the order confirmed
