5.5 Inch Touch Pos System Portable Payment Device Hardware Handheld Android Mini Pos Terminal

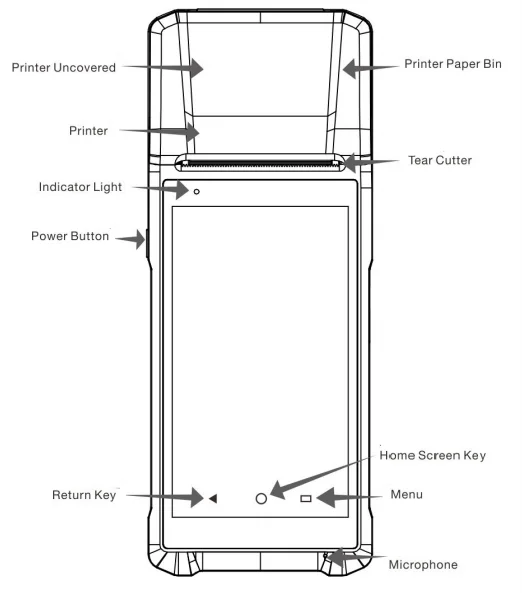

Power Button

Short Press: Turn-on Screen/Turn-off & Lock Screen.

Hold Down: Hold down the power button 3-5 seconds to power on the Q3/Q3PRO/Shut down or restart the Q3/Q3PRO.

Note: If the machine hanged or no response please hold down the power button for 10 seconds to restart.

Return Key

Return to previous operator interface.

Main Screen Key

Hide all windows and show the main screen.

Menu Key

Have a quick view and get list of the operating Apps. You can choose or close the Apps.

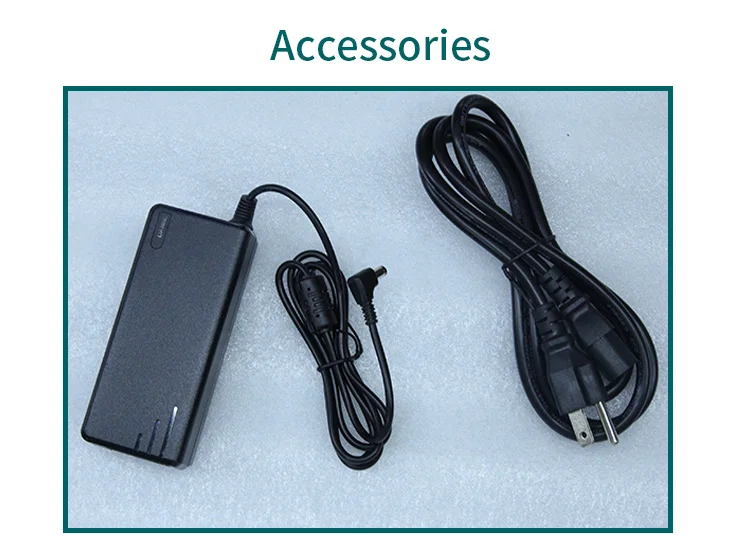

Charge Socket

External diameter: 3.5mm, internal diameter:1.35mm. Input: 12V/1.0A.

The Q3/Q3PRO supports power charge by this socket only do not support charge by USB.When power charging screen would show the battery charging logo.If you do not get this logo after you connect the power adapter, please check all connections carefully Warning:Charging by Non Specified power adapter is forbidden.

Phone Out

This socket allows you to connect an earphone or external loudspeaker.

SIM Card Slot

Supports micro-card, 4G/3G network.

Warning: Please shut down the Q3/Q3PRO before insert SIM card, otherwise the card slot would be damaged.

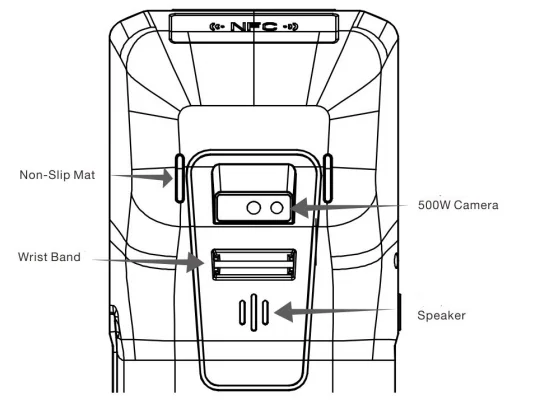

Camera

5000000 Pixel fixed focus camera.

Supports mobile phone scavenging payment and 2D code scanned. 15CM is the best distance.

Receipt Printer

This is the 58mm high speed Thermal Receipt Printer,which supports label print. Paper diameter is 57x50mm.

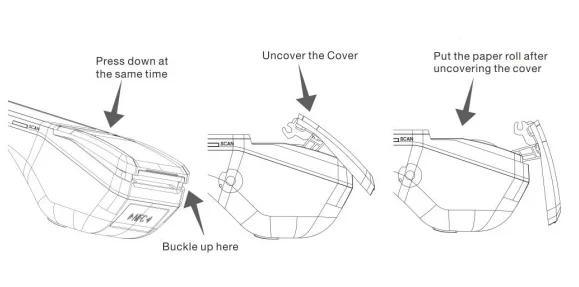

To change paper, please open the paper cover, put in the thermal paper or thermal label, keeps a small part of paper out of the paper slot and close the paper cover.

Settings

The setting of Q3/Q3PRO is similar to our mobile phone.

1.4G/3G setting: Please shut down the machine first open the cover at the right side, insert the Micro SIM card and close the cover. Turn on the Q3/Q3PRO and the O/S will recognize the SIM card directly.

WIFI setting: Enter the setting menu,turn on WLAN and get into the WLAN setting choose the connection and input the password. After verification the connection can be used.

Common Trouble Shooting

1.Printer not working

Please ensure the paper cover is closed well &whether the paper has been stretched out through the paper cutter.

If paper feed normally but print nothing please check whether the paper put in the opposite directions.

2.Touch incorrectly

Enter the setting menu, choose“Display”sub menu and calibrate the touch in Touch Screen section.

1. Do you have this product in stock?
We have the basic model in stock. We can send the goods within 5 days after payment received.

2.Do you have related product?

We also offer 15 inch, 15.6 inch dual / single screen touch all in one pos machine.

3. Can I have sample? Is it free?
We do sample order, but cost on buyer side.

4. What payment term do you do?
L/C at sight, T/T, Western Union

5. What is your MOQ?
We accept sample orders.

6.What's your warranty?

One year free warranty. If issue caused by accessories' quality, we accept replacement for defective except human damage.
