Prices Cnc Micro Super Drilling Machines Edm Machine For Small Hole Drill

Product Overview

Description

 Main Feature:



XYZ all linear rail to support heavy load and move quickly to ensure precise positioning.

Marble working table with stainless bracket, no rust.

Drilling diameter from 0.2mm to 3mm. The maximum depth ratio could be 300:1.

Capable of drilling all kinds of conductive material,  and drill on all kinds shape, such as oblique and curved surface.

Special program for carbide such as tungsten, Fast processing speed and low consumption.

XY Hydbrid motor,  Z servo control,   4th axis is optional.

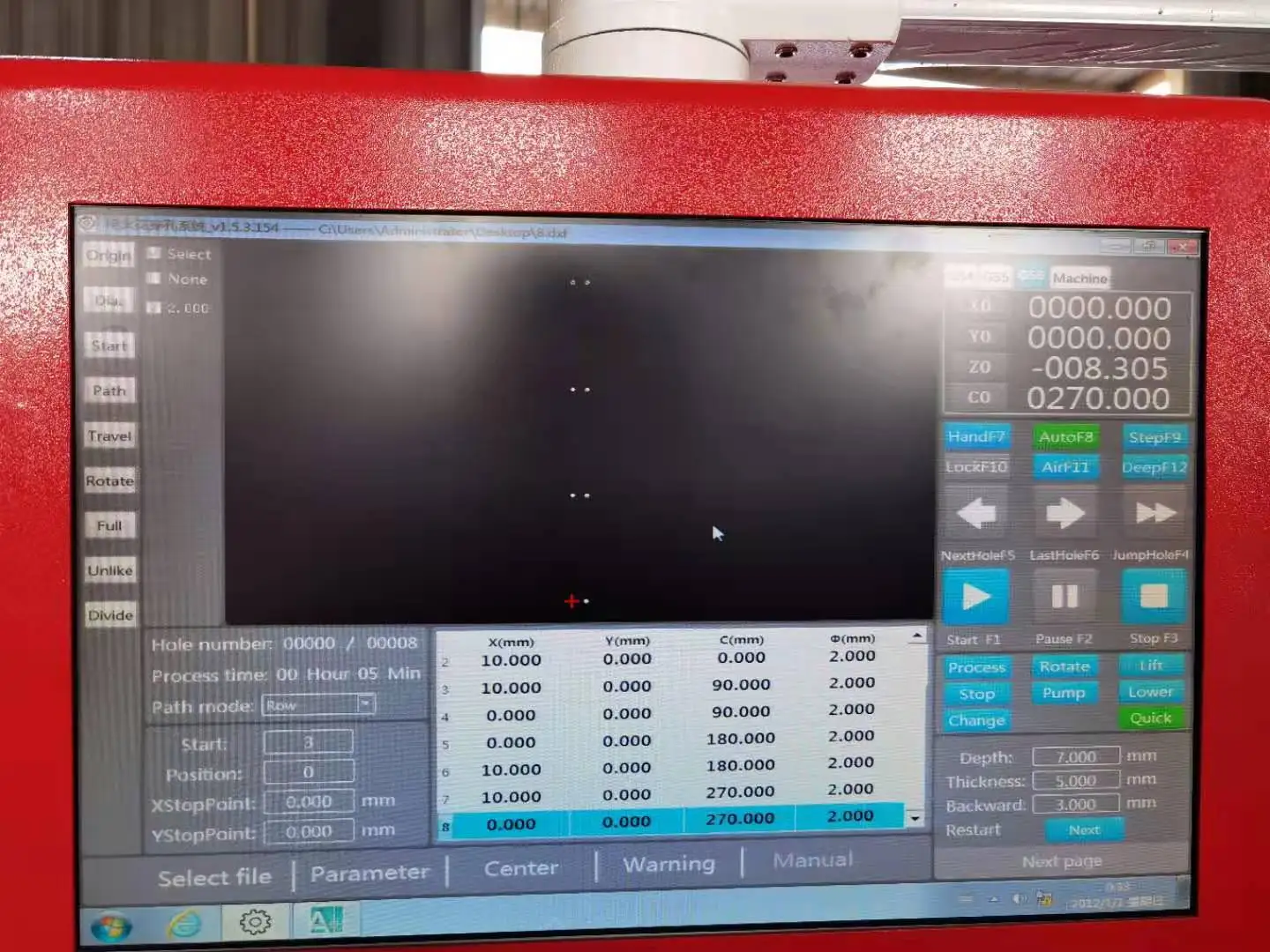

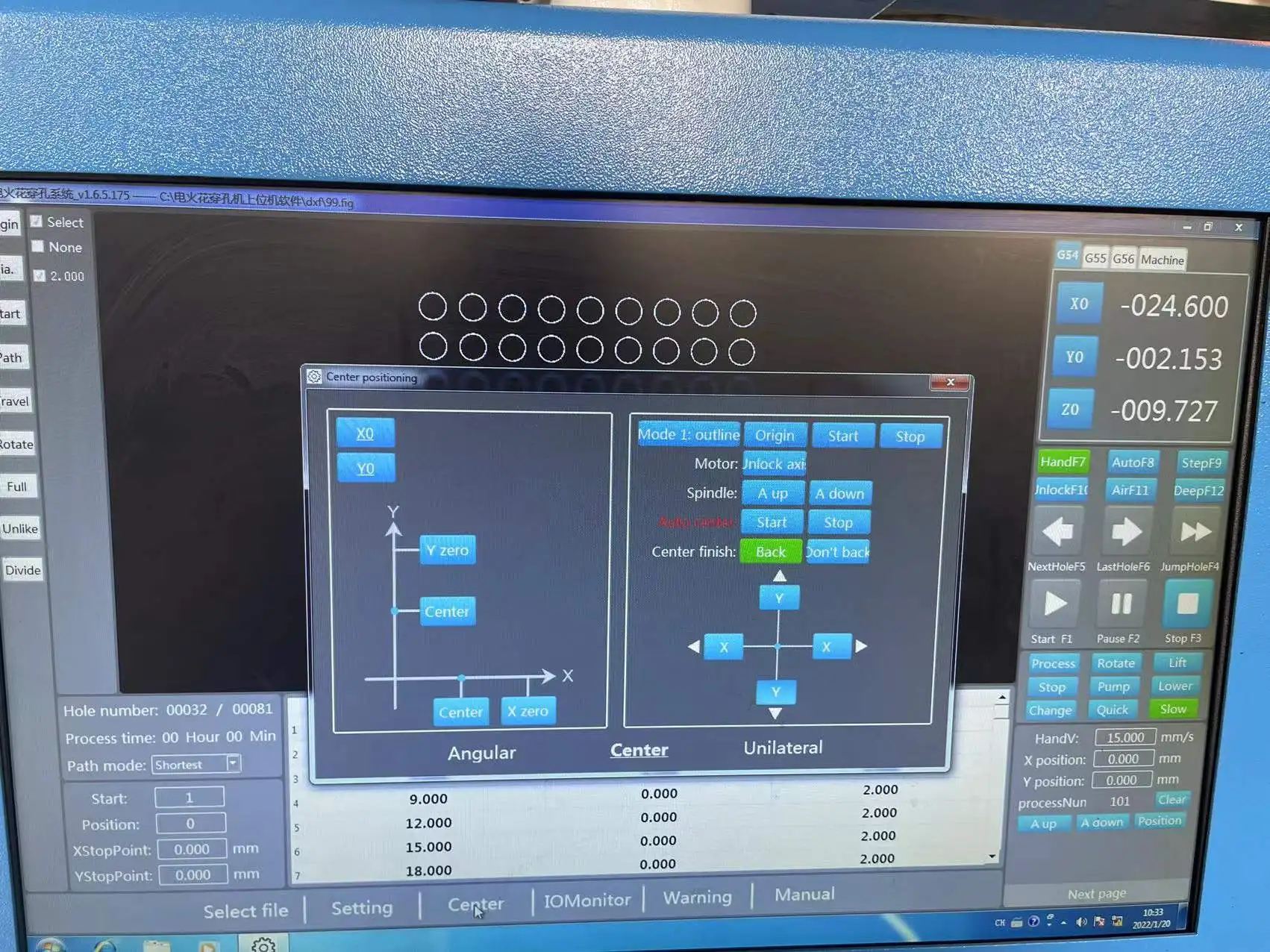

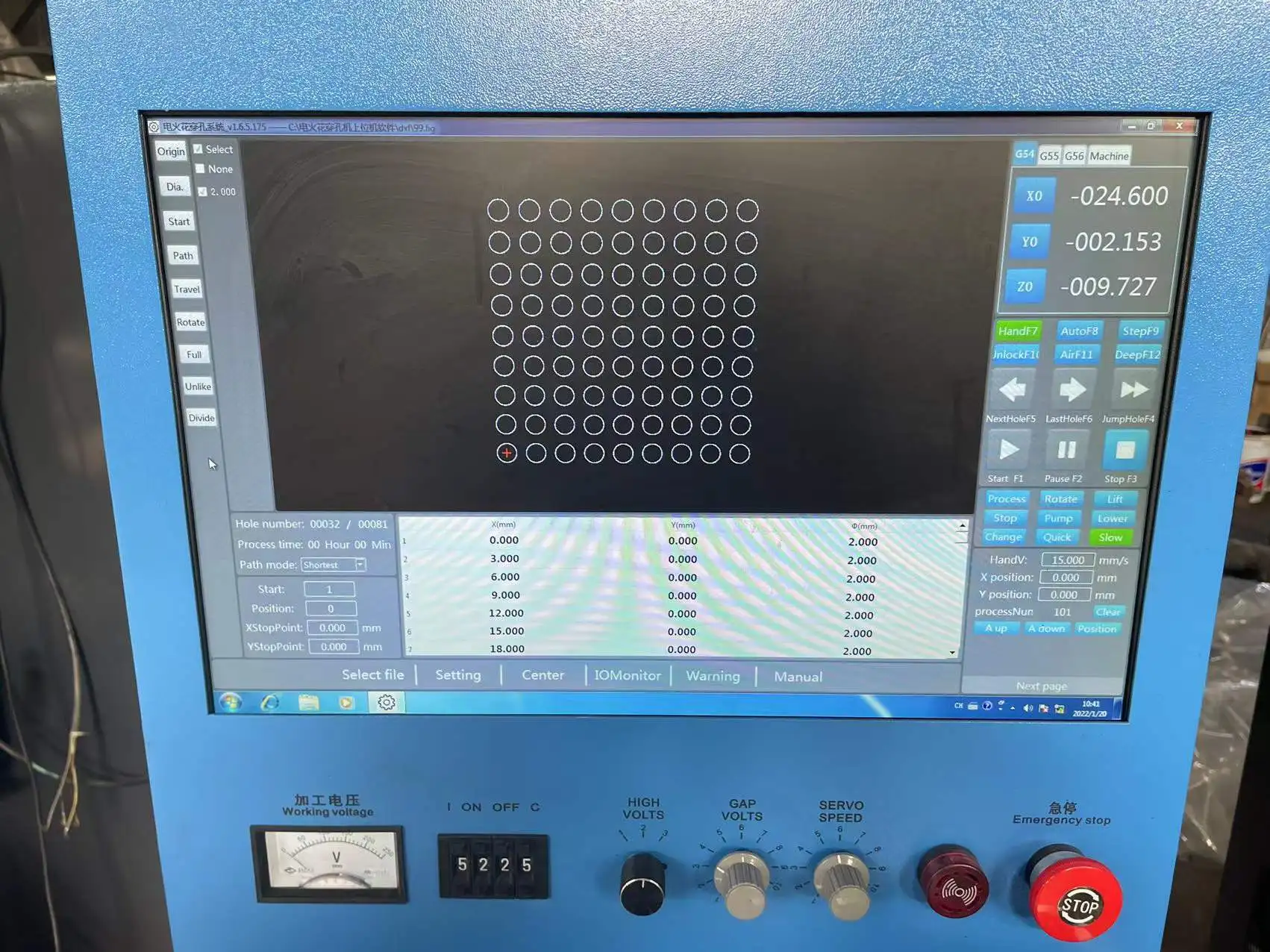

Industrial PC control, Win7 operation system, support DXF file.

Program for many different diameter of holes in one process.

Real-time control, Discharge process monitoring.

with DRO for XYZ,  with depth setting.

With data memory if power cut off.

With recycling coolant tank and filtering system ( optional)
