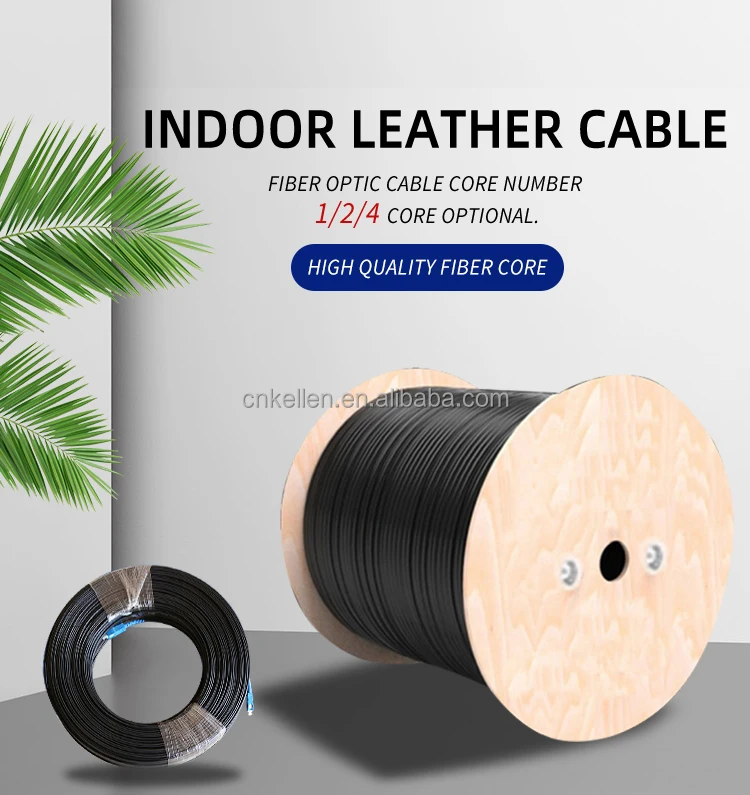

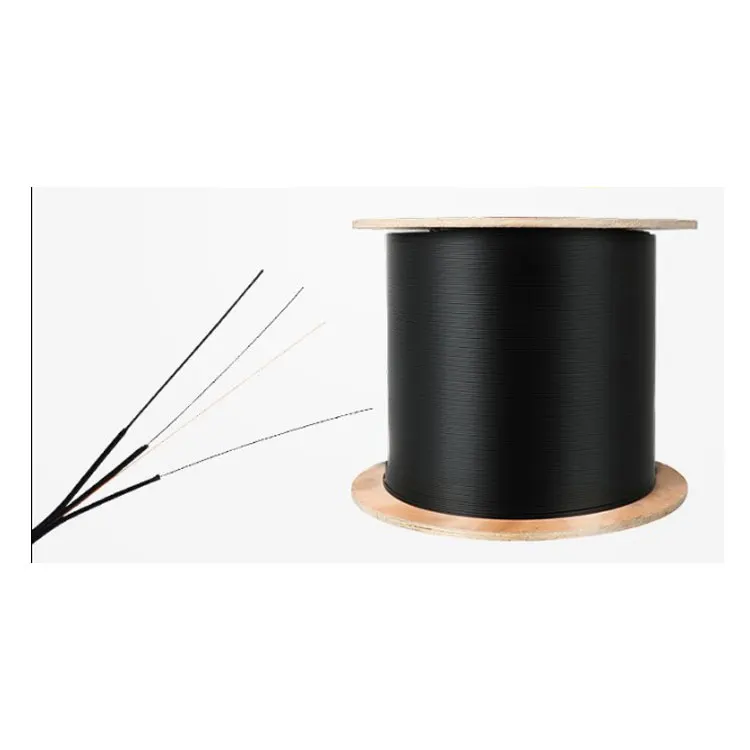

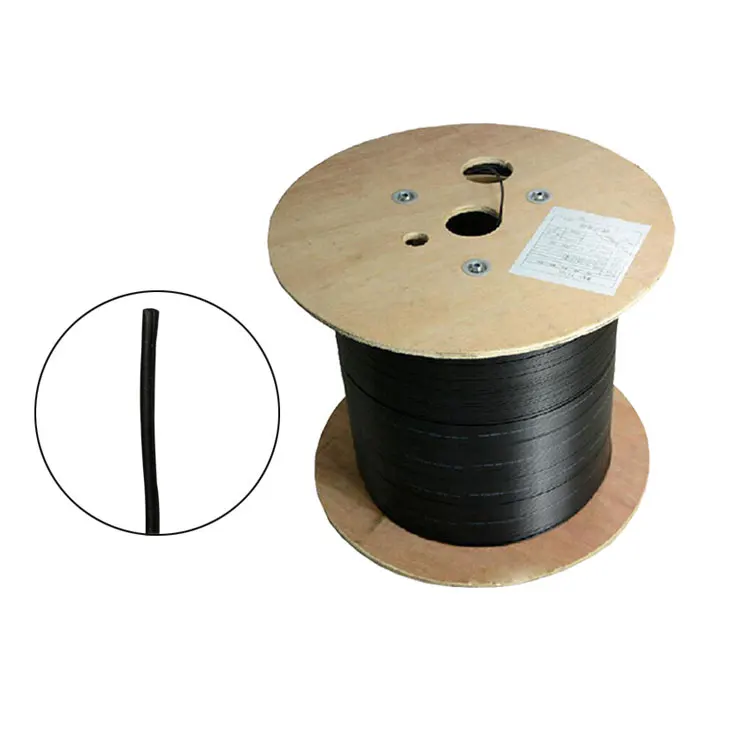

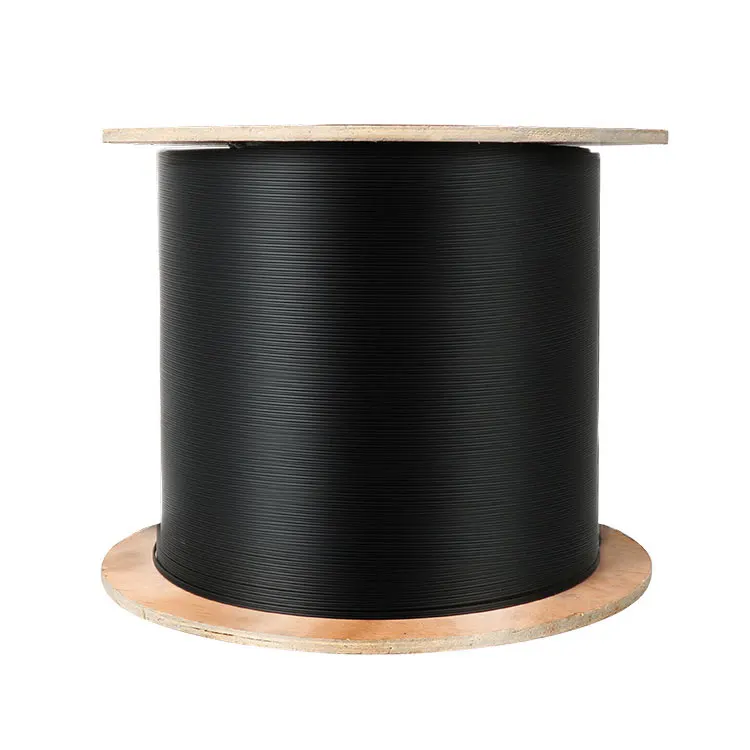

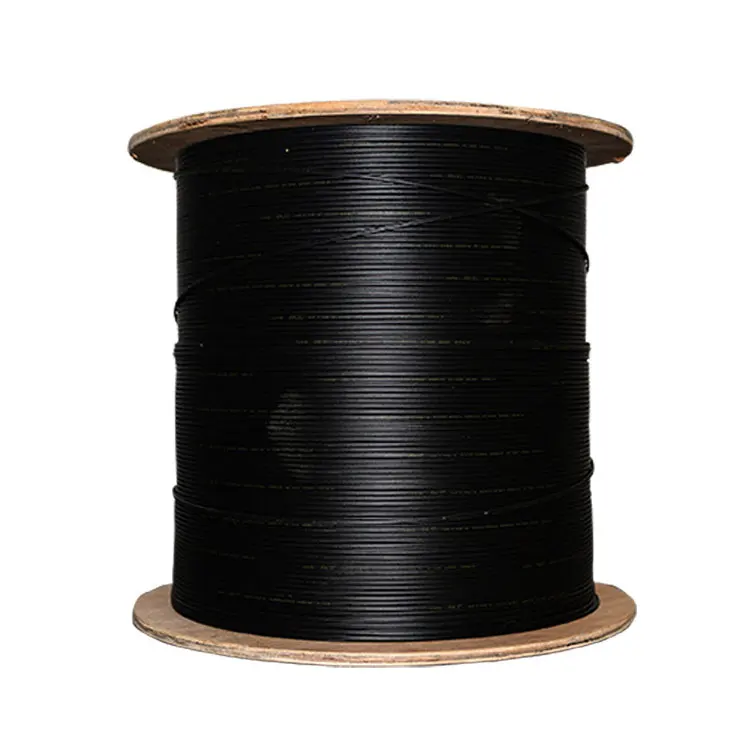

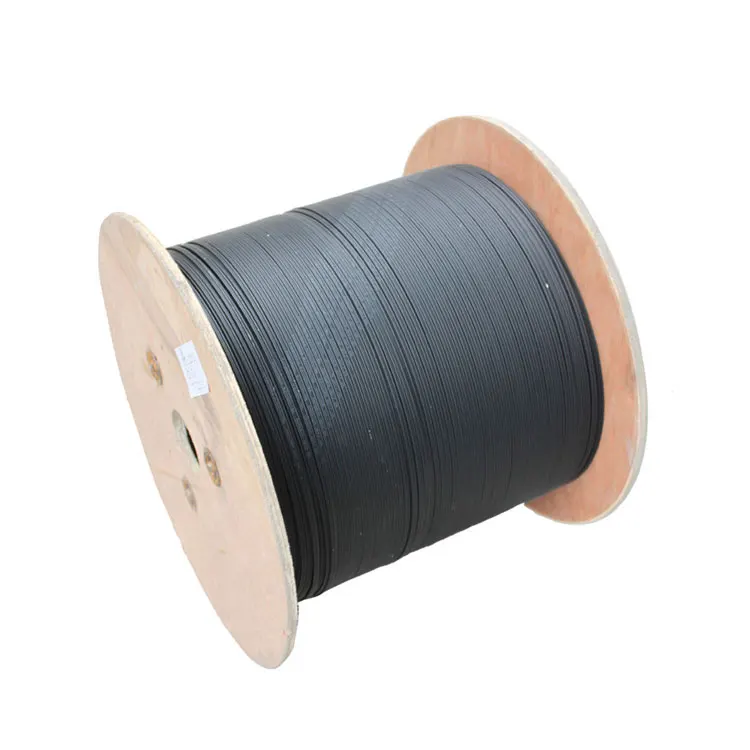

FTTH 1 core 2 cores 4 core GJYXFCH G657A1 G652D FTTH Indoor Outdoor Fiber Optic Drop cable
- Category: >>>

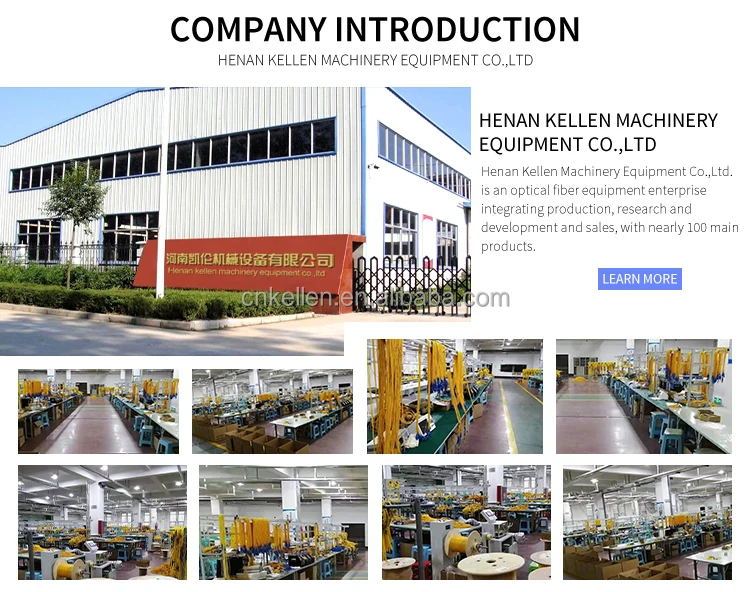

- Supplier: Henan Kellen Machinery Equipment Co. Ltd.
Share on (1600568272083):
Product Overview
Description
Characteristic
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
transmission property;

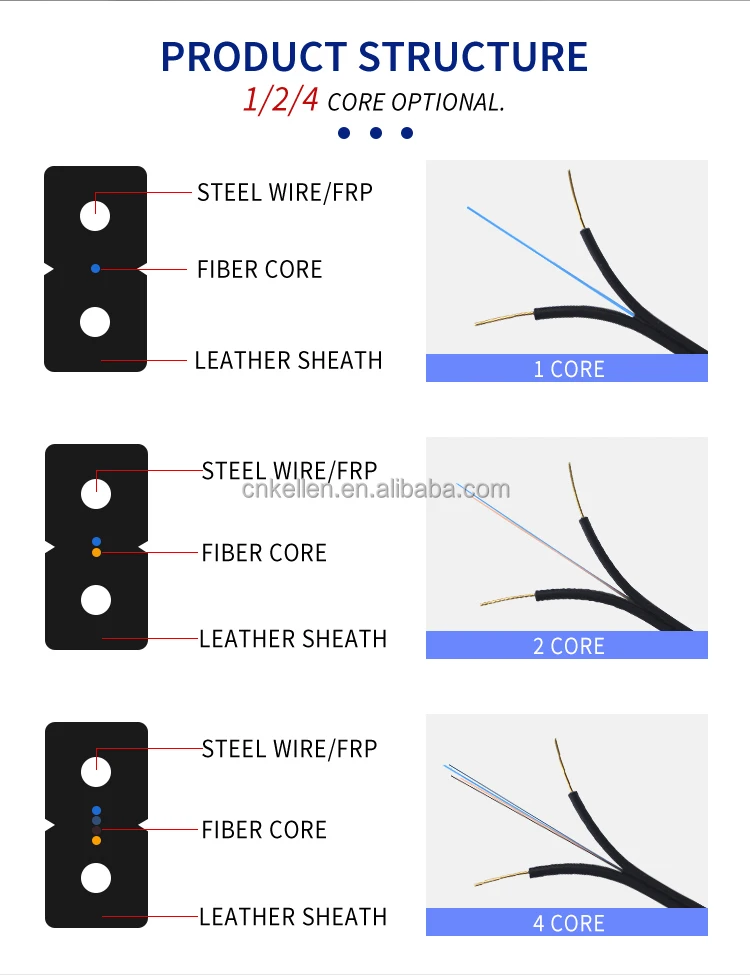

Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
Single steel wire or massagers as the additional strength member ensures good performance of tensile strength.
Simple structure, light weight and high practicability;
Novel flute design, easily strip and splice, simplify the installation and maintenance
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
transmission property;
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
Single steel wire or massagers as the additional strength member ensures good performance of tensile strength.
Simple structure, light weight and high practicability;
Novel flute design, easily strip and splice, simplify the installation and maintenance
Fiber Count (F) | Cable Diameter (mm) | Cable Weight (kgs) | Tensile Strength (N) | Crush Strength (N) | Min. Bending Radius | Temperature Range (℃) | ||||||
Long term | Short Term | Long term | Short Term | Long term | Short Term | |||||||
2 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 | |||
4 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 | |||
6 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 | |||
8 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 | |||
10 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 | |||
12 | 8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D | 20D | -40~+60 | |||
