Wholesale High Quality 6 Heads Automatic Liquid Filling Machine Beverage Can Filling Machine
- Category: >>>
- Supplier: Guangdong Loyalty Technology Co. Ltd.
Share on (1600568384794):
Product Overview
Description
Features:

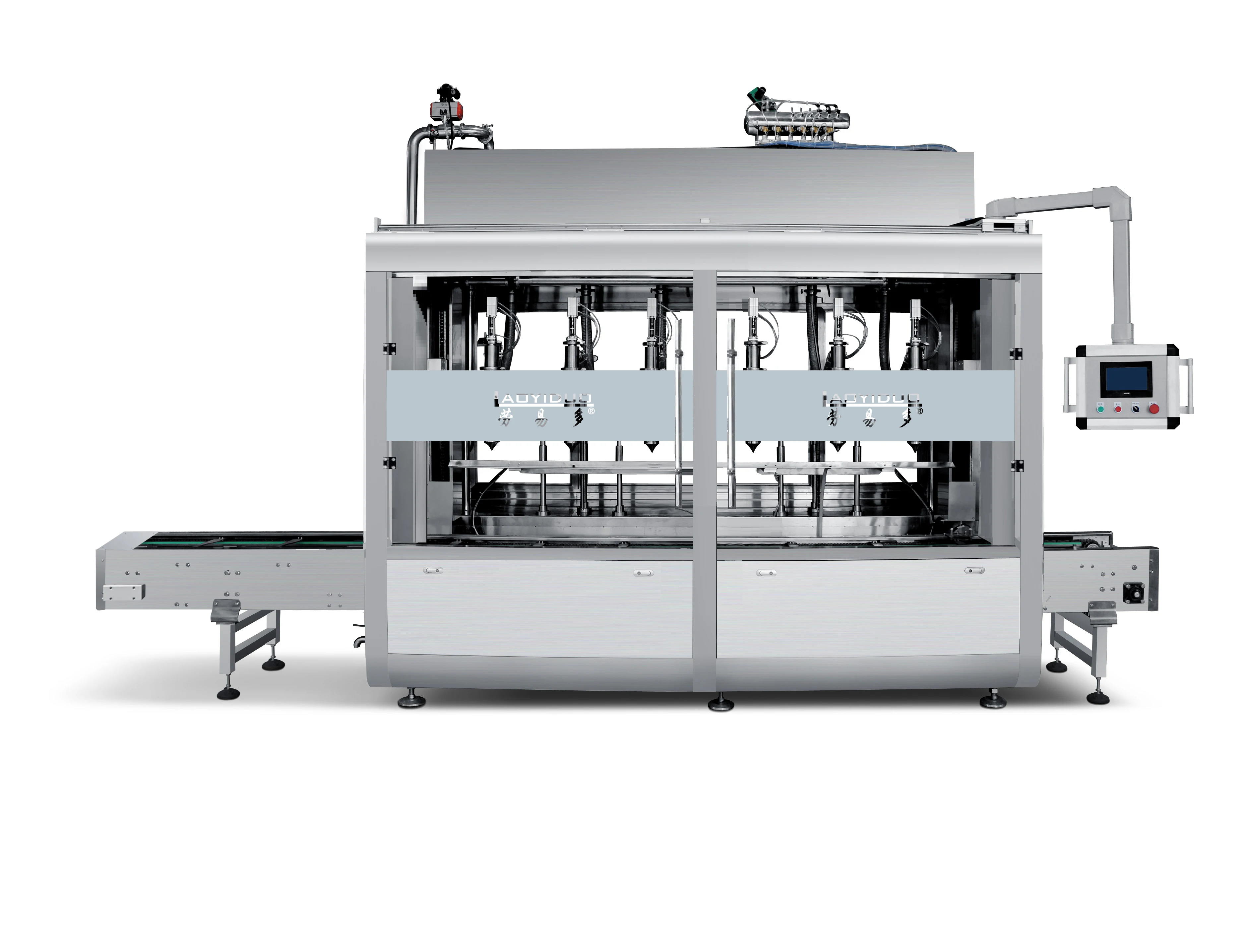

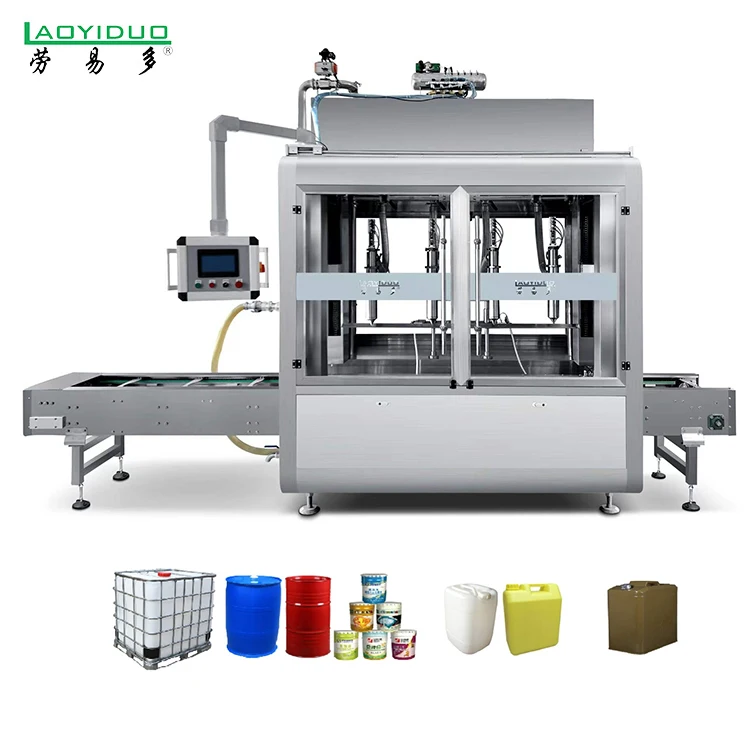

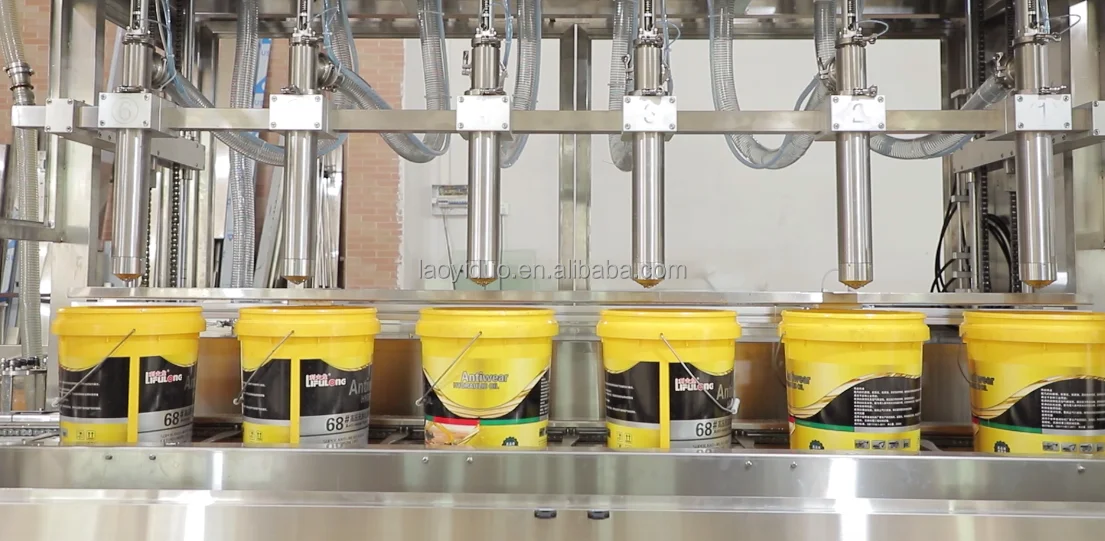

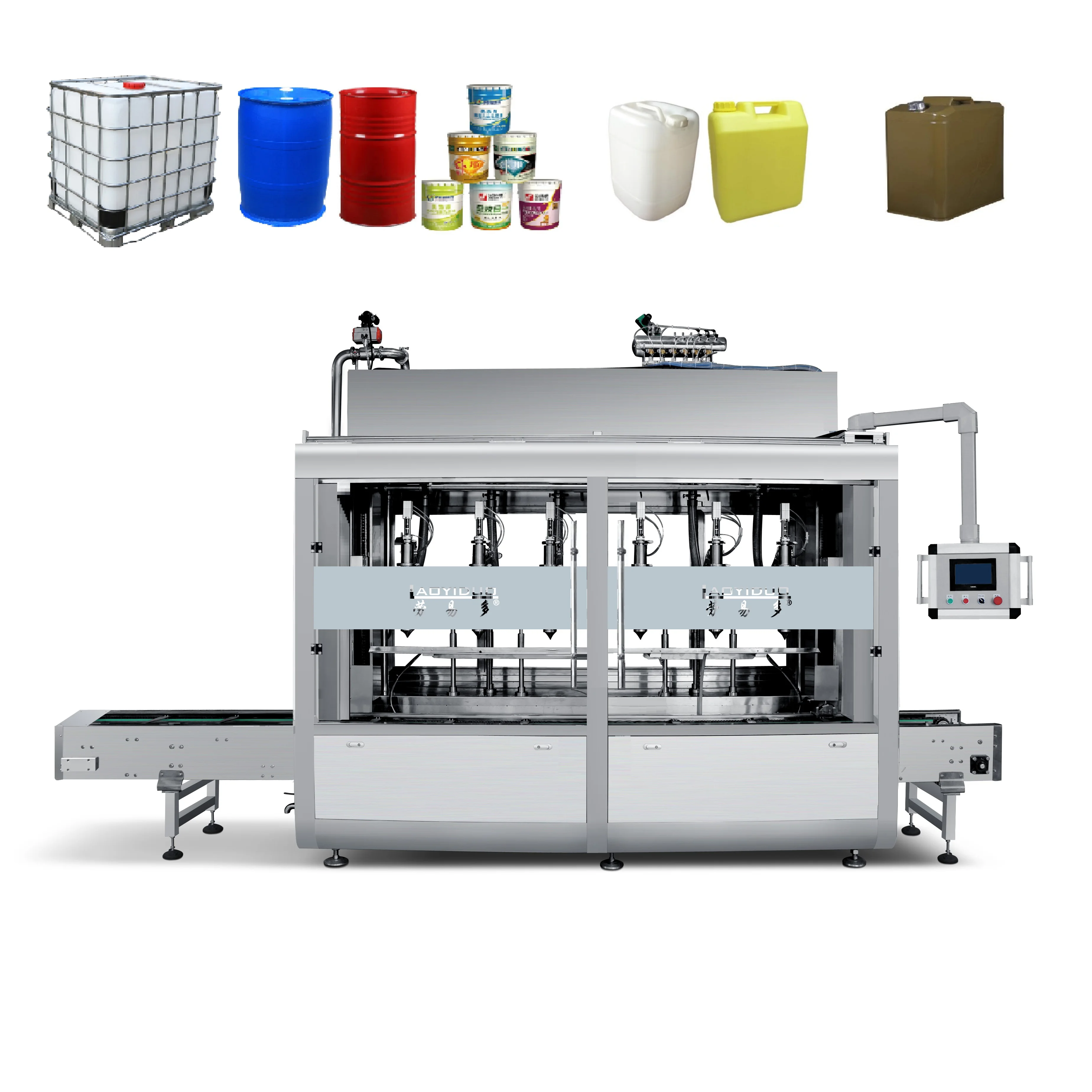

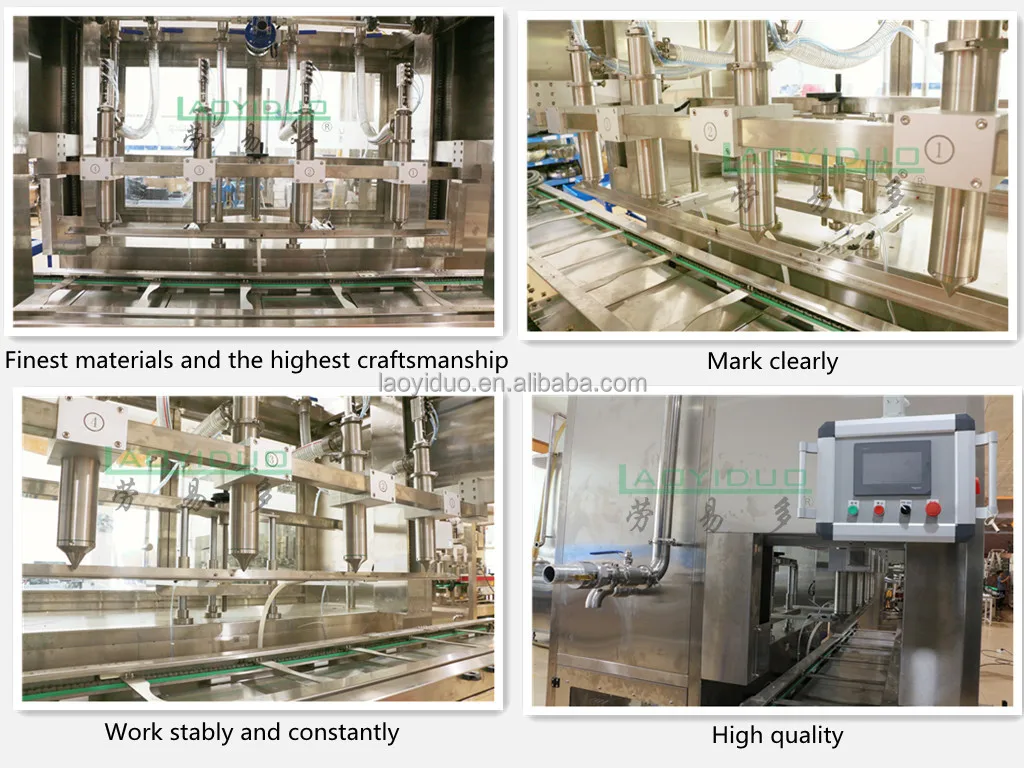

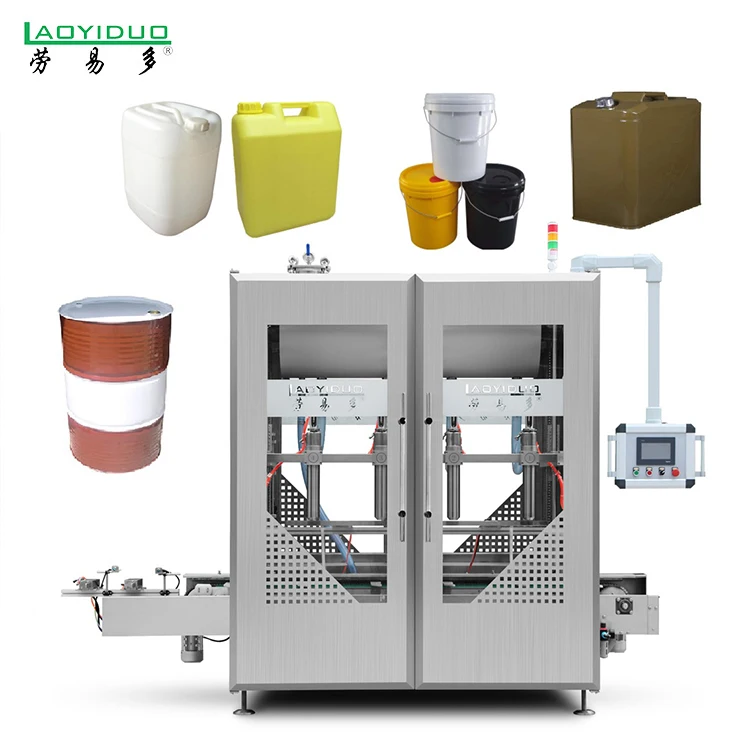

This equipment is specially designed for automatic filling of 10L-25L solution in the bucket. This machine adopts Schneider PLC and intelligent touch screen automation control. It is easy to operate, easy to use, and has a low failure rate. Weighing controller and China Avionics side weighing sensor (Asia's largest) combined control, high filling accuracy, fast response speed, each filling head has a weighing and feedback system, can fill each head Filling settings, adjustments and monitoring. Weighing sensors, proximity switches, etc. are all advanced sensing elements, so that no buckets are not filled, the buckets are automatically shut down and alarmed. Equipped with filling dive function, effectively reduce foam and splash. The connection of each pipeline is quick-connected. It is convenient and quick to disassemble and clean. The parts in contact with the materials and the exposed parts are made of high-quality stainless steel materials.
Filling range | 5KG-25KG |
Filling heads | 6 heads |
Production speed | 400-500 Barrels/hour |
Motor power | 5KW |
Accuracy | ≤±20g (18L) |
Air pressure | 0.6—0.8Mpa |
Power supply | 380-415V, 50/60Hz |
Machine size | 2500mm X 2000mm X 2600mm |
