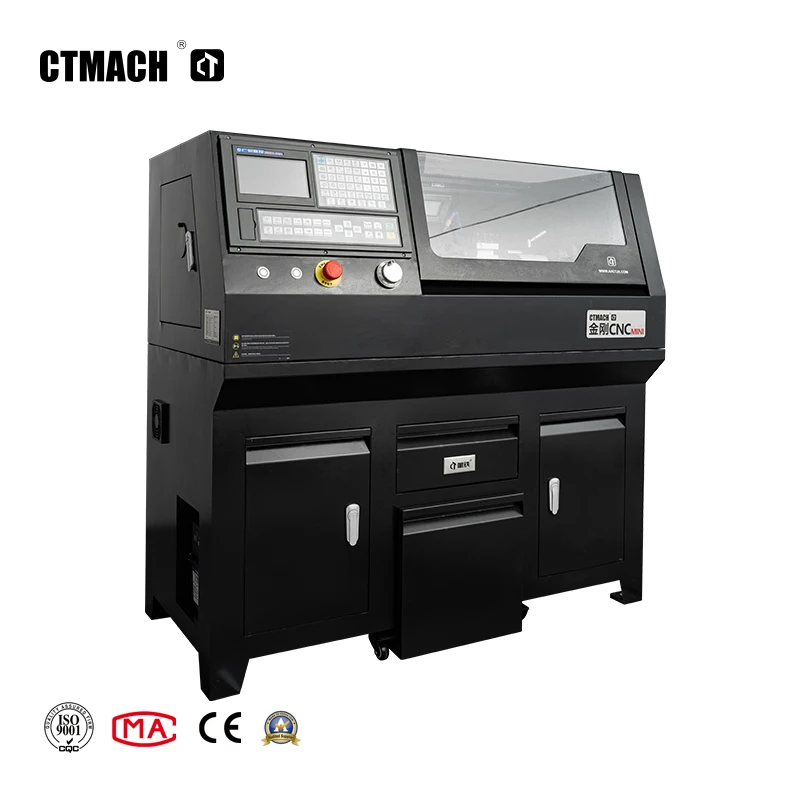

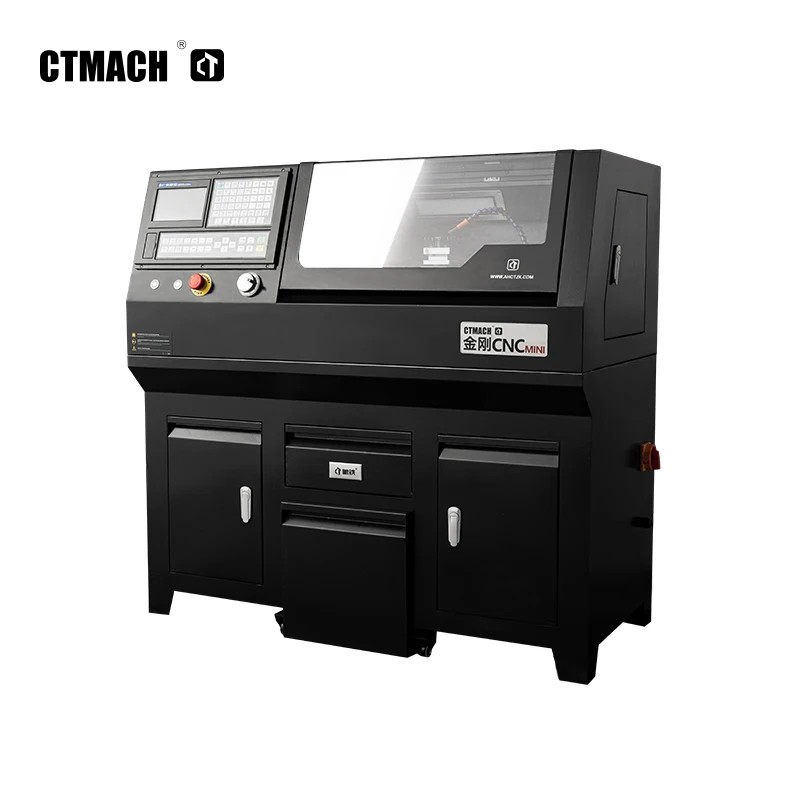

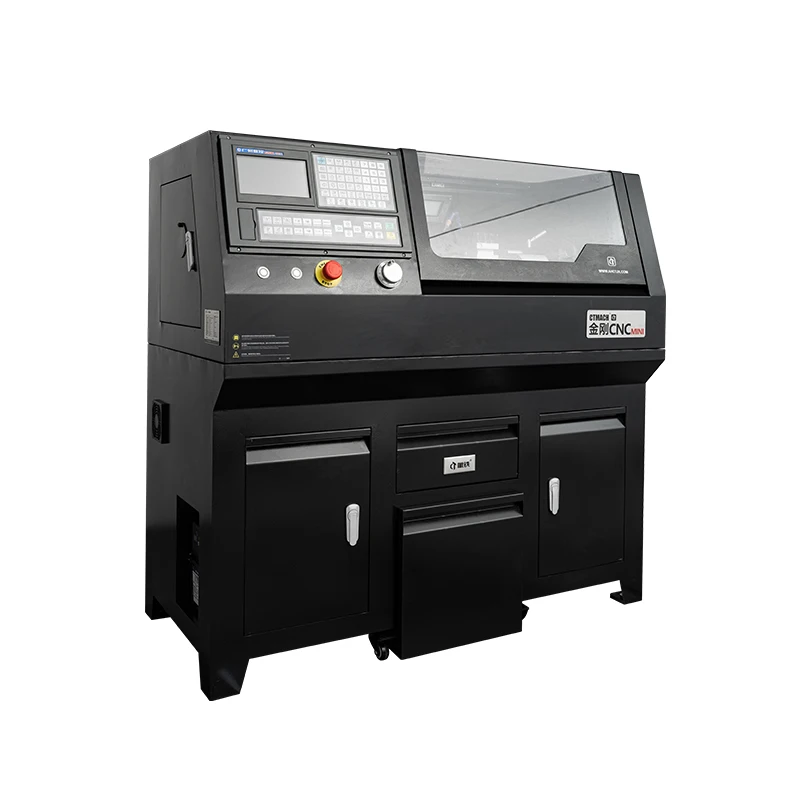

CTCNC21C Mini CNC lathe machine automatic lathe price for sale
- Category: >>>
- Supplier: Anhui Sinsun Electronic Commerce Co. Ltd
Share on (1600568417891):
Product Overview
Description
SIMILAR PRODUCTS
CTCNC210 Small Mini CNC Lathe

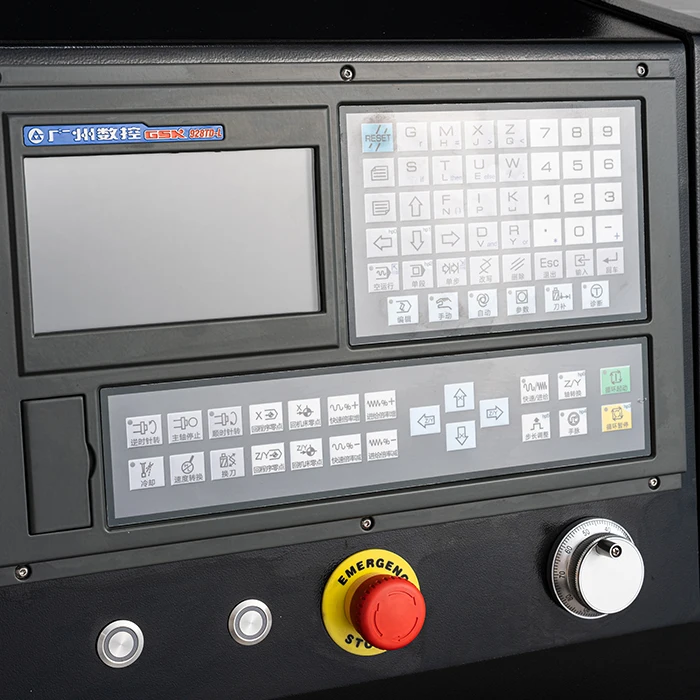

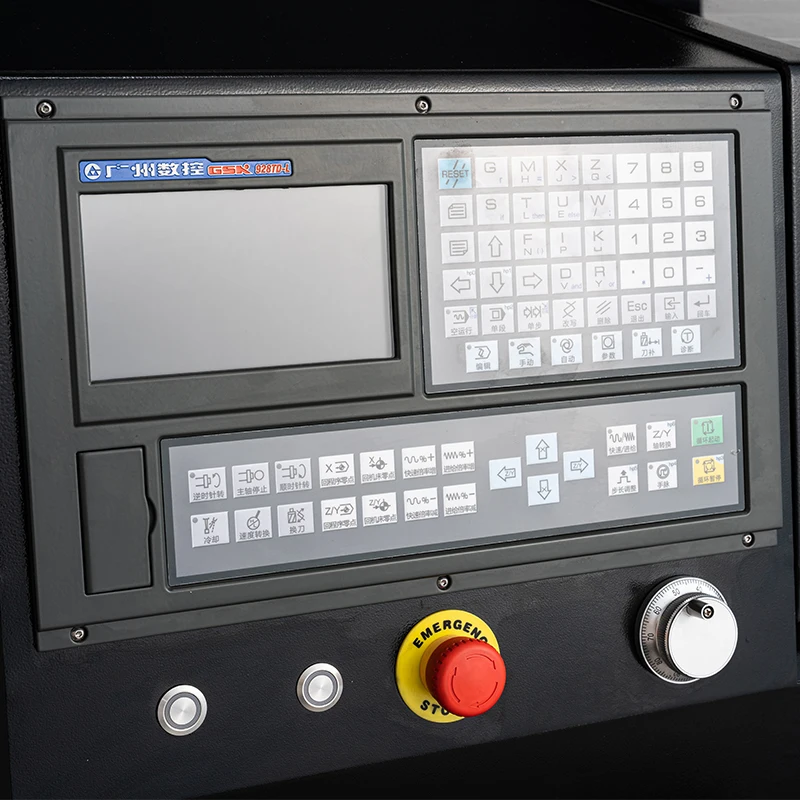

GSK 928TD-L system

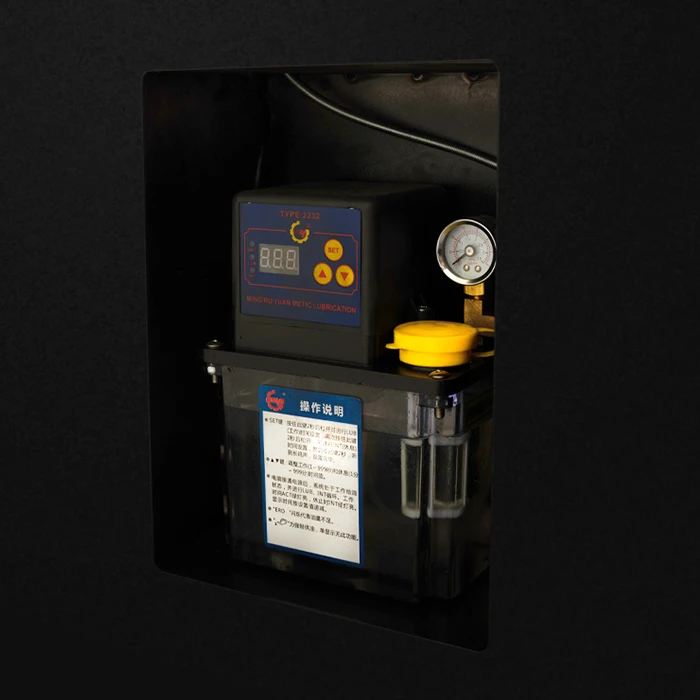

Germany - IBC spindle bearing, P4 grade ground ball screw, automatic lubrication

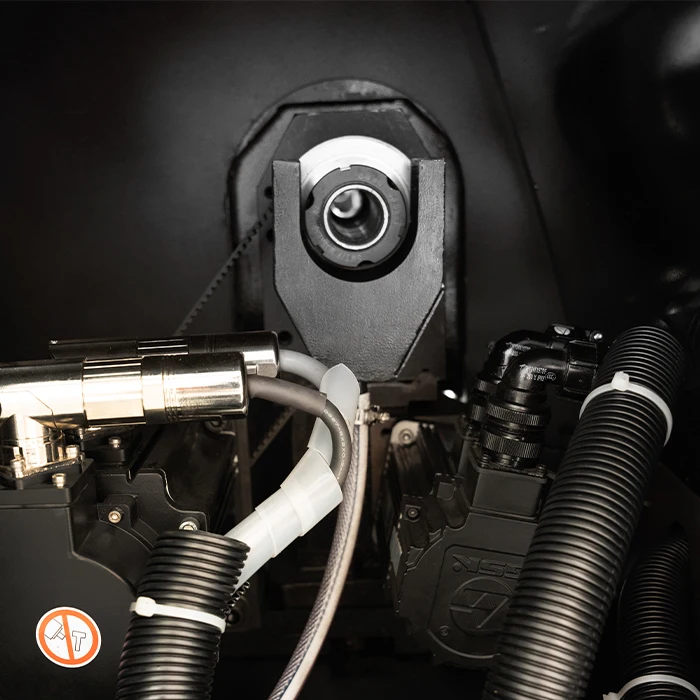

Spindle and two-axis feed servo motor

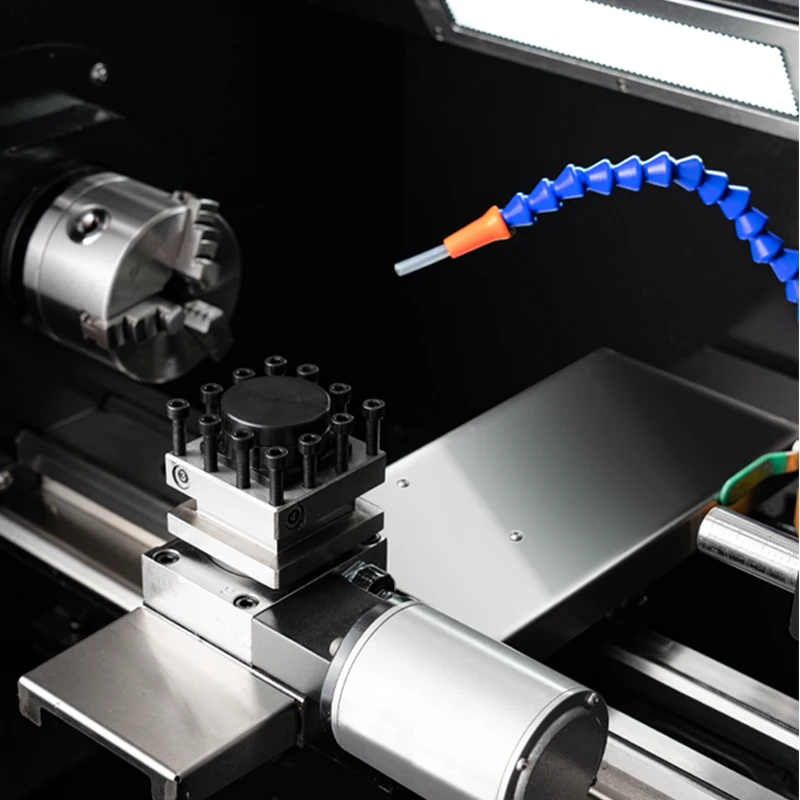

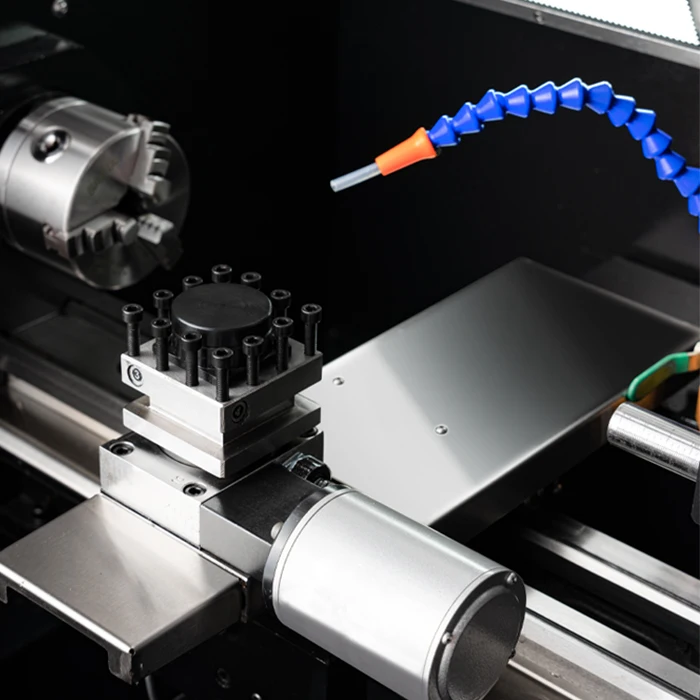

Four-station electric tool holder, cooling and lighting system
High frequency quenching, hard guide rail, fully enclosed protective cover

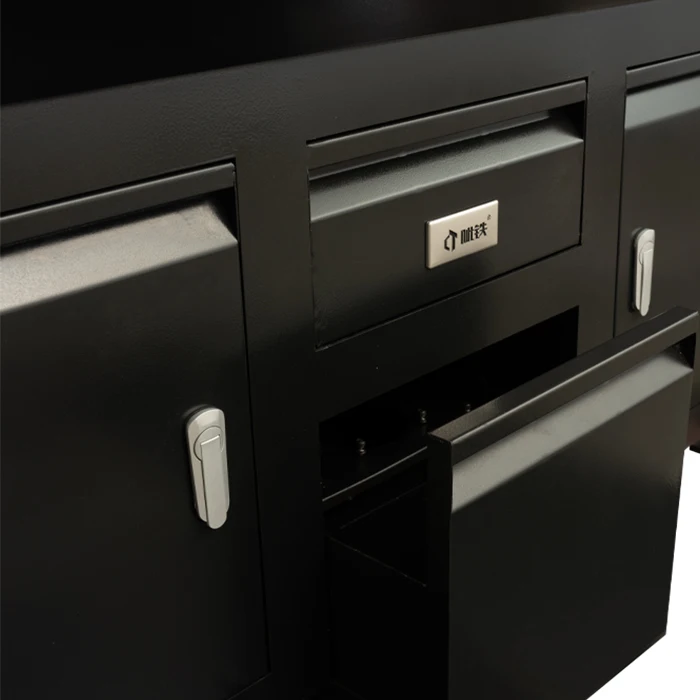

Integrated coolant tank, separate chip drawer for easy chip evacuation, storage drawer
Germany - IBC spindle bearing, P4 grade ground ball screw, automatic lubrication
Spindle and two-axis feed servo motor
Four-station electric tool holder, cooling and lighting system
High frequency quenching, hard guide rail, fully enclosed protective cover
Integrated coolant tank, separate chip drawer for easy chip evacuation, storage drawer
Max. Swing Over Bed | 210mm | ||||||
Max. Swing Over Cross Slide | 100mm | ||||||
Max. Turning Length | 250mm | ||||||
X/Z Axis Travel | 110*300mm | ||||||
Electric four-station Tool Holder | 12*12mm | ||||||
Spindle Taper | MT4 | ||||||
Spindle Bore | 26mm | ||||||
Tailstock Taper | MT2 | ||||||
Travel of Tailstock Sleeve | 50mm | ||||||
Spindle Accuracy | ＜0.01mm | ||||||
Positioning Accuracy | 0.02mm | ||||||
Repeatability | 0.01mm | ||||||
X-Axis Max. Moving Speed | 6000mm/min | ||||||
Z-Axis Max. Moving Speed | 6000mm/min | ||||||
X/Z Axis Feed Rate | 1-4000rpm | ||||||
Spindle Speed | 0-3000r/min | ||||||
Spindle Servo Motor | 1.88KW/6N.M | ||||||
X/Z Axis Servo Motor | 750W/2.4N.M | ||||||
Pump Power | 40W | ||||||
Voltage | 220V 50HZ | ||||||
N.W. | 346KG | ||||||
Overall Dimensions | 1250*680*1200mm | ||||||
FEATURES AT A GLANCE

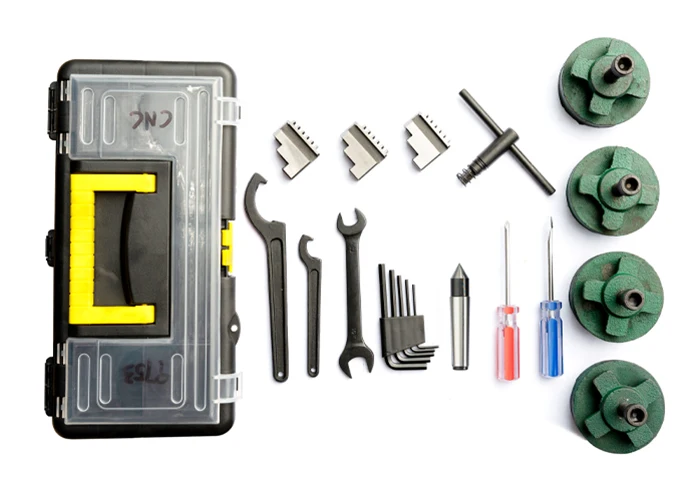

Product Acessories
SALES AND SERVICE NETWORK
Products are exported to more than 30 countries and regions in the world
EU CE standard, safe and reliable
ISO9001 quality system certification
EU CE standard, safe and reliable
ISO9001 quality system certification
Company Profile
FAQ
Q.What are your normal lead times?
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
