Washing Machinery Portable Plant Price Automatic Cip Cleaning Machine

Product Overview

Description

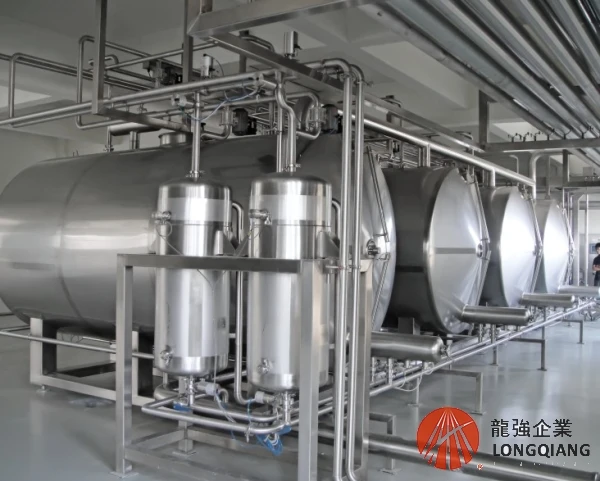

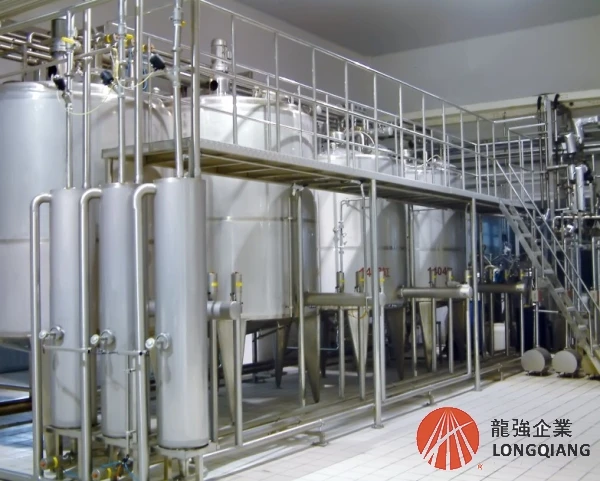

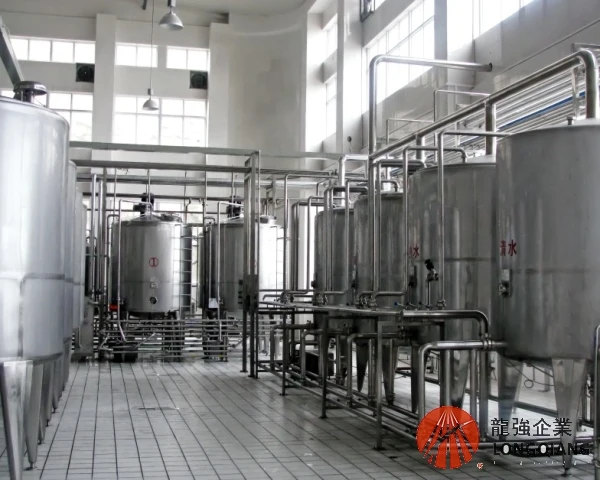

CIP Cleaning System

The operating principle of the full auto CIP cleaning system means that the tank body, pipelines, pumps and all valves and also the whole processing line are cleaned on line no need to disconnect the pipes or the equipments, all cleanings are done at the closed circuit.

Detailed description

Technical

This system adopts the PLC program to control, with the colored touch screen to operate and display the whole process flow and also the each controlling parameter. The temperature of the cleaning liquid can be installed.  It can set the PH value, the cleaning time, cleaning sequence, and also    the refluence PH value. With the system malfunction alarm device.



The system consist of

CIP cleaning liquid storage tanks(include acid tank, alkali tank, hot water tank, clean water tank).
Two small single layer storage tank for concentrated acid and alkali.
CIP forward and return pumps.
Two diaphragm pumps for acid/alkali concentrate.
Heat exchanger(plate or tubular type).
One electrical control panel.
One set of controlling pipe and valve component.
One set of auto-performance components and parts and the electrical appliance material.
CIP cleaning liquid storage tank: 1000L-10000L.
According to the customer's requirements, we can make the double circuit, three circuit, four circuit and so on, meanwhile we can make multi circuit operating at the same time.
The Heating way: plate type, coil tube type, tubular type.

Technical Parameter



Tank size		1000L-10000L
CIP tank type		Alkali tank, acid tank, hot water, clean water tank, water recycle tank
Cleaning recycle		Single circuit, double circuits, three circuits, four circuits
Heating method		Coil pipes inside, plate heat exchanger, tube heat exchanger
Automatic types and characters	Full Automatic	1. Flow rate auto control; 2.Temperature auto control; 3.Auto compensate the cip liquid level;4.Auto compensate the liquid concentrate; 5.Cleaning liquid transfer; 6.Auto alarm
	Semi-automatic control	1.Temperature auto control 2.With control panel, manual control the others
	Manual control	1.Manual operate on the cleaning process
