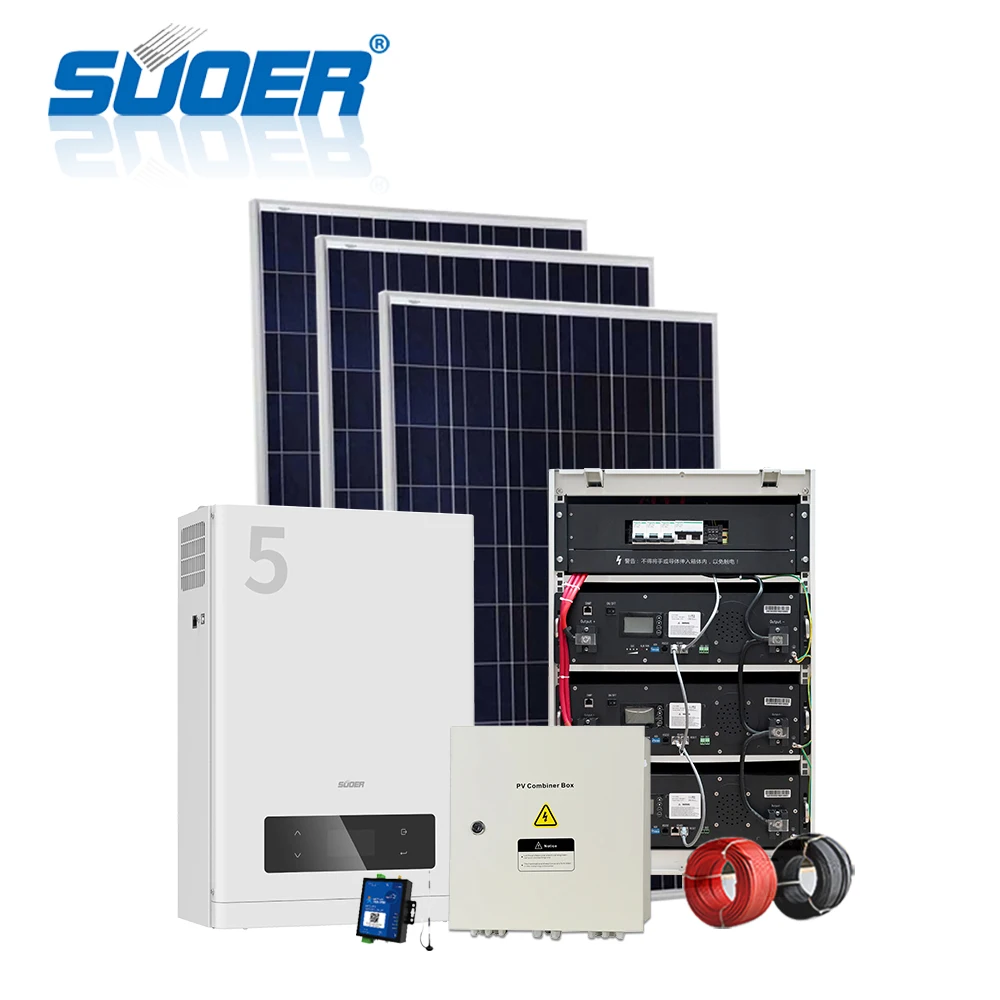

SUOER factory wholesale Solar 5kw off grid solar power system complete
- Category: >>>
- Supplier: Foshan Suoer Electronic Industry Co. Ltd.
Share on (1600568519301):
Product Overview
Description
Product Description
Home Hybrid Energy Storage System
Features
• Can be connected to single-phase AC, 48V battery DC and 500V photovoltaic DC, and converted into single-phase 230V AC output
• AC input/PV input lightning protection function: Class II, In=20KA
• AC input/output protection function: overload/short circuit/leakage
• Compliant with CE LVD and EMC directives and EU ROHS directives
• Application: Household use of hybrid energy storage and power supply
• Can be connected to single-phase AC, 48V battery DC and 500V photovoltaic DC, and converted into single-phase 230V AC output
• AC input/PV input lightning protection function: Class II, In=20KA
• AC input/output protection function: overload/short circuit/leakage
• Compliant with CE LVD and EMC directives and EU ROHS directives
• Application: Household use of hybrid energy storage and power supply
Specification
Brand Name | SUOER |
Model Number | Solar Home System |
Application | Home |
Controller Type | MPPT |
Load Power (W) | 3KW, 8KW, 5kW, 10KW |
Output Voltage (V) | 230VDC |
Output Frequency | 50Hz |
Work Time (h) | 24 Hours |
Certificate | CE/ROHS |
Product name | Off-Grid Home Hybrid Solar System |
Application | Home hybrid energy storage |

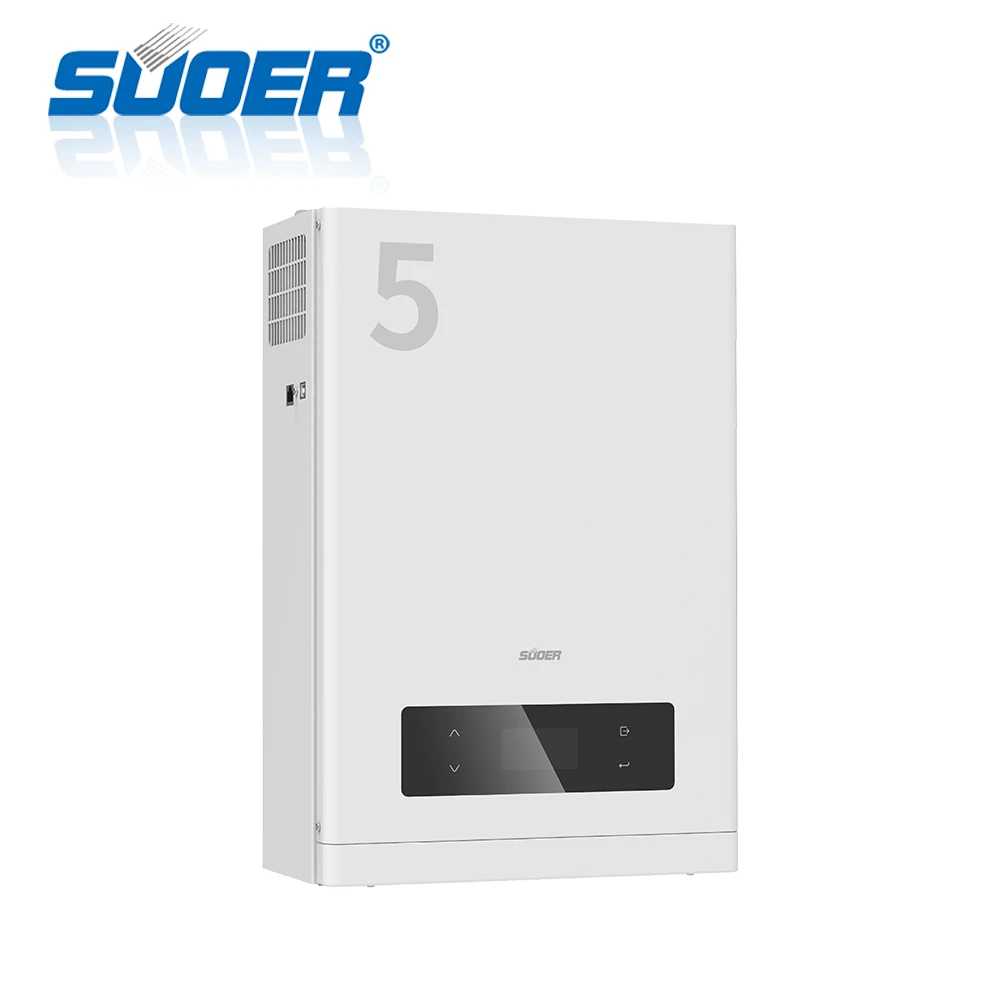

Off-grid inverter | VMS series |
Energy storage battery cabinet | 51.2V300AH |
AC and DC distribution box | Standard |
Off-grid inverter Size | 300*400*100mm |
Energy storage battery cabinet Size | 502*832*602mm |
AC and DC distribution box Size | 600*500*200mm |
Server | 4G terminal/serial port |
AC input rated voltage: 230Vac
AC input voltage range: 90-280Vac (170-280Vac full power output)AC input rated frequency: 50/60Hz
AC input maximum current: 30Aac
AC output rated voltage: 230Vac±5%
MPPT tracking voltage range: 240-450Vdc (full power input)
AC output rated frequency: 50HzAC output rated power: 5000W
Maximum charging current: 80A
Maximum discharge current: 104A
PV maximum input power: 4000W
PV array open circuit voltage: 500Vdc

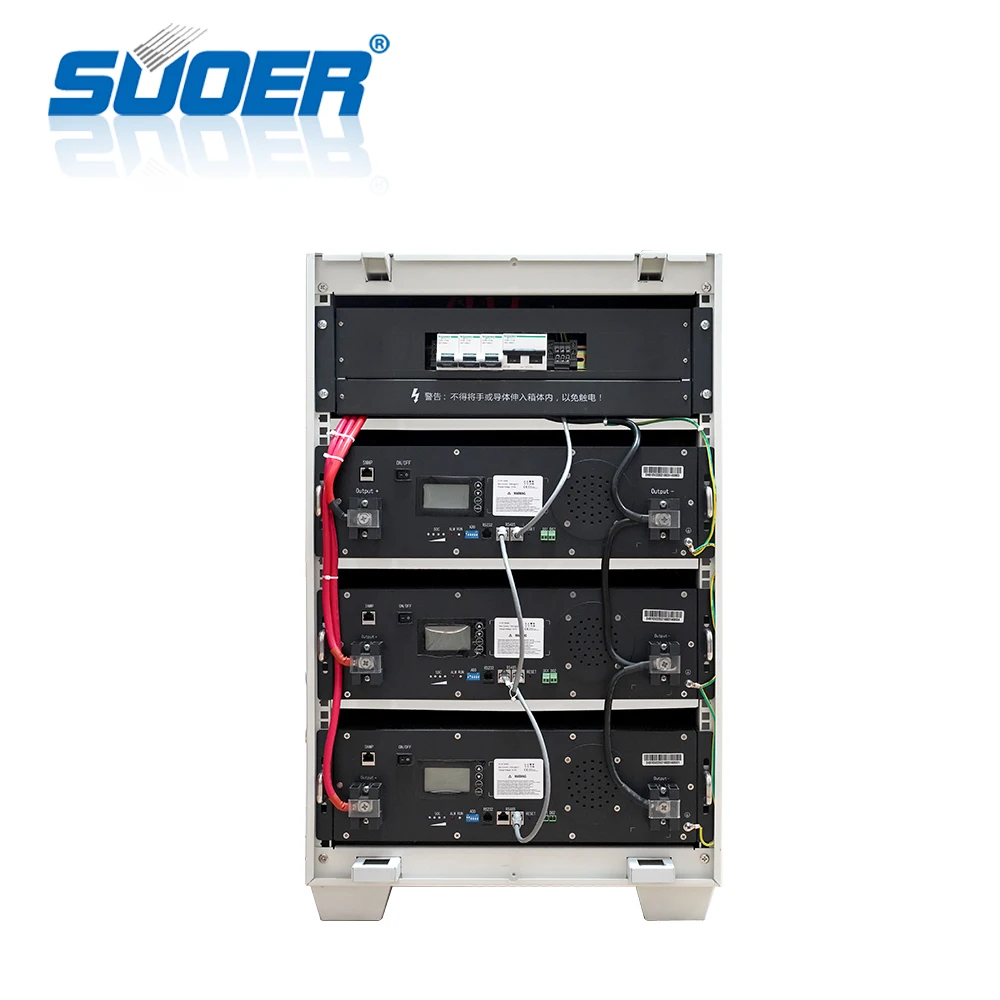

Energy Storage Battery Cabinet
Battery Type: Lithium Iron Phosphate Battery
Rated battery voltage: 51.2VDC
Float voltage: 56.4VDC
Battery overvoltage protection value: 58VDC
Battery under-voltage protection value: 42VDC
Battery capacity: 100AH×3 groups
Maximum charging current: 100A
Maximum discharge current: 100A
Communication interface: RS485
Capacity indication 4 lights LED: 25%-50%-75%-100%
Charging working temperature: 0℃～60℃
Discharge working temperature: -20℃～60℃
Working humidity: 10%～95%RH
Rated battery voltage: 51.2VDC
Float voltage: 56.4VDC
Battery overvoltage protection value: 58VDC
Battery under-voltage protection value: 42VDC
Battery capacity: 100AH×3 groups
Maximum charging current: 100A
Maximum discharge current: 100A
Communication interface: RS485
Capacity indication 4 lights LED: 25%-50%-75%-100%
Charging working temperature: 0℃～60℃
Discharge working temperature: -20℃～60℃
Working humidity: 10%～95%RH
AC input circuit breaker: 32A/2P×1
AC input lightning protection: 1+1, In=20KA
AC output circuit breaker: 32A/2P×1
Battery access circuit breaker: 125A/2P×1
PV input circuit breaker: 16A/2P×1
Photovoltaic input lightning protection: 2+1, In=20KA
AC input lightning protection: 1+1, In=20KA
AC output circuit breaker: 32A/2P×1
Battery access circuit breaker: 125A/2P×1
PV input circuit breaker: 16A/2P×1
Photovoltaic input lightning protection: 2+1, In=20KA
Company Profile
Foshan Suoer Electronic Industry Co.,Ltd.,located in Dali, Nanhai, Foshan City, Guangdong Province,which is a comprehensive joint-stock corporation integrating R&D, production and sales as one of the high-tech enterprises.Our company has established an industrial park covering a land area of 20 thousand square meters, with standard workshop, advanced production equipment, a standard R&D building and world-leading facilities.
Suoer brand is our registered trademark for our products. Our products mainly include High/Low frequency hybrid solar inverter, MPPT/PWM solar charge controller, battery charger, solar pump inverter,etc. Our company has been specialized in the manufacture and export of home power supply for more than 10 years. Adhere to the integrity management, sustainable development,and create a win-win service purposes with our customers as our ultimate development philosophy.
Suoer brand is our registered trademark for our products. Our products mainly include High/Low frequency hybrid solar inverter, MPPT/PWM solar charge controller, battery charger, solar pump inverter,etc. Our company has been specialized in the manufacture and export of home power supply for more than 10 years. Adhere to the integrity management, sustainable development,and create a win-win service purposes with our customers as our ultimate development philosophy.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to Mid East(35.00%),Southeast Asia(30.00%),Eastern Asia(10.00%),South Asia(10.00%),South America(5.00%),Africa(5.00%),Oceania(5.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Pump Inverter,Solar Hybrid Inverter,Battery Charger,Solar Controller,Grid Tie Inverter
4. why should you buy from us not from other suppliers?
1.26 years experience in home power supply industry,
2.10 Professional Sales Teams
3.Specialization enhances quality,
4.Products has passed CAT,CE,RoHS,ISO9001:2000 Quality System Certificate.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,Cash;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2005,sell to Mid East(35.00%),Southeast Asia(30.00%),Eastern Asia(10.00%),South Asia(10.00%),South America(5.00%),Africa(5.00%),Oceania(5.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Pump Inverter,Solar Hybrid Inverter,Battery Charger,Solar Controller,Grid Tie Inverter
4. why should you buy from us not from other suppliers?
1.26 years experience in home power supply industry,
2.10 Professional Sales Teams
3.Specialization enhances quality,
4.Products has passed CAT,CE,RoHS,ISO9001:2000 Quality System Certificate.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,Cash;
Language Spoken:English,Chinese
