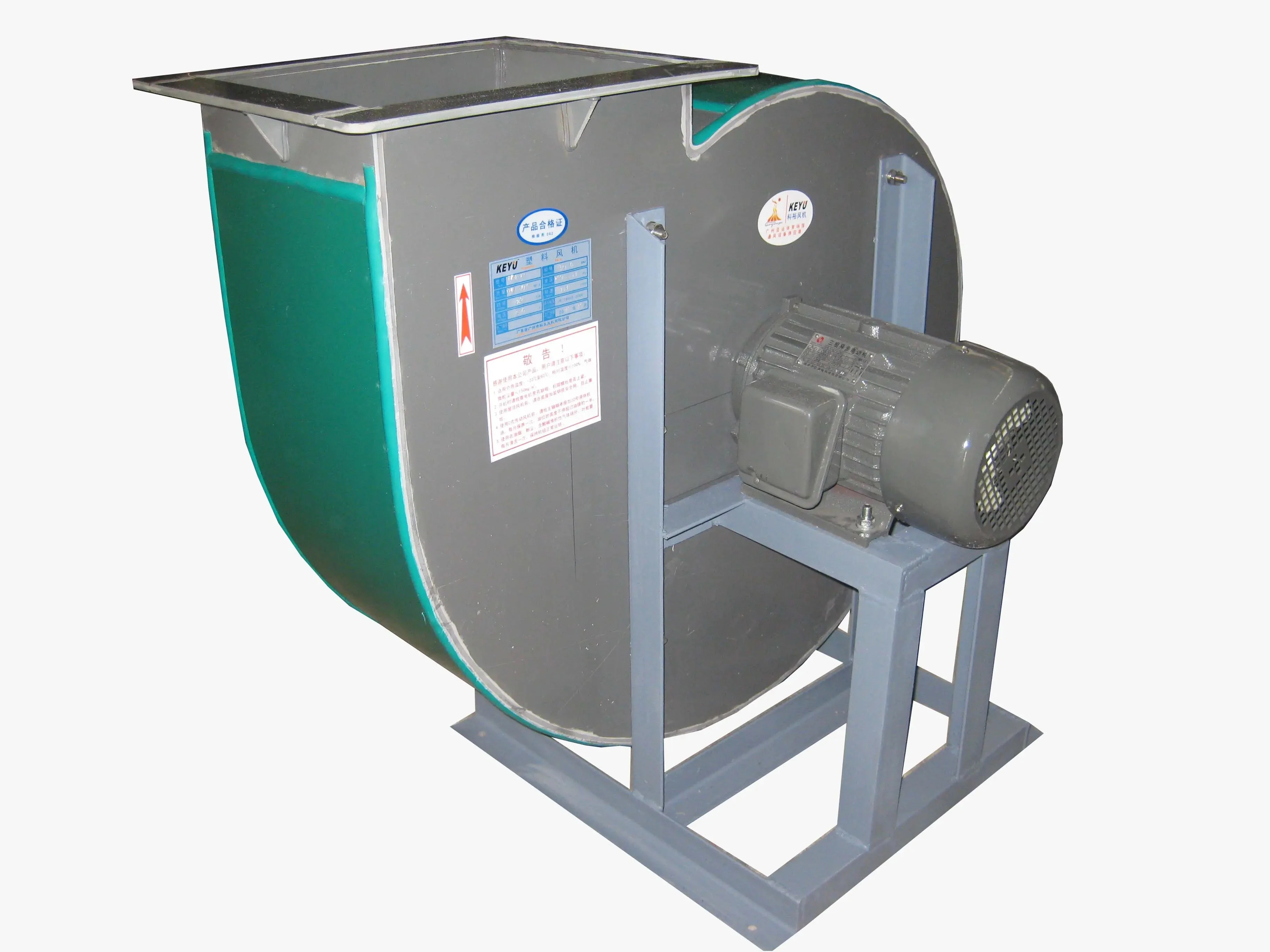

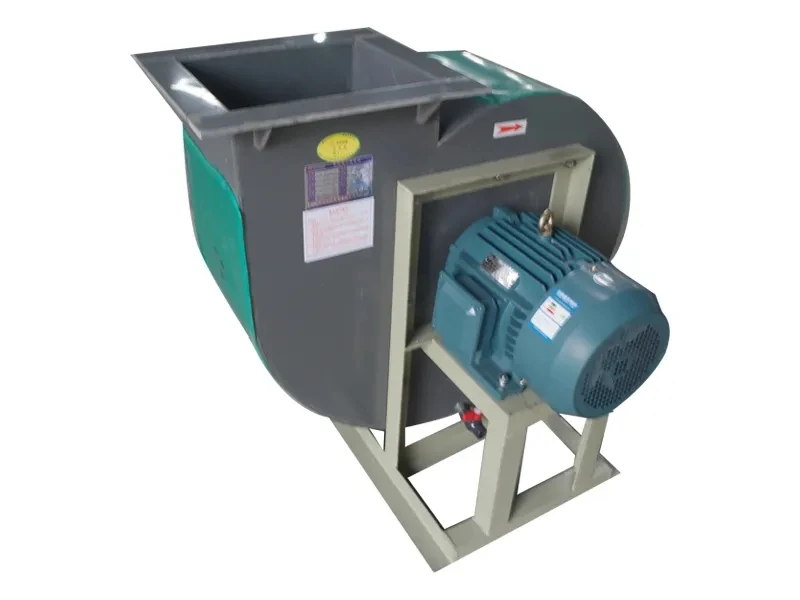

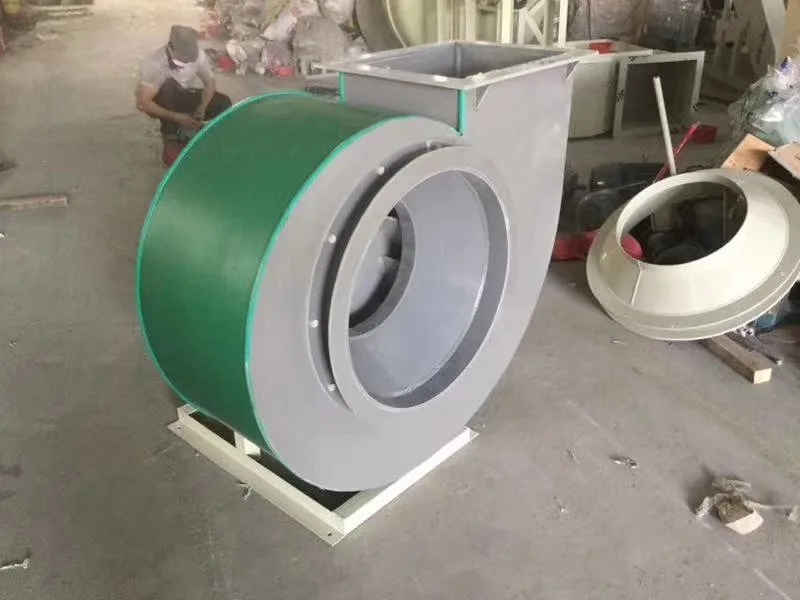

Directly operated by the manufacturer PVC Plastics Centrifugal circulation fan

Product Overview

Description

PVC4-62 plastic PVC centrifugal ventilator series, the products have high strength, strong corrosion resistance, smooth operation, low noise, etc.The fan can convey air and other non-spontaneous combustion, corrosive gas.Viscous substances are not allowed in the gas, and the hard dust particles contained in the gas shall not be greater than 150mg/m3, and the gas temperature shall not exceed 80℃.

Feature:

1.The impeller is made of plastic injection molding, and the large air volume impeller is made of automatic equipment, processing and welding;

 2, Fan volute internal, motor shaft are strictly all anticorrosive effect;
 3.The product has a maximum temperature resistance of 80℃ and is suitable for ventilation places of various general acid, basic gas and organic gas.

Model(No)
	Power(Kw)	Speed(r/min)	Volume(M3/h)	Pressure(Pa)
2A	0.25	1450	680-800	128-78
3A	1.1	1450	1000-1400	323-127
	0.75	1450	1000-1400	323-127
4A	1.1	1450	2500-3300	588-245
	0.75	1450	2500-3300	588-245
5A	2.2	1450	5500-7500	999-441
	1.5	1450	5500-7500	999-441
6A	5.5	1450	8400-11550	1337-720
	4	1450	8000-11000	1274-686
	1.5	960	4420-8841	498-317
7A	7.5	1450	10500-16500	1580-980
	3	960	6650-11000	650-425
8A	5.5	960	10478-19428	887-651

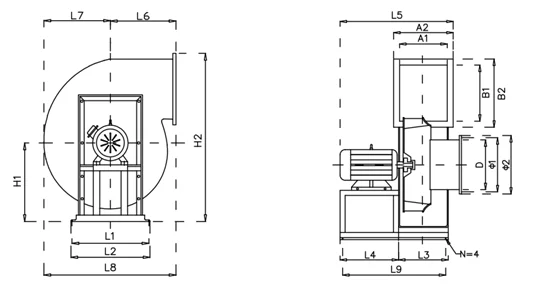

Lnstallation size diagram

If the product is measured manually, there will be some errors. The relevant data are only for reference, and the received material object shall prevail. Unit: mm
