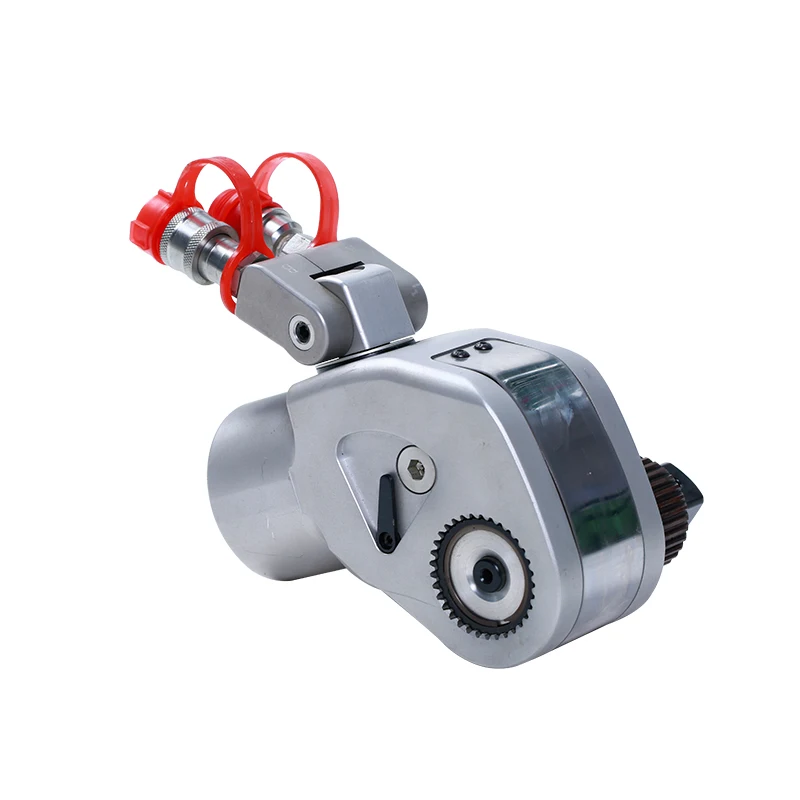

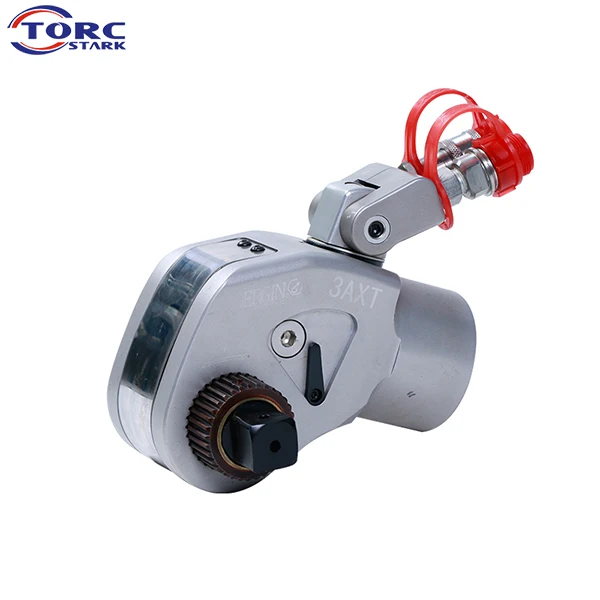

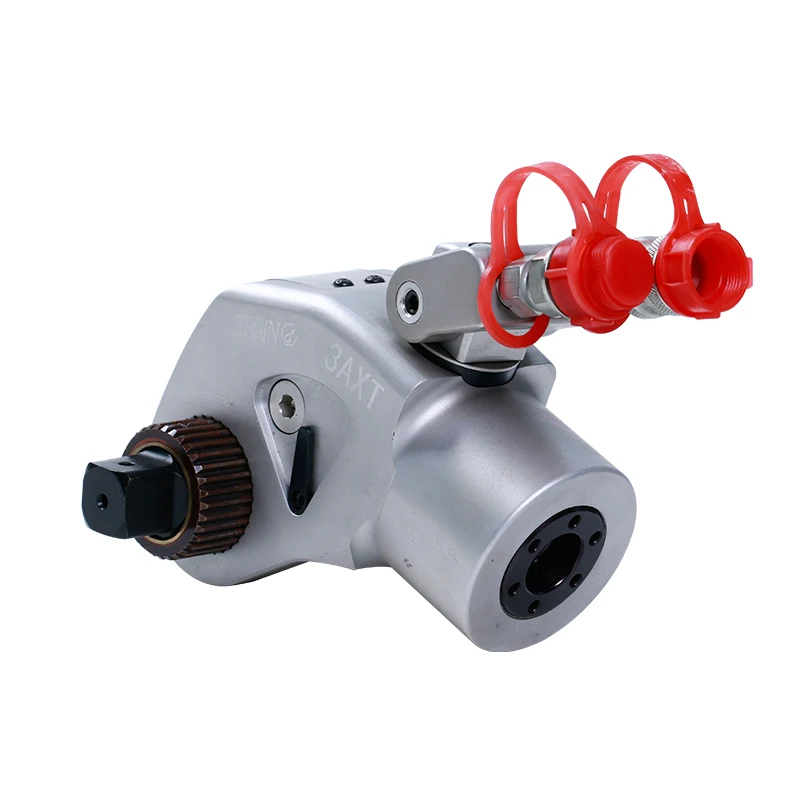

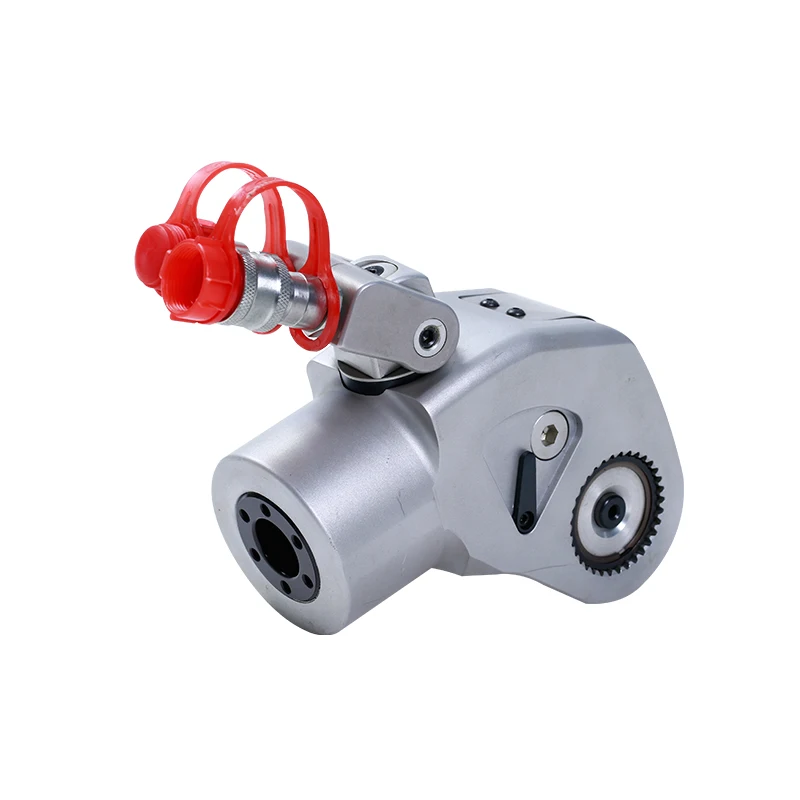

Bolting Systems Tightening hydraulic wrench AXT series hydraulic torque nut bolt wrench
- Category: >>>
- Supplier: Pingyuan Jingke Hydraulic Co. Ltd.
Share on (1600568521817):
Product Overview
Description
Product Description
Features
1. 70MPa max working pressure
2. Torque repeatability up to ±3%
3. Front reaction arm, smaller longitudinal size, more suitable for narrow space.
4. Reaction arm and square drive are coaxial, better adaptability.
5. Wide ranges from 179-19000Nm.
6. 360 degree swivel joint, free operation, no space limitation.
7. Al-Ti alloy material, high strength
8. Reaction arm can be customized
CEJN Connector
360 x 180 degree swivel joint, free operation, no space limitation
360 x 180 degree swivel joint, free operation, no space limitation
Accurate check trigger
Overcome bolt torsion and rebound, quickly increase bolt fastening speed
Overcome bolt torsion and rebound, quickly increase bolt fastening speed
Reaction arm and square drive are coaxial
Better adaptability
Better adaptability
Specification
Model | 1AXT | 3AXT | 5AXT | 8AXT | 10AXT | 15AXT |
Torque (mm) | 179 | 406 | 733 | 1003 | 1513 | 1904 |
1788 | 4062 | 7325 | 10033 | 15133 | 19041 | |
Precision | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% | +/-3% |
Weight (Kgs) | 2.4 | 5.1 | 8.4 | 10.3 | 14.6 | 17.8 |

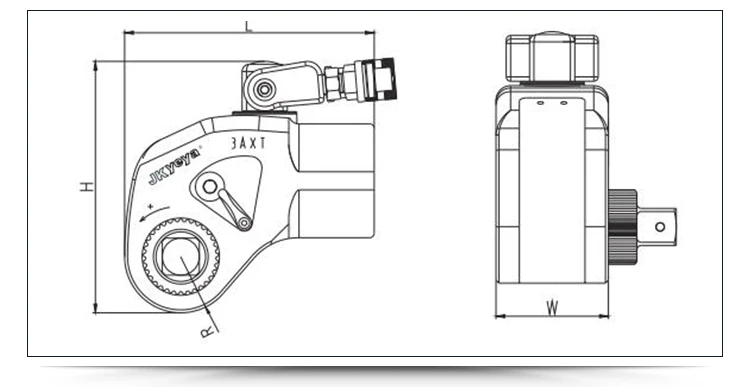

R (mm) | 29.5 | 38.5 | 47.5 | 54.5 | 62.5 | 64.5 |
L (mm) | 133 | 171 | 210 | 238 | 266 | 296 |
H (mm) | 135 | 172 | 205 | 232 | 253 | 255 |
W (mm) | 57 | 77 | 88 | 100 | 111 | 120 |
Square Drive | 3/4'' | 1'' | 1 1/2'' | 1 1/2'' | 1 1/2'' | 2'' |
Accessory products
Hydraulic pump-SP304
Hose
Model | Output port | Oil tank L | Flow Rate L/min | Output Pressure Mpa | Power | Weight Kg |
SP304-2 | 4x1/4 NPT | 8 | 8 | 6 | 220V/1.1KW | 26 |
1.6 | 32 | |||||
0.8 | 70 | |||||
SP304-4 | 8x1/4 NPT | 8 | 8 | 6 | 220V/1.1KW | 26 |
1.6 | 32 | |||||
0.8 | 70 |
Packing & Delivery
First packed with aluminum plastic box, then packed into wooden box
