Circuit breaker | Cable size | Voltage | Power rating |
50A | 10mm² | 110/127V | 4000/5400W |
40A | 6mm² | 110/127V | 3300/4000W |
430A | 4mm² | 220/230V | 5400W |
425A | 4mm² | 220/230V | 4400W |
35A | 2mm² | 127V | 3850W |




Problem | Problem reason | Solution |
The water is cold | The selection temperature is in | Put the selection temperature key in the hot or warm position |
No water is flowing through the shower head | The main register is closed or there is air inside the pipes | Open the main register and/or the taps and let the water flow to remove the air. The shower head must be disconnected of the electrical system . |
The shower head is not heating properly even with select key in the not position | The wires do not have the properly size as specified in the | Contact a qualified technician. To check your electrical installation. |
Low voltage: The voltage of your system may be not constant or under the values specified. | Contact a qualified technician. To verify your electrical system. If the nominal voltage of your system are under the values specified by your electric supplier (110~/127~or220V~), contact the utility responsible for your electrical supply. | |

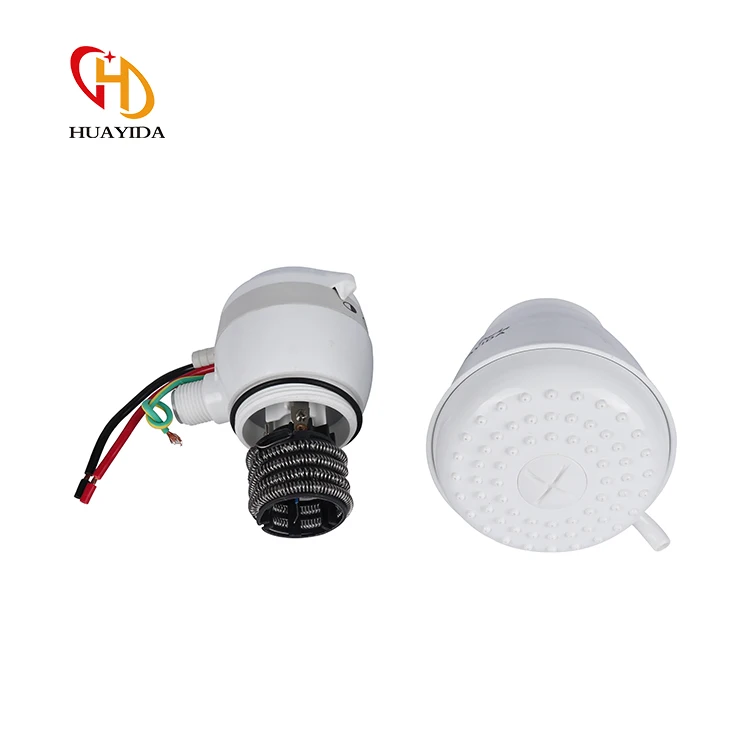

Burn of the element | Wear due to the normal use | Inadequate electric installation |
Inadequate electric installation | Check the voltage and characteristics from the electric installation, correct them and change the element according. |
