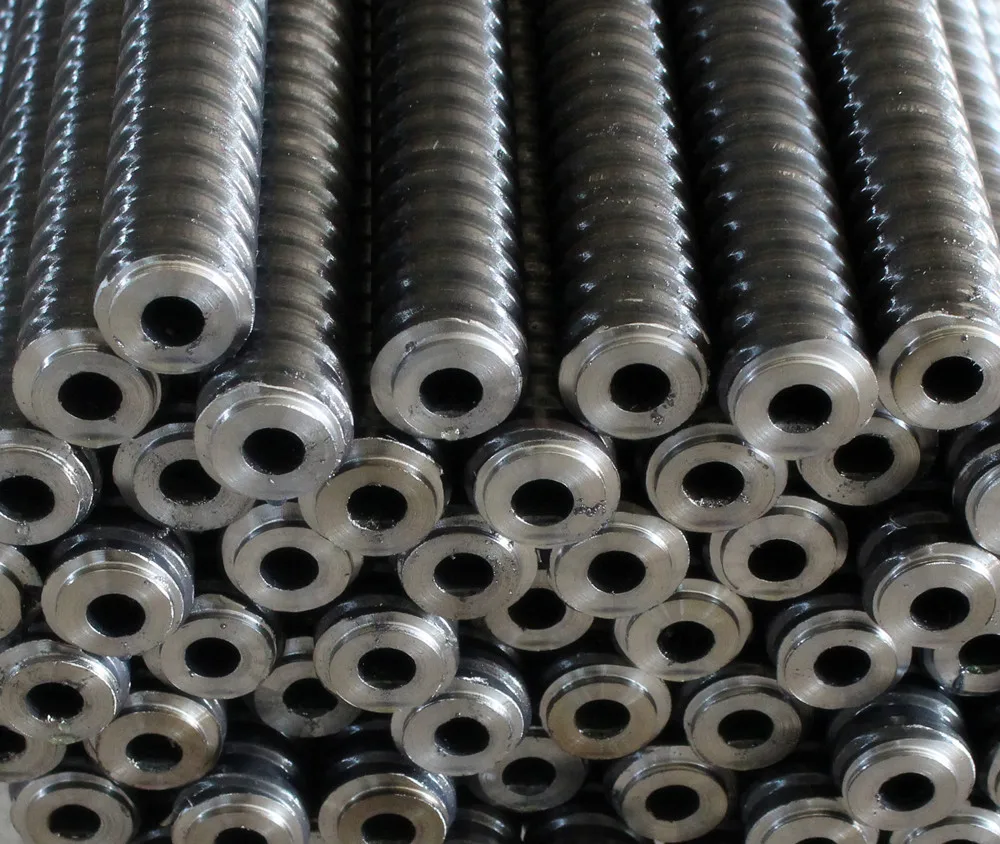

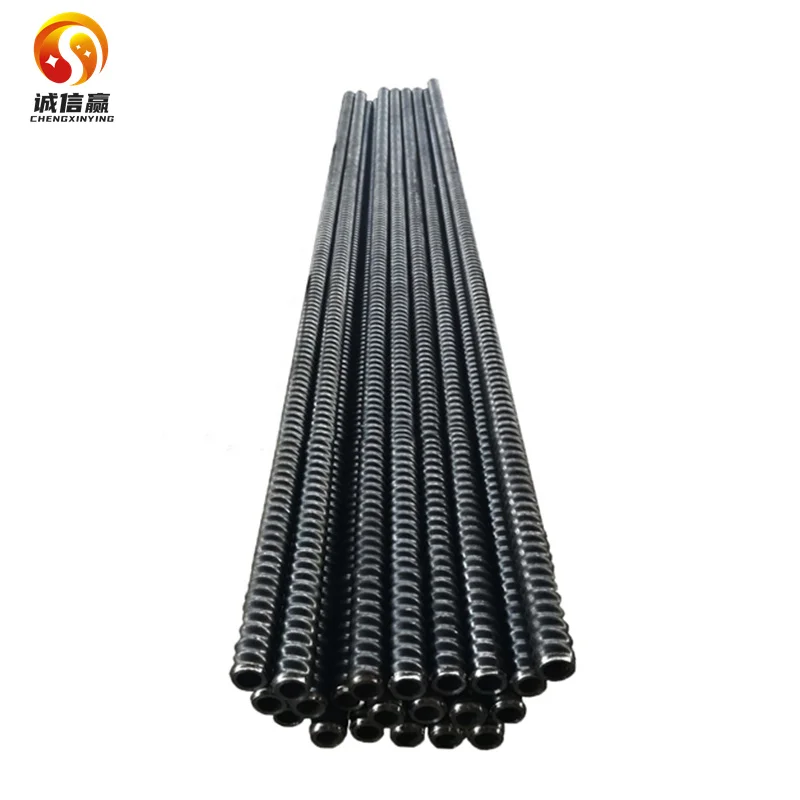

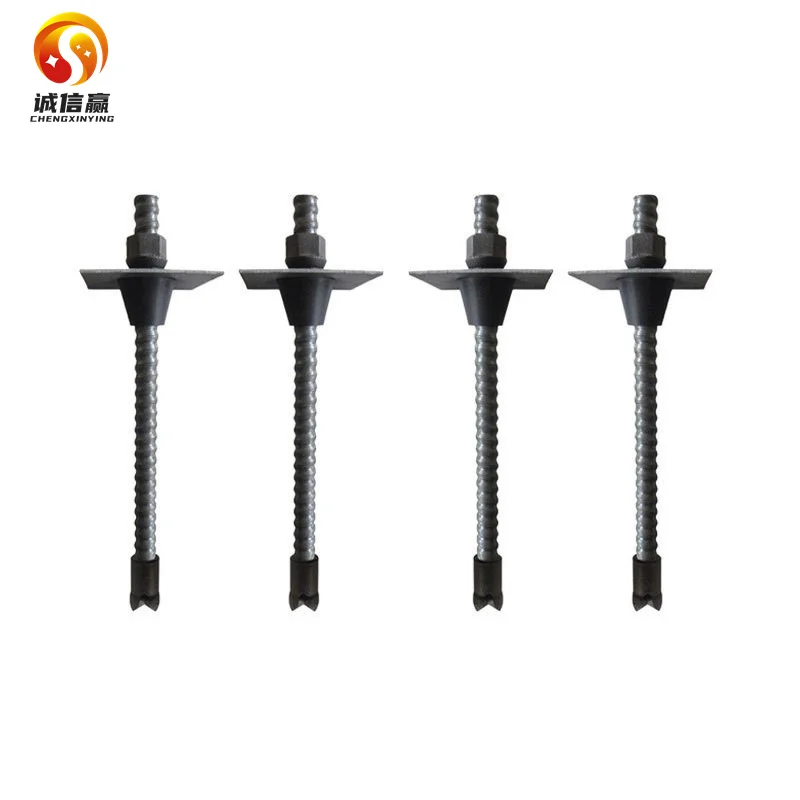

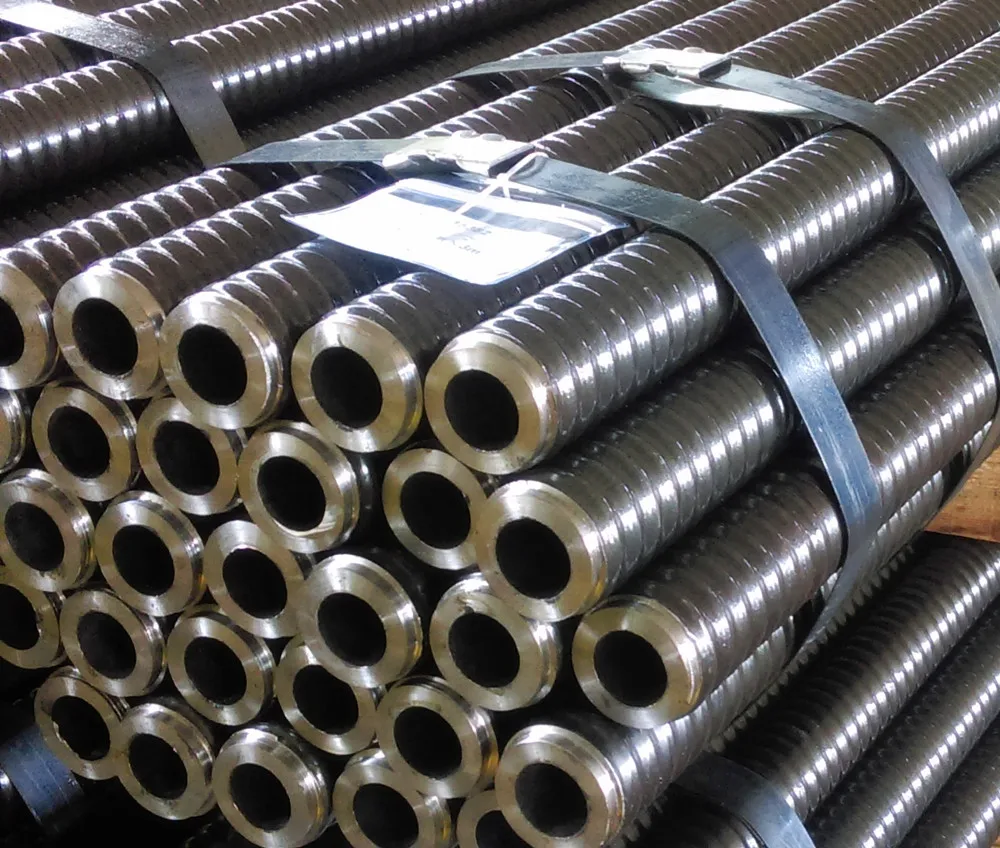

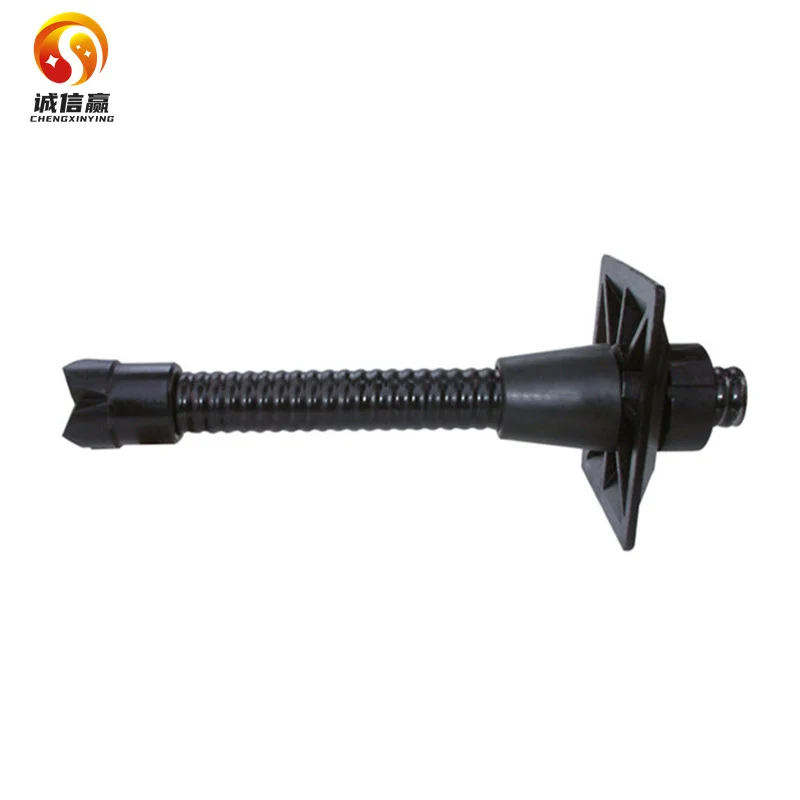

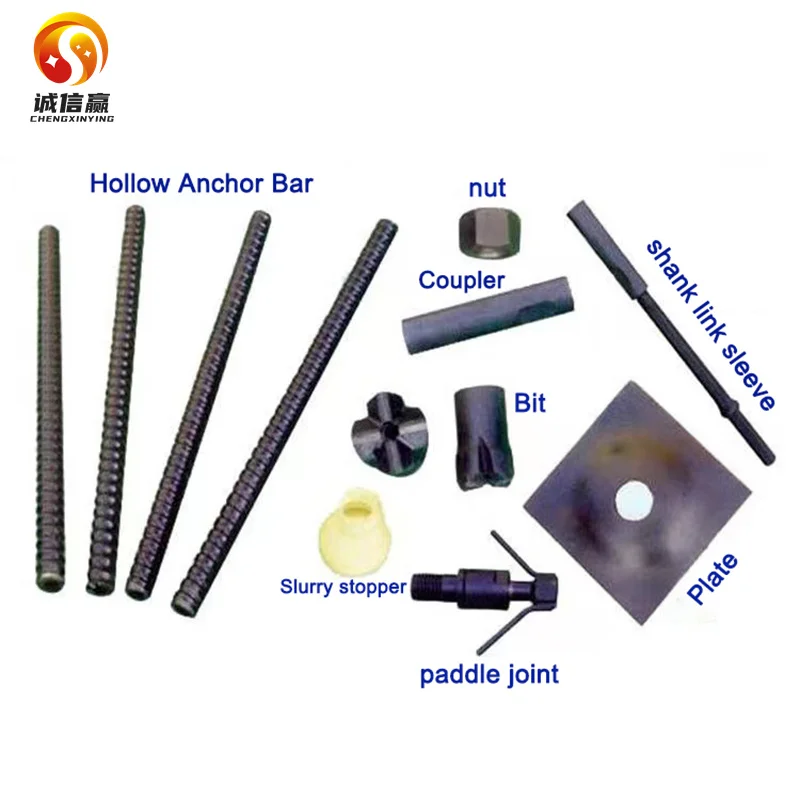

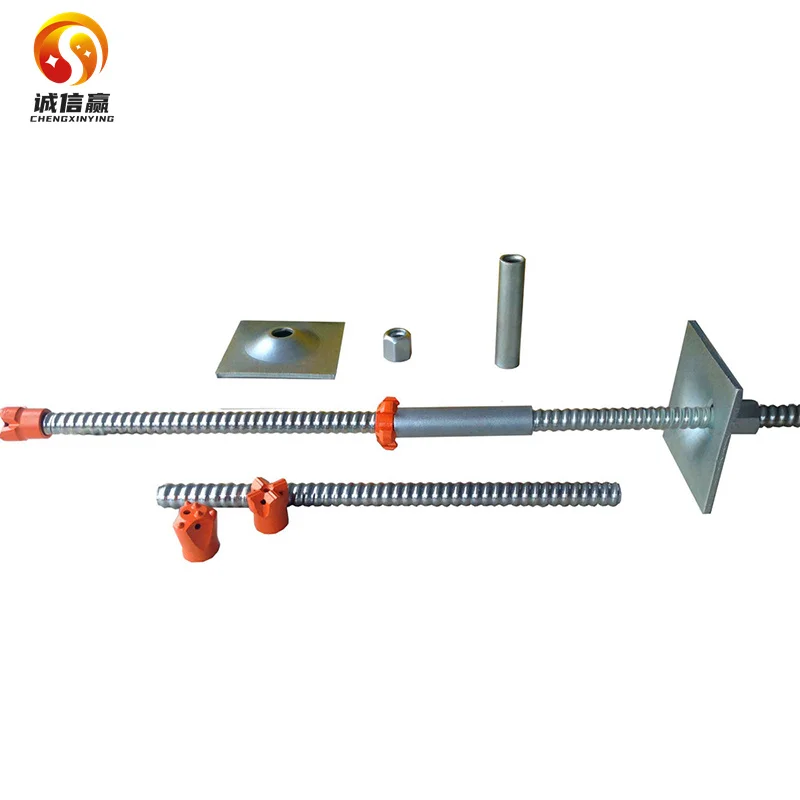

Wholesale self drilling bolts throwing bolts hollow threaded rods
- Category: >>>
- Supplier: Shandong Chengxinying Commerce And Trade Co. Ltd.
Share on (1600568543166):
Product Overview
Description
Specification

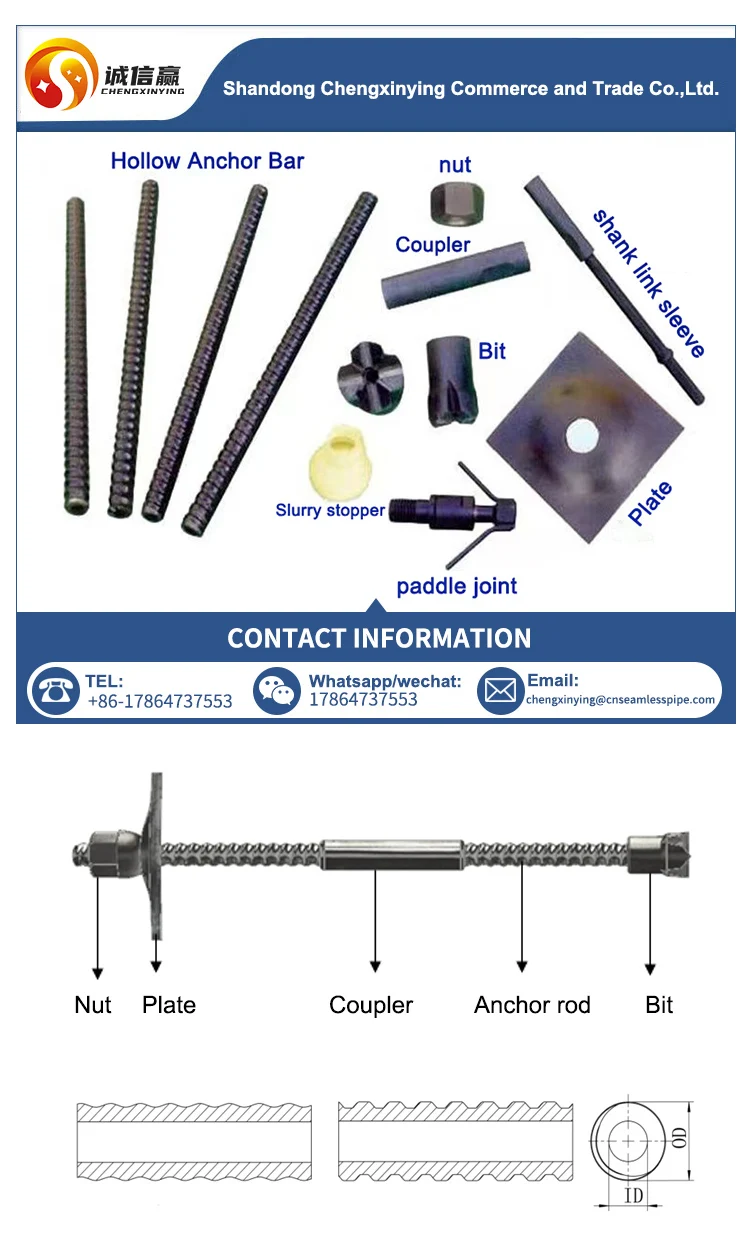

Size | O.D(mm) | I.D(mm) | Ultimate Load(KN) | Yield Load(KN) | Weight(kg/meter) | ||||
R25N-14 | 25.0 | 14.0 | 200 | 150 | 2.3 | ||||
R32L-22 | 32.0 | 22.0 | 220 | 180 | 2.8 | ||||
R32N-21 | 32.0 | 21.0 | 280 | 230 | 2.9 | ||||
R32N-18.5 | 32.0 | 18.5 | 280 | 230 | 3.4 | ||||
R32S-17.5 | 32.0 | 17.5 | 360 | 280 | 3.5 | ||||
R32S-15 | 32.0 | 15 | 360 | 280 | 4.1 | ||||
R38N-21 | 38.0 | 21.0 | 500 | 400 | 4.8 | ||||
R38N-19 | 38.0 | 19.0 | 500 | 400 | 5.5 | ||||
R51L-38 | 51.0 | 38.0 | 550 | 450 | 6.0 | ||||
R51L-36 | 51.0 | 36.0 | 550 | 450 | 7.6 | ||||
R51N-36 | 51.0 | 36.0 | 800 | 630 | 7.6 | ||||
R51N-33 | 51.0 | 33.0 | 800 | 630 | 8.4 | ||||
T76N-49 | 76.0 | 49.0 | 1600 | 1200 | 16.5 | ||||
T76S-45 | 76.0 | 45.0 | 1900 | 1500 | 19 | ||||
T30-11 | 30.0 | 11.0 | 320 | 260 | 3.3 | ||||
T30-14 | 30.0 | 14.0 | 275 | 220 | 2.9 | ||||
T40-16 | 40.0 | 16.0 | 660 | 525 | 7.1 | ||||
T40-20 | 40.0 | 20.0 | 540 | 425 | 5.6 | ||||
T52-26 | 52.0 | 26.0 | 930 | 730 | 10 | ||||
T73-56 | 73.0 | 56.0 | 1035 | 830 | 10.8 | ||||
T73-53 | 73.0 | 53.0 | 1160 | 970 | 14 | ||||
T73-45 | 73.0 | 45.0 | 1600 | 1270 | 17.5 | ||||
T73-35 | 73.0 | 35.0 | 1865 | 1430 | 21.2 | ||||
T103-51 | 103.0 | 51.0 | 3660 | 2670 | 44 | ||||
Steel grade | Acc. to EN10083-1 / EN10210-1 | ||||||||
Thread direction | Left hand / Right hand | ||||||||

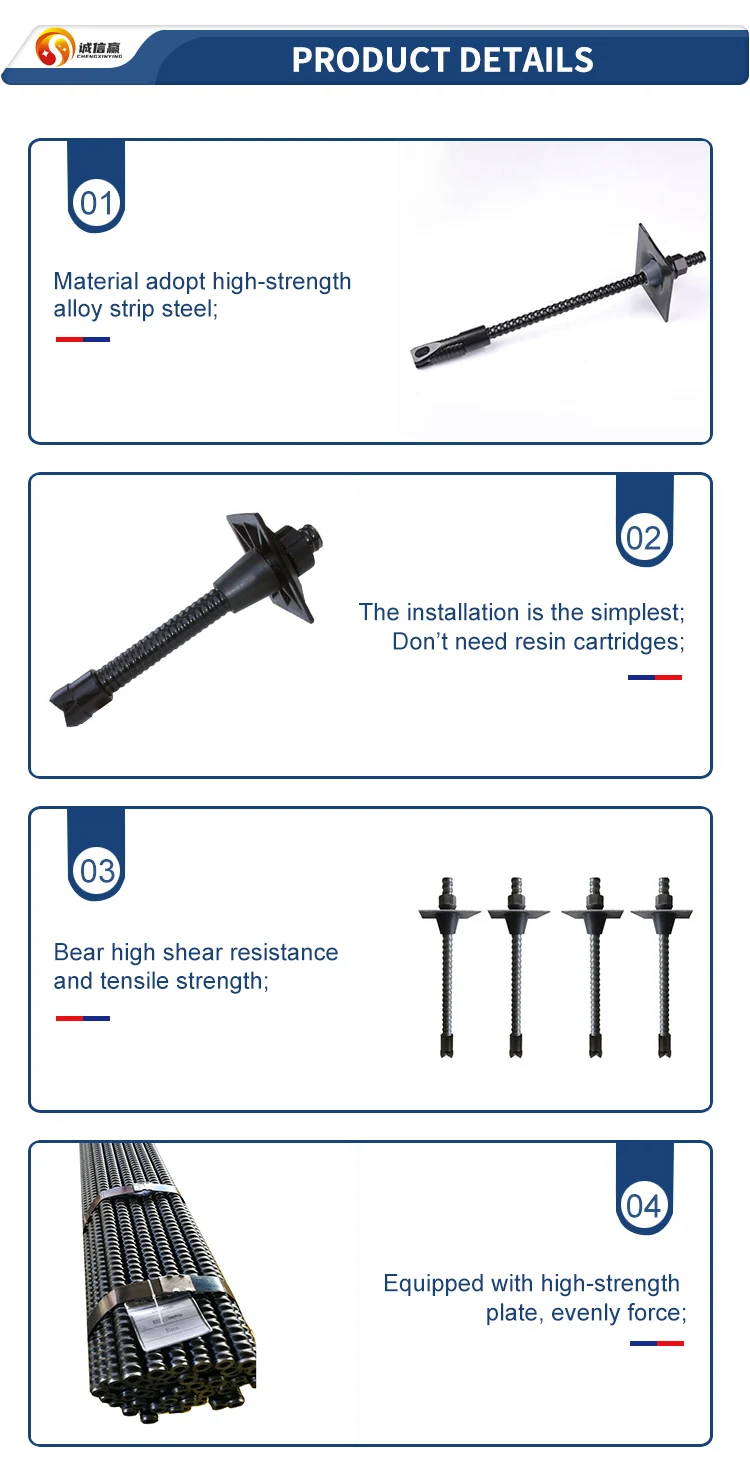

Technical Characteristics
1.Material adopt high-strength alloy strip steel;Anchor rod
2. The installation is the simplest;Anchor rod
3.Don’t need resin cartridges;Anchor rod
4. The friction force between the friction bolt and the rock mass is large;Anchor rod
5.Bear high shear resistance and tensile strength;Anchor rod
2. The installation is the simplest;Anchor rod
3.Don’t need resin cartridges;Anchor rod
4. The friction force between the friction bolt and the rock mass is large;Anchor rod
5.Bear high shear resistance and tensile strength;Anchor rod
6. Equipped with high-strength plate, evenly force;Anchor rod

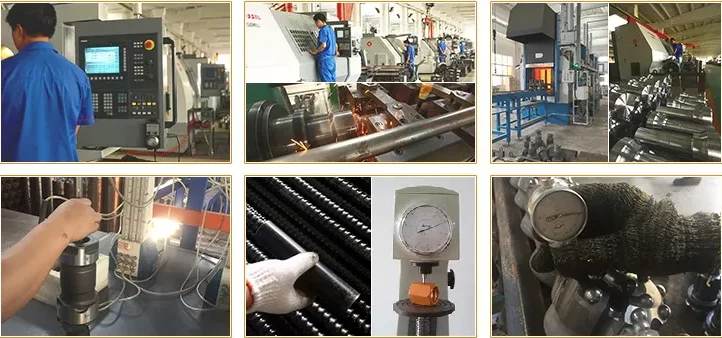

Process details
Q: Are you a manufacturer?
A: Yes , we are a manufacturer, We have own factory, We have a leading power in producing and exporting
galvanized steel pipes,Seamless steel tube and square tube,We promise that we are what you are looking for.
Q: Can we visit your factory?
A:Warmly welcome once we have your schedule we will pick you up .
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q: How long is your delivery time?
A: Generally it is 10-35 days .it is according to quantity.
Q: How can we get the offer?
A:Please offer the specification of the product,such as material,size,shape,etc.So we can give the best offer.
Q: How do you make our business long-term and good relationship ?
A: 1.We keep good quality and competitive price to ensure our customers' benefit.
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
galvanized steel pipes,Seamless steel tube and square tube,We promise that we are what you are looking for.
Q: Can we visit your factory?
A:Warmly welcome once we have your schedule we will pick you up .
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q: How long is your delivery time?
A: Generally it is 10-35 days .it is according to quantity.
Q: How can we get the offer?
A:Please offer the specification of the product,such as material,size,shape,etc.So we can give the best offer.
Q: How do you make our business long-term and good relationship ?
A: 1.We keep good quality and competitive price to ensure our customers' benefit.
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
