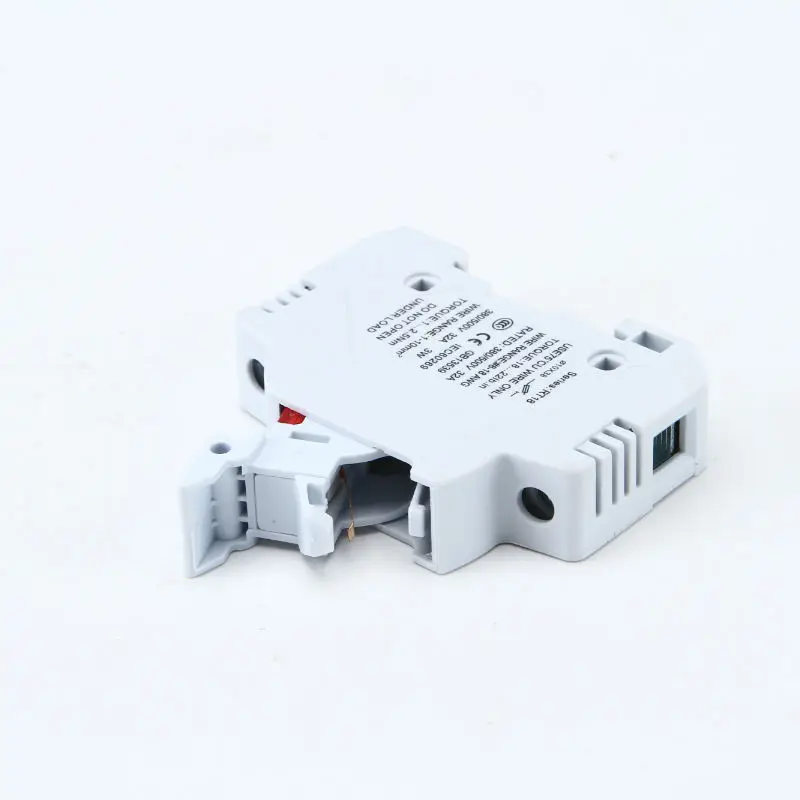

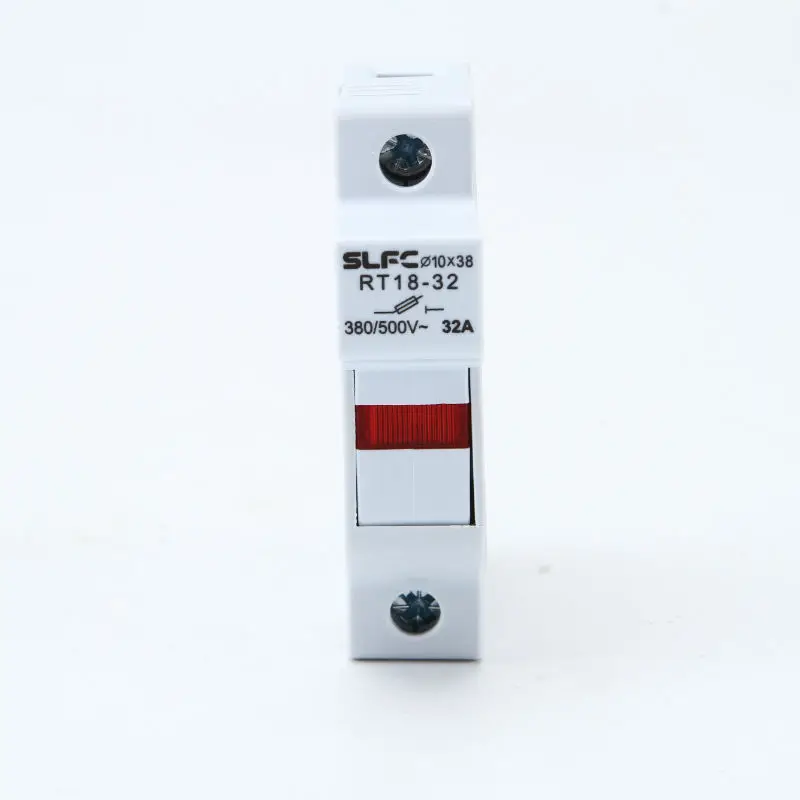

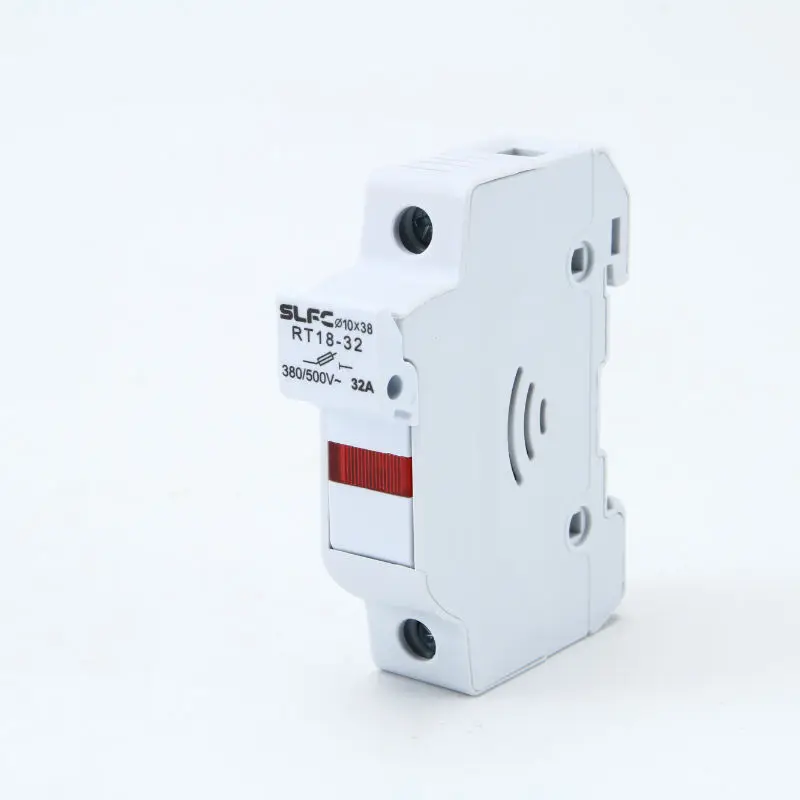

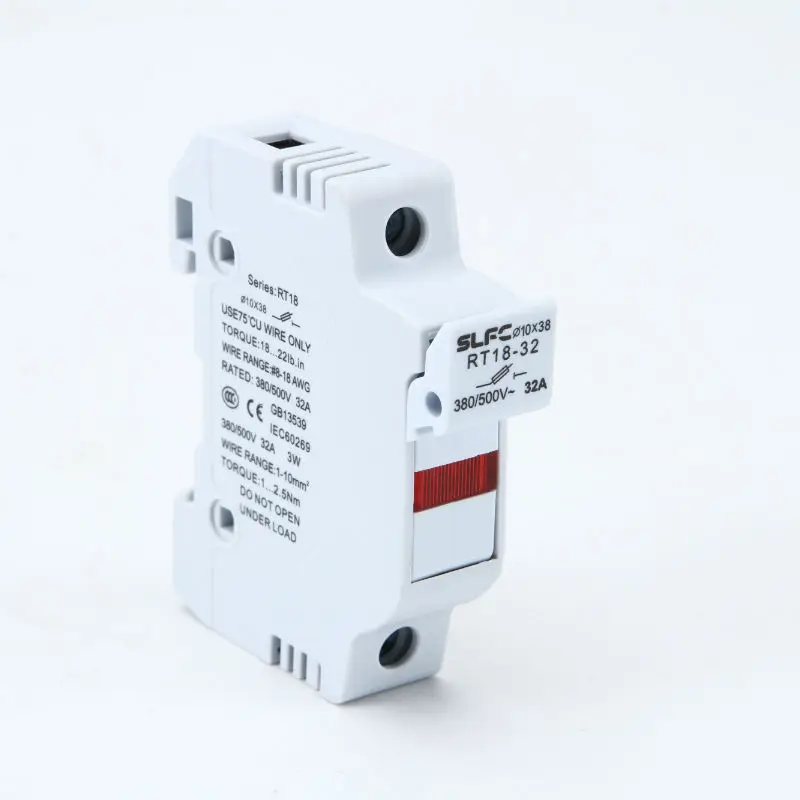

Fuse Holder For 10x38 Fuse

Product Overview

Description

Fuse Holder For 10x38 Fuse



 1.  Application

    This series fuse is suitable for AC 50Hz, rated voltage to 600V, rated current to 125A. It is mainly used for protecting the electrical circuit against overload and short-circuits(gG/gL). Because of different melting tablets, it also may derive for rotecting the semiconductor device and others complete set installment from short-circuit (aR/gR/gs/gtr) as well as the electric motor from short-circuit (aM). The rated breaking capacity is to 100KA. They conform to national standard GB13539 and international
electrical committee standard IEC60269.

2.Construction Feature

  This series of fuse consists of fuse link and fuse base. The variable cross-section fuse body made by pure copper piece (or copper wire, silver wire, silver piece) is sealed in the fusion tube which is made by the high strength porcelain or epoxy glass cloth pipe, there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube. The two sides of the fuse use the spot welding to reliably connect with the end plate and to form the cylindrical cap shape structure. Fuse base suppressed by the resin or plastic casing fitted with contacts and contains the fusion pieces, the connection made by riveting as the support of the appropriate size fuse body parts. This series of fuse has many merits such as small in size, convenient for installation, safe in usage, beautiful in appearance and so on.



3.Principle Technical Parameter



fuse base model	matched with fuse body measurement	rated vltage (V)	rated current (A)	overall dimension/size mm)
					A1	A2	B	H1	H2	Φd
RT18-32X/1P	10.3×38	380/500	32		79	81	17.5	62	80	-
RT18-32X/2P	10.3×38	380/500	32		79	81	35	62	80	-
RT18-32X/3P	10.3×38	380/500	32		79	81	52.5	62	80	-
RT18-32X/4P	10.3×38	380/500	32		79	81	70	62	80	-
