Good Service Beneficiation Plant Fiberglass Coal Spiral Separator BLL1500/1200/900/600 Spiral Chute For Separation Gold Mining
Hengchang machinery spiral chute separator can be used for many minerals separating, such as gold, copper, tungsten, tin, tantalum, coltan, chrome, zinc ore and some other minerals. When you find us, you find one best mining machinery manufacturer.

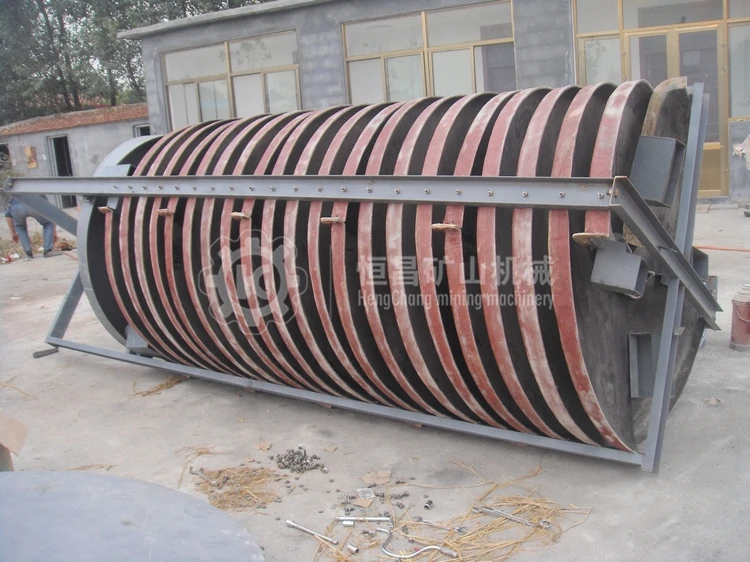

Spiral Separator Introduction
Spiral chute is also called spiral chute or spiral chute separator, is the best equipment in mining and ore dressing industries, which is often applied to sort materials with size 0.3 - 0.02 mm, such as ilmenite, chromite, pyrite, zircon, rutile, monazite, phosphate, tungsten ore, tin, tantalum, niobium ore and other non-ferrous metals, precious metals and non-metallic minerals.
It can easily adopt to different raw material size, density, ore grade and feed volume. Spiral chute is suitable for treatment of 0.6-0.03mm lode and placer, but high mud content is bad for separation. At present, spiral chute has been widely used in the treatment of iron ore, tungsten, tin ore, niobium tantalum ore, coastal and riverside placer and gold ore.

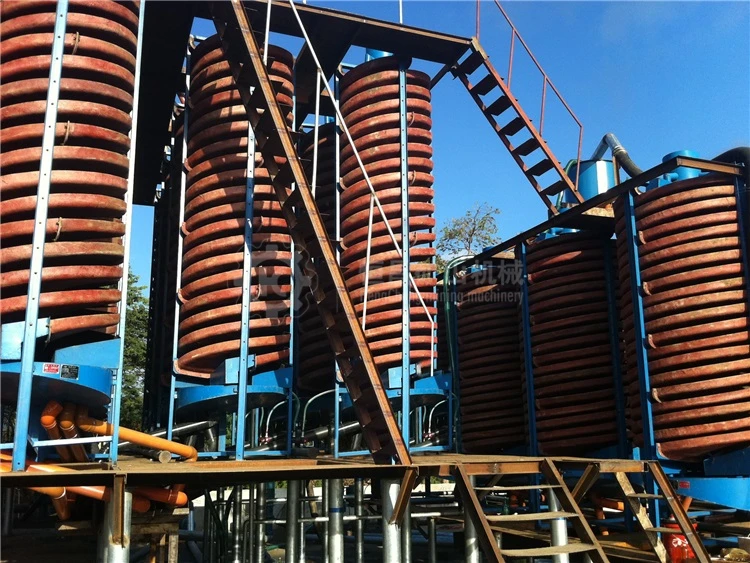

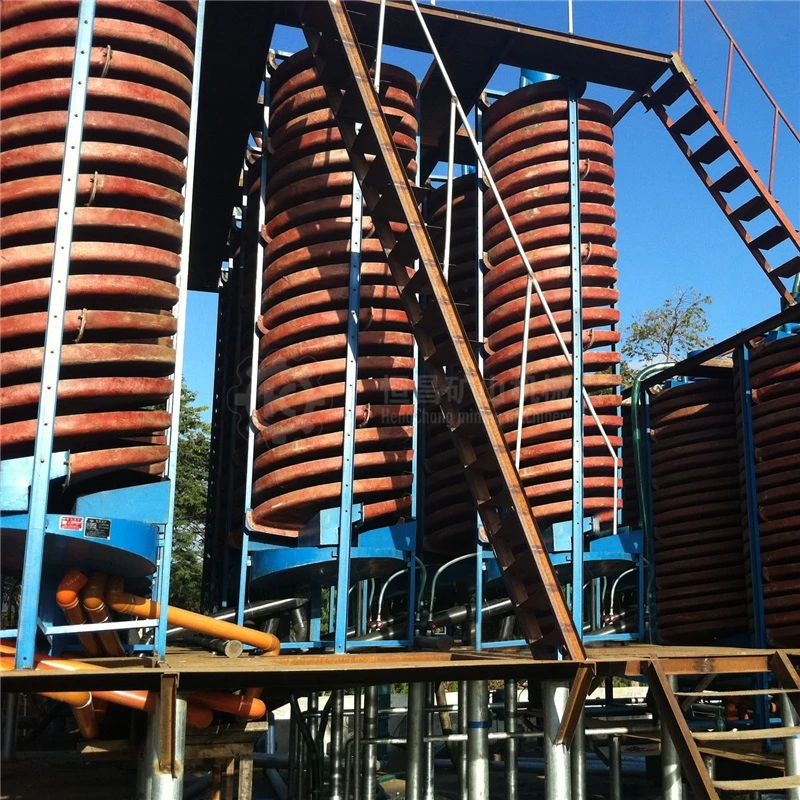

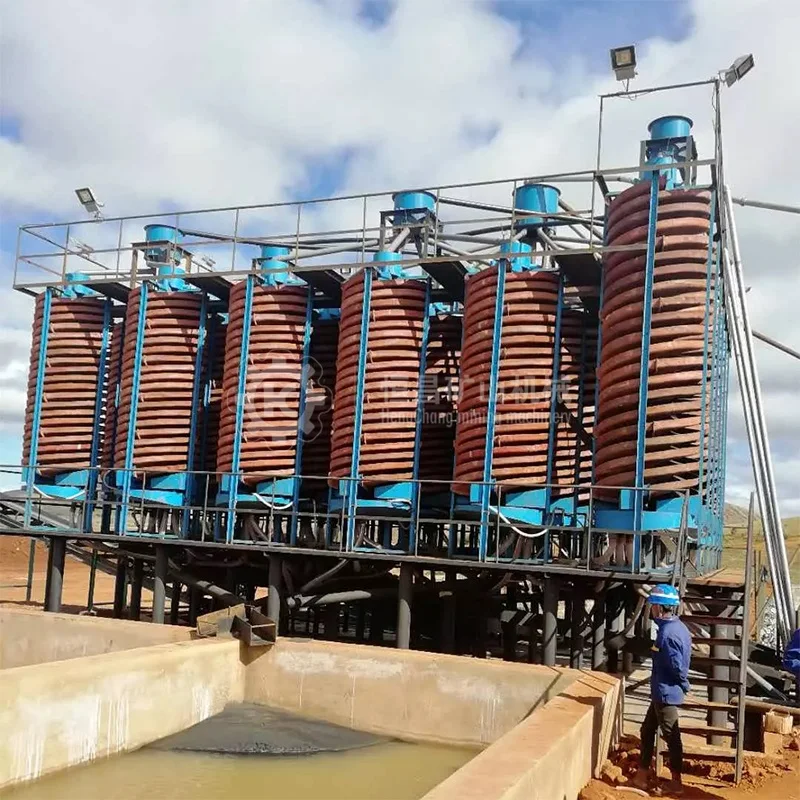

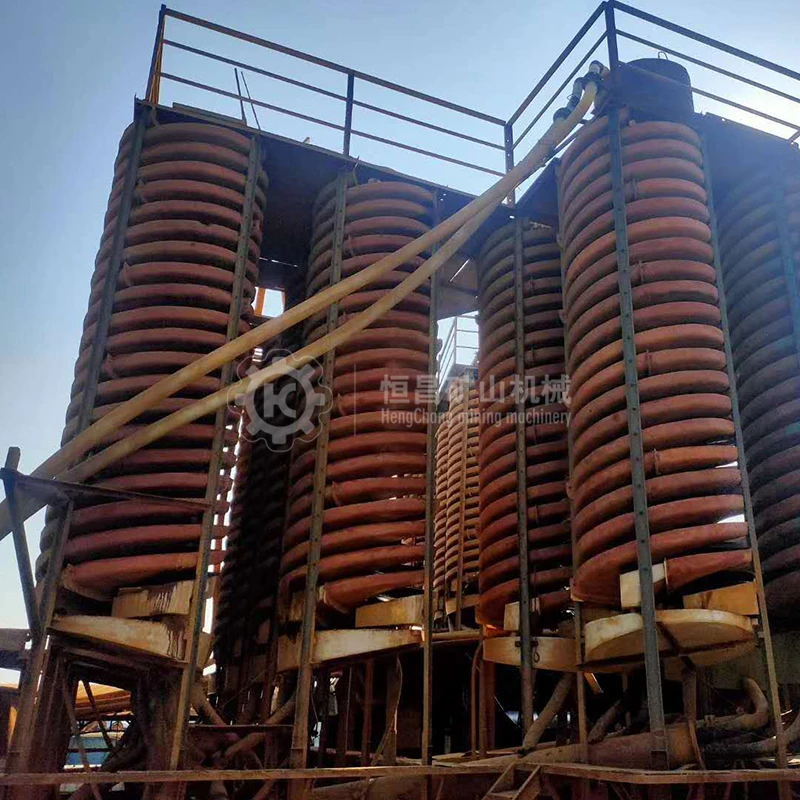

Spiral Chute Working Principle

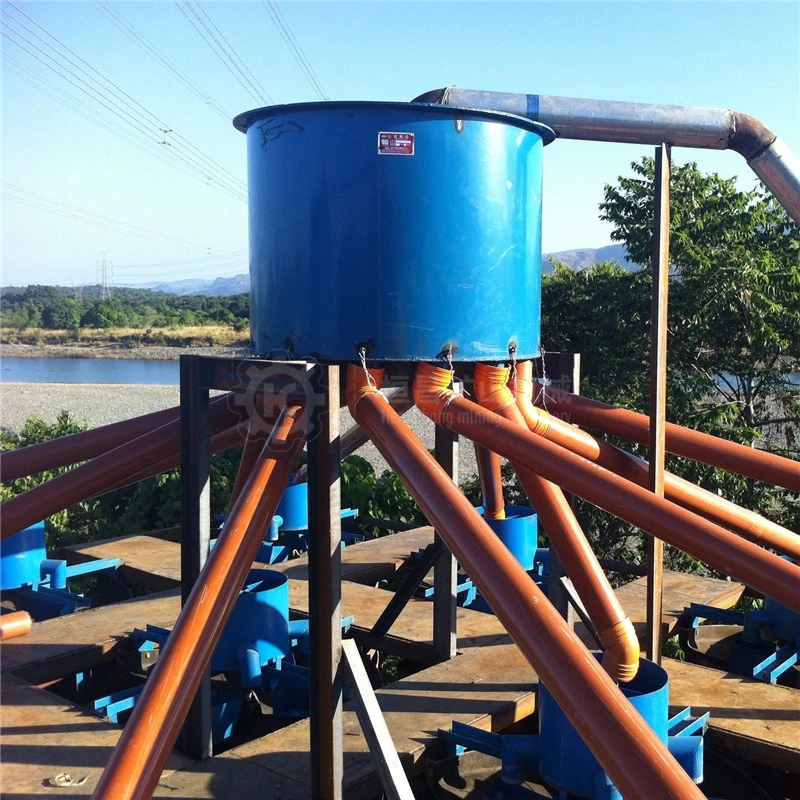

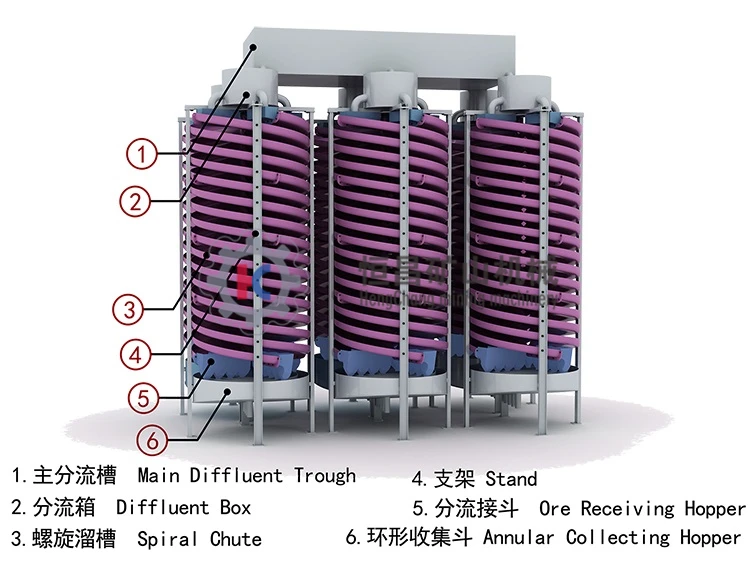

Spiral chute is working under the the force of water flow, gravity, inertial centrifuge and friction. Slurry is pumped to the top of the spiral , and it enters a feed distributor that evenly distributes the feed to each spiral concentrator. The design and shape of the spiral make it work, when combined with gravitational acceleration. As the slurry travels the spiraling path down the spiral, mineral grains settle and start sorting according to size, density and to a lesser extend shape. Low density particles are carried with the bulk of the water towards the outside of the spiral , while particles with the greatest density migrate towards the inside of the spiral.
Spiral Concentrator Main Features

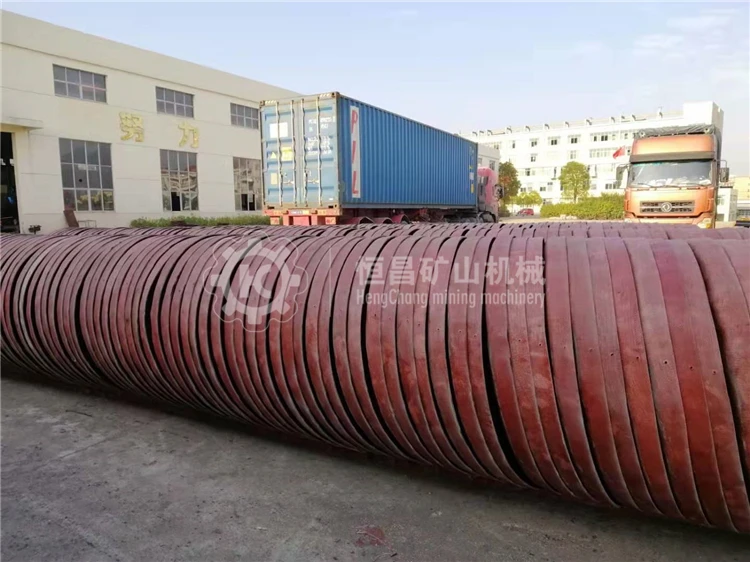

The spiral chute is a gravity equipment. With the water, action of gravity friction force, minerals would be separated by its gravity difference. Then we could get heavy, middling and light products.It is made of the fiberglass lined with wear-resistant polyurethane and corundum cover; the advantages are light, moisture proof, anti-rust, wear proof,anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new high effective equipment.
Model | BLL-1500 | BLL-1200 | BLL-900 | BLL-600 | BLL-400 |
Outside Diameter (mm) | 1500 | 1200 | 900 | 600 | 400 |
Screw Pitch (mm) | 900, 675 | 900, 720, 540 | 675, 540, 405 | 450, 360, 270 | 240, 180 |
Pitch Diameter Ratio | 0.48, 0.36 | 0.75, 0.6, 0.45 | 0.75, 0.6, 0.45 | 0.75, 0.6, 0.45 | 0.6, 0.45 |
Lateral slope (degree) | 9° | 9° | 9° | 9° | 9° |
Max. Screw Numbers | 4 | 4 | 4 | 2 | 2 |
Feed Size (mm) | 0.8 ~0.037 | 0.3~0.03 | 0.3 ~0.03 | 0.2~0.02 | 0.2 ~0.02 |
Feed Density (%) | 30 ~55 | 25 ~55 | 25 ~55 | 25 ~55 | 25 ~55 |
Capacity (t/h) | 6~8 | 4~6 | 2~3 | 0.8~1.2 | 0.15~0.2 |
Length (mm) | 1600 | 1360 | 1060 | 700 | 460 |
Width (mm) | 1600 | 1360 | 1060 | 700 | 460 |
Height (mm) | 5300 | 5230 | 4000 | 2600 | 1500 |
Weight (kg) | 850/800 | 700/650/600 | 450/400/350 | 150/120/100 | 50 |
1.What is your machine used for ?
Our spiral chute separator can be used for many minerals separating, such as gold, copper, tungsten, tin, tantalum, coltan, chrome, zinc ore and some other minerals.
2.Are you factory or trade company?
Yes ,we are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.
3.Can I operate it well, if I have no experience?
Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.
4.How about the service of your company?
We are 24hours Online service.all machines have one year warranty and Wholelife Technology support to make sure your machine work well.
5.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
quantity.
6.What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
