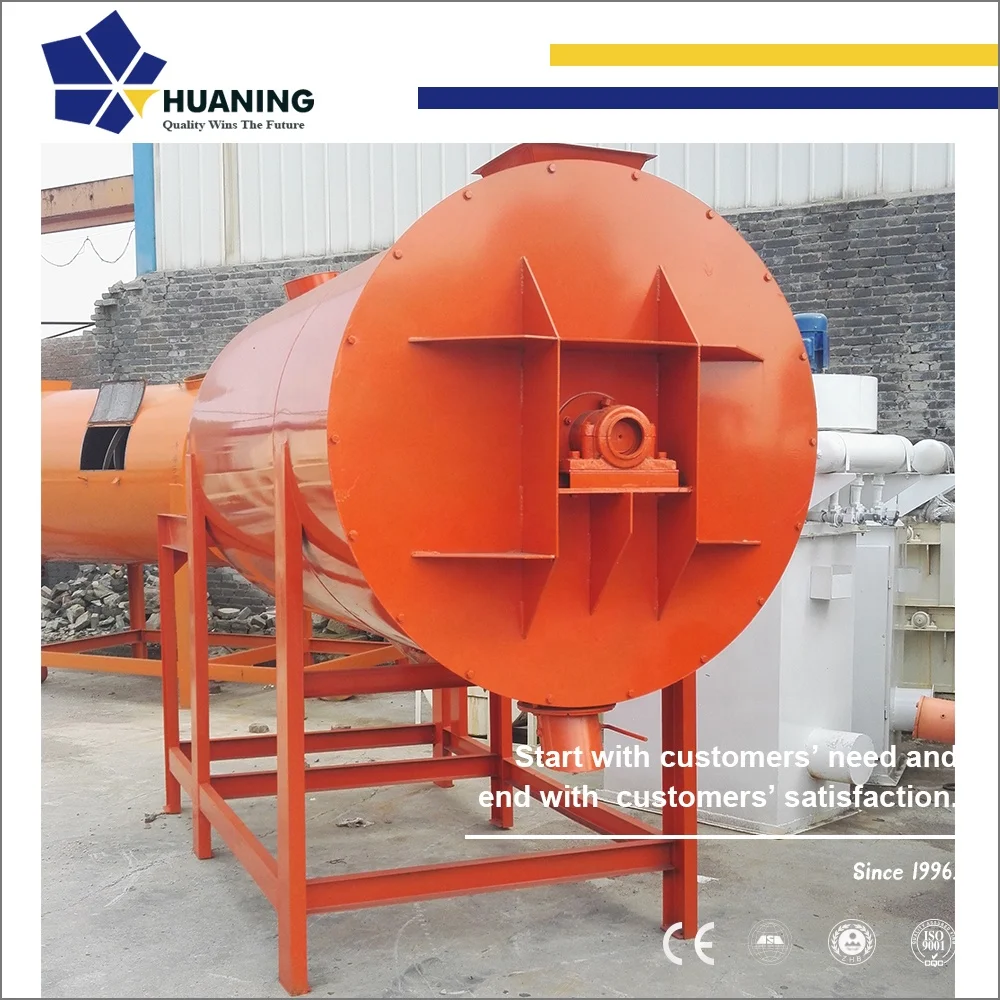

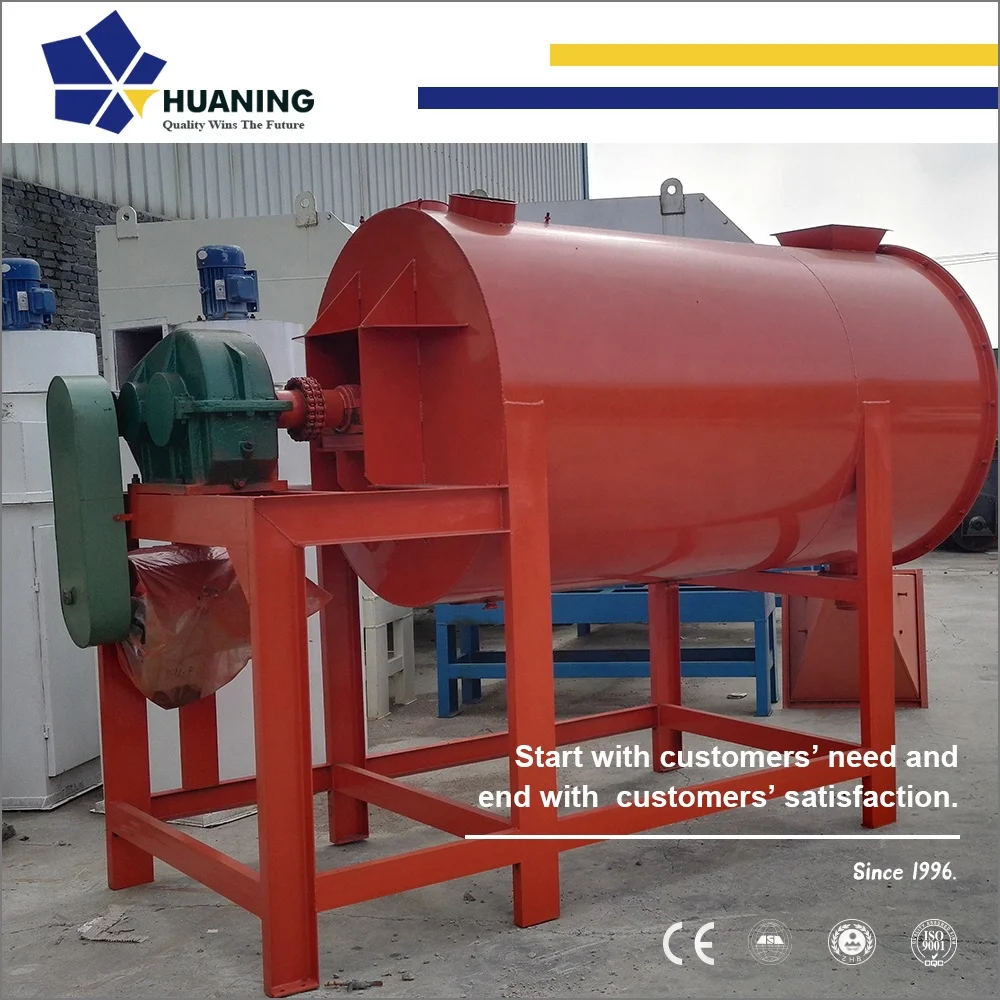

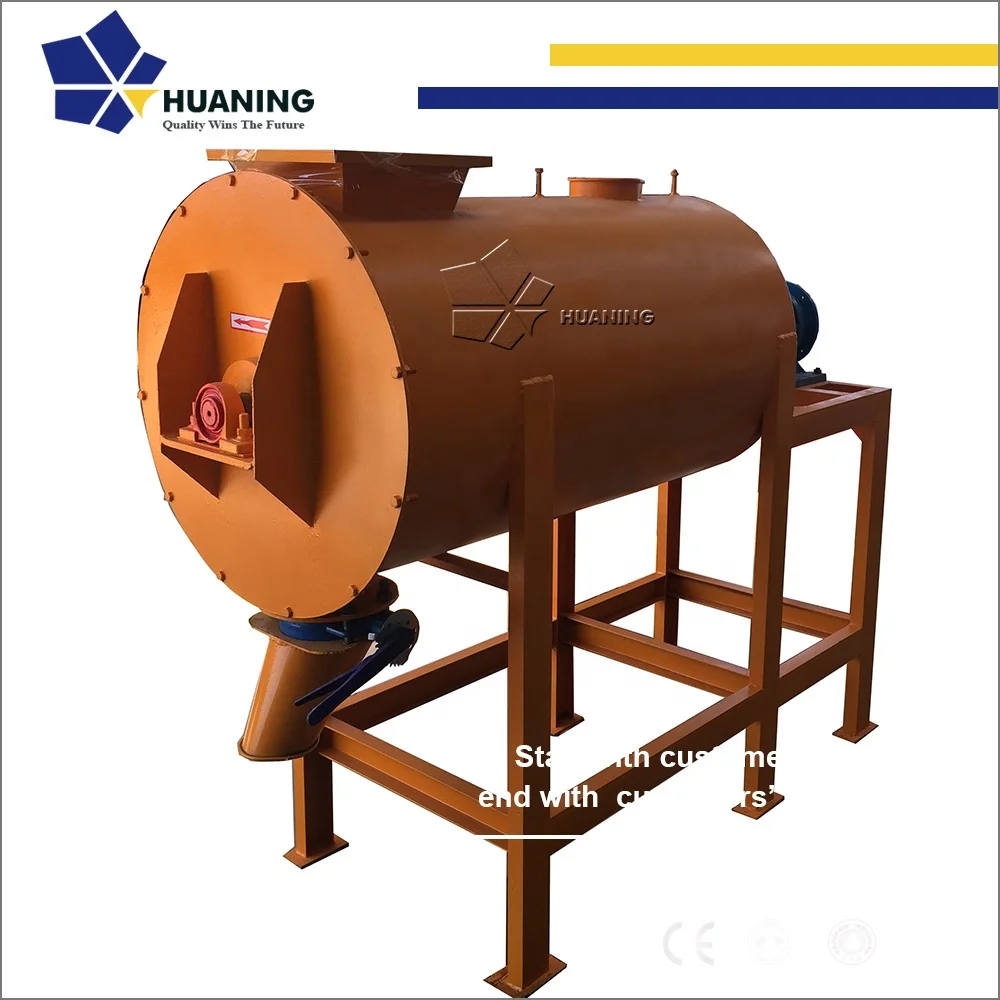

3t/batch HJJ3000 dry mortar mixer mixing machine
- Category: >>>
- Supplier: Henan Huaning Machinery Equipment Co. Ltd.
Share on (1600568576050):
Product Overview
Description
Product Description
HJJ spiral ribbon dry mortar mixer through high-speed rotating of stirring shaft, make internal and ext
ernal spiral flipping materials in a wide range, internal helix transmitting the material from center to sid
es, the external spiral gathering the material from sides to center to form convection mix. outside scre
w gathering the material from sides to center, and part of the material along the axial radial motion to f
orm convection mix and achieve all-round no dead angle depth mixture, so as to fast and uniformly mi
xing the material in a relatively short period of time.
1. widely used in the mixed powder, granular, flake, block, such as materials in the feed, food, chemica
l, fertilizer , construction and other industries.
2. Specially –designed discharger has big door-opening angle an quick discharging with less residue.
3. Sealing system has good tightness, ensuring no products leakage.
4.Users can choose carbon steels and stainless steels.
Type | HJJ300 | HJJ500 | HJJ1000 | HJJ2000 | HJJ3000 |
Output (T/batch) | 0.3 | 0.5 | 1 | 2 | 3 |
Mixing Cycle time per batch | 3-5mins | 3-5mins | 3-5mins | 3-5mins | 3-5mins |
Mixer Cylinder Volume (m3) | 0.83 | 1.65 | 2.48 | 4 | |
Motor Power (kw) | 4 | 5.5 | 7.5 | 11 | 15 |
Rotate speed(r/min) | 24 | 24 | 24 | 24 | 24 |
Mixer Cylinder diameter (mm) | 680 | 840 | 1050 | 1200 | 1400 |
Mixer Cylinder Length(m) | 1.2 | 1.5 | 1.9 | 2.2 | 2.6 |
Reducer | -- | Cycloidal | Cycloidal | Gearbox | Gearbox |
| -- | XWD5 | XWD7 | ZQ400 | ZQ400 | |
Mixer Overall Size(m) (LxWxH) | 2.35*0.7*1.6 | 2.8x0.95x1.8 | 3.25x1.07x2.1 | 3.1x1.3x2.3 | 3.7x1.5x2.5 |
Weight (kg) | 250 | 1000 | 1300 | 2200 | 2400 |
Floor area needed (m2) | 2 | 2.52 | 3.63 | 4.38 | 6 |
