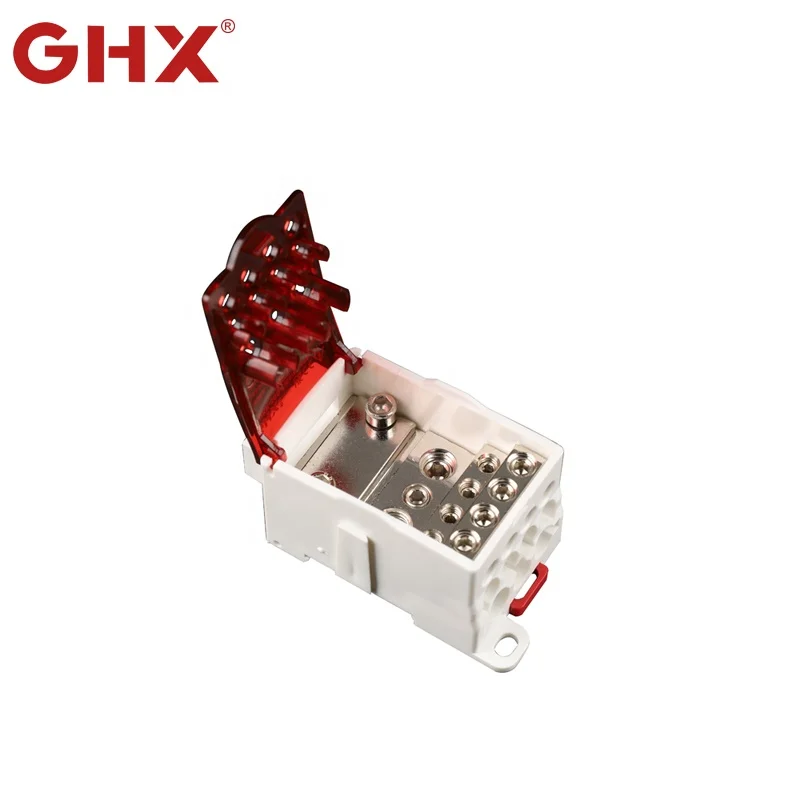

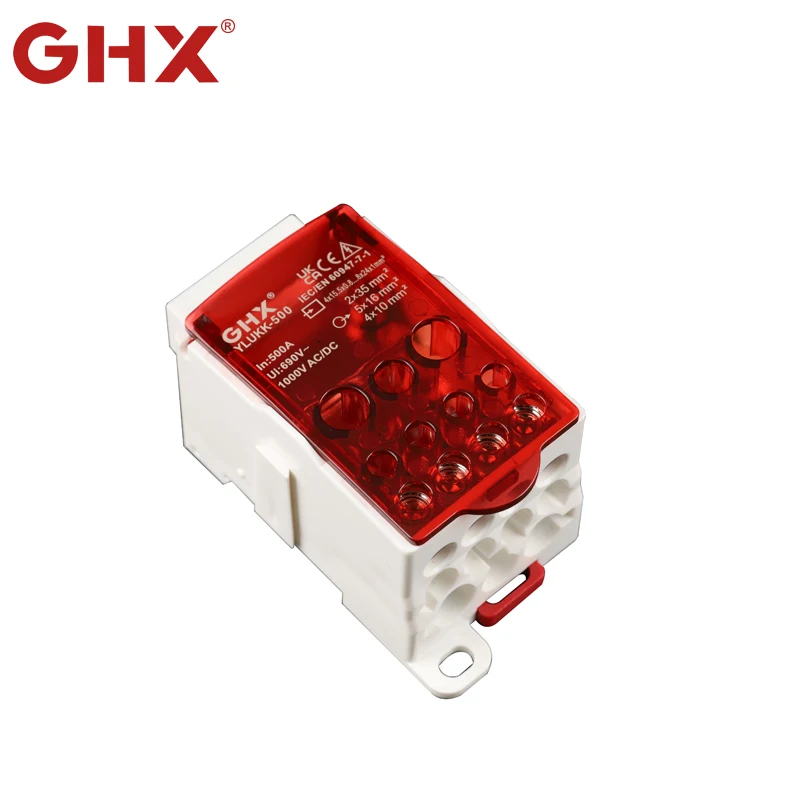

New Design YL UKK 500A Power Distribution Block
- Category: >>>
- Supplier: Zhejiang Yuelong Electric Co. Ltd.
Share on (1600568582053):
Product Overview
Description
Product Detail
Dimension---
| Specification | Rated Current | Rated Voltage | Incoming line spec. | Out-of-line specification | Installation mode | Dimension |
| MM*QTY | MM*QTY | Din rail(MM) | MM | |||
| UKK-80A | 80A | 690V | 6-16*1 | 2.5-6*1 2.5-16*4 | 1.0*7.5*35 | 69*30*49 |
| UKK-125A | 125A | 690V | 10-35*1 6-16*4 | 2.5-16*6 | 1.0*7.5*35 | 77*29*46 |
| UKK-160A | 160A | 690V | 10-35*1 6-16*4
| 2.5-16*6 | 1.0*7.5*35 | 77*29*46 |
| UKK-250A | 250A | 690V | 35-120*1 | 6-35*2 2.5-10*4 2.5-16*5 | 1.0*7.5*35 | 96*49*50 |
| UKK-400A | 400A | 690V | 95-185*1 | 6-35*2 2.5-10*4 2.5-16*5 | 1.0*7.5*35 | 96*49*50 |
| UKK-500A | 500A | 690V | 4x15.5x0.8 to 8x24 Busbar | 6-35*2 2.5-10*4 2.5-16*5 | 1.0*7.5*35 | 96*49*50 |
