Industrial Complete Manual Powder Coating Equipment Package For Wheel
- Category: >>>
- Supplier: Linhai Jin Hai Coating Equipment Co. Ltd.
Share on (1600568601439):
Product Overview
Description
Product Description
Industrial Complete Manual Powder Coating Equipment Package For Wheel
It's a manual powder coating plant that for small metal surface finishing production. This powder coating package equipment especially suitable for coating small parts, like alloy wheels etc.
Details Images

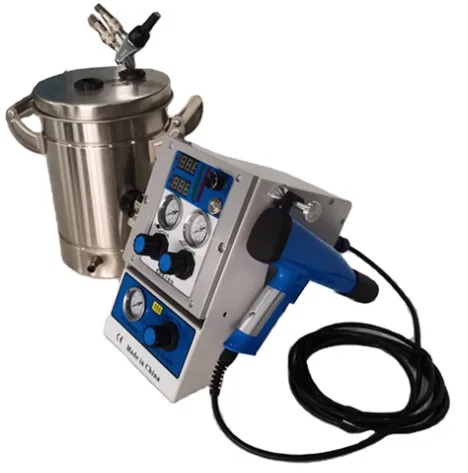

Digital Displayed Pulse Electrostatic Powder coating gun JH-700S
The whole set includes:
Controller + manual spray gun + high quality venturi sub-pump + 304 stainless steel powder hopper + powder feeding hose, 4 meters gun cable, air tubes + high-end oil-water separator + pressure regulating valve
Component | controller + manual spray gun + stainless hopper + accessories | |
Hopper Capacity | 10L | |
Electrical data | ||
Powder Voltage and Plug | 100V - 240V (customized ) | |
Power | ≤50W | |
Frequency | 50HZ / 60HZ | |
Temperature range in use | -10 to 50 degree | |
Spray gun | ||
Ventilation Performance | 805-1677 m3/h | |
Reted Output Voltage | 24V DC | |
Max. Output current | 100Ua ( max.) | |
Max. Output Voltage | 0-100KV (adjustable) | |

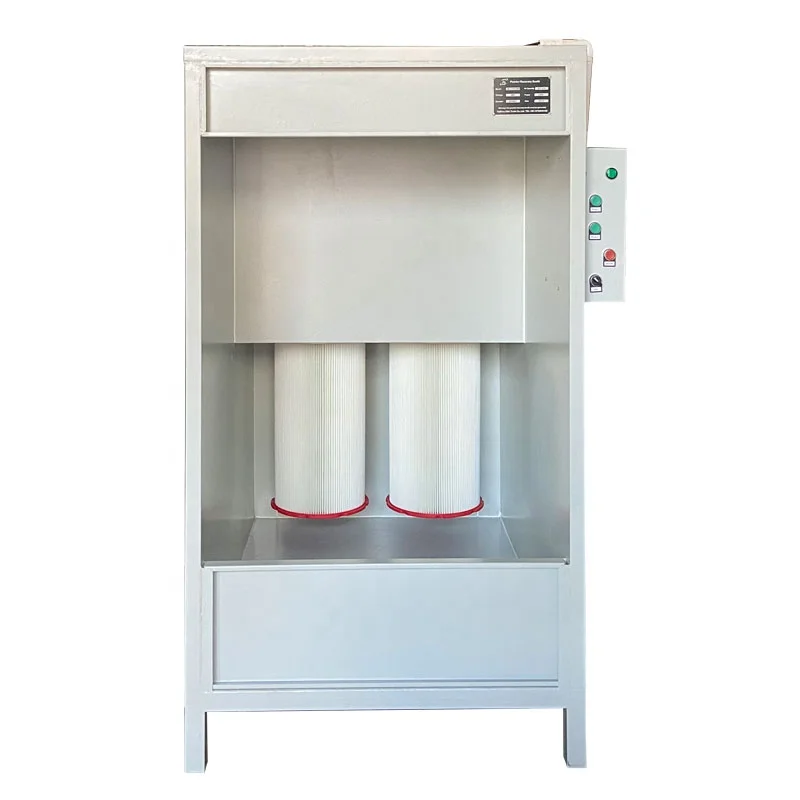

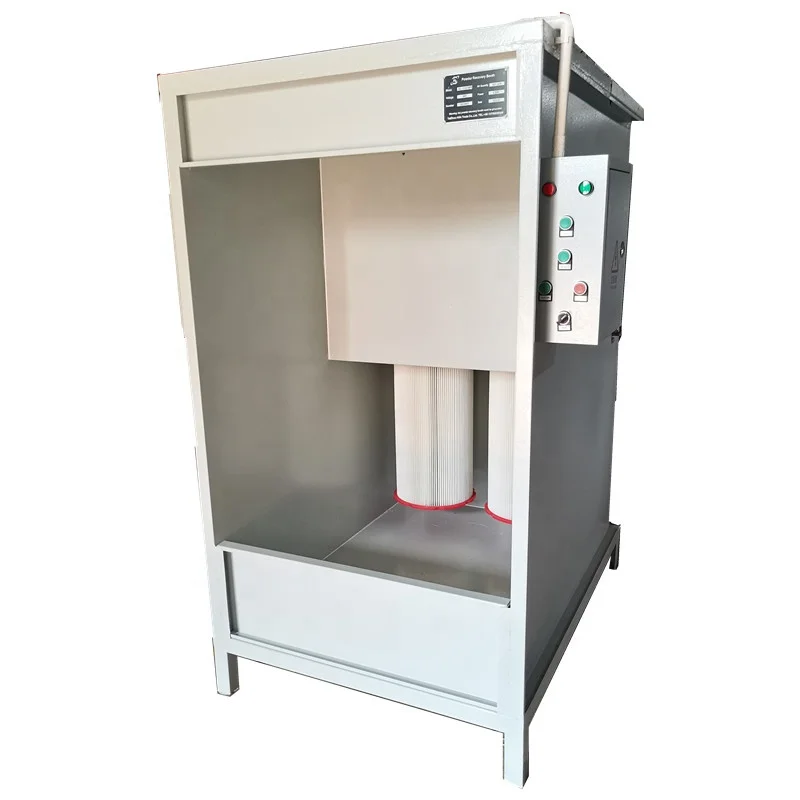

Powder Coating Booth JH-131018P
The powder coating booth it is the key to the quality of powder coating so you should choose the correct equipment. JINHAI Powder coating booth using high-quality, long-life nano-coated filter cartridges, filter life can last for several years.
Component | chamber+filters+blower+electric controller + hanger |
Working Size | L1300xD1000xH1800mm |
Power Supply | Electric |
Frequency | 50HZ / 60HZ |
Voltage | 110V / 220 V 380 V (customized) |
Blower Powder | 2.2kw |

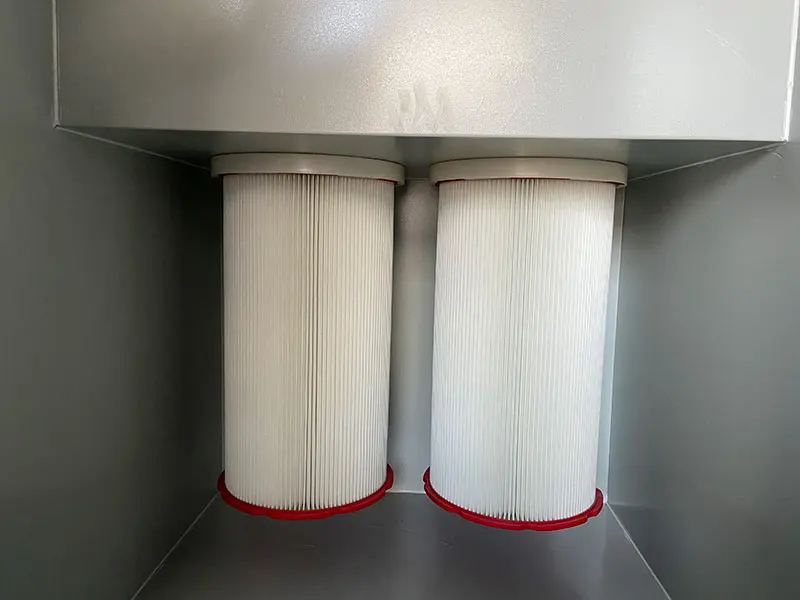

Filters | 2pcs |
Filters Hang Type | easy for change |
Filter Cleaning System | Pneumatic |

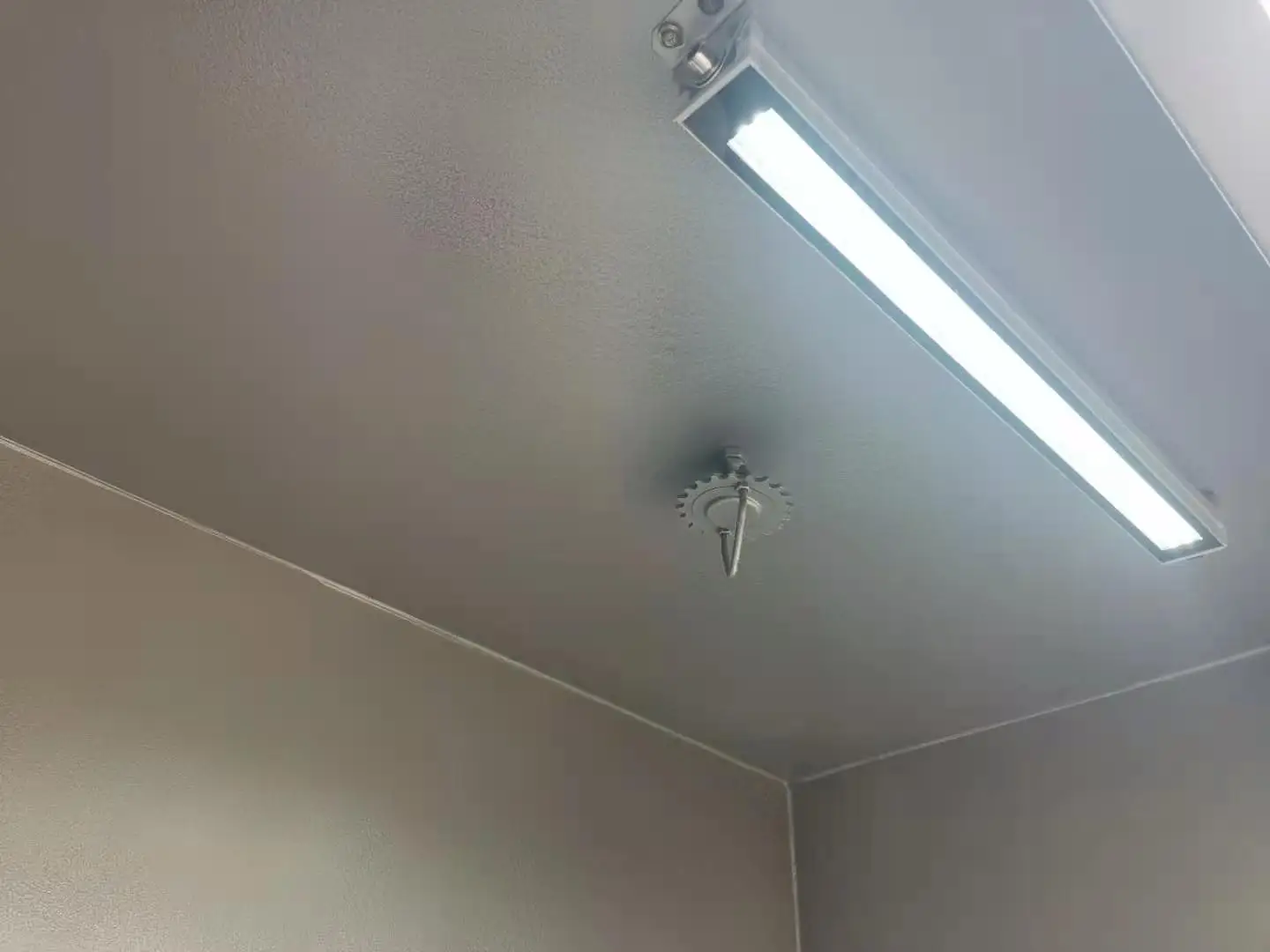

LED Light | Yes |

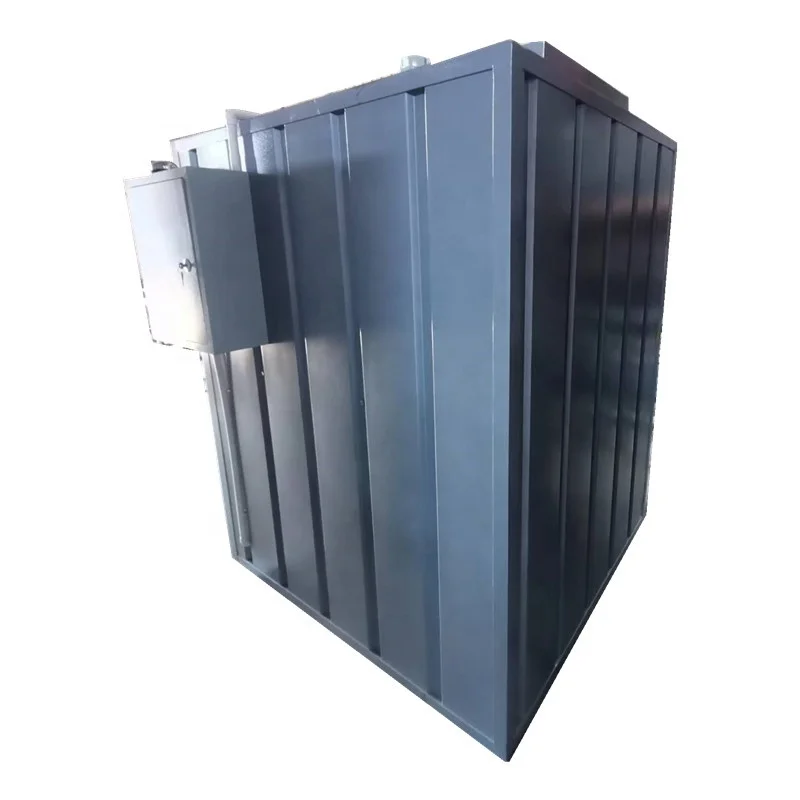

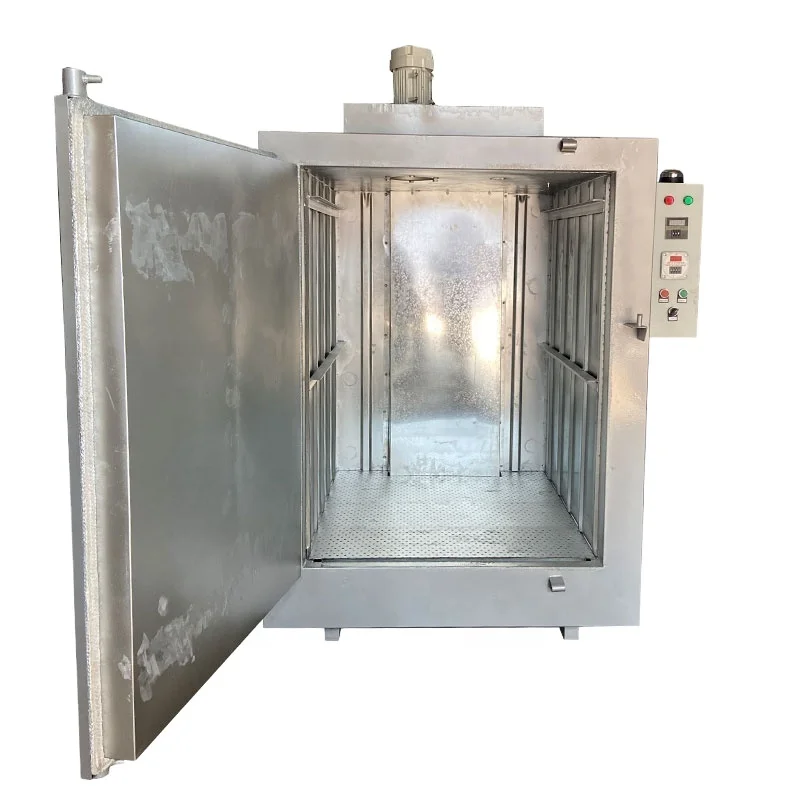

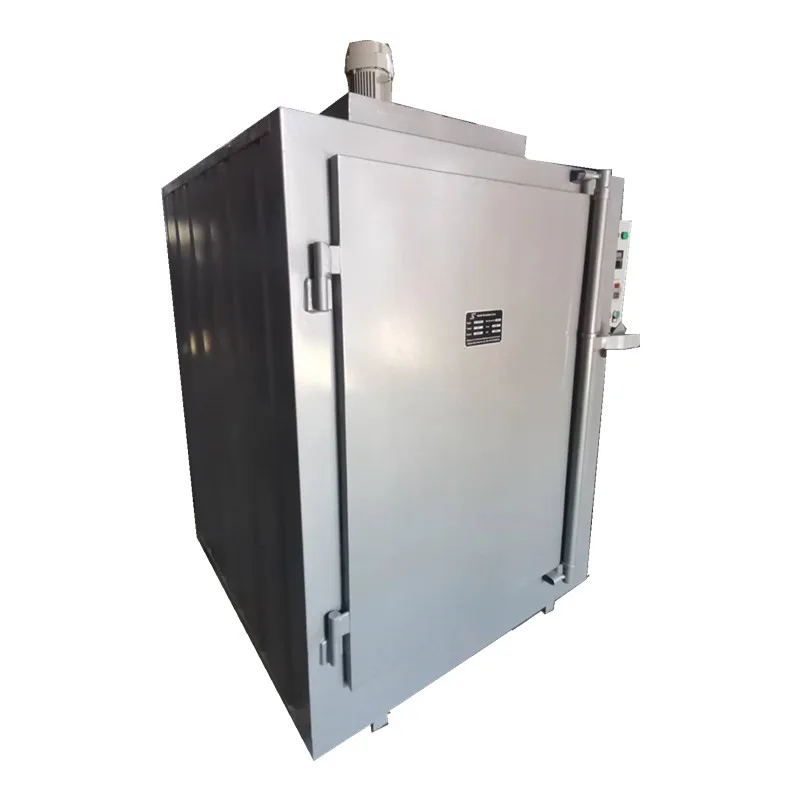

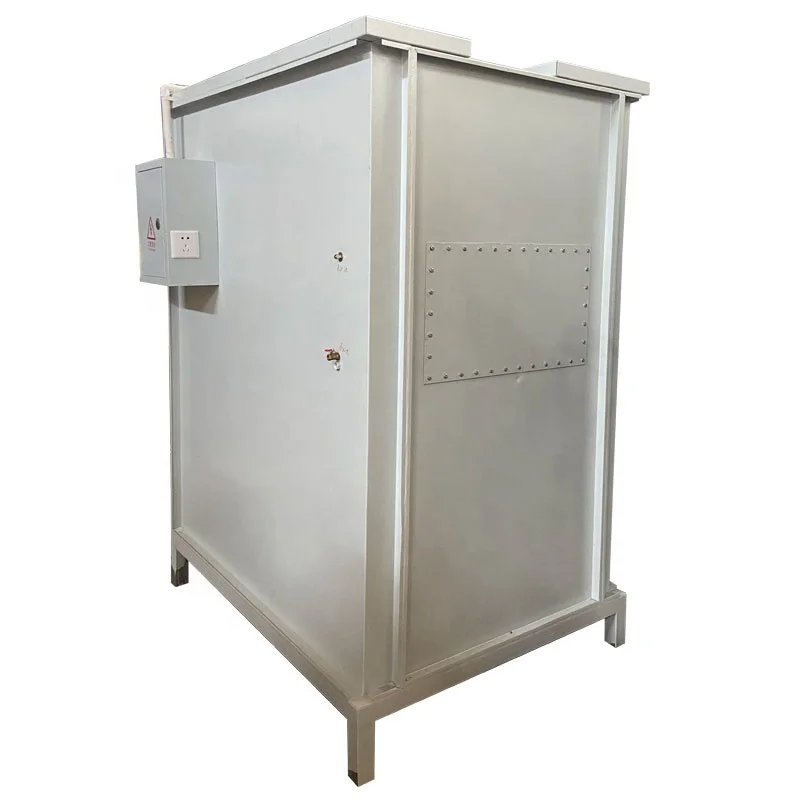

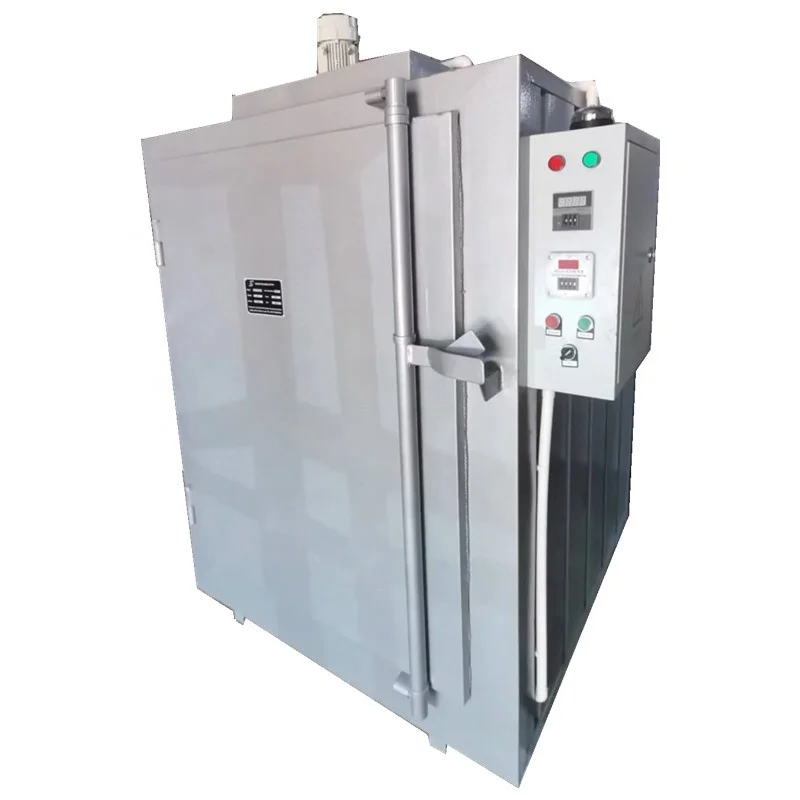

Powder Coating Oven JH-101013D
1) JINHAI powder coating oven Compared with other powder oven, the life can be as long as 8-10 years or even longer.
2) The air inside the curing oven is clean to ensure the quality of the baking.
3) The drying oven is stable, ensuring that there are no quality problems that will affect your spraying operation.
4) Hot air circulation ensures that the temperature error inside the powder coat oven is small, thus ensuring no color difference.
2) The air inside the curing oven is clean to ensure the quality of the baking.
3) The drying oven is stable, ensuring that there are no quality problems that will affect your spraying operation.
4) Hot air circulation ensures that the temperature error inside the powder coat oven is small, thus ensuring no color difference.
Specifications | Tomato&Potato | |
Working Chamber Size | L1000xW1000xH1300mm | |
Wall Insulation | 100% new rock wool board with 100 mm thickness | |
Heating Temperature & Time | 180° C (15-30min) Max250° C | |
Temperature Stability | < ± 3-5°C | |
Voltage/ Frequency | 110V/220V/380V (50-60hz) can be customized as local | |
Heating Source | Electric, 15kw | |
Circulation / Air Flow | Vertical ,Variable through holes on the walls | |
Transportation | without Trolley, by 2pcs shelves | |
We could customized any size and specifications for you. | ||
FAQ
Q: Are you trading company or manufacturer?A: We are factory. Our factory near Yiwu city and Ningbo city of Zhejiang.
Q: How to delivery?
A: By sea for big order ,by courier for small order.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free change for the spare parts but do not pay the cost of freight.
Q: Which model should I choose?
A: When spray specially metallic powders, according to your product shapes and the coating job details. For example, need to change colors often or only few colors, then choose the box feed unit or hopper feed unit. The small hopper unit is good for lab test or small work.
Q: Can I customized the machines?
A: Yes, we are a professional team for powder coating equipment, Our technician will design for you specially according to your needs and your factory, workpiece etc information.
Q: What should I offer if I want to customized the machine?
a. Your factory available for the equipment dimension by L x W x H
b. Your max workpiece or product weight and size by L x W x H
c. Your product surface condition (with oil or dust?) and some pictures if possible
d. Your output capacity(for machine line)
e. Your industrial electric power in V-Phase-Hz.
Q: Can you install for us?
A: Yes, we can install overseas for you. But the engineers overseas installation cost, round trip air tickets, accommodation,
meals and transport charges are on the buyers.
Q: How to delivery?
A: By sea for big order ,by courier for small order.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free change for the spare parts but do not pay the cost of freight.
Q: Which model should I choose?
A: When spray specially metallic powders, according to your product shapes and the coating job details. For example, need to change colors often or only few colors, then choose the box feed unit or hopper feed unit. The small hopper unit is good for lab test or small work.
Q: Can I customized the machines?
A: Yes, we are a professional team for powder coating equipment, Our technician will design for you specially according to your needs and your factory, workpiece etc information.
Q: What should I offer if I want to customized the machine?
a. Your factory available for the equipment dimension by L x W x H
b. Your max workpiece or product weight and size by L x W x H
c. Your product surface condition (with oil or dust?) and some pictures if possible
d. Your output capacity(for machine line)
e. Your industrial electric power in V-Phase-Hz.
Q: Can you install for us?
A: Yes, we can install overseas for you. But the engineers overseas installation cost, round trip air tickets, accommodation,
meals and transport charges are on the buyers.
