CT3275 metal lathe machine 220v from China manual metal lathe machine
- Category: >>>
- Supplier: Anhui Sinsun Electronic Commerce Co. Ltd.
Share on (1600568606548):
Product Overview
Description
SIMILAR PRODUCTS

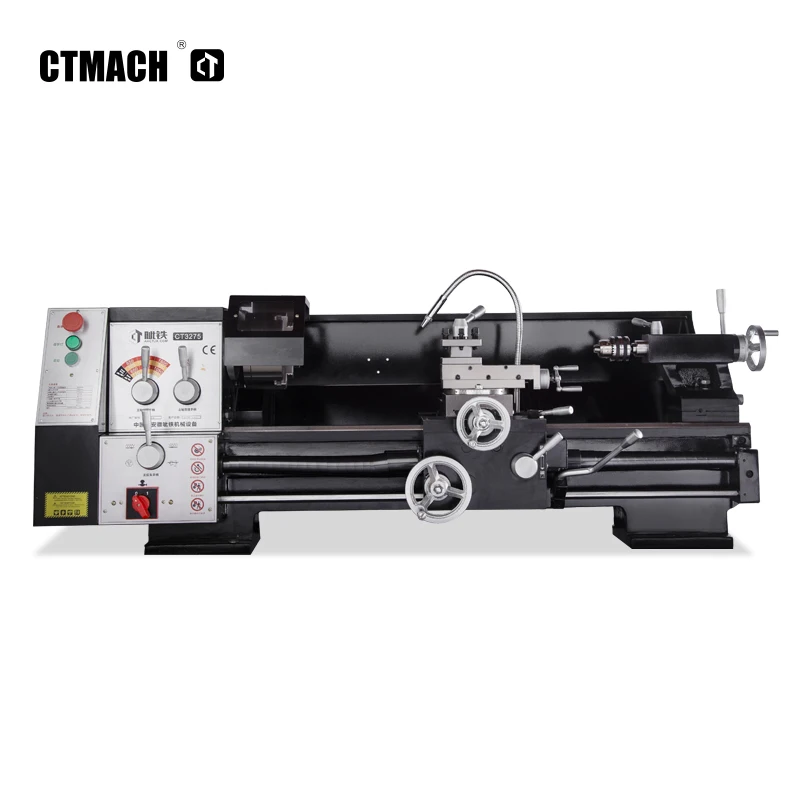

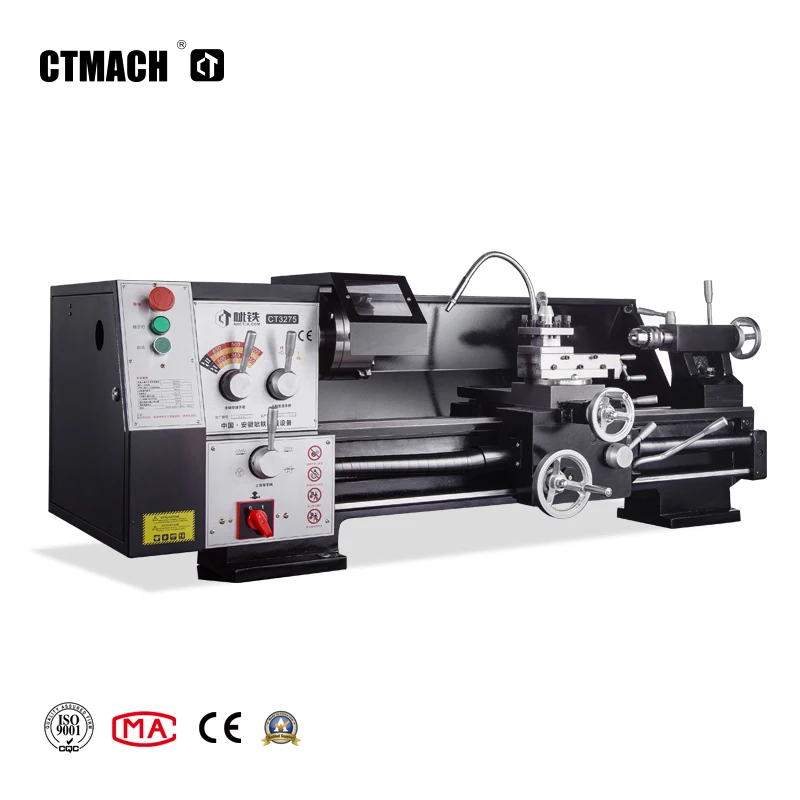

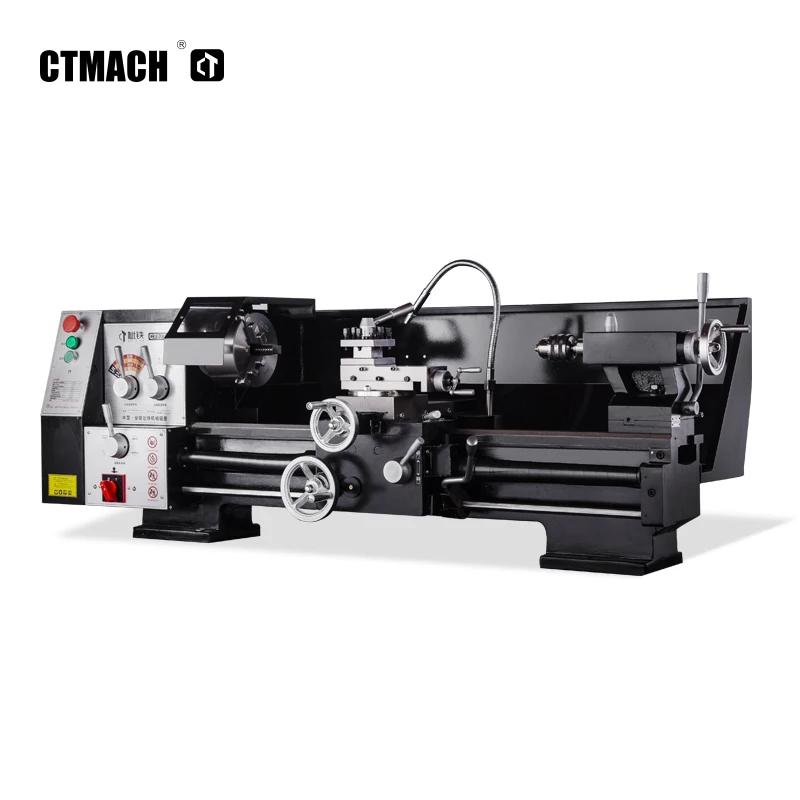

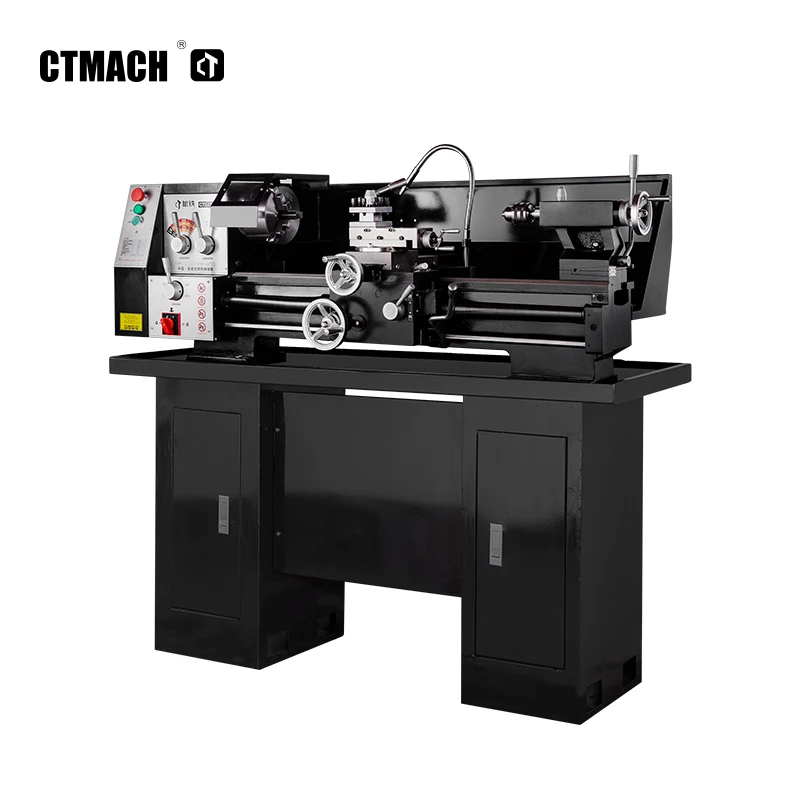

CT3275 Industrial Small Lathe

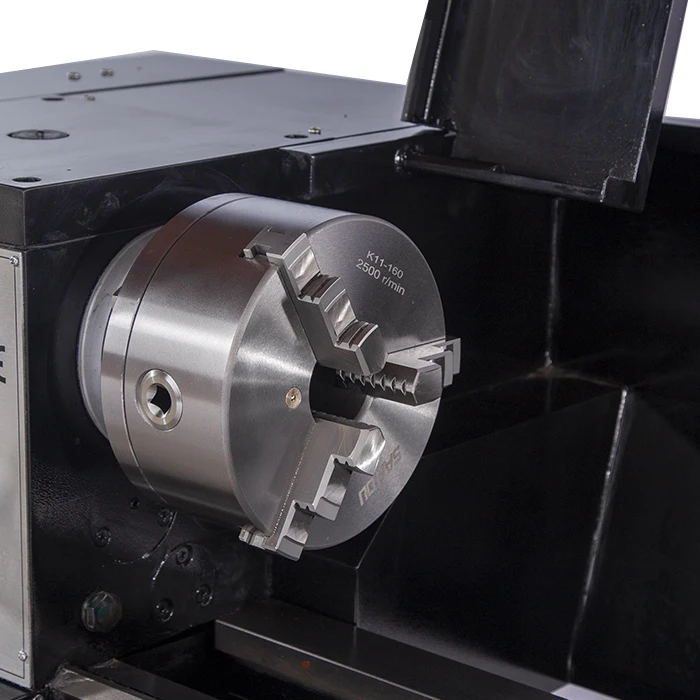

Smooth rod/lead screw switching, cam lock chuck, high precision spindle.
Using imported SKF bearings, the machine runs more smoothly and runs longer;

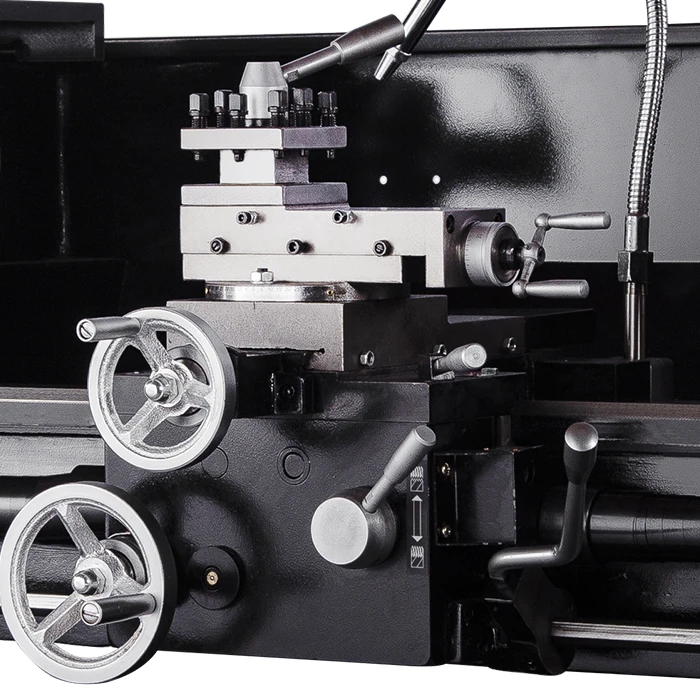

Horizontal and vertical automatic tool feed, turning thread is more convenient;

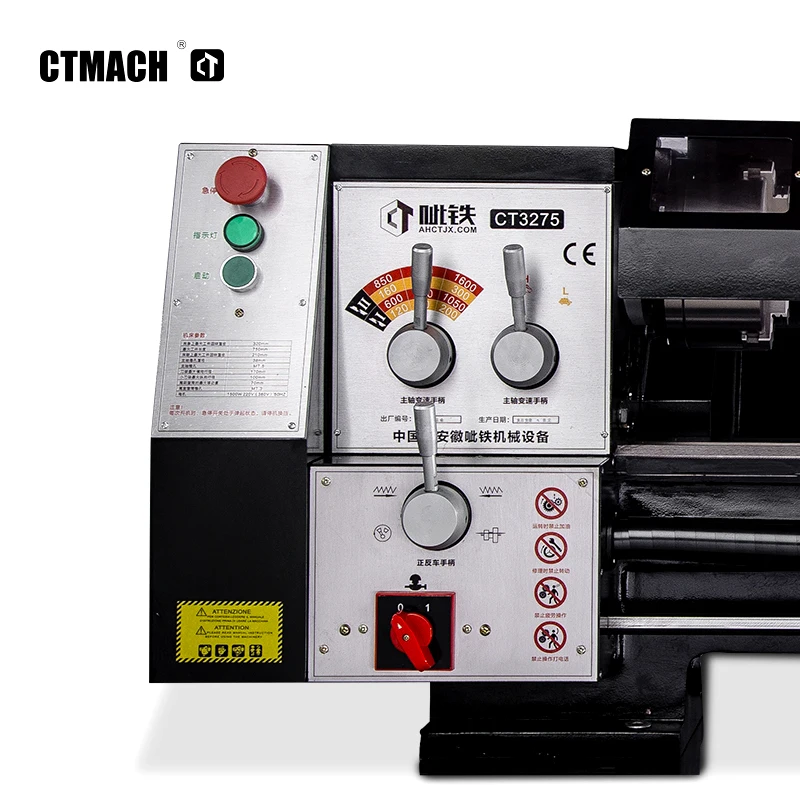

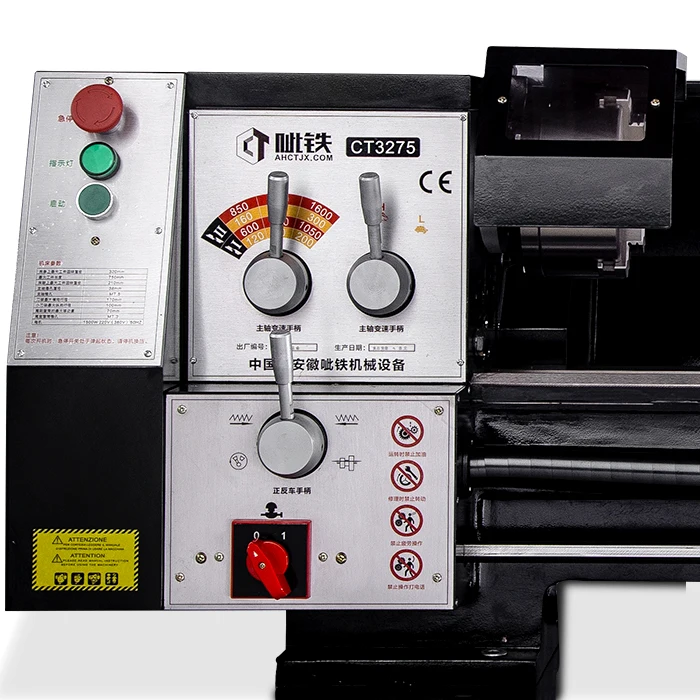

Change the position of the belt, with the high and low speed gears, you can get 12 kinds of speed change;
Safety protection, chuck power-off protective cover, lead screw protective sleeve and longitudinal anti-collision knife stroke power-off protection device;

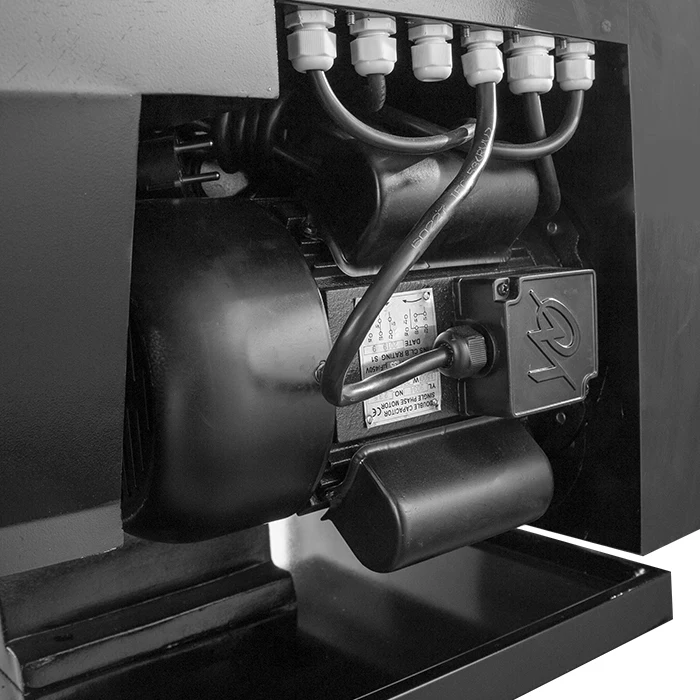

1500W high-power spindle AC motor with good performance and high efficiency;
This machine can be equipped with a grating digital display ruler to improve work efficiency.
Using imported SKF bearings, the machine runs more smoothly and runs longer;
Horizontal and vertical automatic tool feed, turning thread is more convenient;
Change the position of the belt, with the high and low speed gears, you can get 12 kinds of speed change;
Safety protection, chuck power-off protective cover, lead screw protective sleeve and longitudinal anti-collision knife stroke power-off protection device;
1500W high-power spindle AC motor with good performance and high efficiency;
This machine can be equipped with a grating digital display ruler to improve work efficiency.
PRODUCT SPECIFICATIONS
Swing Over Bed | 320mm |
Swing Over Cross Slide | 210mm |
Distance Between Centers | 750mm |
Spindle Taper | MT5 |
Spindle Bore | 38mm |

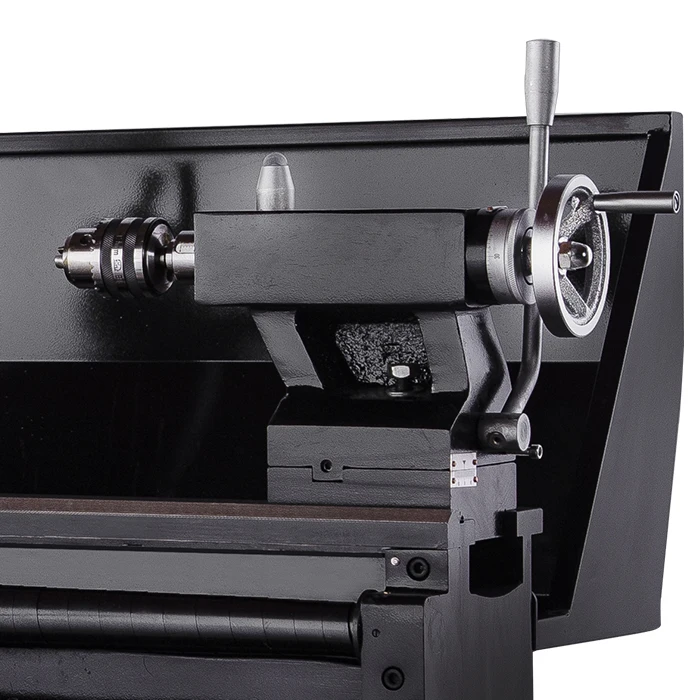

Tailstock Sleeve Travel | 70mm |
Tailstock Taper | MT3 |
Middle Carriage Travel | 170mm |
Small Carriage Travel | 100mm |
Metric Threads (Grade) | 0.5-4.0mm (17) |
Inch Threads (Grade) | 9-40TPI (20) |
Lateral Feeds | 0.025-0.35mm/r (42) |
Longitudinal Feeds | 0.135-1.80mm/r (42) |
Spindle Speeds (Grade) | 60-1600RPM (12) |
Motor Power | 1.5KW |
N.W. | 320KG |
Overall Dimensions | 1500*650*580mm |
FEATURES AT A GLANCE

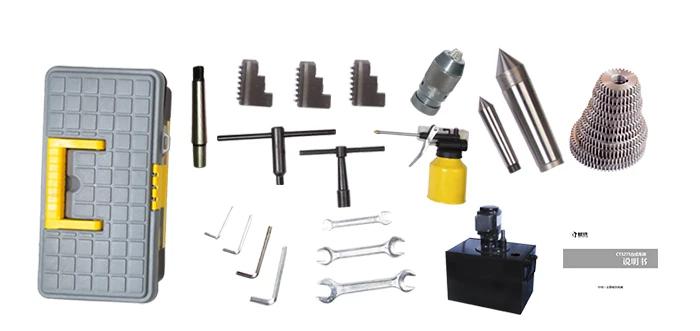

Product Acessories
SALES AND SERVICE NETWORK
Products are exported to more than 30 countries and regions in the world
EU CE standard, safe and reliable
ISO9001 quality system certification
EU CE standard, safe and reliable
ISO9001 quality system certification
Company Profile
FAQ
Q.What are your normal lead times?
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
A.Our company typical lead times range from 3-20days after receipt of order.
Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, OlA etc.
Q.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification, machine quality is one year guaranteed.
Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
