Best-Selling Chinese Suppliers Perforated Toilet Paper Manufacturing Kitchen Towel Rewinding Machine
Toilet paper full embossing roller slitting rewinding machine is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area. The highest production speed is 200-350M/min.
It has HMI, Chinese-English switch; synchronous frequency conversion drive;integration of mechanics, electrics and photo. It is equipped with whole trouble information. It can detect and adjust every action of the rewinder automatically to keep the rewinder in optimal situation.For example:There is a web tension system in the line,It can control speed according to the tension of web so it can adapt different type of jumbo roll.So it is the best choice to produce top-grade bathroom tissue and kitchen towel for paper company.
Technical Parameter：
Machine Model | 2800/2900/3600/4000/4300 |
Width of Parent Roll | 2750/2850/3550/3950/4250（mm) |
Working Speed | 350m/min |
Dia. of Finished Roll | 90-150 |
Dia. of Parent Rall | 1500, 2000, 2500, 3000 |
Inner Dia. of Parent Roll's Core | 76.2 (customized) |
Perforation Pitch | 120mm (Adiustable, other size please specify) |
Programmable Controller | PLC computer programming |
Count Mode of Paper Roll | by the diameter or sheets amount |
Glue Laminator | point to point,decorative embossing |
Unwinder | 1-4 ply(customized) |
Motive Power | 90-150 KW |
Details:

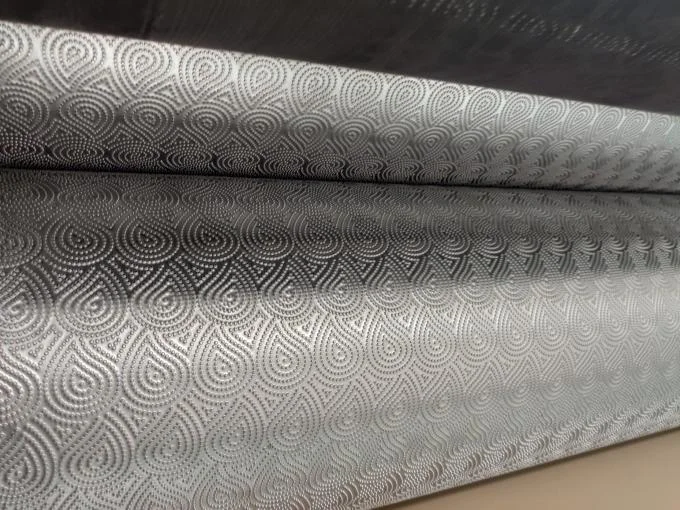

Full embossing device
This embossing unit can engrave the pattern without color, the diameter of roller is 240mm, and the pattern is engraved by computer, it it very clear and regular.
This embossing unit can engrave the pattern without color, the diameter of roller is 240mm, and the pattern is engraved by computer, it it very clear and regular.

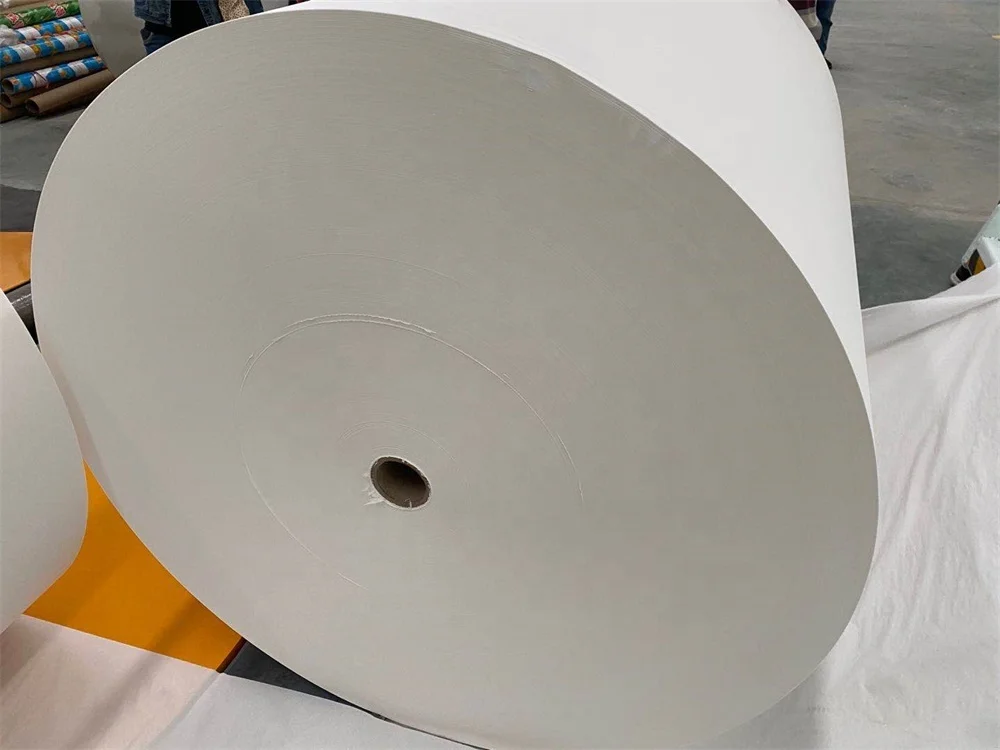

Jumbo roll stand
Independent wall-type jumbo roll stand, structure is simpler and stronger, easy to clean. It is controled by the independent frequency motor, and the tension is tracked by the encoder.
Independent wall-type jumbo roll stand, structure is simpler and stronger, easy to clean. It is controled by the independent frequency motor, and the tension is tracked by the encoder.

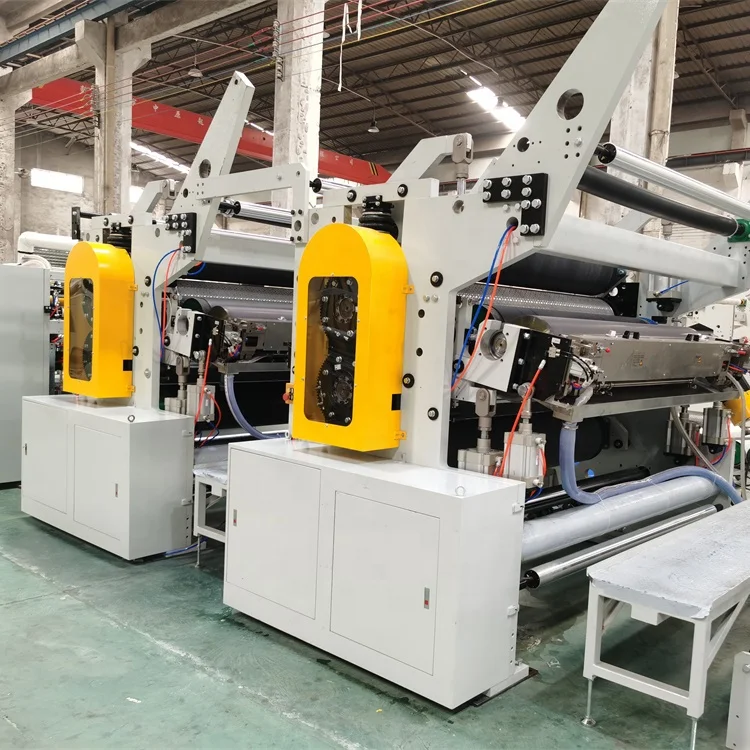

Glue lamination device
This glue lamination unit can add colors, but one glue lamination can only engrave one kind of pattern, the diameter of the embossing rollers are 394 mm. And the pattern is engraved by computer, it it very clear and regular. Pattern can be any logo, words, flowers,etc
This glue lamination unit can add colors, but one glue lamination can only engrave one kind of pattern, the diameter of the embossing rollers are 394 mm. And the pattern is engraved by computer, it it very clear and regular. Pattern can be any logo, words, flowers,etc

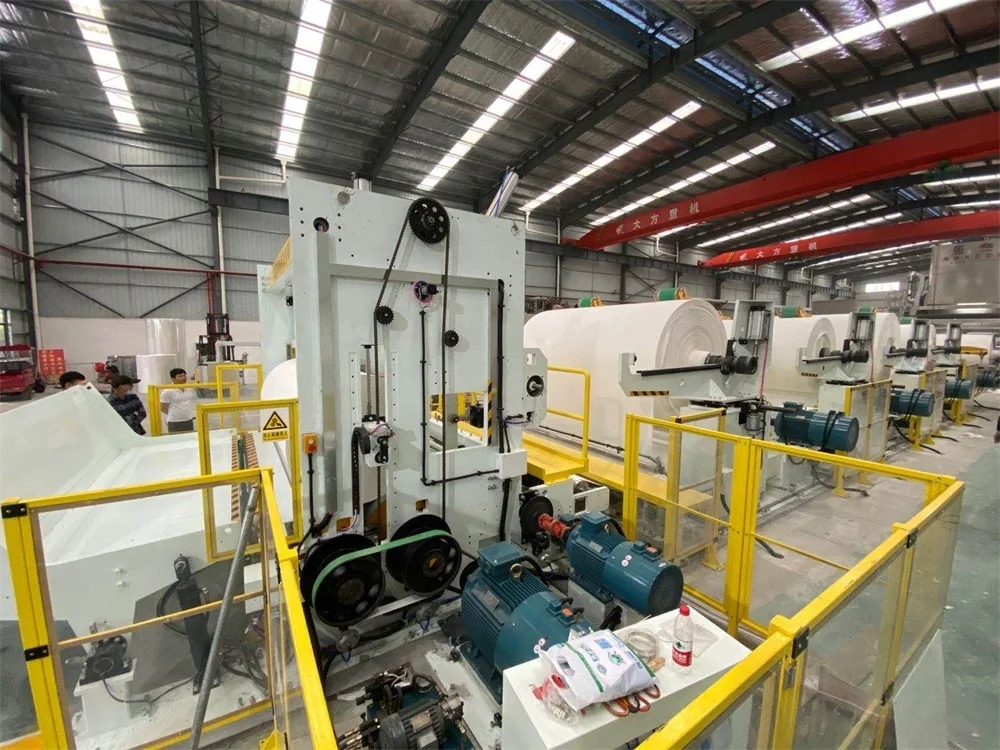

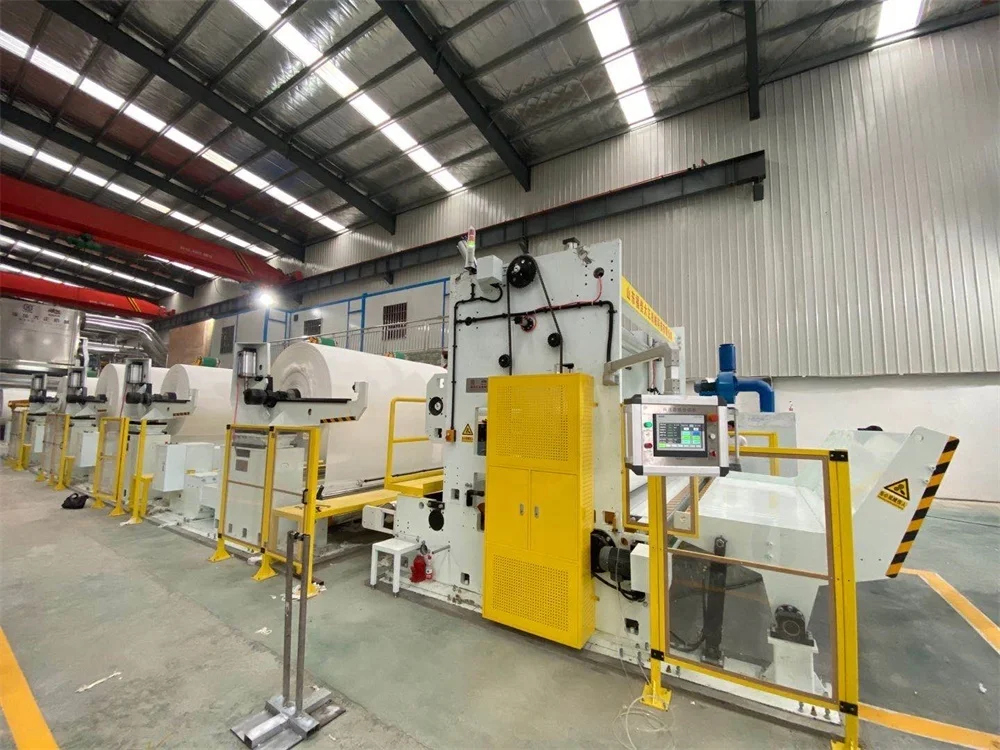

Real machine model:
1 rewinding unit + 1 glue lamination unit + 2 full embossing units + 2 jumbo roll stands
1 rewinding unit + 1 glue lamination unit + 2 full embossing units + 2 jumbo roll stands
2.Log saw cutting machine:
1) Stable production speed: 120 cuts/ min.
2) Adopt to independent servo motor drive and PLC control system.
3) High precision positioning,with length tolerance ±1mm.
4) Model clamping unit, reliable and easy to assemble.
5) Reliable and stable servo drive high precision trimming system.
6) Cutting diameter: 90-150mm, tolerance ±5mm
2) Adopt to independent servo motor drive and PLC control system.
3) High precision positioning,with length tolerance ±1mm.
4) Model clamping unit, reliable and easy to assemble.
5) Reliable and stable servo drive high precision trimming system.
6) Cutting diameter: 90-150mm, tolerance ±5mm
3.Full automatic toilet paper and kitchen towel roll wrapper：
Product Application:
The double-layer wrapper provides a variety of packaging configurations for BRT and HHT. Fully automatic high speed multi-pack film wrapper for bath tissue and towel rolls，can have full range production in 1,2 layers.
The double-layer wrapper provides a variety of packaging configurations for BRT and HHT. Fully automatic high speed multi-pack film wrapper for bath tissue and towel rolls，can have full range production in 1,2 layers.
The rolls are coming by five channels conveyor; they are launched in the number of lanes according to packaging configuration needed, which is set by HMI, in the single layer or double layers into infeed section, where they are transported and stacked by group of carbon bars mounted on trimming belts. Carbon bars convey the group of rolls on the elevator, which leads them into the area of folding. The foil positioning section brings the packaging film directly above the rolls by transport belts. The folding process is performed by universal side folders, as well bottom folder and counter folder. Side folding is done by innovative air supported mechanical folders. The overhead pack transport section continuously moves the pack through section of side folding and rotating bottom sealer and deliver pack to side sealing section. All motions and functions are fully controlled by the 27 independent servo axis.
Infeed | 5 lanes |
Max mechanical speed | 160 packs/min |
Production speed | 140+packs/min |
Layers | 1 or 2 |
Average format changeover time | 10-30min |
Roll diameter | 90-160(200)mm(3.5-6.3")(7.9") |
Roll length | 90-300mm(3.5-11.8") |
Pack width | 100-650mm(3.9-25.6") |
Pack length | 90-630mm(3.5-24.8") |
Pack height | 90-270(300)mm(3.5-10.6")(11.8") |
Wrapping material | PE/LDPE |
PE thickness/LDPE | 25-50 microns |
Reel diameter | up to 500mm (19.7") |
Installed power | 35KW |
Real power consumption | 18KW |
Air consumption | <500L/min |
Machine weight | 8000KG |
Popular Products
Packing & Delivery
• Cover with plastic film.
• Packed with wood tray or wood case, it depends on the machine model.
• Packed with wood tray or wood case, it depends on the machine model.
Company Profie
Liuzhou Fexik Intelligent Equipment Co., Ltd is a a professional high technology company. As a leading manufacturer and exporter of tissue paper machinery in China. Serve the facial tissue converting and packing production line, toilet tissue and kitchen towel rewinding and packing production line, hand towel folding and packing production line around the world. Our main market is Europe and America, Middle East, South America.
Fexik Machinery had passed international certification I S O 9 0 0 1 and several national invention patents, with full independent intellectual property rights. Our strength is our powerful research and development team that can rapidly customize unique solutions to meet the ever-changing market demands and special requirements from customers. We can provide solutions to customers from products choosing, designing, installing and training. From upfront engineering to ongoing technical support, our designs are focused on meeting the regulations of human and product safety as well as the environment in every market that we serve.
Fexik Machinery had passed international certification I S O 9 0 0 1 and several national invention patents, with full independent intellectual property rights. Our strength is our powerful research and development team that can rapidly customize unique solutions to meet the ever-changing market demands and special requirements from customers. We can provide solutions to customers from products choosing, designing, installing and training. From upfront engineering to ongoing technical support, our designs are focused on meeting the regulations of human and product safety as well as the environment in every market that we serve.
