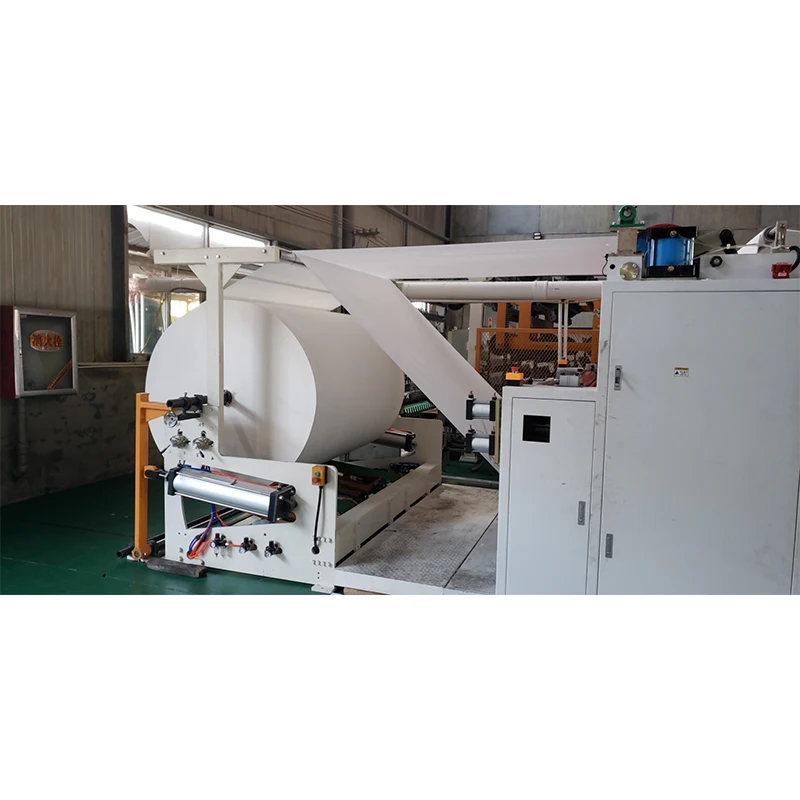

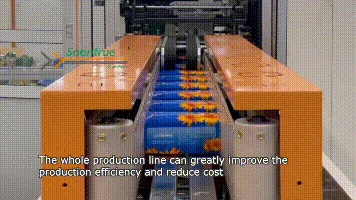

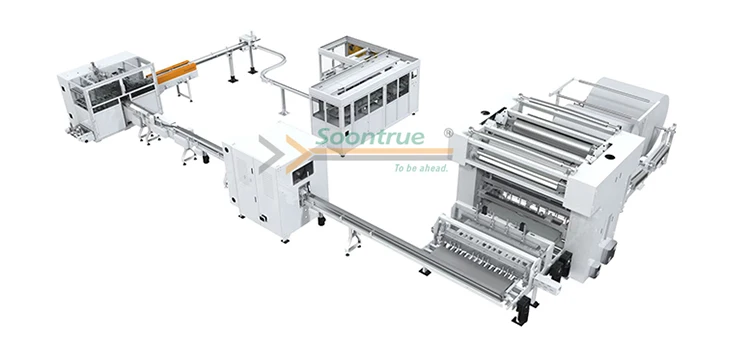

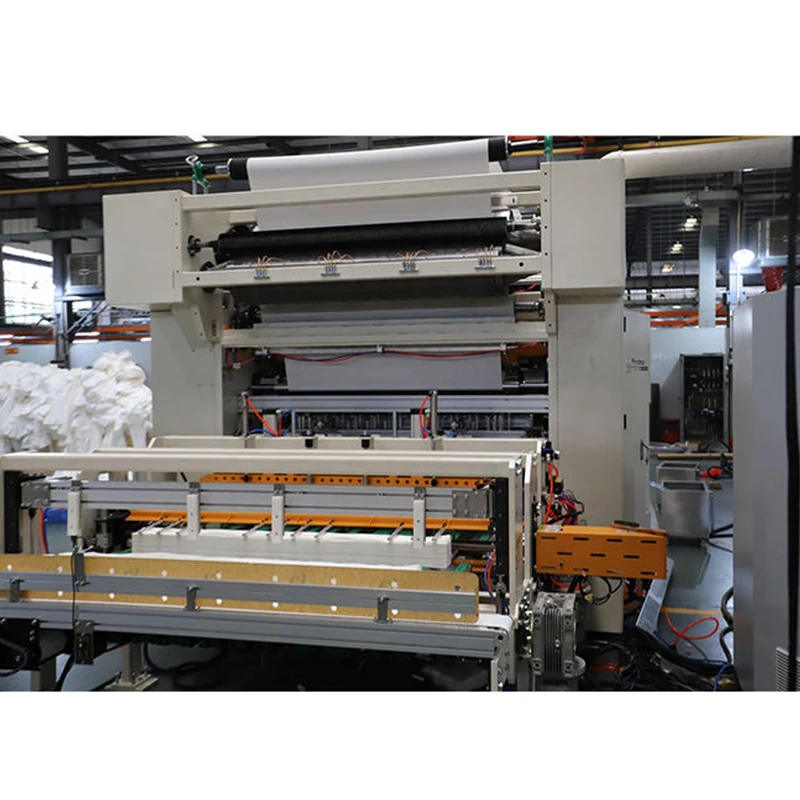

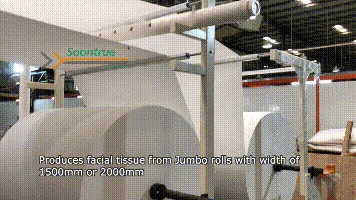

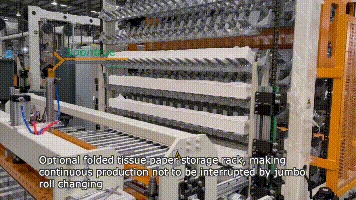

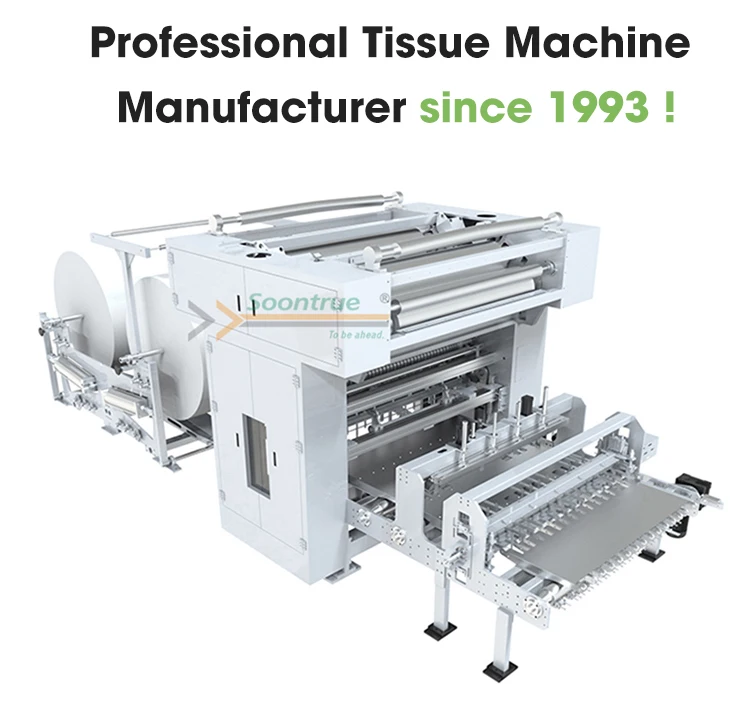

Tissue Machine Full Automatic Facial Tissue Paper Folding Machine v Fold 3 Lines Facial Tissue Machine

Items

Technical specification

Designed speed

130 m/min

Operation speed

110 m/min or 12 strip /min

Finished product open size (mm)

190mm(+1, -2) (if different ,pls specify)

Finished product folded size(mm)

95mm(+2, -0) (if different ,pls specify)

End product height (mm)

40mm-150mm

whole machine structure

wall plank type frame

(wall plank thickness 50mm)

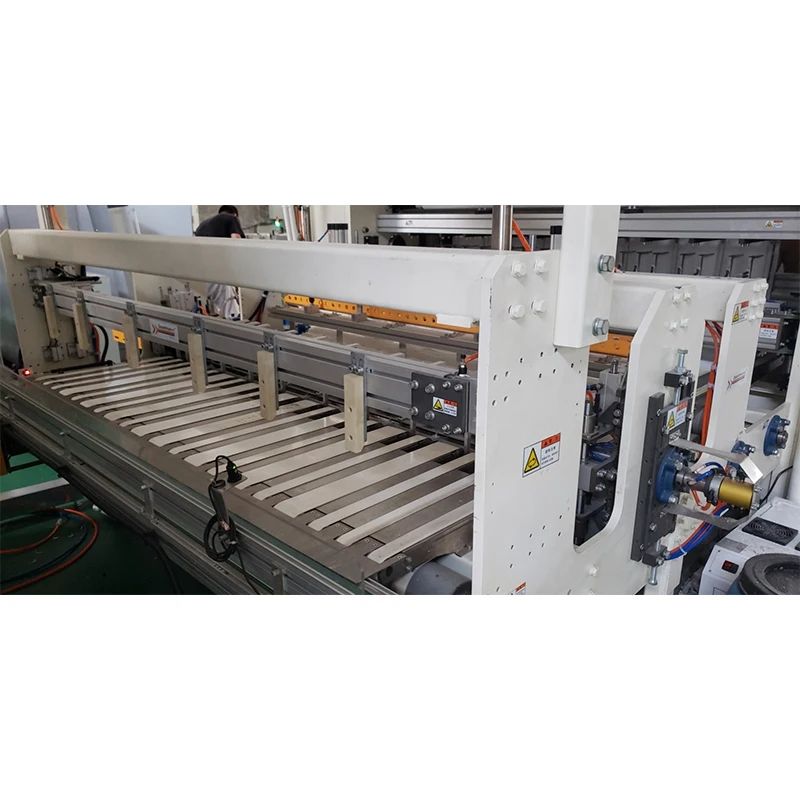

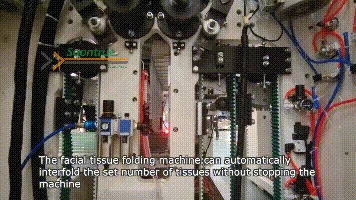

Counting method

Adopts high resolution servo computing , counting 100% accurate

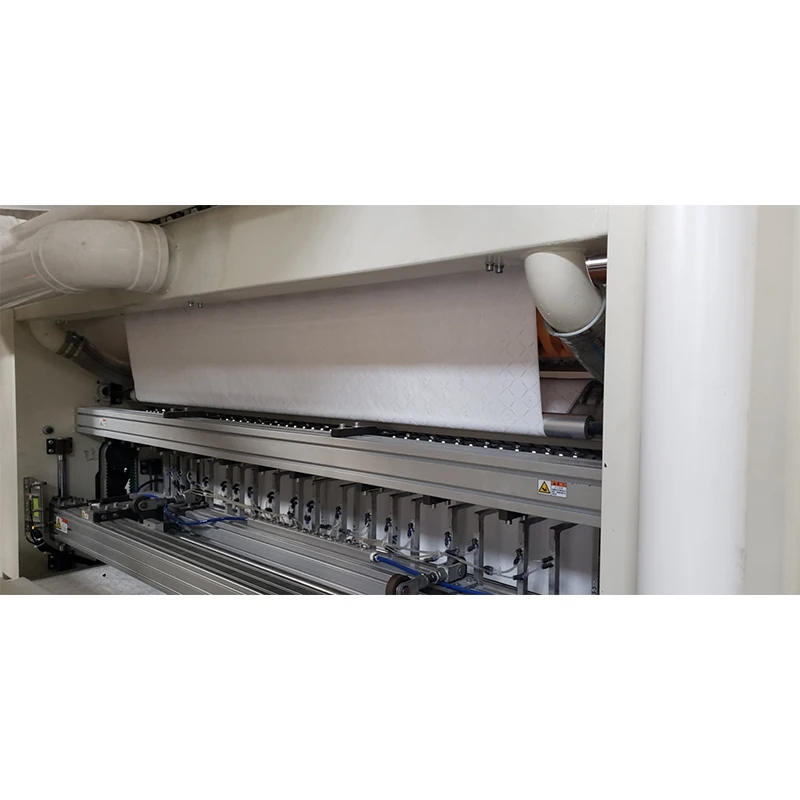

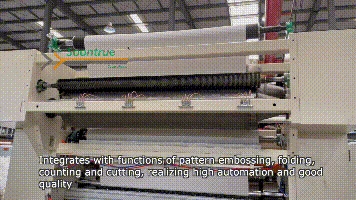

Folding unit

Folding via vacuum system

Folding method

V fold ( interleave)

Folding roller processing mythod

After quenching and tempering , and the use of high precision deep hole processing , ensure the rigidity and strength of each roll
, and all the CNC machining center processing , G3.2 grade dynamic balance, to ensure the precision of the folding roller at high
speed

Folding roller

2 unit folding roller, and the roller with 3 sets paper knives and 3 folding V slots are evenly distributed (The quantity is
subject to size) ,Make sure the tissue size of after-folded is 95mm, and vacuum adsorption holes are regularly arranged next to
the V slot of each insert knife folding on the roller surface, use to adsorb tissue after cutted then attached to the roll surface

Tissue cutting dead knife

All imported materials are used for processing ,And the bottom knife side with suction hole structure to ensure that high-speed
paper does not turn over paper separate , and the end product will be more tidy

Tissue cutting face knife

All imported materials are used for processing,And with the design of spiral face knife, ensure the durability of the face knife

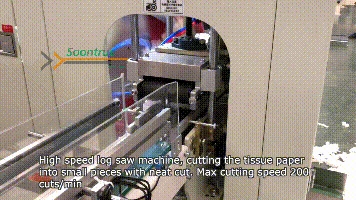

Tissue cutting way

1.Tissue cutting face knife roller 2 pcs , each roll with 1 pcs knife , face knife is fixed

2.Tissue cutting dead knife roller 2 pcs , each roll with 3 pcs dead knife, the dead knife rotates and cut the paper

3.Spiral paper cutting structure; Paper breaking stability, long tool life

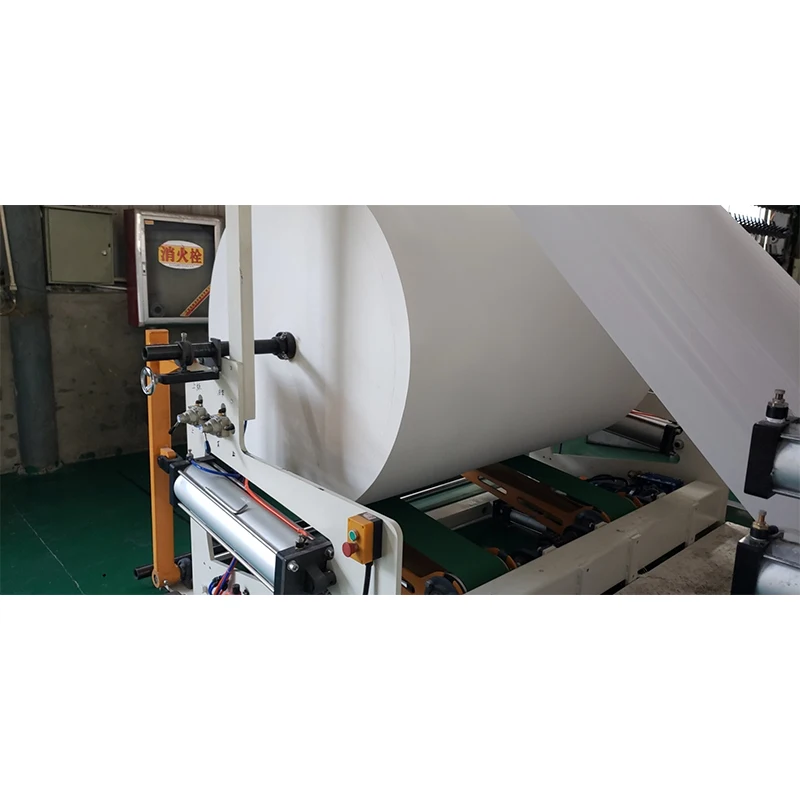

Paper feeding way

Manual

Vacuum wind pipe

Arranged by user

Machine inching function

Machine can choose jogging function

Main motor power (kW)

5.5KW

Machine vacuum pump power(kW)

37KW

Machine Power required(V Hz)

3 phase,380v 50Hz

( if different ,pls specify)

Control voltage (V)

24

Compressed air(MPa)

≥0.6

Air consumption

1000 L/batch
