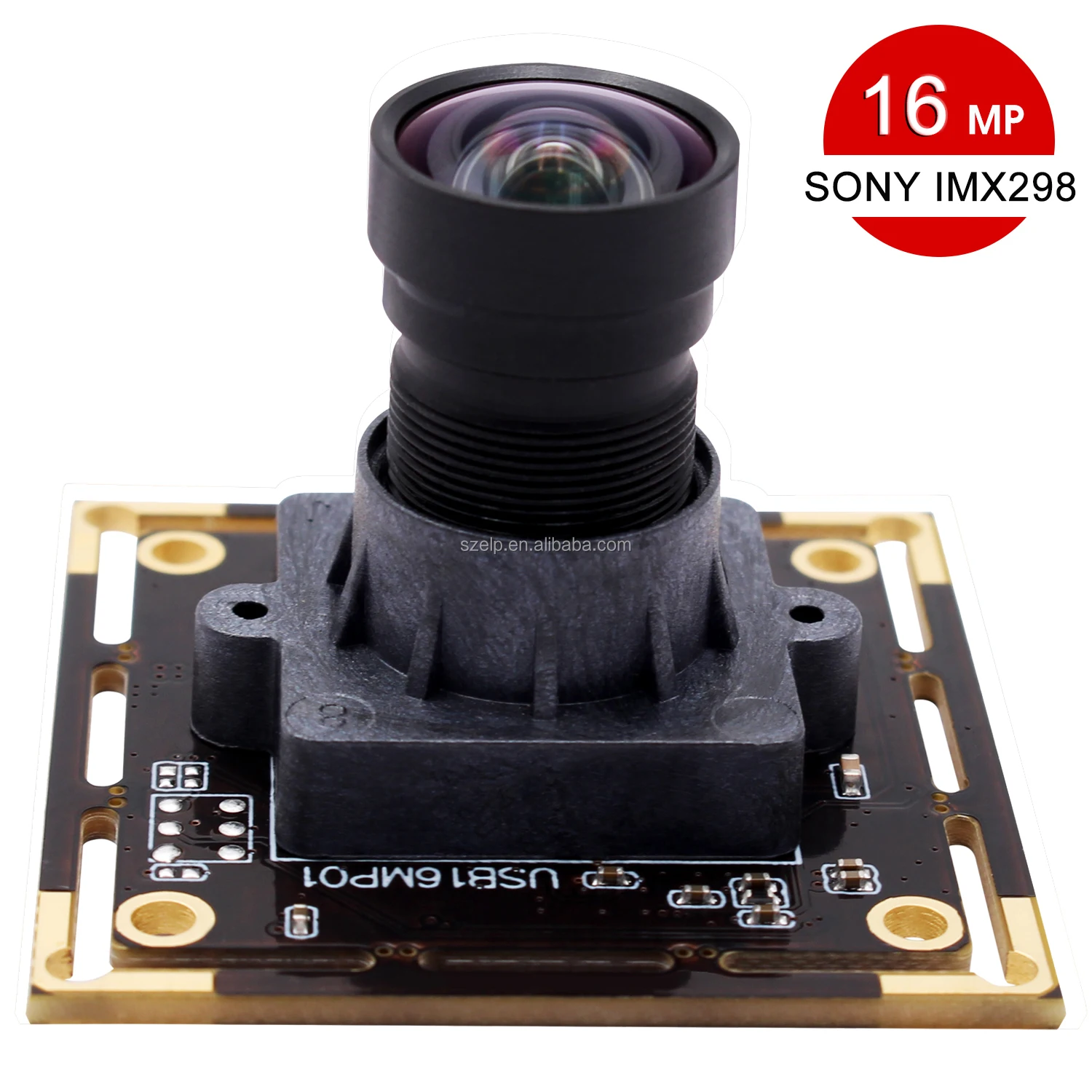

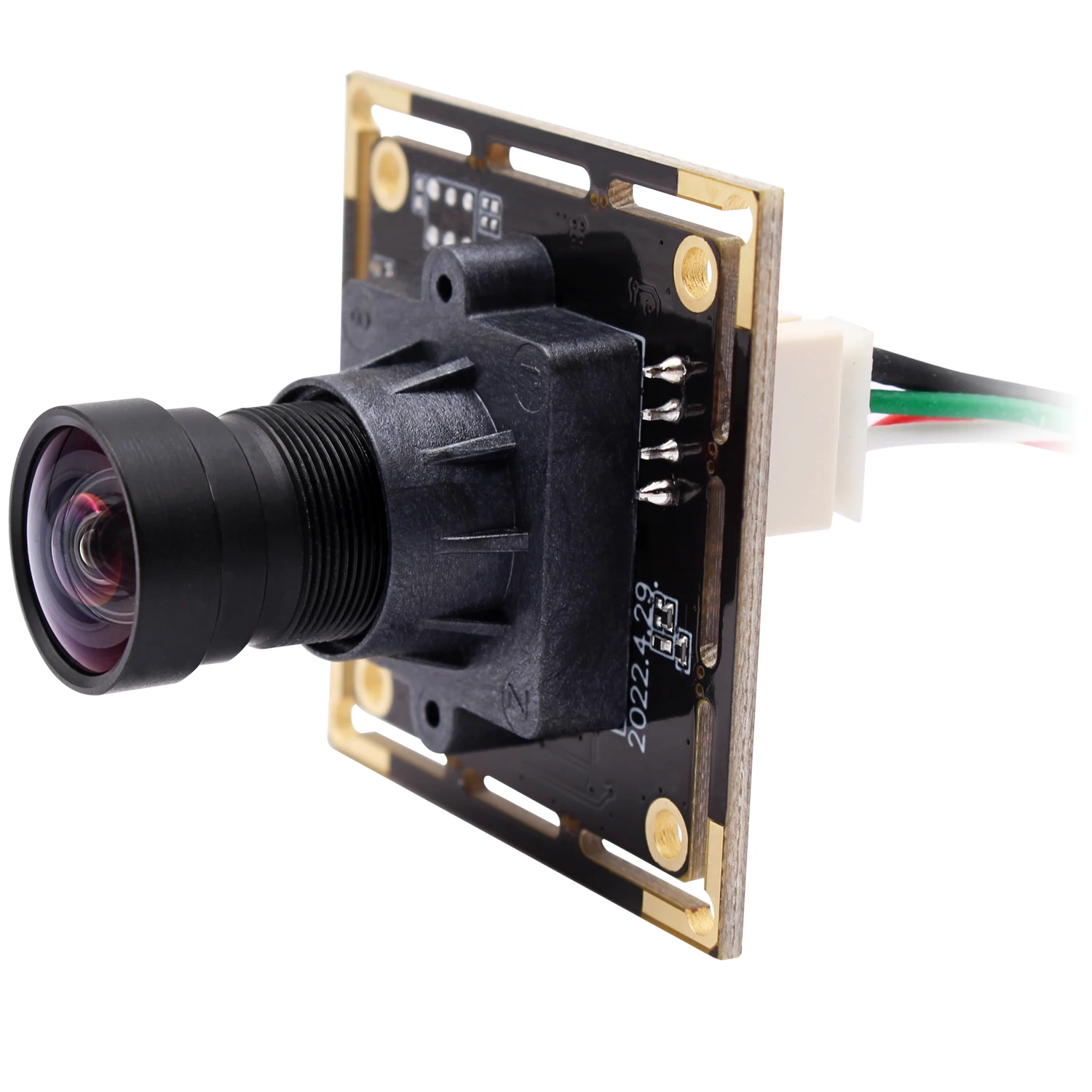

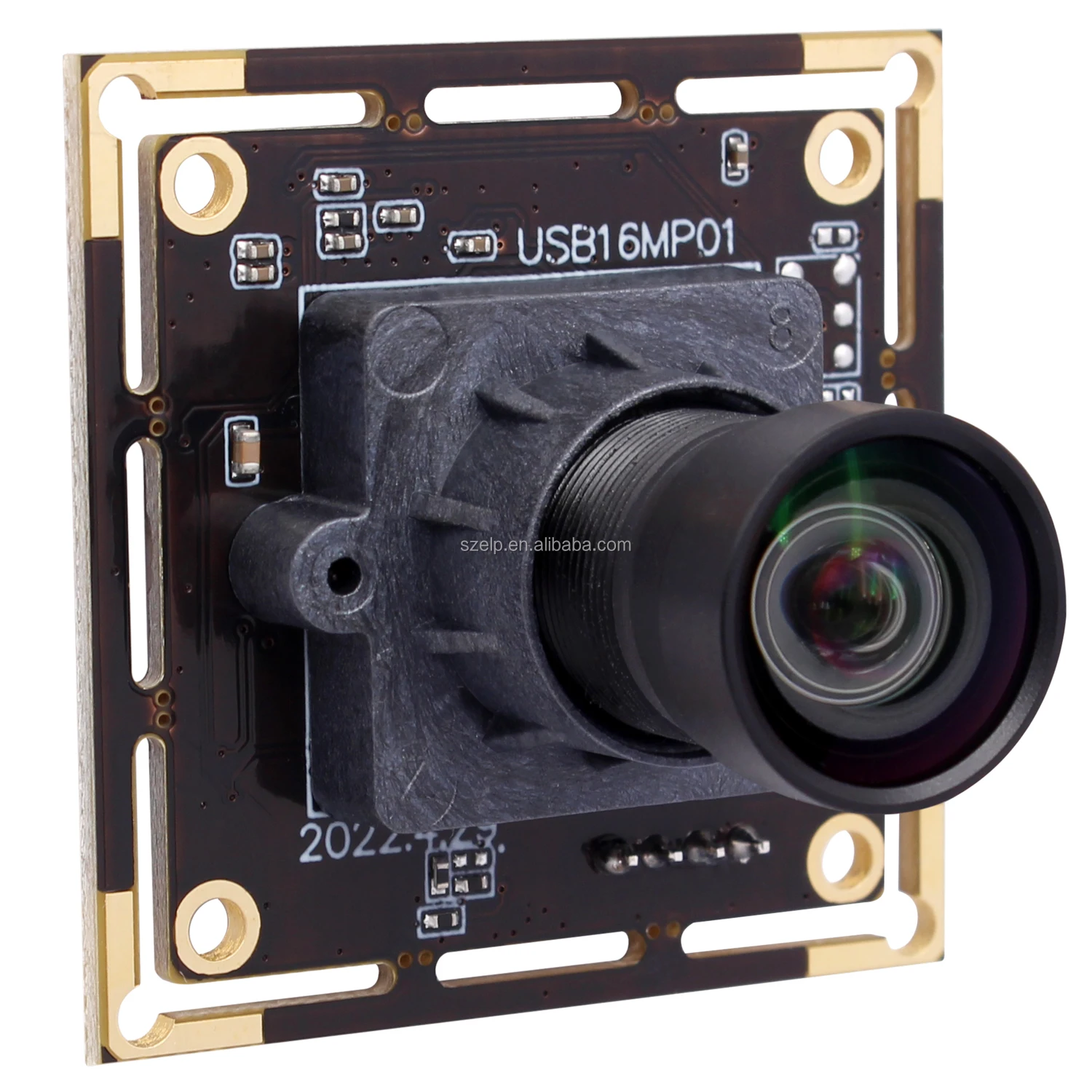

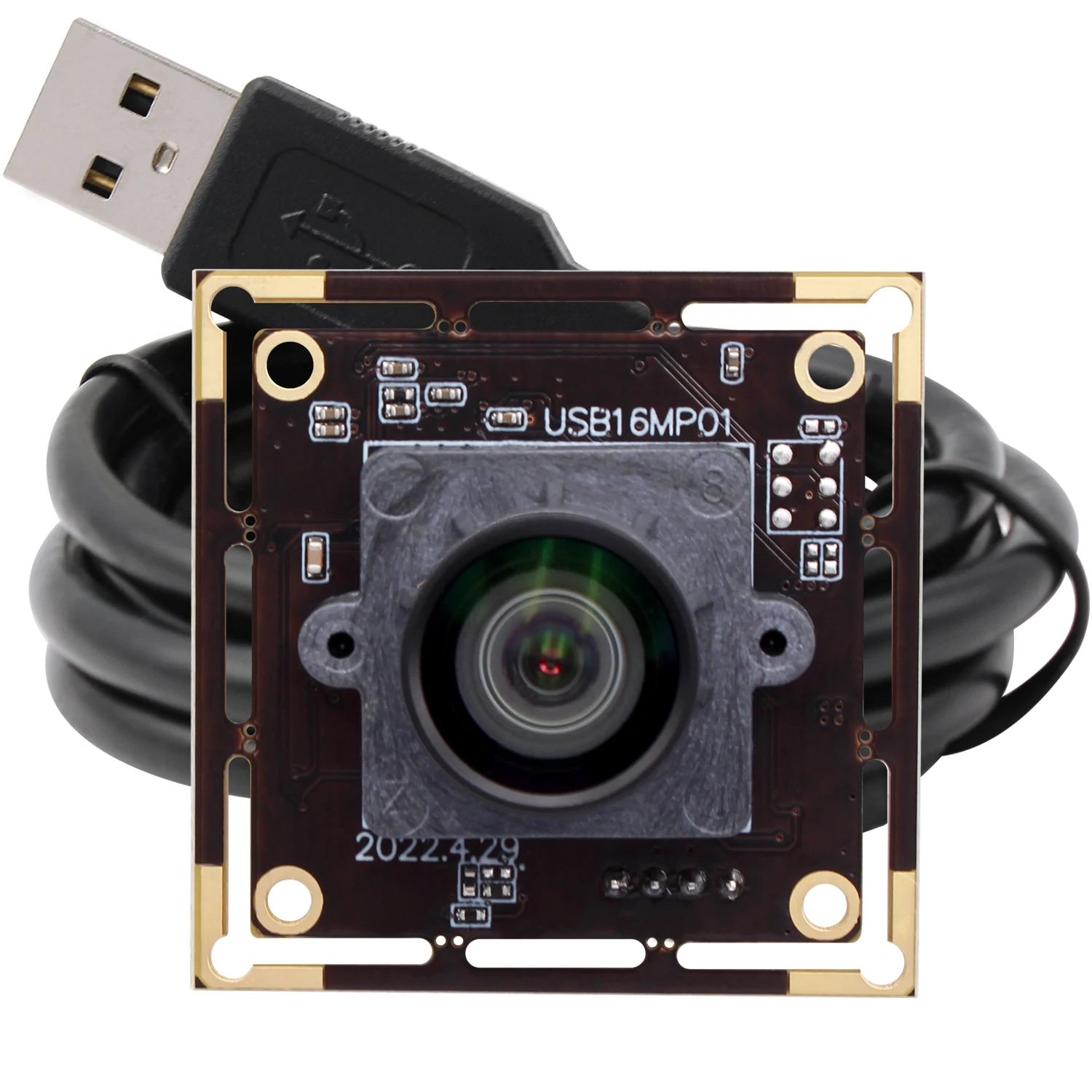

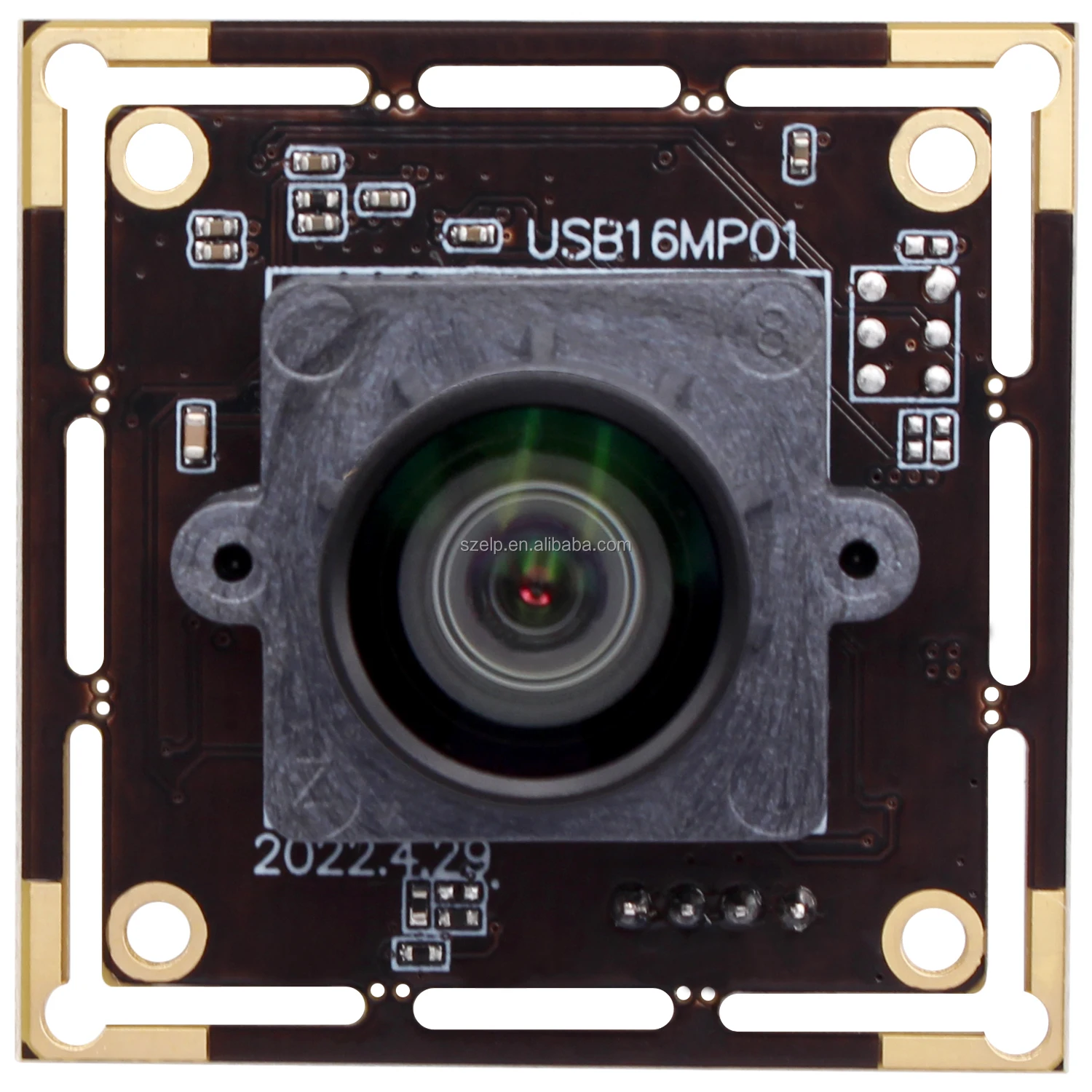

ELP 16MP USB Camera Module UVC IMX298 USB2.0 HD Mini USB Webcam with No Distortion Lens for Windows Android Linux Mac
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd
Share on (1600568715785):
Product Overview
Description
ELP 16MP USB Camera 4656x3496 IMX298 USB2.0 HD Mini Camera Module UVC OTG Plug Play USB Webcam with No Distortion Lens for Windows Android Linux Mac
Product Description
It is 16 Mega Pixel with IMX298 CMOS Sensor, image quality is very high and stable.The Camera module capture clear images of objects at different distances by manually fixed focus.
USB Connecting port in this camera module support high speed usb 2.0 data transmission,Webcamera board usb also support OTG protocol(UVC).The camera has a dedicated, high-performance Image Signal Processor chip (ISP) that performs all the Auto functions (Auto White Balance, Auto Exposure control) in addition to complete image signal processing pipeline that provides best-in-class images and video and the MJPEG compression.
Features
1. High Resolution 16MP Mini HD USB Camera Module
2. HD USB webcam camera module With 1/2.8 inch IMX298 Sensor
3. Max Resolution: 4656(H) X 3496(V)
4. With No distortion lens, FOV is about 76 degree (Many other lens optional)
5. UVC free driver, Plug and Play
6. Mjpeg/YUY2 compression
7. Mini micro USB webcam with Size 38x38mm, optional 32*32mm
8. Support different operating systems, different preview softwares.
-Support living streaming software, Skype, Zoom, Facetime, Youtube...
-Support many APP and software, Amcap, OpenCV, PC default Webcam software, VLC, V4L2, Camera Fi, Photo Booth....
-Many operating systems compatible, Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS...
Specifications
Model | ELP-USB16MP01-V100 |
Optional Models | With no distortion lens: ELP-USB16MP01-V100 (FOV 80 degree) ELP-USB16MP01-H100 (FOV 95 degree) ELP-USB16MP01-H110 (FOV 107 degree) ELP-USB16MP01-H120 (FOV 118 degree) With normal lens: ELP-USB16MP01-F28 (FOV 90 degree) ELP-USB16MP01-F36 (FOV 76 degree) |
Sensor | IMX298 |
Sensor Size | 1/2.8inch |
Pixel Size | 1.12um |
Image Area | 6.4mm x 5.3mm |
Max. Resolution | 4656(H) X 3496(V) 16 Megapixel |
Compression Format | MJPEG / YUY2 (YUYV) |
Resolution & Frame Rate | 4656 x 3496 MJPEG 10fps/ YUY2 1fps 4208 x 3120 MJPEG 10fps/ YUY2 1fps |
Min Illumination | 0.5 Lux |
Shutter Type | Electronic Rolling Shutter / Frame Exposure |
Connecting Port Type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class (UVC) |
AEC | Support |
AWB | Support |
AGC | Support |
Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure |
Lens Parameter | Standard No distortion lens, FOV about 76 degree. |

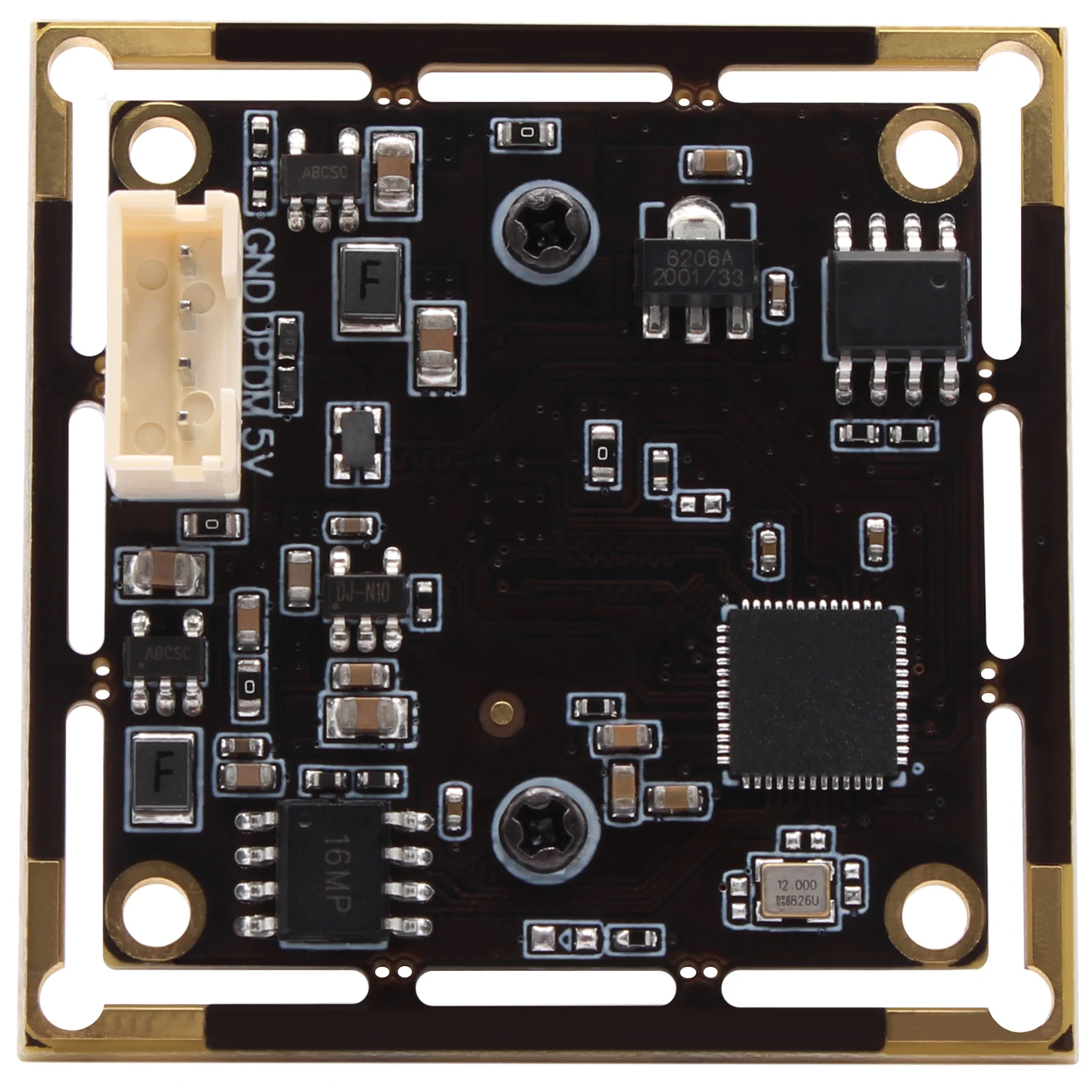

Power Supply | USB BUS POWER 4P-2.0mm Socket |
Operating Voltage | DC5V |
Working Current | 150mA~240mA |
Working Temperature | -10~70℃ |
Storage Temperature | -20~85℃ |
Board Size /Weight | 38X38mm (Compatible 32X32mm) / about 30g |

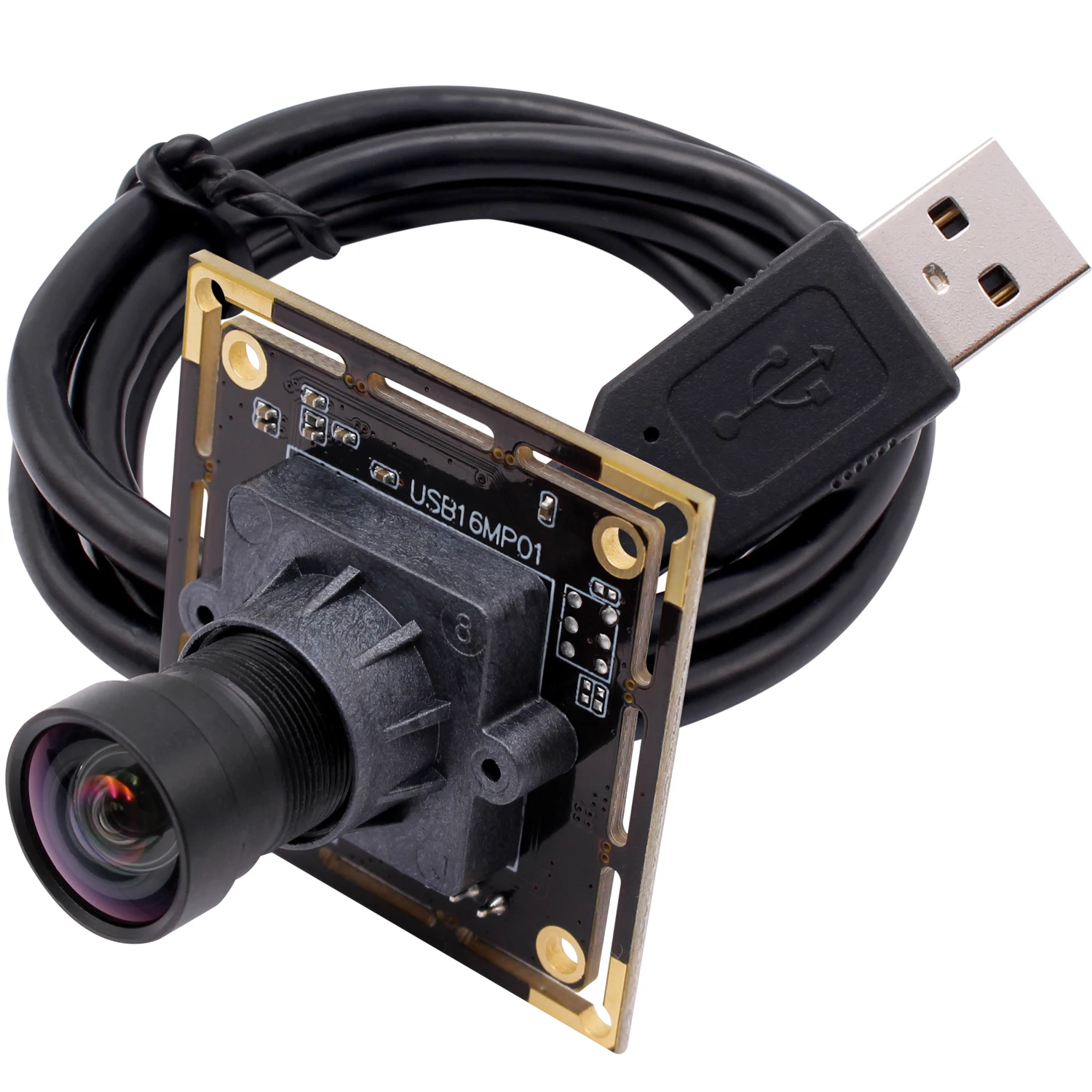

Cable | Standard 1m / Optional 2m,3m,5m |
Operating System Request | WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. |
Sample Pictures
Product Display
Applications
ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment, machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm attendance machine, simple security system, teaching system, Interactive system,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Company Information
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module for more than 12 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
