Product Overview

Description

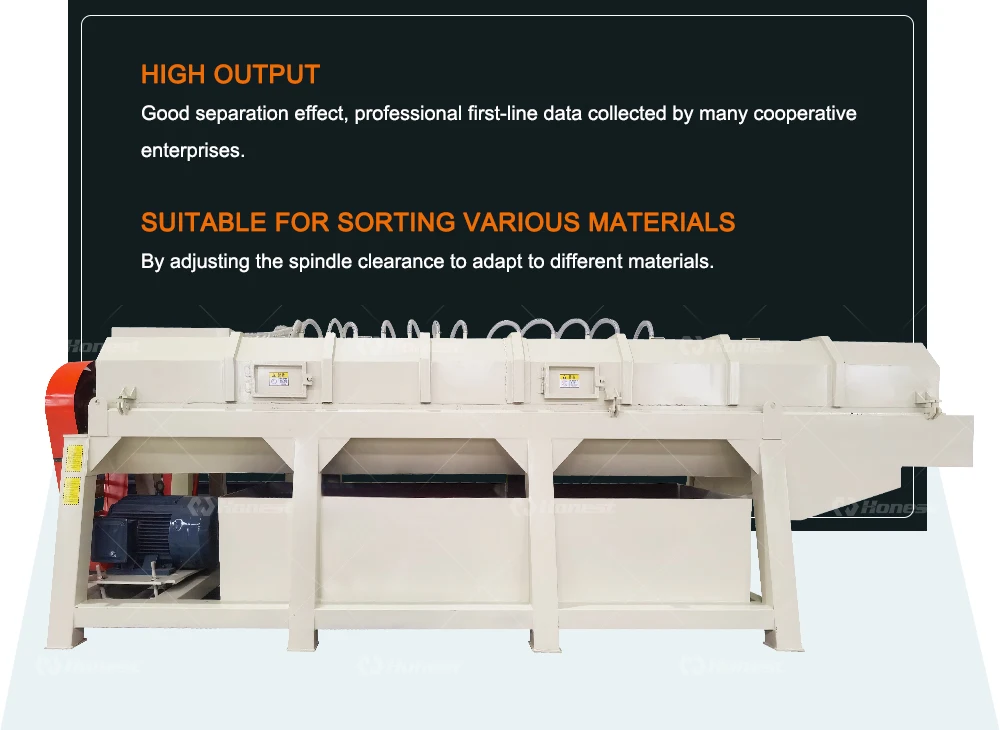

1.Paper Aluminum Separator

It is the main equipment of the production line. The working principle is that the motor drives the spindle to rotate at high speed. The spindle blade drives the material to move from the feeding end to the discharging end.
After years of research and development experience and cooperative development by cooperative manufacturers, water mixing and spindle sieve plate friction separation are adopted according to the characteristics of paper-plastic composite and paper-plastic mixture. This paper-plastic separator has passed through many cooperative manufacturers and customers.





Technical Parameters


Function
Paper material
PE Coated paper, bulk paper, cow card
Paper covered bag
Main motor power （KW）
110KW
75KW-132KW
55KW
Rated speed （r/min）
380- 560
380-560
380- 560
Mesh diameter （mm）
Can be customized according to requirements
8
8
8
Thickness of sieve plate（mm）
Can be customized according to requirements
8
8
8
Outlet (length x width) （mm）
800*800
800*800
800*800
Diameter of slurry outlet is（mm）
φ220*2
φ220*2
φ220*2
Raw material processing capacity
150- 200t/24h
1.5-3.5t/h
11000-11500piece/h
Floor space: width x length (mm)
1800*8000
1800*8000
1800*8000
Total （mm）
3300
3300
3300
Outlet height （mm）
1100
1100
1100
Height of pulp outlet （mm）
800
800
800



2.Pulp Filter

In the pulping of waste paper, because of the different paper quality of waste paper, there is a large amount of slag. This machine can remove light and heavy sundries and decompose small pieces of paper in fibers, without blocking the sieve plate, and hard sundries will not hurt the sieve plate. The factory does not have to stop running for cleaning frequently, and it can also be used as a second pulping machine.It is mainly used for sorting tail pulp after fiber separator and pressure screen; The treated and sorted slurry is directly returned to the fiber separator or the slurry pool in front of the pressure screen for reuse.After sortingThe tailigs do not contain fiber, which meets the emission requirements of environmental protection.






Model
380
450
500
Sieve Plate Length
L1250*W610mm*2pcs
L1500*W715mm*2pcs
L1500*W795*3pcs
Electrical Machinery
45kw-4
75kw-6
90kw-6
Total Length Of Equipment
3750mm
4150mm
5850mm
Equipment Width
780mm
850mm
925mm
Base Length
3000mm
3500mm
5160mm
Slurry Inlet
219
219
273



3.Pulp Dehydrator

The basic working principle of the pulp dehydato is: the particles rotate to a certain height with the drum, are thrown and fall by gravity, and are filtered through the screen to form a sieve. The roller screen is shaft driven, and the screen is steel wire woven net or high toughness nylon woven net. The ruler of the sieve holes can be configured according to the technological requirements.




Model
Motor power (KW)
Screen density
Screen length (mm)
Weight (KG)
Output (kg)
TS-200
0.75
100
2000
150
500
TS-300
1.5
100
3000
200
750
TS-400
2.2
100
4000
270
1000
TS-500
2.2
100
5000
350
1300



4.Pulp Filter Press

Pulp filter press is a mechanical equipment designed for the recycling of pulp separated by paper-plastic separator.
The pulp filter press uses the motor to drive the spindle to run and drive the polyester blanket. The pulp is transported to the filter press by the pump and evenly flows onto the polyester blanket. After being driven by the polyester blanket, it is squeezed between two layers of polyester blankets, and then squeezed and compacted by multiple pressing rollers, thus making cardboard for secondary uilization. The filtered clear water can be pumped by a water pump for recycling, thus reducing emissions and saving resources.





Model
1500
2000
2500
Drive motor power (KW)
4
4
5.5
Polyester blanket specification
1500x11300
2000x11300
2500x1 1300

1500x12700
2000x12700
2500x12700
Pulp handling capacity (t/d)
35-55
42-62
50-70
floor area(m)
2400x6000
2900x6000
3400x6000
Spindle speed (r/min)
37-61.5
37-61.5
37-61.5


Customer Feedback






Why Choose Us




Delivery




Quality Assurance






Company Show


Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
