Automatic Chicken Feeder Pan for Poultry Feeding System
- Category: Animal & Poultry Husbandry Equipment >>>
- Supplier: Qingzhou Fubo Kaiyuan Industry Co. Ltd.
Share on (1600568756767):
Product Overview
Description
Products Description
FB Series Feeders Broiler automatic Chicken Auger Feed System For Poultry Farm/Chicken house
⦿Save time and labor, one shed just need one person.
⦿Increase survival rate.⦿Easier to operate.
⦿Easier to install and clean.
⦿Longer service life.
⦿Competitive price.
⦿Complete controlled poultry equipment.
Product Paramenters

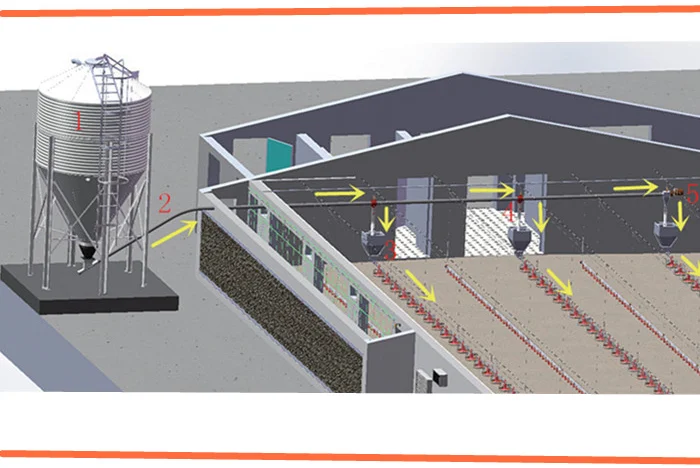

1. Automatic Pan Feeding System
Packed Tower
1.Tower silo wall: it is made of steel with tension up to 55000,With electroplating coating treatment, 275g Zinc coating.
2.Movable top cover:Can be 180° opening,and you can control it on the ground.3.Bin top Edge:Different design based on different actual situation,The edge at the bottom of the material tower formed by curling edge can keep the rainwater away
4.40° tower top: 40° tower top provides greater strength and capacity.
5.Hopper: there are three kinds of funnel at the bottom, 45° for dry feed conveying; 60° for smooth flowing grain conveying

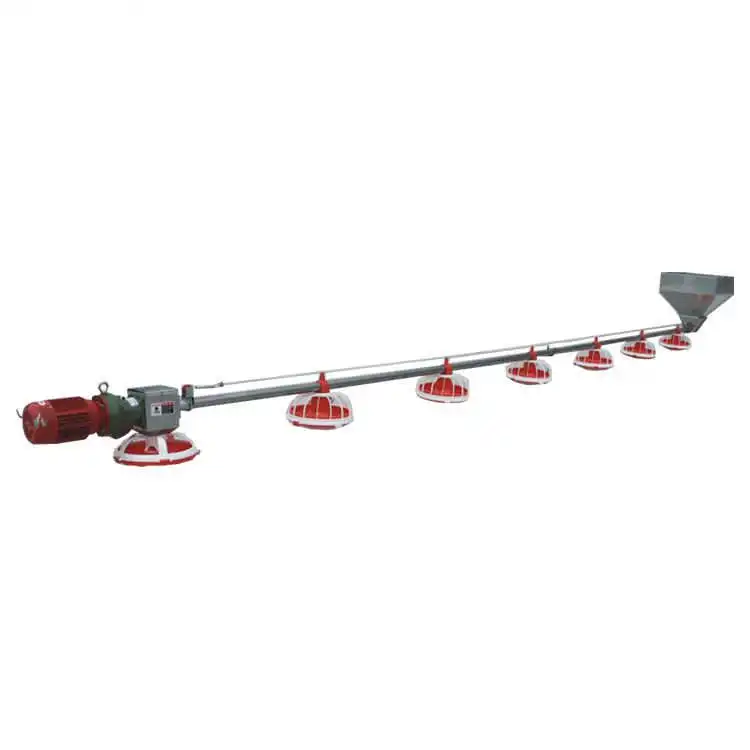

Main Feeding line
Main Feeding Line with motor spiral conveyor and hopper
Parameters:
1.Tube diameters:75mm×3.6mm
2.Material:PVC
3.Capacity of Conveying food:1400kg/hr
4.Bent tube diameter:R1500

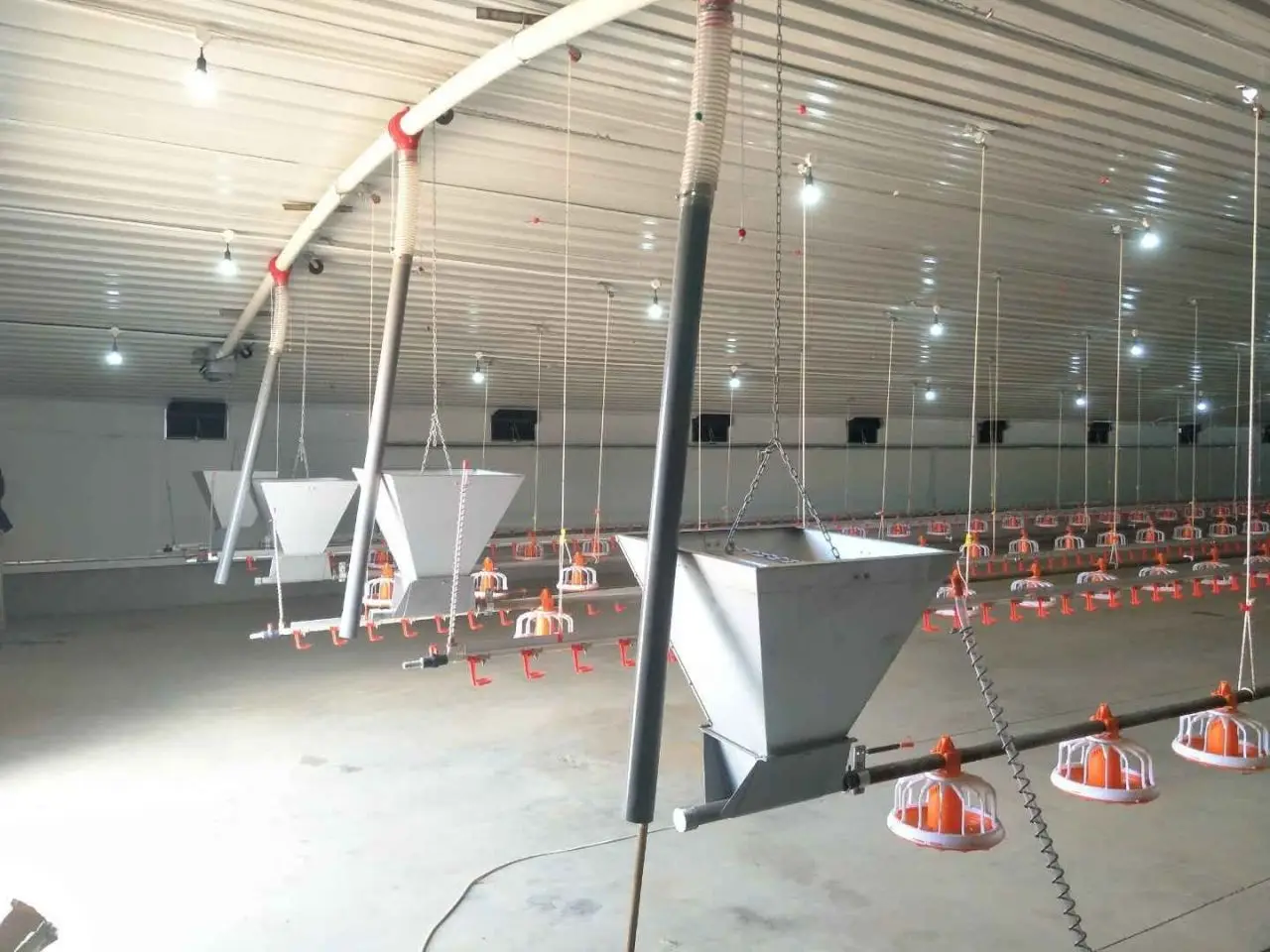

Vice hopper feeding line system

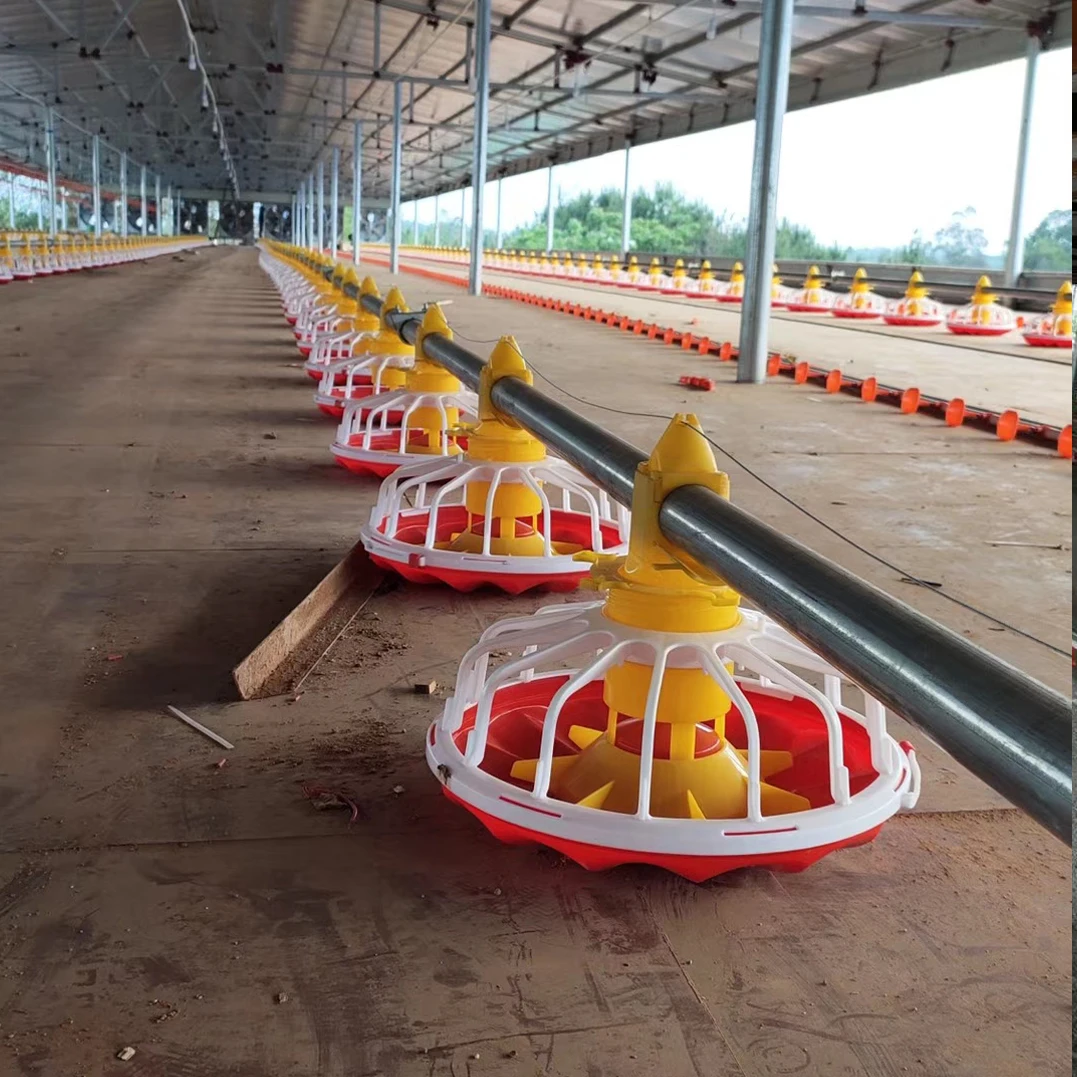

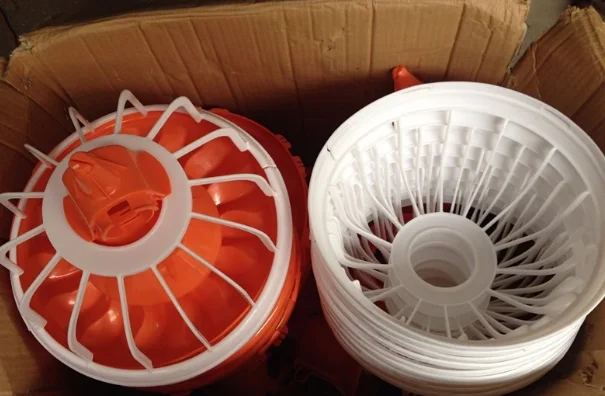

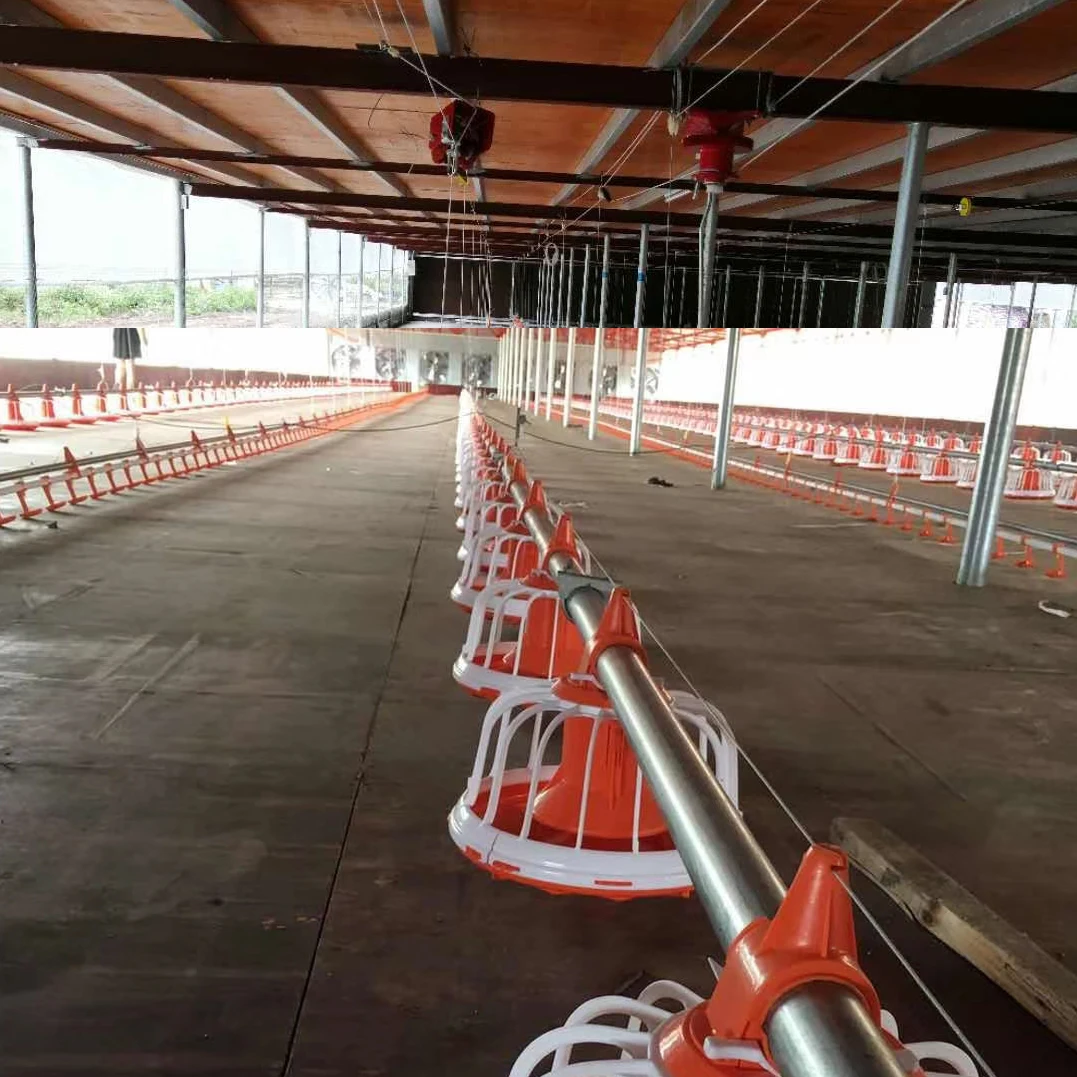

Feeding Pan
Feeding pans with V-shaped can decrease the surplus of chick food,Fresh food supply for chicks.
Parameters:
1.Diameter:330mm
2.Material:PP
3.Sections:14/16 partitions
4.Feeding Quantity:40-50 chicks per pan
Feeding pans with V-shaped can decrease the surplus of chick food,Fresh food supply for chicks.
Parameters:
1.Diameter:330mm
2.Material:PP
3.Sections:14/16 partitions
4.Feeding Quantity:40-50 chicks per pan
Hopper | Vice hopper volum | 115 L /200L |
Hopper | material | hot-dip galvanized sheet |
Hopper | material thickness | 1mm |
Conveying pipe & Auger | Feeding pipe material | hot dip galvanize steel (275g zinc coating) |
Conveying pipe & Auger | Conveying pipe | 3m with 3 pans or 4 pans |
Conveying pipe & Auger | Diameter | 45mm, 1.2mm thickness |
Conveying pipe & Auger | Auger | imported from South Africa |
Conveying pipe & Auger | Feeding ability | 450kg/h |
Spiral Conveyer
Spiral conveyer is made of imported high-carbon manganese steel from South Africa as raw material,quality is reliable
Parameters:
Models:36#,45#,63#,75#,90#. if special model needed, we can customize based on request.
Parameters:
Models:36#,45#,63#,75#,90#. if special model needed, we can customize based on request.
Lifting Device
Lifting Device,which mainly include winch,pulley wheels,fixing material and steel rope
Features:The Height of feeding pans is very important to the broilers,This lifting device can help you to adjust the height in order to give proper feeding condition to broilers according to their growing levels.It also saves your time when you do the clean-up or transporting of broilers.
Features:The Height of feeding pans is very important to the broilers,This lifting device can help you to adjust the height in order to give proper feeding condition to broilers according to their growing levels.It also saves your time when you do the clean-up or transporting of broilers.
2. Automatic Nipple Drinking system
Filter System
1.Φ25 pipe ,filter ,water-flowmeter, valve,etc
2.With back-flushing system and double filtration.Filter fineness is less than 5 micron.
3.Spare filter element is provided. 4.Filter element can be cleaned without being dismantled by using backwash device.
3.Spare filter element is provided. 4.Filter element can be cleaned without being dismantled by using backwash device.
Medical System
Dosatron imported from France. Working pressure: 0.3bar-6bar. Highest working temperature: 40℃ Dilution percentage: 0.2%-2% Public
Doser Add ratio 0.2%-2% Gaskets 3*10mm, Regulator valve:brass made ø6 Groove gasket :4*12mm
Doser Add ratio 0.2%-2% Gaskets 3*10mm, Regulator valve:brass made ø6 Groove gasket :4*12mm
Water pipe
Two kinds of water pipe for choose : round pipe/dia:25mm,
square pipe /dia: 22mm, resistance 90° bending with seven times.

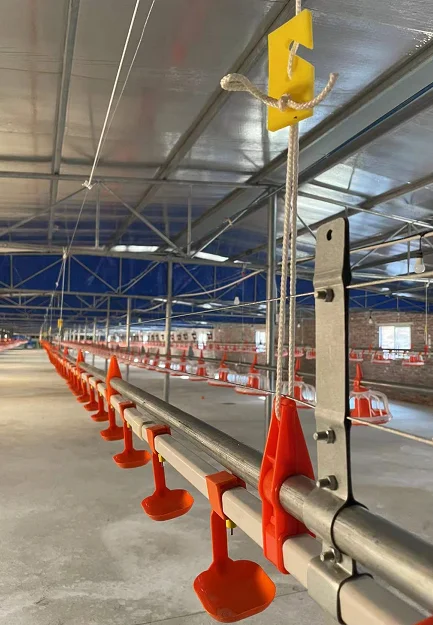

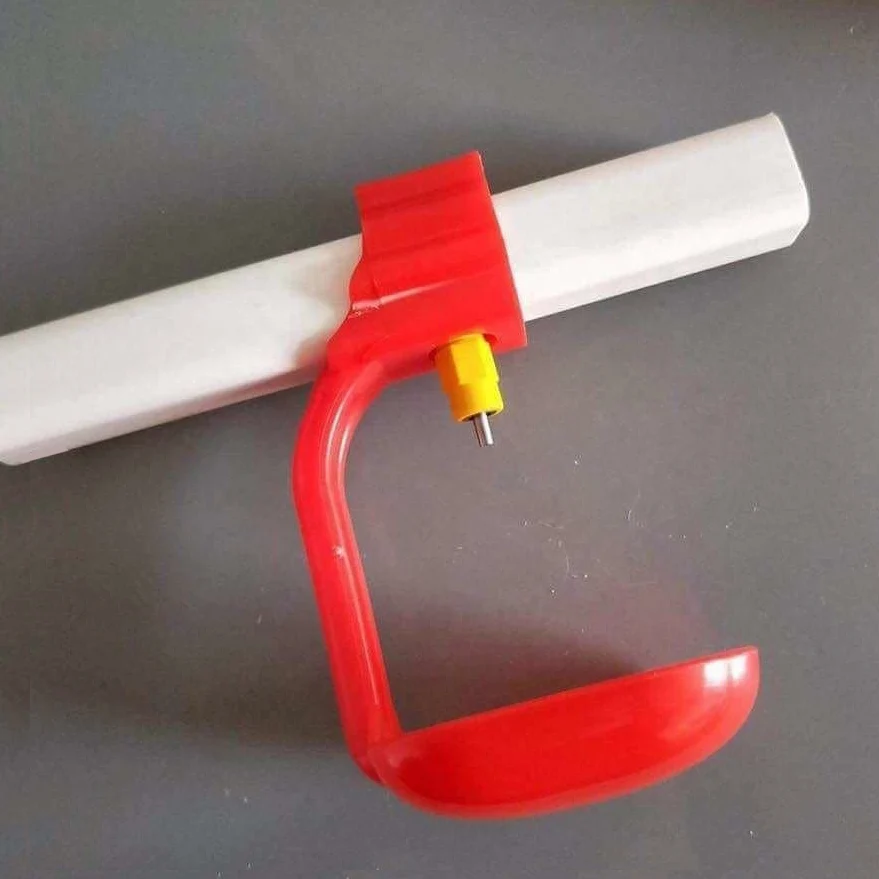

Nipple Drinker
Water flow:80-130ml/min
Broiler:8-12 birds/nipple
4m/set ,4 nipples/m
Can customize based on customer request
Broiler:8-12 birds/nipple
4m/set ,4 nipples/m
Can customize based on customer request
Hanging system
Proper height is very important for healthy growth of chicken
and the height is adjustable .
Features of nipple drinker:
1. Drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.
2. Provide the right amount of water for their climate and house conditions.
3. Nipple is easy to be dismounted and replaced
4. The service life of the high-quality stainless steel material with optimum anti-corrosion performance can reach more than 10 years.
2. Provide the right amount of water for their climate and house conditions.
3. Nipple is easy to be dismounted and replaced
4. The service life of the high-quality stainless steel material with optimum anti-corrosion performance can reach more than 10 years.

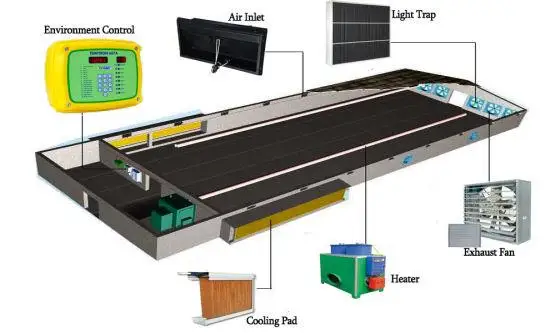

3. Ventilation System
Push Pull Exhaust fan
1.Frame:275g Zinc coating Thicken galvanized sheet.
2.Motor: Chinese motor /Siemens motor .etc
Protection class: IP55 grade
Insulation class: F grade
3.Fan Blade:1.2mm Krupp 430 stainless steel
4.Opening system:Centrifugal Push rod,which can keep the shutters open at complete 90 degree.
5.Belt: Chinese belt and Japanese Mitsuboshi brand belt.etc
2.Motor: Chinese motor /Siemens motor .etc
Protection class: IP55 grade
Insulation class: F grade
3.Fan Blade:1.2mm Krupp 430 stainless steel
4.Opening system:Centrifugal Push rod,which can keep the shutters open at complete 90 degree.
5.Belt: Chinese belt and Japanese Mitsuboshi brand belt.etc
Cooling Pad
Thicken Frame
Galvanized Frame
Aluminum Alloy Frame
Stainless Steel Frame
Jiamusi original pulp
15cm thickening
Good evaporation
Fast cooling
Galvanized Frame
Aluminum Alloy Frame
Stainless Steel Frame
Jiamusi original pulp
15cm thickening
Good evaporation
Fast cooling
Small Ventilator-Air Inlet
1.Air Inlet is made of ABS with UV resistant and anti-aging material.
Long service life.
2.Protecting mesh grid to preventing birds or other wild animal entry.
2.Protecting mesh grid to preventing birds or other wild animal entry.
4. Environment Control system
Control box control the whole system. The control box works sensitively and steadily is extremely important, sensitivity and steady are the base of choosing electronic components. In order to avoid unnecessary waste.
1.It contains Temperature dynamic diagram,Minimum ventilation rate dynamic diagram,lifting diagram,transverse ventilation controller,and longitudinal ventilation controller.
2.It can control Exhaust fans,Heater,Cooling pad,Lighting and feeding line. 3.It can be operated and monitored through mobile phone wirelessly.

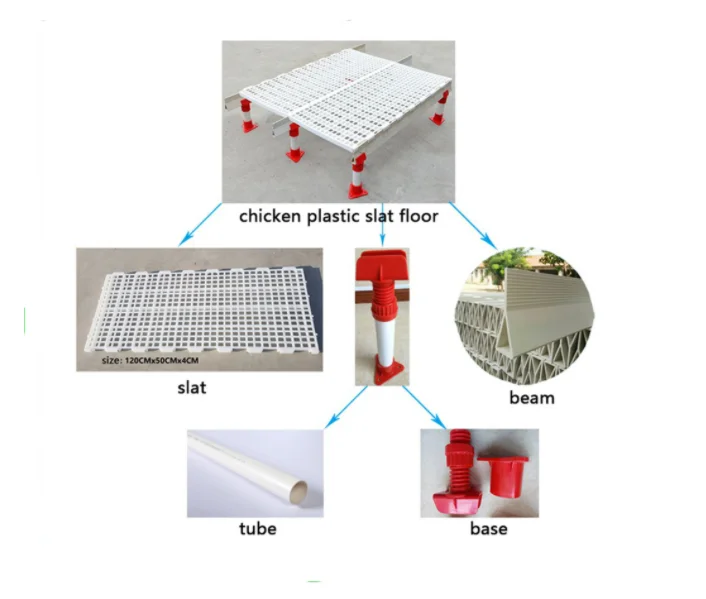

5. Plastic slat floor
1.Material:PP
Material:For chicken leakage dung
Size:1200×500×40mm
1000×500×40mm
Material:For chicken leakage dung
Size:1200×500×40mm
1000×500×40mm
2.Beam Material: PVC or FRP
Beam Model: 9cm/ 12cm/ 15cm
Beam Model: 9cm/ 12cm/ 15cm
3.Supporting legs material
PVC(Adjustable/ Unadjustable)
PVC(Adjustable/ Unadjustable)

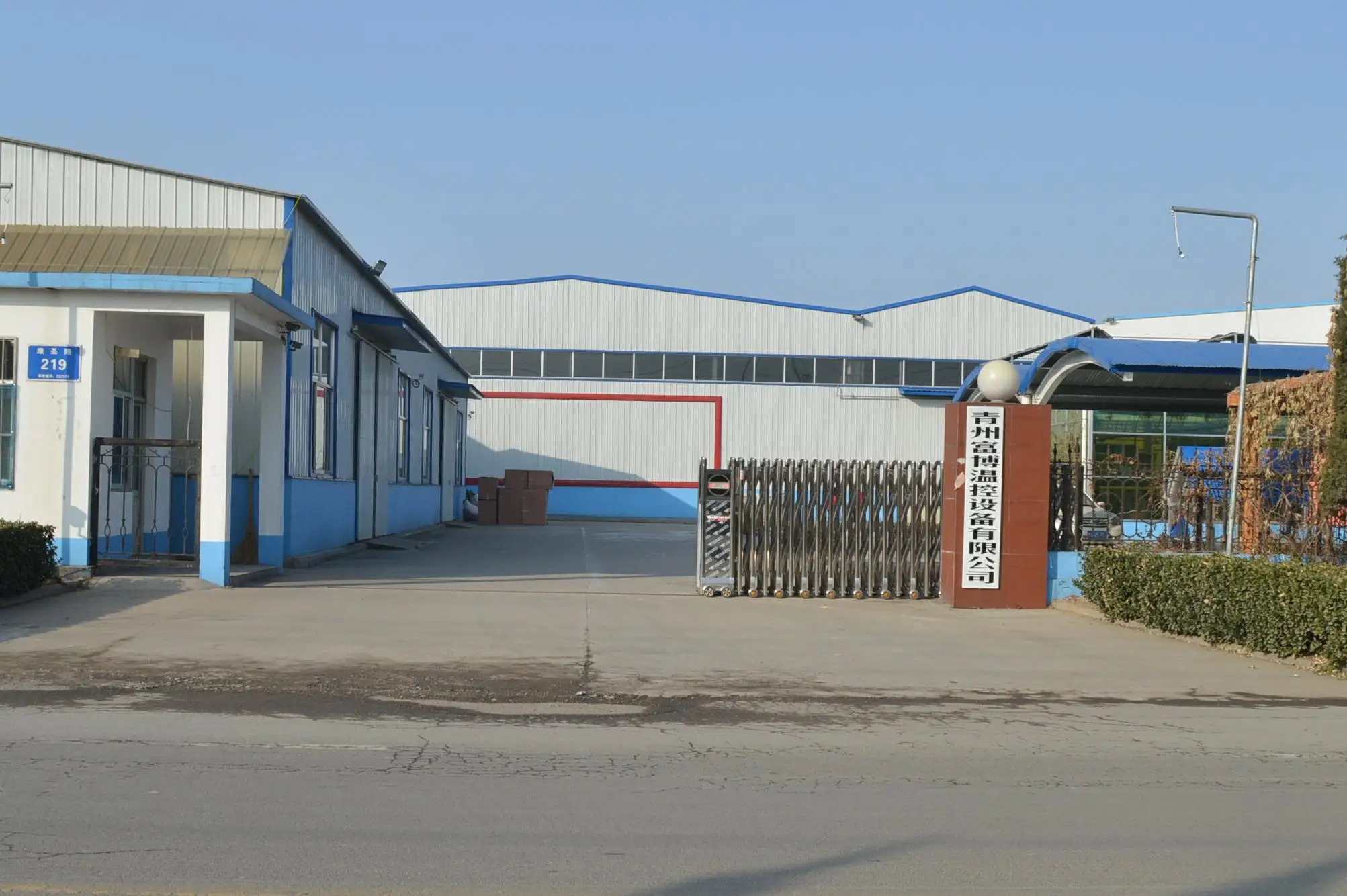

Company Profile
QINGZHOU FUBO KAIYUAN INDUSTRY CO., LTD
QINGZHOU FUBO KAIYUAN INDUSTRY CO., LTD is a professional manufacturer of poultry equipment, has more than 12 years of professional design and production experience, 6 efficient R& D teams, annual sales over $ 10.6 million.
Fubo Kaiyuan company force to excellent product technology, reasonable design, stable performance, constantly improve the marketing service system, established a comprehensive marketing network and perfect after-sales service system.
At present, the company products are exported to the whole world, including Asia, Europe, America and Africa and other countries.

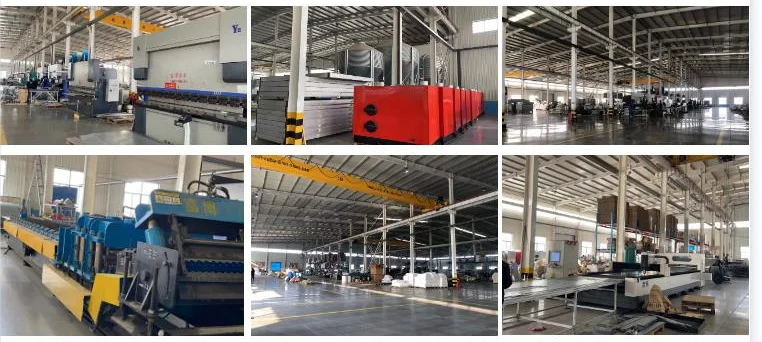

WORKSHOP SHOW
Fubo Kaiyuan equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry.
85% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
85% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally

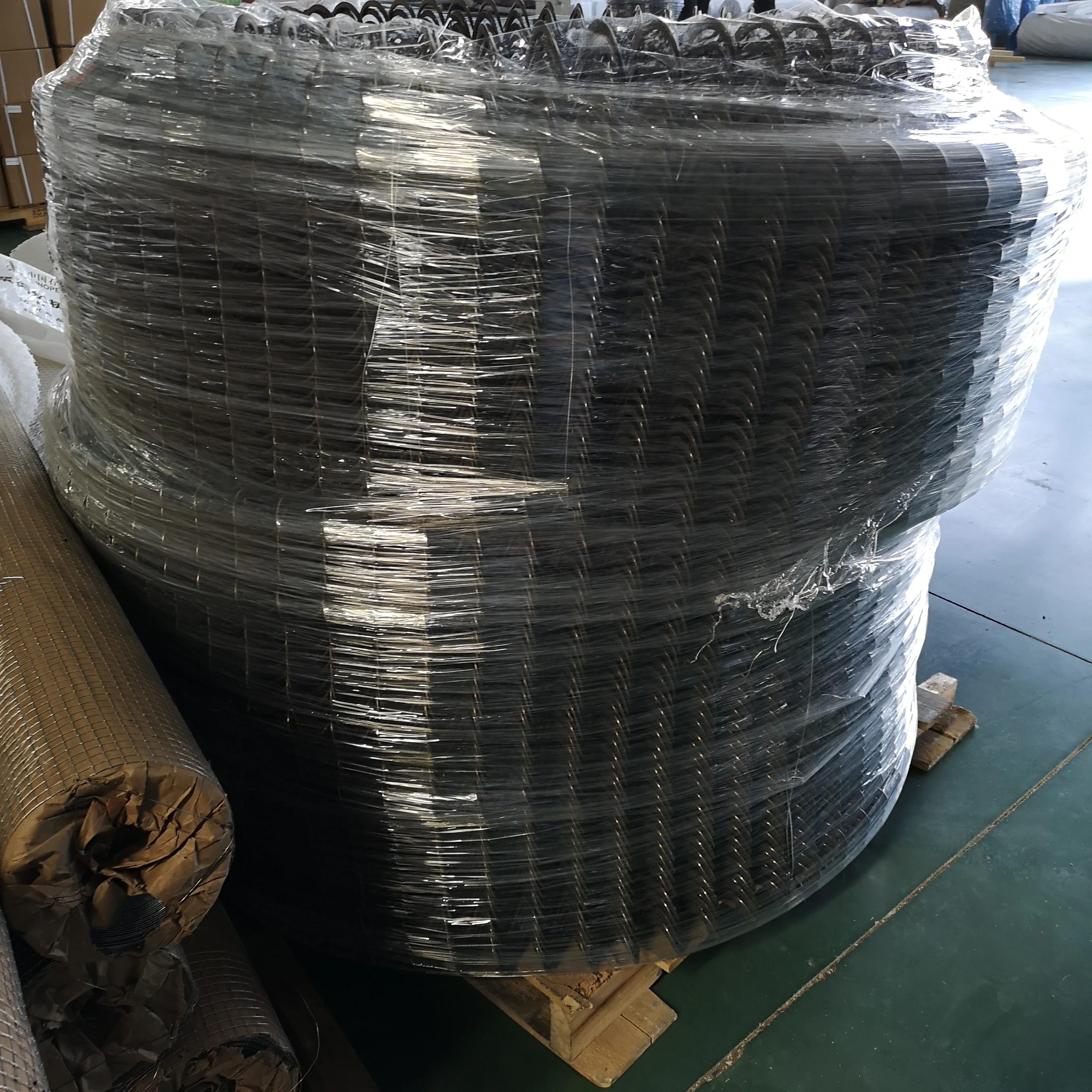

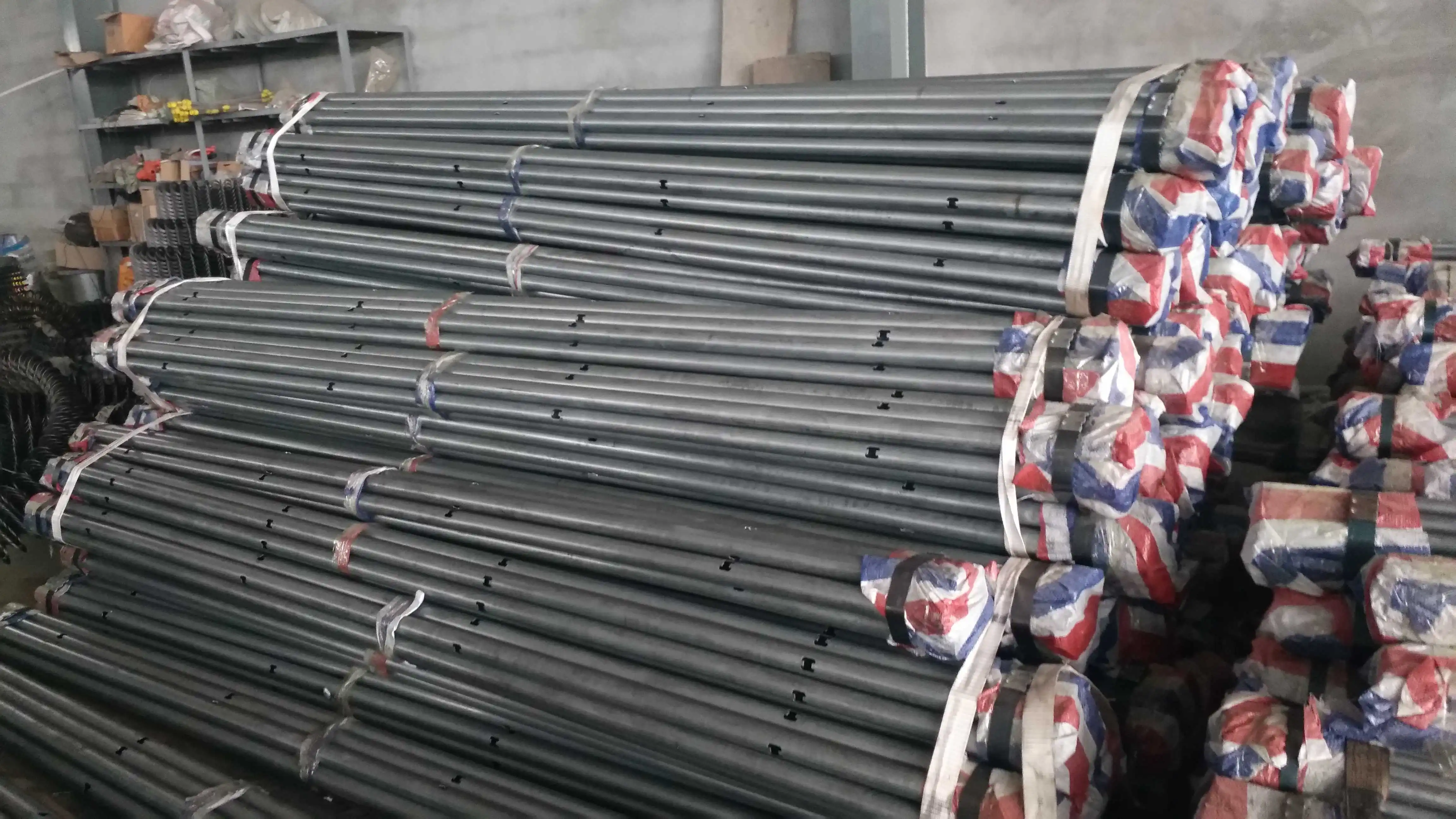

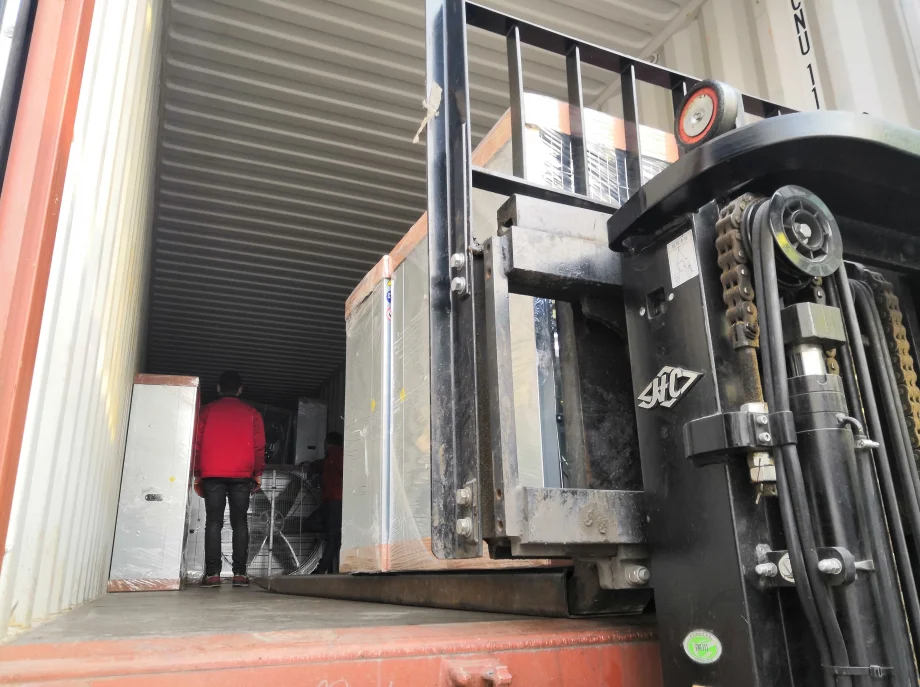

Packaging and Shipping

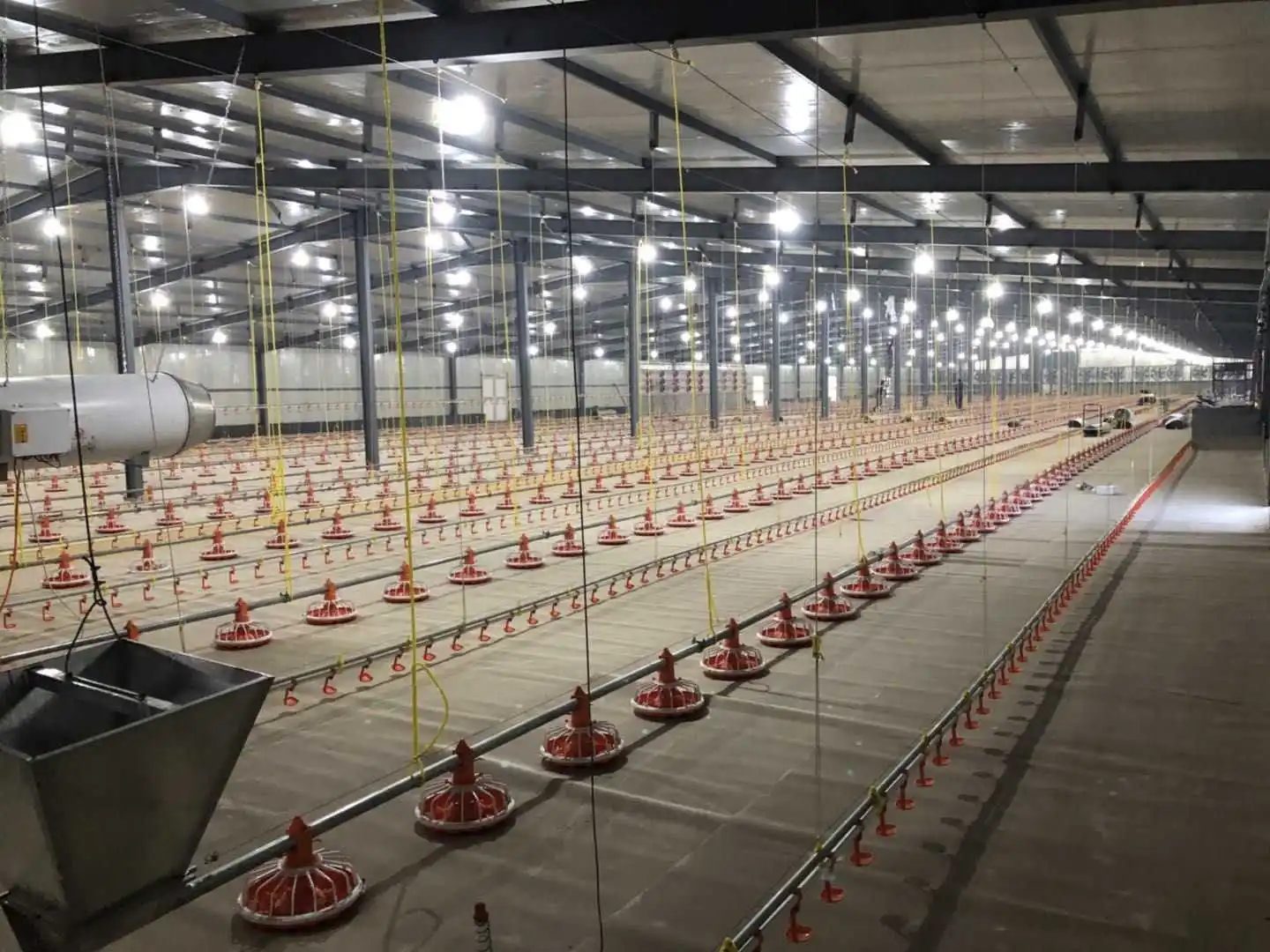

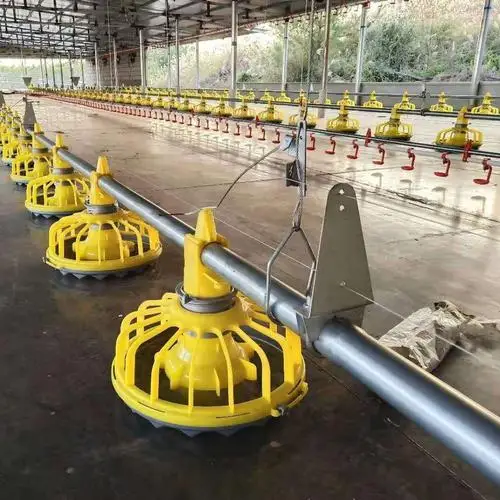

Application Images
Fubo Kaiyuan Company attend many domestic exhibitions and abroad exhibitions every year to promote our products, Continuous improvement in communication with customers
Many customers from all over the world come to visit our company every year.
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
After-sales service
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
Our company is highly praised by customers.
After-sales service
Pre-sales service* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
After-sales service
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
FAQ
1. Are you real manufacturer or ..?
-- Yes, we are 100% original manufacturer . Our factory located at Weifang city , ShanDong province .
In design, materials procurement, manufacturing semi-finished products testing, finished products are as such as strict control to ensure product quality. Welcome to visit us.
2. Can you make our own brand?
--Yes, we can provide the OEM &ODM service.
3. Any guarantee for your products?
--Our company's culture is "Quality is our culture!" All of our products with
12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!
4. How about the delivery time?
--Usually for sample order 1-2 days, for mass order 7-15 days.
5.What's the payment term?
A:Payment: 30% prepay By T/T ,70% pay before loading container. By T/T or L/C.
-- Yes, we are 100% original manufacturer . Our factory located at Weifang city , ShanDong province .
In design, materials procurement, manufacturing semi-finished products testing, finished products are as such as strict control to ensure product quality. Welcome to visit us.
2. Can you make our own brand?
--Yes, we can provide the OEM &ODM service.
3. Any guarantee for your products?
--Our company's culture is "Quality is our culture!" All of our products with
12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!
4. How about the delivery time?
--Usually for sample order 1-2 days, for mass order 7-15 days.
5.What's the payment term?
A:Payment: 30% prepay By T/T ,70% pay before loading container. By T/T or L/C.
