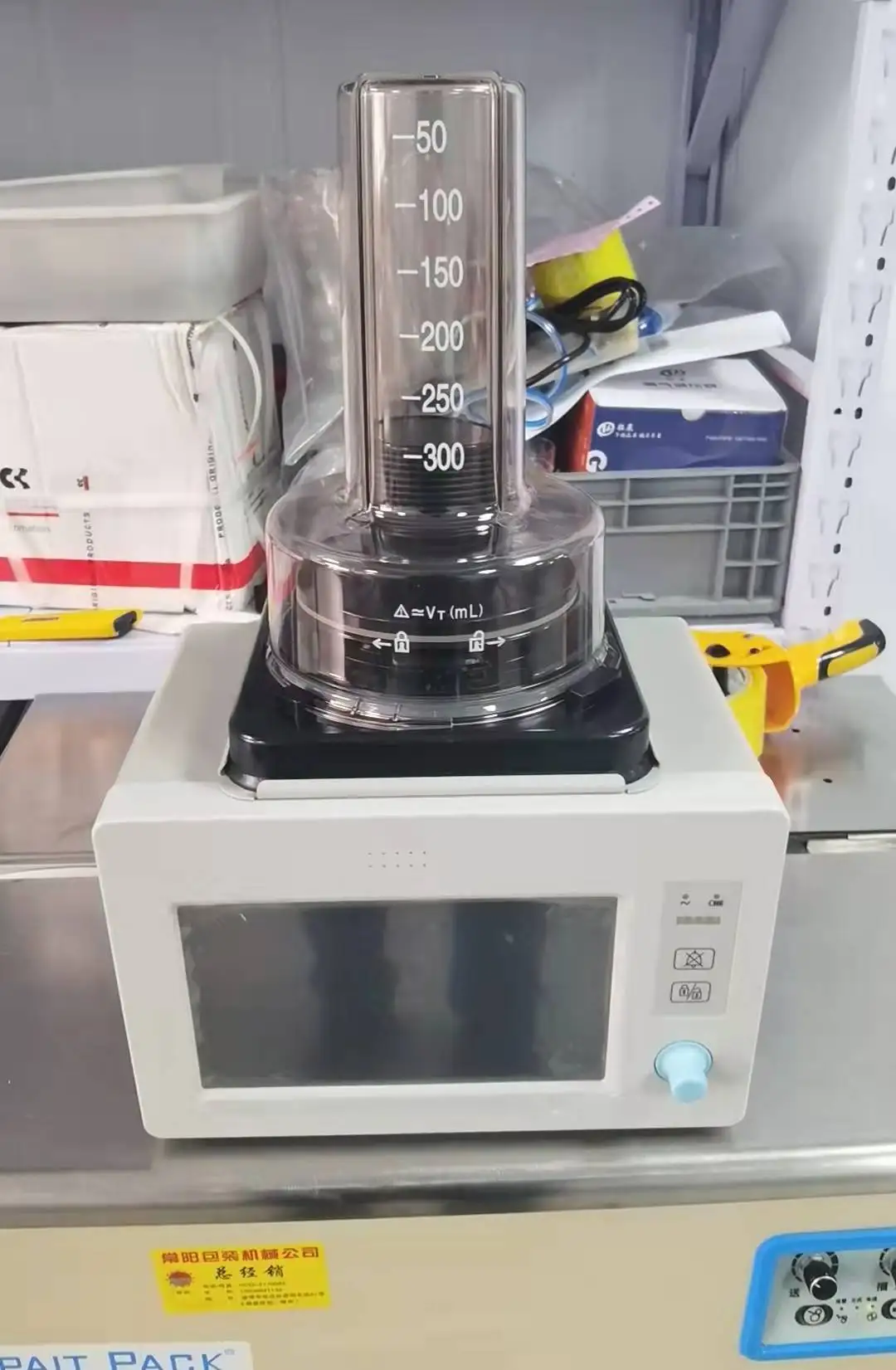

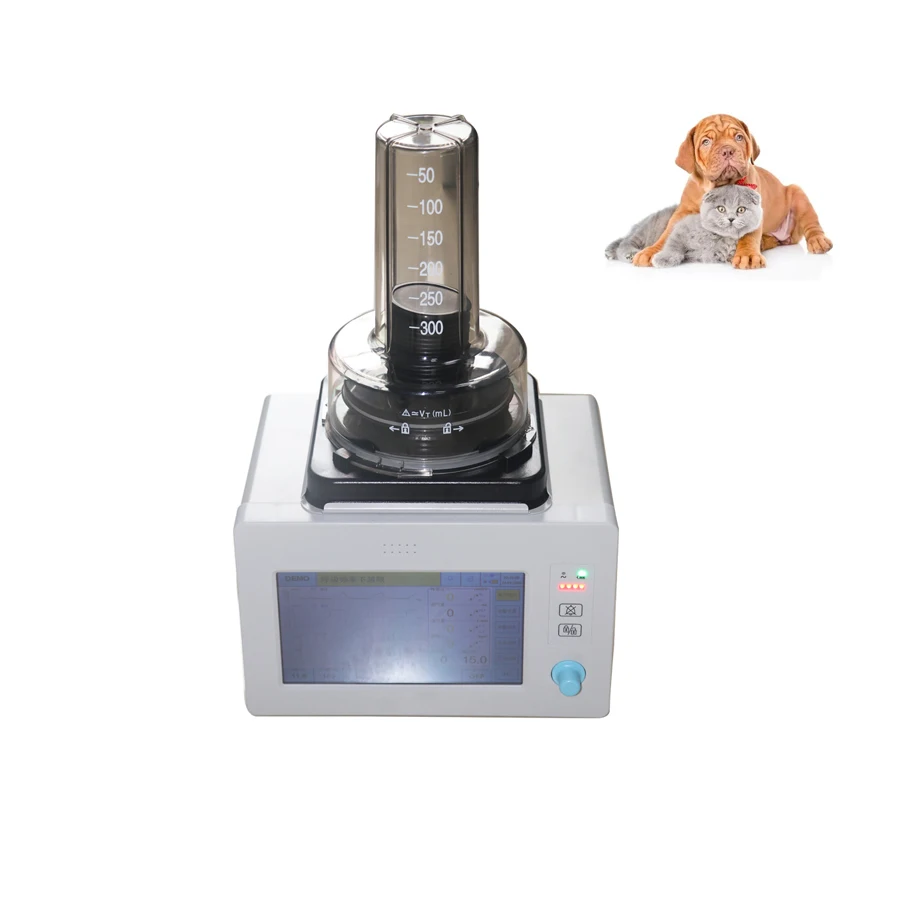

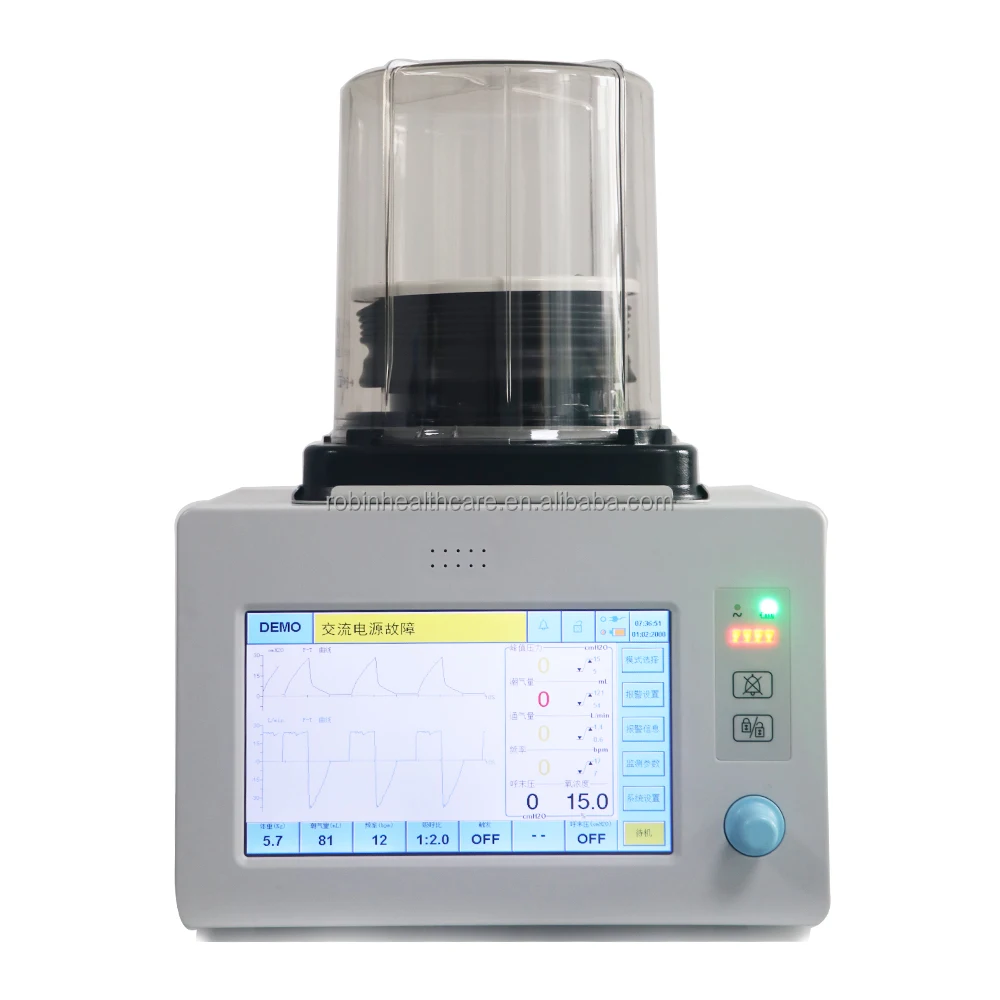

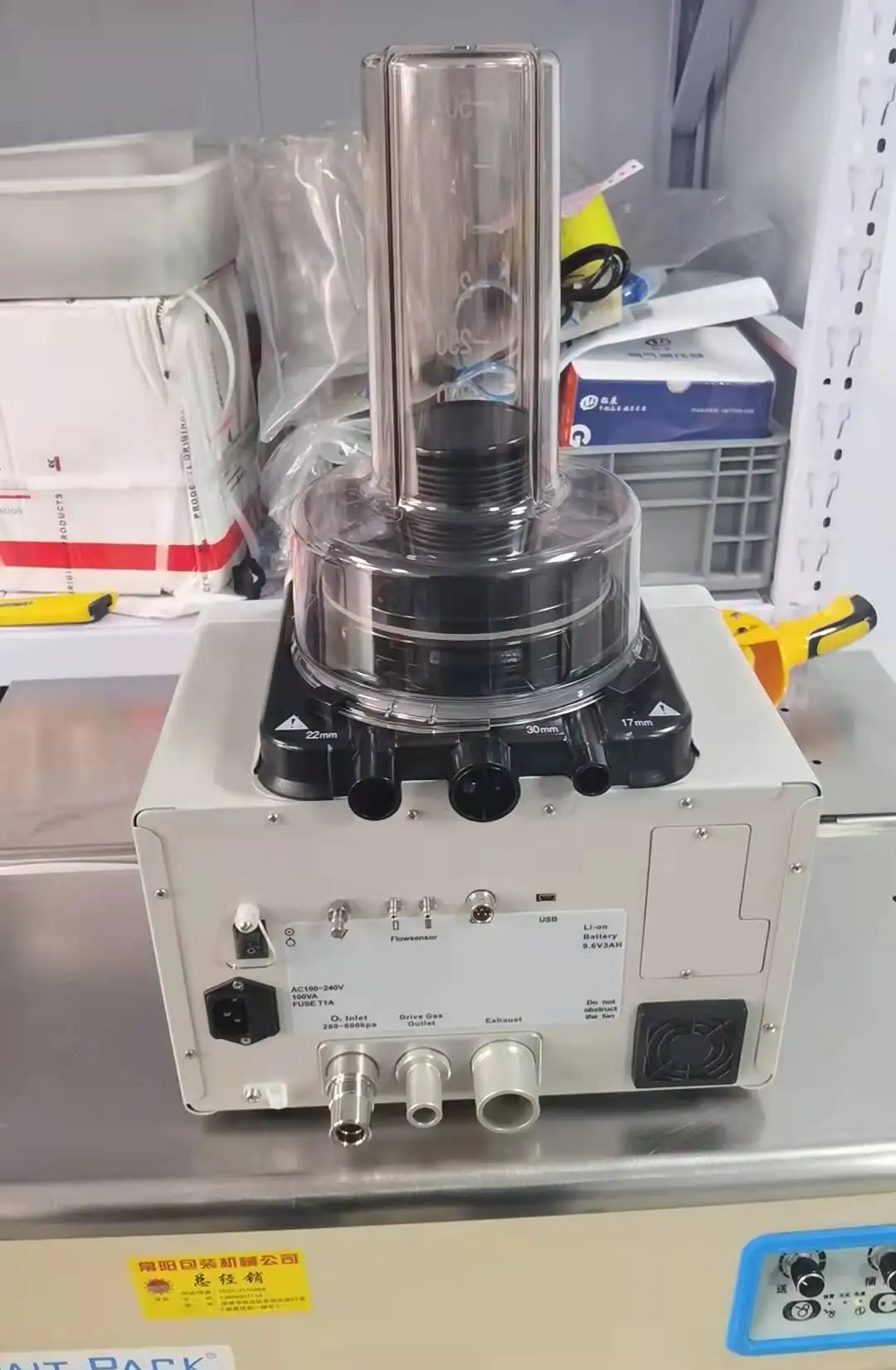

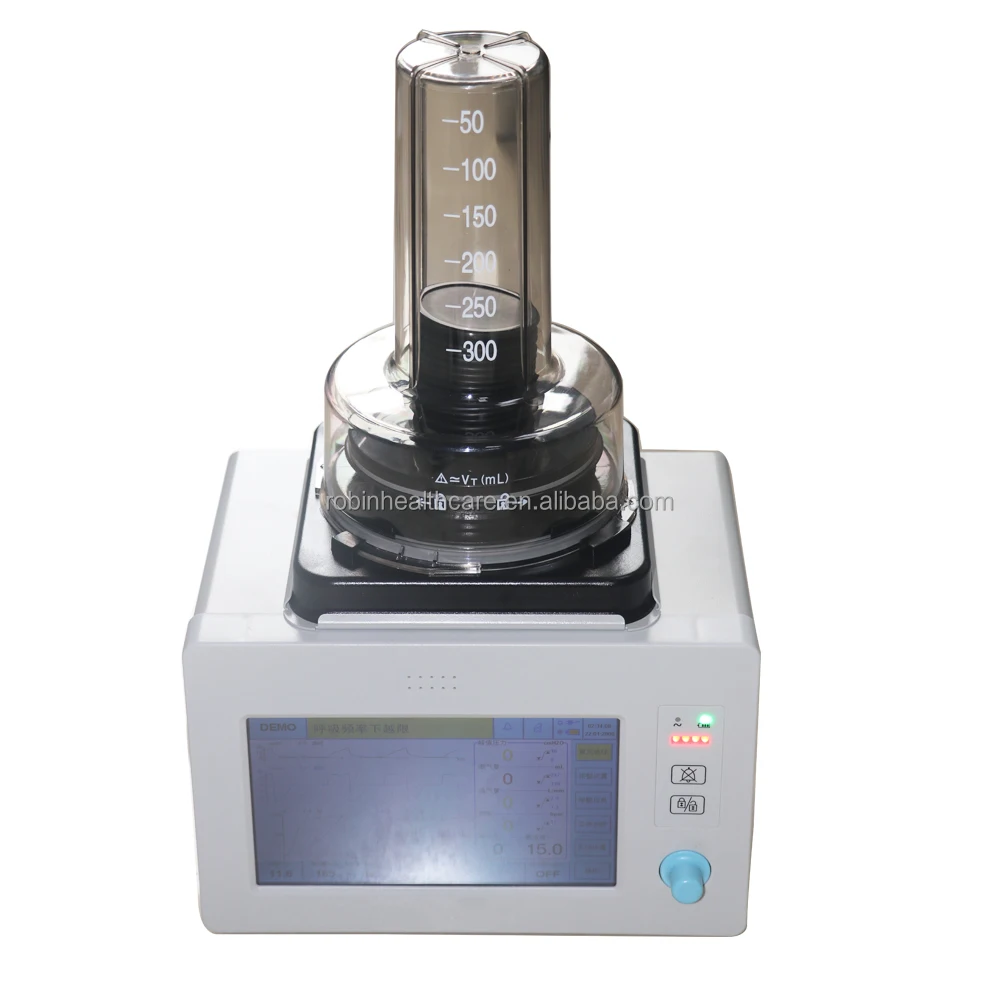

3 100kg Pet Small Animal Veterinary Anesthesia Ventilator
- Category: >>>
- Supplier: Qingdao Robin Health Technology Co. Ltd.
Share on (1600568843235):
Product Overview
Description
Product Description
Feature:
Specially user for animal,anesthesia ventilator,could widely apply in vet hospital,animal R&D institute,university laboratory,animal clinic，animal zoo,etc,it can match any brand anesthesia machine to use
Compact and salve the space.
Light and easy to move,save animal hospital cost.
automatically Calculation by weight to the other parameter
With breathing mode PCV mode, achieve the breathing automatically,
Assure the animal more comfortable.
With big animal bellow and small animal bellow,specially for animal use
The gas source pipeline take the high precious gas source,no leakage forever.
HD TFT Touch screen,perfect technology,touch at key to Set parameter ,very easy and simple to operate.
Build in battery could continue two more hours in case of power failure
Matching with different brand veterinary anesthesia machine
Specially user for animal,anesthesia ventilator,could widely apply in vet hospital,animal R&D institute,university laboratory,animal clinic，animal zoo,etc,it can match any brand anesthesia machine to use
Compact and salve the space.
Light and easy to move,save animal hospital cost.
automatically Calculation by weight to the other parameter
With breathing mode PCV mode, achieve the breathing automatically,
Assure the animal more comfortable.
With big animal bellow and small animal bellow,specially for animal use
The gas source pipeline take the high precious gas source,no leakage forever.
HD TFT Touch screen,perfect technology,touch at key to Set parameter ,very easy and simple to operate.
Build in battery could continue two more hours in case of power failure
Matching with different brand veterinary anesthesia machine
Parameter Description
Display 9" TFT, with touch screen.
Drive gas Gas type O2 or Air
Inlet pressure 280-600 kPa.
Max flow ≤ 120 L / min.
Operating Mode VCV,PCV,SIMV-VC,SIMV-PC,PSV,Manual/SPONT.
Optional: SIMV-PRVC, PRVC
Waveform Waveform:
Pressure,Flow-rate,Volume
Loop:PV loop, PF loop,FV loop
Safety Pressure System pressure does not exceed 6 KPa.
Battery Type Li-ion,work time more than 2 hours Configuration include：Main unit,bellows(0-300ml),foldable bag,bellow cover,medical corrugated pipelines,O2 supply pipeline,power cable,flow sensor，bellow:300-2000ml(Optional)
Display 9" TFT, with touch screen.
Drive gas Gas type O2 or Air
Inlet pressure 280-600 kPa.
Max flow ≤ 120 L / min.
Operating Mode VCV,PCV,SIMV-VC,SIMV-PC,PSV,Manual/SPONT.
Optional: SIMV-PRVC, PRVC
Waveform Waveform:
Pressure,Flow-rate,Volume
Loop:PV loop, PF loop,FV loop
Safety Pressure System pressure does not exceed 6 KPa.
Battery Type Li-ion,work time more than 2 hours Configuration include：Main unit,bellows(0-300ml),foldable bag,bellow cover,medical corrugated pipelines,O2 supply pipeline,power cable,flow sensor，bellow:300-2000ml(Optional)
Specification
item | value |
Place of Origin | China |
Brand Name | ROBIN |
Model Number | RB-DAV80V |
Properties | Diagnosis & Injection |
Product name | veterinary ventilator |
Display | 9 inch TFT, with touch screen |
Operating Mode | VCV,PCV,SPONT,Manual,Demo |
Safety Pressure | System pressure does not exceed 6 KPa |
Battery Type | Li-ion,work time more than 2 hours |
Negative pressure alarm | Airway pressure is less than (-10) cmH 2 O |
