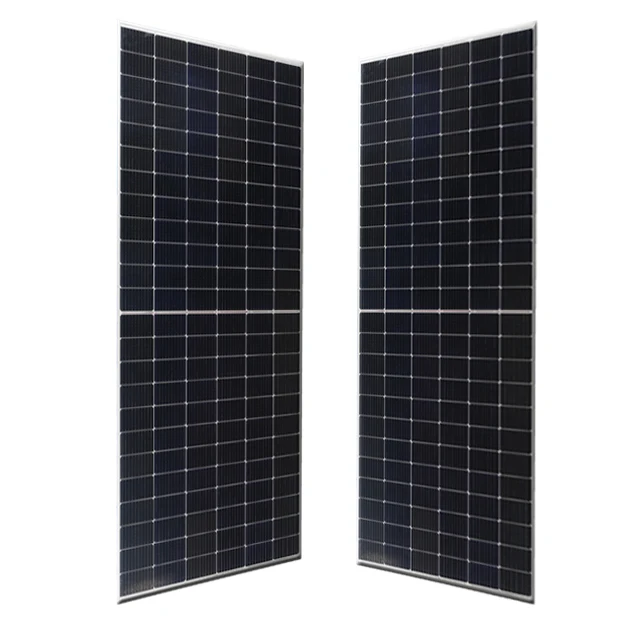

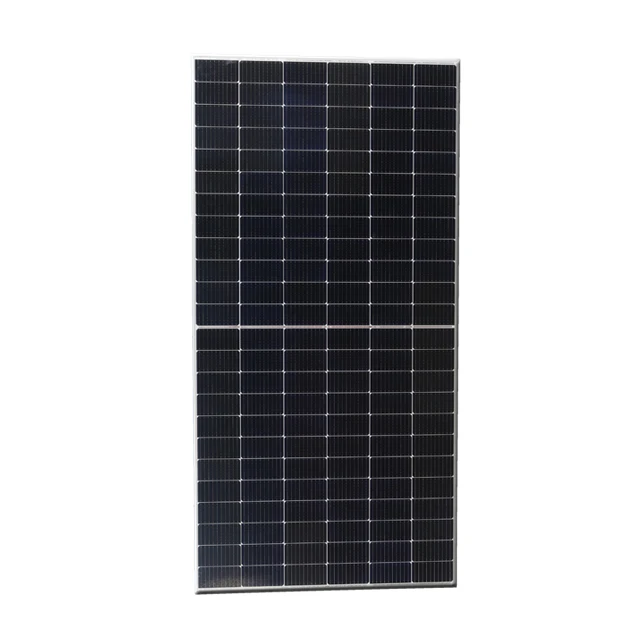

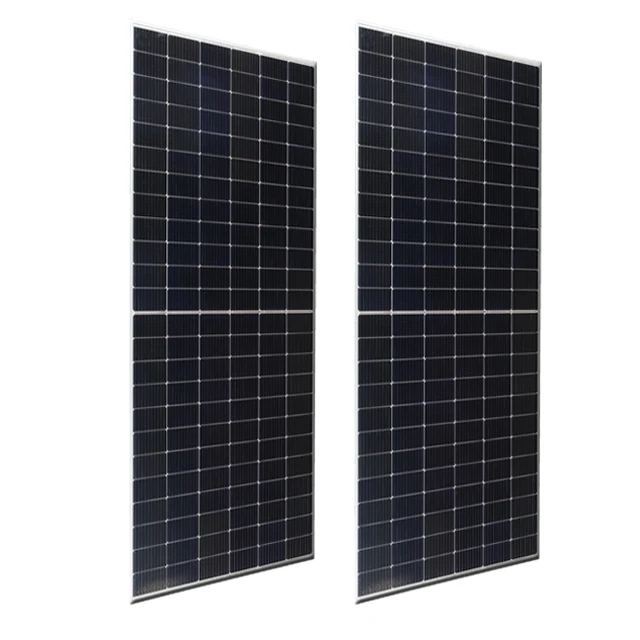

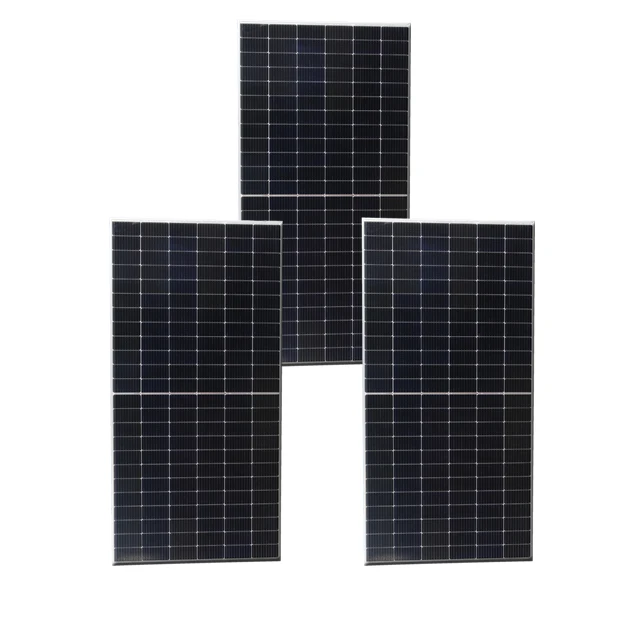

Half Cells Monocrystalline Silicon Solar Panel Hot Sale 525W 550W High Efficiency 144 Solar Power System Perc,half Cell 4mm2
- Category: >>>
- Supplier: Shandong Sengy Intelligent Technology Co. Ltd.
Share on (1600568943519):
Product Overview
Description
Product Description
Title goes here.
Mechanical Data

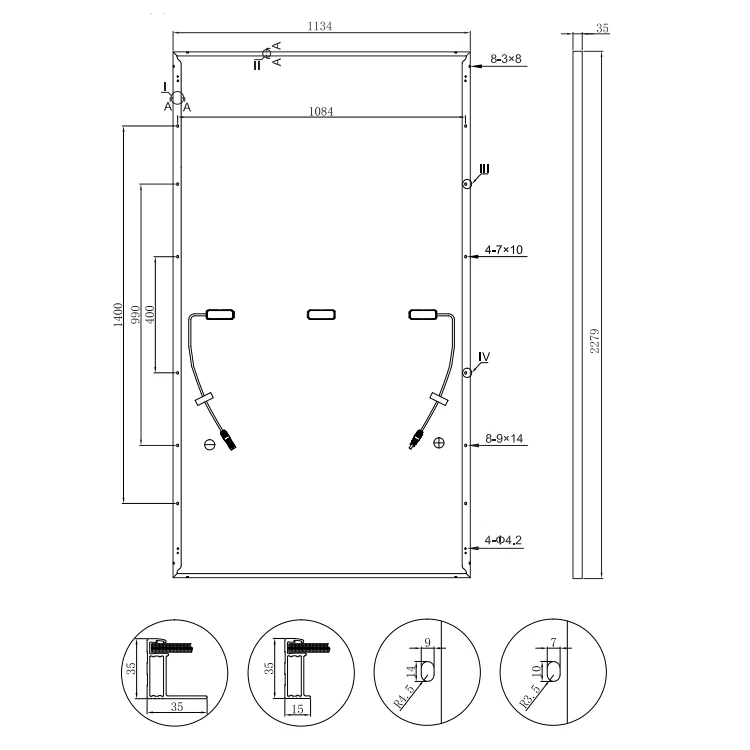

Module Dimension：2279×1134×35mm
Weight：28.5 kg±3%
Snow/Wind Load：5400/2400 Pa
Number of Cells：144pcs
Thickness of Glass：3.2mm
Junction Box：IP68, 3 Diodes
Length：(+)290mm /(-)290mm(including connector)
Connector： HTC-16, IP68
Temperature Parameter
Temperature Cycling Range： -40℃～+85℃
Norminal Module Operating Temperature：45±2 ℃
Temperature Coefficient of Isc：0.048%/℃
Temperature Coefficient of Voc ：-0.252 %/℃
Temperature Coefficient of Pmax ：-0.332%/℃
Module Dimension：2279×1134×35mm
Weight：28.5 kg±3%
Snow/Wind Load：5400/2400 Pa
Number of Cells：144pcs
Thickness of Glass：3.2mm
Junction Box：IP68, 3 Diodes
Length：(+)290mm /(-)290mm(including connector)
Connector： HTC-16, IP68
Temperature Parameter
Temperature Cycling Range： -40℃～+85℃
Norminal Module Operating Temperature：45±2 ℃
Temperature Coefficient of Isc：0.048%/℃
Temperature Coefficient of Voc ：-0.252 %/℃
Temperature Coefficient of Pmax ：-0.332%/℃
Main advantages
MBB main grid technology, Higher component power
Output power (0, +5w) 100% positive tolerance 2 times 100% El tests
Glass surface antireflection and self-cleaning Better power generation performance under shadow shading
Stronger anti PID ability
Output power (0, +5w) 100% positive tolerance 2 times 100% El tests
Glass surface antireflection and self-cleaning Better power generation performance under shadow shading
Stronger anti PID ability
Specification

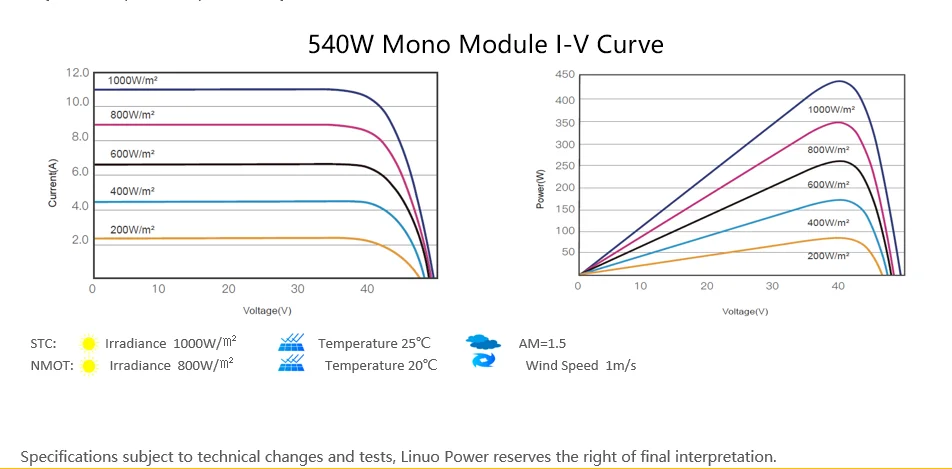

ELECTRICAL PARAMETERS AT STC | ||||||||||||
TYPE | LSSMH144 | LSSMH144 | LSSMH144 | LSSMH144 | LSSMH144 | LSSMH144 | ||||||
Rated Maximum Power(Pmax) [W] | 525 | 530 | 535 | 540 | 545 | 550 | ||||||
Open Circuit Voltage(Voc) [V] | 49.04 | 49.19 | 49.36 | 49.47 | 49.61 | 49.72 | ||||||
Maximum Power Voltage(Vmp) [V] | 40.54 | 40.69 | 40.84 | 41.03 | 41.16 | 41.29 | ||||||
Short Circuit Current(lsc) (A] | 13.40 | 13.47 | 13.55 | 13.64 | 13.72 | 13.81 | ||||||
Maximum Power Current(lmp) [A] | 12.96 | 13.03 | 13.11 | 13.17 | 13.25 | 13.33 | ||||||
Module Efficiency [%] | 20.31 | 20.51 | 20.70 | 20.89 | 21.09 | 21.28 | ||||||
Power Tolerance | 0~+5W | |||||||||||
STC | Irradiance 1000W/m2, cell temperature 25°C, AM1.5G | |||||||||||
Remark | Electrical data in this catalog do not refer to a single module and they are not part of the offer. They only serve for comparison among different module types. | |||||||||||
More Details Please Send Inquiry To Us | ||||||||||||
Production Process
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Project Cases
FAQ
Q1: How to choose the correct Panel?
A1: Tell us your demand, then our sales will recommend a suitable panel for you.
Q2: How about the delivery time?
A2: 7 days for sample; 15 days for bulk order.
Q3: Can I have sample before formal order?
A3: Yes , welcome to contact us about the samples .
Q4: Can you support OEM/ODM service ?
A4: Yes, with professional solar system engineers and designers, we can do OEM/ODM for clients .
Q5. How to ensure product quality?
A5:We have a professional quality control team responsible for checking and controlling all orders from raw materials to finished products.
Q6: How to solve the technical problem?
A6: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q7: Are you factory ?
A7: We are manufacturer in solar products area more than 10 years .
Q8: What is your payment method for accepting full payment?
A8: Provide a variety of payment methods, including PayPal,Visa, MasterCard, Alibaba Trade Assurance, Western Union and wire transfer.
A1: Tell us your demand, then our sales will recommend a suitable panel for you.
Q2: How about the delivery time?
A2: 7 days for sample; 15 days for bulk order.
Q3: Can I have sample before formal order?
A3: Yes , welcome to contact us about the samples .
Q4: Can you support OEM/ODM service ?
A4: Yes, with professional solar system engineers and designers, we can do OEM/ODM for clients .
Q5. How to ensure product quality?
A5:We have a professional quality control team responsible for checking and controlling all orders from raw materials to finished products.
Q6: How to solve the technical problem?
A6: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q7: Are you factory ?
A7: We are manufacturer in solar products area more than 10 years .
Q8: What is your payment method for accepting full payment?
A8: Provide a variety of payment methods, including PayPal,Visa, MasterCard, Alibaba Trade Assurance, Western Union and wire transfer.
